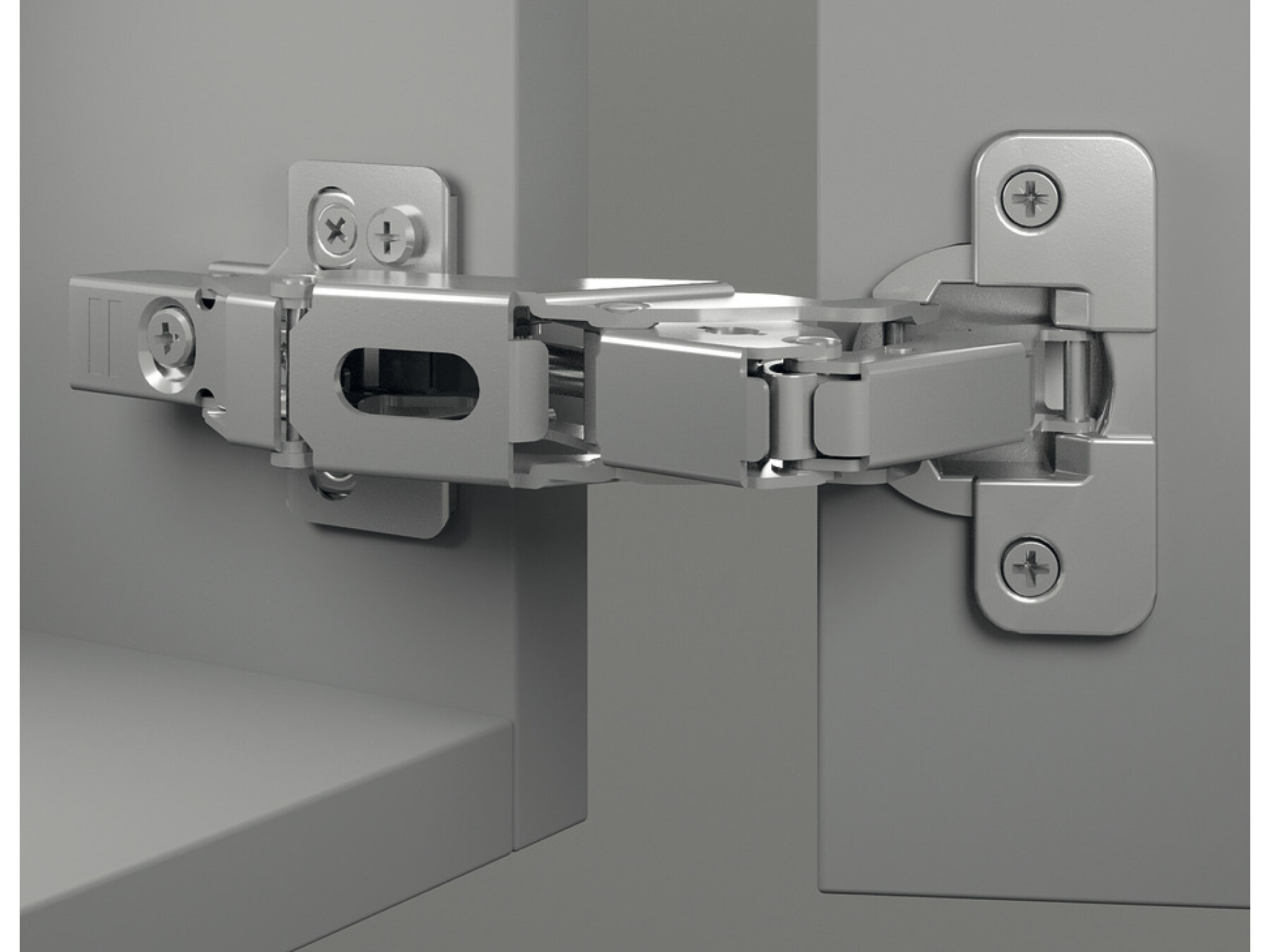

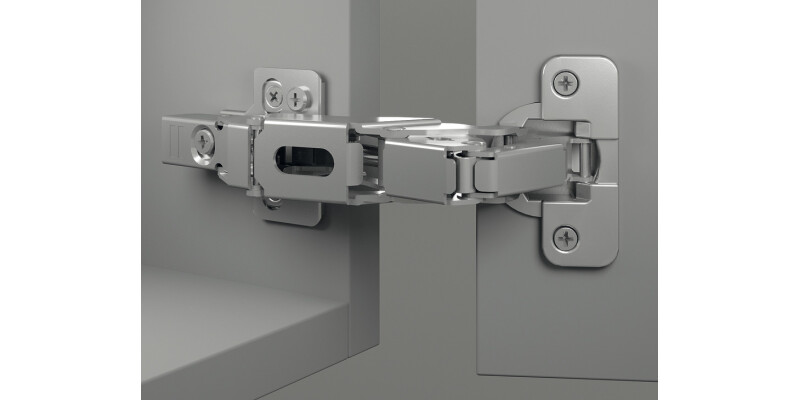

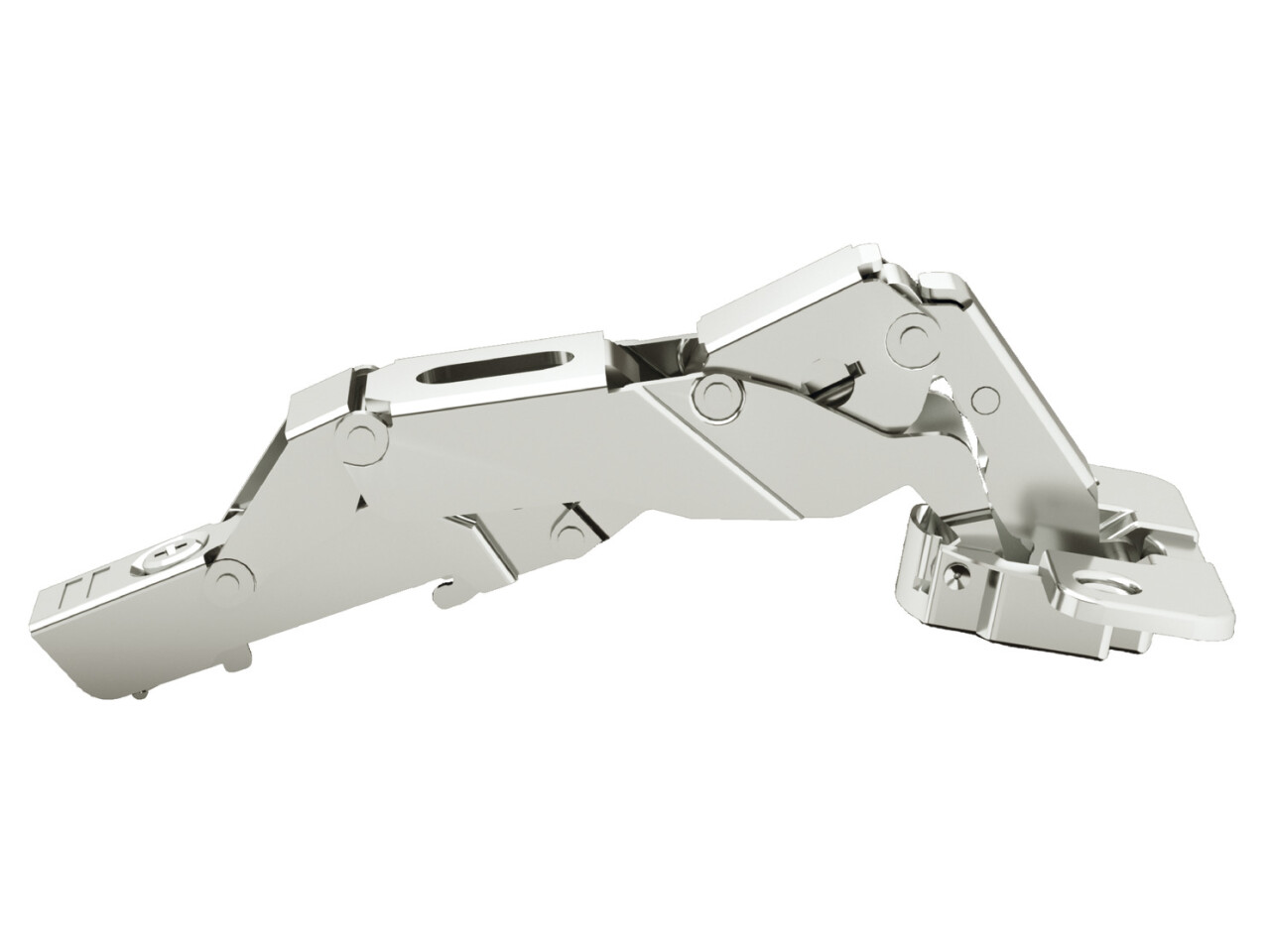

M310 155D Hinge Qck FO 48/6 w SC
Part Number: 311.63.731
for cabinets with internal pull outs or extending trays, With soft close, screw fixing cup, drilling pattern 48/6, nickel plated
Price:
£1.92
Per Item
Zero protrusion Warranty/Guarantee information This product is covered under Häfele’s Lifetime Guarantee.... Read More
Product Information
Product Details
Zero protrusion
Warranty/Guarantee information
This product is covered under Häfele’s Lifetime Guarantee.
All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.
All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.
For more information go to:
Services > Customer Support > Häfele Lifetime Guarantee

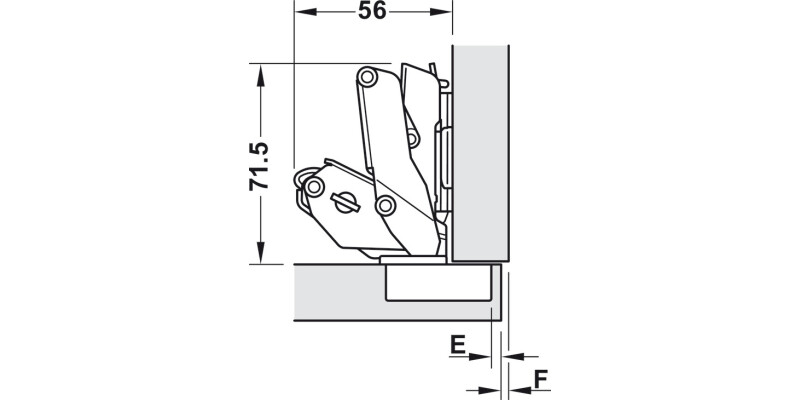

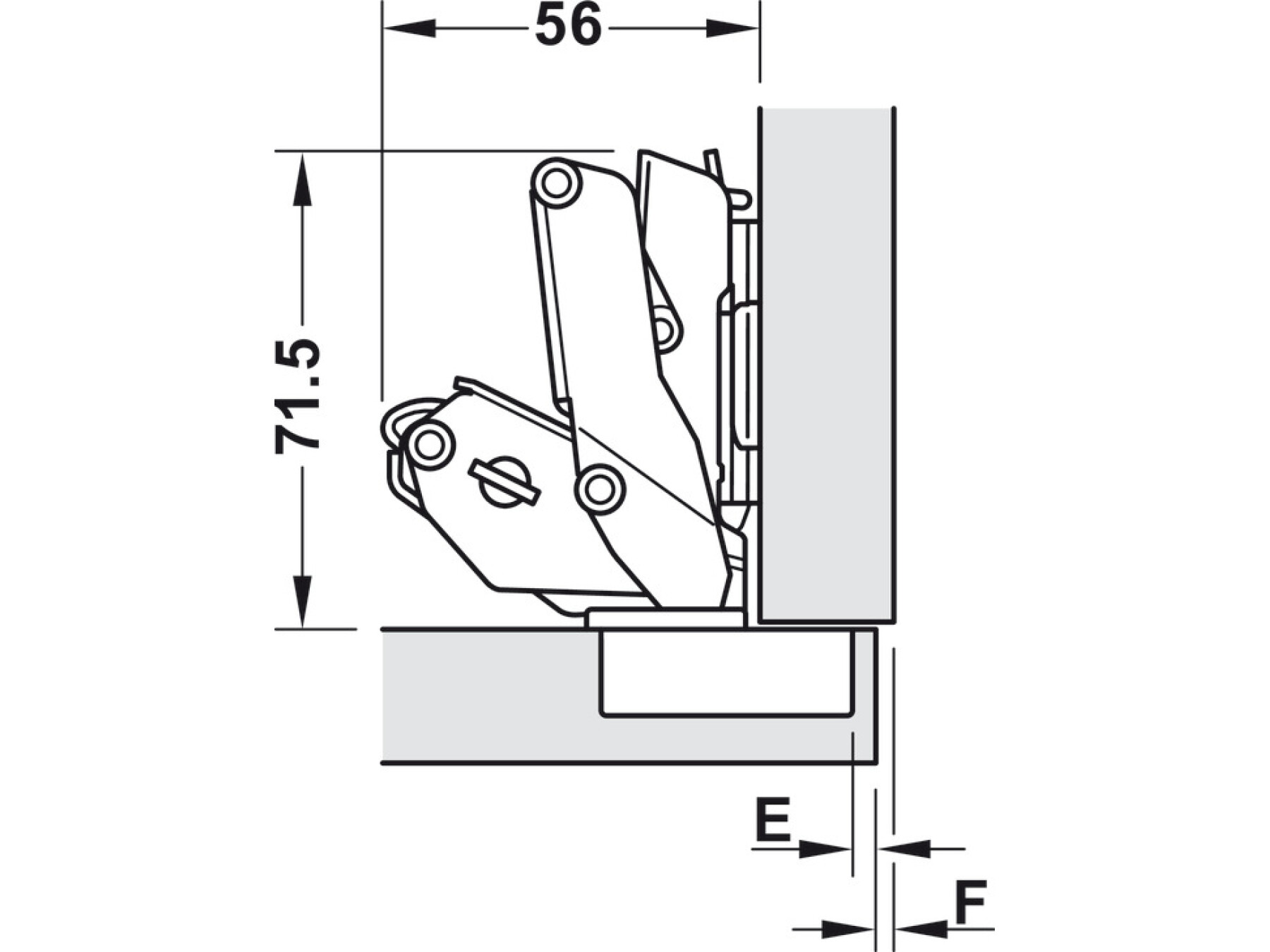

| Minimum gap | |||||
|---|---|---|---|---|---|
| Door thickness mm | Distance to cup E mm | ||||
| 3,0 | 4,0 | 5,0 | 6,0 | 7,0 | |
| 15 | 0,5 | 1,2 | 2,0 | 3,0 | 3,9 |
| 16 | 0,5 | 1,3 | 2,2 | 3,2 | 4,2 |
| 17 | 0,5 | 1,4 | 2,3 | 3,4 | 4,3 |
| 18 | 0,7 | 1,5 | 2,5 | 3,5 | 4,6 |
| 19 | 0,8 | 1,7 | 2,8 | 3,7 | 5,0 |
| 20 | 1,0 | 1,9 | 2,9 | 3,8 | 5,1 |
| 21 | 1,2 | 2,2 | 3,0 | 4,0 | 5,2 |
| 22 | 1,3 | 2,3 | 3,3 | 4,2 | 5,3 |
| 23 | 1,5 | 2,4 | 3,5 | 4,5 | 5,5 |
| 24 | 1,7 | 2,7 | 3,7 | 4,8 | 5,6 |
| Minimum gap F | |||||
| Door overlay mm | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | |
| 3 | 4 | 5 | 6 | 7 | 0 | ||||
| 3 | 4 | 5 | 6 | 7 | 2 | ||||
| 3 | 4 | 5 | 6 | 7 | 4 | ||||
| Distance to cup E mm | Mounting plate distance mm | ||||||||
The values of the cup spacing table on the catalogue page apply to the centre position of the side adjusting screw.
Specifications
Area of application
for cabinets with internal pull outs or extending trays
Concealed hinge version
Full overlay
Crank type
Straight
For door material
Wood
Door processing for assembly
with cup drilling
Material
Steel
Colour/finish
nickel plated
Opening angle
155°
Cup drilling depth
12.00 mm
Cup drilling Ø
35.00 mm
Cup fixing
for screw fixing
Drilling pattern
48/6
Adjustment facility
Side adjustment ±2.5 mm, Height adjustment ±2 mm (via mounting plate), Depth adjustment ±2 mm
Installation
Door to cabinet with quick fixing system
Hafele Lifetime Guarantee
25 years
Order reference
Order mounting plate and Hospa 3.5 mm countersunk screws separately
