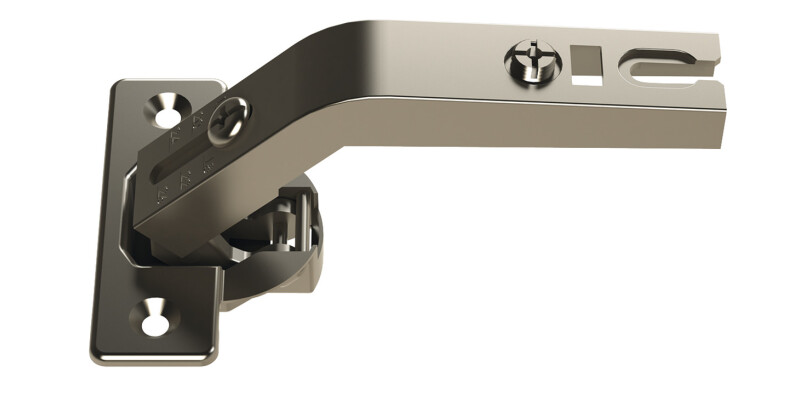

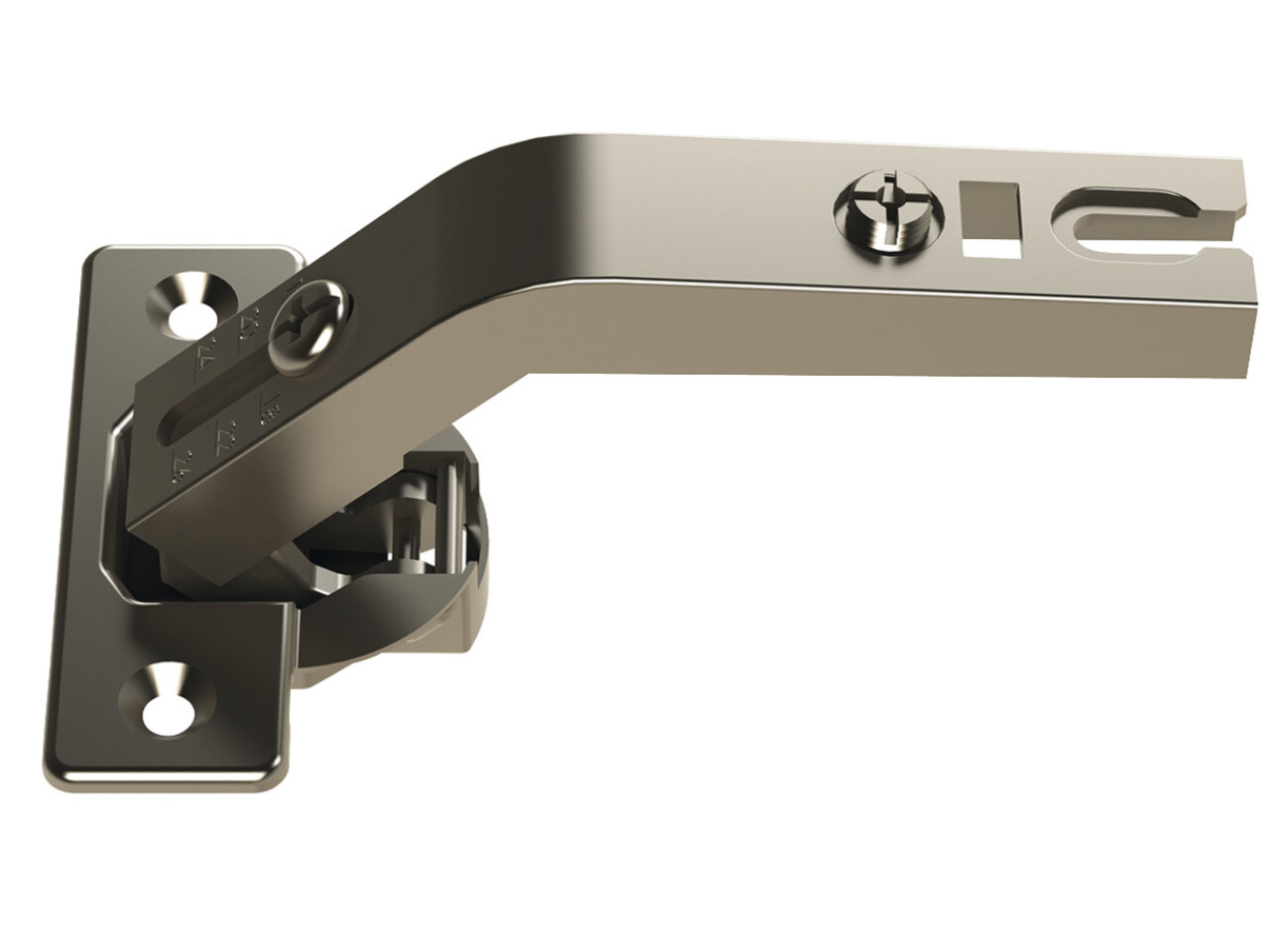

M310 135D Pie Cut Crn Sld 45/9.5 NP

Part Number: 311.83.535
Slide on, nickel plated
Price:
£1.99
Per Item
VAT excluded

For connecting two corner cabinet doors, this hinge attaches the middle door to the outer door Warranty/Guarantee... Read More

Product Information

Product Details

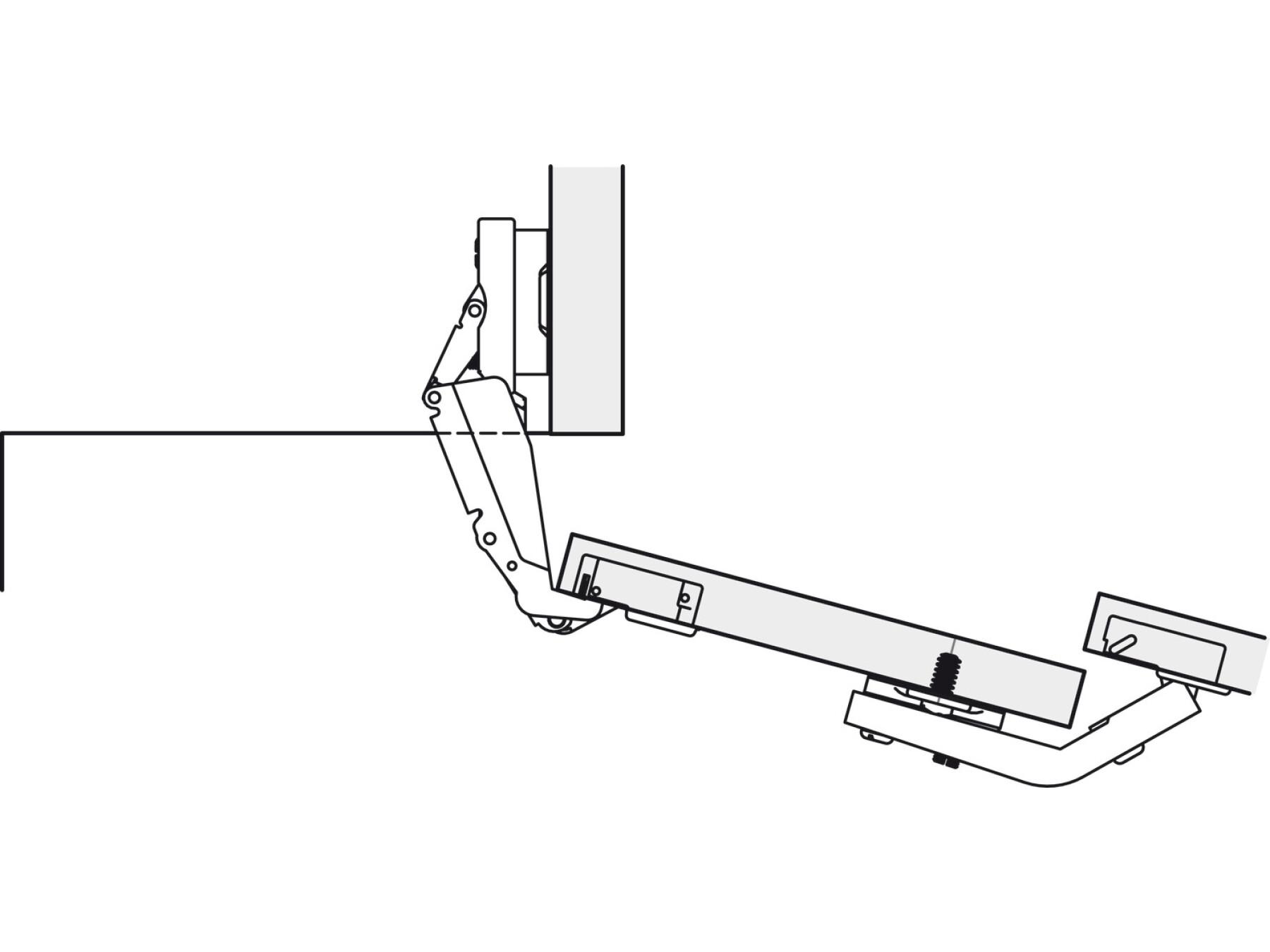

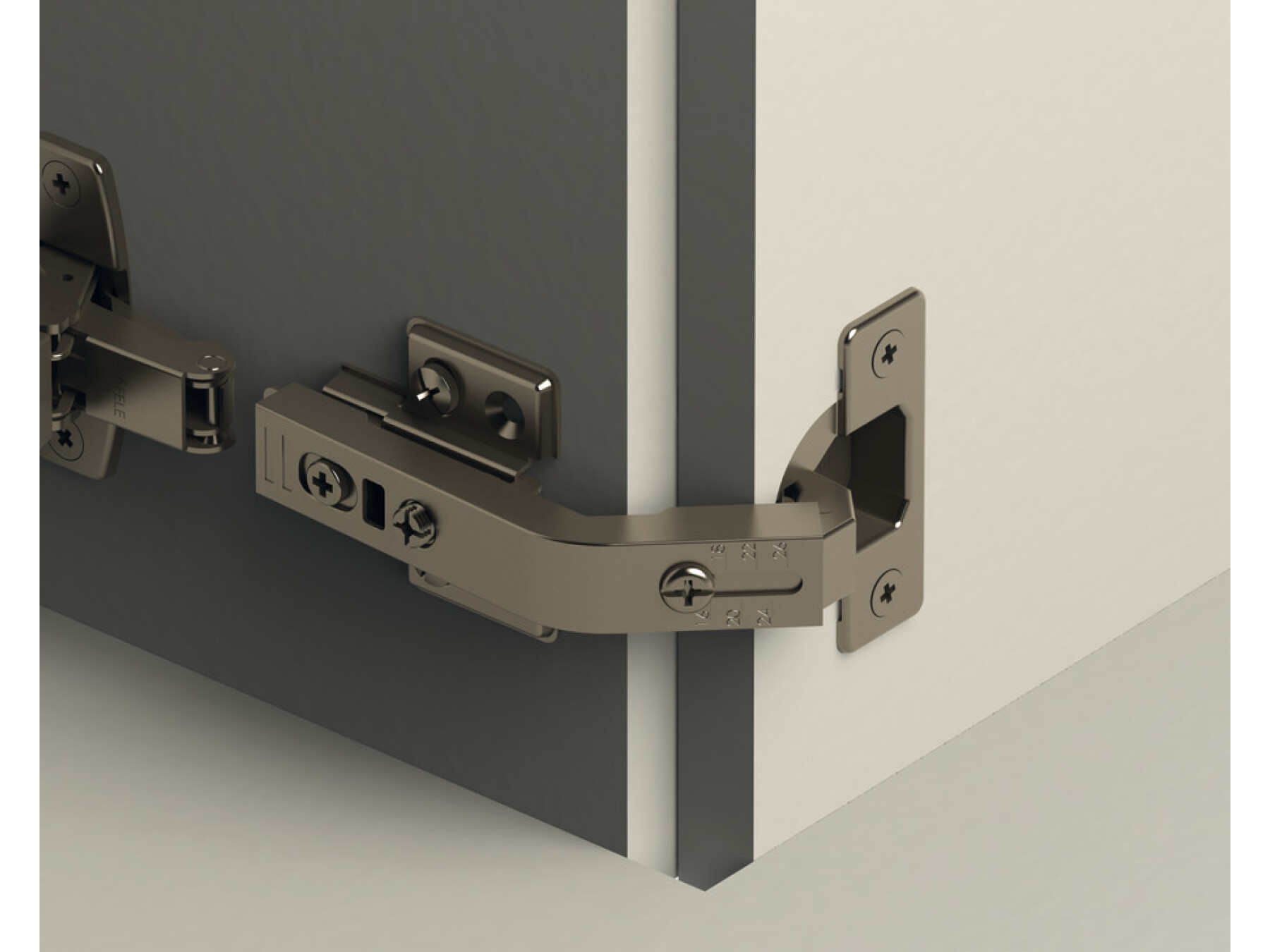

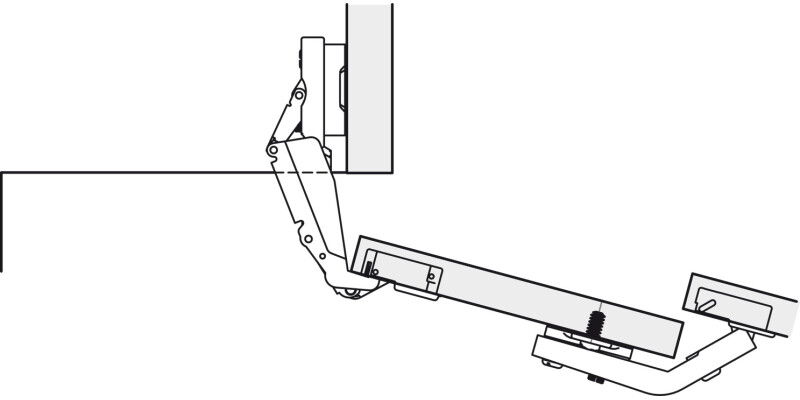

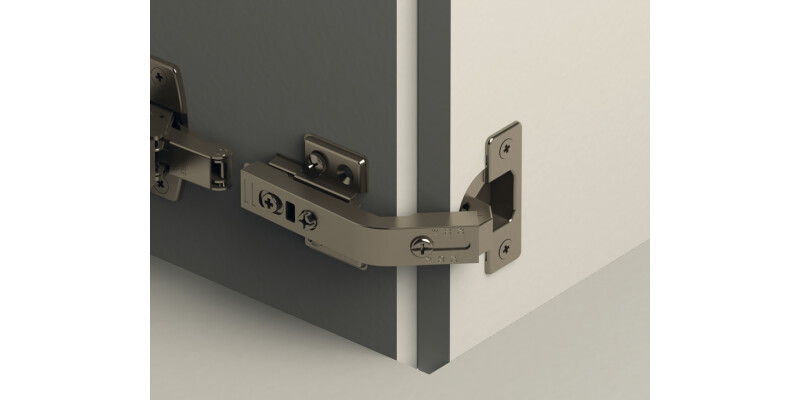

For connecting two corner cabinet doors, this hinge attaches the middle door to the outer door

Warranty/Guarantee information

This product is covered under Häfele’s Lifetime Guarantee.
All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.
All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.

For more information go to:
Services > Customer Support > Häfele Lifetime Guarantee

Specifications

Area of application

For connecting two corner cabinet doors

For door material

Opening angle

135°

Cup drilling depth

Cup drilling Ø

35.00 mm

Cup fixing

for screw fixing

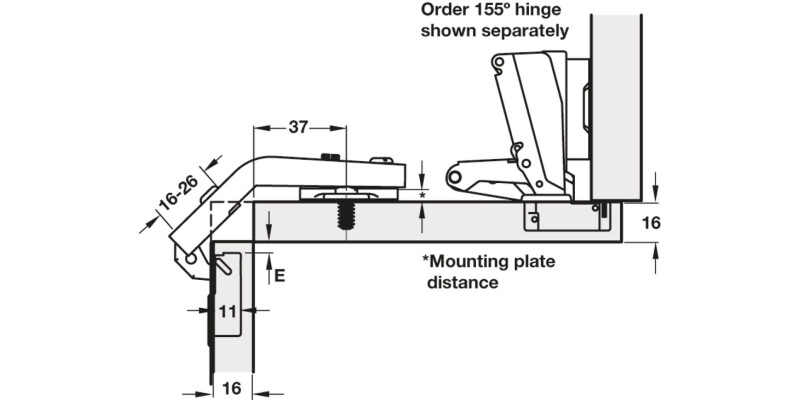

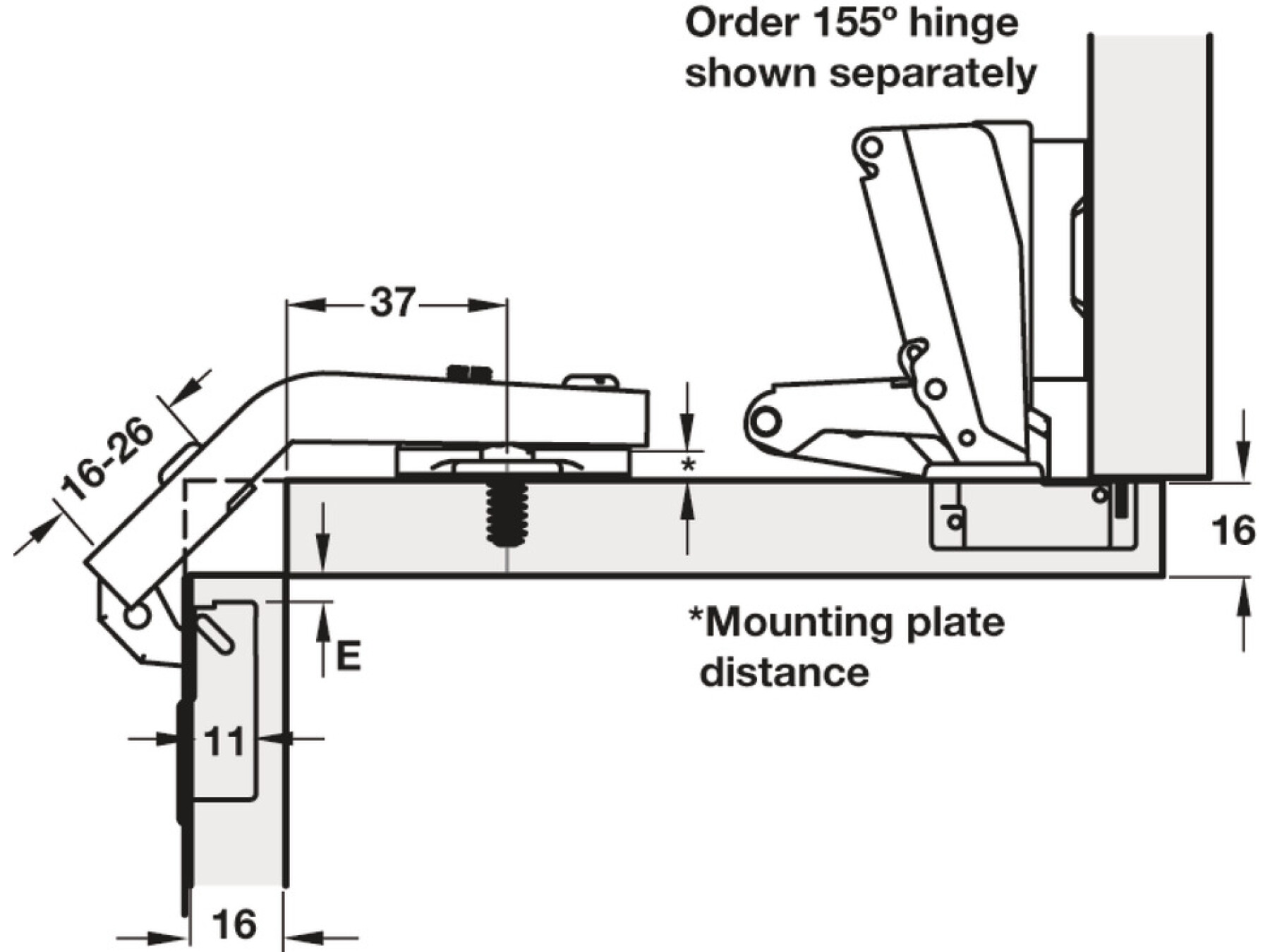

Drilling pattern

45/9.5

Adjustment facility

Side adjustment ±3 mm, Height adjustment ±2 mm (via mounting plate), Depth adjustment ±2 mm

Installation

Installation: Door to cabinet with slide on or quick fixing system

Hafele Lifetime Guarantee

25 years

Order reference

Order Hospa Ø 3.5 mm countersunk screws separately
