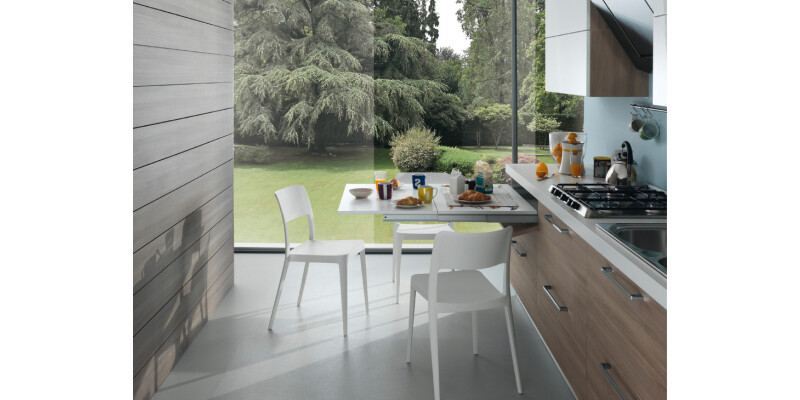

LUNCH PO Table Fitting 60kg 1200mm St/AA
Pull out table instead of a drawer, maintains uniform front designSeating for up to 5 peopleSecure cabinet to... Read More
Product Details

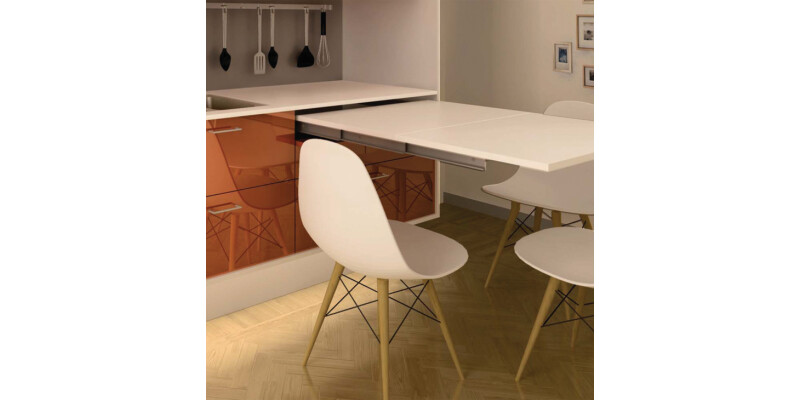

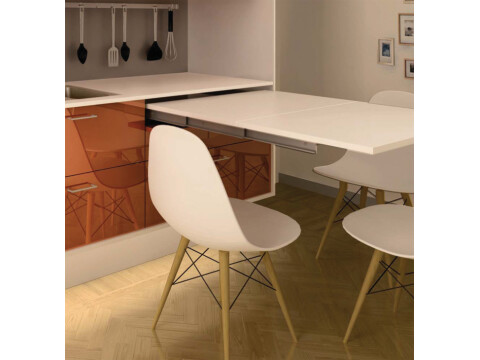

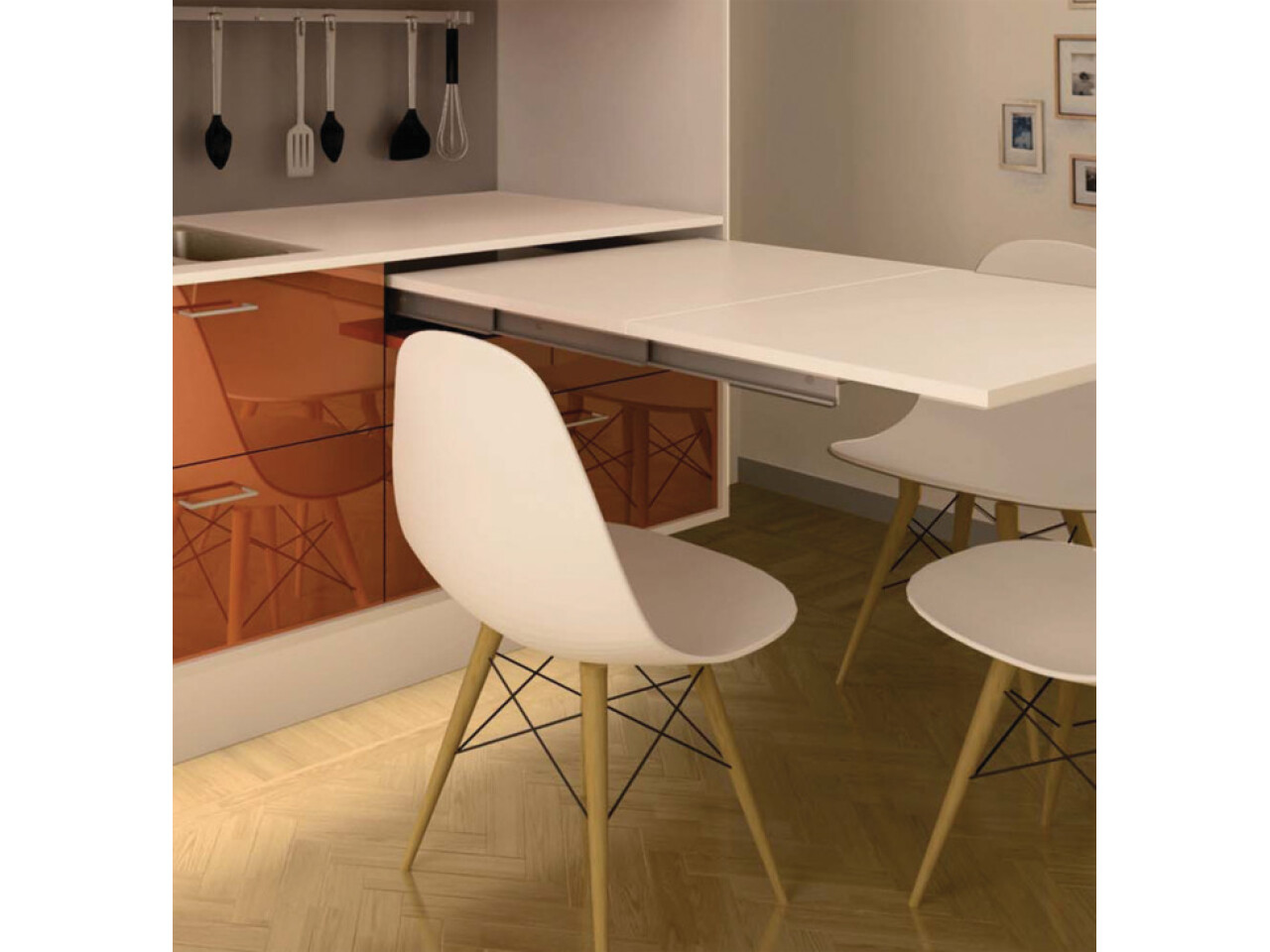

Pull out table instead of a drawer, maintains uniform front design
Seating for up to 5 people
Secure cabinet to prevent toppling
The system is designed to suit side thickness A 16 mm. The connecting profile B must be shortened by 1.5 mm on both sides when using 19 mm thick side panels
Specifications
Colour/finish
Guide profile: Silver coloured, Mechanism: Galvanised, Guide profile: Silver coloured anodised
Area of application

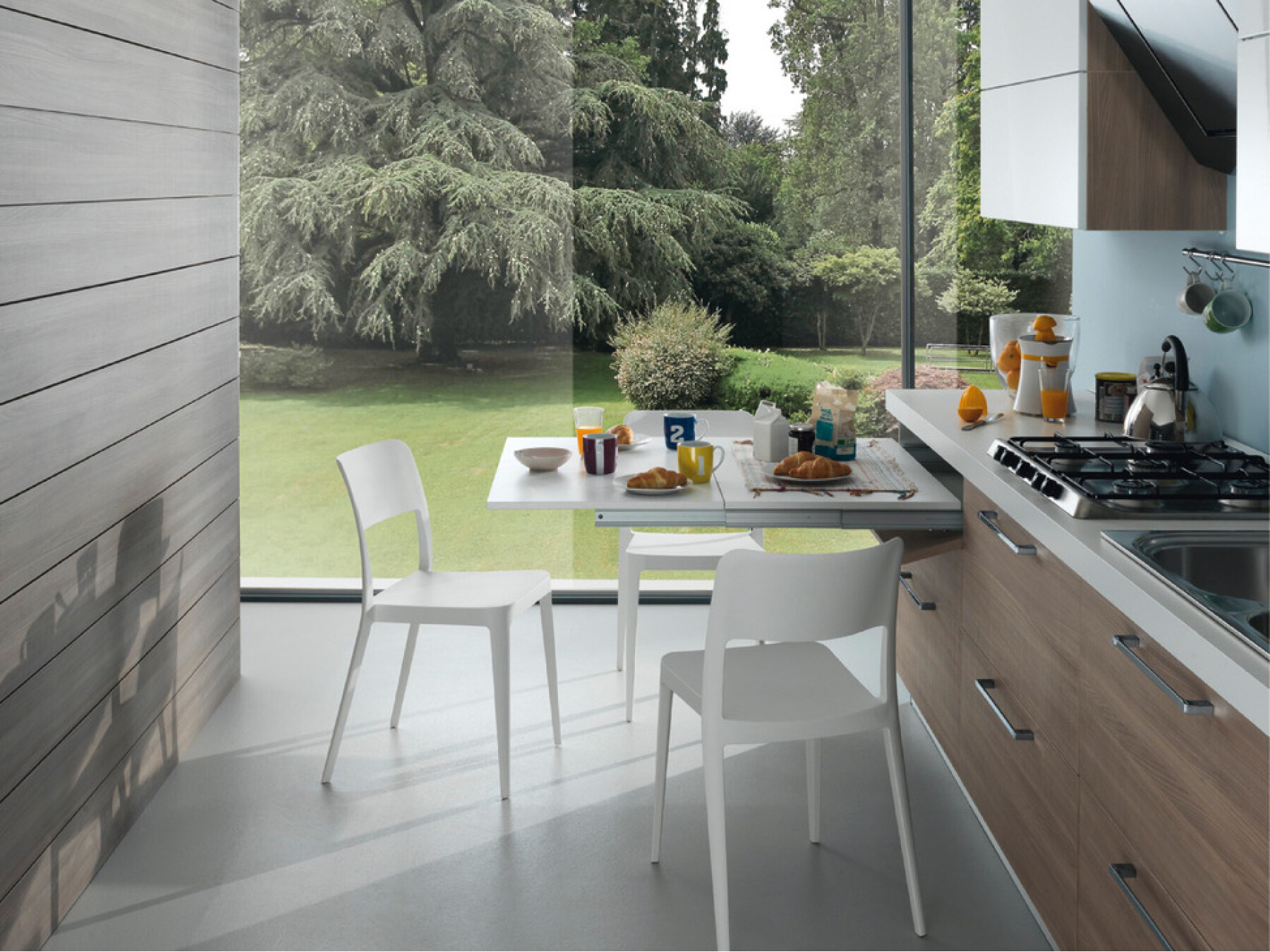

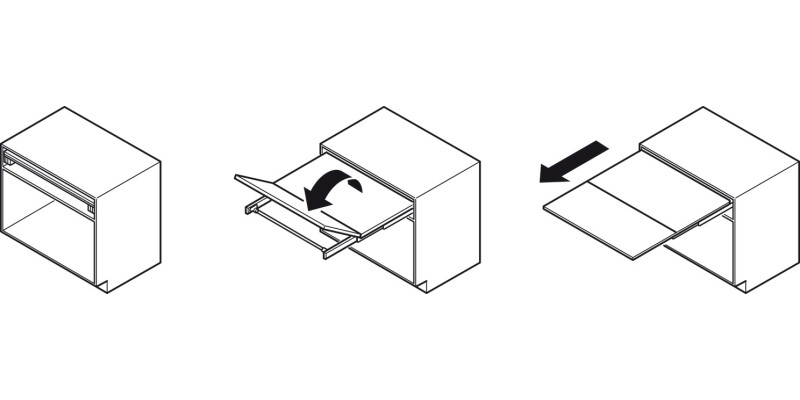

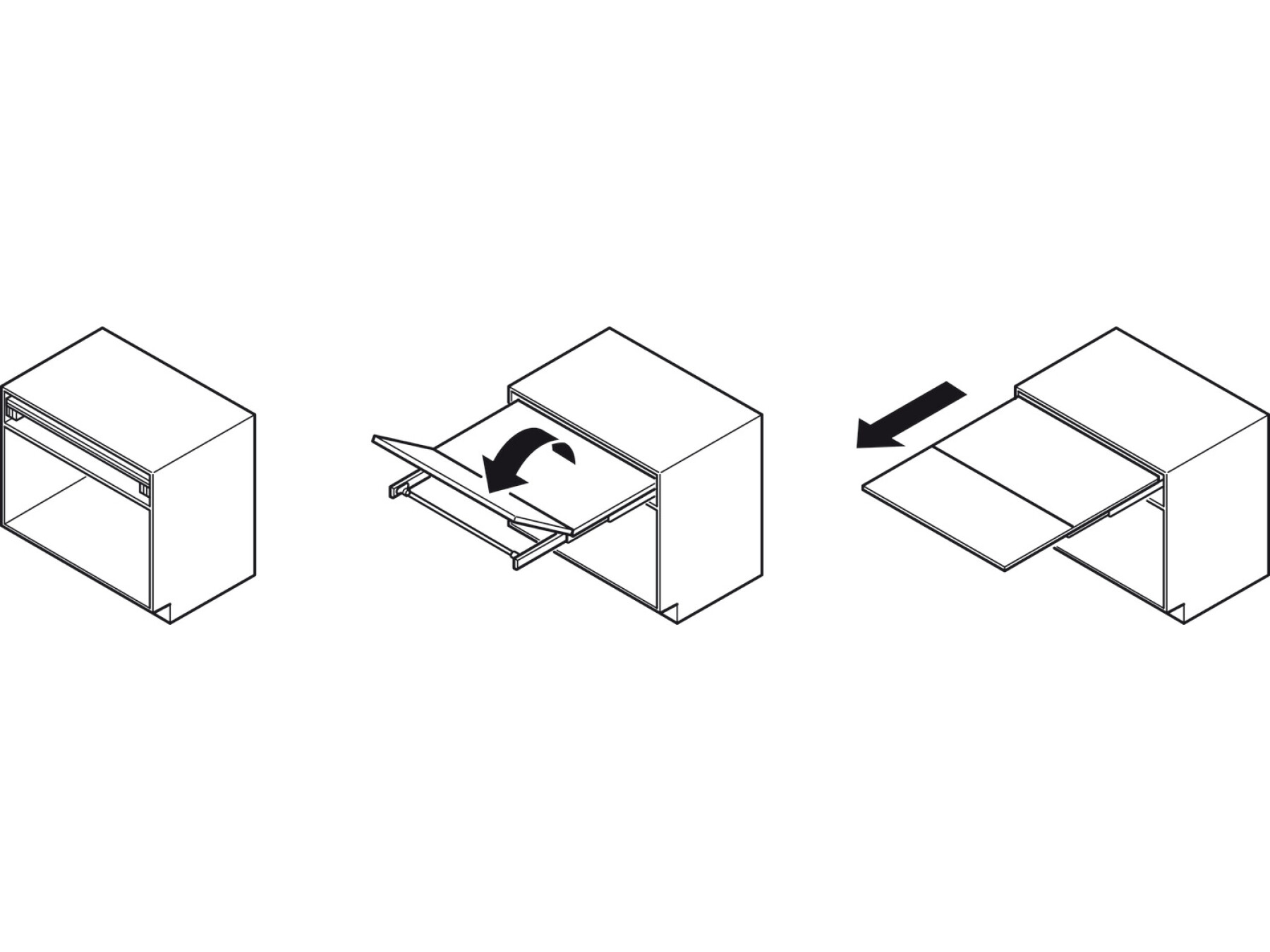

For kitchen and living room furniture, behind folding drawer front panels
Version
self-supporting
Material
Guide profile: Aluminium
Mechanism: Steel
Internal installation depth
Load bearing capacity
Dimensions

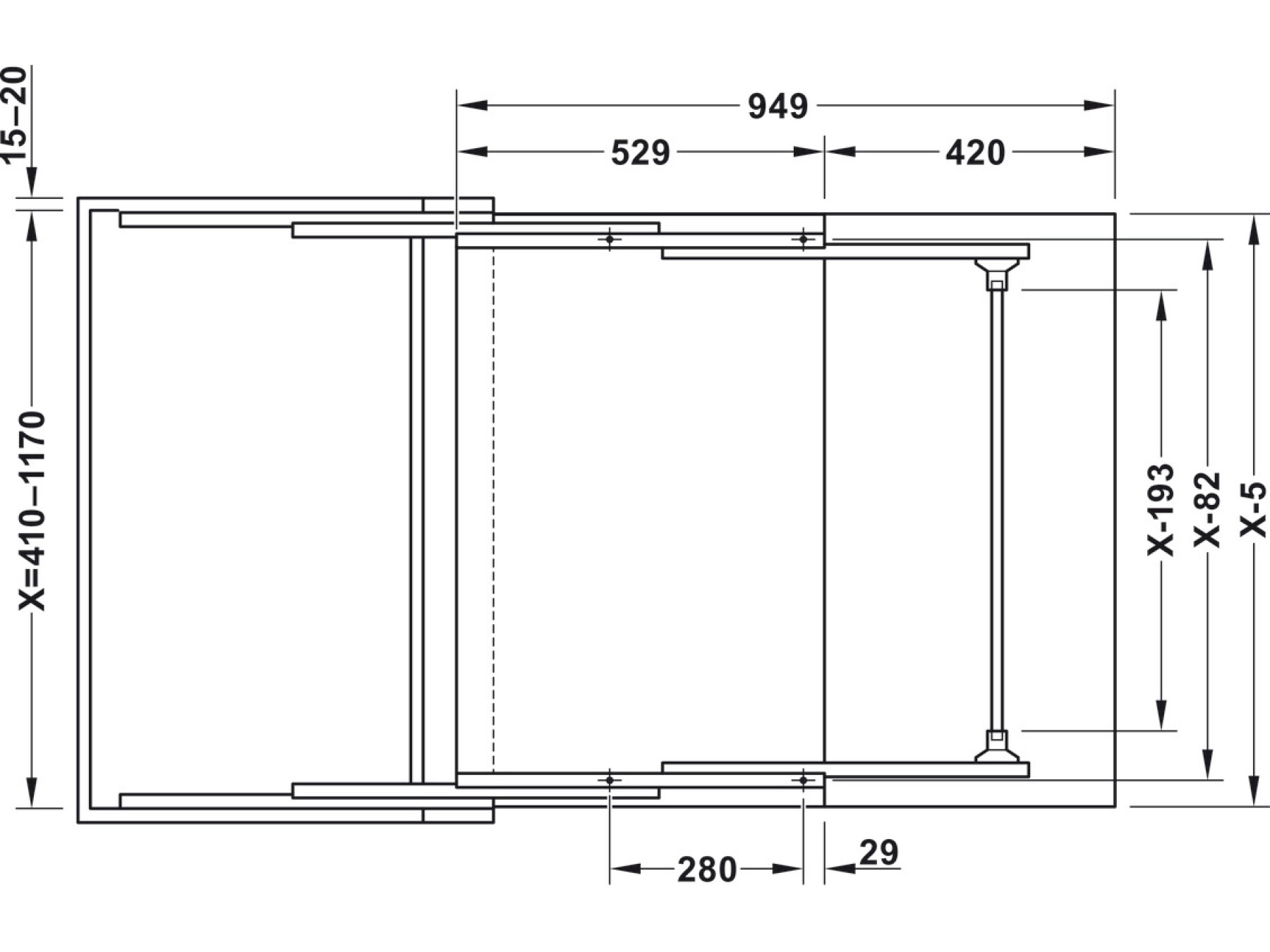

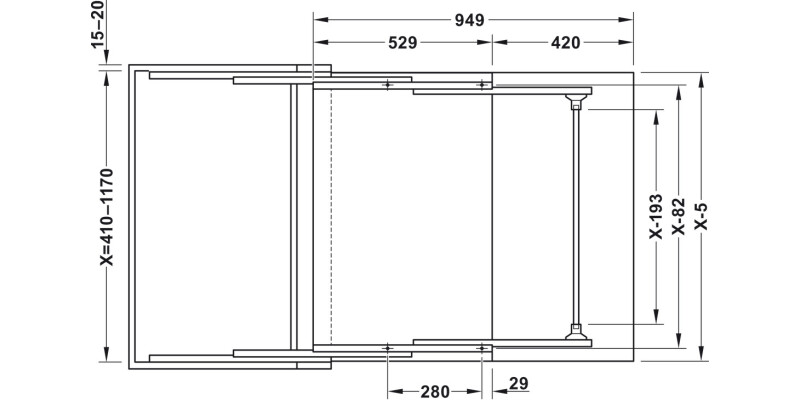

Table top length 969 mm, table top width = internal cabinet width - 3 mm
Installation note
Order reference
Table top not supplied. Please order hinges for drawer front panel and folding table hinges separately.
Supplied with
1 pair of running tracks
Fixing material
Installation instructions
Without table top
