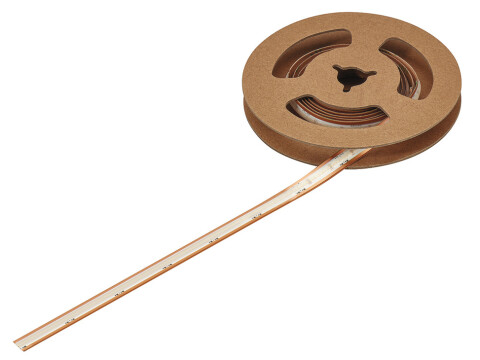

Loox5 LED3107 8mm COB 50M 24V/9.6W 27-50
Part Number: 833.76.536
Length 50 m
Price:
£656.36
Per Item
Ideal for indirect illumination of furniture and furnishings, behind glass edgesHomogeneous illumination, no... Read More
Product Information
Product Details

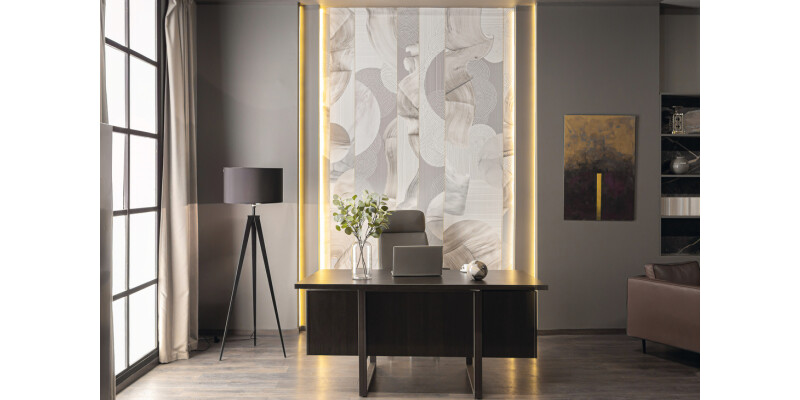

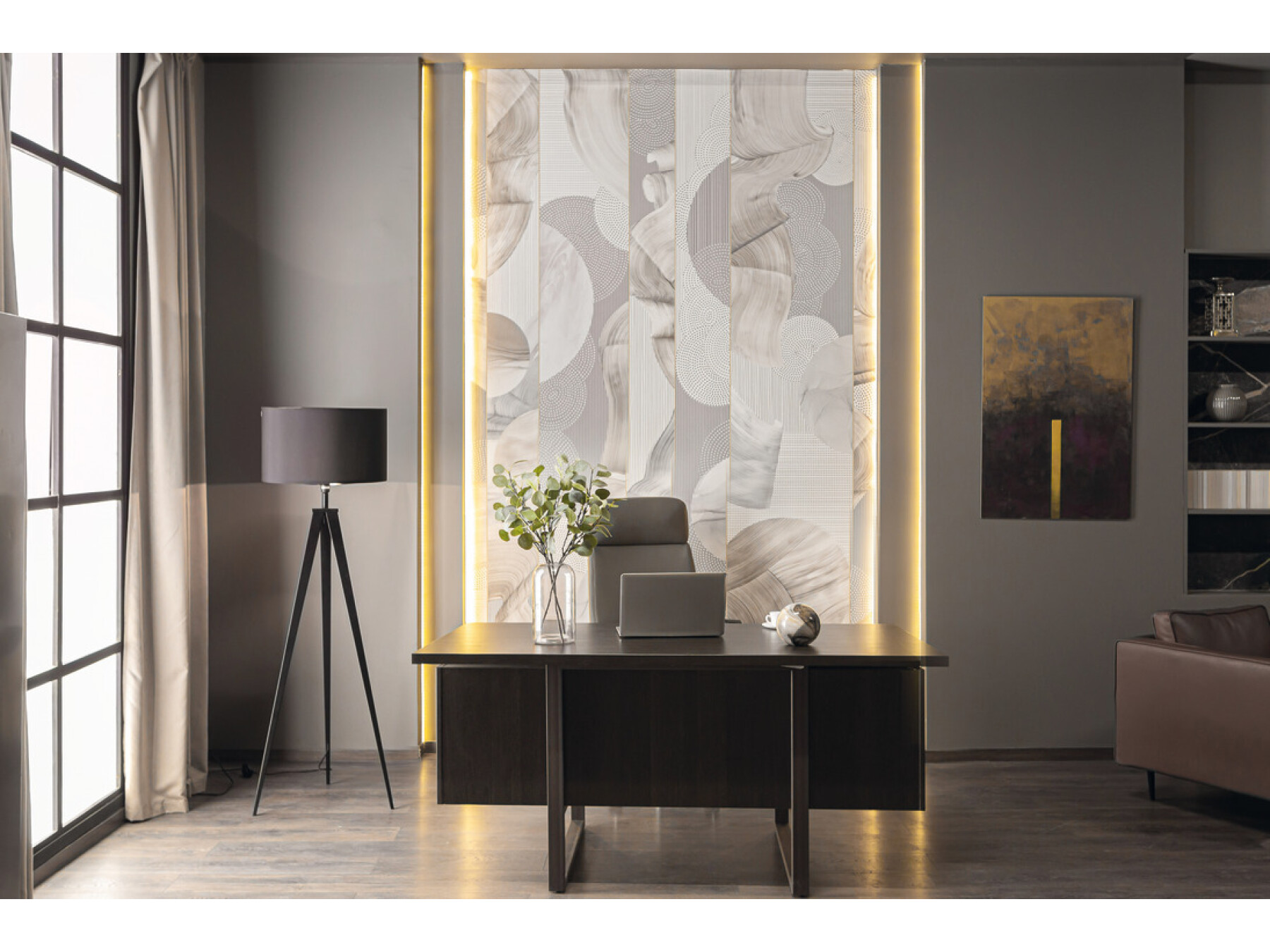

Ideal for indirect illumination of furniture and furnishings, behind glass edges
Homogeneous illumination, no visible LED points

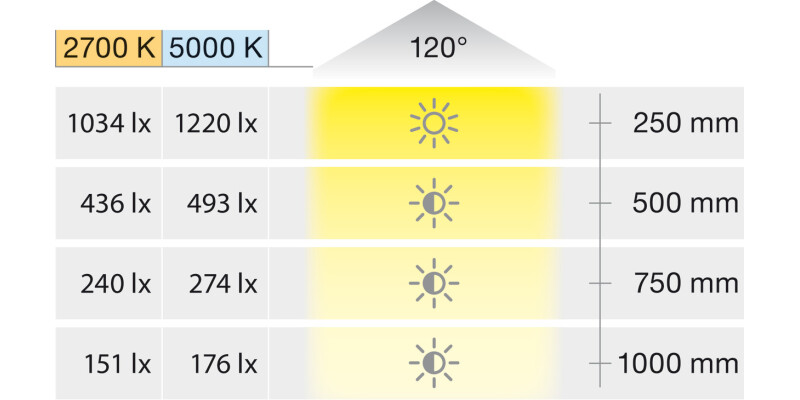

Refraction angle of 120°
Can also be shortened between cutting marks
For surface mounting, self adhesive
Order reference
Order Loox5 24 V driver, mains lead and connecting leads separately
Requires Connect Mesh 6-way distributor 850.00.045
An aluminium profile is recommended for installation of 9.6W/m lights
Warranty/Guarantee information
This product is covered under Häfele’s Lifetime Guarantee.
All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.
All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.
For more information go to:
Services > Customer Support > Häfele Lifetime Guarantee
Maximum strip length (visual) describes a strip section with a visually imperceptible drop in luminous flux of max. 30%.
Please note: A directly following strip section with a new infeed is noticeably lighter. Maximum wattage-dependent strip length on the driver, see Technical data for LED strip lights.
Specifications
Colour temperature
2700 – 5,000 K
Light colour
Warm white to cool white
Nominal voltage
24.00 V
Wattage/m
9.60 W
Luminous flux/m
890 – 895 lm
Luminous efficacy
92 – 93 lm/W
Max. strip length (visual)
5.50 m
Energy efficiency class
F
Dimmable
yes
Area of application
Indirect illumination of furniture and furnishings, Behind glass edges
Version
COB LED, i.e. continuous phosphor coating over all individual LEDs of the entire band, without visible points
Material
Plastic
Colour
white

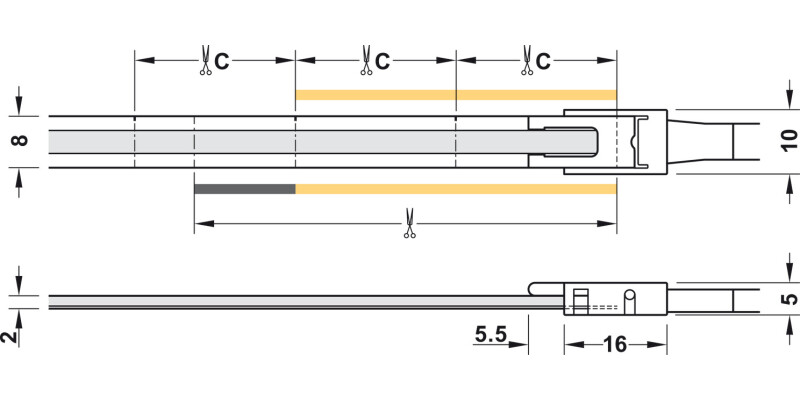

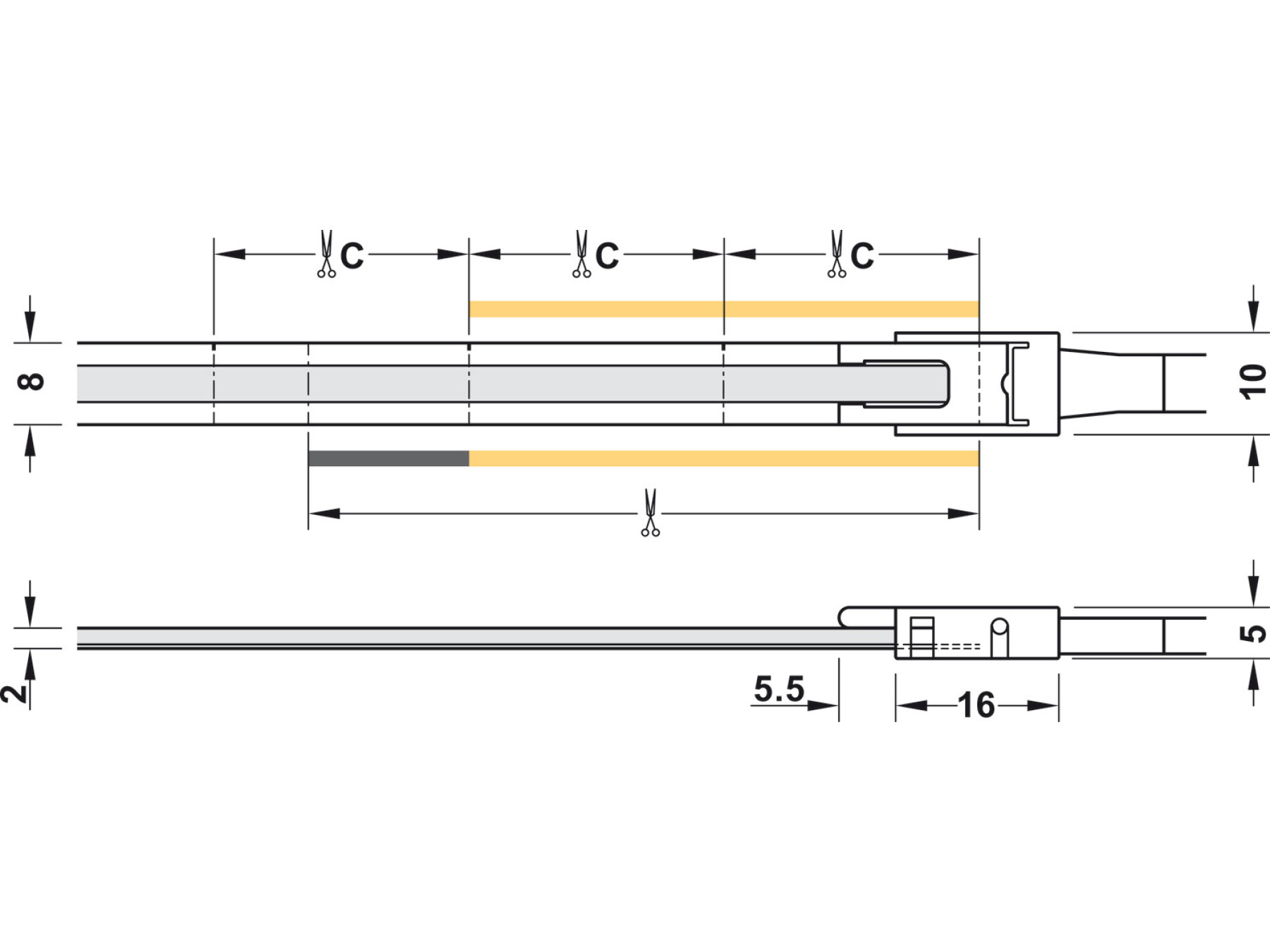

Strip width
8.00 mm
Strip height
2.00 mm
Section length
25.00 mm
Min. bending radius
30.00 mm
Degree of protection
IP20
Installation
Self-adhesive
Hafele Lifetime Guarantee
7 years
Supplied with
Fixings
