Part No: 833.77.296
Loox5 LED3067 180x180mm 24V/7W 4000K
£38.99
(excl. VAT)

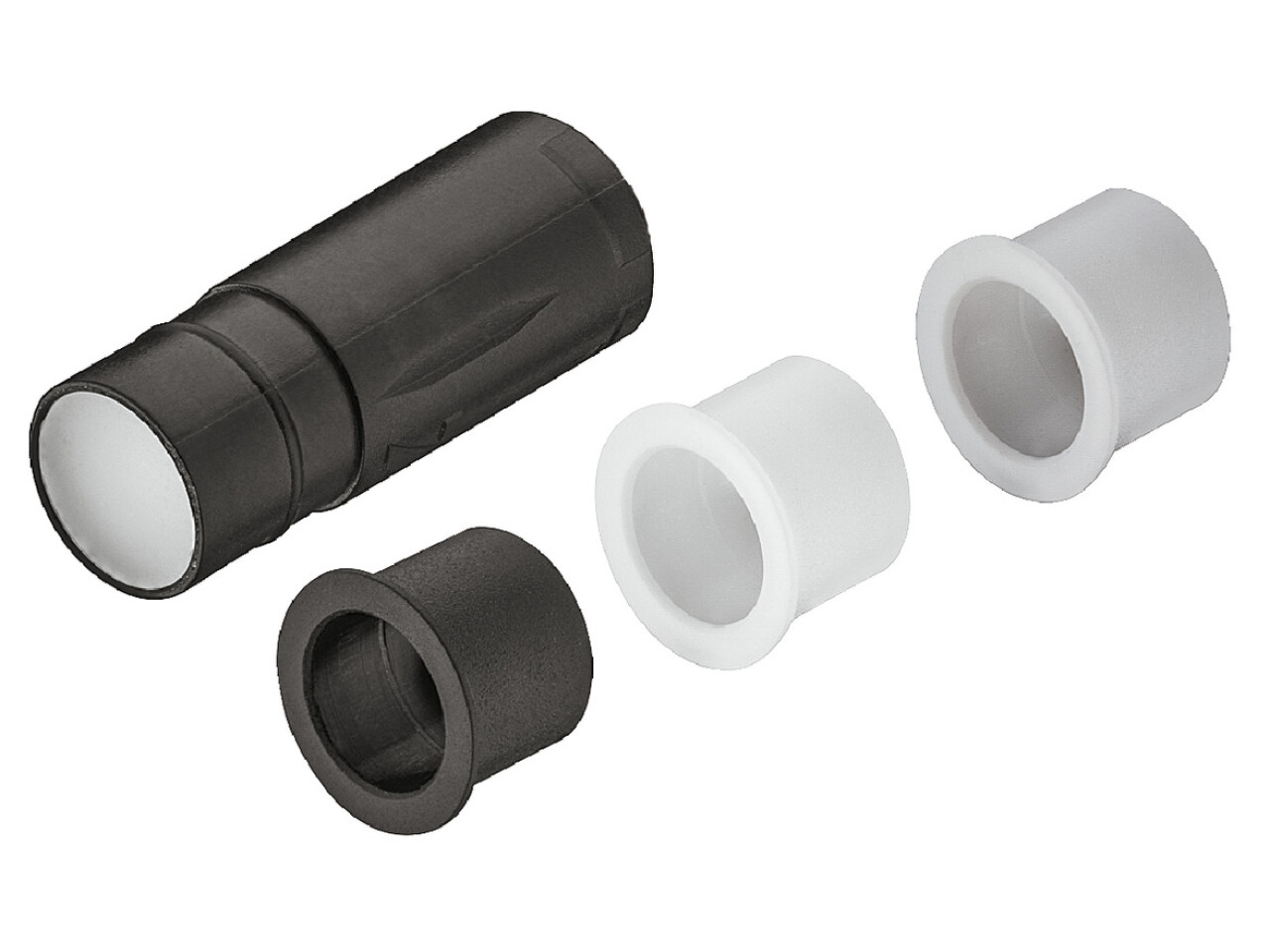

Loox5 LED3102 Plinth 5Set 24V/0.3W 27-50
Part Number: 833.75.606
For mounting in drilled hole, 5 piece set
Price:
£31.34
Per Item
Recess mounted plinth lightsApplication as orientation lightingEndless wiringSimple installation in a 12 mm drill... Read More
Product Information
Product Details
Recess mounted plinth lights

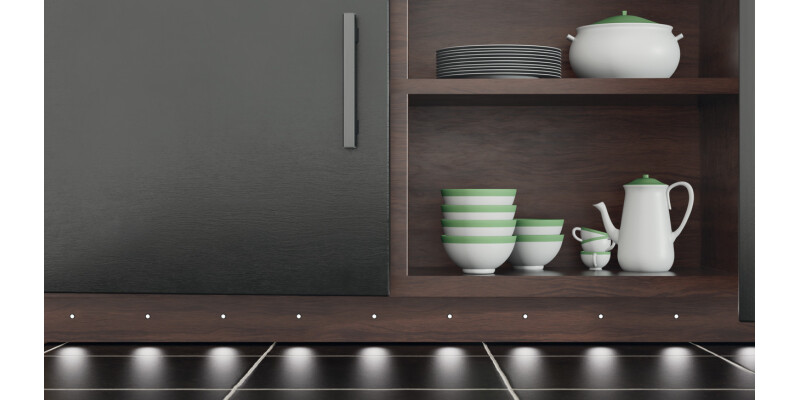

Application as orientation lighting
Endless wiring
Simple installation in a 12 mm drill hole
Includes cover sleeves in 3 colours (white, grey, black)
Supplied with
Set consists of:
5x lights, black housing with opal white diffuser
3x cover sleeves per light (1x each of white, grey, black)
Fixings
Warranty/Guarantee information
This product is covered under Häfele’s Lifetime Guarantee.
All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.
All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.
For more information go to:
Services > Customer Support > Häfele Lifetime Guarantee

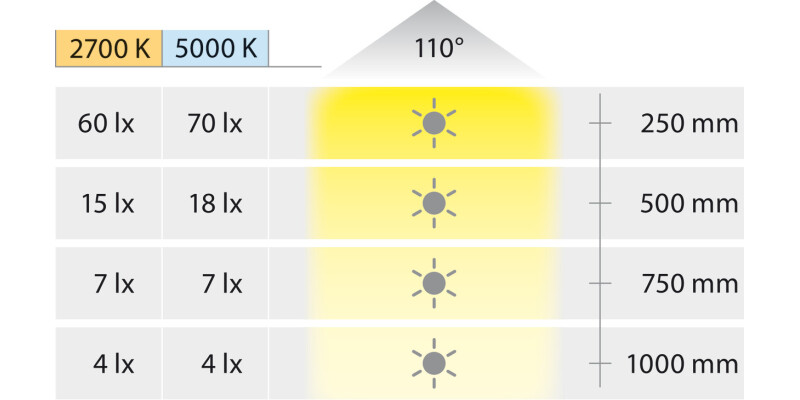

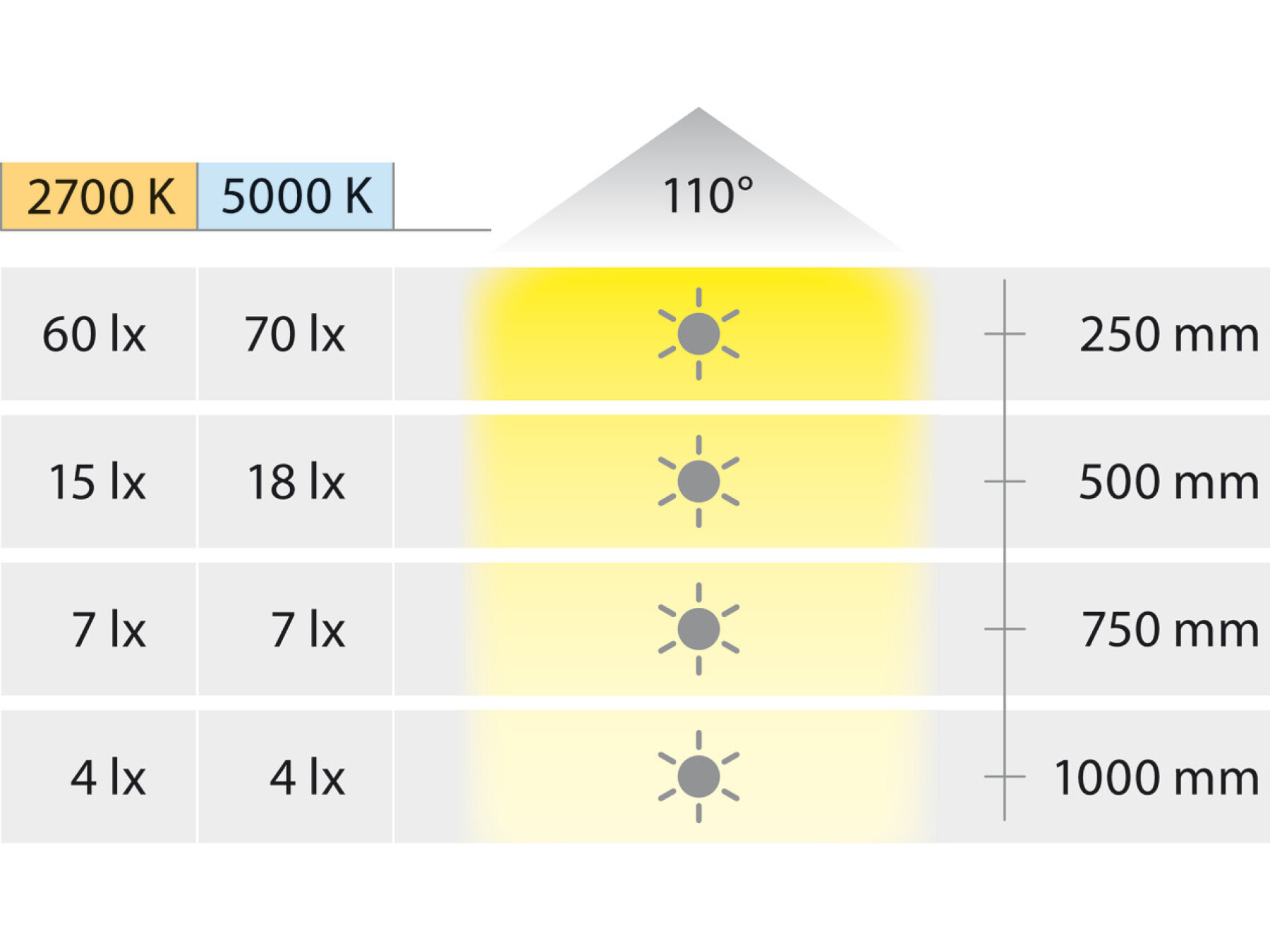

The values for wattage, luminous flux and luminous efficiency apply to a single light.
Specifications
Version
5-piece set
Dimmable
yes
Area of application
Orientation light
Housing material
Plastic
Housing colour/finish
Black
Diffuser material
Plastic
Diffuser colour/finish
Opal white

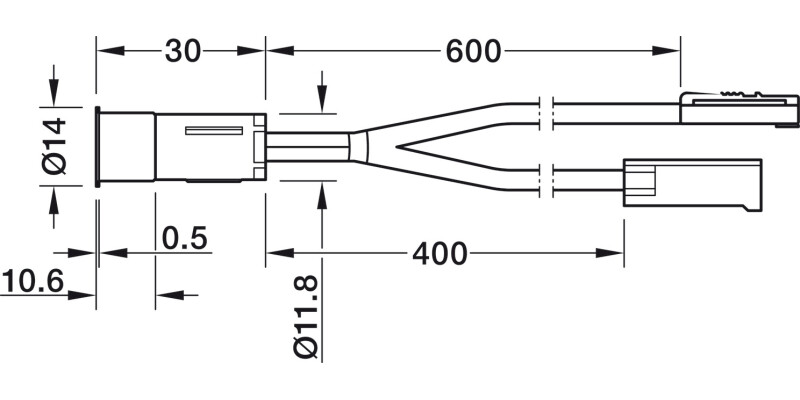

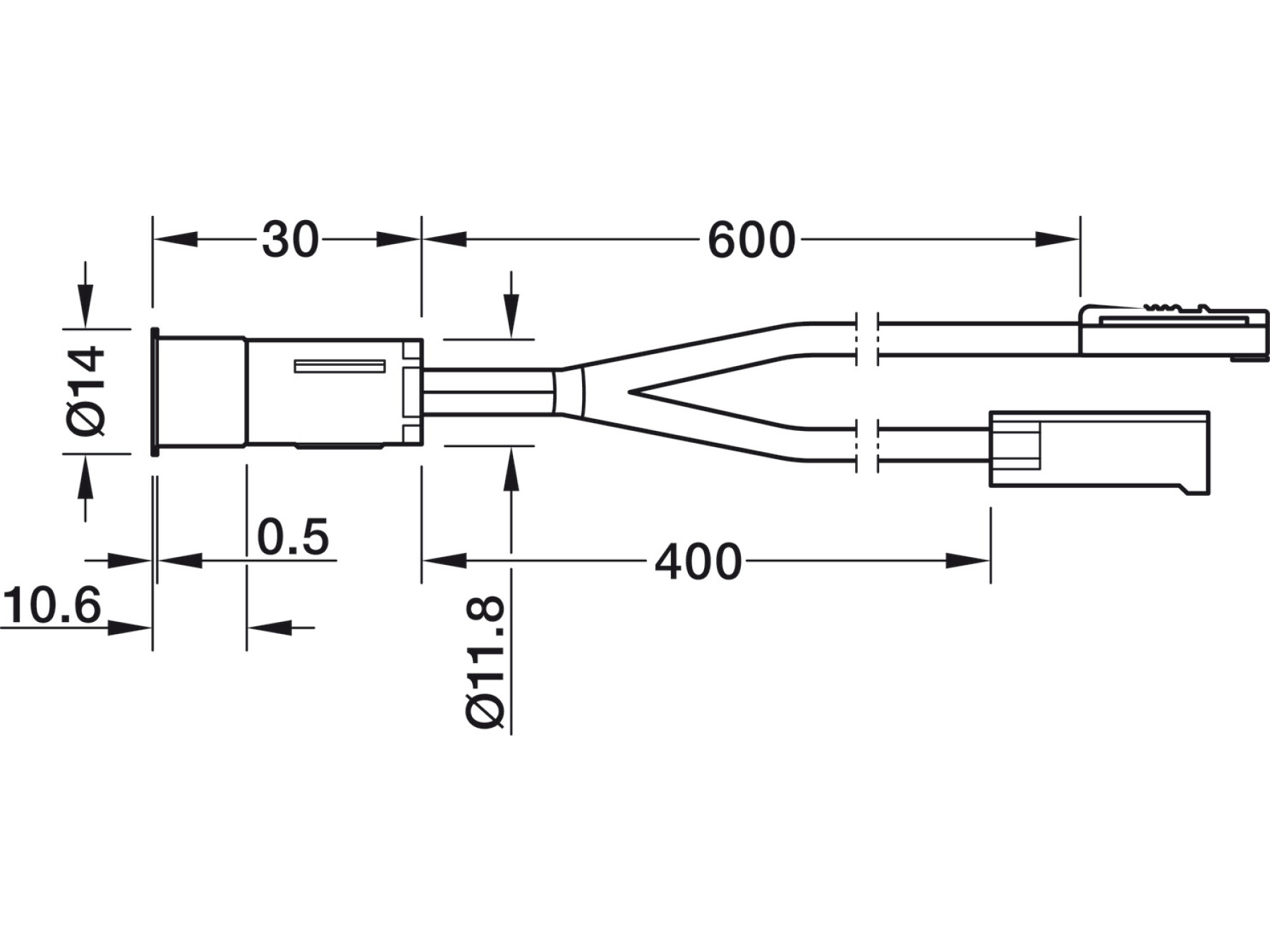

Dim. (Ø x H)
11.8 x 29.5 mm
Drill hole Ø
12.00 mm
Installation
For Mounting in drilled hole
Installation position
Plinth
Hafele Lifetime Guarantee
7 years
Degree of protection
IP20
Order reference
Order Loox5 24 V driver and mains lead separately
Requires Connect Mesh 6-way distributor 850.00.045
