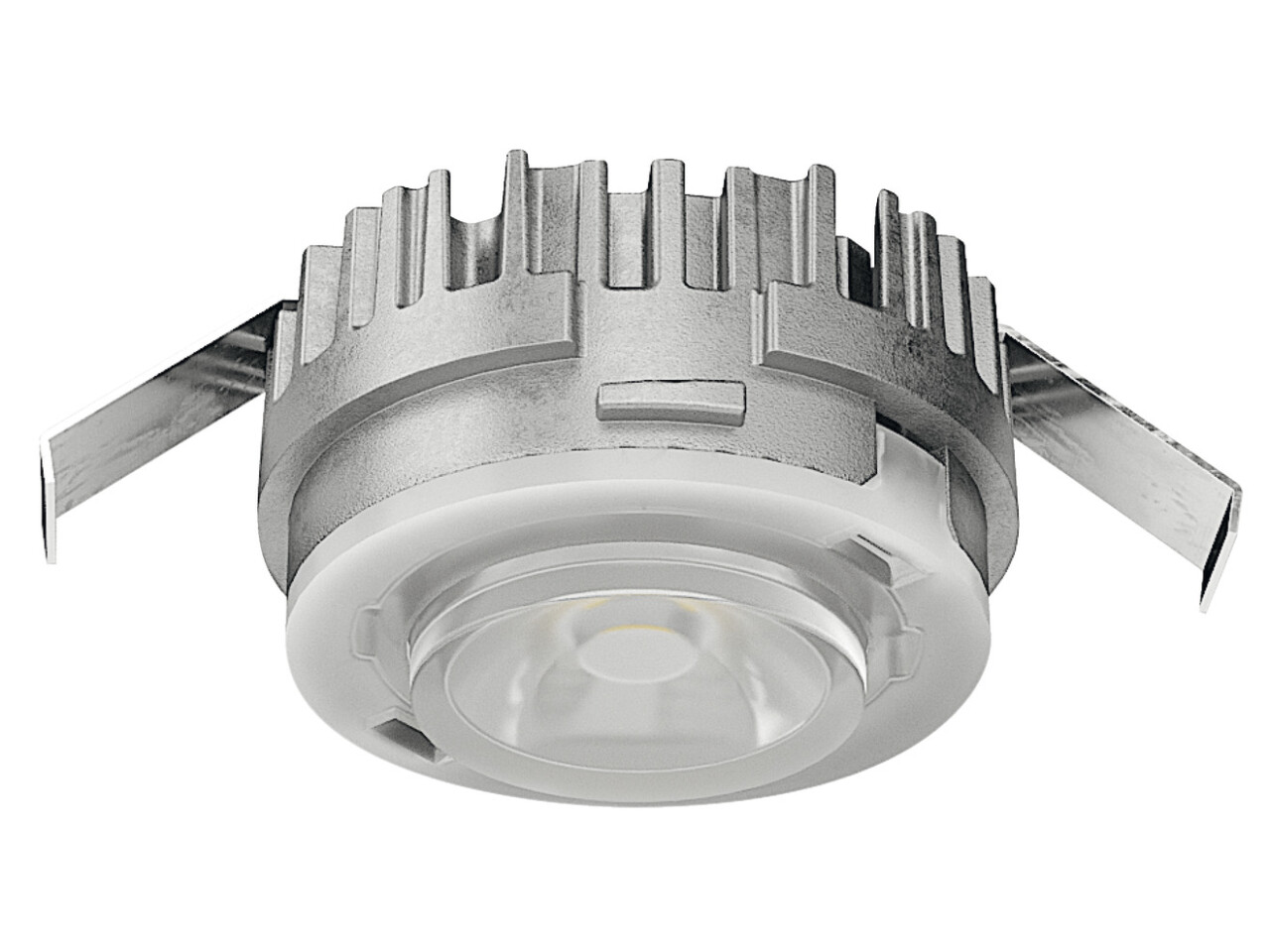

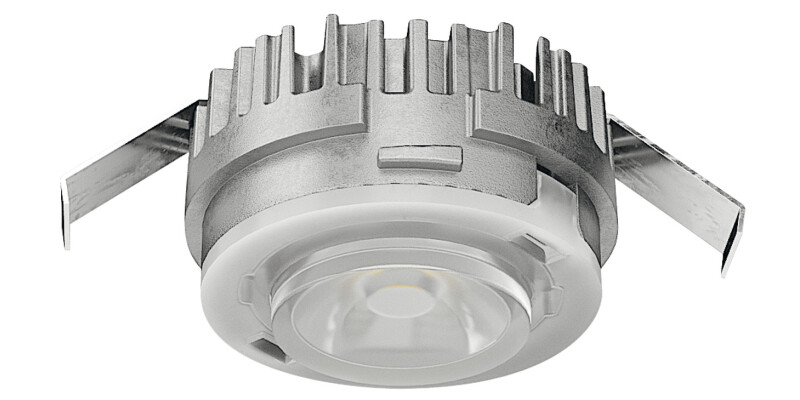

Loox5 LED3090 DL D32.5mm 24V/1.2W 2700K

Part Number: 833.75.170
Energy efficiency class: G, Warm white 2700 K
Price:
£10.01
Per Item
VAT excluded

Modular downlight - order from choice of four bezel designs in three finishes for surface mounting, or recess... Read More

Product Information

Product Details

Modular downlight - order from choice of four bezel designs in three finishes for surface mounting, or recess mount in Ø 26 mm hole

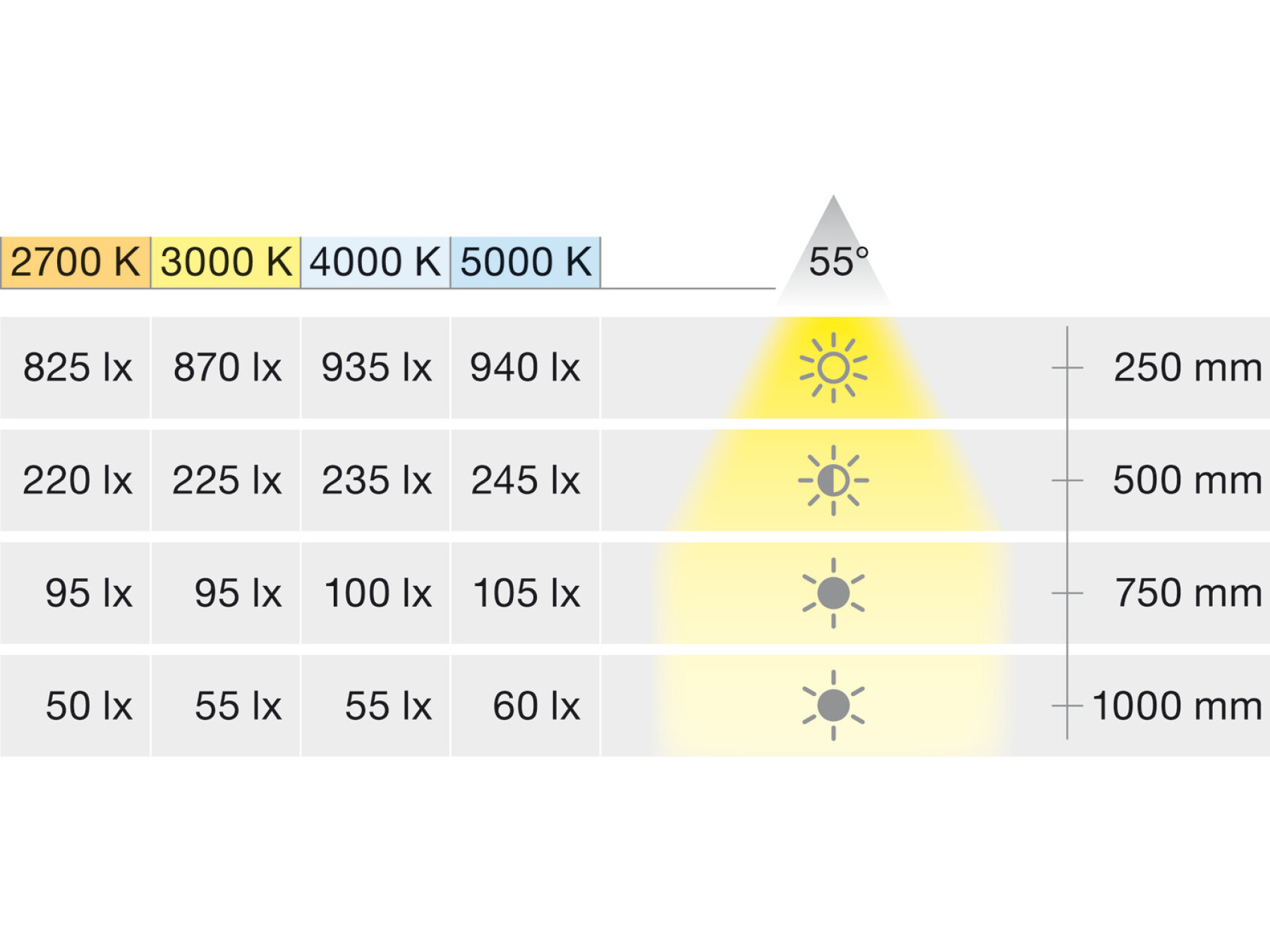

Downlight includes Samsung LEDs and has a narrow beam angle for staging objects

Warranty/Guarantee information

This product is covered under Häfele’s Lifetime Guarantee.

All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.

All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.

For more information go to:

Services > Customer Support > Häfele Lifetime Guarantee

The degree of protection IP45 is reduced to IP20 when using housing for undermounted light.

Specifications

Housing colour/finish

Silver coloured

Nominal voltage

24.00 V

Wattage

1.20 W

Degree of protection

IP45 (recess mounted light); IP20 (surface mounted downlight)

Drill hole Ø

26.00 mm

Model

LED 3090

Installation

For mounting in drilled hole and for clamp fixing, or for screw fixing

Version

Monochrome

Dimmable

yes

Area of application

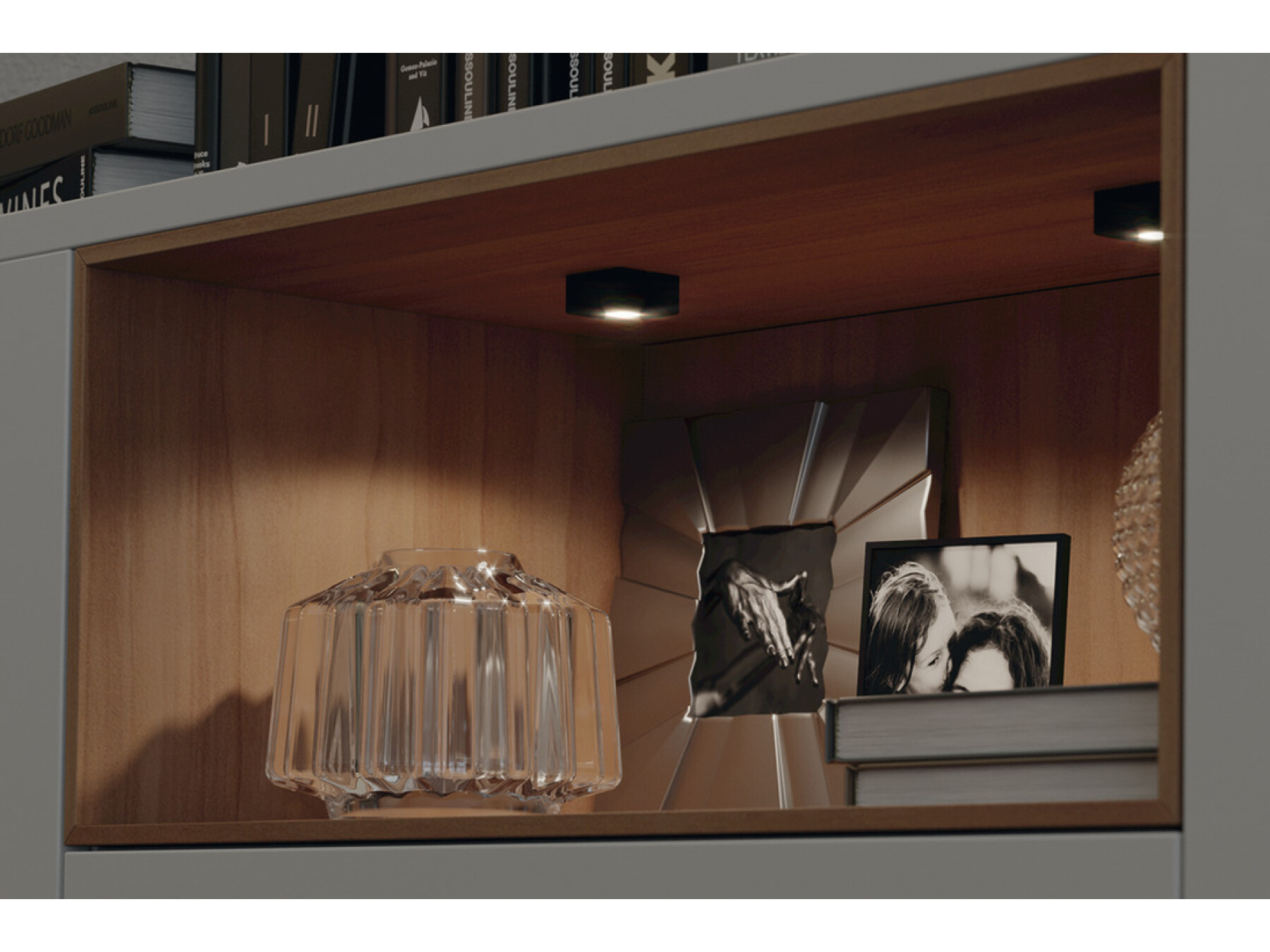

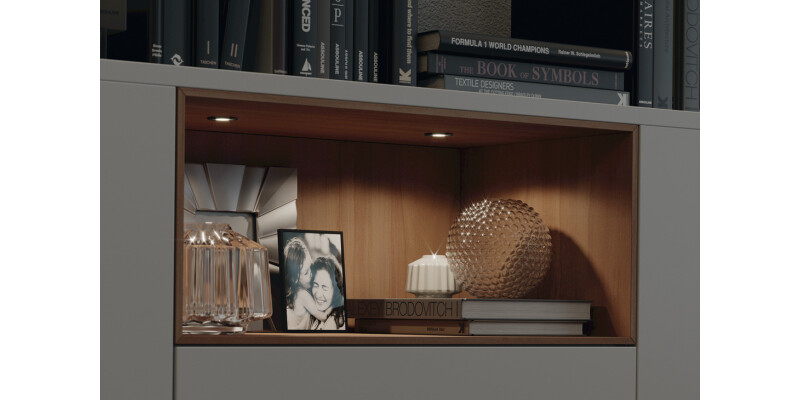

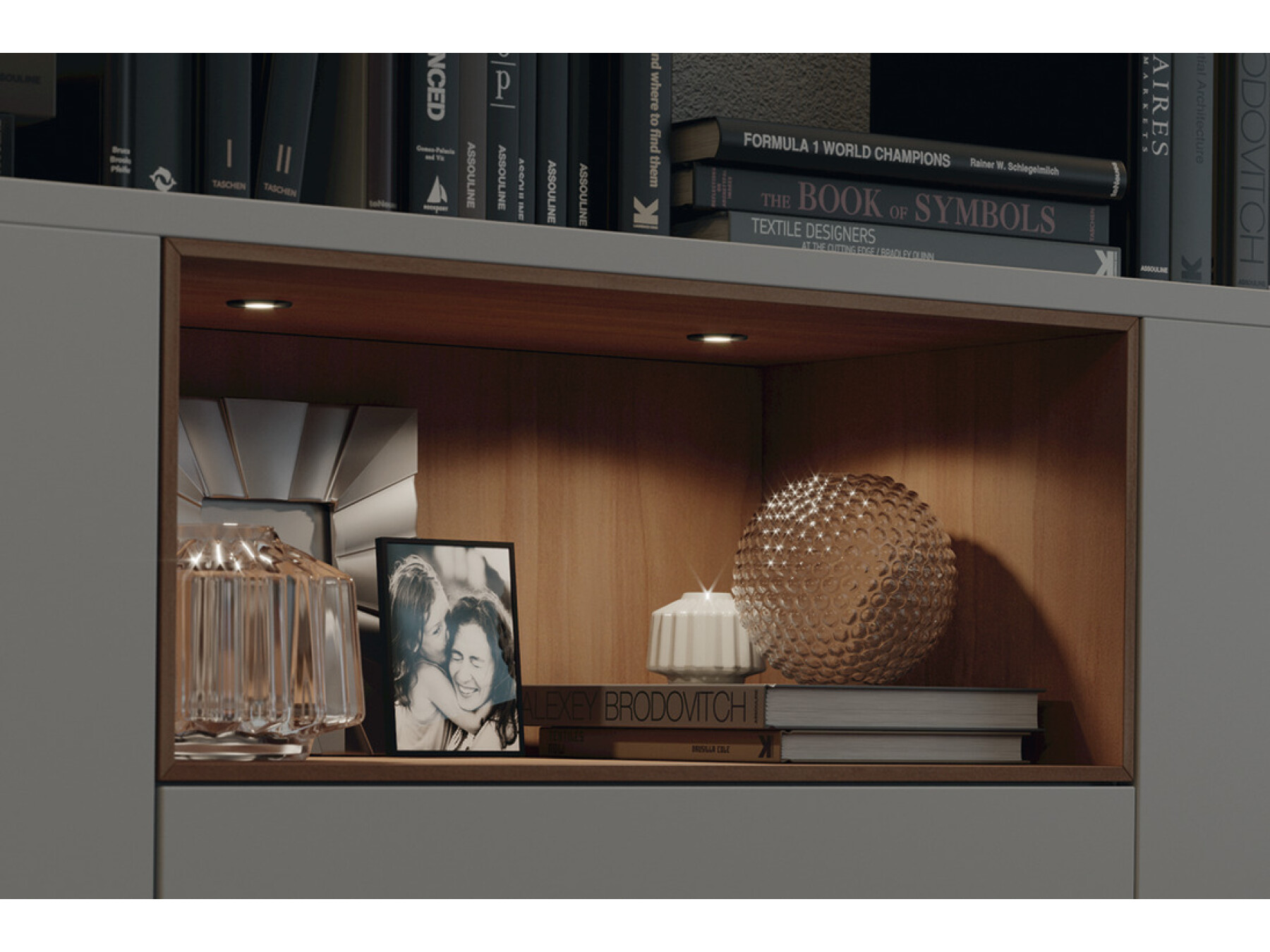

Kitchen and living room furniture, display cabinets

Housing material

Aluminium

Energy efficiency class

G

Cable length

2,000.00 mm

Order reference

Order Loox5 24V driver, bezel and mains lead separately
Order switch separately

Supplied with

2.0 m lead with Loox5 24V connector
