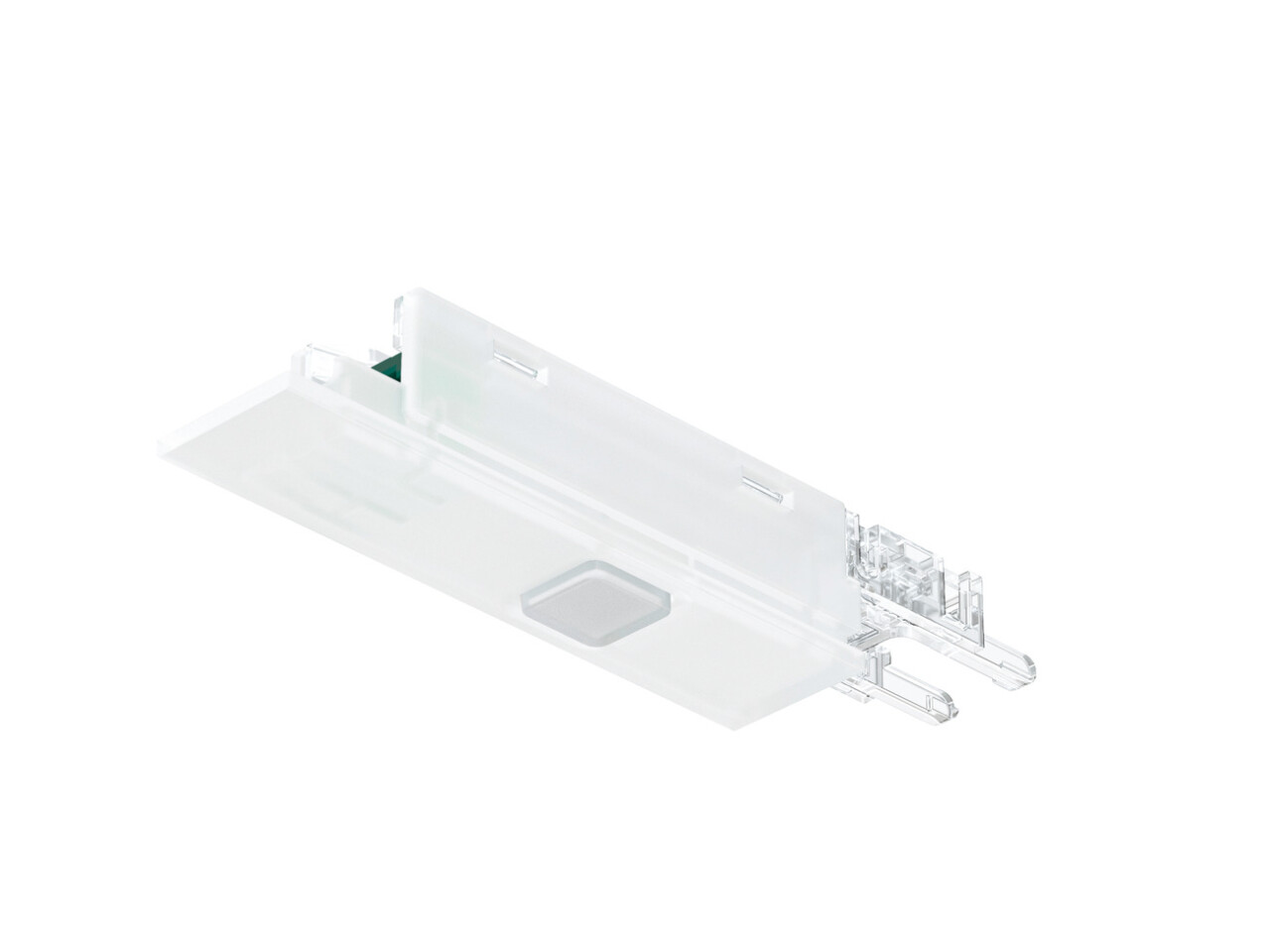

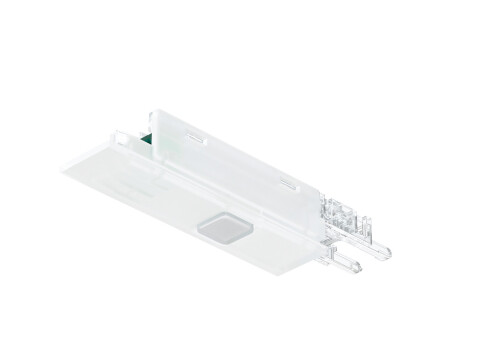

Loox5 LED Motion Switch 1 min 24V/120W
Part Number: 833.89.292
Switching function soft on/off, automatic, Voltage 24 V, power rating wattage 120 W
Price:
£14.42
Per Item
Motion sensor infrared modular switches for installation of monochrome 8 mm LED strip lights in Loox5 aluminium... Read More
Product Information
Product Details

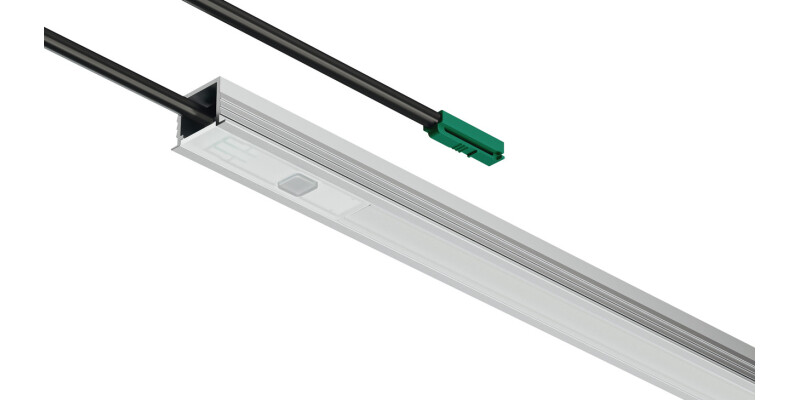

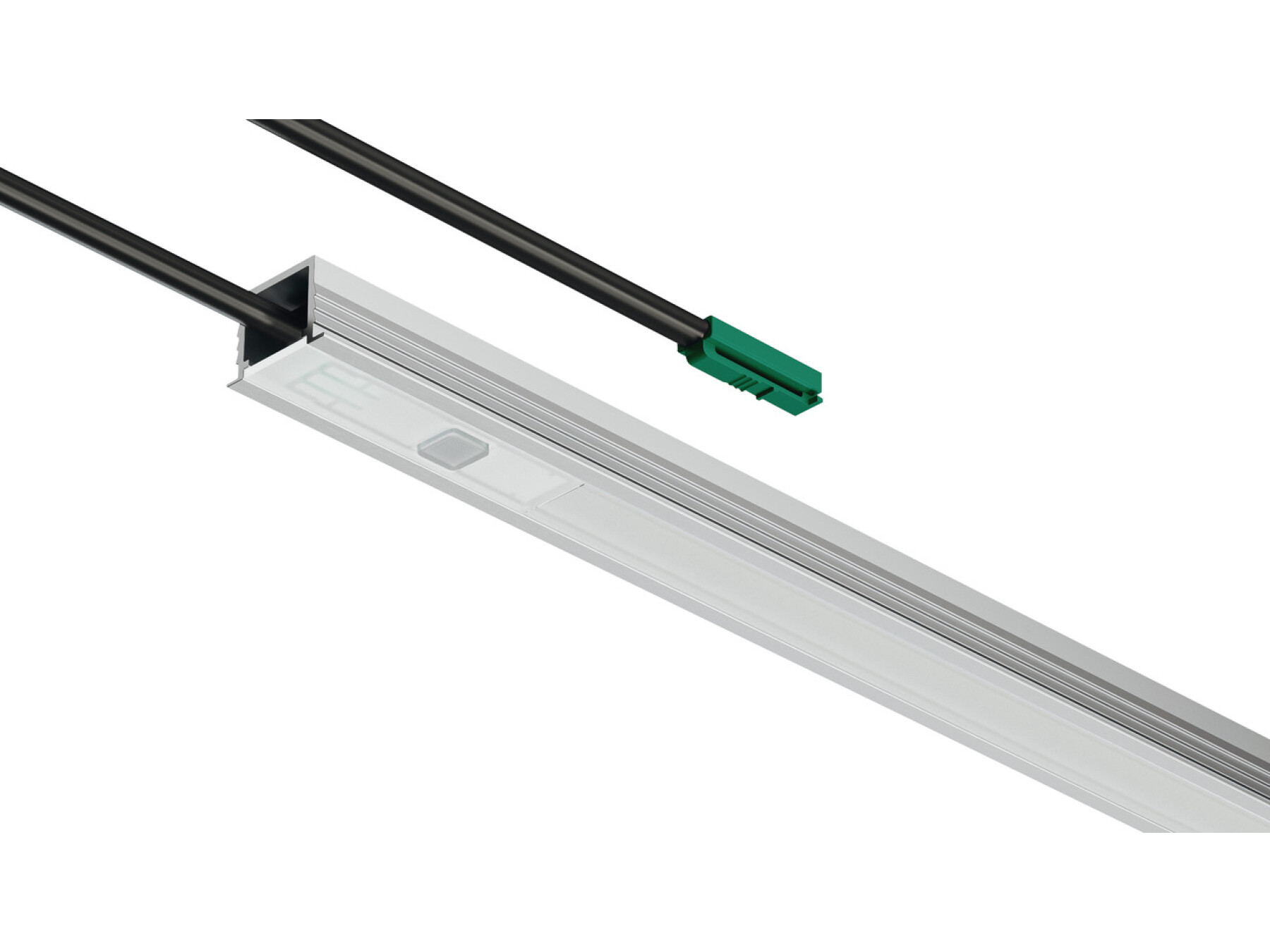

Motion sensor infrared modular switches for installation of monochrome 8 mm LED strip lights in Loox5 aluminium profiles
Installation note

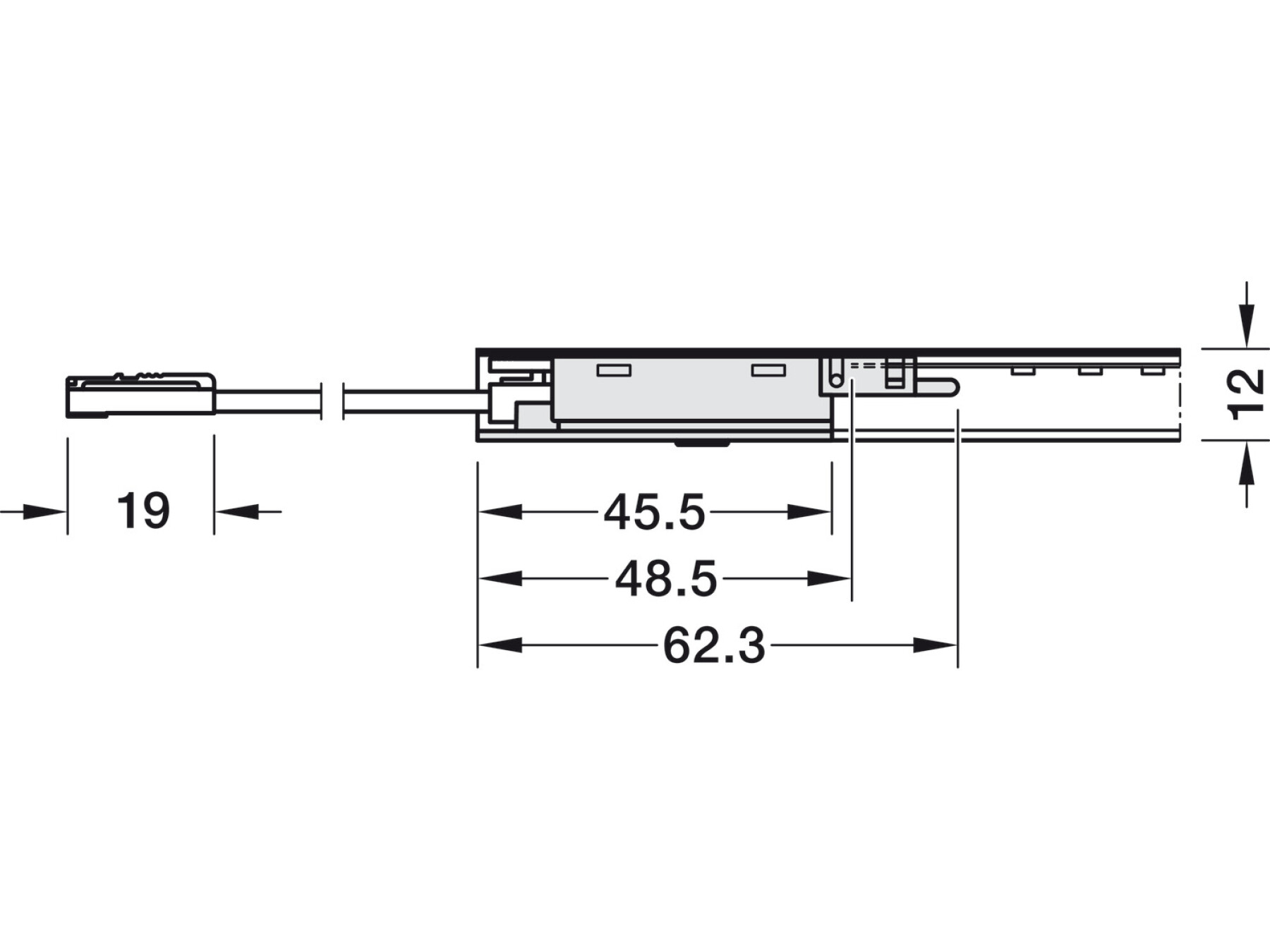

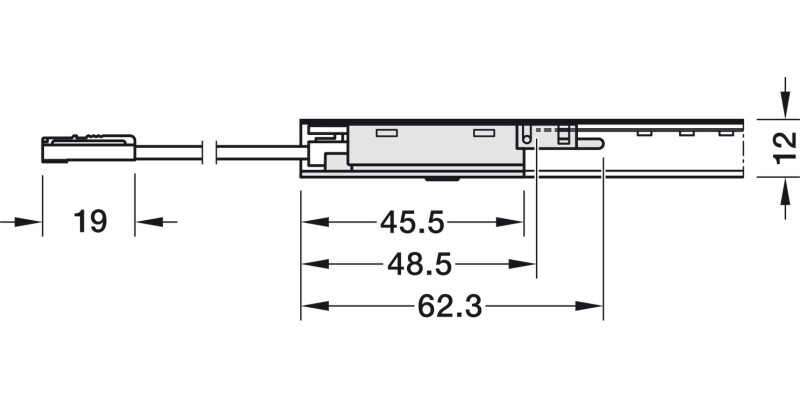

Shorten LED strip light by approx. 50 mm in relation to the total length of the aluminium profile. Shorten diffuser by 45.5 mm.
Order reference
Please order lead (modular with Loox5 2-pin snap-in connector) separately.
Please note nominal voltage and current carrying capacity.
12 V/5 A, 2000 mm: Cat. No. 833.95.830
24 V/5 A, 2000 mm: Cat. No. 833.95.835
Warranty/Guarantee information
This product is covered under Häfele’s Lifetime Guarantee.
All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.
All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.
For more information go to:
Services > Customer Support > Häfele Lifetime Guarantee
Specifications
Version
With integrated diffuser (opal)
Input ports
1 x socket, Loox5 modular with intervals 2-pin 24 V
Connected output ports
1 x Clip, Loox5 LED strip light 8 mm monochrome
Colour/finish
opal
Low voltage plug
Loox5 2-pin 24 V
Switching function
On/off soft, touchless
Memory function
No
Plug of required low voltage cable
Loox5 2-pin 24 V
Power capacity
120.00 W
Delay time
≤ 60 s
Area of application
For monochrome 8 mm Loox5 LED strip lights in Loox5 aluminium profiles
Suitable for
Profile 1103, Profile 1105, Profile 2102, Profile 2103, Profile 2104
Material
Plastic

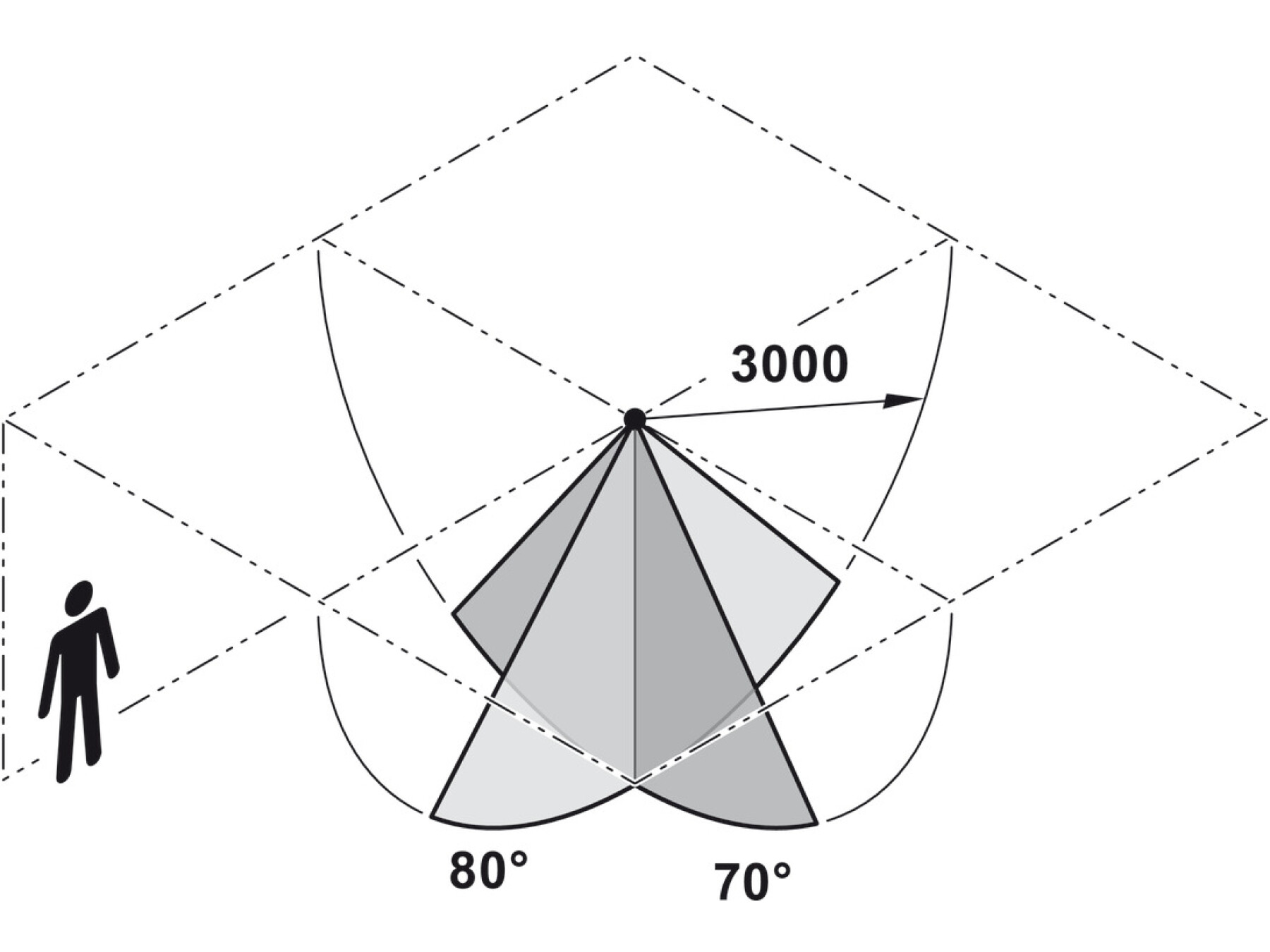

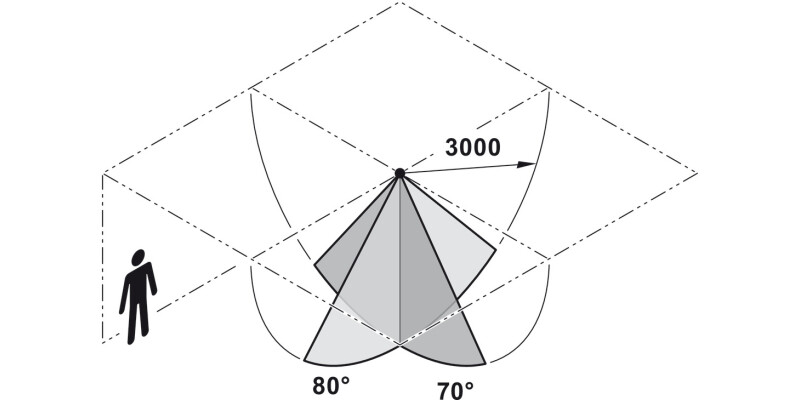

Horizontal sensor angle
80.00 °
Vertical sensor bracket
70.00 °
Number of input ports
1 x socket
Installation
For sliding into aluminium profile
Hafele Lifetime Guarantee
7 years
Supplied with
1x Motion detector, Loox5 modular with catch 2-pole 12 V or 24 V
