Part No: 833.75.089
Loox5 LED3034 455mm 24V/19W 3000K Chr
£40.57
(excl. VAT)

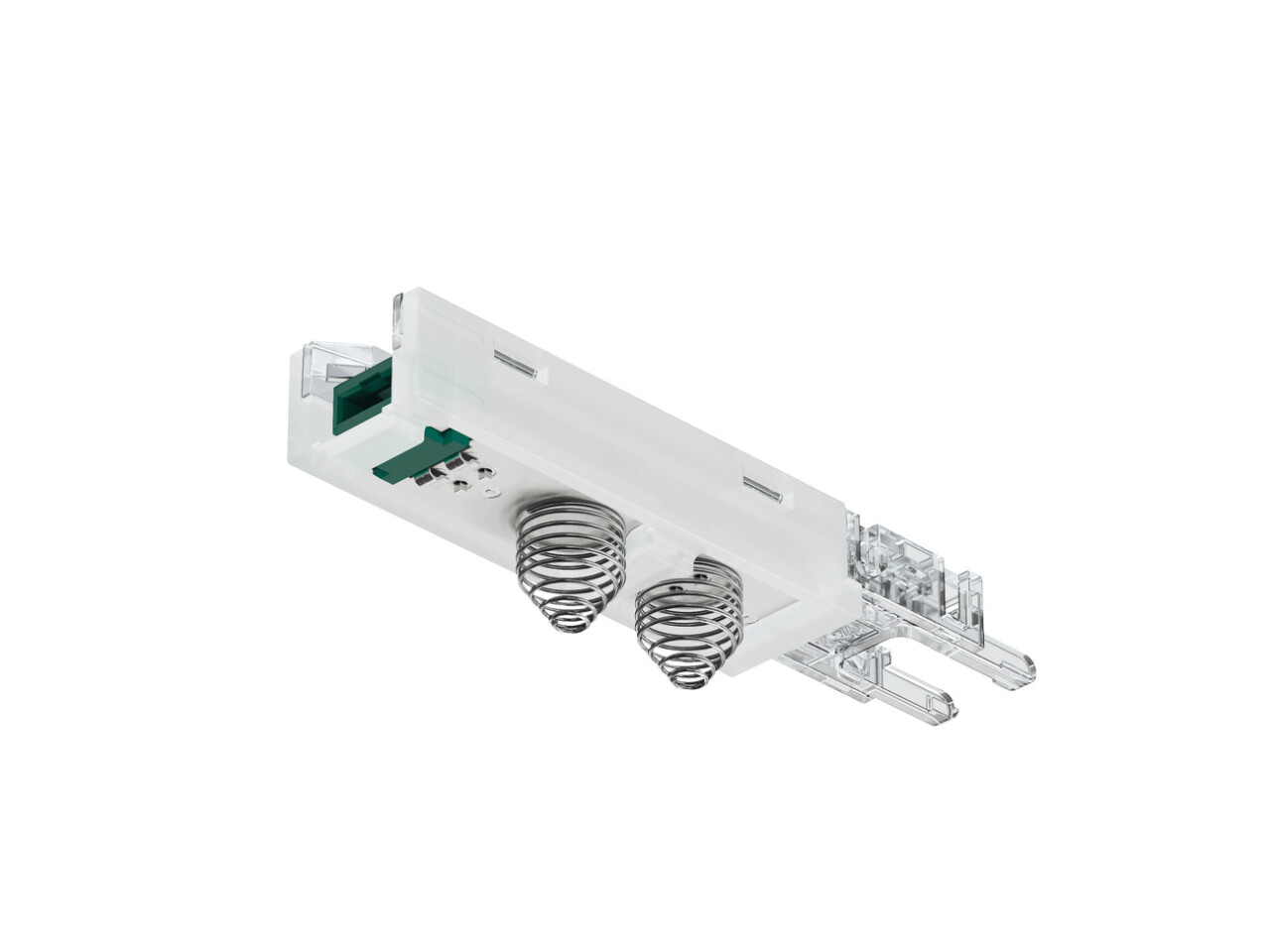

Loox5 LED Mod Dimmer Swt 24V/120W Pl Wht
Part Number: 833.89.291
Switching function soft on/off, Voltage 24 V, power rating wattage 120 W
Price:
£12.30
Per Item
Dimmer modular switches for installation of monochrome 8 mm LED strip lights in Loox5 aluminium profilesConcealed... Read More
Product Information
Product Details

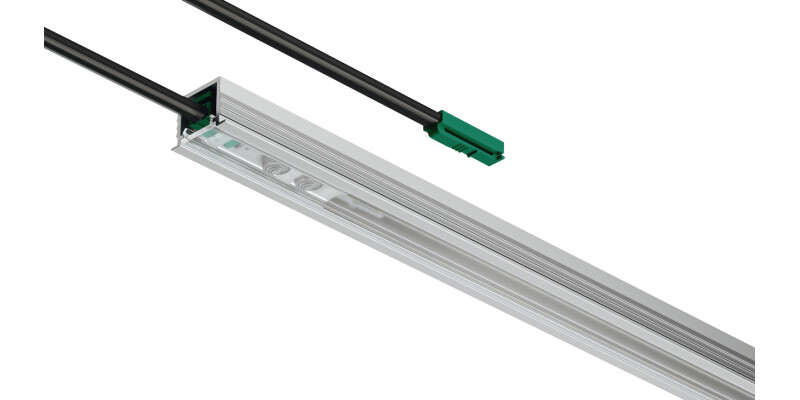

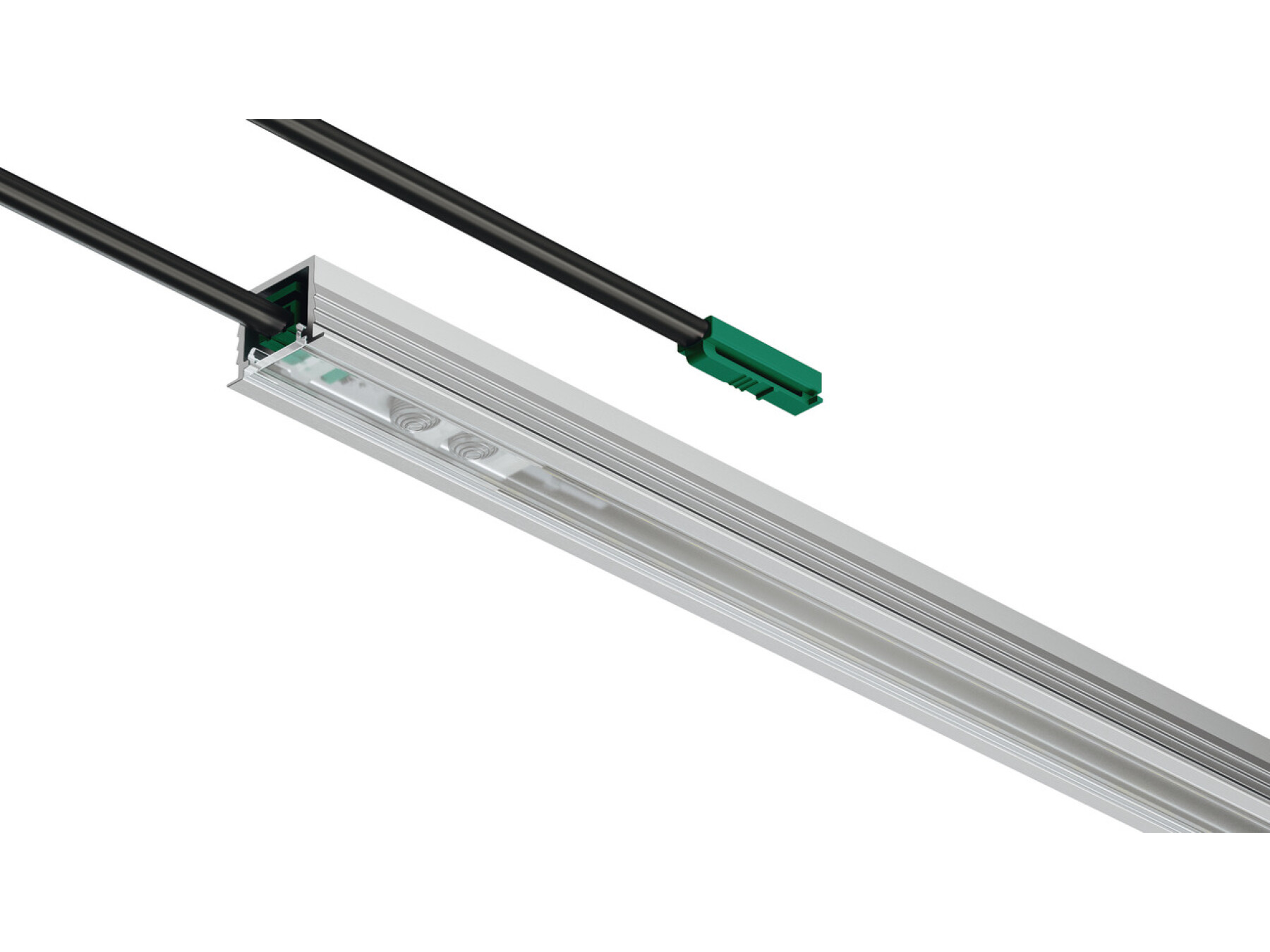

Dimmer modular switches for installation of monochrome 8 mm LED strip lights in Loox5 aluminium profiles
Concealed installation beneath diffuser
Installation note

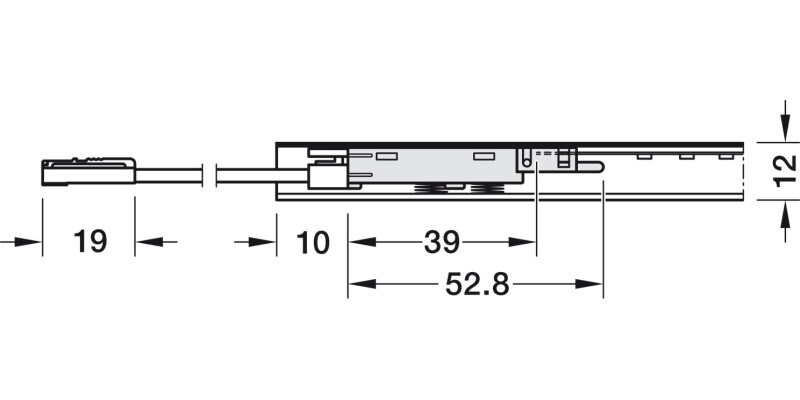

Can be used for other aluminium profiles with a similar clear internal height to the specified models (approx. 12–14 mm).
Shorten LED strip light by approx. 50 mm in relation to the total length of the aluminium profile.
No diffuser shortening required, since the diffuser covers the dimmer.
Order reference
Please order lead (modular with Loox5 2-pin snap-in connector) separately.
Please note nominal voltage and current carrying capacity.
12 V/5 A, 2000 mm: Cat. No. 833.95.830
24 V/5 A, 2000 mm: Cat. No. 833.95.835
Warranty/Guarantee information
This product is covered under Häfele’s Lifetime Guarantee.
All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.
All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.
For more information go to:
Services > Customer Support > Häfele Lifetime Guarantee
Dimming range 5% - 100%
Dimming level is retained after switching off (memory function). The light stays off in the de-energised condition.
Specifications
Switching contact
with touch
Input ports
1 x socket, Loox5 modular with intervals 2-pin 24 V
Output ports
1 x Clip, Loox5 LED strip light 8 mm monochrome
Connected output ports
1 x Clip, Loox5 LED strip light 8 mm monochrome
Colour/finish
opal
Low voltage plug
Loox5 2-pin 24 V
Switching function
dim (with memory function), On/off soft, touchless
Memory function
Yes (also in currentless condition)
Plug of required low voltage cable
Loox5 2-pin 24 V
Power capacity
120.00 W
Area of application
For monochrome 8 mm Loox5 LED strip lights in Loox5 aluminium profiles
Suitable for
Profile 1103, Profile 1105, Profile 2102, Profile 2103, Profile 2104, Profile 2101
Material
Plastic
Number of input ports
1 x socket
Number of output ports
1 x Clip
Output ports type
Loox5 LED strip light 8 mm monochrome
Installation
For sliding into aluminium profile
Hafele Lifetime Guarantee
7 years
Supplied with
1x Dimmer, Loox5 modular with catch 2-pole 12 V or 24 V
