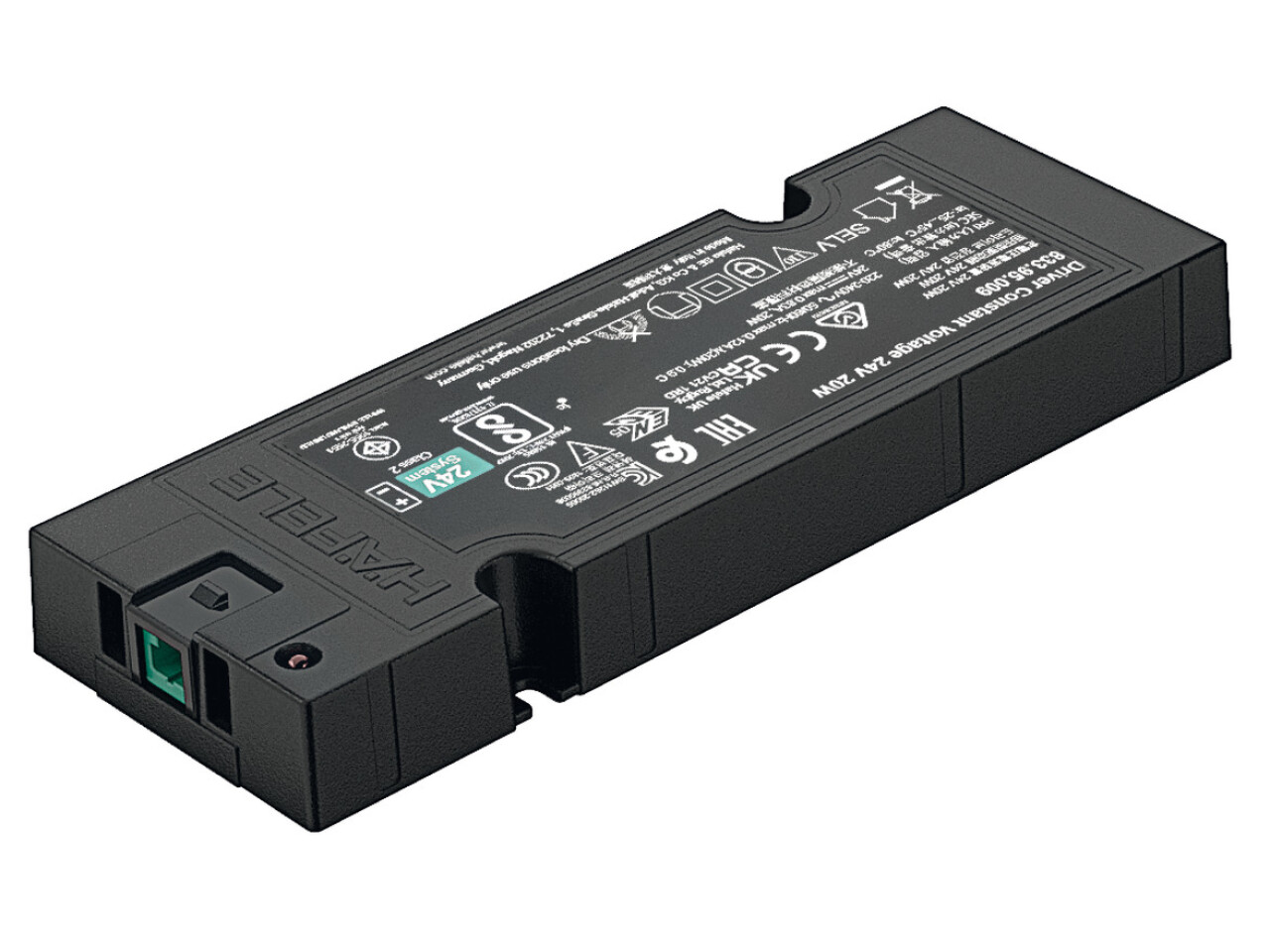

Loox5 LED Driver 24V/20W 220-240V Blk
Part Number: 833.95.009
With overload protection, Output power 20 W, with power factor correction
Price:
£20.56
Per Item
Installation note Provide for sufficient air supply and circulation at the mounting location. Provide... Read More
Product Information
Product Details
Installation note
Provide for sufficient air supply and circulation at the mounting location. Provide inspection opening.
Warranty/Guarantee information
This product is covered under Häfele’s Lifetime Guarantee.
All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.
All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.
For more information go to:
Services > Customer Support > Häfele Lifetime Guarantee
Provide for sufficient air supply and circulation at the mounting location. Provide inspection opening.
| Information on the ecodesign regulation (EU) No. 2019/1782 (external power supplies) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Mains voltage | 100 – 240 V | 100 – 240 V | 100 – 240 V | 100 – 240 V | 220 – 240 V | 100 – 240 V | 100 – 240 V | 100 – 240 V | 220 – 240 V | 100 – 240 V | 100 – 240 V | 100 – 240 V |
| Mains frequency | 50 – 60 Hz | 50 – 60 Hz | 50 – 60 Hz | 50 – 60 Hz | 50 – 60 Hz | 50 – 60 Hz | 50 – 60 Hz | 50 – 60 Hz | 50 – 60 Hz | 50 – 60 Hz | 50 – 60 Hz | 50 – 60 Hz |
| Output power | 20 W | 40 W | 90 W | 20 W | 20 W | 40 W | 90 W | 20 W | 20 W | 40 W | 90 W | 60 W |
| Protection class | II | II | II | II | II | II | II | II | II | II | II | II |
| Efficiency at 230 V full load | 88 % | 89 % | 88 % | 90 % | 88 % | 89 % | 88 % | 90 % | 89 % | |||
| Power consumption at 230 V no load | 0.11 W | 0.1 W | 0.15 W | 0.21 W | 0.11 W | 0.1 W | 0.15 W | 0.21 W | 0.3 W | |||
| Efficiency at 115 V full load | 88 % | 88 % | 89 % | 88 % | 88 % | 89 % | 88 % | |||||
| Power consumption at 115 V no load | 0.08 W | 0.08 W | 0.12 W | 0.08 W | 0.08 W | 0.12 W | 0.1 W | |||||
| Dimming capability | not dimmable | not dimmable | not dimmable | not dimmable | ||||||||
| Disposal note | Do not dispose of the device in residential waste. Please note the country-specific regulations. | Do not dispose of the device in residential waste. Please note the country-specific regulations. | Do not dispose of the device in residential waste. Please note the country-specific regulations. | Do not dispose of the device in residential waste. Please note the country-specific regulations. | ||||||||
Maximum wattage per driver socket = 90 W
Provide for sufficient air supply and circulation at the mounting location of the driver; we recommend 10 mm clearance
Maximum lead length for the Loox5 driver to the light is 10 m. Long cable lengths in combination with large loads (strip light lengths) can result in voltage losses in the cable. These lead to visible loss of brightness in the lights. The illuminance listed with the lights had been determined with the rated output voltage of the driver (12 V or 24 V)
Specifications
Mains frequency
50 – 60 Hz
Plug mains voltage
Efficiency factor correction (PFC)
yes
Ambient temperature
-25–45 °C
Version
With overload protection
Output voltage
24 V DC
Area of application
LED
Suitable for
24 V consumer with Loox plug system
Colour/finish
Black
Output ports
1 x socket, Loox5 2-pin 24 V box to box
Secondary side circuit
Parallel connection
Installation
Screw fixing
Efficiency at 230 V full load
89 %
Power consumption at 230 V no load
0.10 W
Weight
84.00 g
Hafele Lifetime Guarantee
7 years
Output current
0.83 A
Order reference
Loox C7 mains lead must be ordered separately
Supplied with
Mounting accessories
