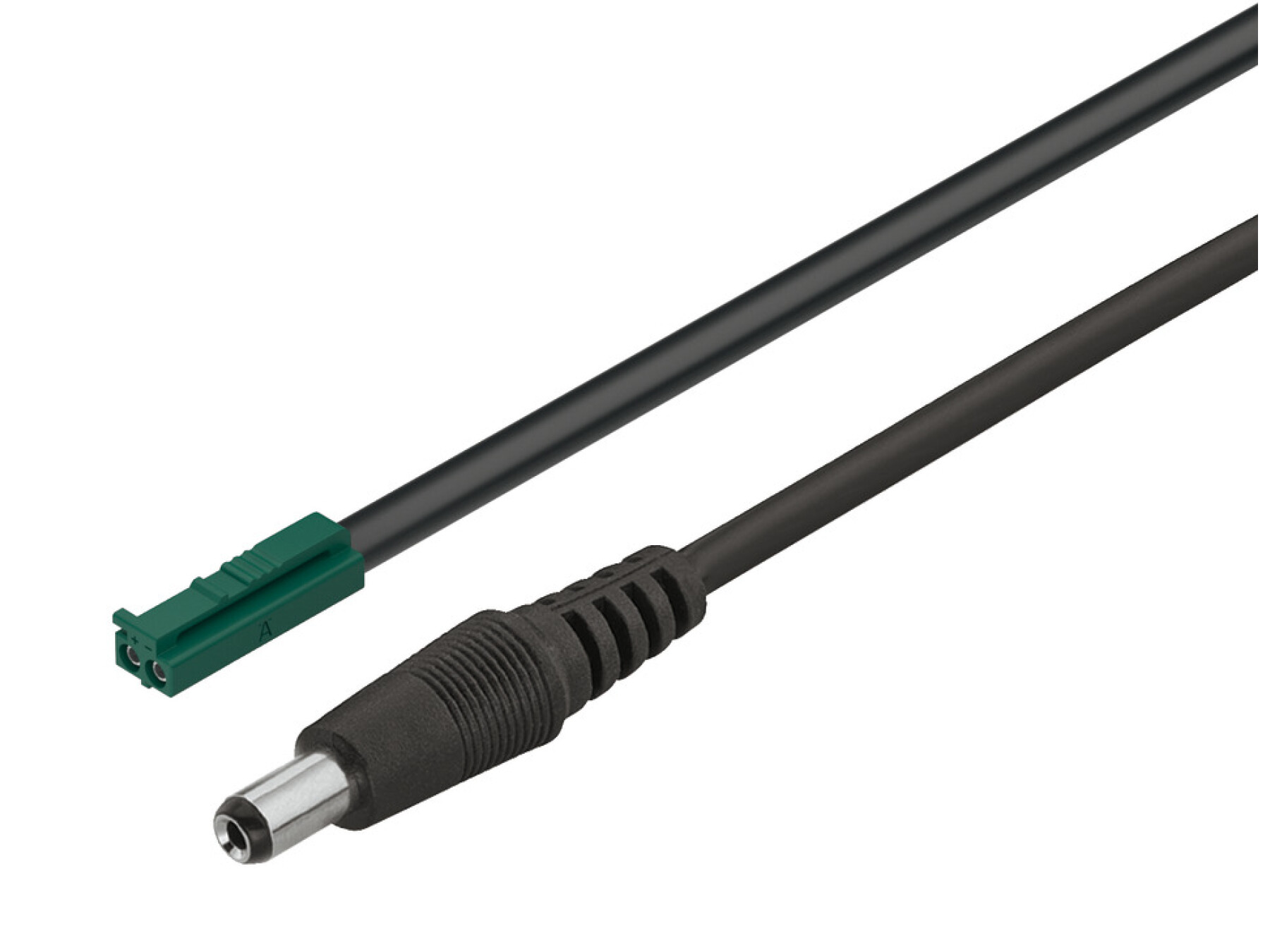

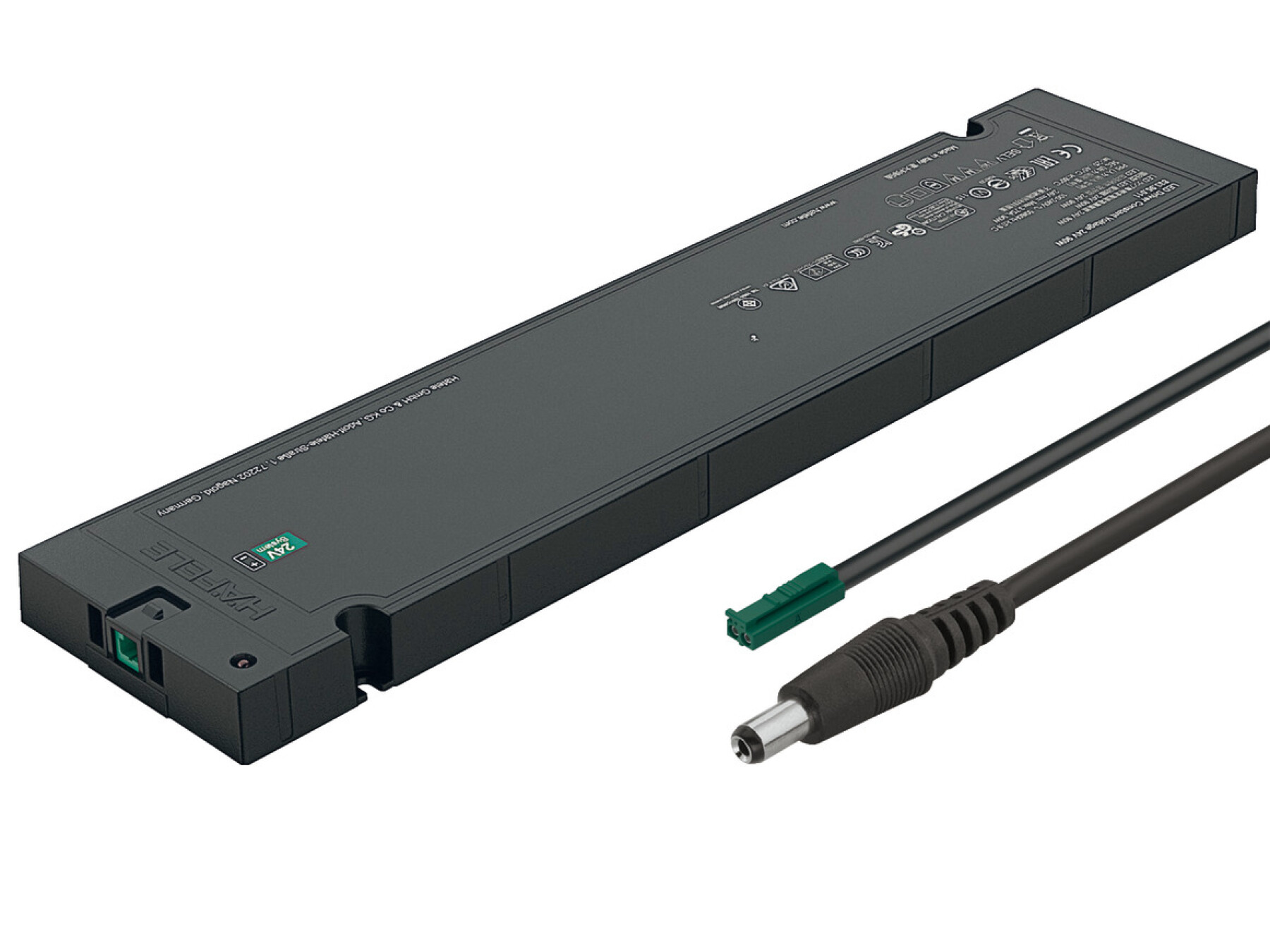

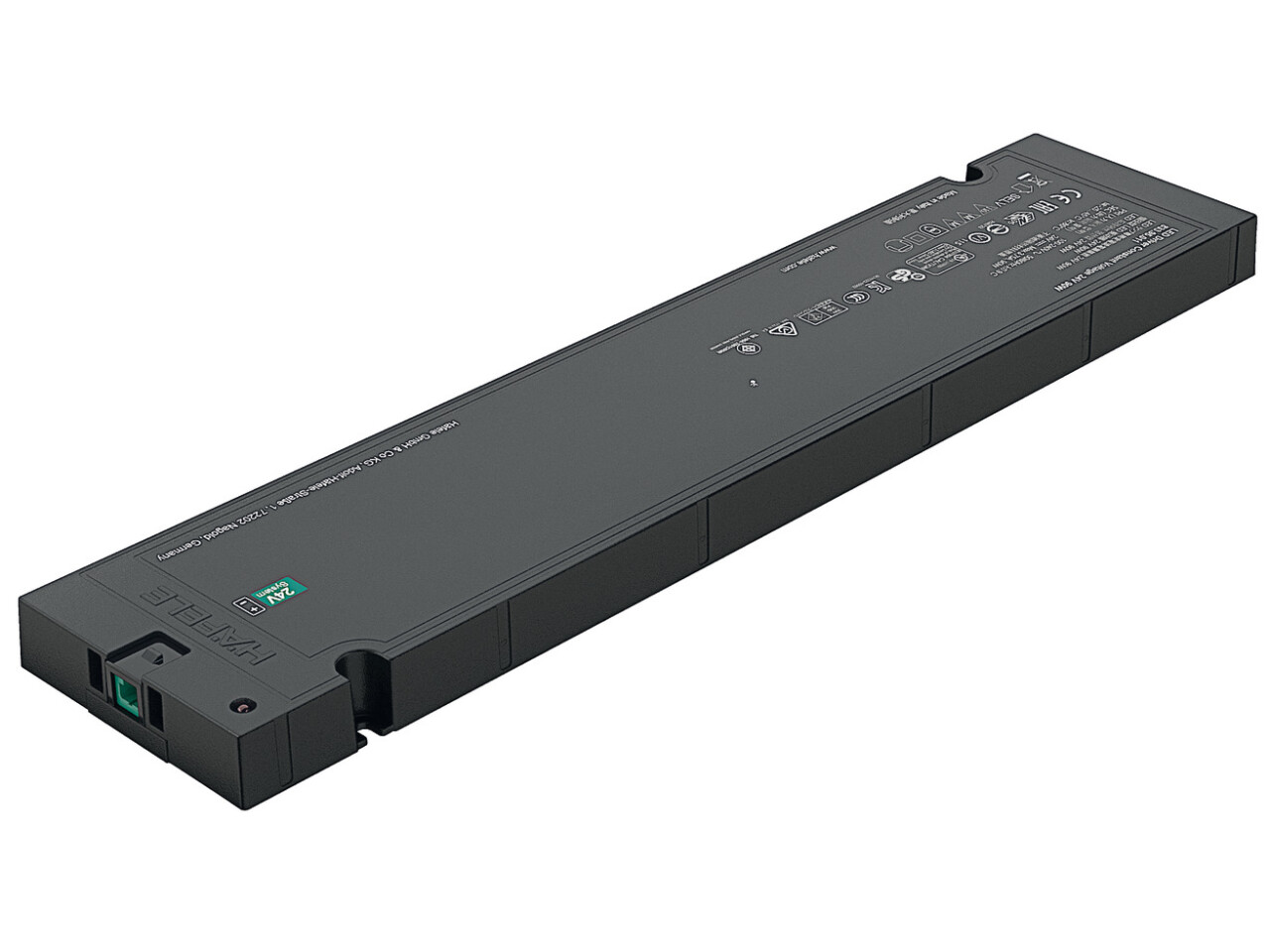

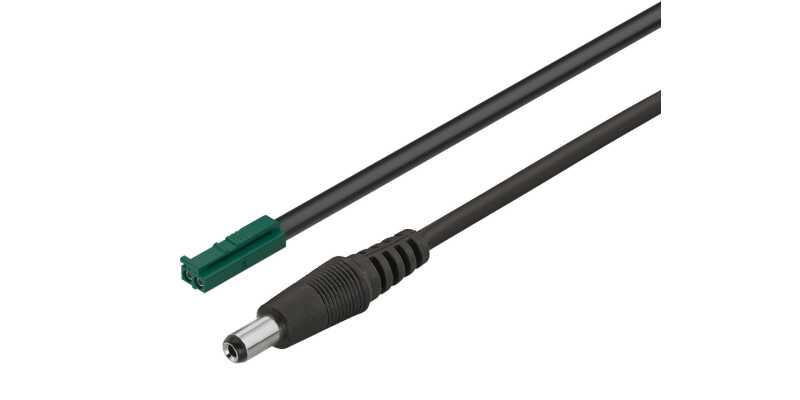

Loox5 Driver + Free E Lead 40/90W 240V
Part Number: 372.91.110
For use with Free E driver unit, with overload protection, Wattage: 90 W, output current: 3.75 A
Price:
£49.38
Per Item
Area of application For 24 V devices with Loox plug system, for switch with Loox plug system, suitable for... Read More
Product Information
Product Details
Area of application
For 24 V devices with Loox plug system, for switch with Loox plug system, suitable for connecting to all of the world's most frequently used mains voltages and mains frequencies
Warranty/Guarantee information
This product is covered under Häfele’s Lifetime Guarantee.
All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.
All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.
For more information go to:
Services > Customer Support > Häfele Lifetime Guarantee
| Technical data | |
|---|---|
| Mains voltage | 100 – 240 V |
| Mains frequency | 50 – 60 Hz |
| Output power | 90 W |
| Protection class | II |
Only one Free E drive unit can be connected to the driver
Approvals: Furniture items that are equipped with the Free E are subject to the EU machinery directives (2006/42/EG) within the European Economic Area (EEA), Switzerland and Turkey
Specifications
Mains voltage
100 – 240 V
Mains frequency
50 – 60 Hz
Plug mains voltage
A (US) 2-pin
Output power
90 W
Standby power consumption
0.20 W
Efficiency factor correction (PFC)
yes
Ambient temperature
-25–45 °C
Dim. (L x W x H)
316 x 70 x 16 mm
Version
With overload protection
Output voltage
24 V DC
Colour/finish
Black
Output ports
1 x socket, Loox5 2-pin 24 V box to box
Secondary side circuit
Parallel connection
Installation
Screw fixing
Weight
353.00 g
Hafele Lifetime Guarantee
7 years
Output current
3.75 A
Order reference
Order mains leads separately
Supplied with
1x Driver, 1x Lead
