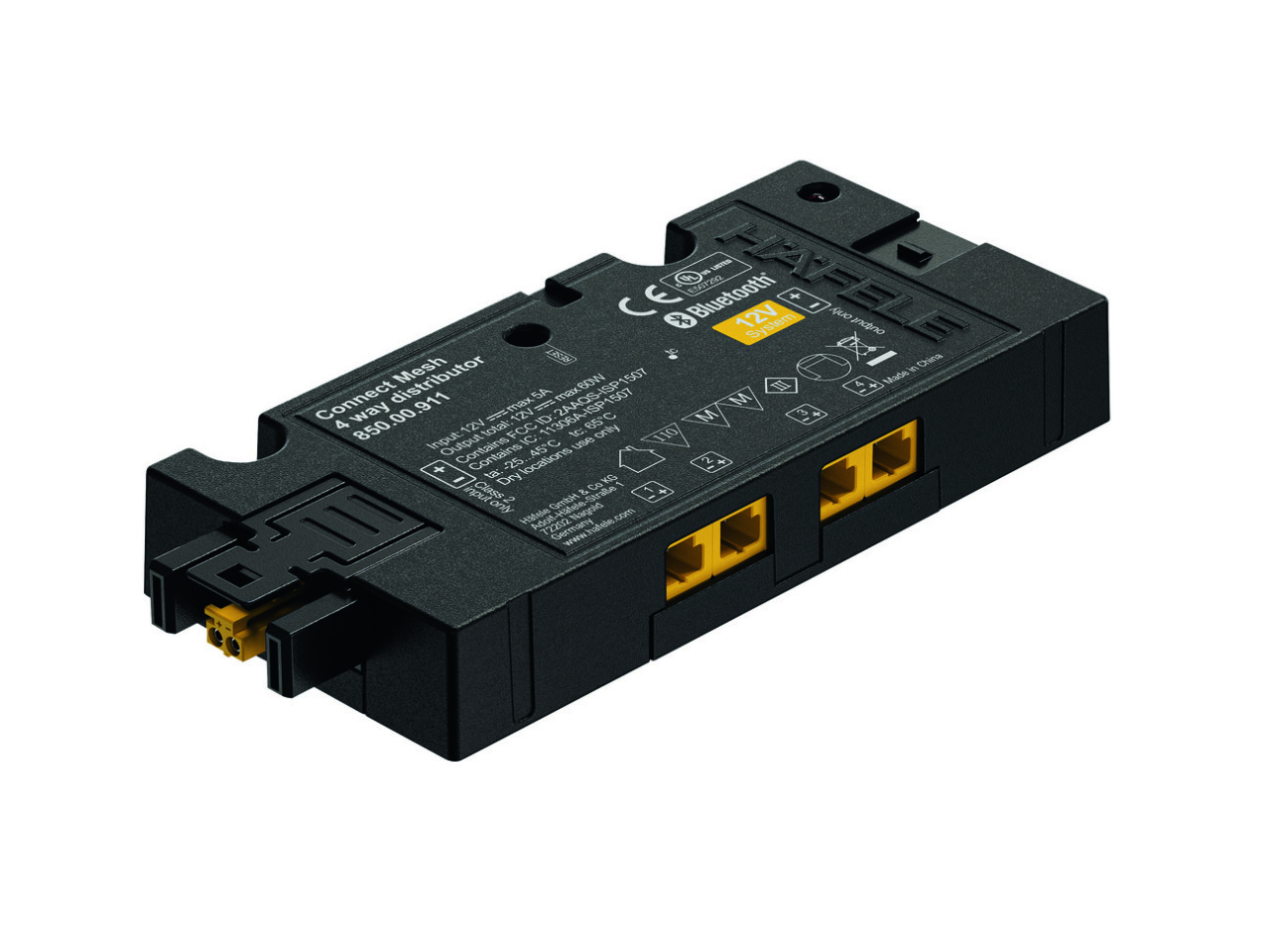

Loox5 Con Msh Eco 4-Way Distr+Swt 12V MC
Part Number: 850.00.910
Dim. (L X W X H): 155 x 50 x 16 mm, Monochromatic
Price:
£27.35
Per Item
For for switching on/off and dimming (0-100%) as well as colour change (for multi-white and RGB)... Read More
Product Information
Product Details
For for switching on/off and dimming (0-100%) as well as colour change (for multi-white and RGB)
Warranty/Guarantee information
This product is covered under Häfele’s Lifetime Guarantee.
All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.
All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.
For more information go to:
Services > Customer Support > Häfele Lifetime Guarantee

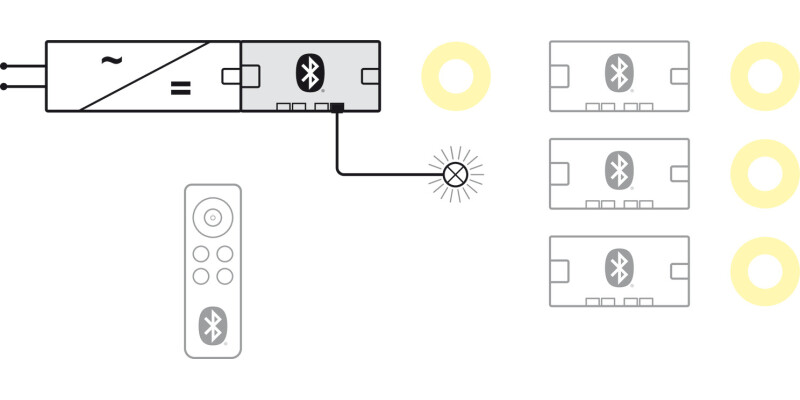

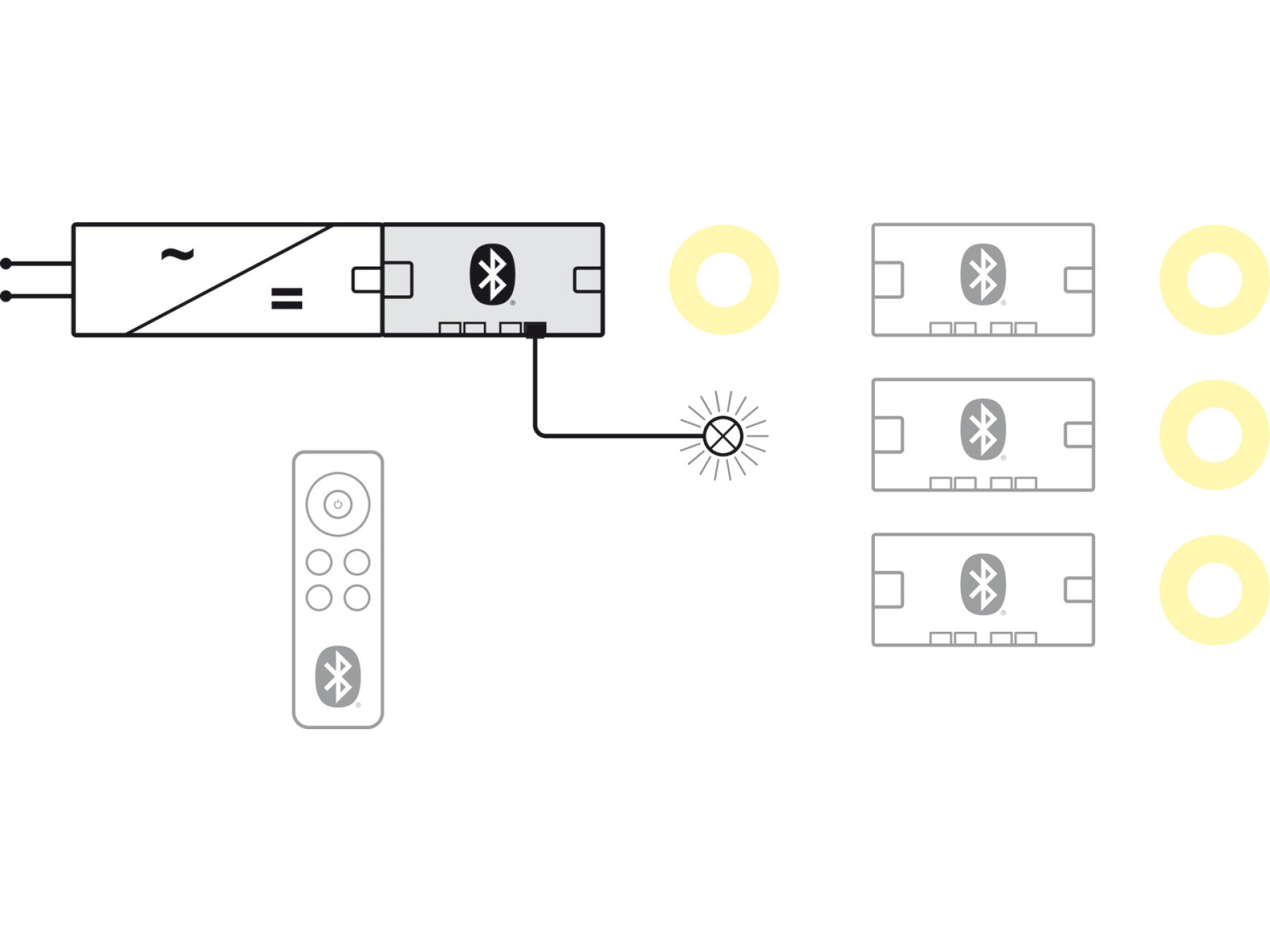

The remote control simultaneously controls all outputs of the distributors of a network (on/off, dimming level). Buttons 1-4 can be used for scene selection.
The distance between the smartphone or tablet to the nearest Häfele Connect Mesh component is approx. 10 m. Multiple components create a network, and can be placed approx 10 m apart.
Max. lead length from driver to distributor 2 m.
Specifications
Low voltage plug
Loox5 2-pin 12 V
Input ports
1 x plug, Loox5 2-pin 12 V box to box
Output ports
4 x sockets, Loox5 2-pin 12 V box to box
Connected output ports
4 x sockets, Loox5 2-pin 12 V
Power capacity
36.00 W
Current carrying capacity
3.00 A
Voltage
12.00 V
Colour system
monochrome
Area of application
For on/off switching and dimming (0–100%) and colour change (with multi-white and RGB)
Suitable for
for monochrome LED lights
Version
Monochrome
Material
Plastic
Colour/finish
black
Dim. (L x W x H)
150 x 50 x 16 mm
Memory function
No
Control channels
4.00
Max. number of distributors per network
4.00
Max. distance within the network
5.00 m
Standby power consumption
0.50 W
Hafele Lifetime Guarantee
7 years
Order reference
Please order Häfele Connect Mesh Eco remote control separately
Supplied with
1x 4-way distributor
