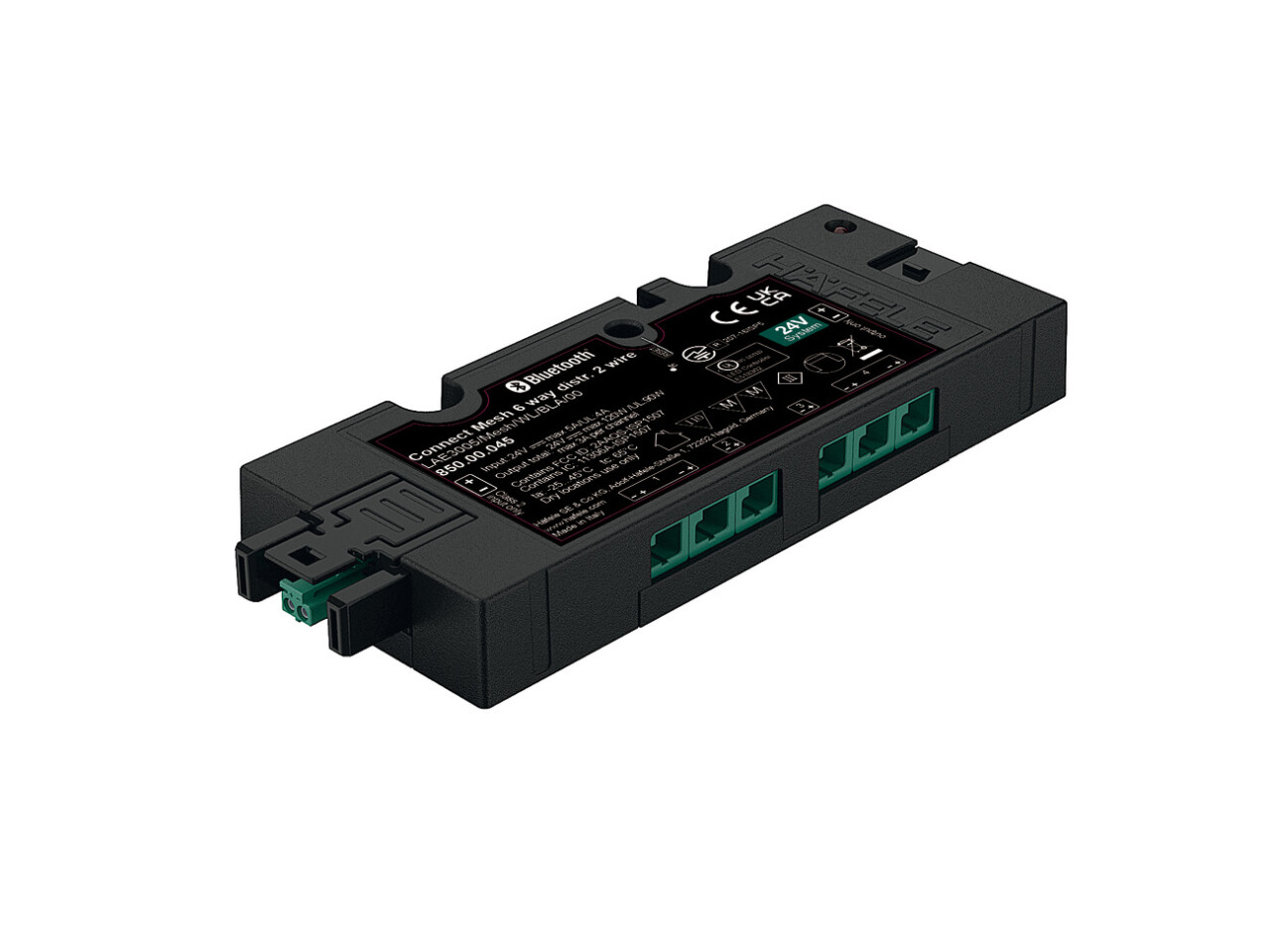

Loox5 Con Msh 6-Way Distr+Swt 24V/120W M

Part Number: 850.00.045
6 outputs controllable as 4 channels, Max. connected wattage 120 W
Price:
£86.99
Per Item
VAT excluded

Free Connect Mesh app for Apple iOS® and Android™ Warranty/Guarantee information Warranty informationThis... Read More

Product Information

Product Details

Free Connect Mesh app for Apple iOS® and Android™

Warranty/Guarantee information

Warranty information
This product is covered under Häfele’s Lifetime Guarantee.

All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.

All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.

For more information go to:

Services > Customer Support > Häfele Lifetime Guarantee

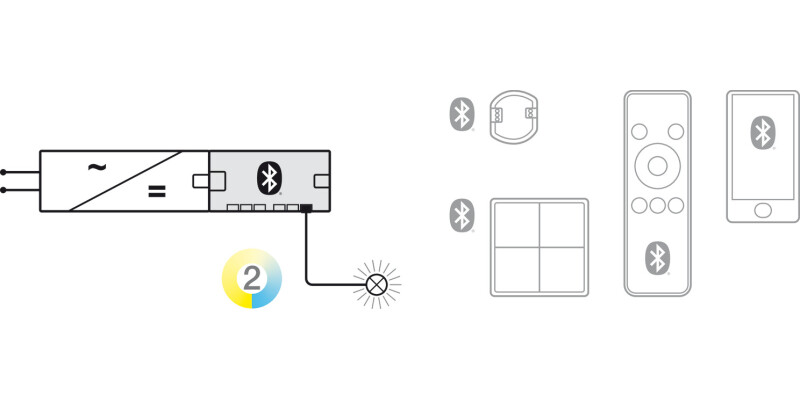

Programming of all functions via app.

Mesh programming available through the Lighting Design Service

The distance between the smartphone or tablet to the nearest Häfele Connect Mesh component is approx. 10 m. Multiple components create a network, and can be placed approx 10 m apart.

Specifications

Low voltage plug

Loox5 2-pin 24 V box to box

Input ports

1 x plug, Loox5 2-pin 24 V box to box

Output ports

1 x socket, Loox5 2-pin 24 V box to box

Connected output ports

6 x sockets, Loox5 2-pin MW 24 V

Power capacity

120.00 W

Voltage

24.00 V

Colour system

MW 2-wire technology

Area of application

For switching 2-pin multi-white lights on/off and dimming (0-100%)

Version

Box to box, multi-white 2-wire technology

Material

Plastic

Colour/finish

black

Dim. (L x W x H)

120 x 50 x 16 mm

Control channels

4.00

Max. distance within the network

5.00 m

Hafele Lifetime Guarantee

7 years

Supplied with

1 distributor
