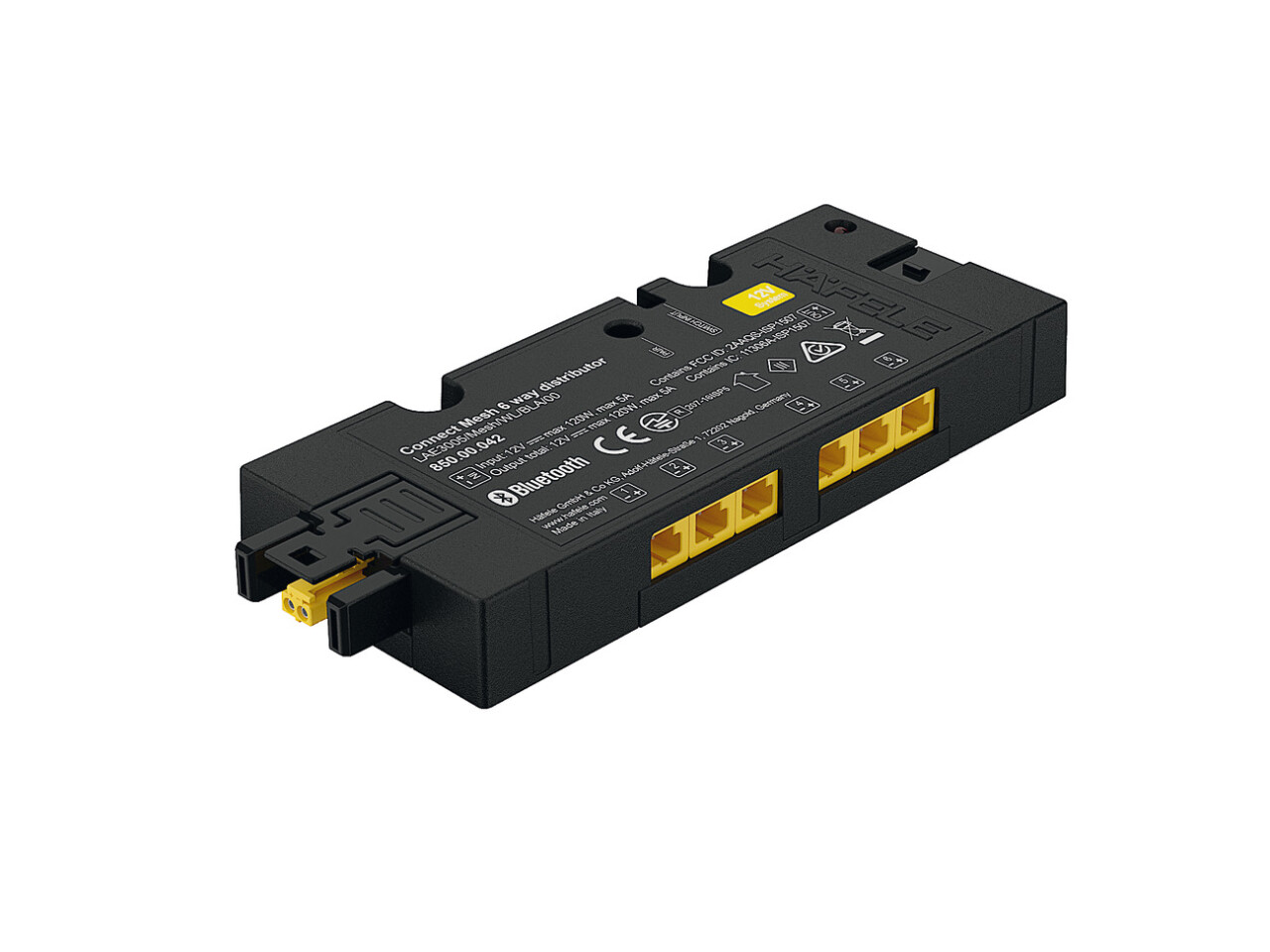

Loox5 Con Msh 6-Way Distr+Swt 12V/60W
Part Number: 850.00.042
With programmable switch input, Max. connected wattage 60 W
Price:
£77.33
Per Item
Control several light colours on one boxEach output port can be controlled individuallyFor standard Loox switches... Read More
Product Information
Product Details
Control several light colours on one box
Each output port can be controlled individually
For standard Loox switches (switching function via programmable app; each active component can control each passive component)
Area of application
For on/off switching and dimming (0-100%) of monochromatic lights; or, in conjunction with adapters, for the operation of multi-white lights, RGB lights, and electrically operated fittings
Warranty/Guarantee information
This product is covered under Häfele’s Lifetime Guarantee.
All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.
All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.
For more information go to:
Services > Customer Support > Häfele Lifetime Guarantee

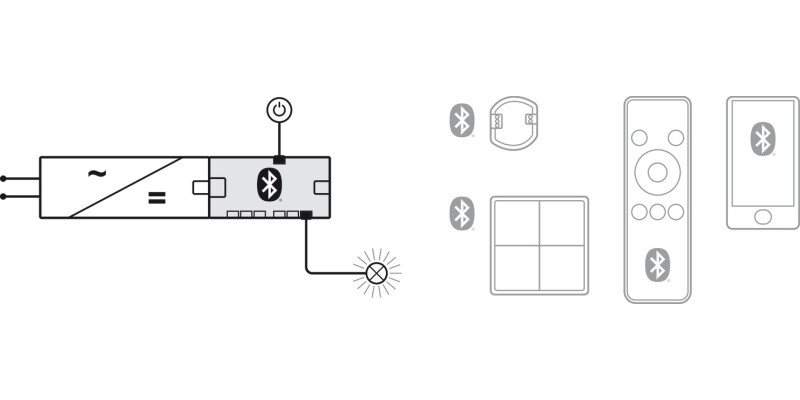

Programming the functions of the switch input for standard Loox switches via the app.
Mesh programming available through the Lighting Design Service
The distance within the network applies in the event of a clear view.
Obstacles and electromagnetic interference sources can reduce the range.
Each additional Connect Mesh component in the network acts as a signal amplifier and compensates for range loss.
Maximum lead length from driver to distributor 2 m.
Please note maximum power loading capacity!
Specifications
Low voltage plug
Loox5 2-pin 12 V box to box
Input ports
1 x plug, Loox5 2-pin 12 V box to box
Output ports
1 x socket, Loox5 2-pin 12 V box to box
Connected output ports
6 x sockets, Loox5 2-pin 12 V
Control input ports
1 x socket, Loox switch
Power capacity
60.00 W
Voltage
12.00 V
Colour system
monochrome
Suitable for
For RGB lights, For monochrome lights, For multi-white lights
Version
Box-to-Box
Colour/finish
black
Dim. (L x W x H)
120 x 50 x 16 mm
Switching function
Programmable with app
Max. distance within the network
5.00 m
Standby power consumption
0.50 W
Hafele Lifetime Guarantee
7 years
Order reference
Please order adapter for multi-white lights, RGB lights or electrically operated fittings separately
Supplied with
1 distributor
