Loox IP20 Mod Mot Detector 0.5/1/3 Mins
Part Number: 833.89.333

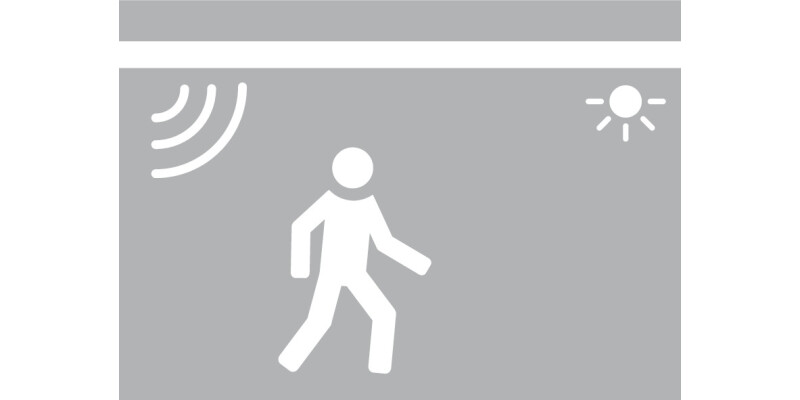

Soft on/off switching function, automatic, Min. delay time - 0.5/1/3 minutes
Price:
£12.63
Per Item
Where switches are not in-built or included choose from the wide range of Loox switchesThese Ø 12 mm switches... Read More
Product Information
Product Details
Where switches are not in-built or included choose from the wide range of Loox switches
These Ø 12 mm switches can be recessed or surface mounted
Adjustable overrun time via integrated microswitch
Colour adjustment with supplied cover sleeves

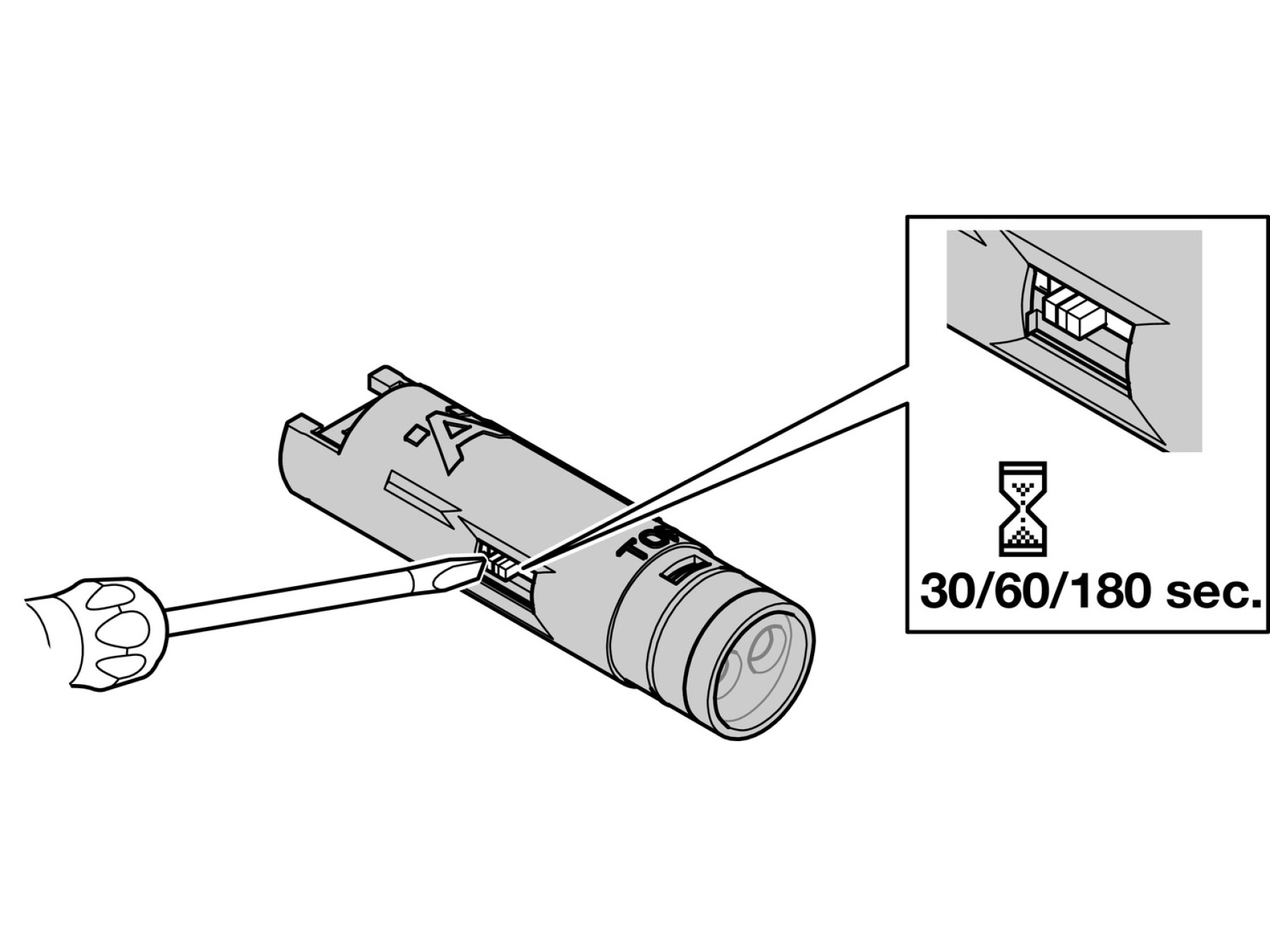

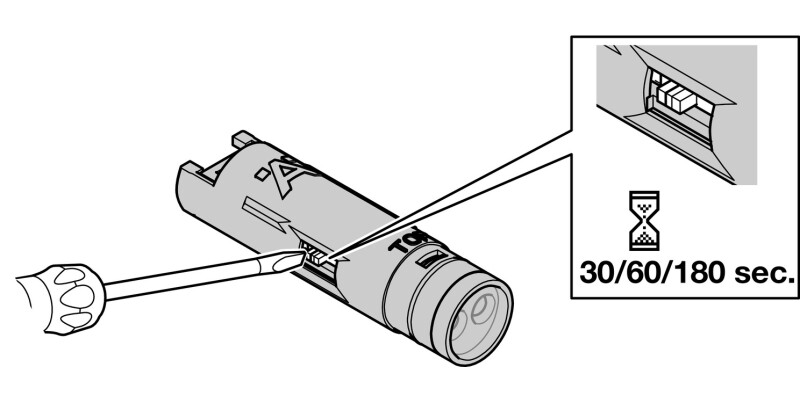

Adjustable delay time via integrated micro switch
Installation note

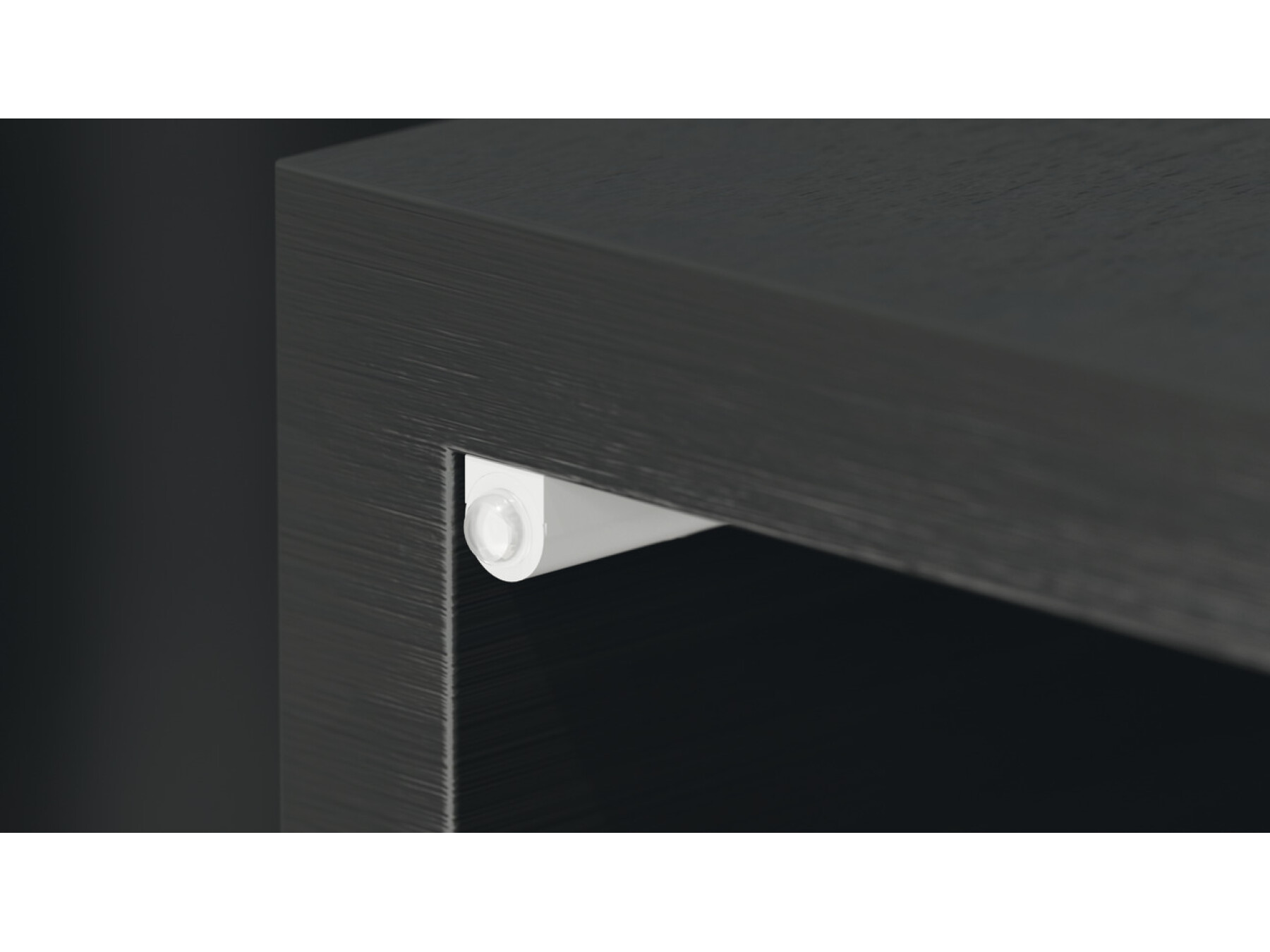

Coloured cover sleeve can be used for drill hole in furniture and for housing. Sensor lens protrudes approx. 5 mm
Warranty/Guarantee information
This product is covered under Häfele’s Lifetime Guarantee.
All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.
All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.
For more information go to:
Services > Customer Support > Häfele Lifetime Guarantee
Specifications
Version
For lead with snap-in connector
Colour/finish
White/Grey/Black
Switching function
Soft on/off, automatically
Memory function
No
Drill hole Ø
12.00 mm
Length
44.50 mm

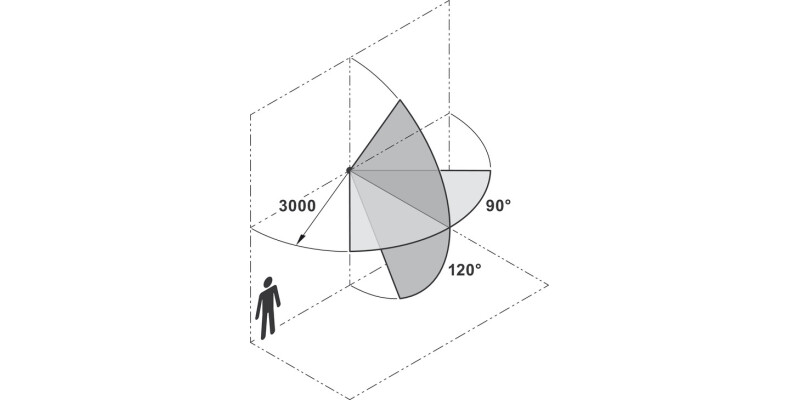

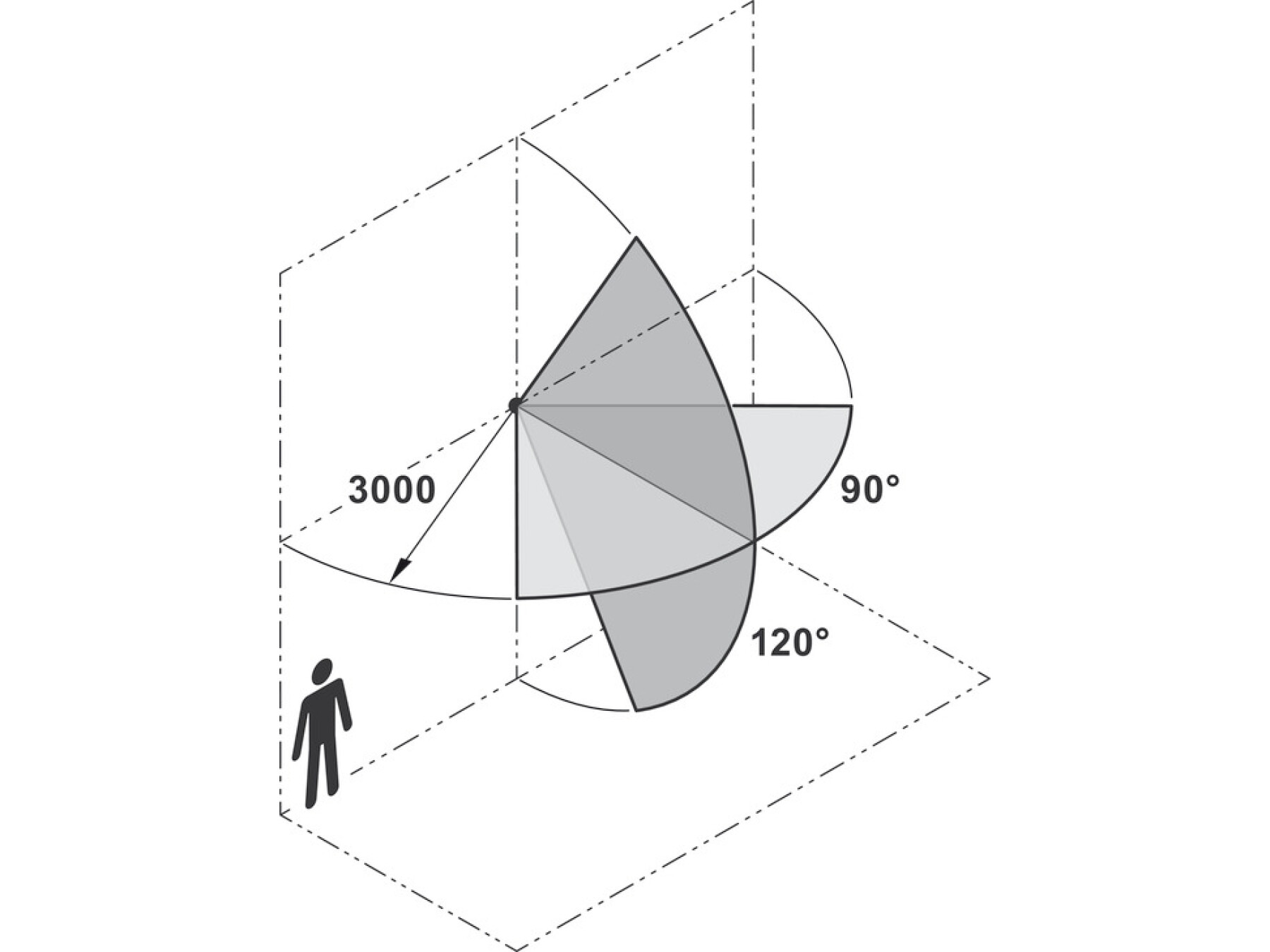

Sensor range
0 – 3,000 mm
Material
Plastic

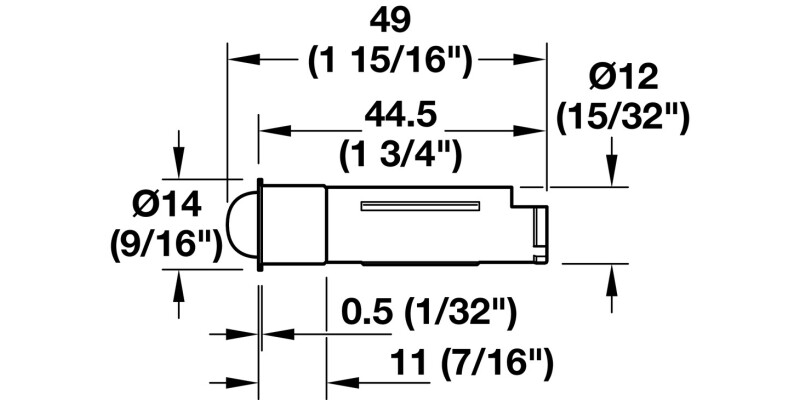

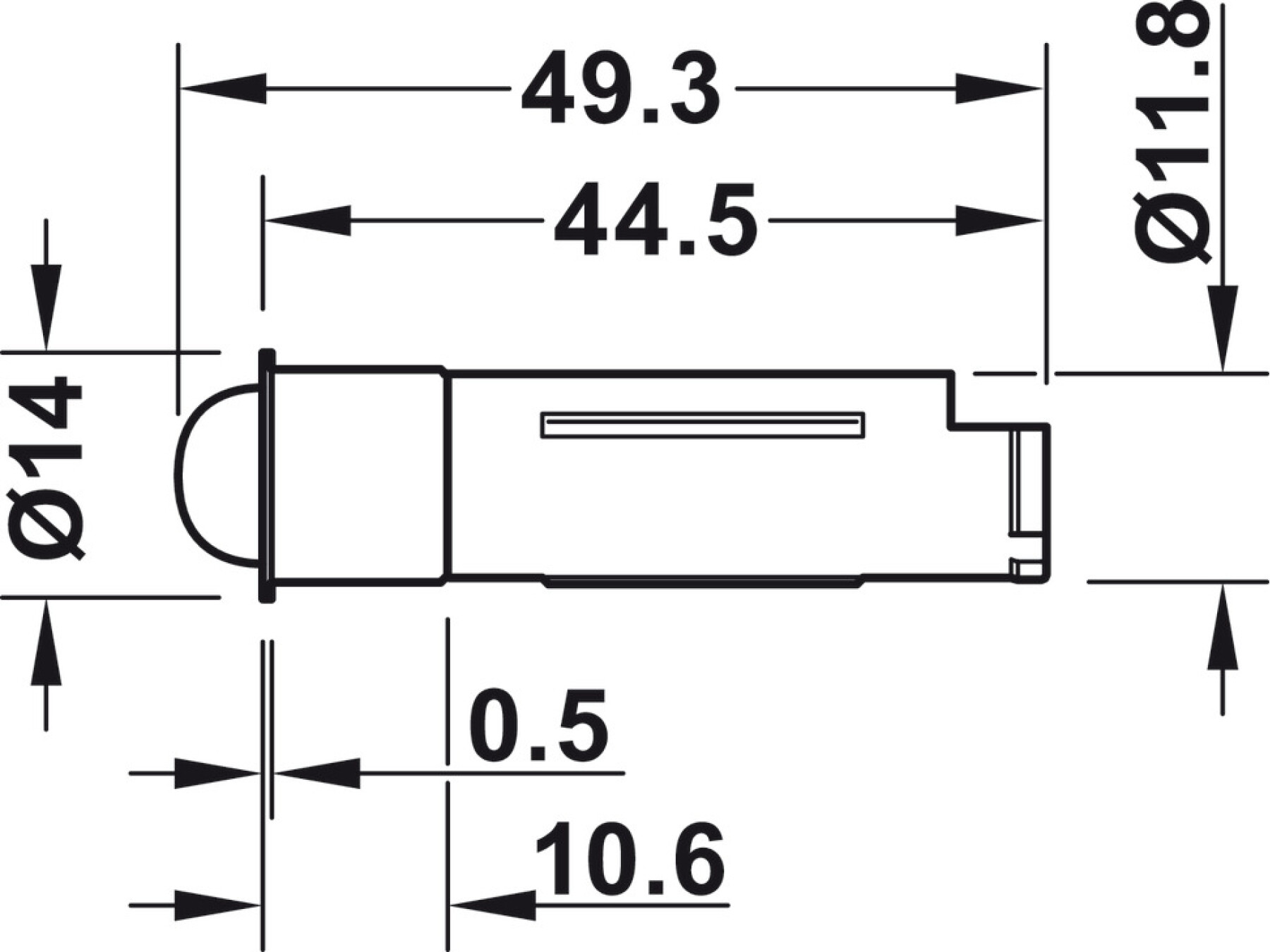

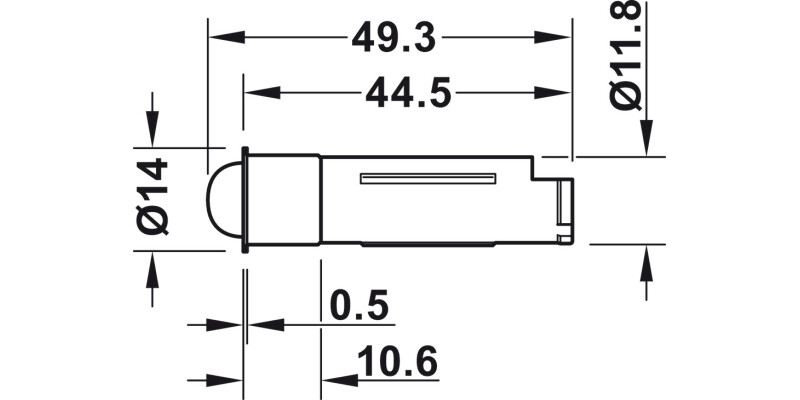

Dim. (Ø x L)
12 x 44.5 mm
Power consumption
0.10 W
Horizontal sensor angle
90.00 °
Vertical sensor bracket
120.00 °
Degree of protection
IP20
Installation
For mounting in drilled hole, or for plug fitting into housing
Hafele Lifetime Guarantee
7 years
Order reference
Please order lead with snap-in connector for modular switches separately. Length 2 m: Cat. No. 833.89.142

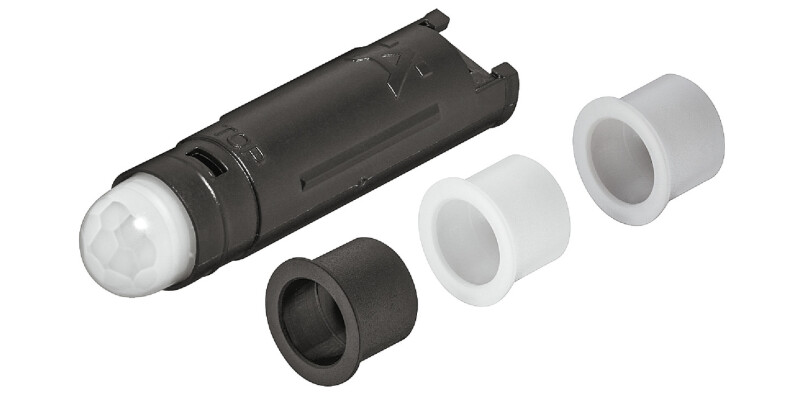

Supplied with

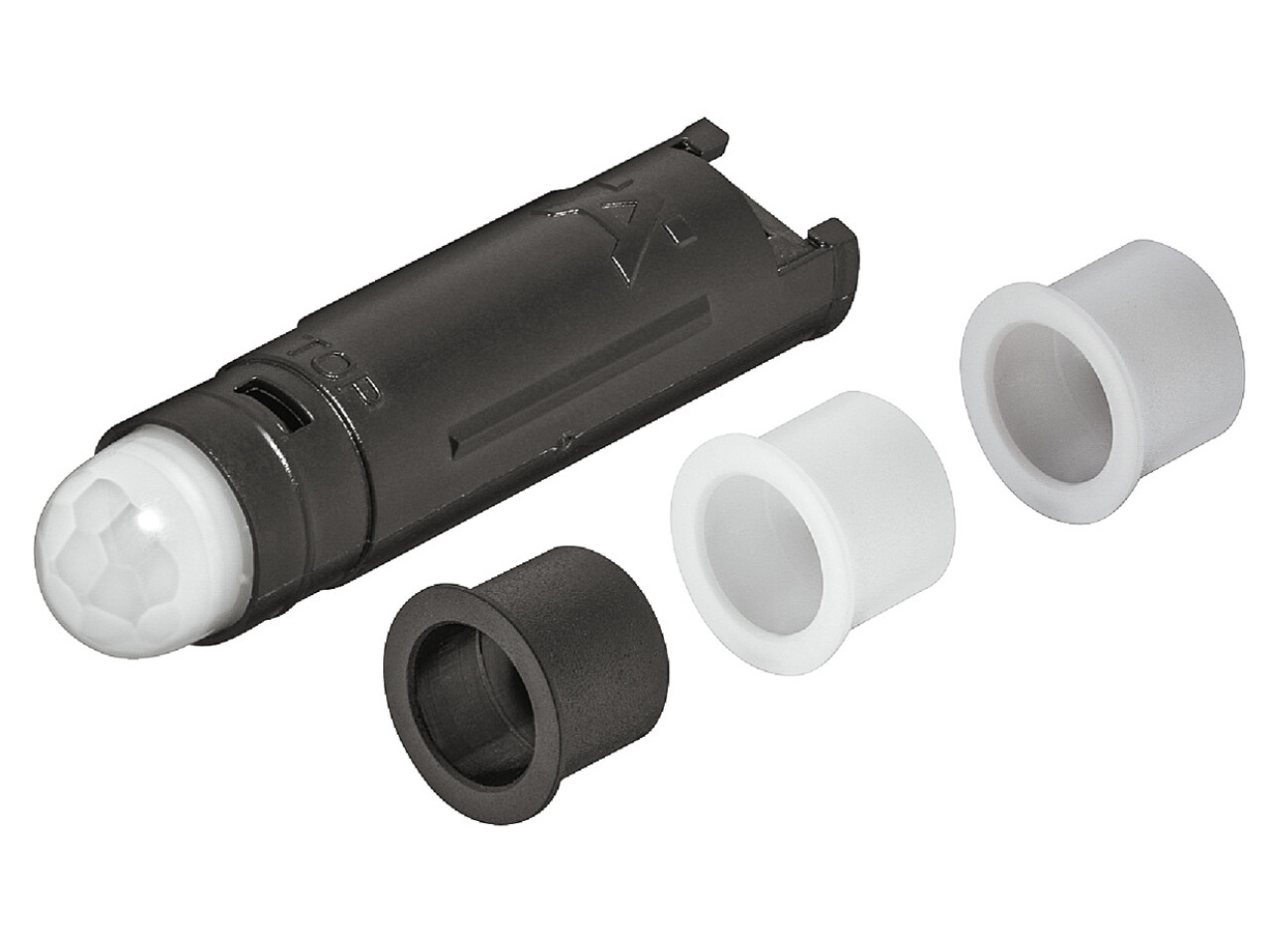

Consists of:
1x Adjustable motion detector, black housing
3x Cover sleeves (1x each of white, grey, black)
