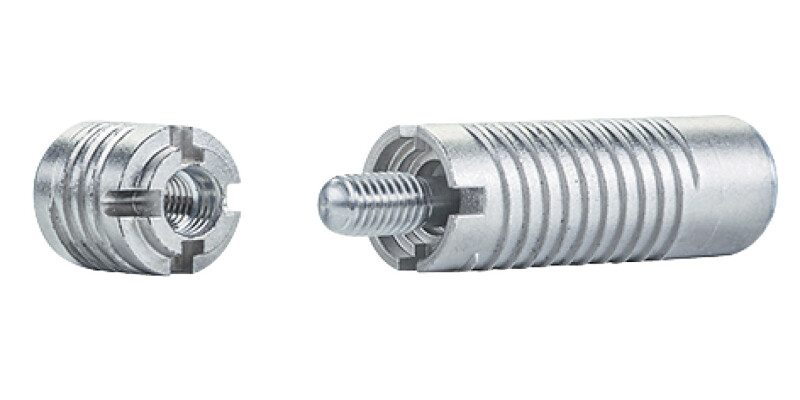

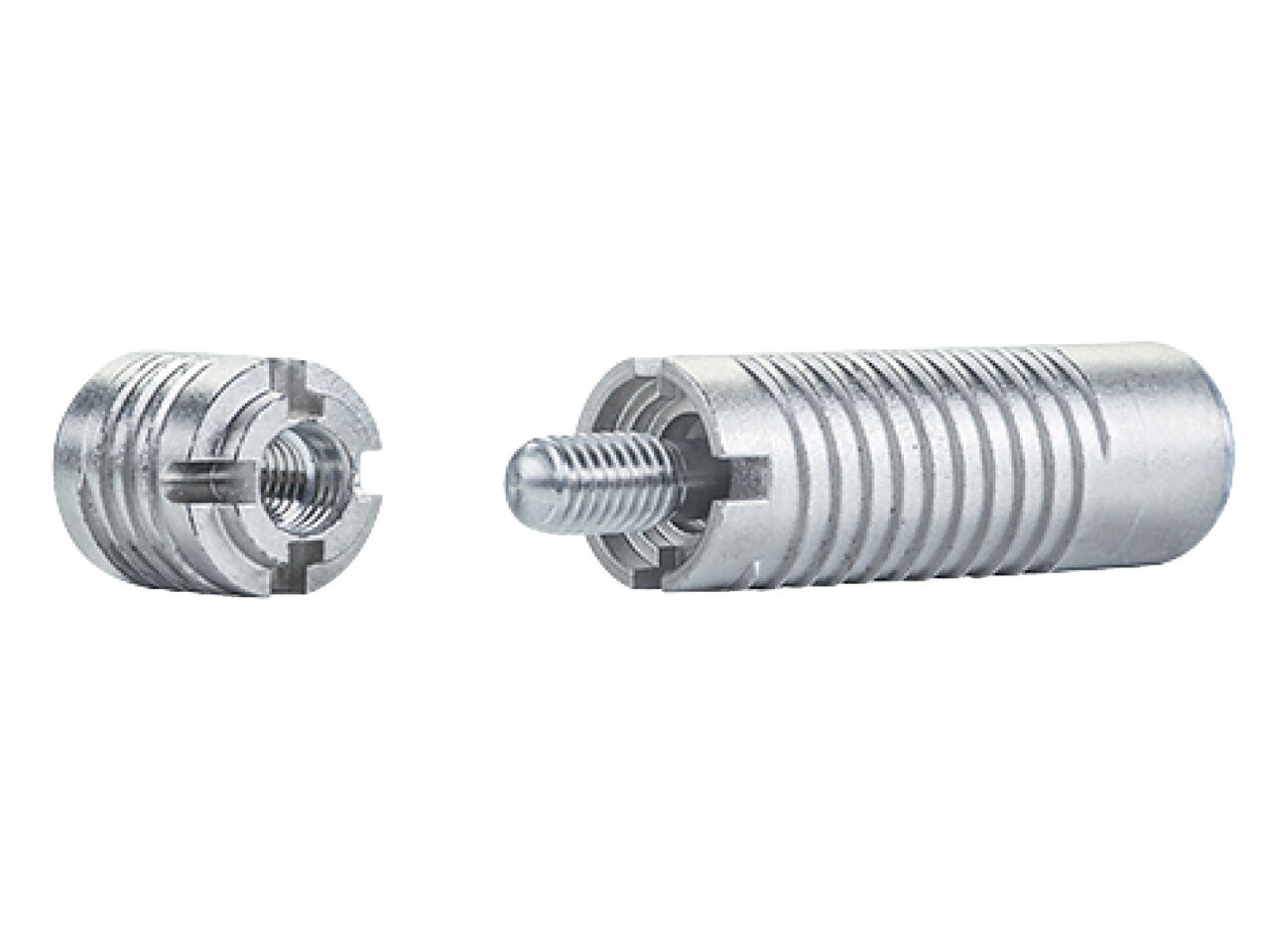

Lamello Invis Mx2 Connector 14mm ZA
Part Number: 267.91.112
For connecting wood and wood materials, Threaded nut length 14 mm
Price:
£204.74
Per 20 Pack
Connection can be undone time and time againpowerful bolted connections with clamping force of up to 250 kg per... Read More
Product Information
Product Details
Connection can be undone time and time again
powerful bolted connections with clamping force of up to 250 kg per connector via the M5 stainless steel screw
easy handling due to assembly tolerance
neatly clamped joints without screw-clamps
The connection is always detachable
Powerful screwed joints with up to 250 kg clamping force per connector via the M5 stainless steel screw
Easy handling due to the installation tolerance
Perfectly clamped joints without the need for clamps
Operating principle
The Lamello Invis Mx2 MiniMag drive magnet is compatible with any conventional cordless machine with a speed of 1200–1500 rpm.
The rotating magnetic field of the Lamello Invis Mx2 MiniMag drives the connector, and the thread in the connector screws into the internal thread of the screw-in nut.
To release the connection again, simply reverse the direction of rotation of the power drill.
Specifications
Material
Zinc alloy
Area of application
For connecting wood and wooden materials
Installation
For screwing in
Order reference
1 piece = 1 pair
Supplied with
4 or 20 pieces of Lamello Invis Mx2 cabinet connector
