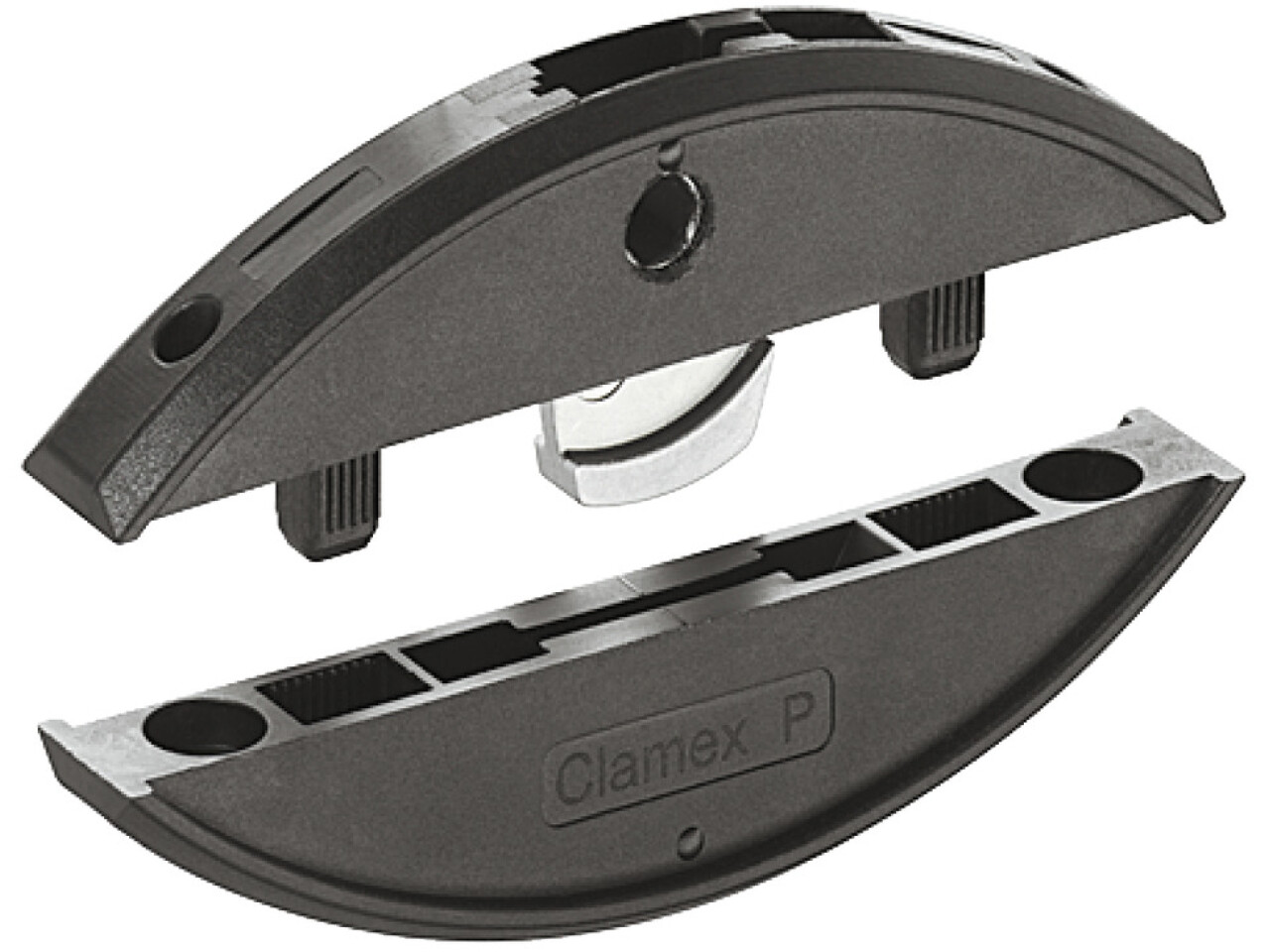

Lamello Clamex P-14 Connector Pl/ZA
Quick installation without toolsPositive-fitting anchoring – no gluing or screw fixingFrequent removal and... Read More
Product Details
Quick installation without tools
Positive-fitting anchoring – no gluing or screw fixing
Frequent removal and tightening possible, suitable for continuous use such as in trade fair construction
Powerful connections, since the tensioning element makes high force transfer possible
No twisting of the components by guide pins
Lateral adjustment possible
Area of application
For corner, centre panel and surface connections, and mitre joint connections from 30°–180°, for solid wood and board materials
Installation description

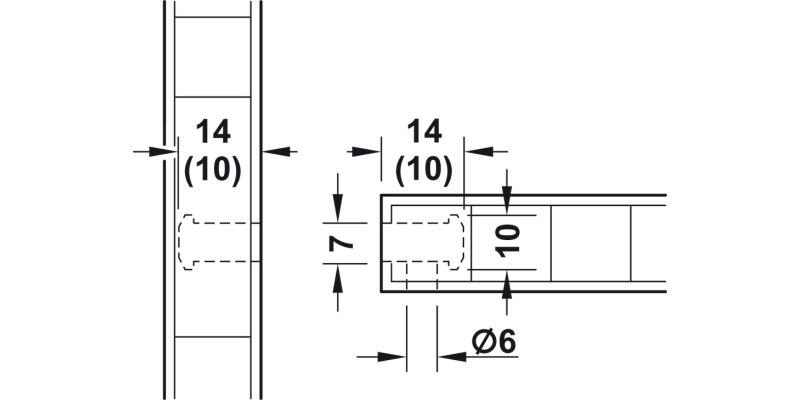

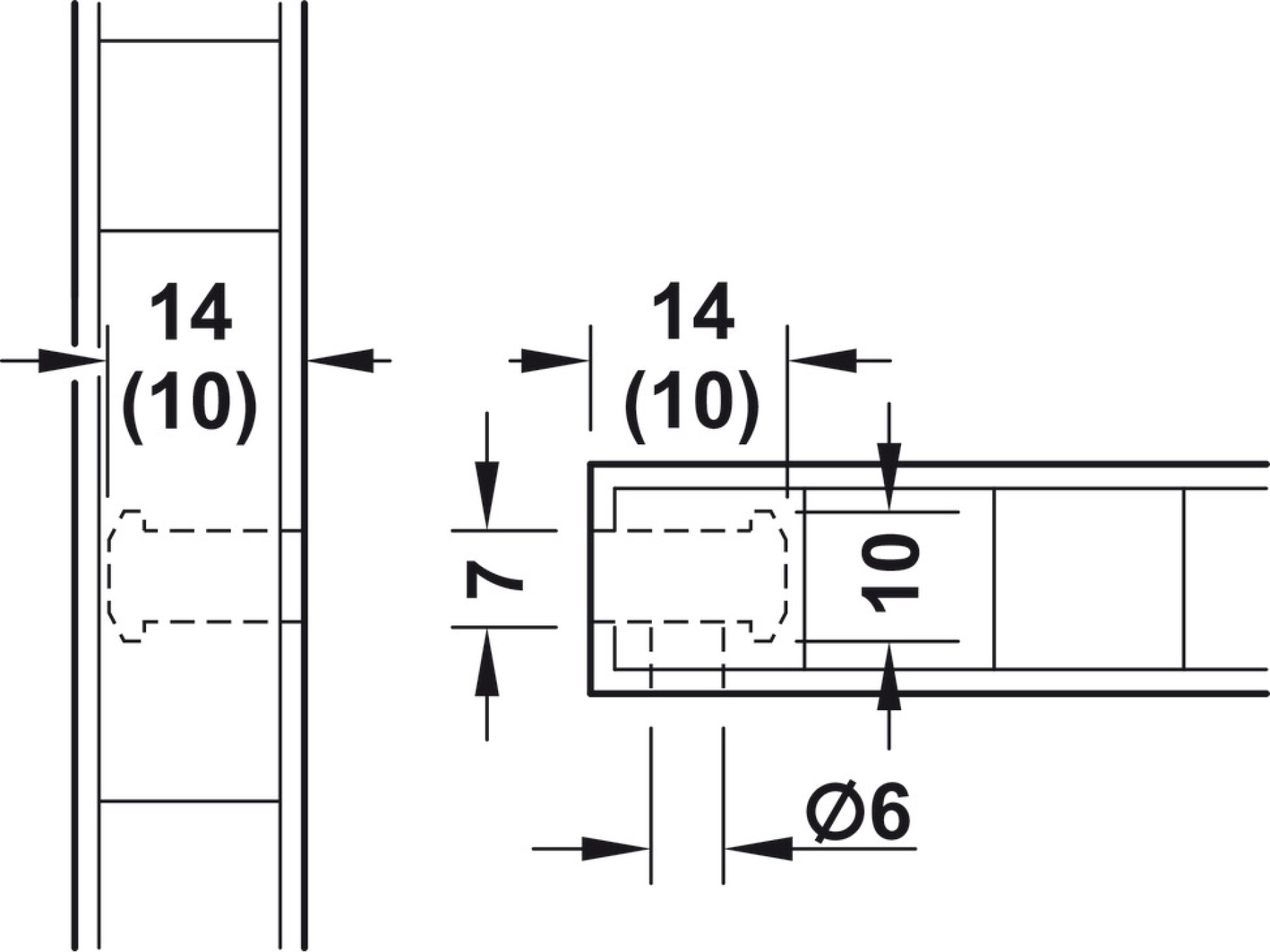

mill 7 mm groove with T-slot for connector

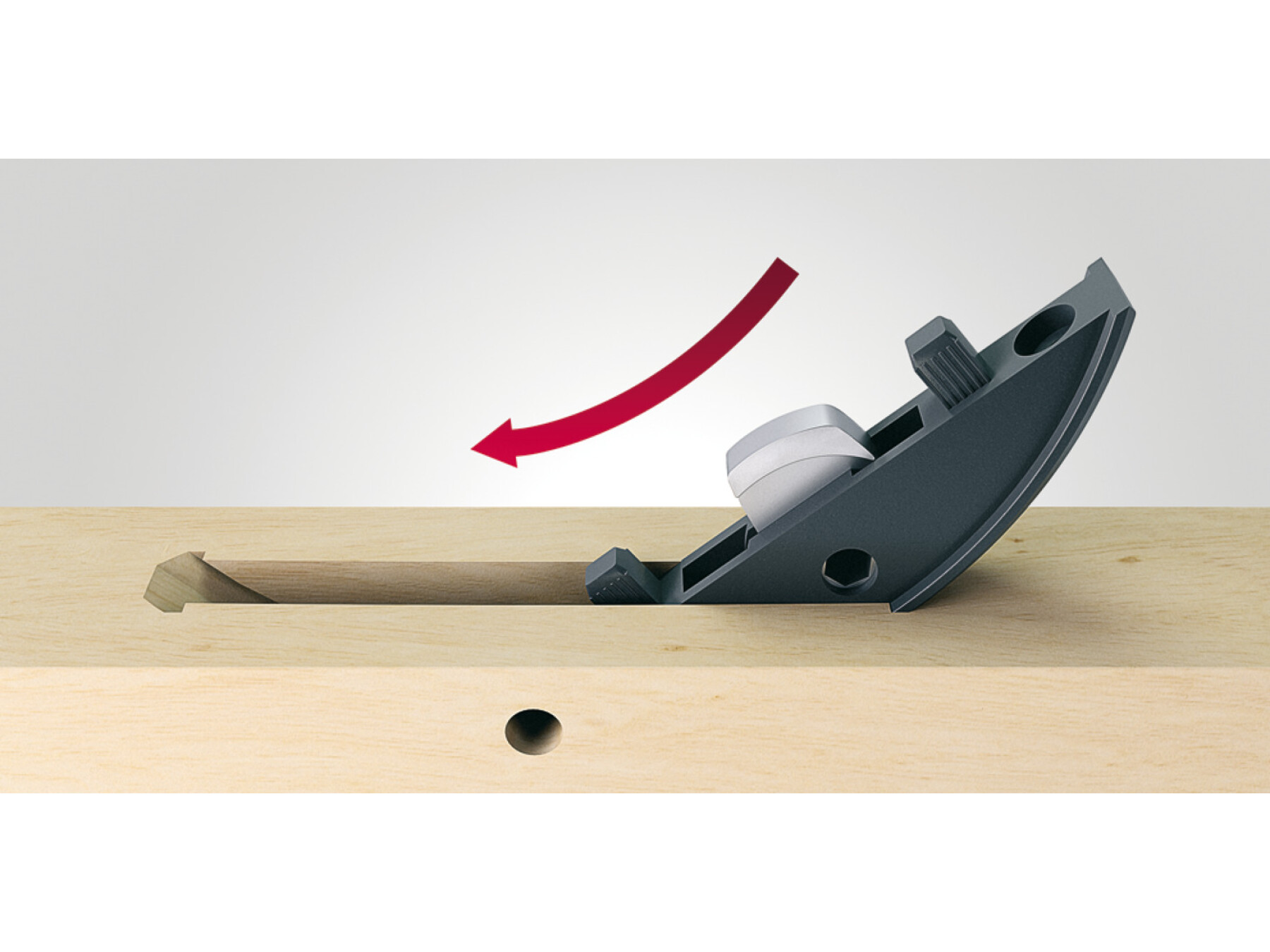

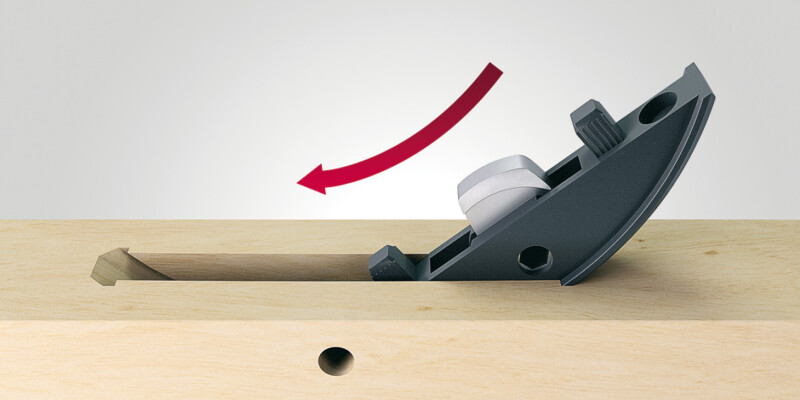

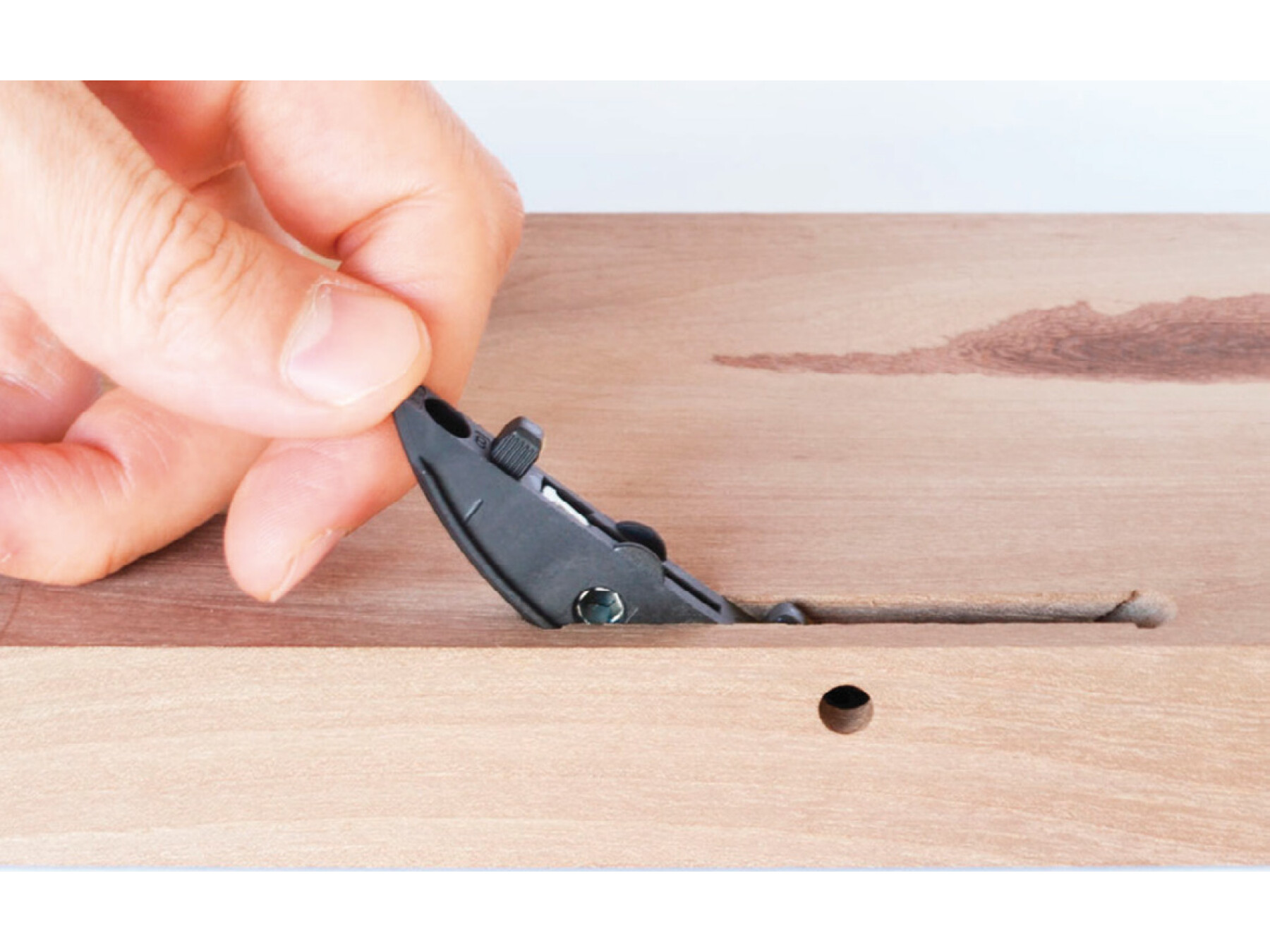

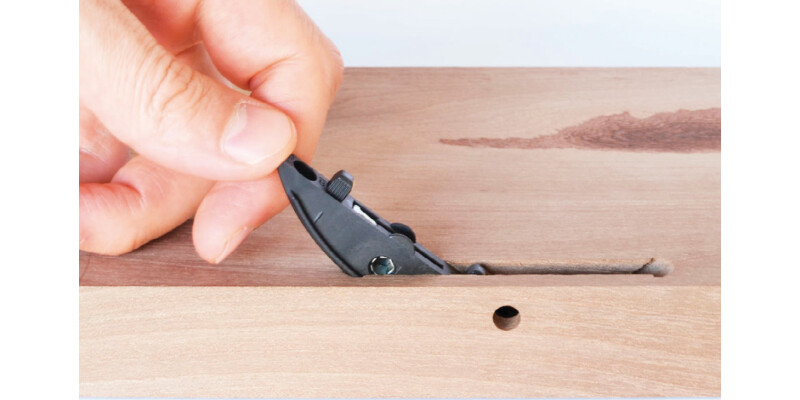

Drill 6 mm opening for tightening element and slide in the connector

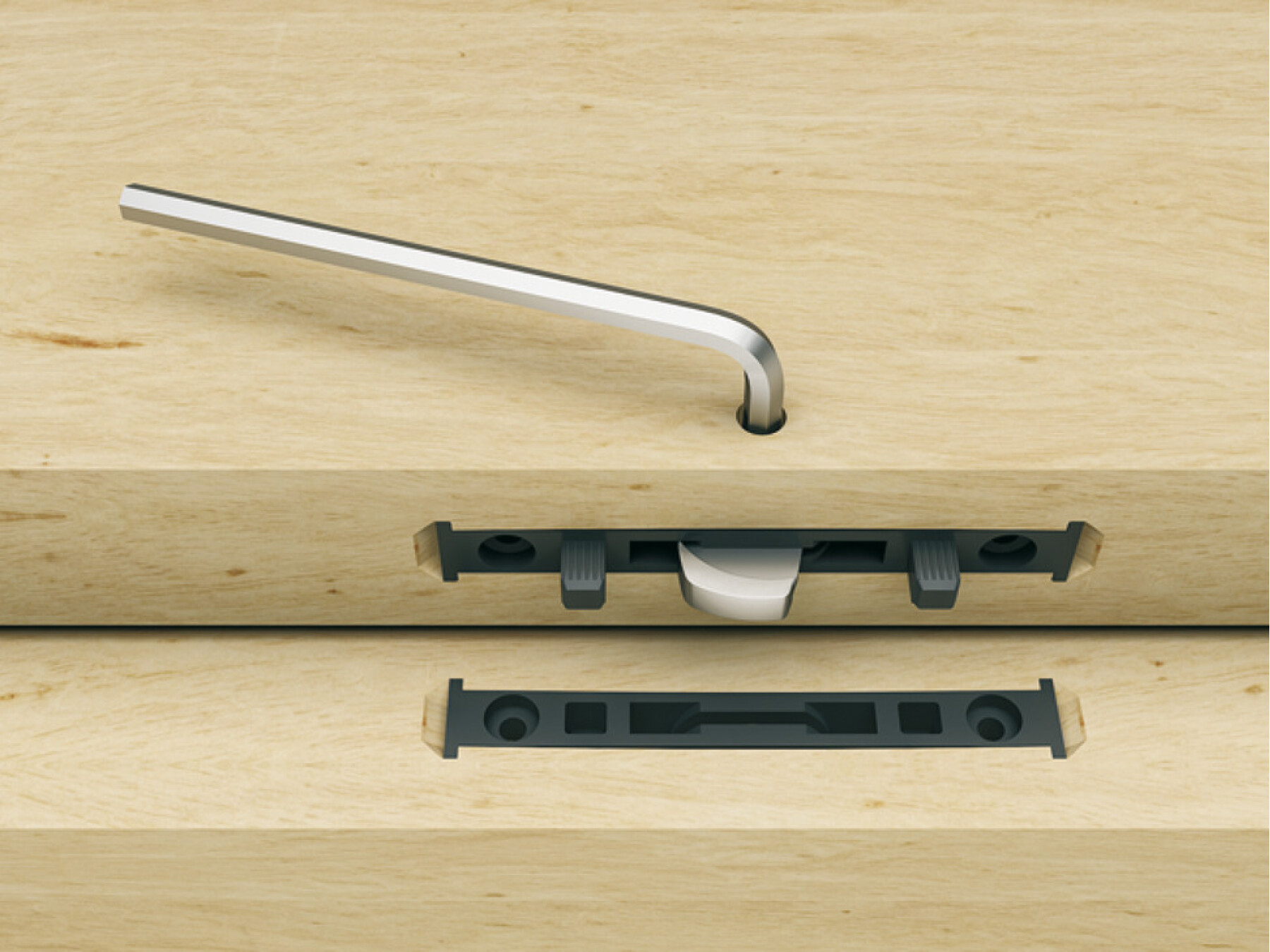

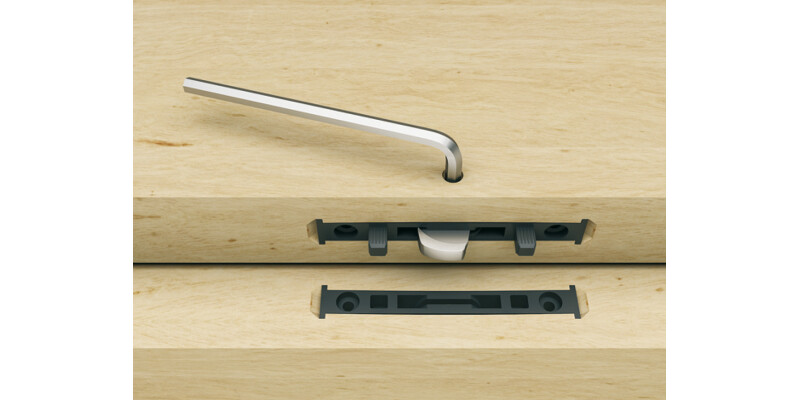

Join workpieces and tighten with SW4 hex wrench
The Bisco P straightening biscuit is the ideal addition to the Clamex P-14 for P system grooves.
The Lamello Zeta P2 biscuit jointer and biscuit jointer with profile groove function are required for installation.
The profile groove can be milled with the biscuit jointer with profile groove function using a CNC machine for series manufacture.

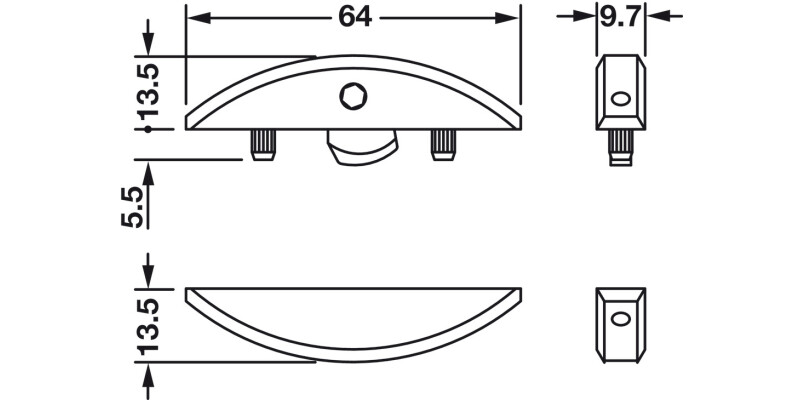

Specifications
Can be disassembled
Deadbolt material
Colour/finish
Drive
Adjustment facility
Order reference
1 piece = 1 pair
