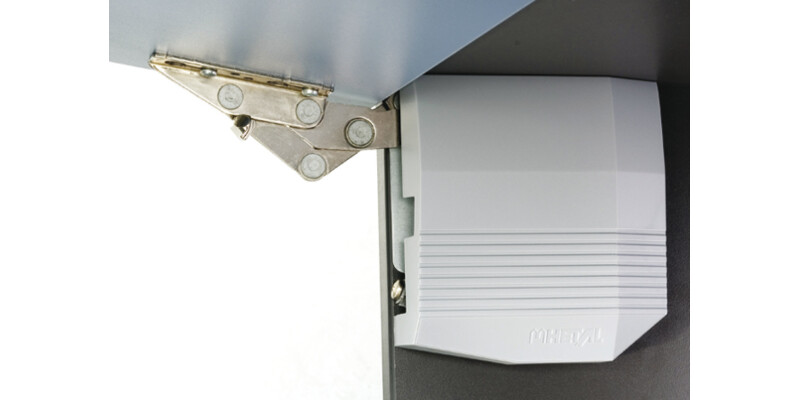

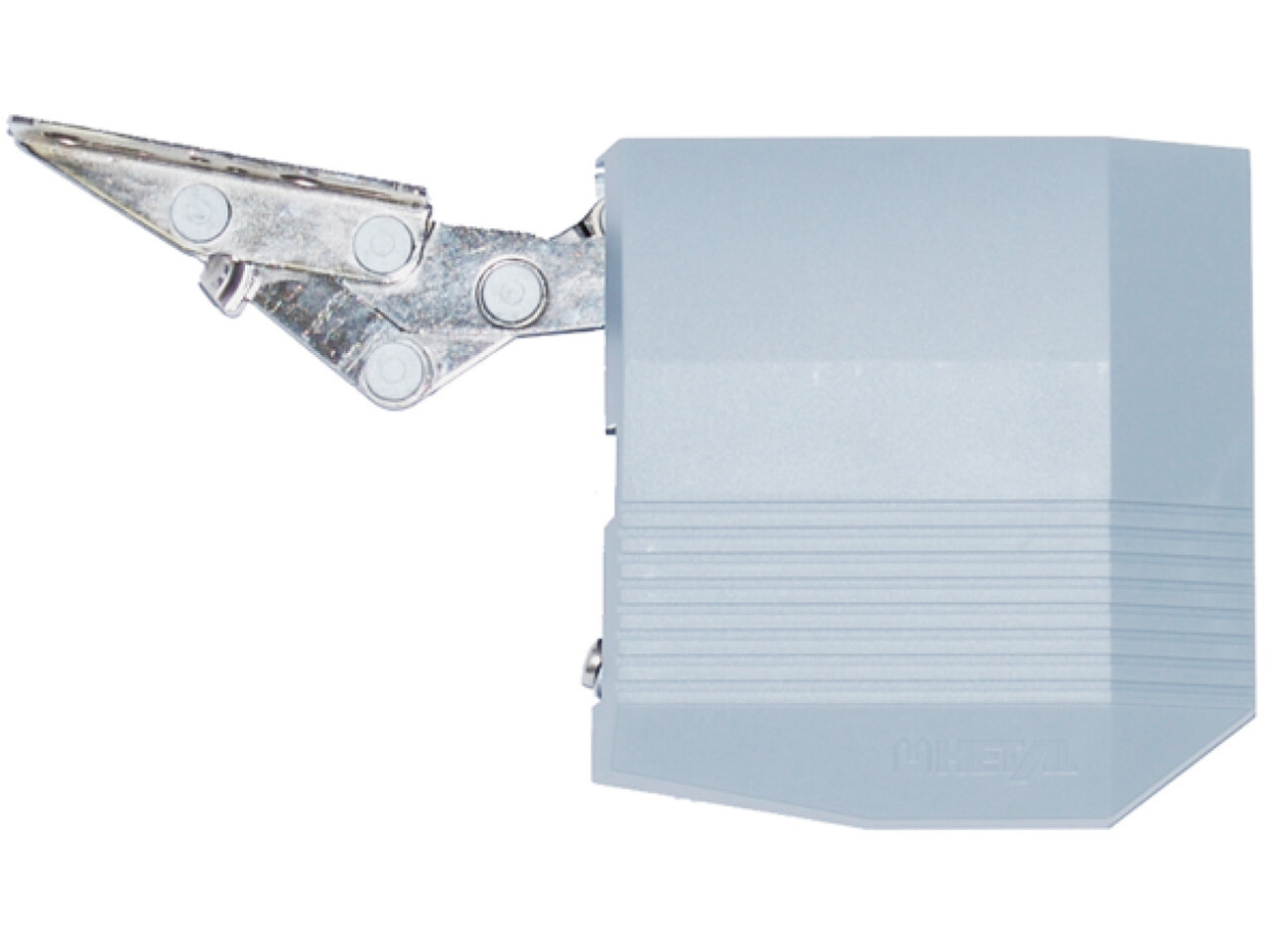

Kinvaro T-65 Flap Fit St/RAL 7045
Part Number: 372.78.500
For top box units in kitchens
Price:
£39.58
Per Item
Installation note No concealed hinges required for top panelNot suitable for inset doorsAllows additional... Read More
Product Information
Product Details

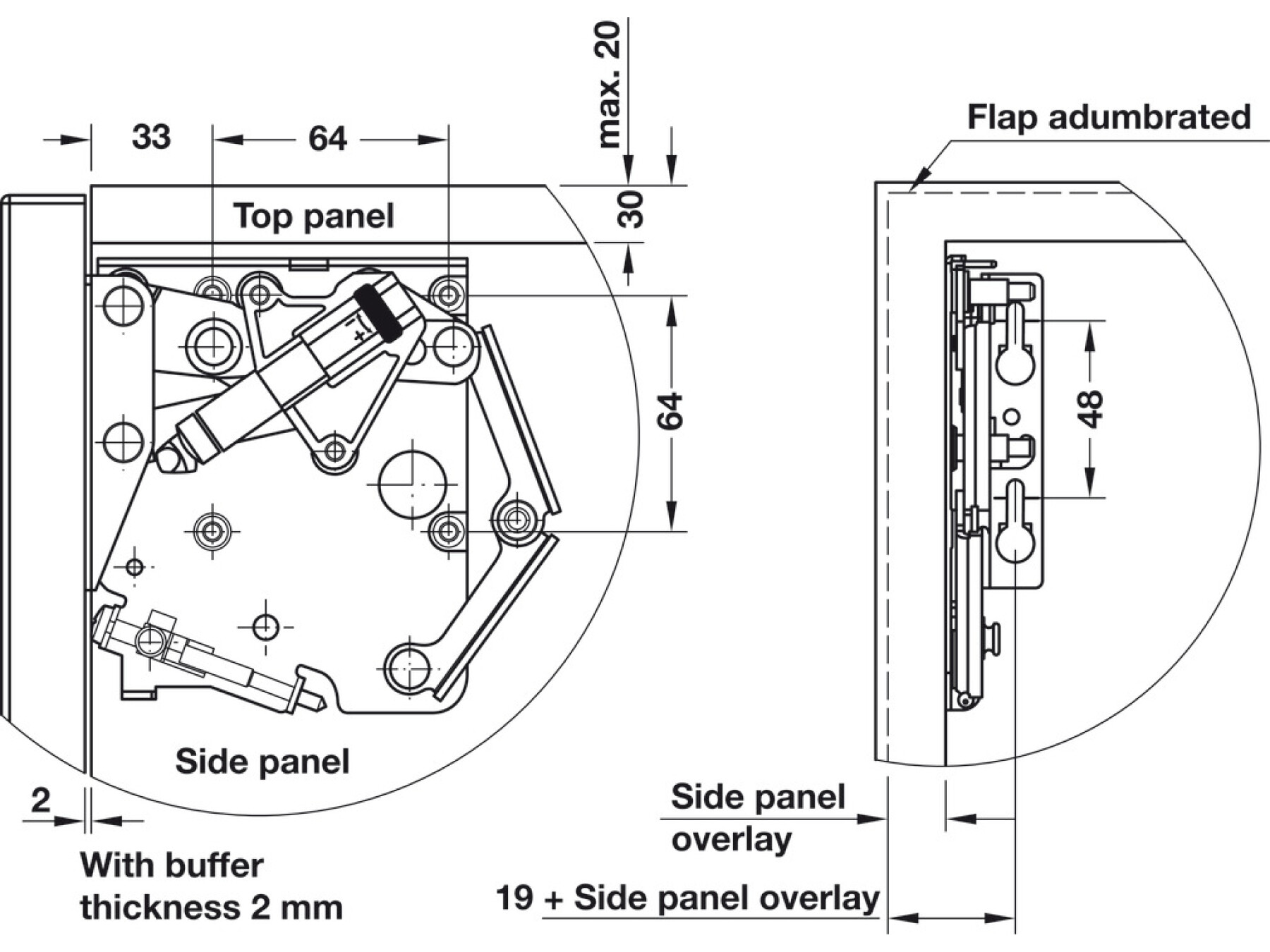

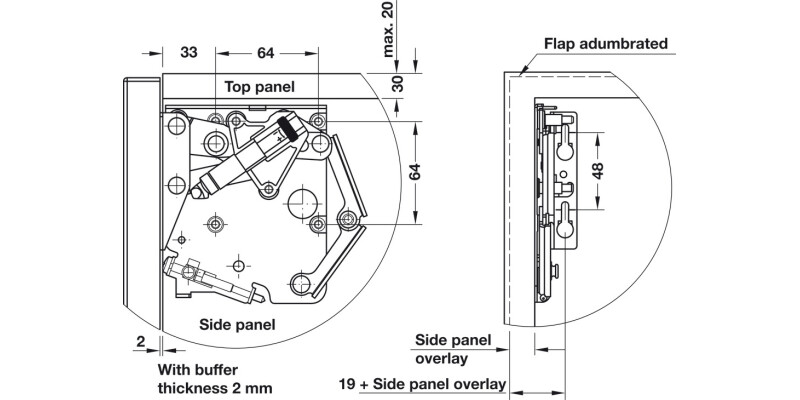

Installation note
No concealed hinges required for top panel
Not suitable for inset doors
Allows additional cabinet installation above
With narrow fixing bracket for framed doors
Spring-assisted action for easy opening: Different springs included allow for many different door panel weight and sizes
Integrated adjustable damped action gives quiet, gentle closing
Also available for aluminium frame doors on request
When using a bar handle please trial mount first.
Did you know, you can use our Panel Weight Calculator to work out the weight of your panels?
Specifications
Area of application
For chipboard or MDF flaps only
Material
Zinc Alloy
For cabinet height
283 – 450 mm
For lid weight
0.7 – 8.5 kg
Model
Kinvaro T-65
Installation
Screw fixing
For lid height
283 – 450 mm
Order reference
Order Hospa 4.0 and Varianta 5 mm countersunk screws separately
Supplied with
Fixings for carcase side wall and fitting instructions
