Drop Down Flap Stay, Adjustable, for Wooden/Aluminium Frame Doors, K12 (Part No: 365.60.713) is a high-performance... Read More

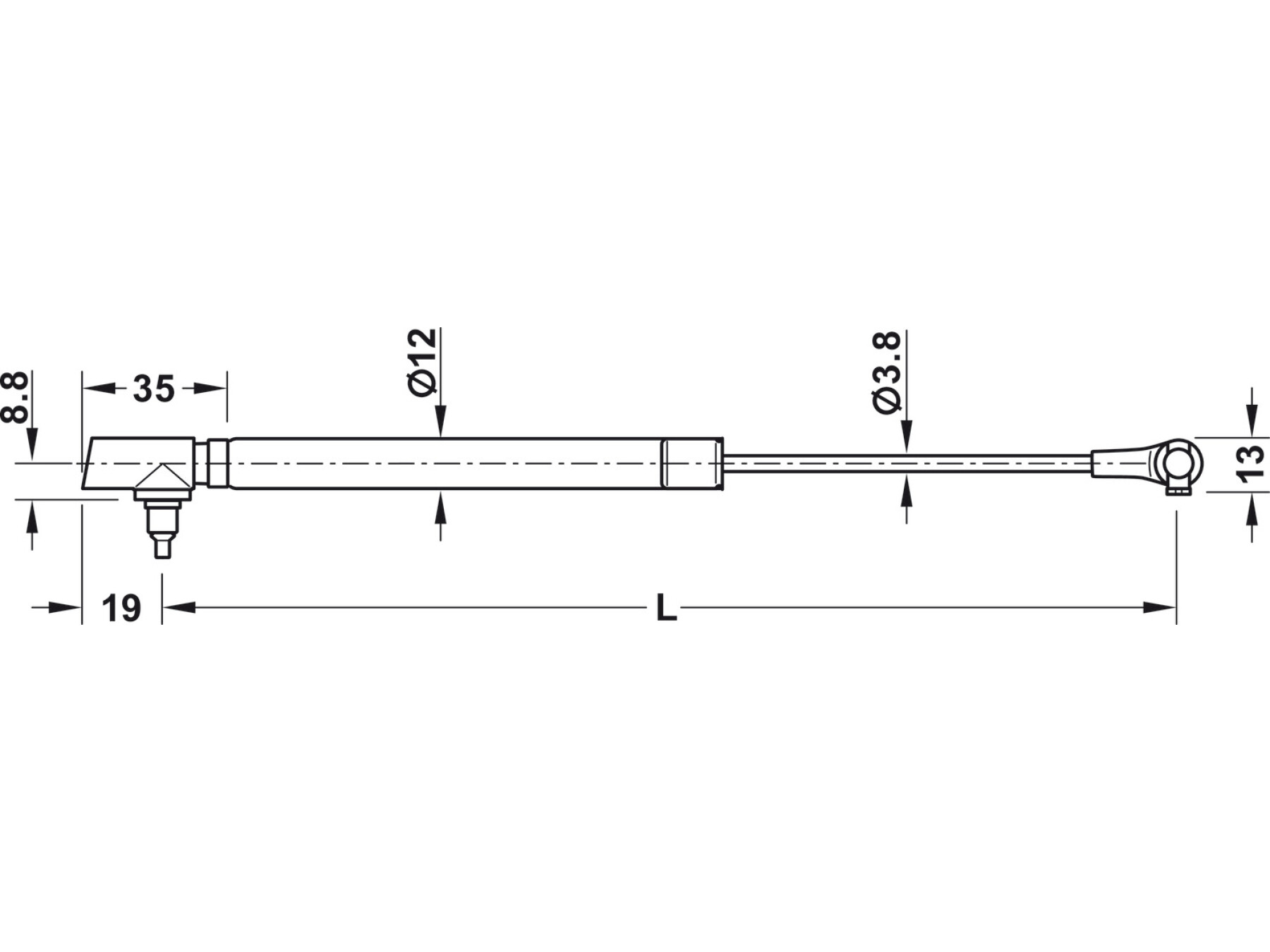

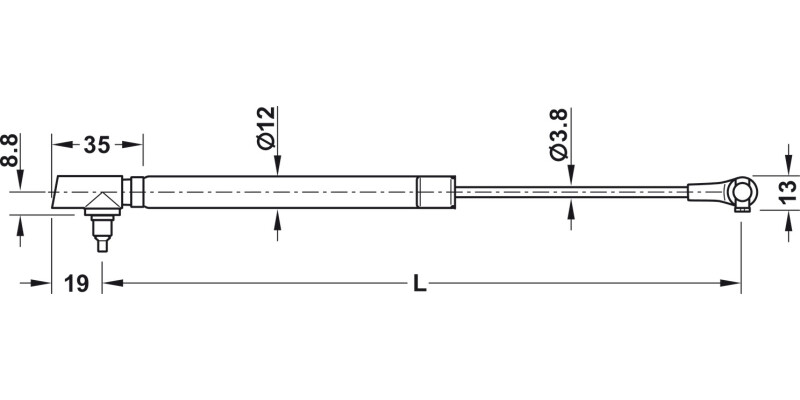

Drop Down Flap Stay, Adjustable, for Wooden/Aluminium Frame Doors, K12 (Part No: 365.60.713) is a high-performance drop-down flap stay designed to give doors and lids smooth, controlled movement in living and commercial furniture applications. With its subtitle: Length 355 mm, this stay is ideal for ensuring reliable support for hinged flap systems where space, stability, and easy adjustment matter.
Built for durability, the K12 Adj DropDown Flap Stay combines a steel body with a zinc alloy cylinder for dependable strength and long service life. It’s engineered for an opening angle of up to 90°, making it suitable for a wide range of cabinet styles and lift-flap designs.
Designed to match typical furniture requirements, it supports cabinet heights up to 600 mm and lids weighing up to 13 kg. The convenient adjustment facility includes travel control of ±3 mm using an adjusting wheel, helping you fine-tune performance during installation and achieve a better fit every time.

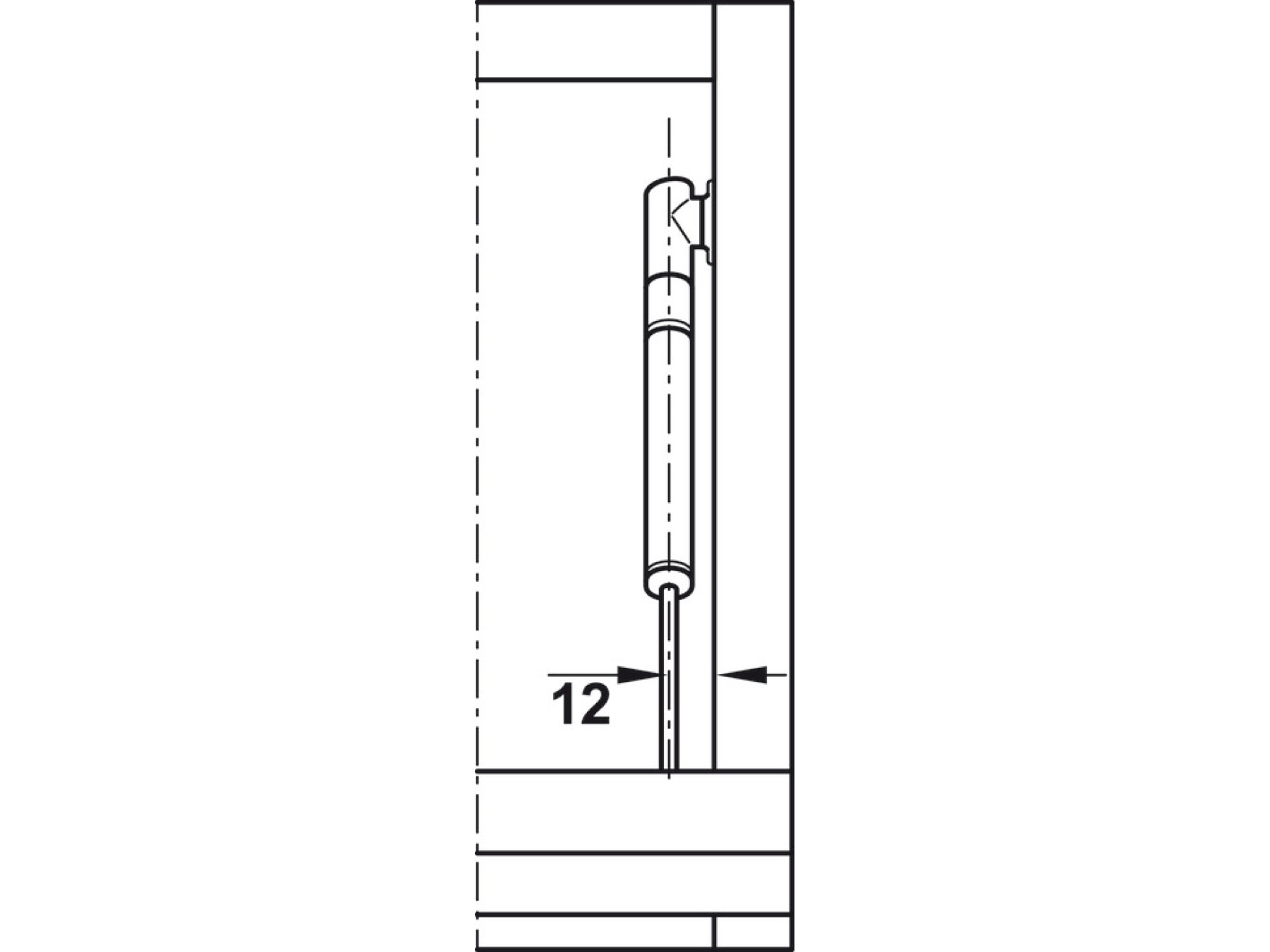

Installation is straightforward: the stay is made for screw fixing into 32 mm series drilled holes using the appropriate mounting bracket method. A helpful installation note adds convenience—mounting on the bracket without tools streamlines setup.

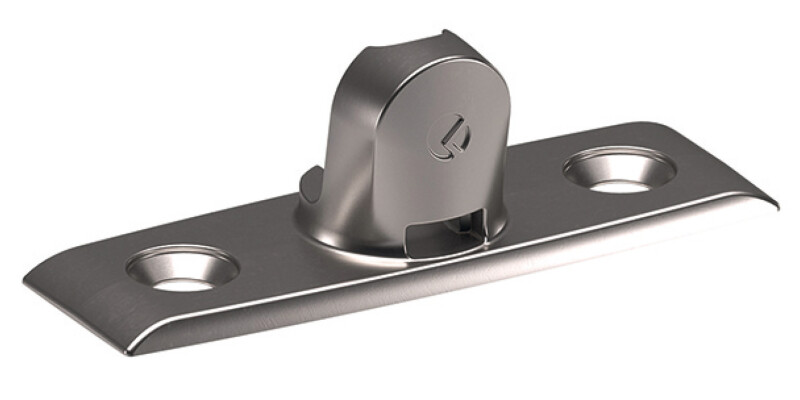

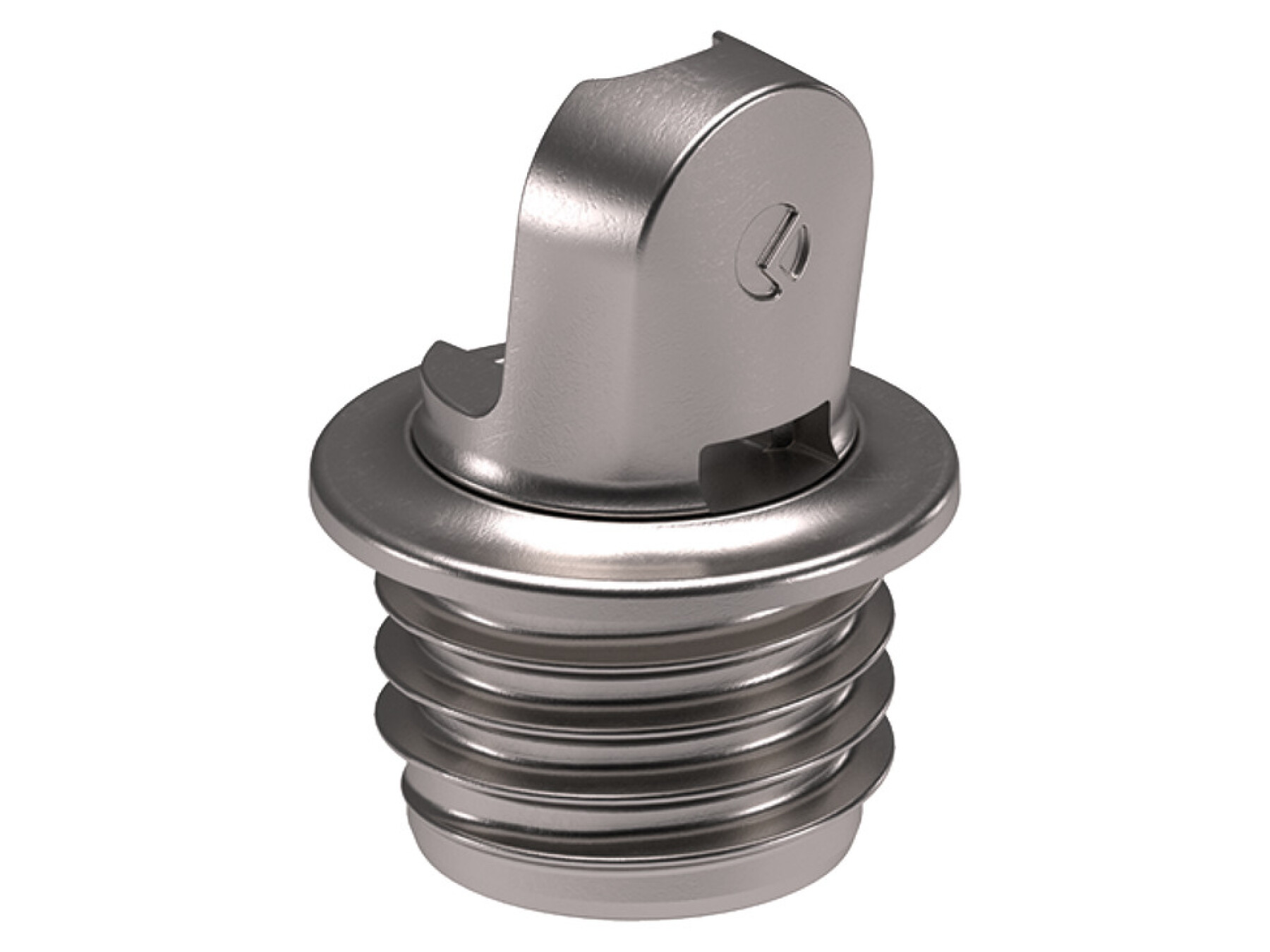

Supplied with 1x gas spring lid stay, 1x screw fixing door flap bracket, 1x recess mounted cabinet side bracket, and fixings—so you can go from box to fitted flap quickly.
Upgrade your flap system today with the Drop Down Flap Stay, Adjustable, for Wooden/Aluminium Frame Doors, K12 and enjoy smooth opening, secure support, and professional results.
Steel
Cylinder: Zinc alloy
Travel: ±3 mm, using adjusting wheel

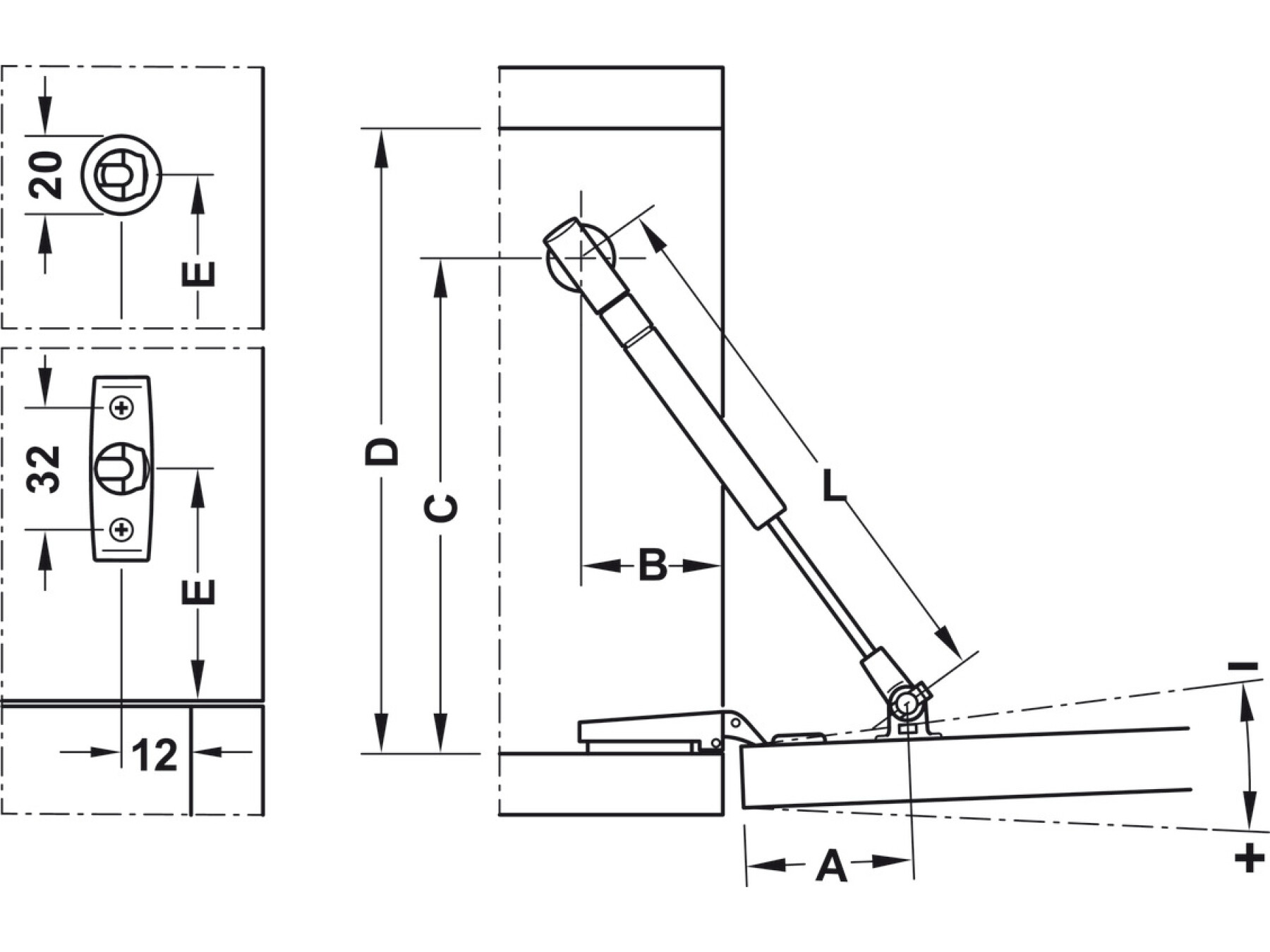

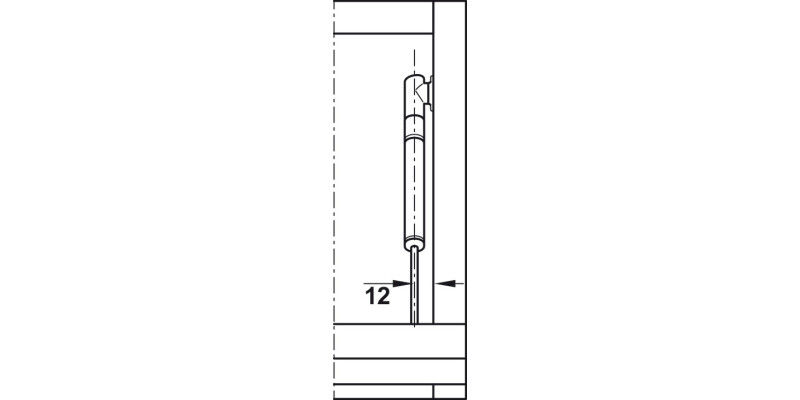

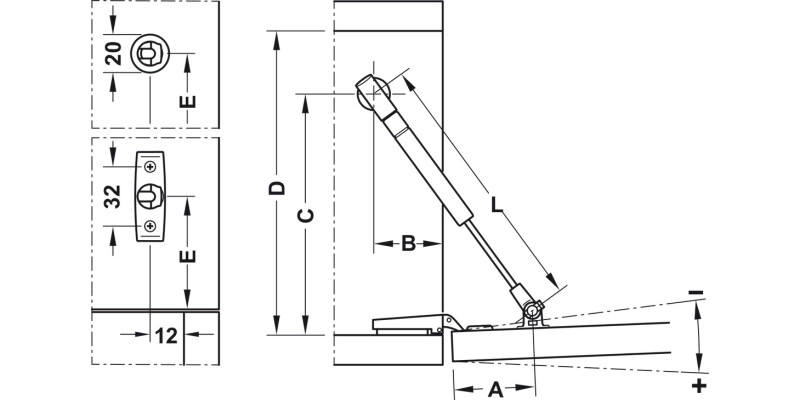

For screw fixing into 32 mm series drilled holes, on mounting bracket, for screw fixing or plug fitting
Installation on mounting bracket without tools

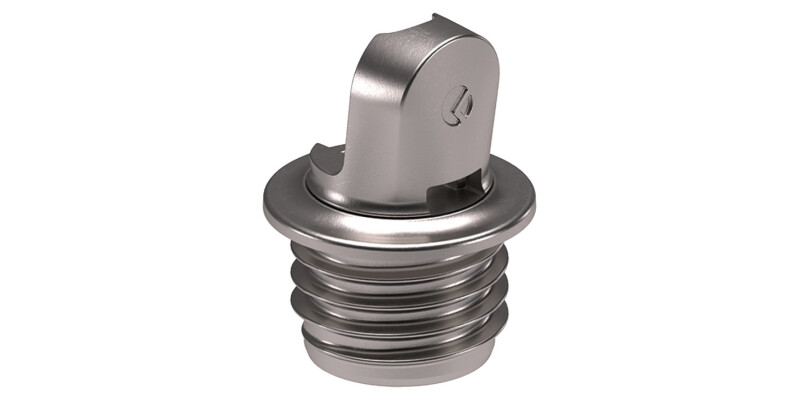

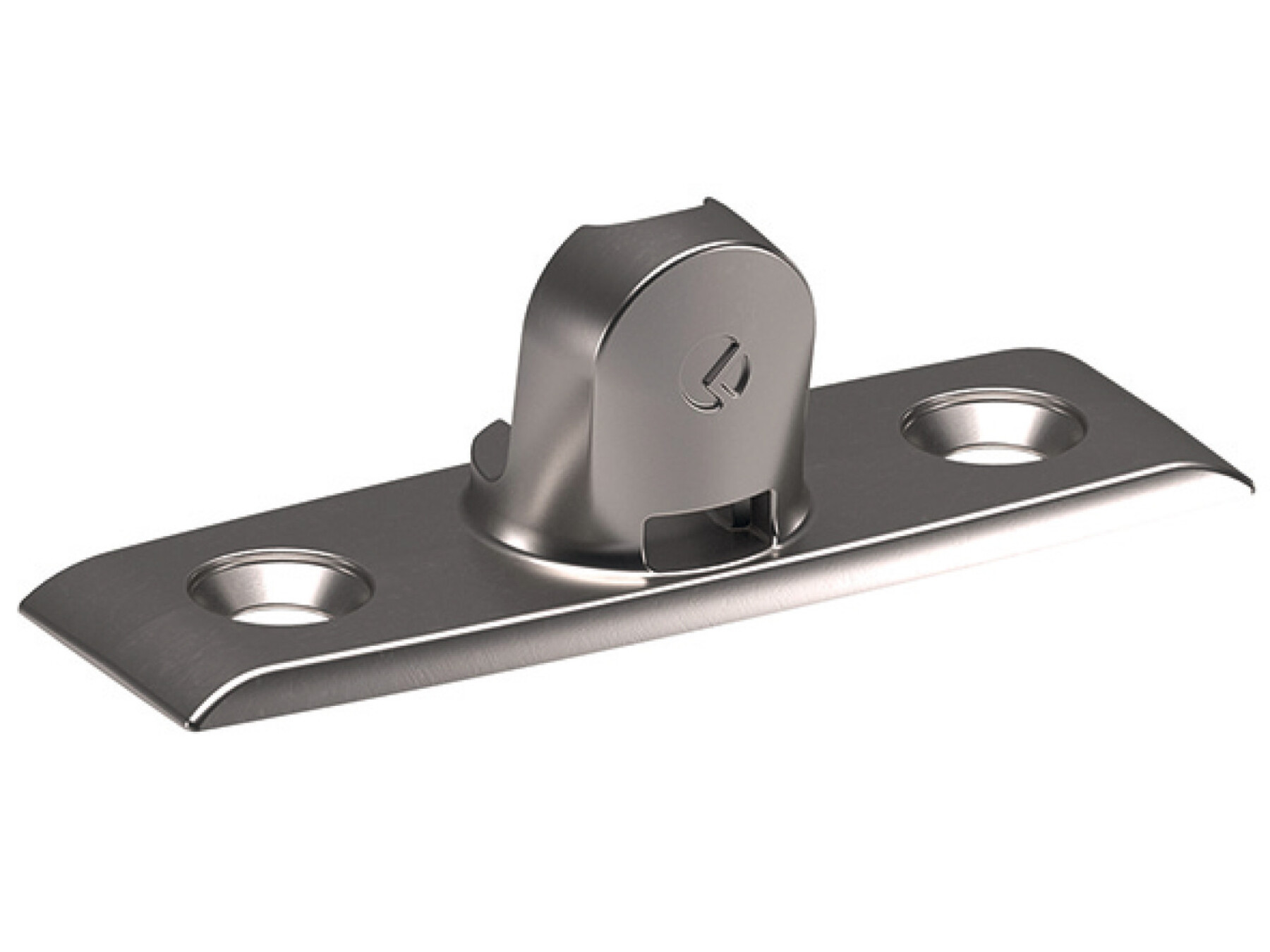

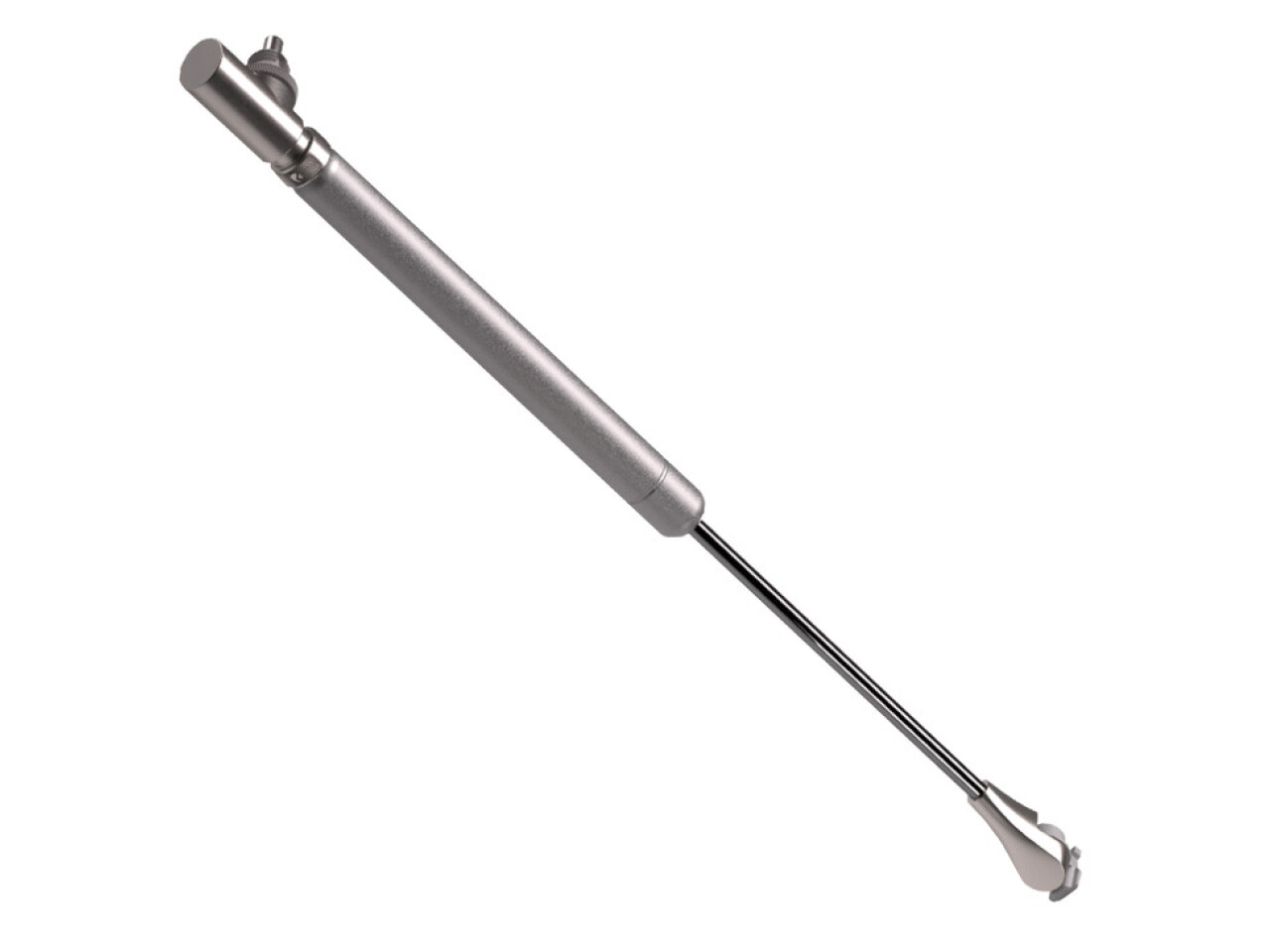

1x gas spring lid stay, 1x screw fixing door flap bracket, 1x recess mounted cabinet side bracket and fixings
This flap stay is designed for cabinets with a height of up to 600 mm. If your cabinet falls within this range, it should provide reliable support for a controlled drop down action.
Yes. The stay includes an adjustment facility with travel of plus or minus 3 mm using an adjusting wheel. This helps you fine tune the alignment for smoother operation.
The opening angle is up to 90 degrees. This makes it suitable for applications where you need a generous access angle without overextending the movement.
For best performance, this model is rated for lids with a weight of up to 13 kg. Staying within the stated limit helps maintain consistent support and reduces strain on the fittings.
It is intended for screw fixing into 32 mm series drilled holes on the mounting bracket. Depending on your setup, it can also be fixed using plug fitting. The package is also supplied with a door flap bracket and cabinet side bracket to simplify alignment during installation.
No. The installation note specifies that the mounting bracket can be fitted without tools, which can make it easier to position accurately before tightening and final fitting.
Each unit is supplied with 1x gas spring lid stay, 1x screw fixing door flap bracket, 1x recess mounted cabinet side bracket, and the required fixings so you have the core components needed to get the system fitted.
The product name indicates Slv Gry, which is typically used to blend with silver grey furniture finishes. Choosing the matching colour helps the stay look neat even when the flap is in use.
