Drop Down Flap Stay, Adjustable, for Wooden/Aluminium Frame Doors, K12

Product Details

Drop Down Flap Stay, Adjustable, for Wooden/Aluminium Frame Doors, K12 (Product Part No: 365.60.712) is a high-quality drop-down flap stay designed to help you control the movement of cabinet lids and flap doors with confidence. Ideal for living and commercial furniture solutions, this flap fitting ensures smooth operation and reliable support—perfect for both everyday use and professional installations.

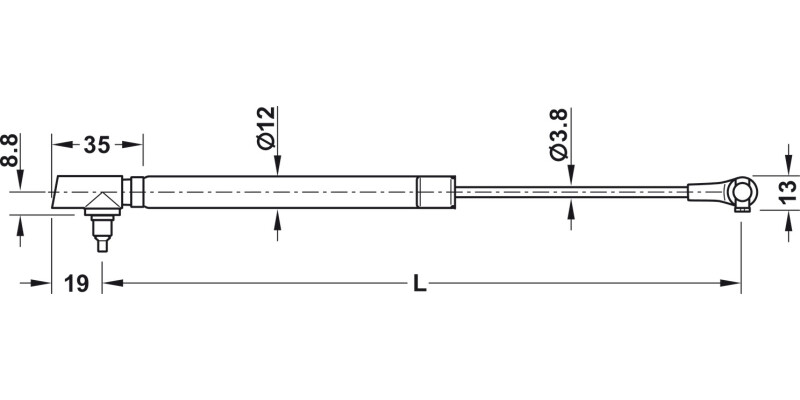

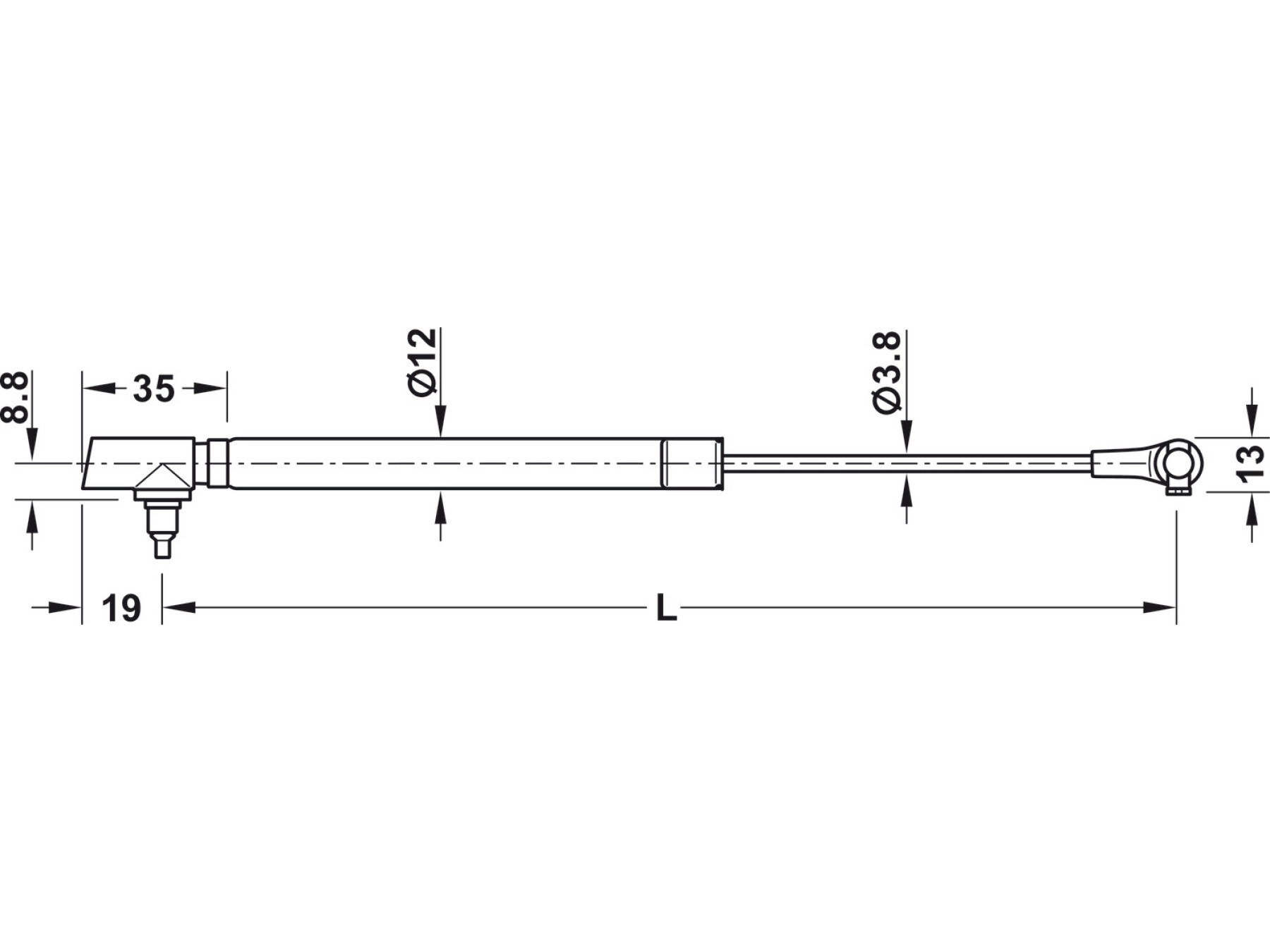

With a product subtitle of Length 244 mm, this stay is engineered for cabinets with a height of up to 600 mm and supports lid weights of up to 13 kg. The opening angle is ≤ 90°, making it well-suited to designs where controlled, space-efficient access is essential.

Built for durability, the mechanism uses steel with a zinc alloy cylinder to deliver strong performance and long-term resilience. For added convenience, the stay includes an adjustment facility with ±3 mm travel, using an adjusting wheel—allowing fine-tuning for a precise fit during installation.

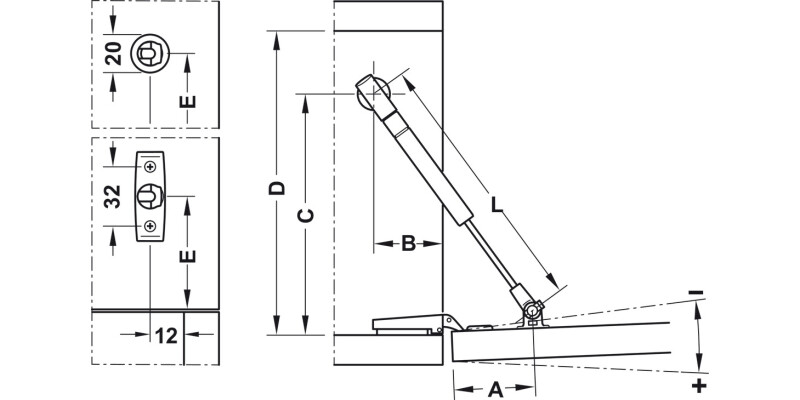

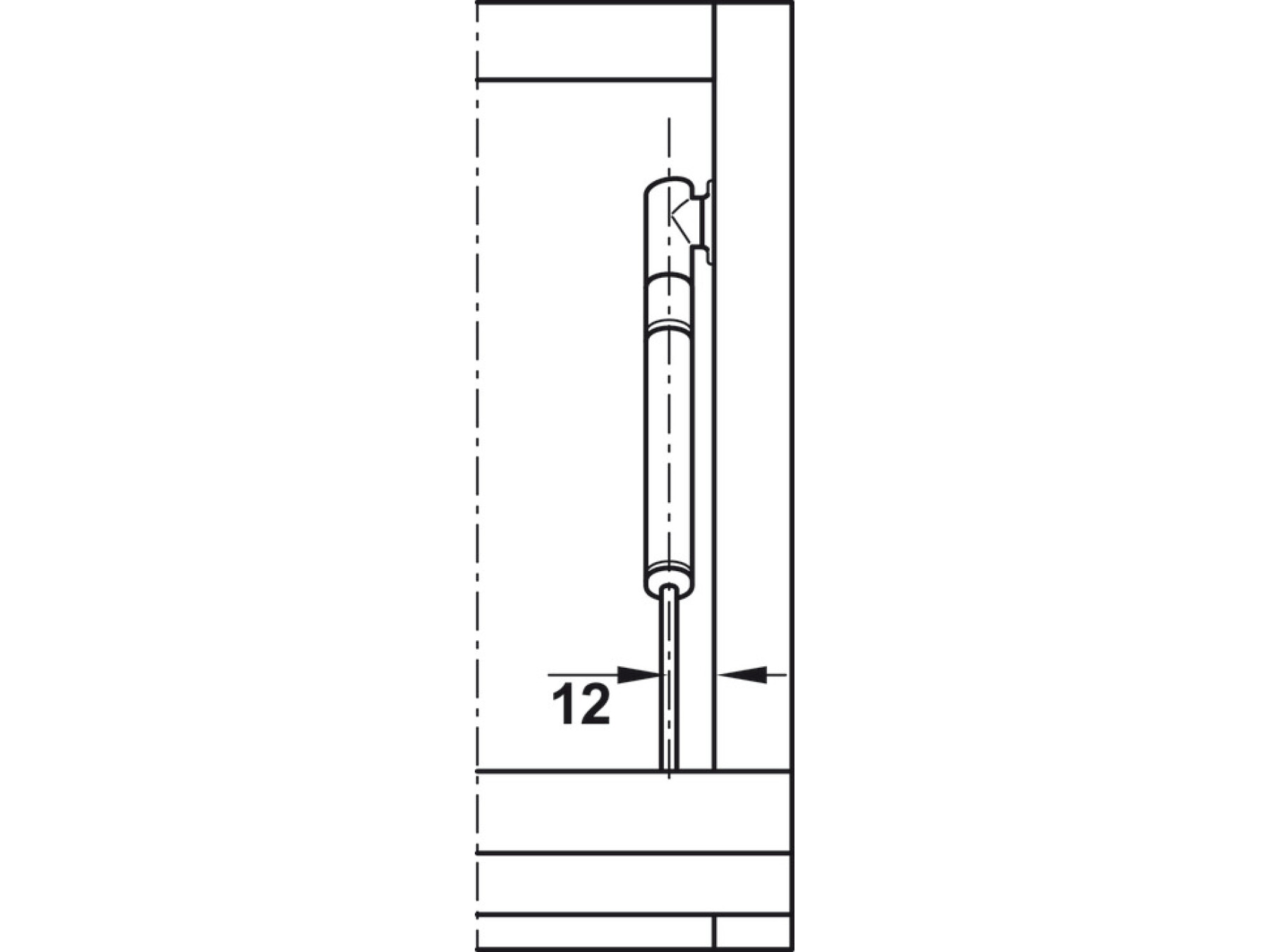

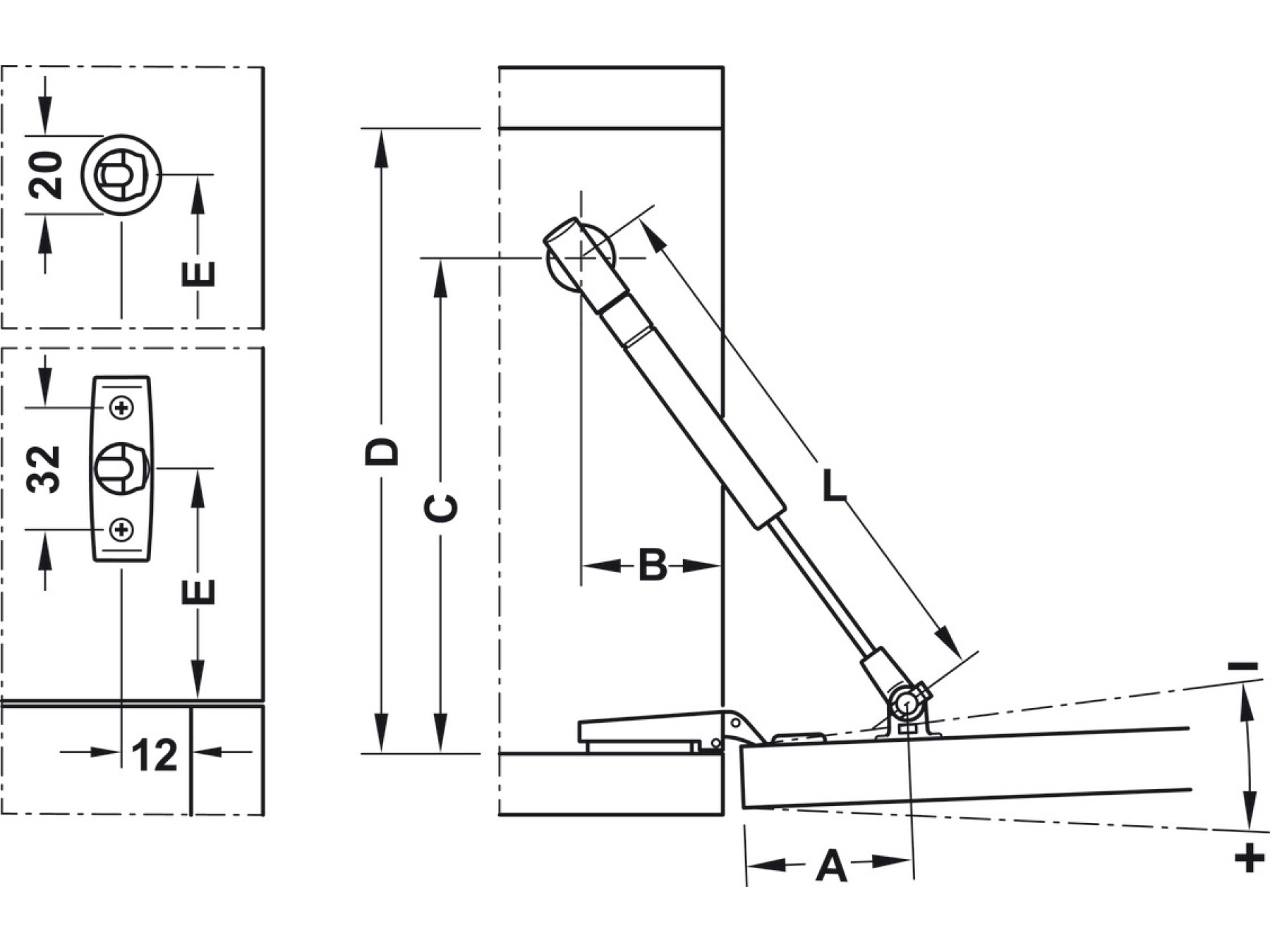

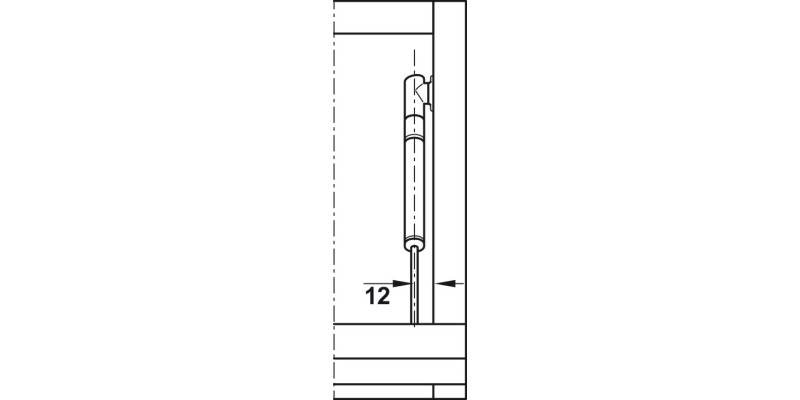

Installation is straightforward: the unit is designed for screw fixing into 32 mm series drilled holes, and it can be secured via the mounting bracket for either screw fixing or plug fitting. The installation note highlights that it can be mounted on the mounting bracket without tools, helping reduce fitting time.

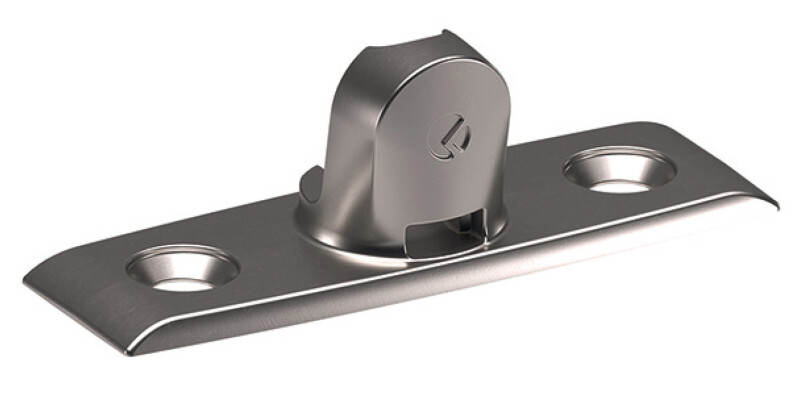

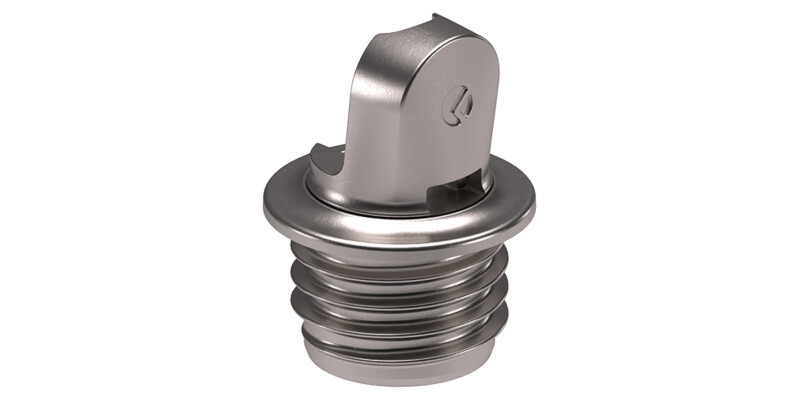

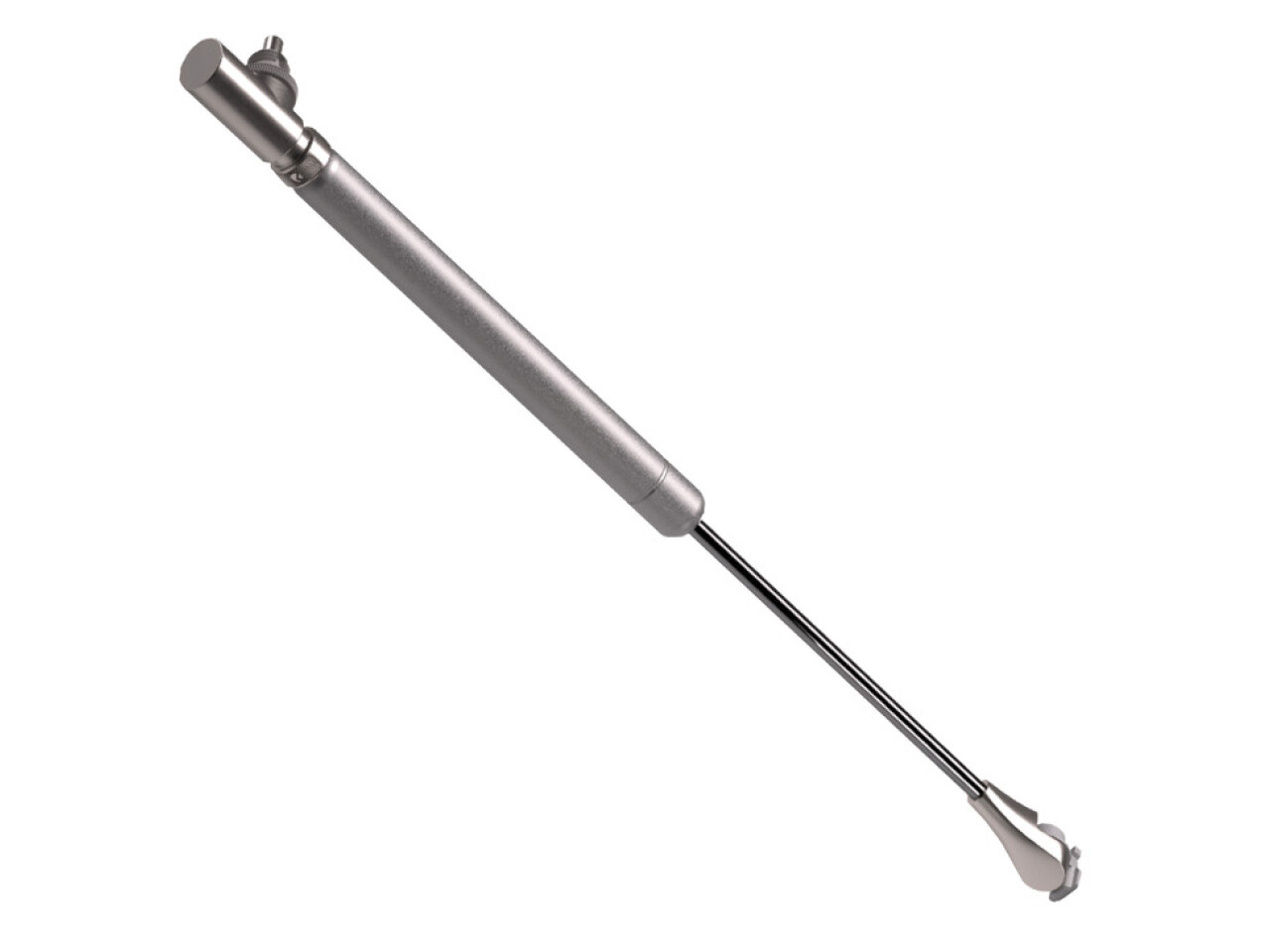

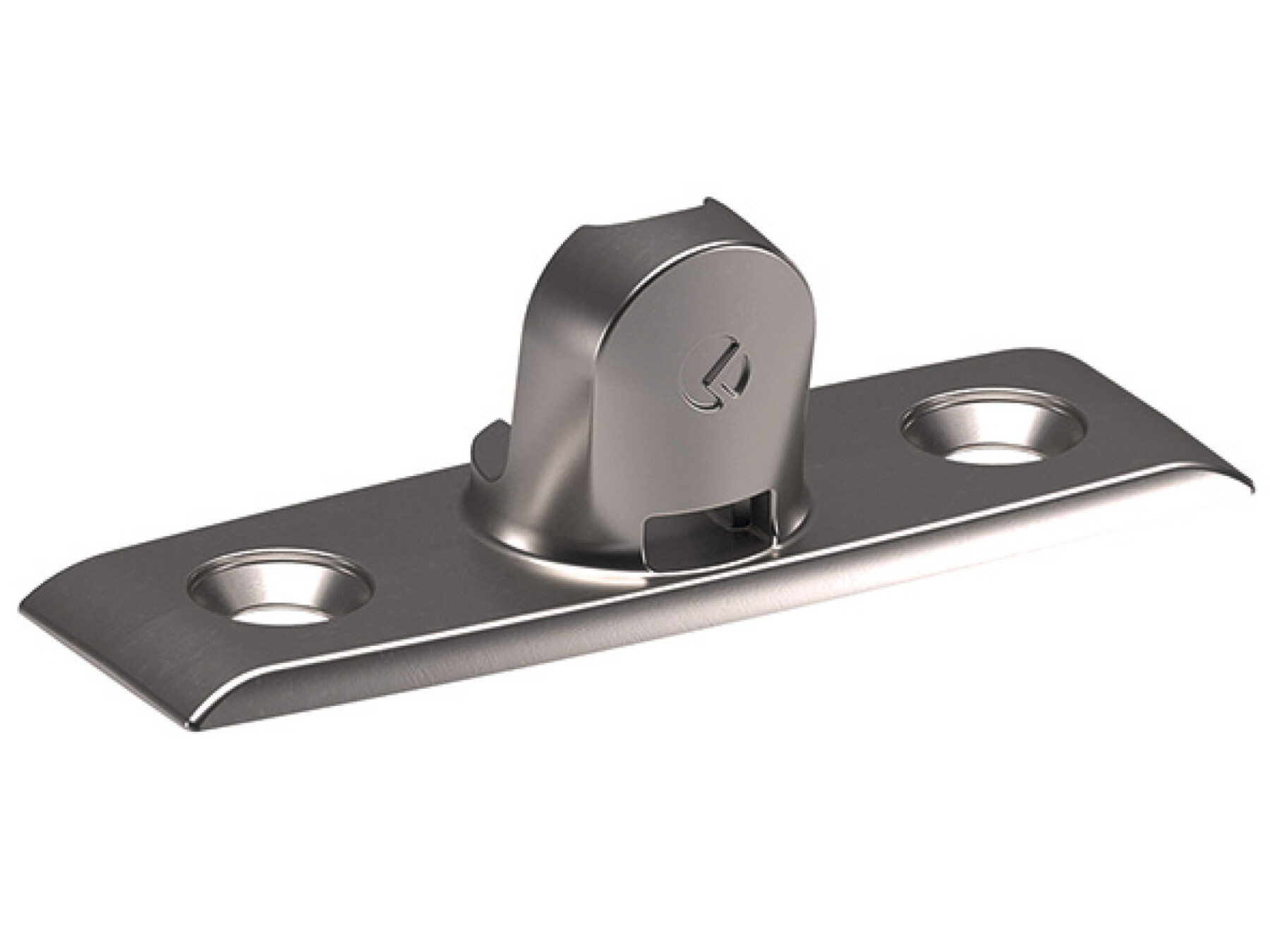

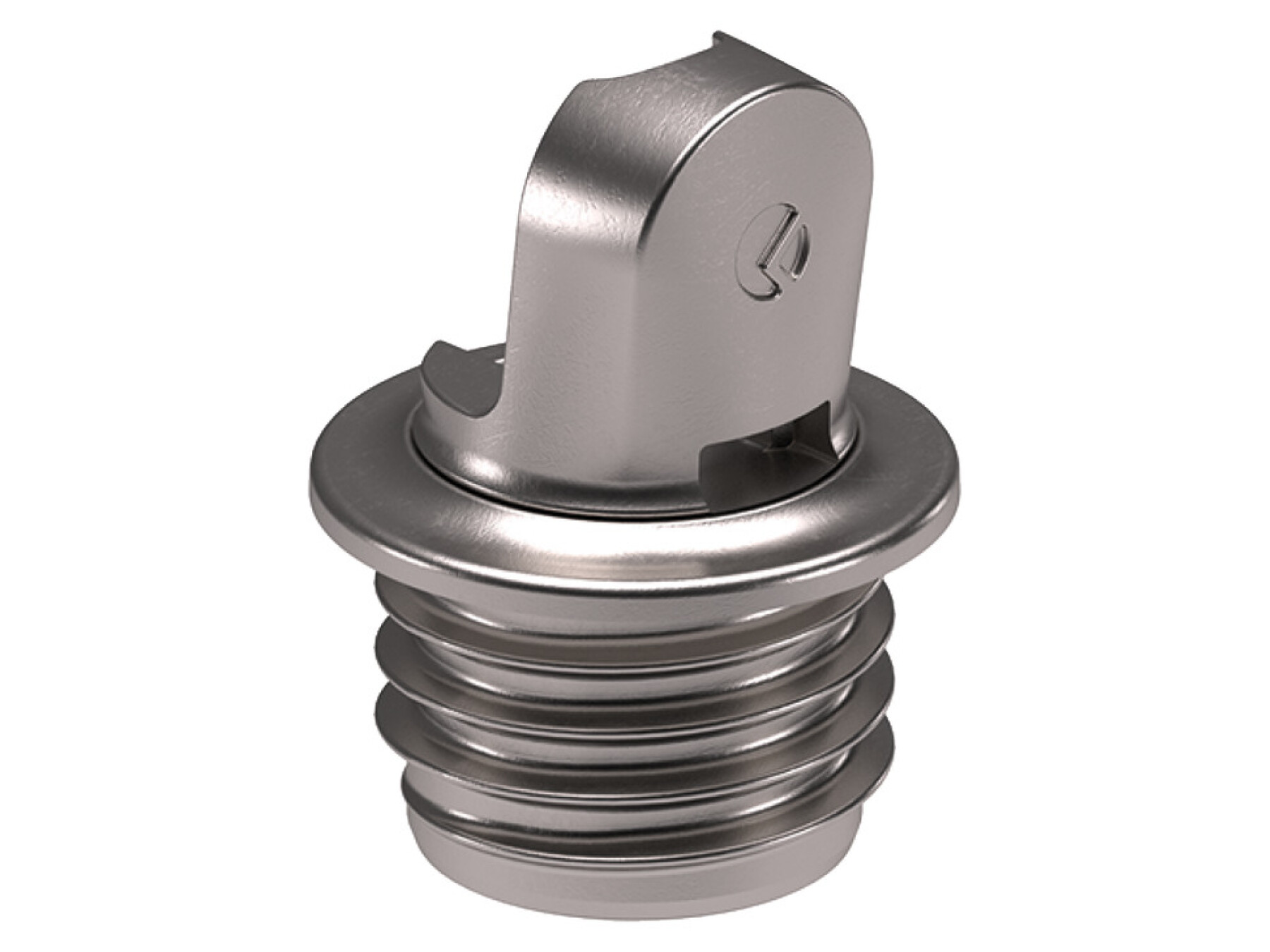

Supplied with: 1x gas spring lid stay, 1x screw fixing door flap bracket, 1x recess mounted cabinet side bracket, and fixings.

Choose Drop Down Flap Stay, Adjustable, for Wooden/Aluminium Frame Doors, K12 to upgrade your furniture’s functionality with a neat, controlled action and dependable support.

1x gas spring lid stay, 1x screw fixing door flap bracket, 1x recess mounted cabinet side bracket and fixings
