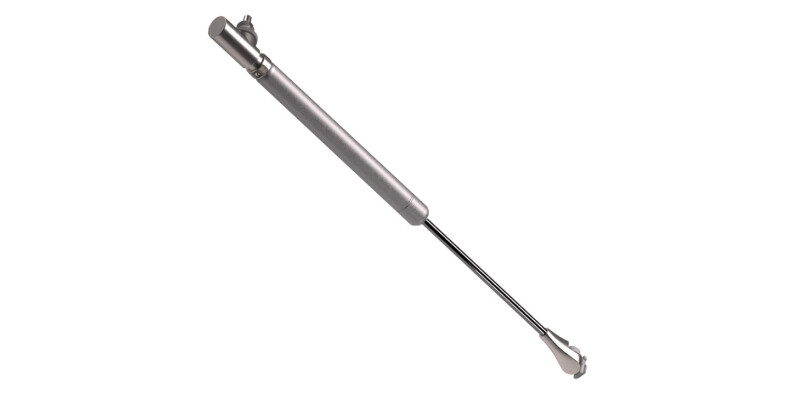

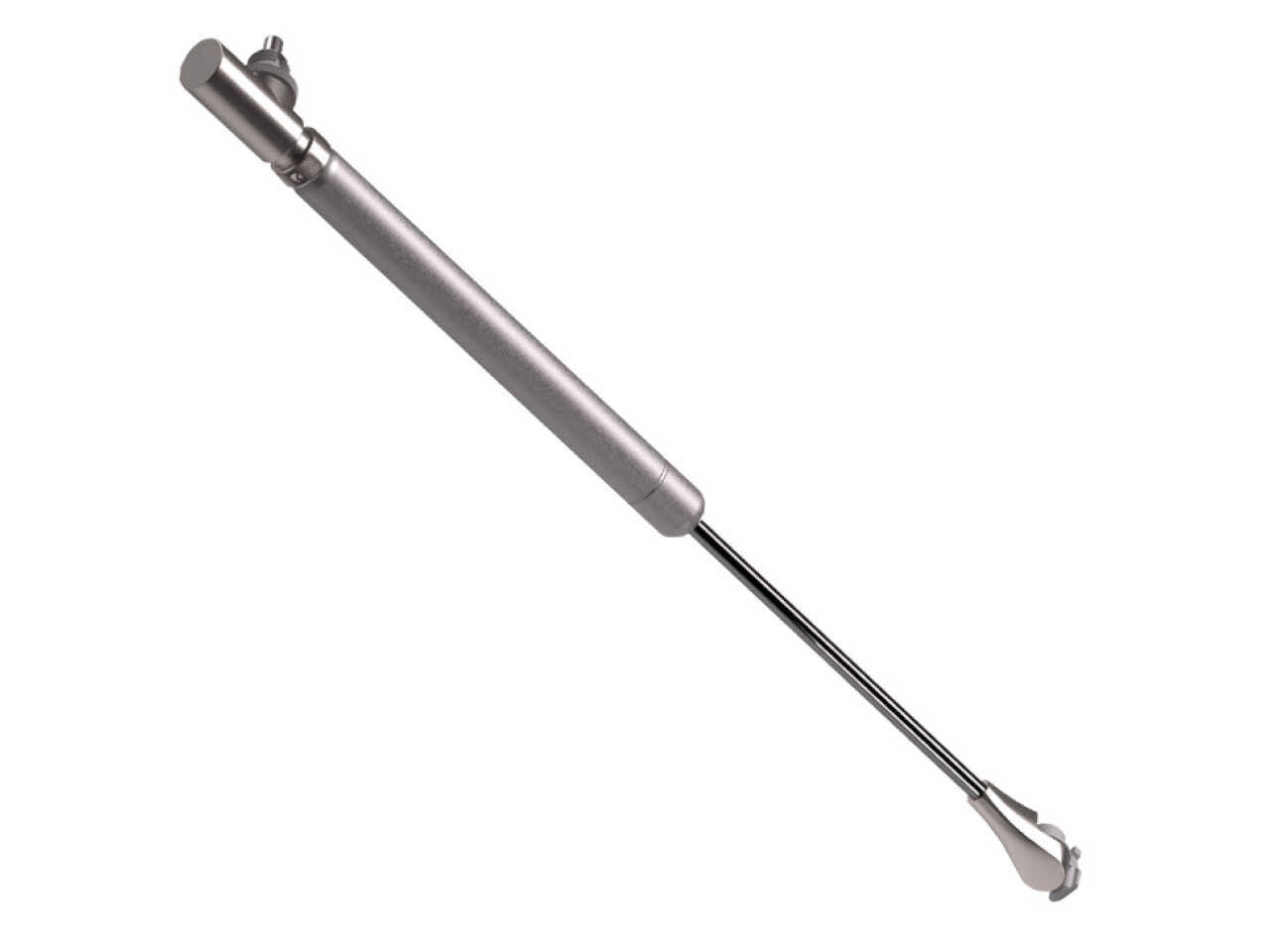

K12 Adj DropDown Flap Stay 164mm Slv/Gry
Part Number: 365.60.711

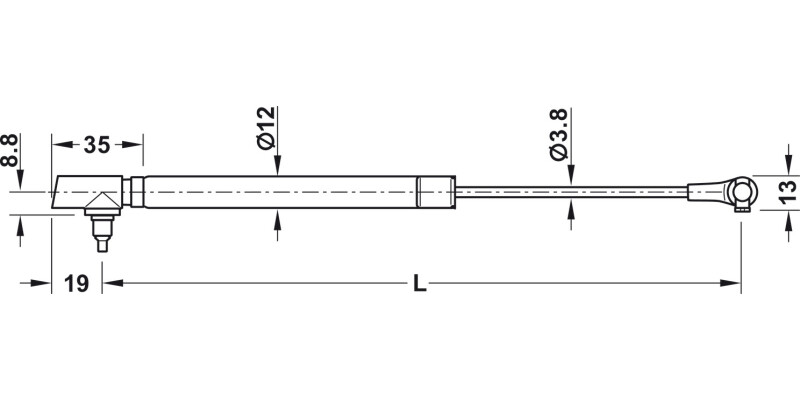

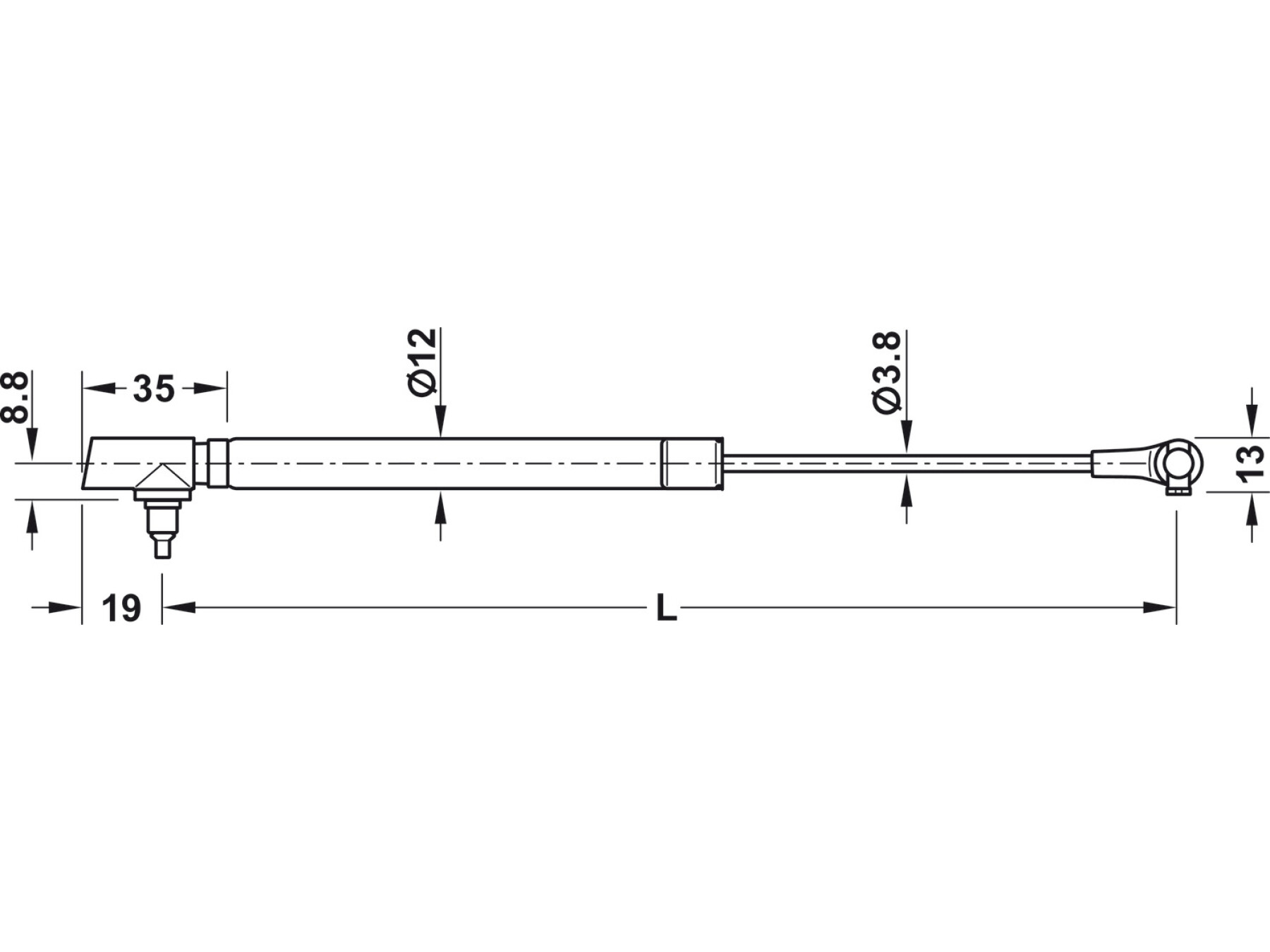

Length 164 mm
Price:
£27.92
Per Item
Integrated mechanism for adjustment of opening angleUniform, continuous opening actionFor drop down flaps made... Read More
Product Information
Product Details
Integrated mechanism for adjustment of opening angle
Uniform, continuous opening action
For drop down flaps made from wood or with aluminium frame
Did you know, you can use our Panel Weight Calculator to work out the weight of your panels?
Specifications
Material
Steel
Cylinder: Zinc alloy
Opening angle
≤90 °
For cabinet height
≤600 mm
For lid weight
≤13 kg
Adjustment facility
Travel: ±3 mm, using adjusting wheel

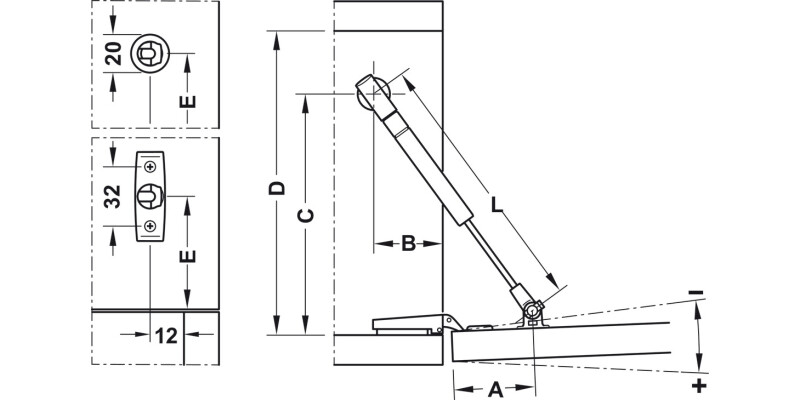

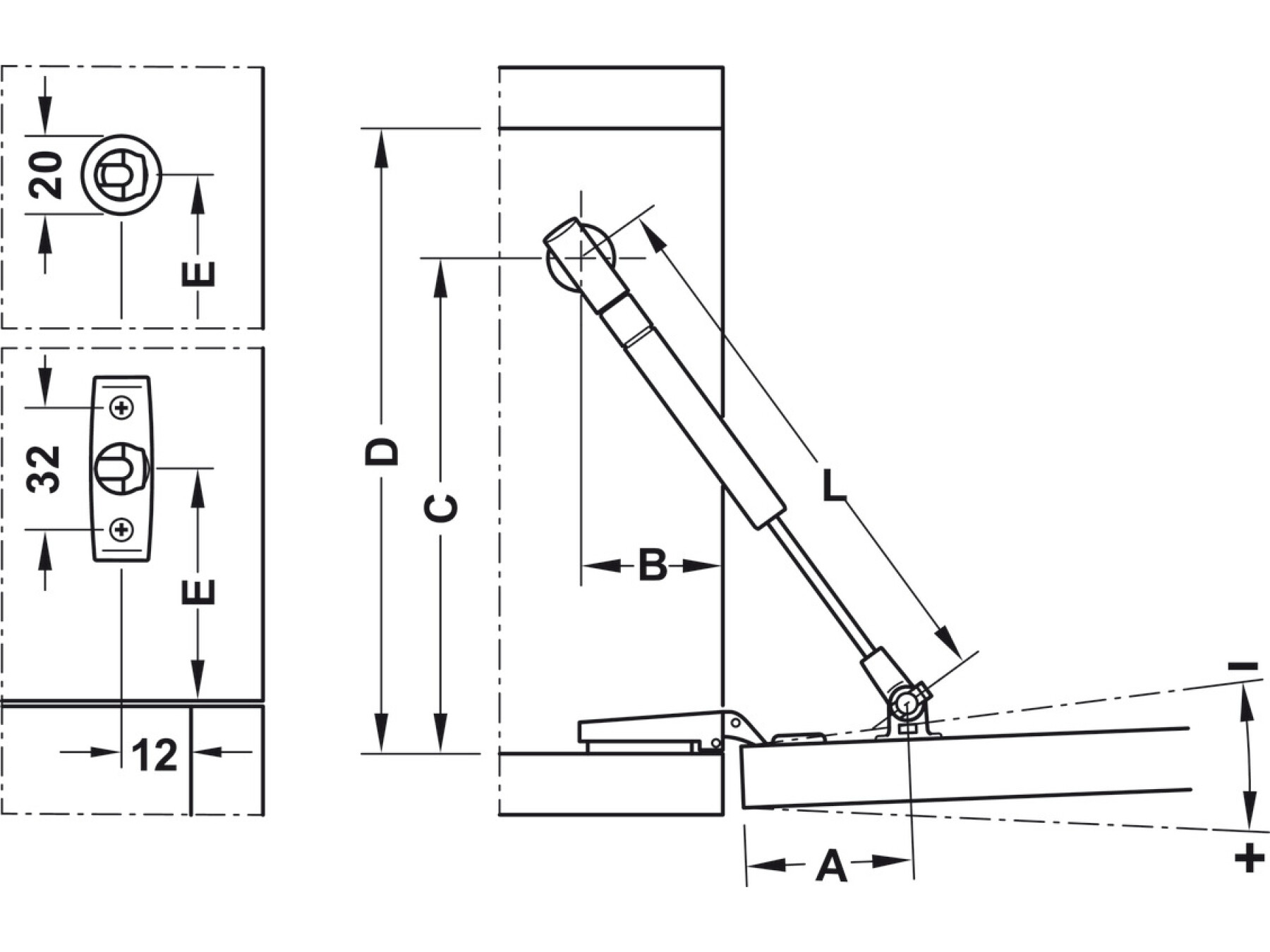

Installation

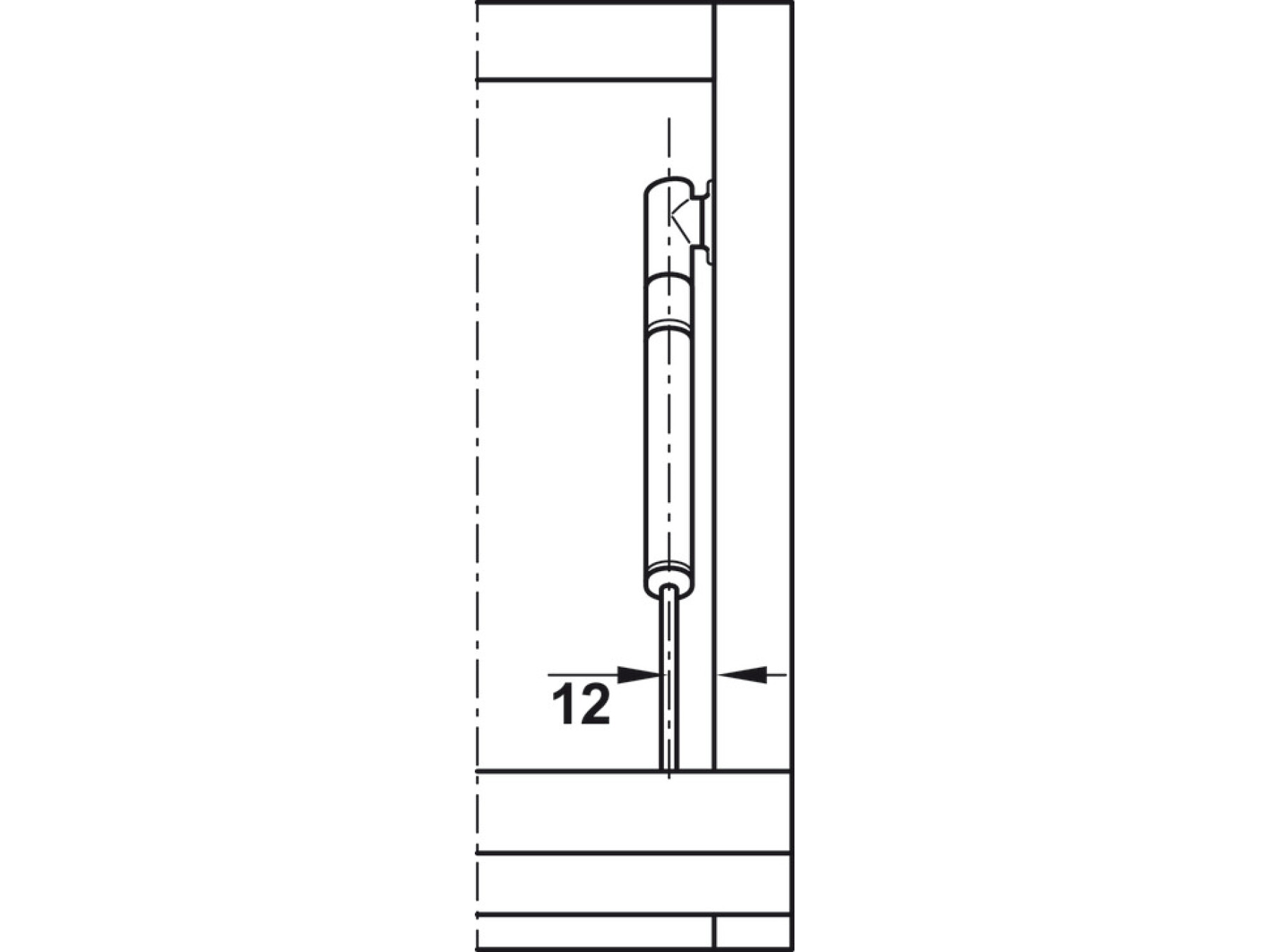

For screw fixing into 32 mm series drilled holes, on mounting bracket, for screw fixing or plug fitting
Installation note
Installation on mounting bracket without tools
Supplied with

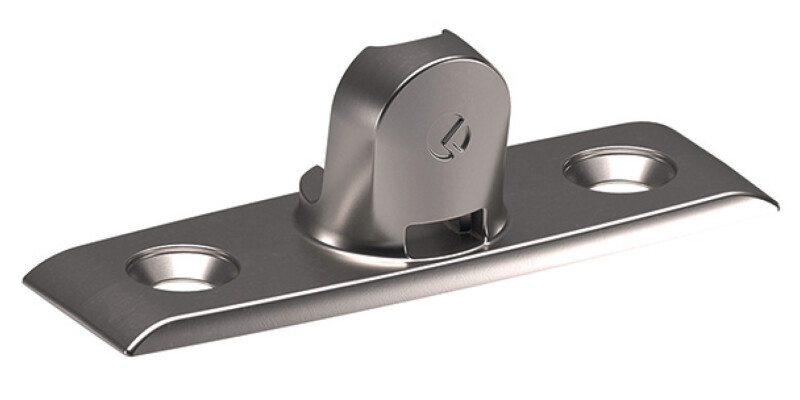

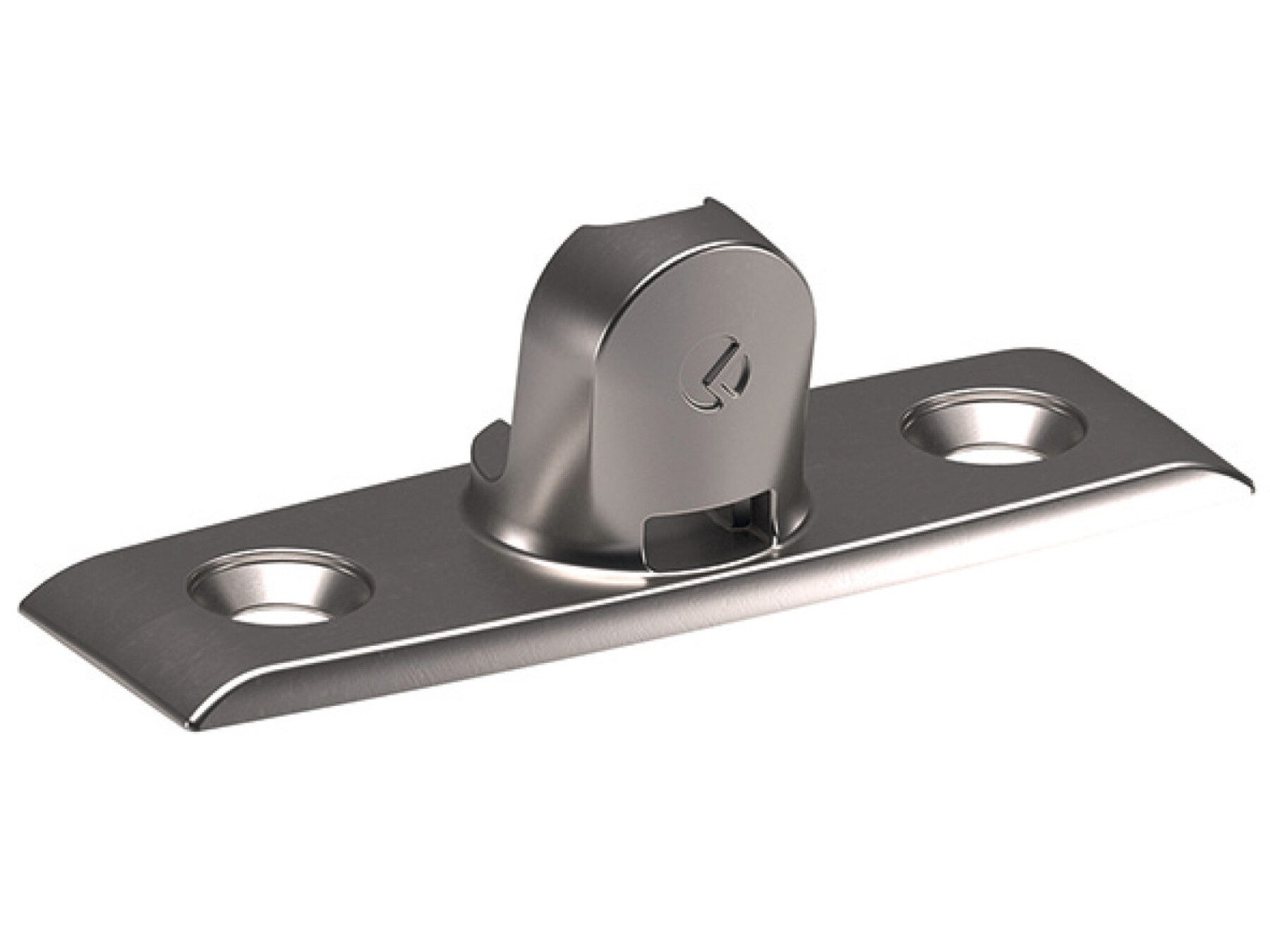

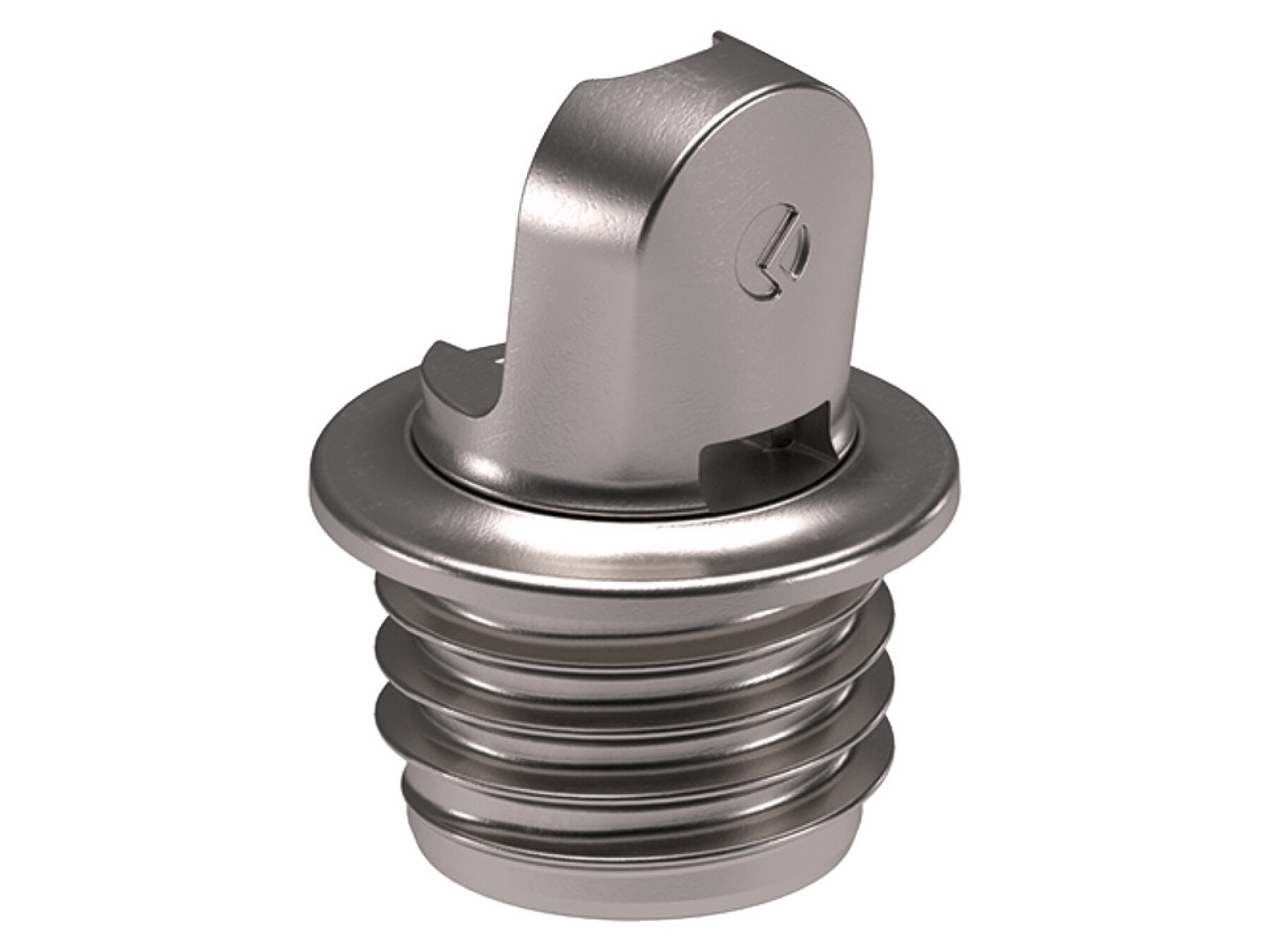

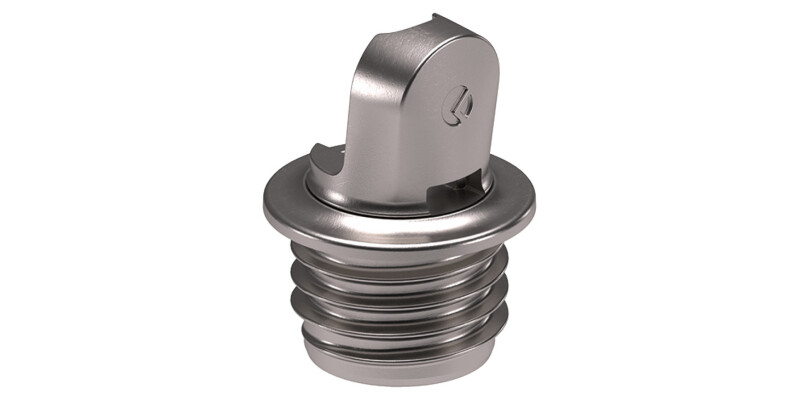

1x gas spring lid stay, 1x screw fixing door flap bracket, 1x recess mounted cabinet side bracket and fixings
