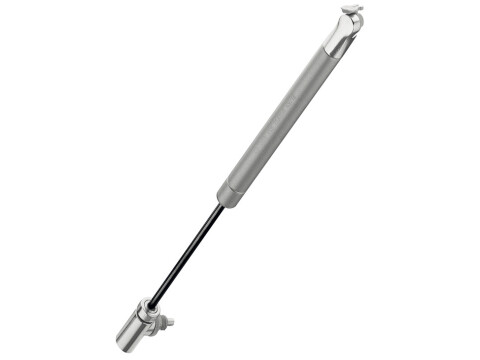

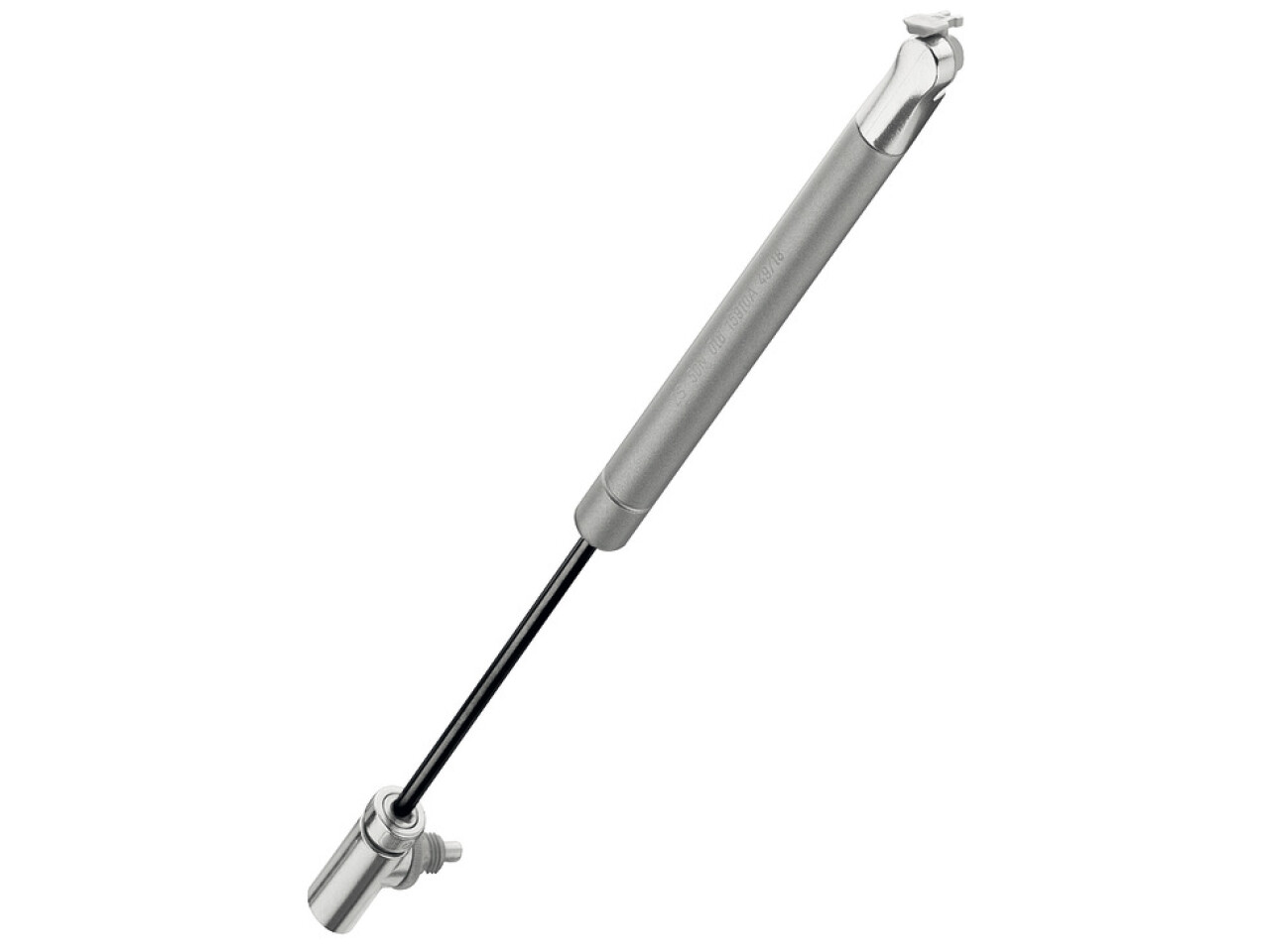

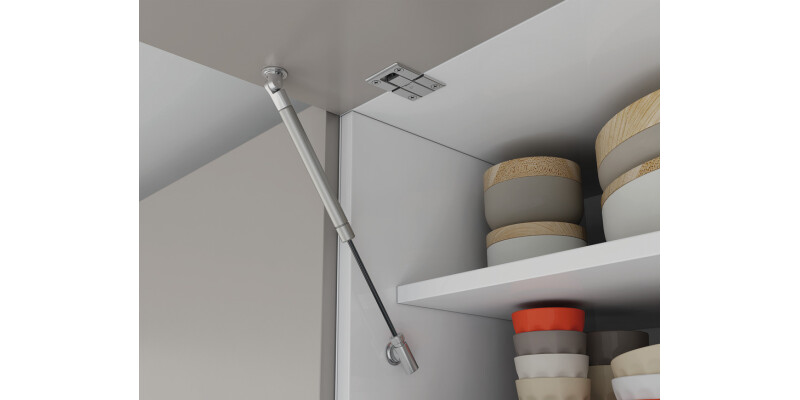

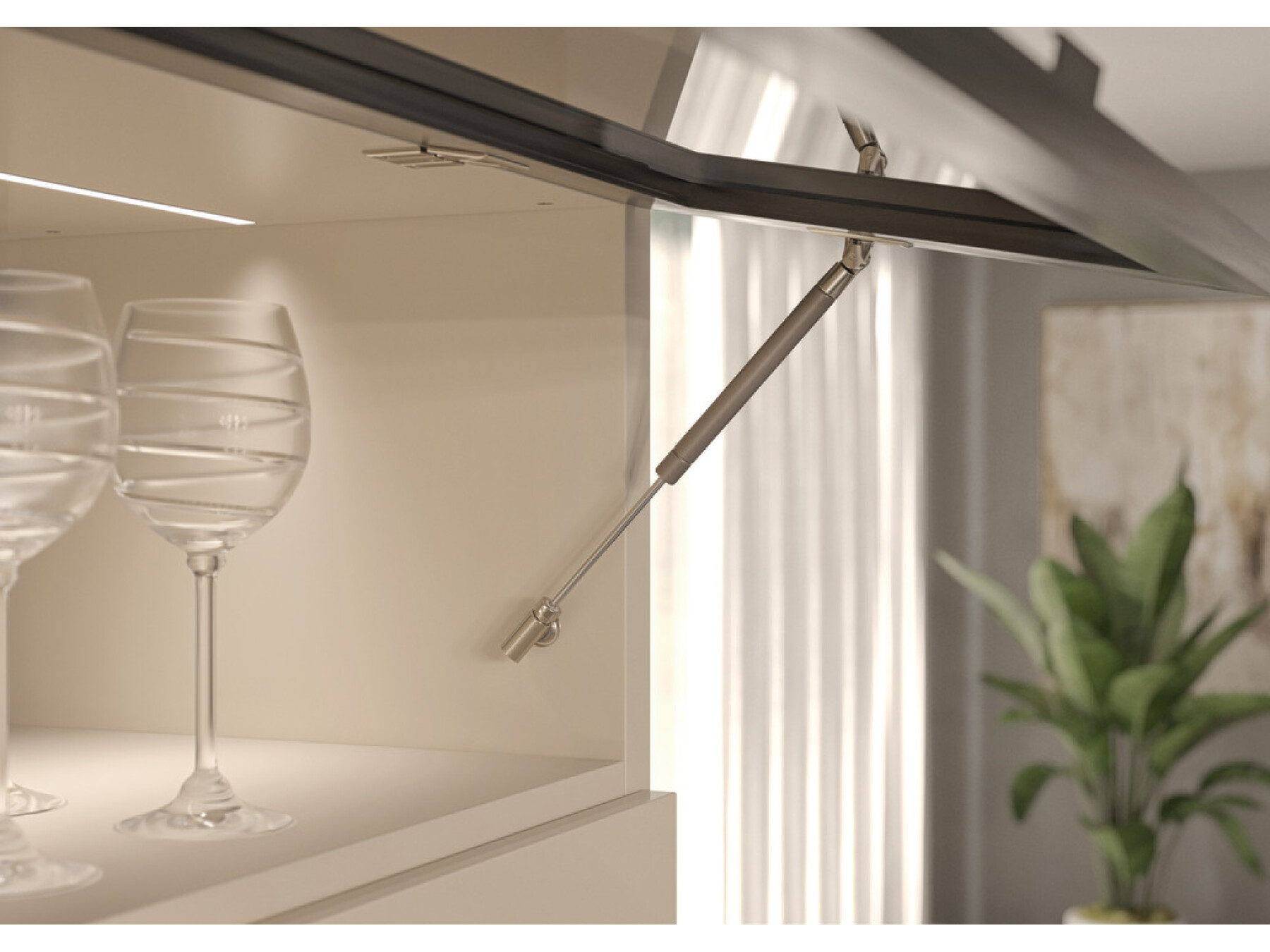

K12 Adj Auto Lid Stay 244mm 100N Slv/Gry
Part Number: 373.83.432

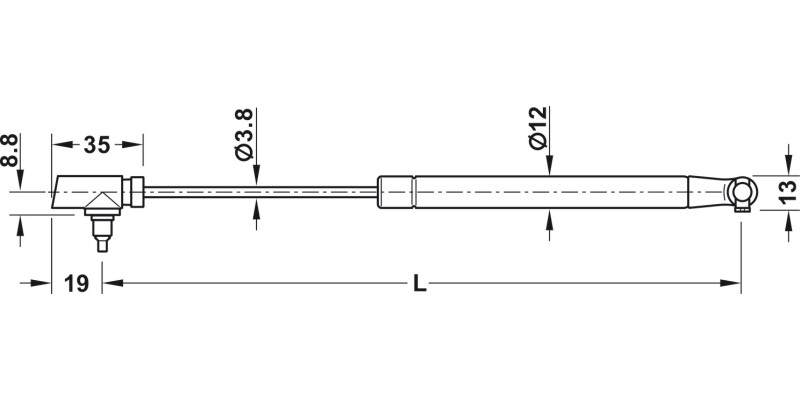

For wooden flaps or flaps with aluminium frame, Length 244 mm, spring force 100 N
Price:
£24.50
Per Item
Integrated mechanism for adjusting the opening angleInstallation on mounting bracket without toolsDid you know,... Read More
Product Information
Product Details
Integrated mechanism for adjusting the opening angle
Installation on mounting bracket without tools
Did you know, you can use our Panel Weight Calculator to work out the weight of your panels?
Specifications
Area of application

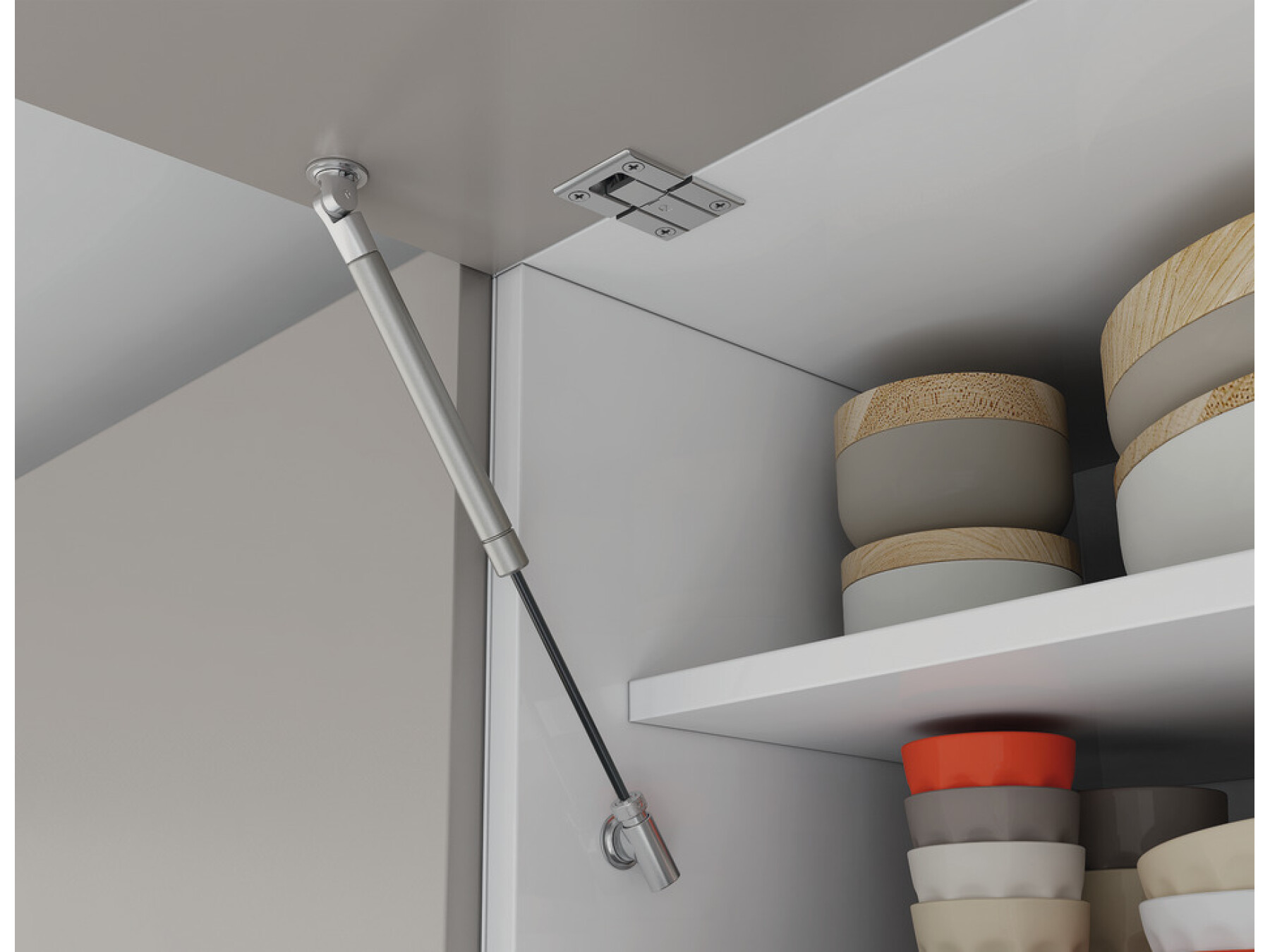

For stay flap front panels made from wood or with aluminium frame
Material
Steel, cylinder: Zinc alloy
Colour/finish
Grey silver coloured
Cover colour
Silver grey

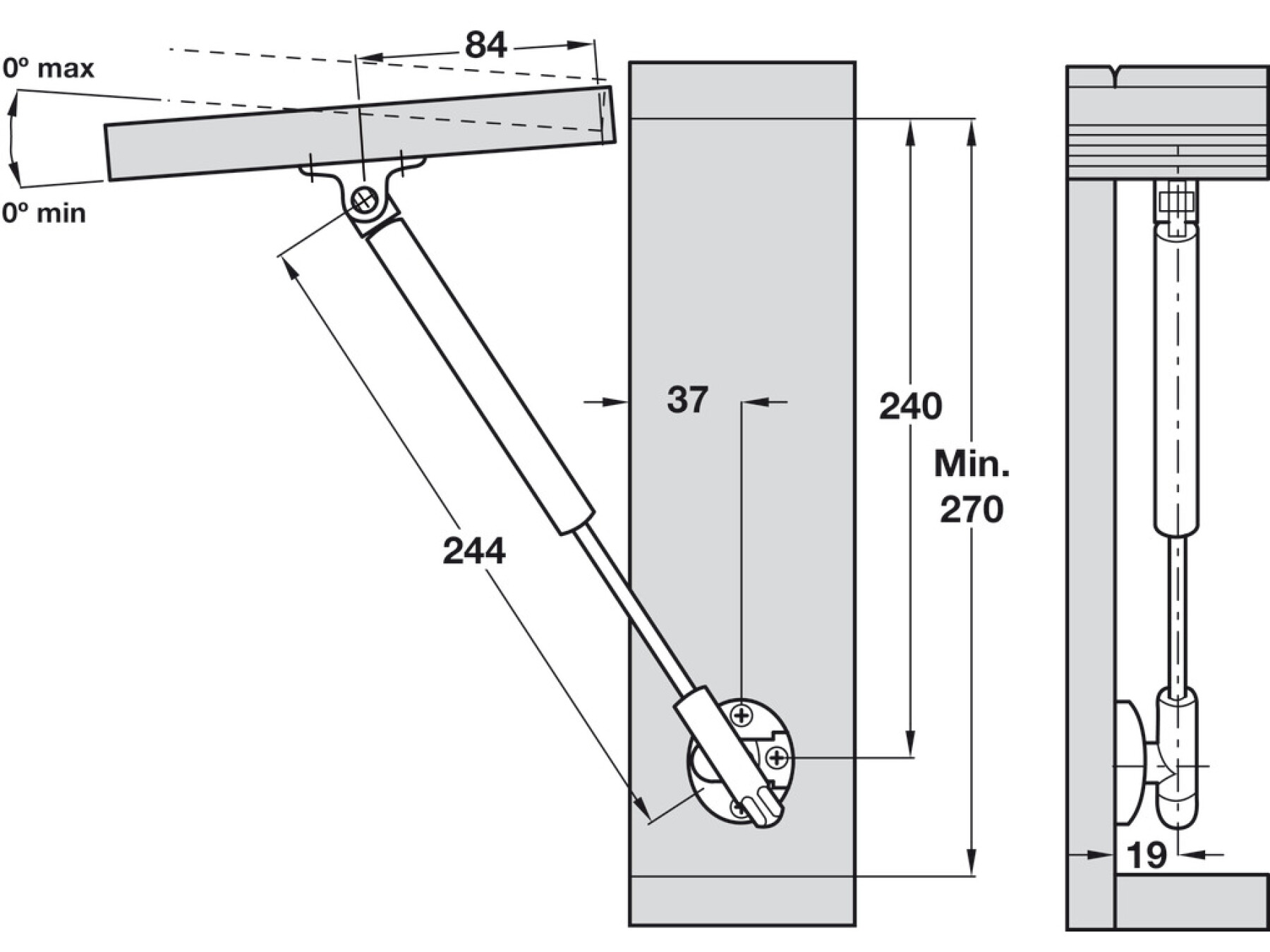

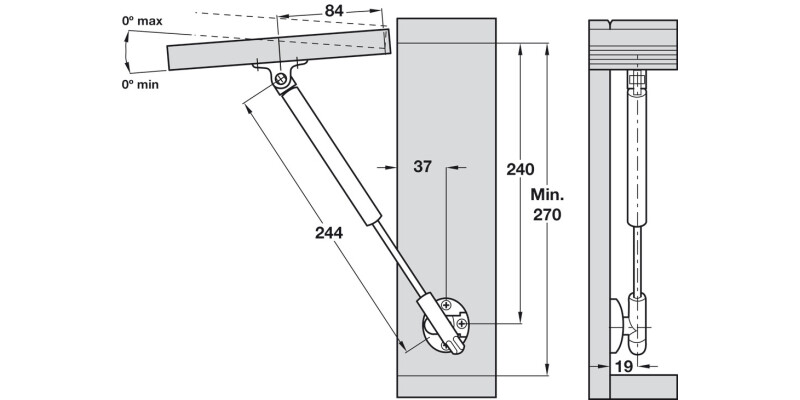

Opening angle
90 °
For cabinet height
200 – 600 mm
For lid weight
≤13.5 kg, note sample measurements table
Adjustment facility
Travel: ±3 mm, using adjusting wheel

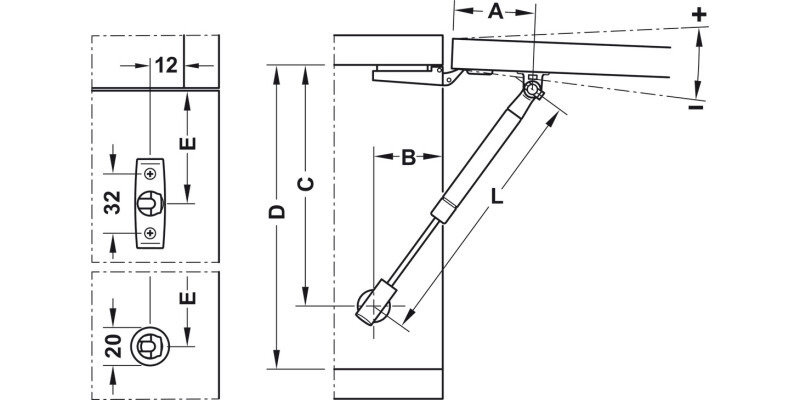

Installation

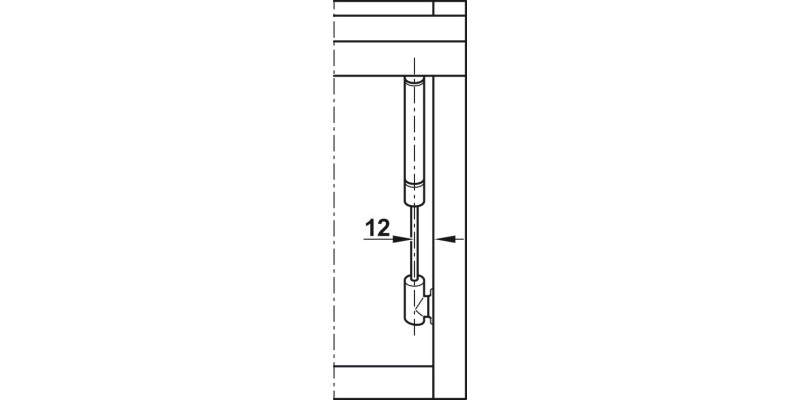

For screw fixing into 32 mm series drilled holes, on mounting bracket, for screw fixing or plug fitting
Installation note
In case of threshold values always use stronger version. Trial mounting is recommended.
Order reference
In case of threshold values always use stronger version. Trial mounting is recommended.
Supplied with
1x Gas spring lid stay
1x Screw fixing door lid bracket,
1x Recess mounted cabinet side bracket
Fixings
