Hawa Regal A25H Forslide FitSet 1Dr
Part Number: 405.55.011
Top hung system, For 1 door
Price:
£105.42
Per Item
High quality residential furniture where either decorative or functional overlay sliding panels are required to... Read More
Product Information
Product Details

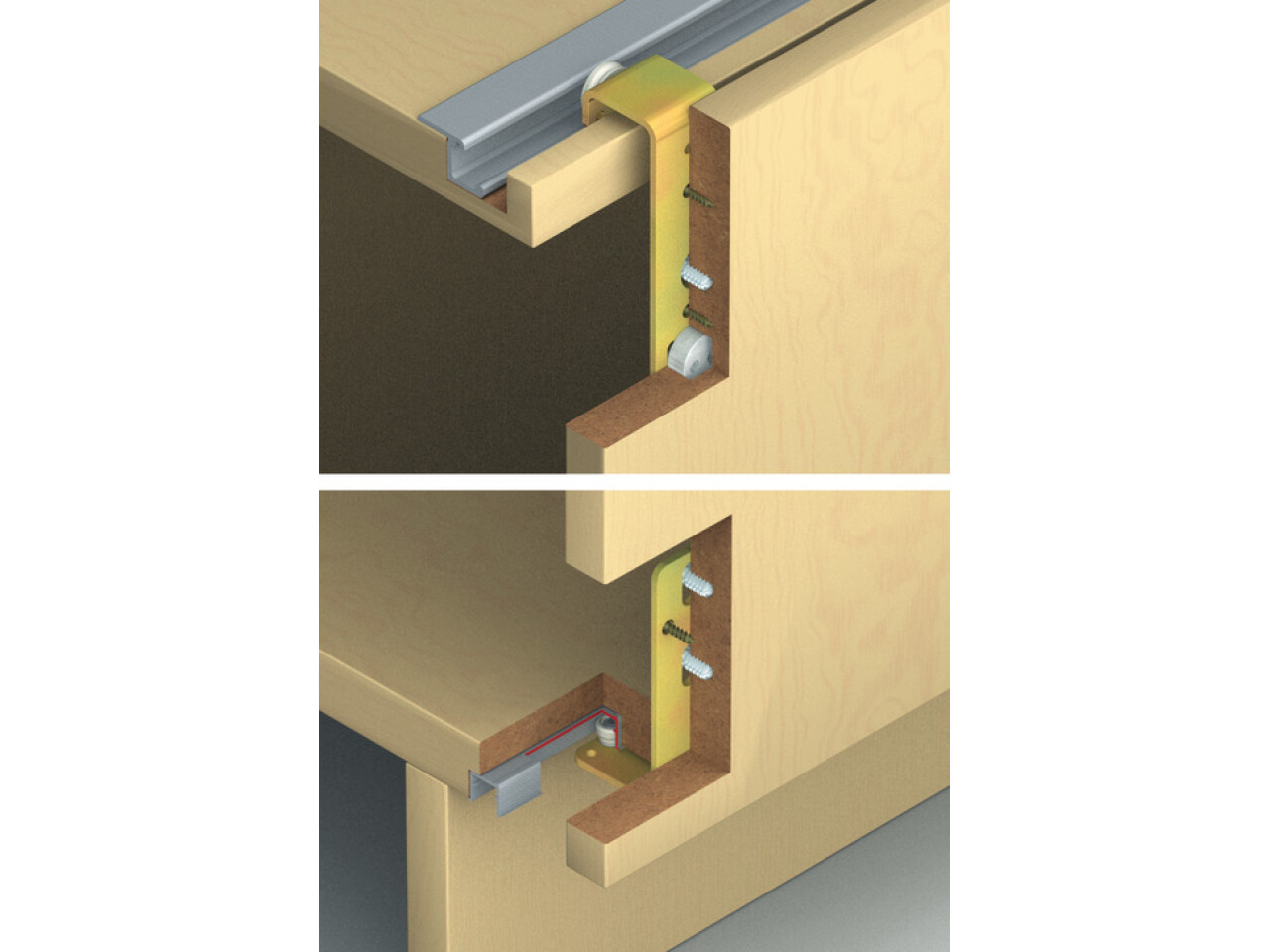

High quality residential furniture where either decorative or functional overlay sliding panels are required to move across the face of units
All sliding door gear components concealed including tracks
Simple to install
Supplied with
Fitting set includes:
1 pair x Track stopper, left and right hand for top track, with retaining spring grey plastic
2x Running gear, plastic tyred wheel with ball bearing, yellow chromatized steel
2x Bottom guide with slotted fixing holes for easy installation, yellow chromatized steel
2x Guide buffer to fit in bottom guide rail, grey plastic
Fixings
Specifications
Number of door leaves per set
1.00
Soft closing mechanism
With clip-in door stopper
For door thickness
19 – 25 mm
For door width
≤1,200 mm
For door weight
≤25 kg
Running position
Top
Number of rollers
1.00
Height adjustment
-2 – 2 mm
Running gear guided by
Ball bearing
For door material
Wood
Height adjustable
Cabinet version
shelves
Area of application
For 1 door
For door height
≤2,400 mm
Door stopper
Top and bottom clip-in door stopper, for sliding into running track
Material/finish
Running gear: SteelGuide: SteelRollers: Plastic
Adjustment facility
Height adjustment: -2 – 2 mm, on running gear
Door adjustment via
eccentric screw
Installation
Running gear and guide for screw fixing, Tool-free installation and de-installation of door wings
Set
Set without tracks
Type of opening
linear
Number of door wings in a system max.
1
Order reference
Tracks and accessories to be ordered separately
