Hawa Concepta 30 SC Set 1851-2300mm 30kg
Part Number: 408.30.591
For vertical use, For door height 1851-2300 mm, max. door weight 30 kg
Price:
£996.53
Per Item
Pivot sliding system for high quality cabinet applications and wall recessesThe omission of a floor channel... Read More
Product Information
Product Details

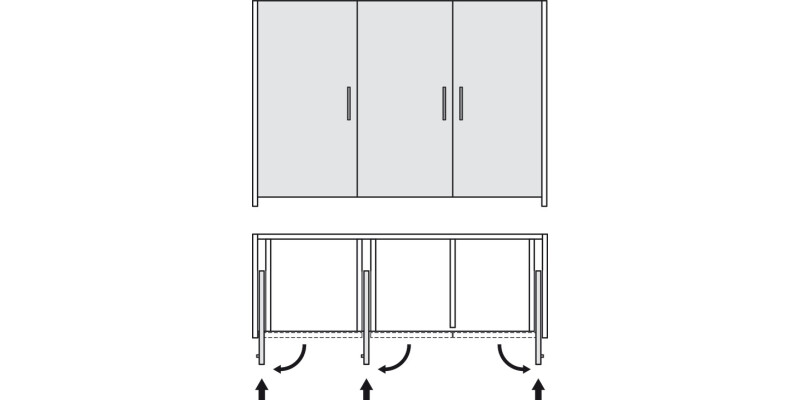

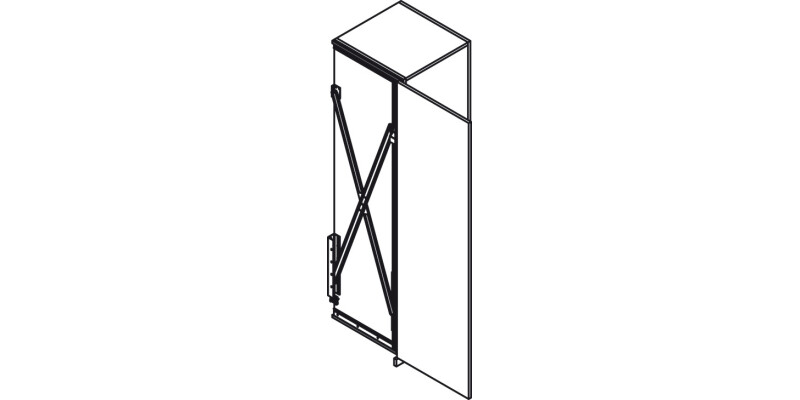

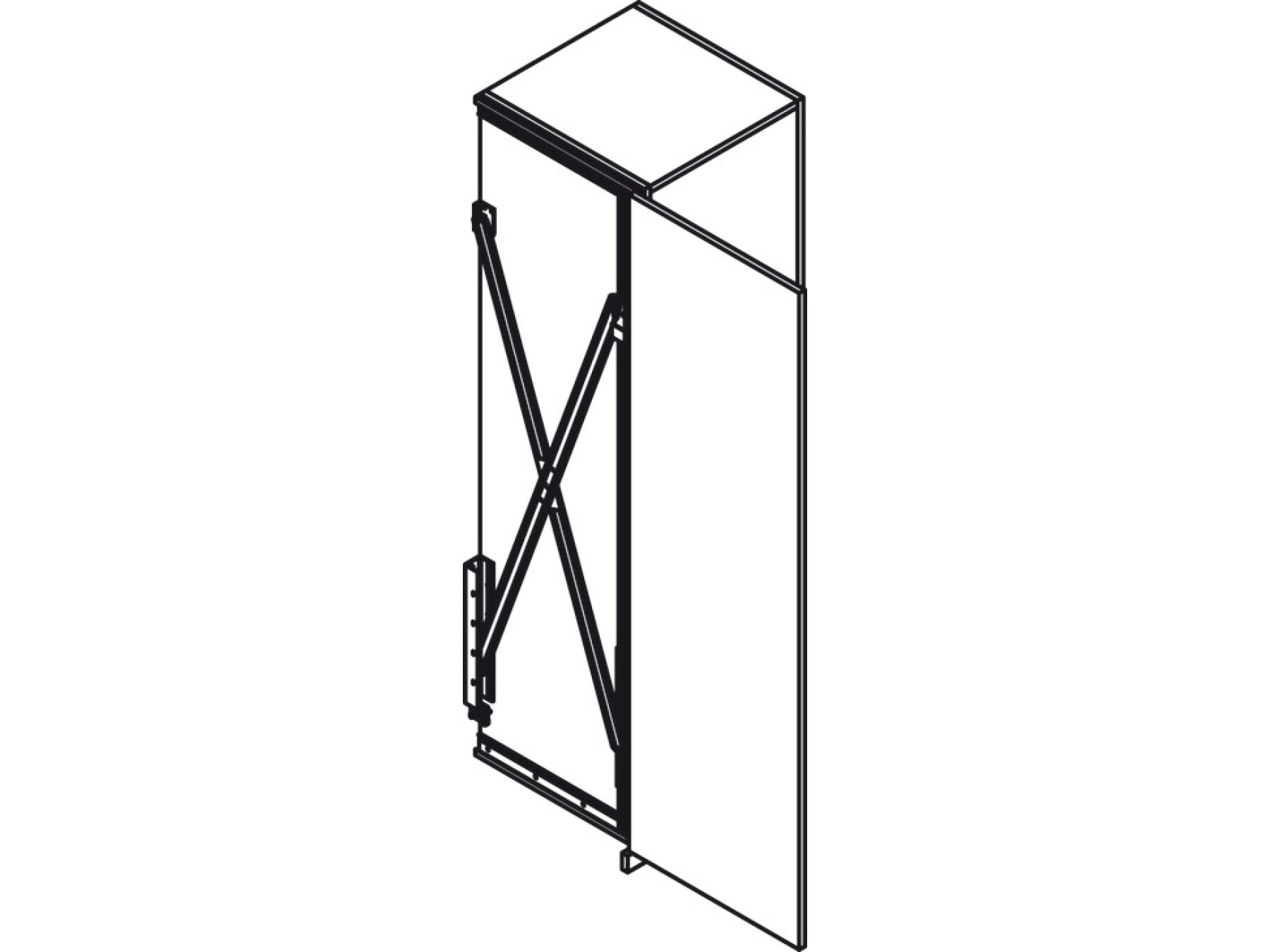

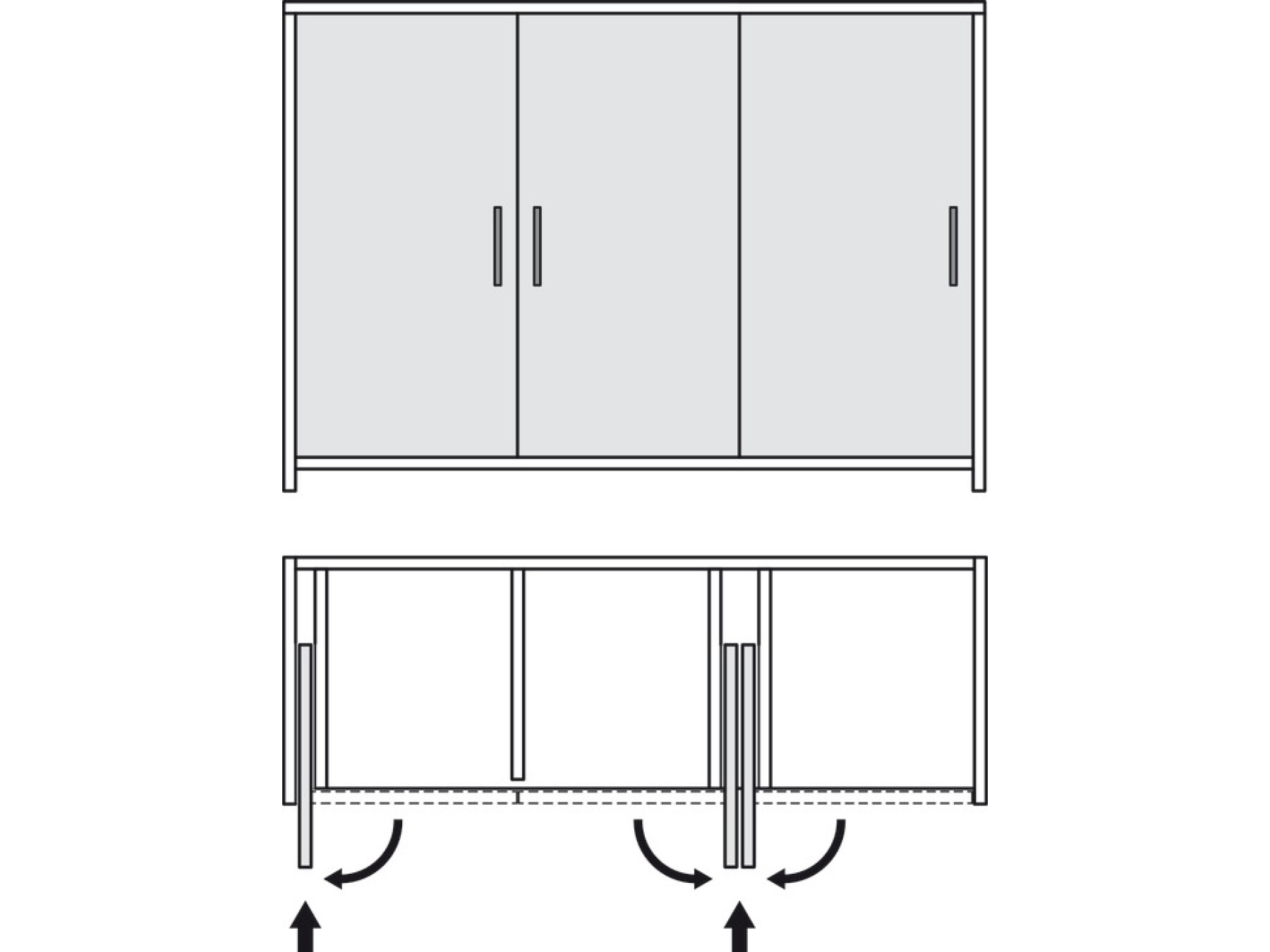

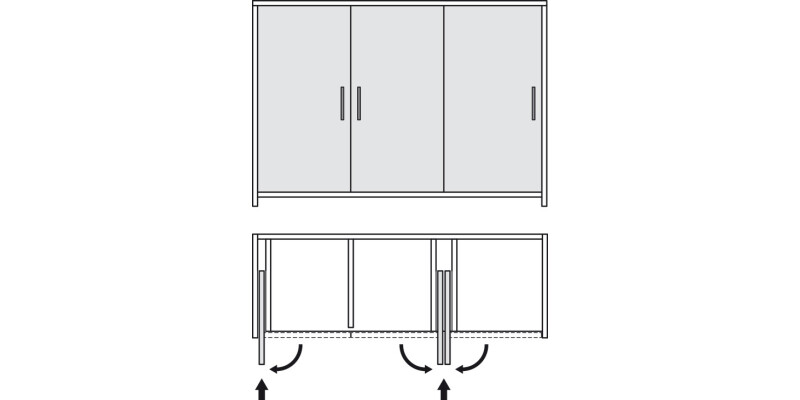

Pivot sliding system for high quality cabinet applications and wall recesses

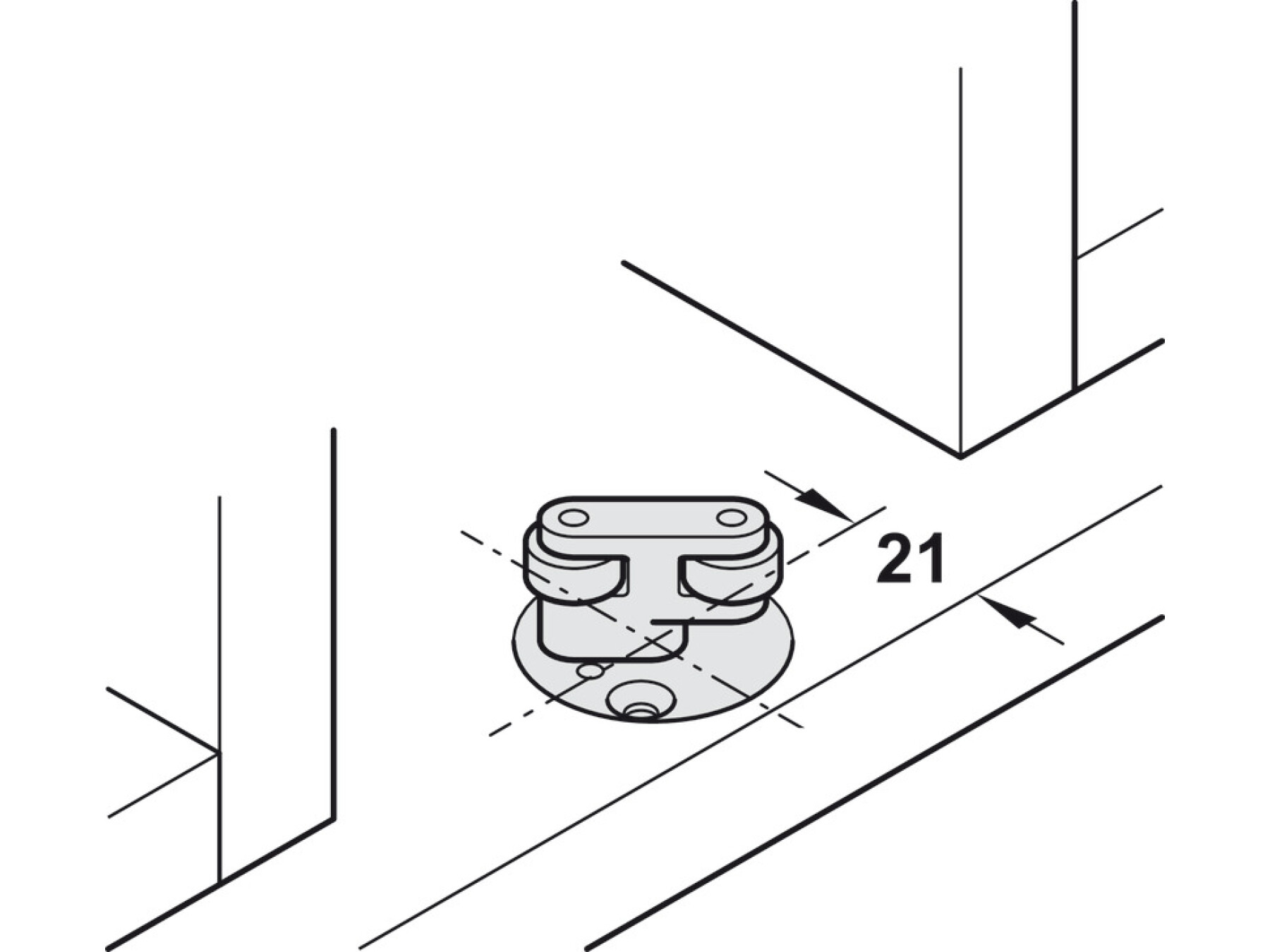

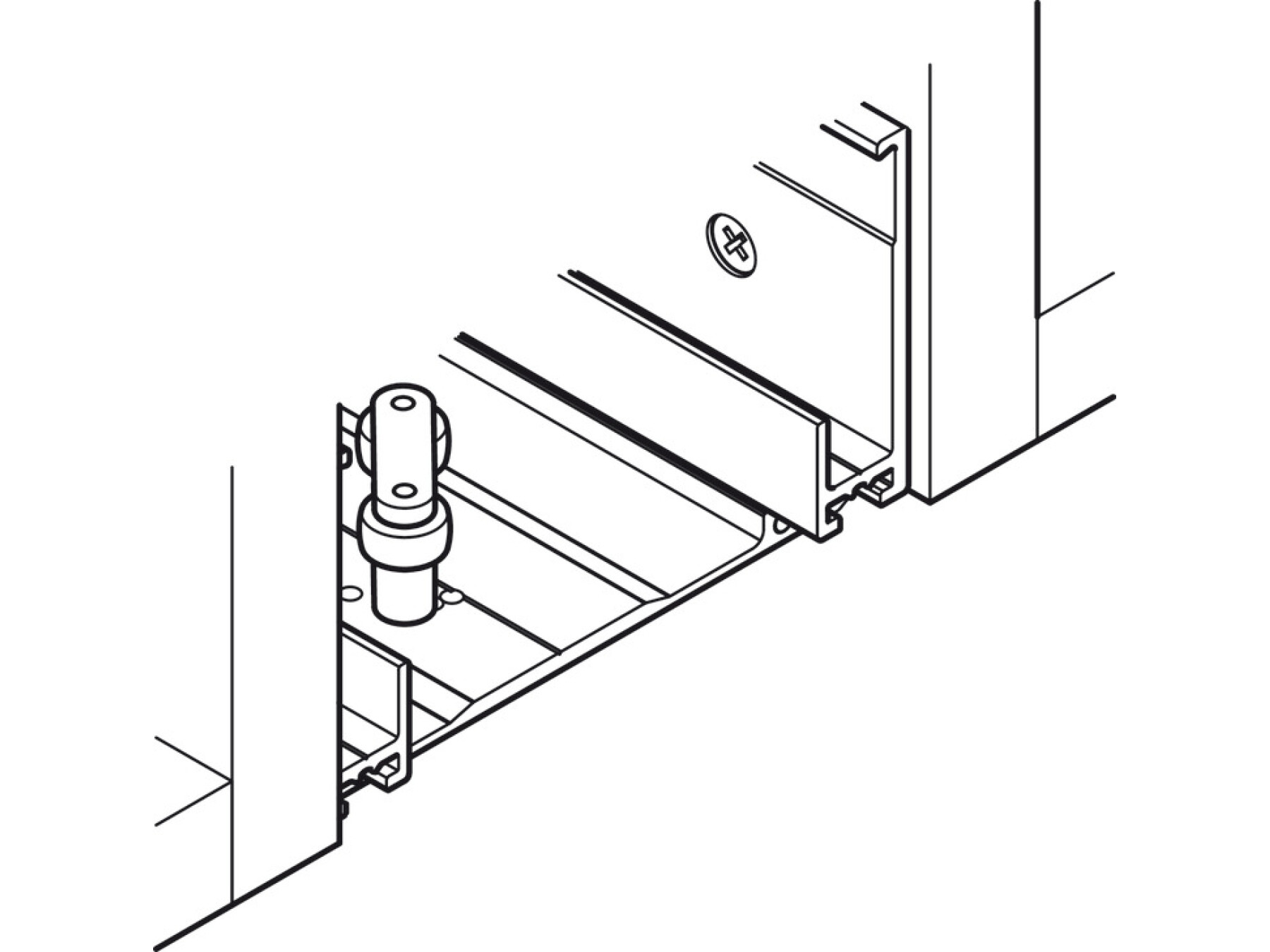

The omission of a floor channel offers optimum flexible room utilisation with no obstructions

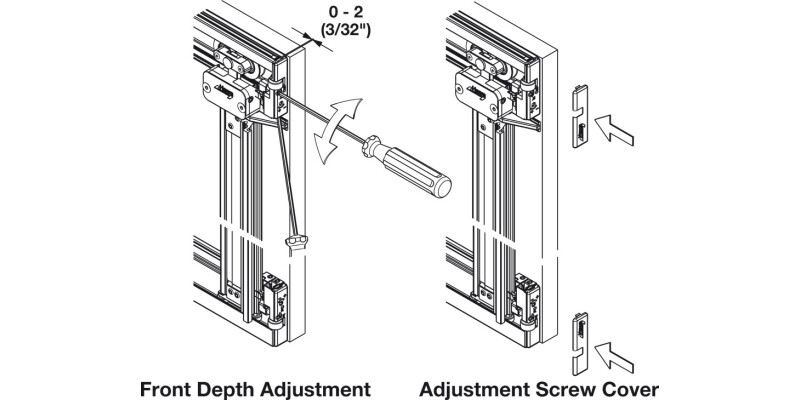

The clever design means installation is simple and straightforward, with all adjustments carried out from the front, meaning no access panels are required

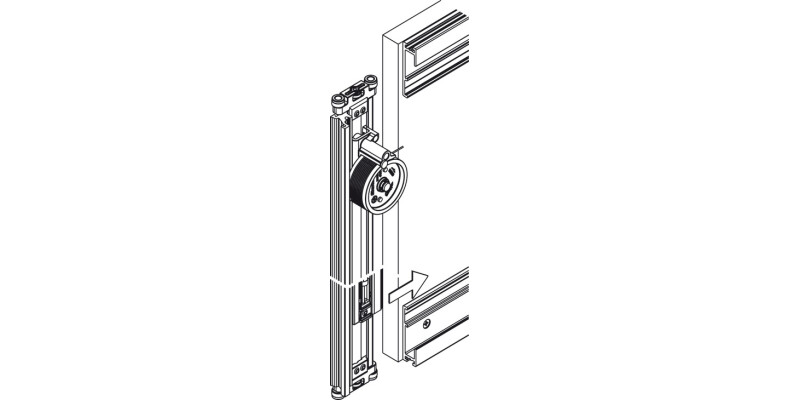

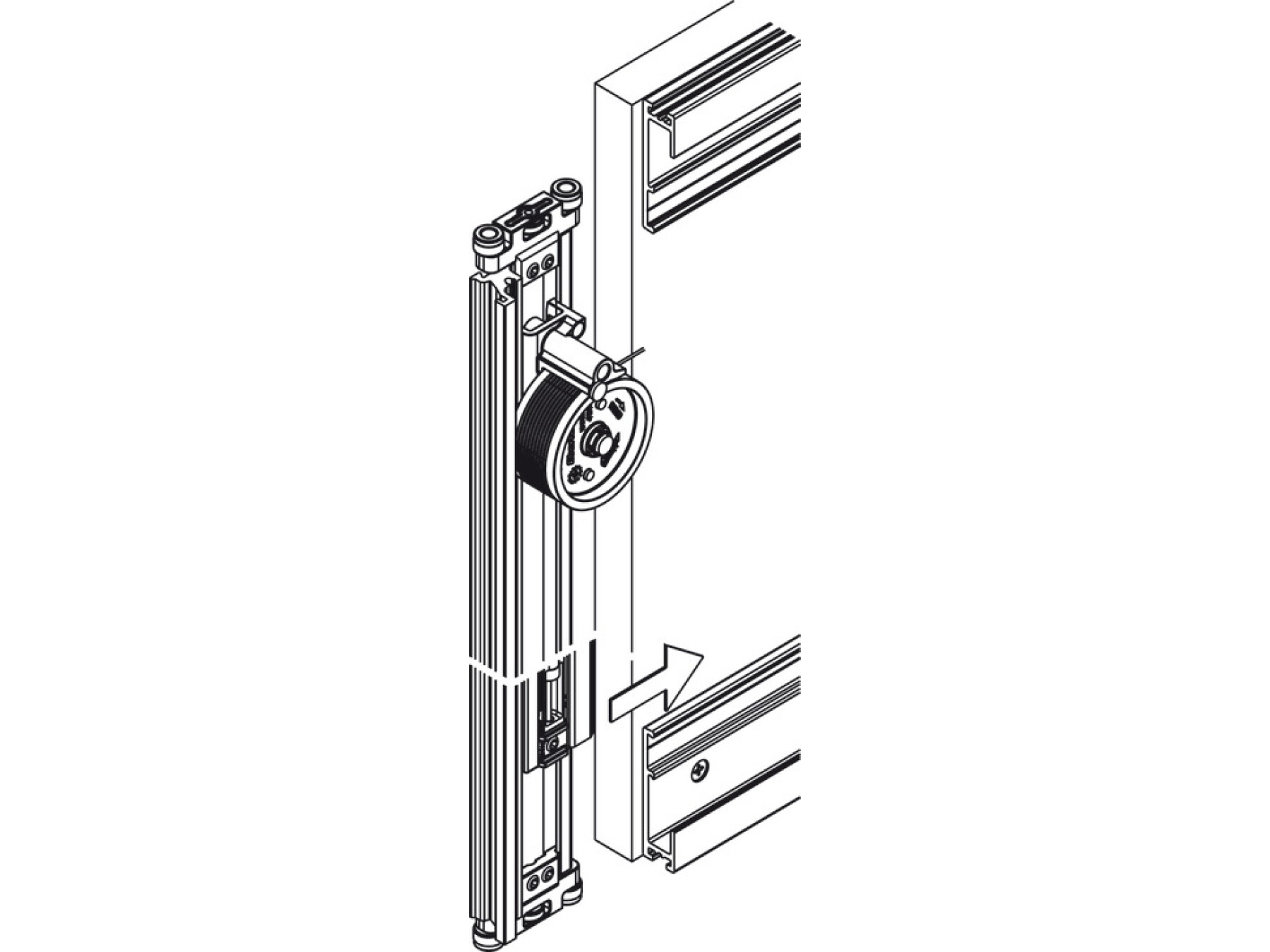

The door is pulled into the pocket automatically

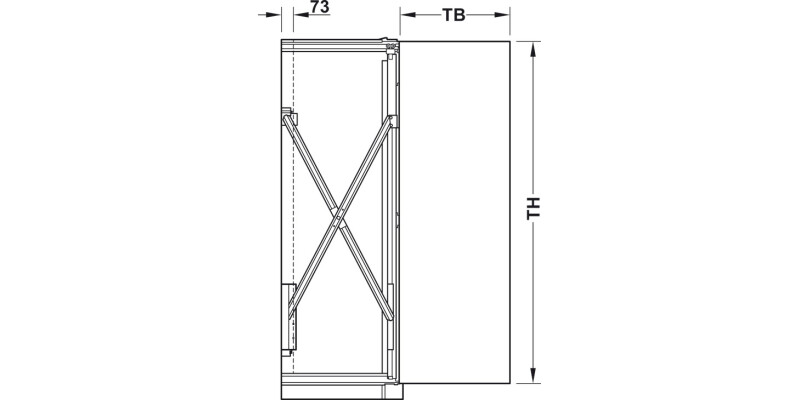

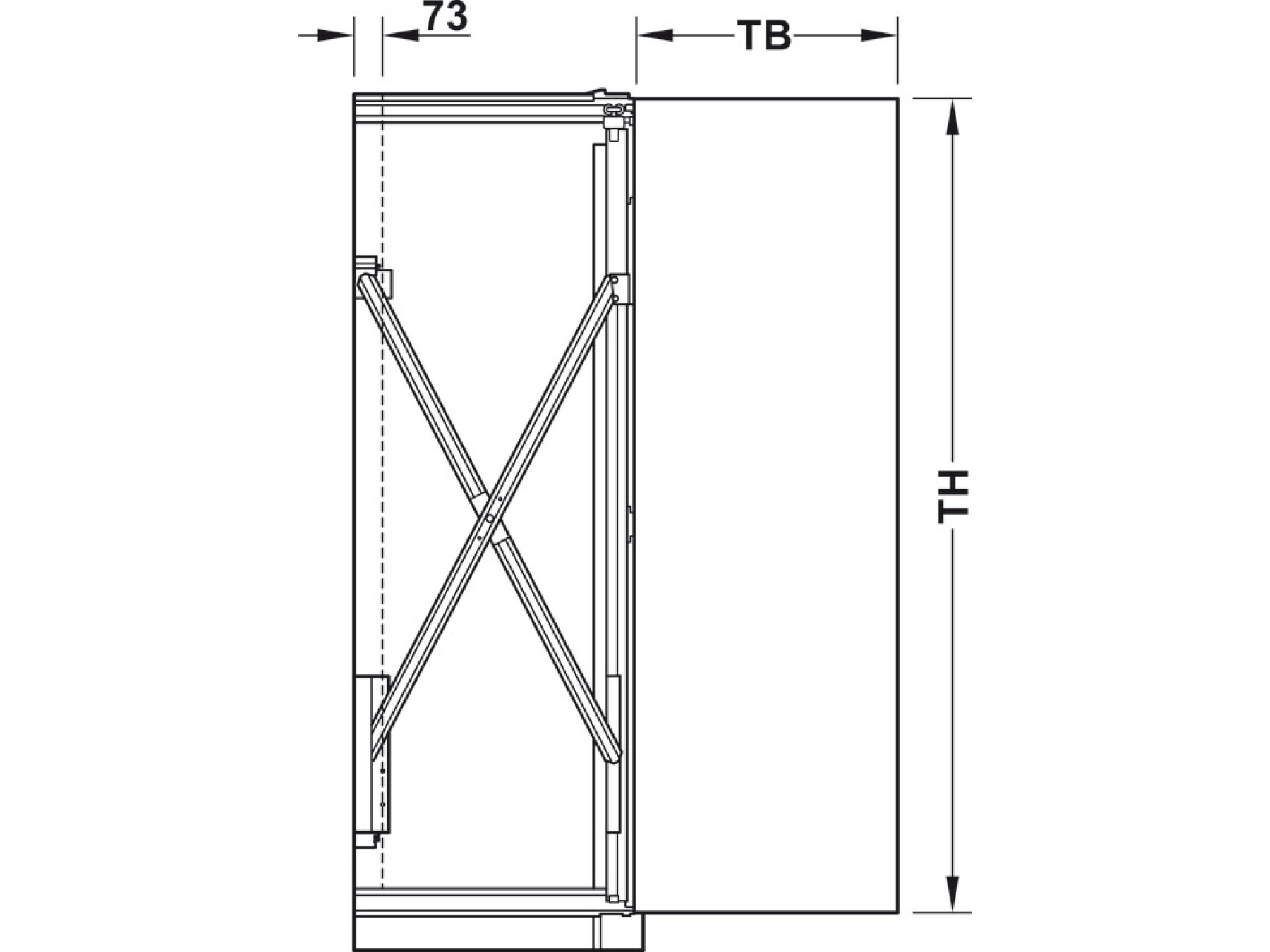

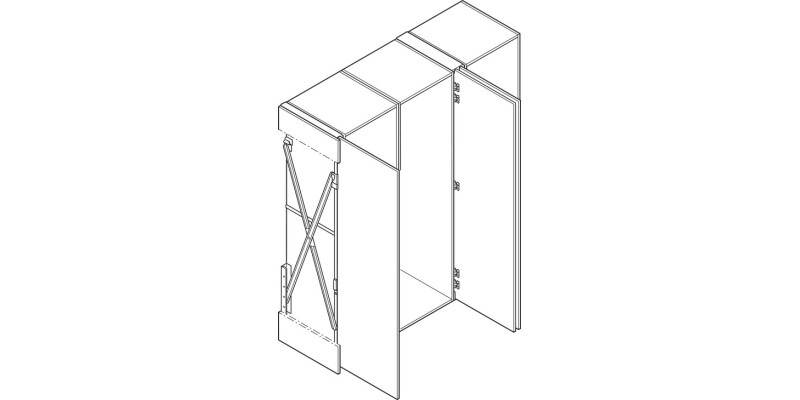

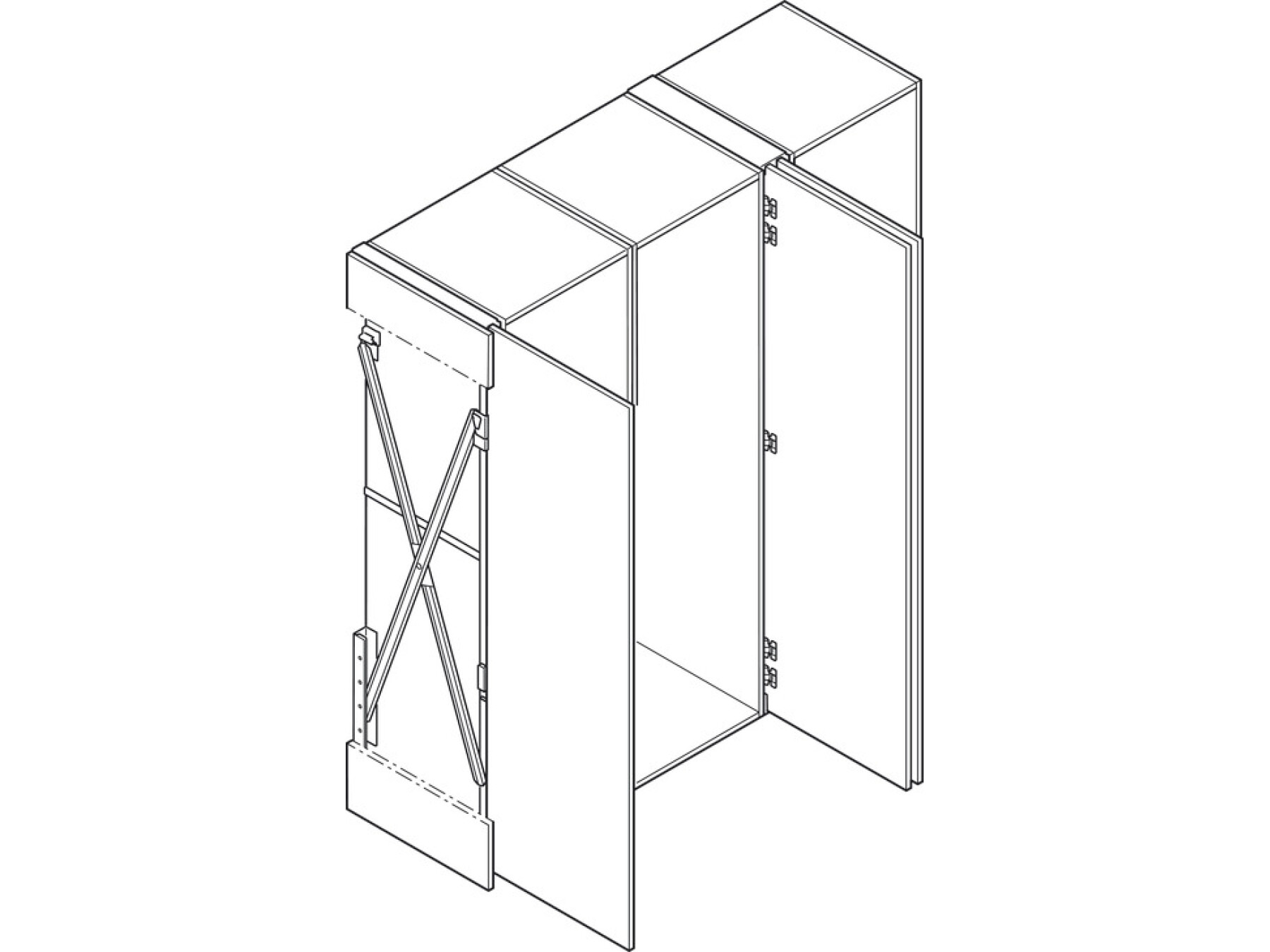

The unique scissor technology allows large and heavy doors to be implemented

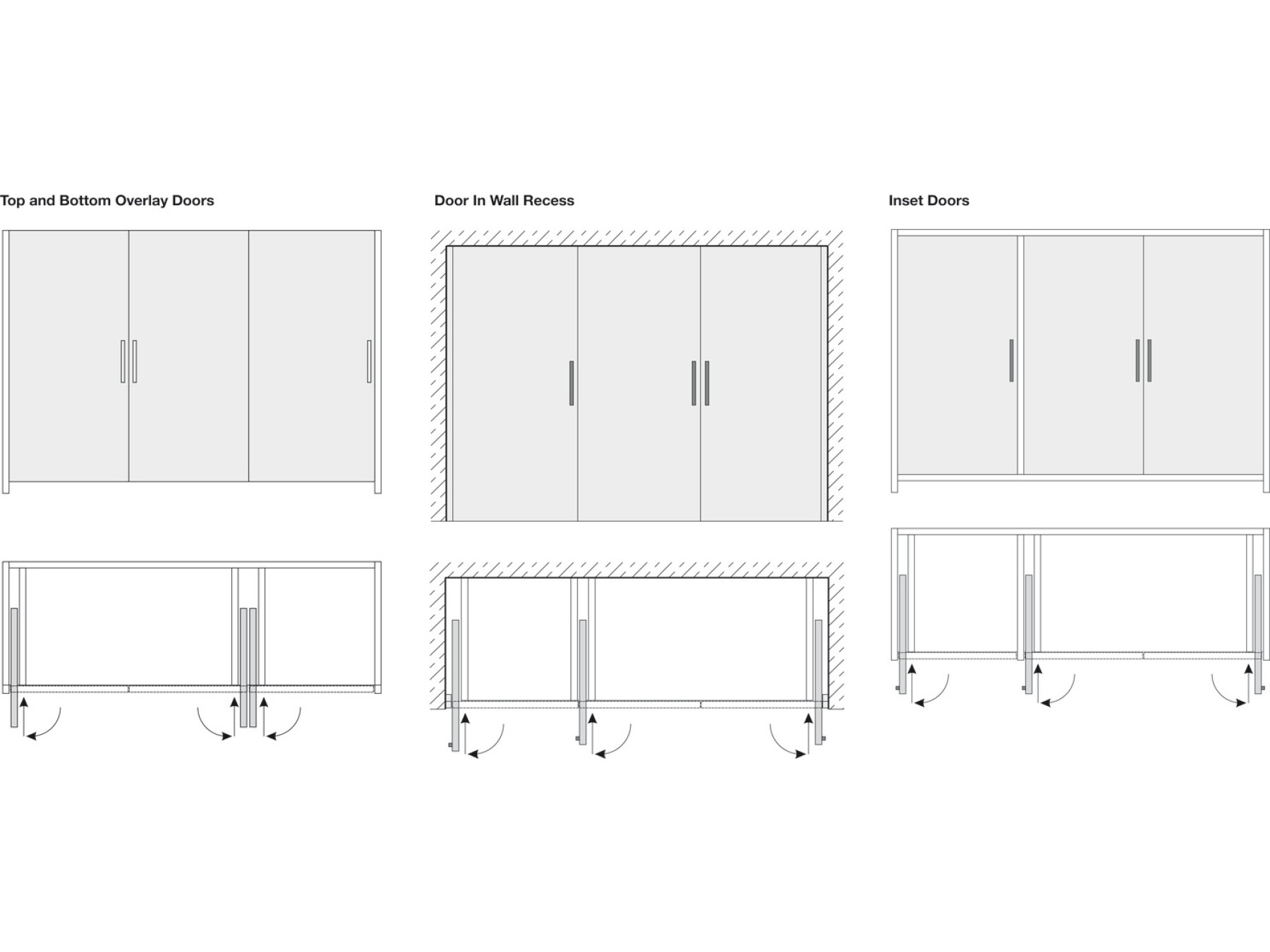

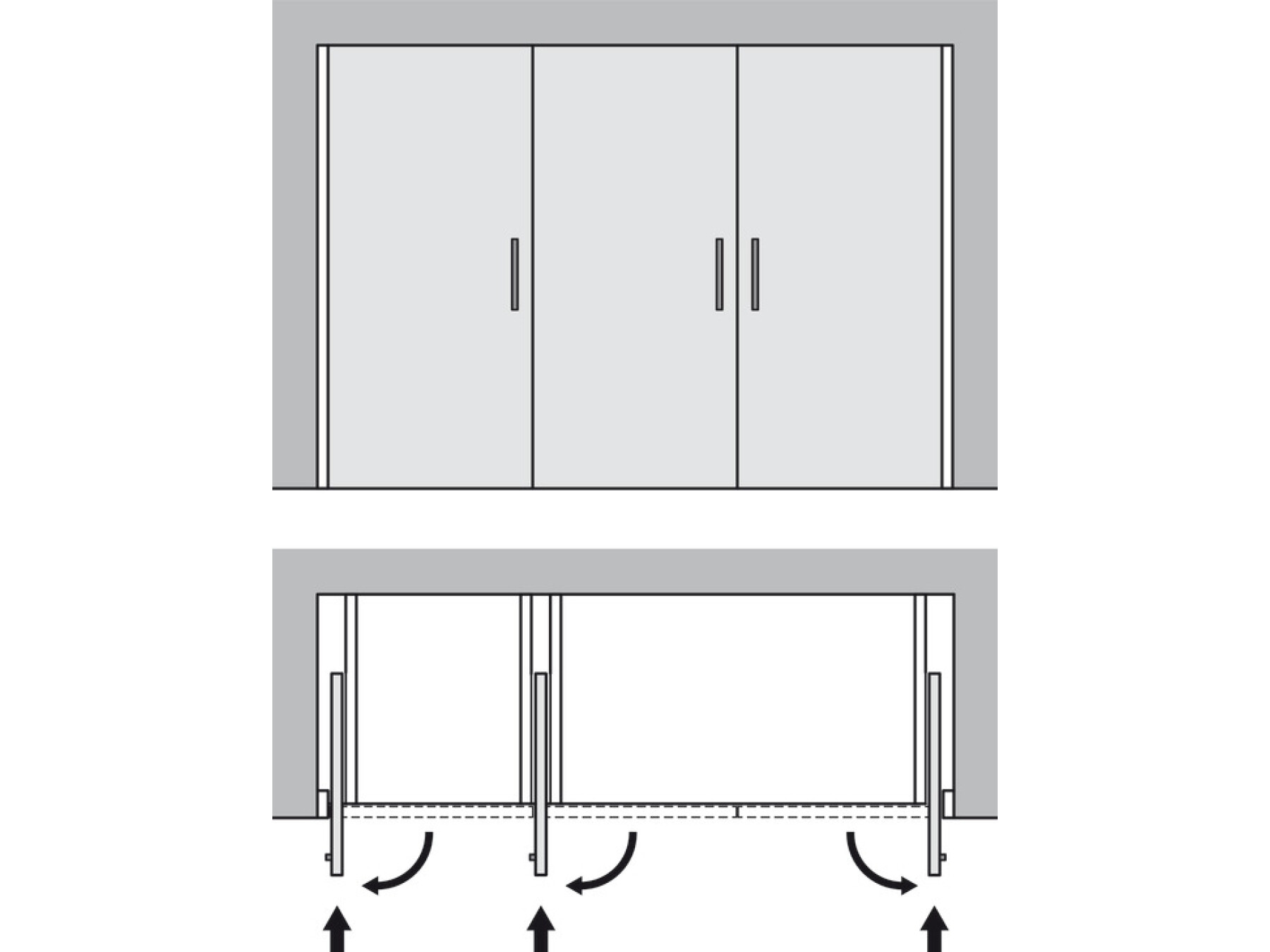

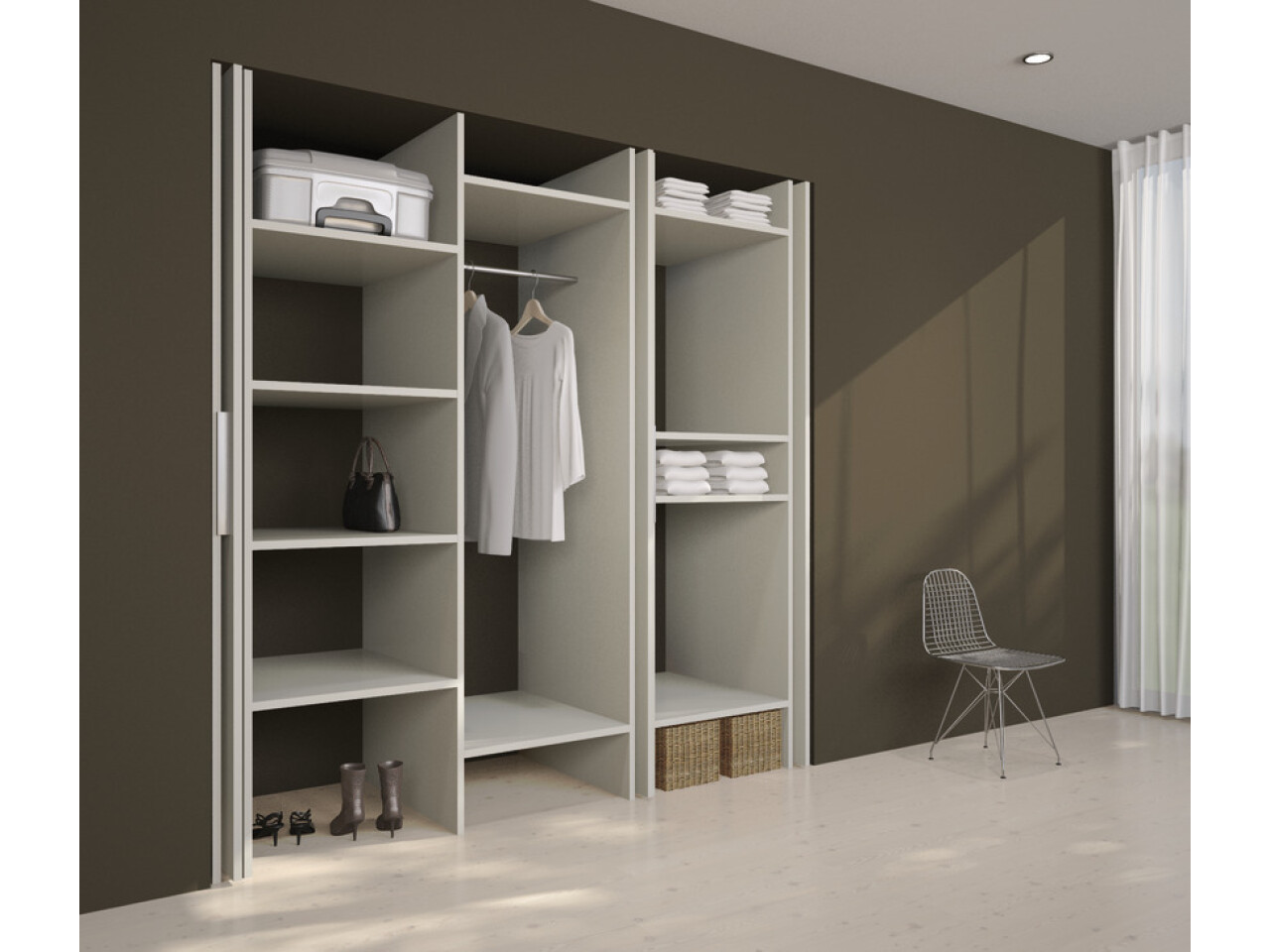

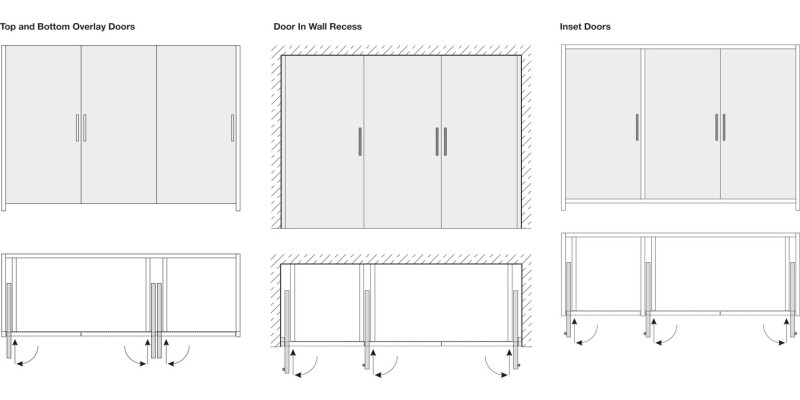

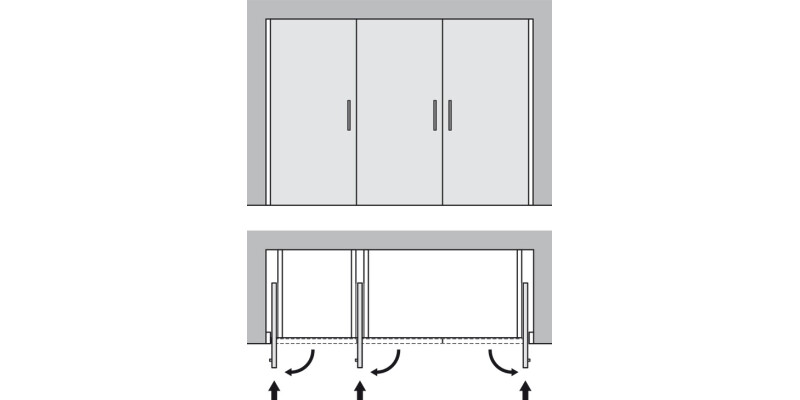

Wall recesses are concealed without the need for a cabinet
All components are screwed onto the intermediate panel

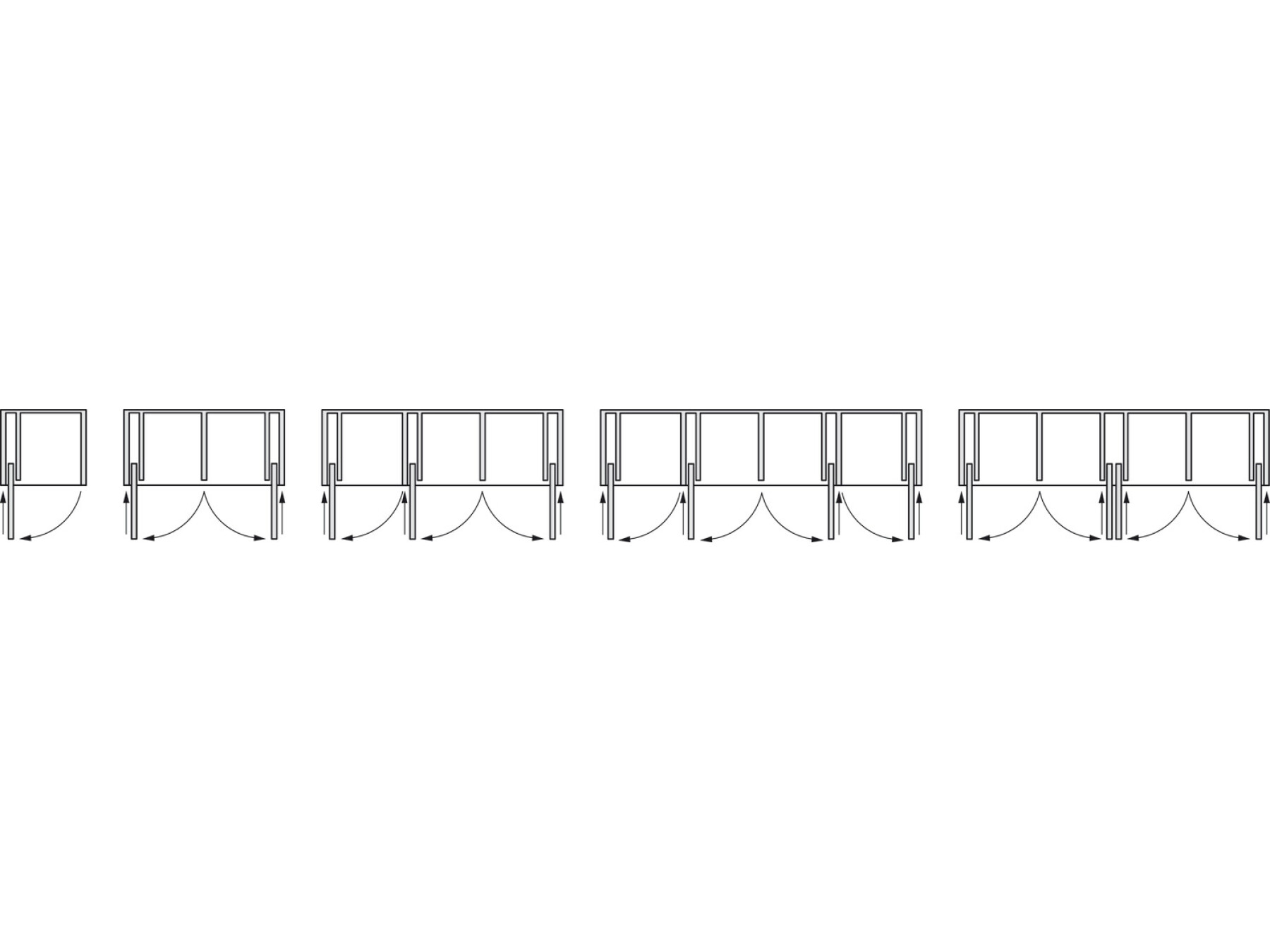

The same set can be used for either right or left applications
Take care as the pull out unit is extremely sensitive - Please read fitting instructions carefully)

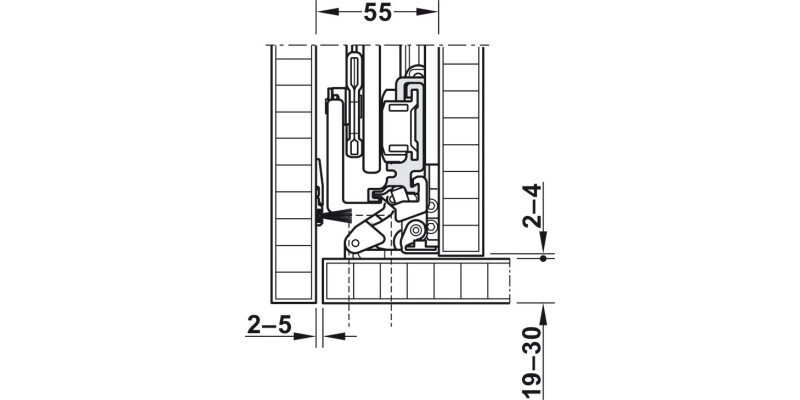

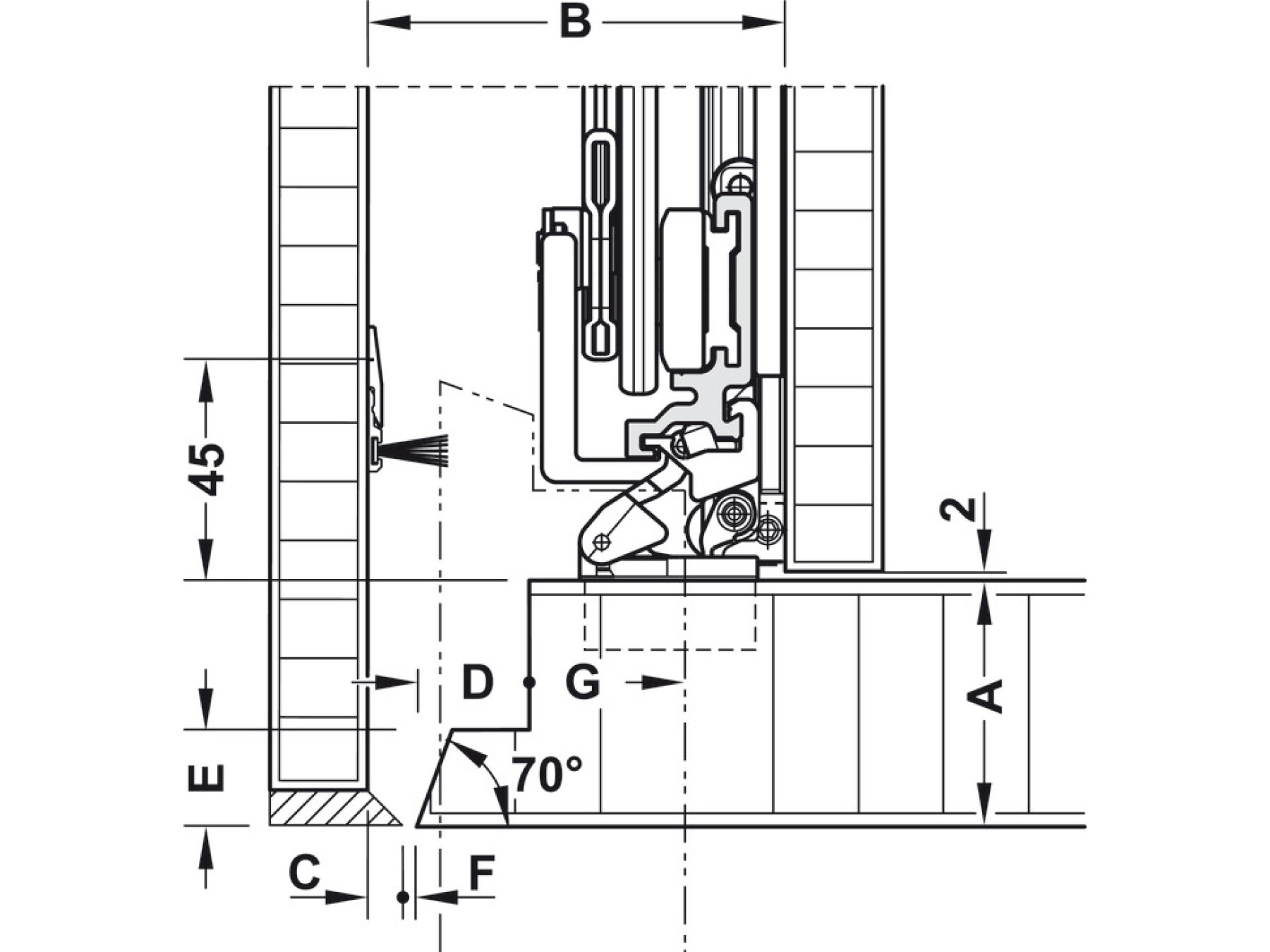

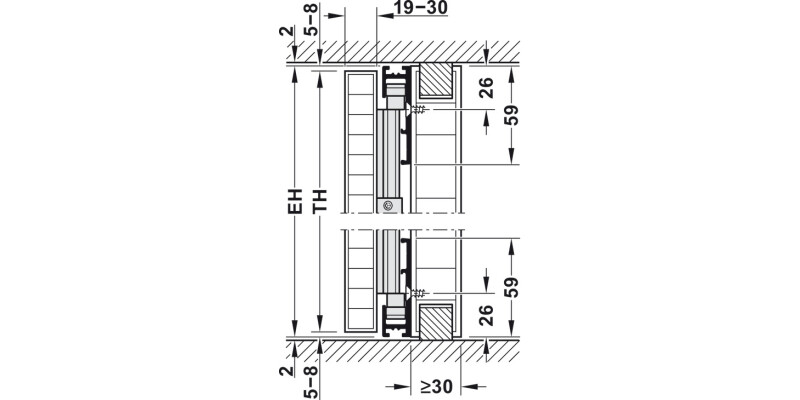

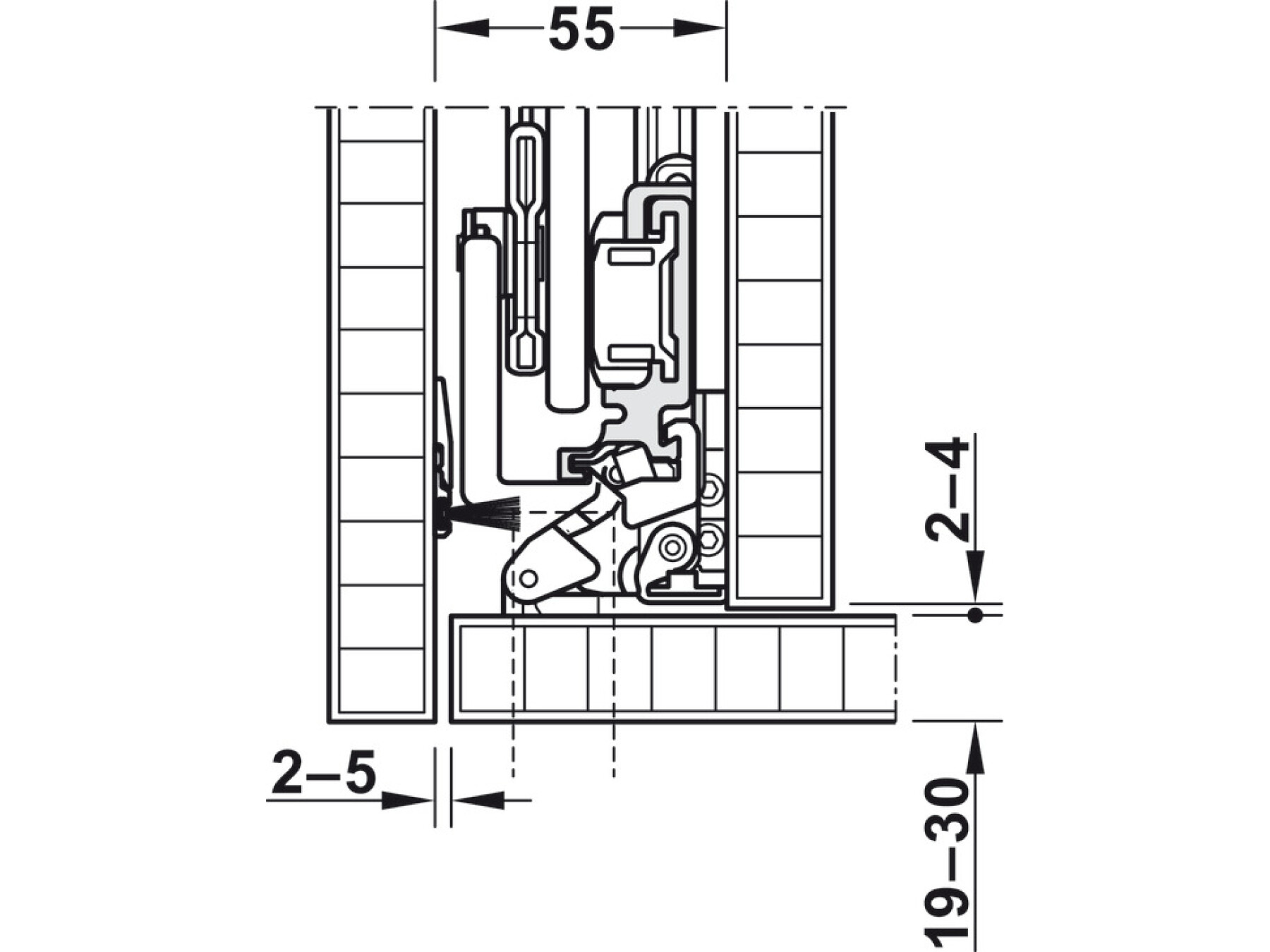

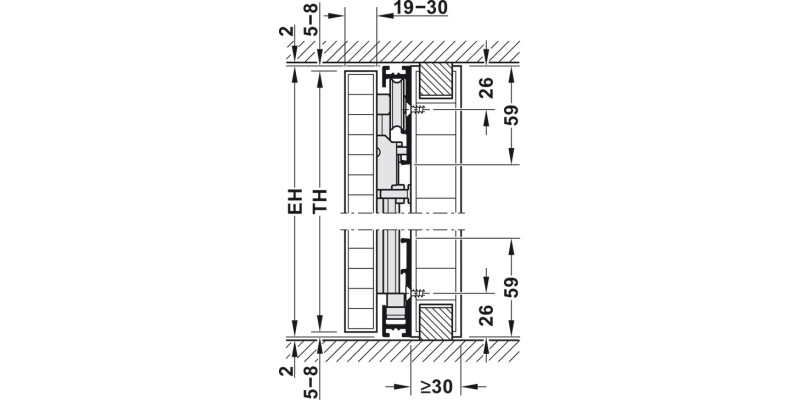

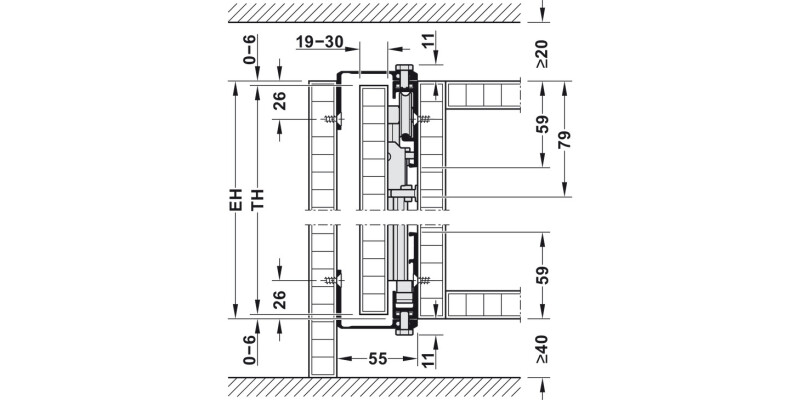

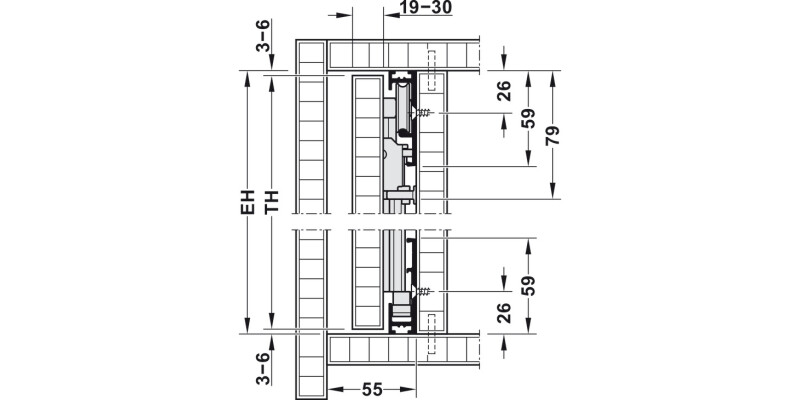

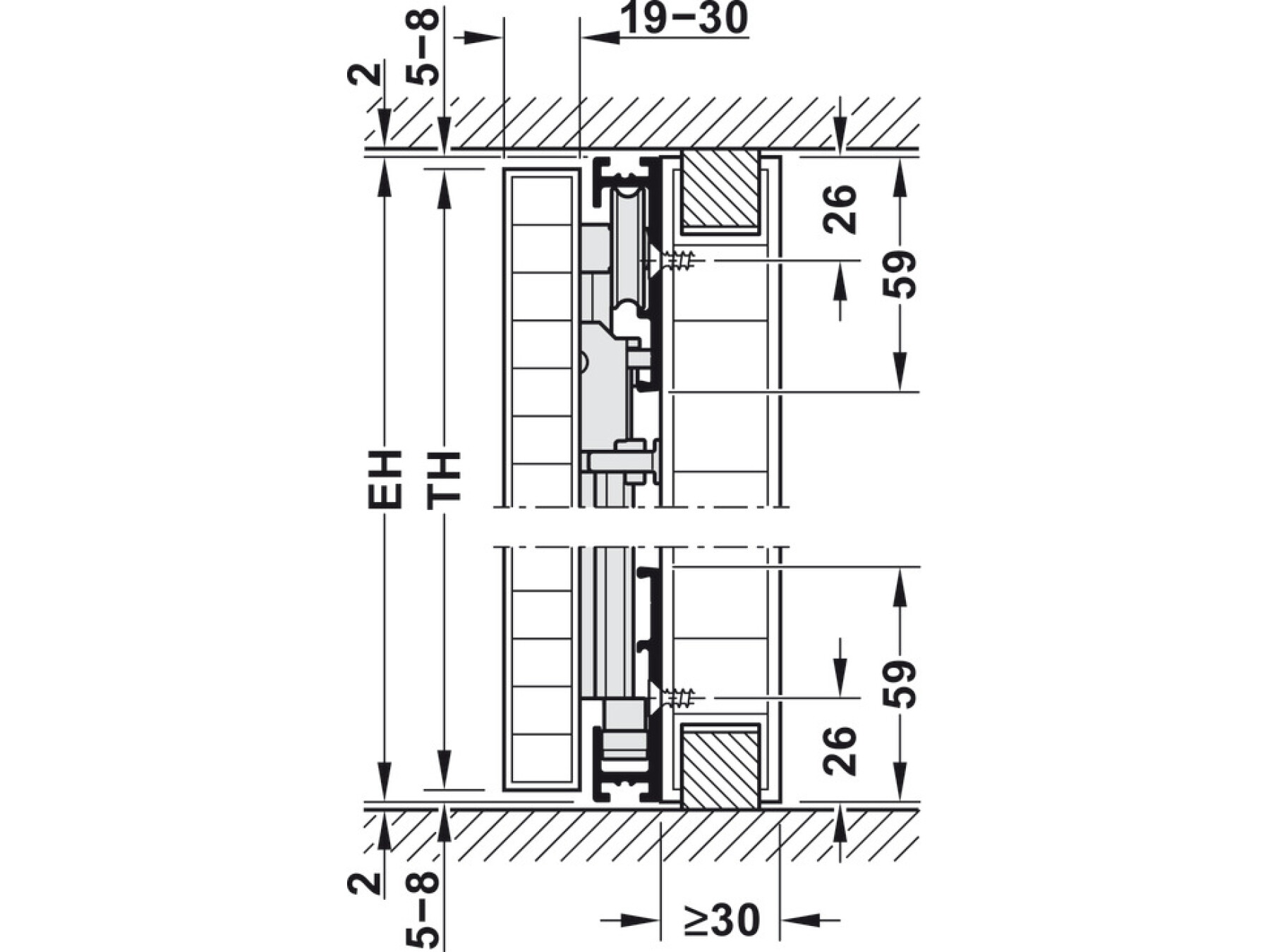

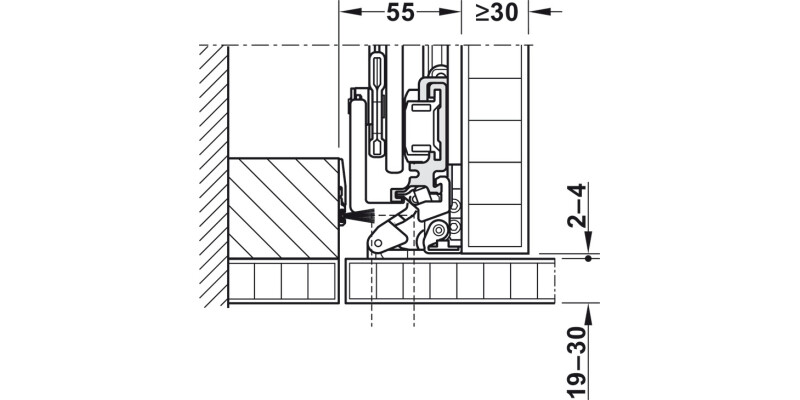

HAWA-Concepta fitting sets come with installation drawings, available seaparately on request (HAWA-Concepta 25/30 - Drawing reference 25737 and HAWA-Concepta 40/50 - Drawing reference 25738)
Order reference

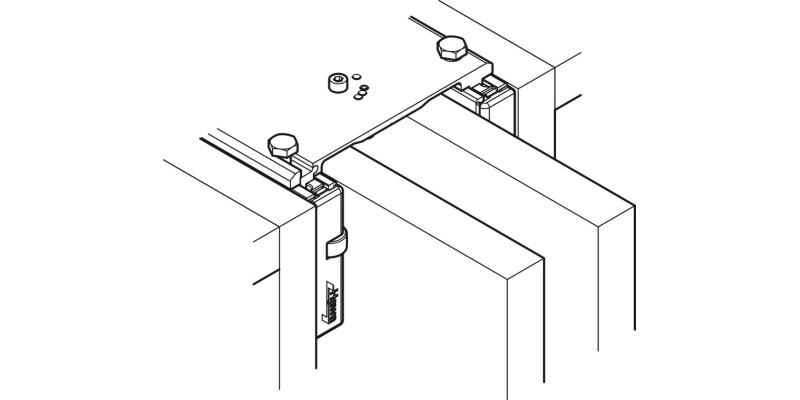

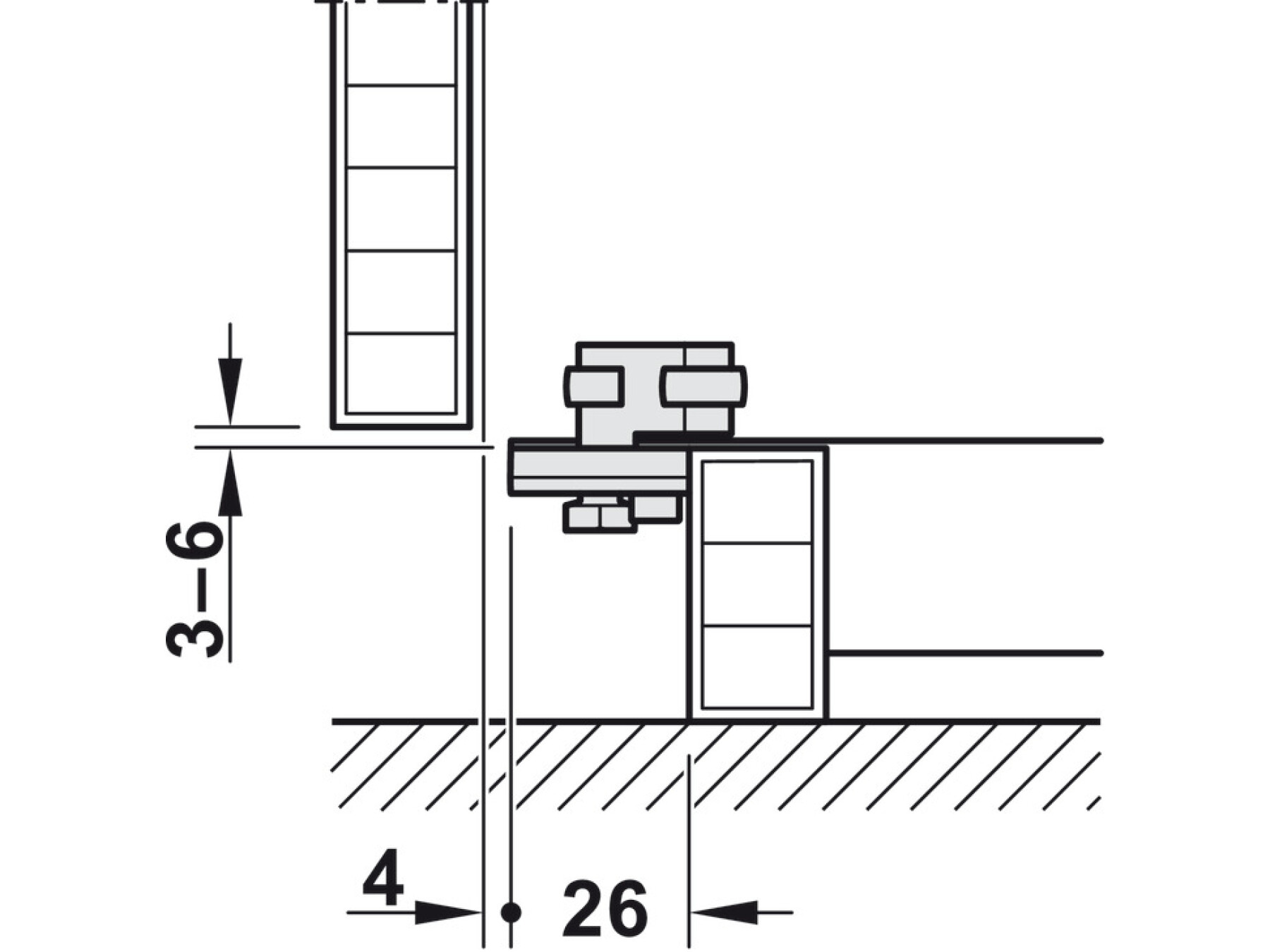

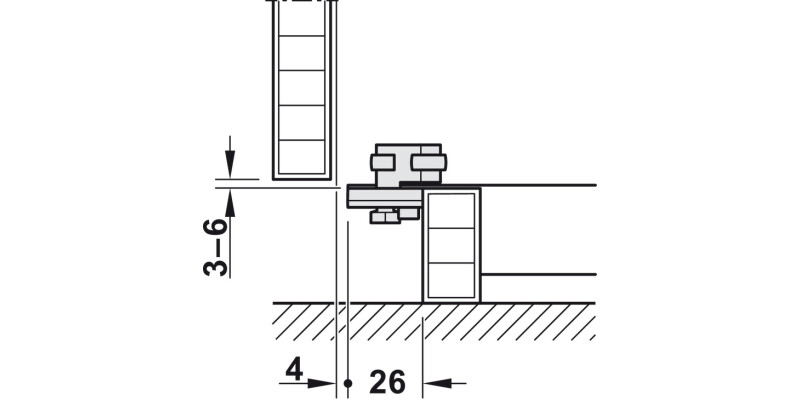

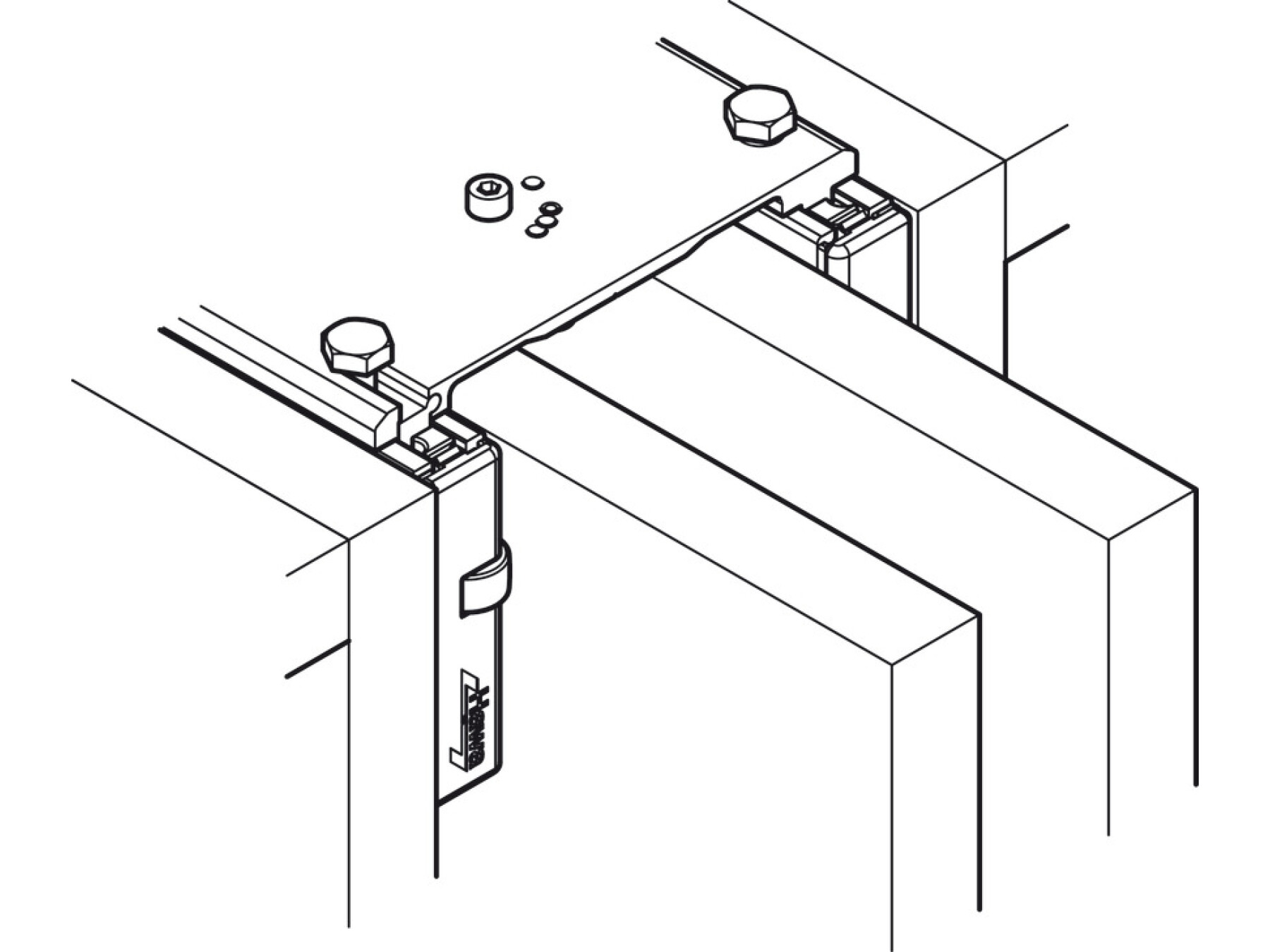

Connecting bracket for wood, for external or cabinet body connections
Length 650 mm: Cat. No. 408.30.091
Length 900 mm: Cat. No. 408.30.092

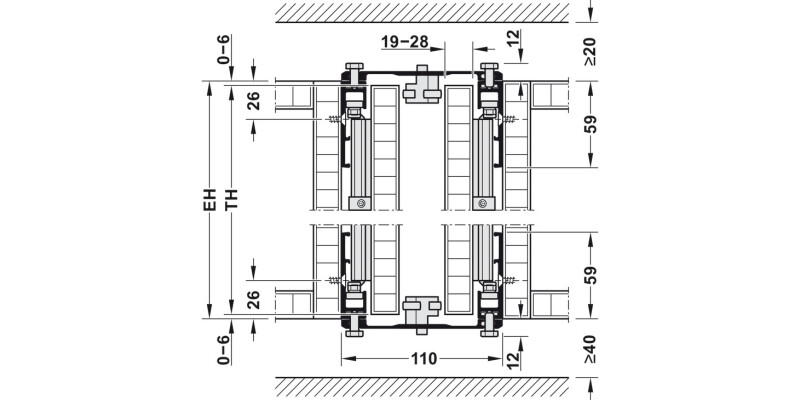

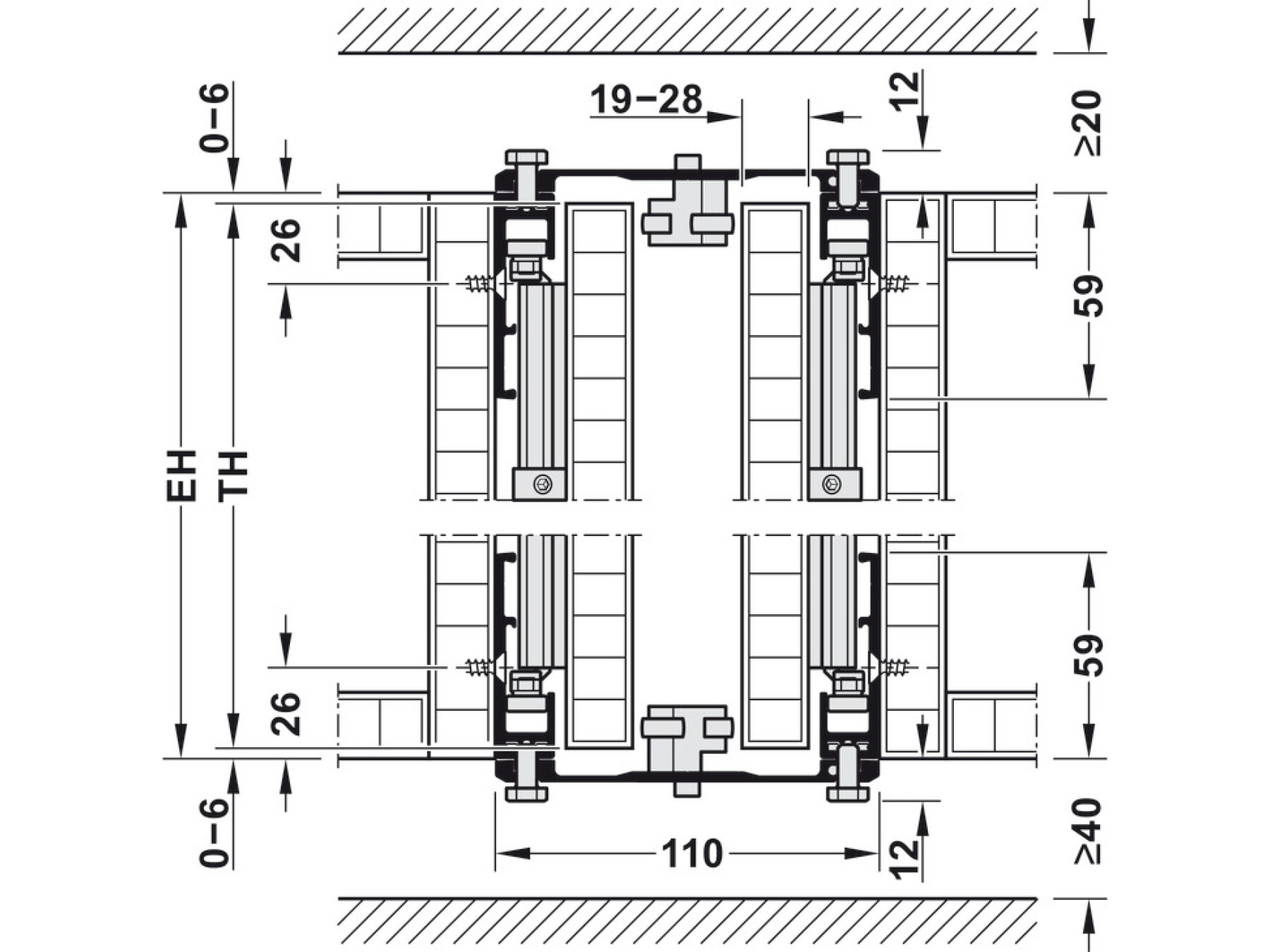

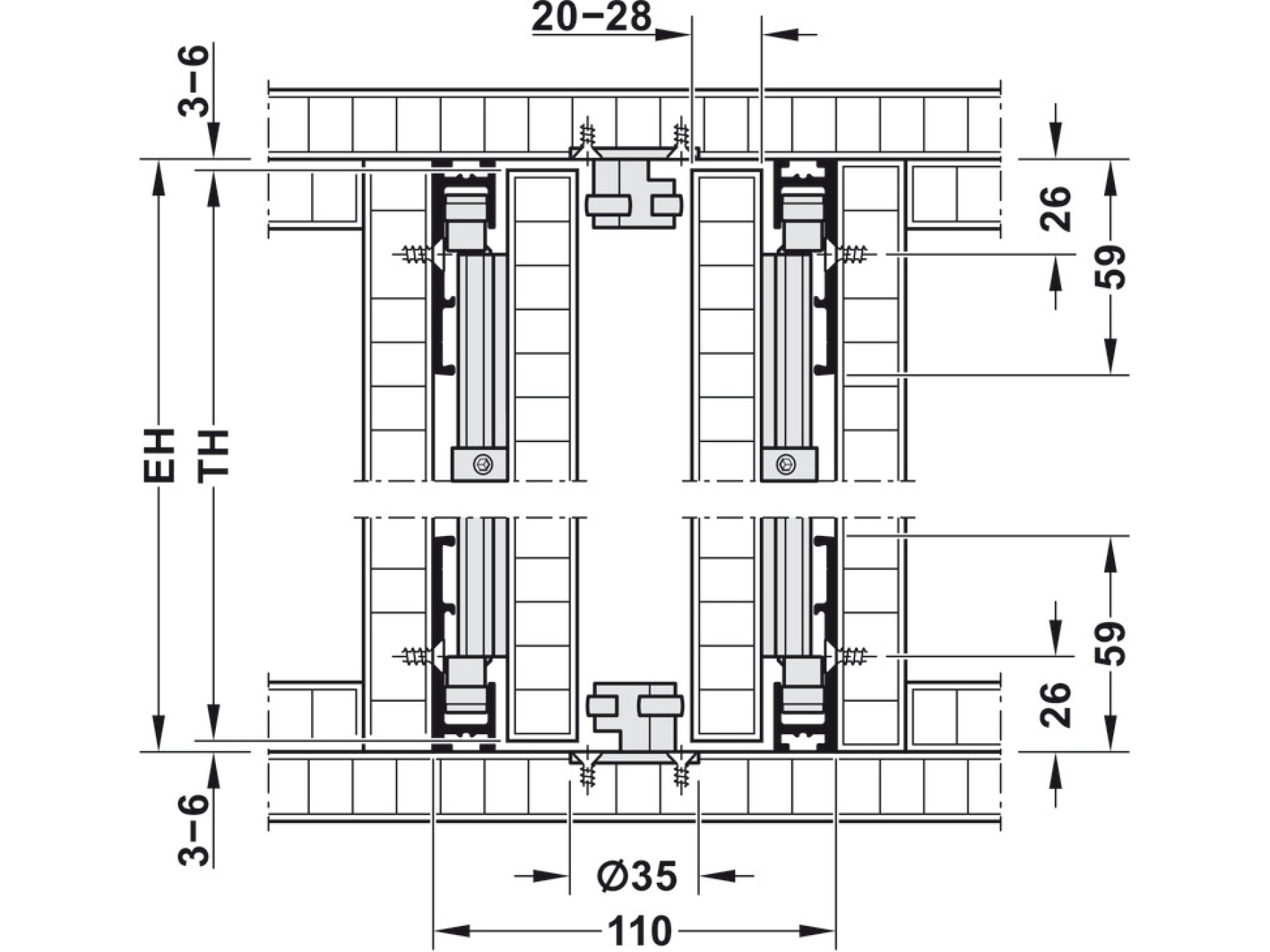

Connecting bracket for wood, for cabinet body connections, for 2 doors
Length 26 mm: Cat. No. 408.30.095
Length 650 mm: Cat. No. 408.30.093
Length 900 mm: Cat. No. 408.30.094

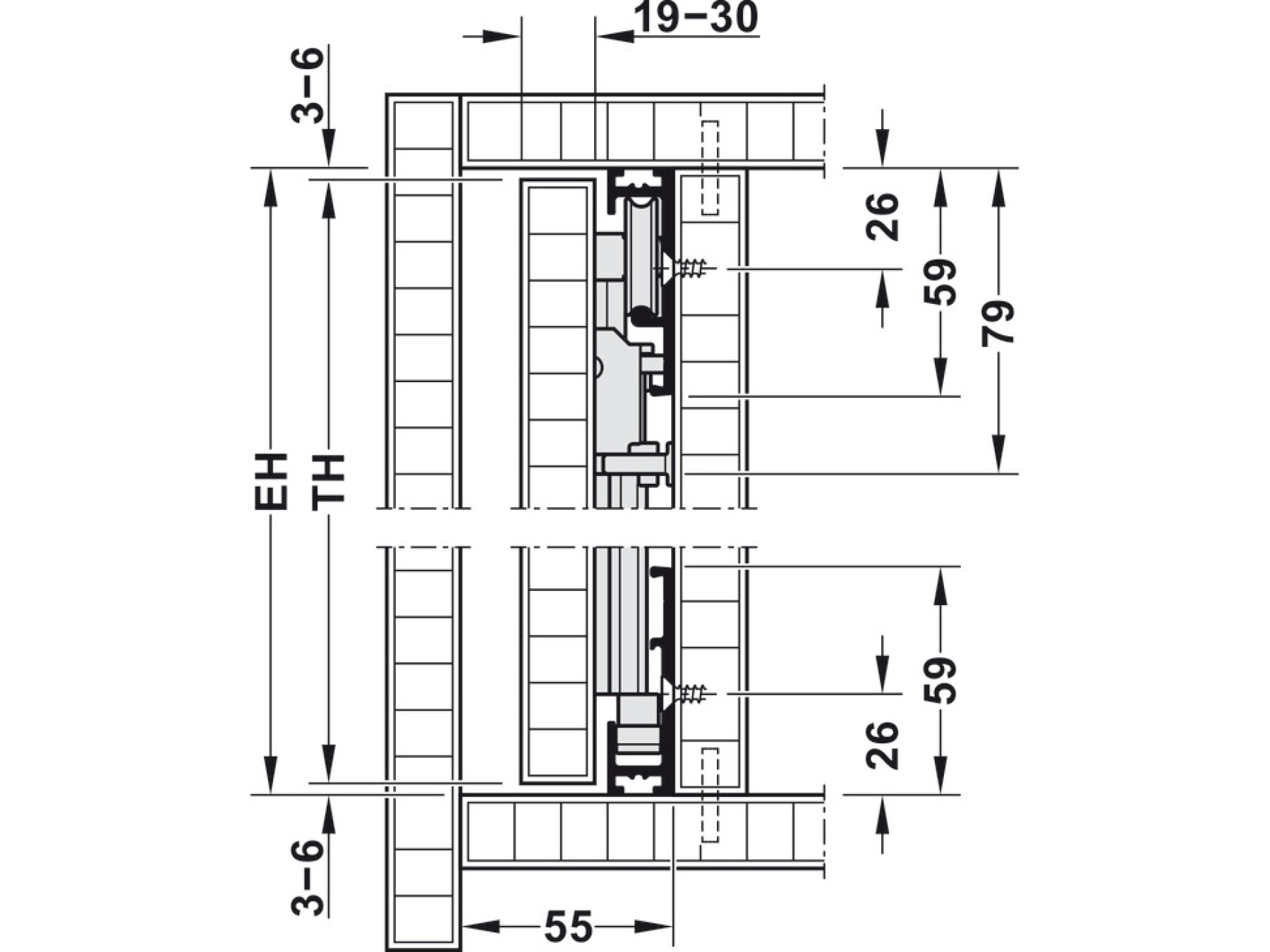

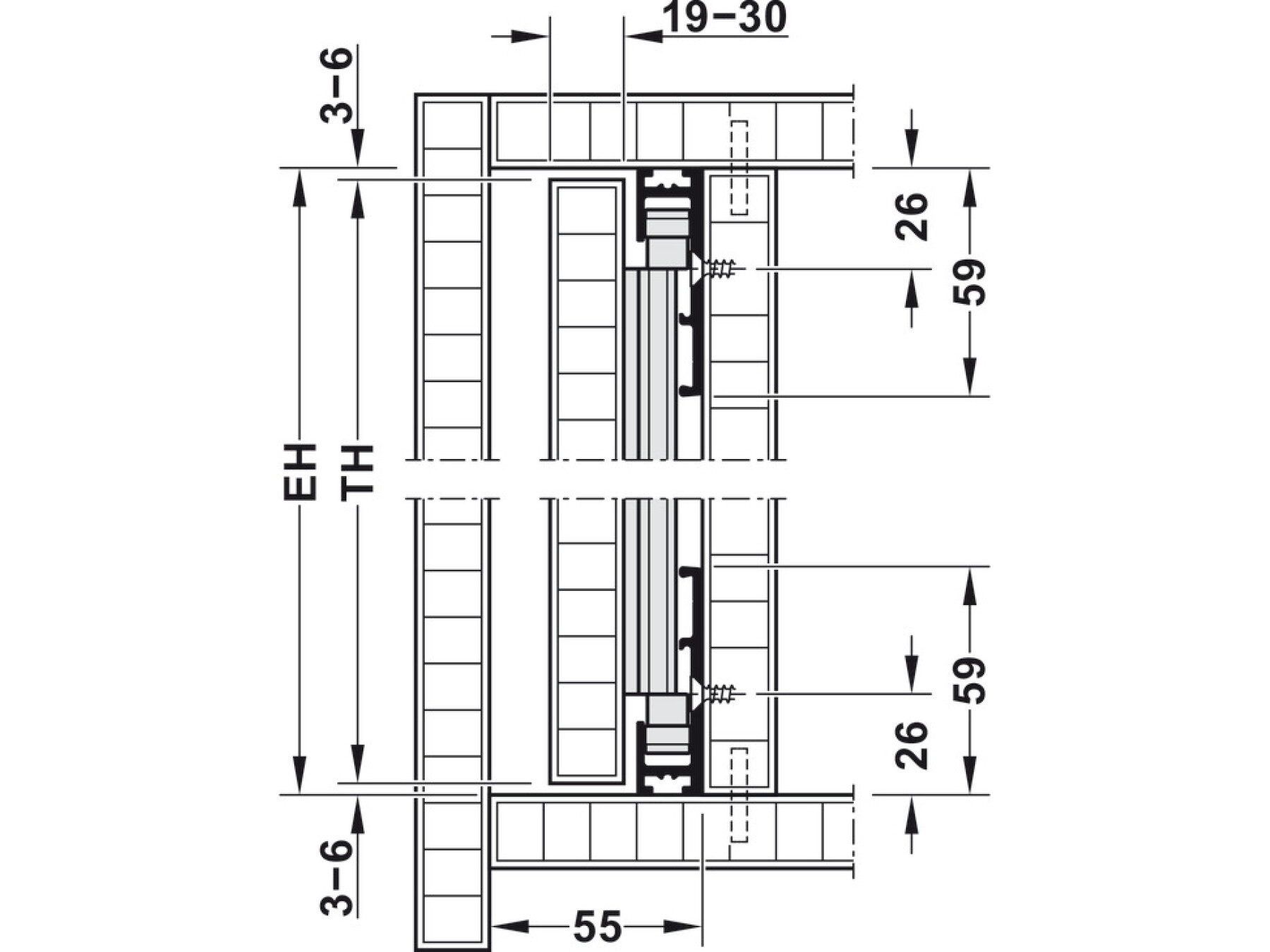

With Infront constructions, the side panel must be removable for fixing the fittings.
Specifications
Area of application
For 1 doors
For door material
Wood
For door width
300 – 900 mm
Version
Hinges with soft closing mechanism

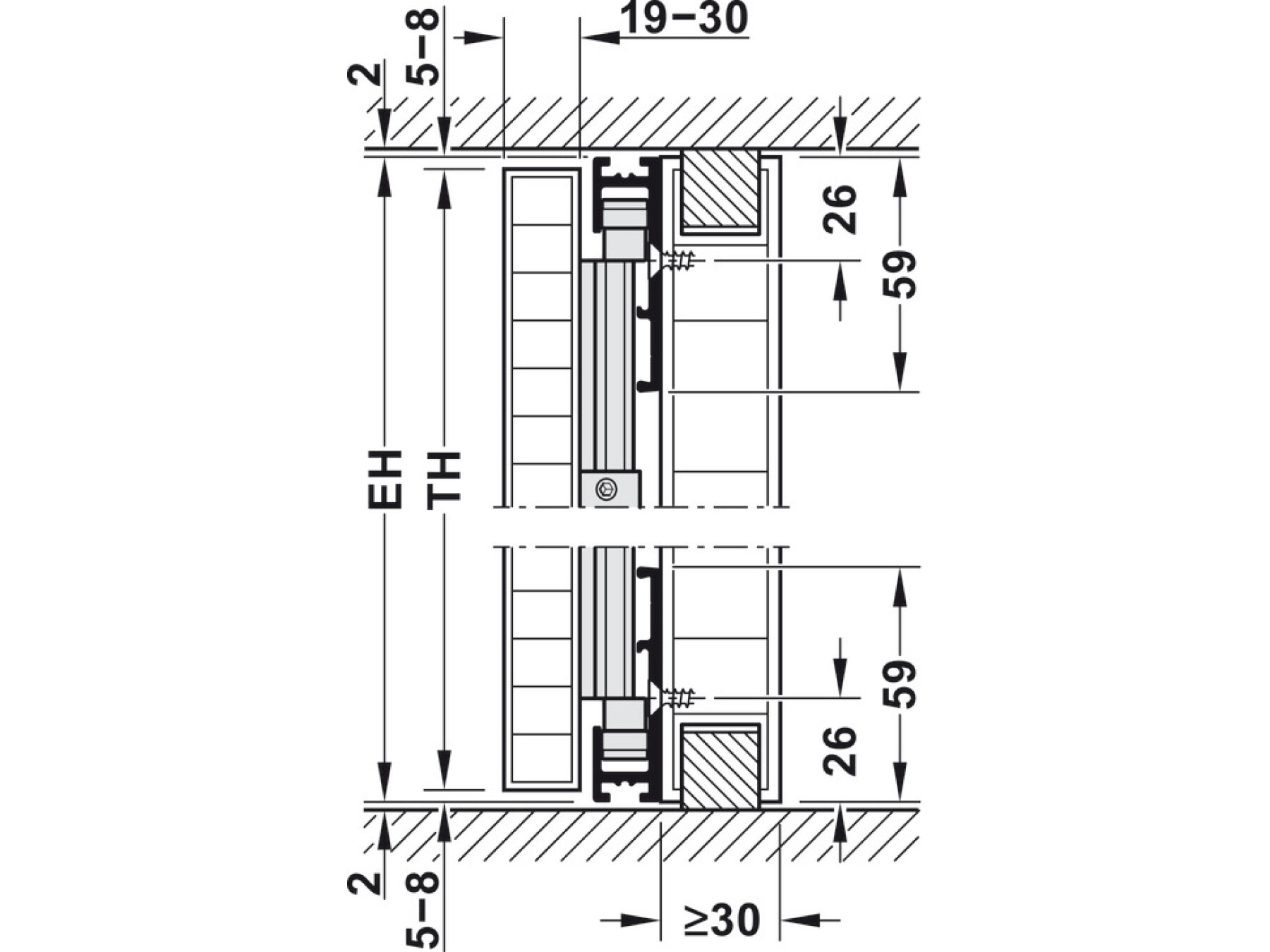

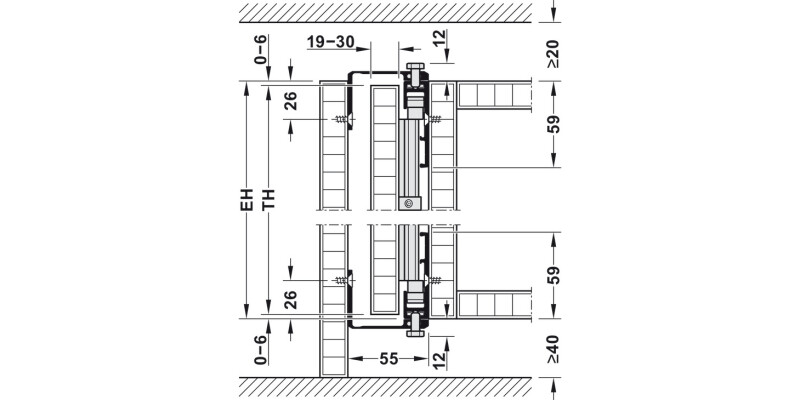

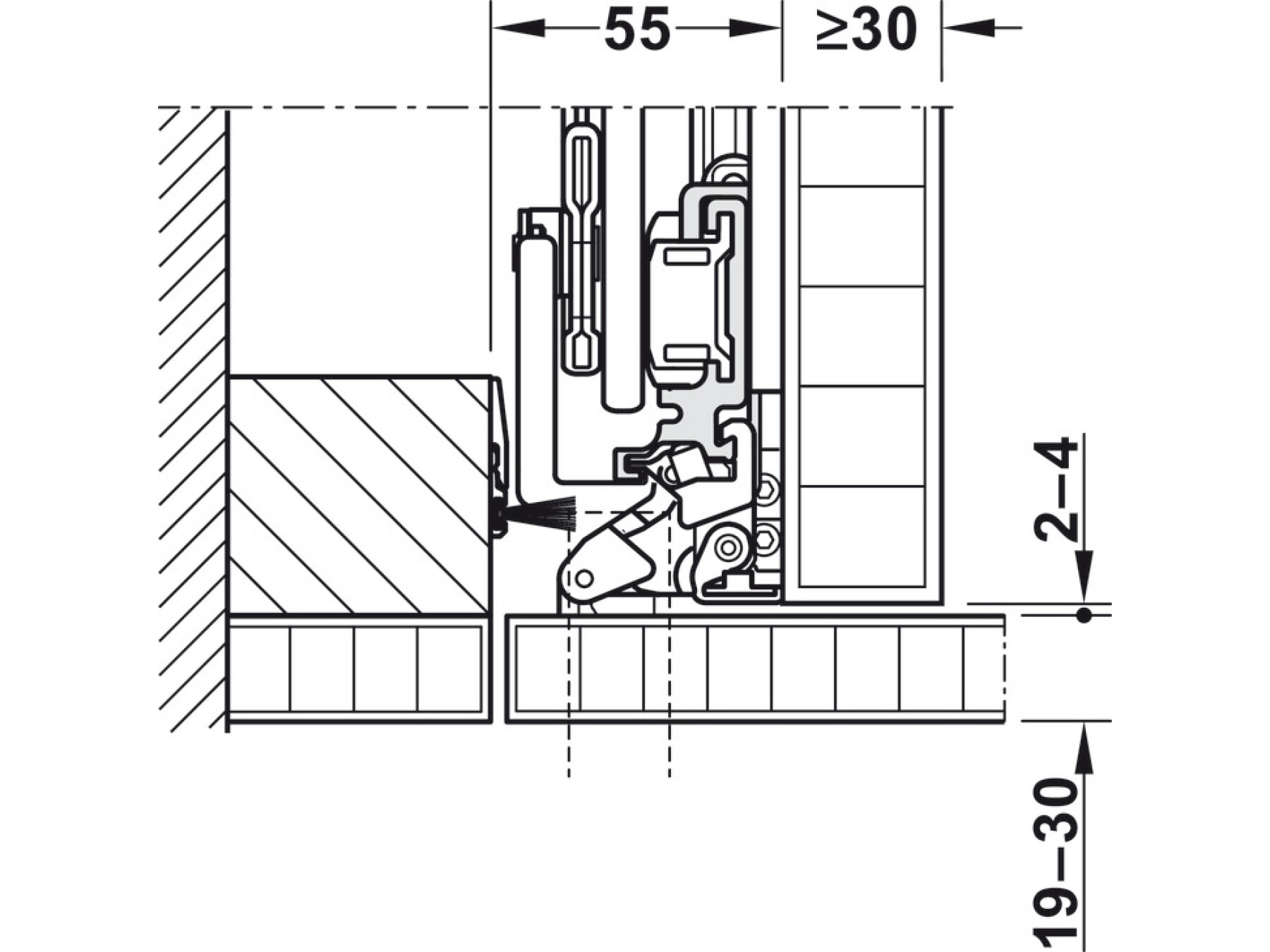

For door thickness
19 – 30 mm
Note on door thickness
Rebated: 30–50 mm
Running gear version
40/50 kg: 2 rollers
Running gear guided by
Ball bearing
Installation
Screw fixing
Supplied with

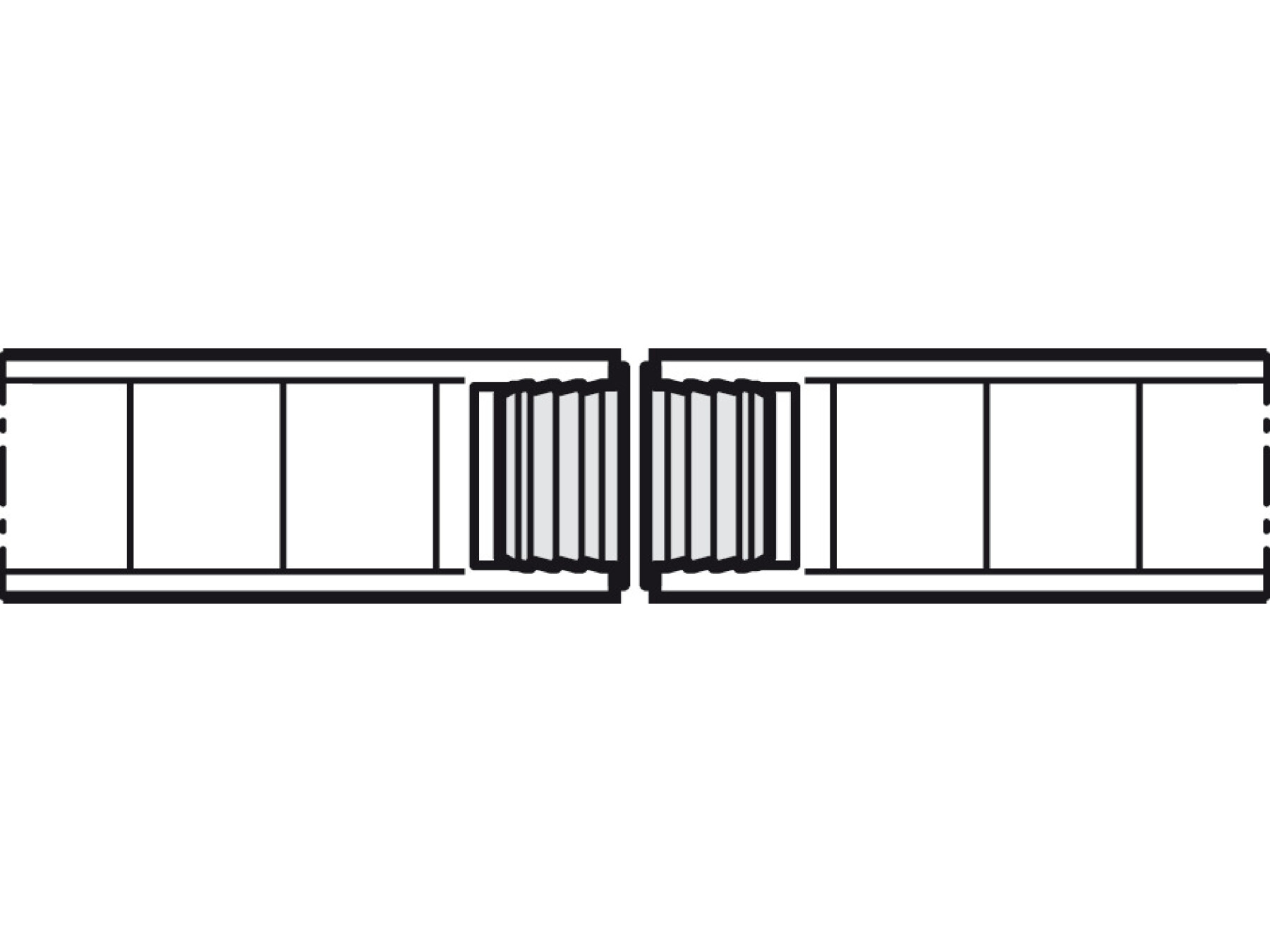

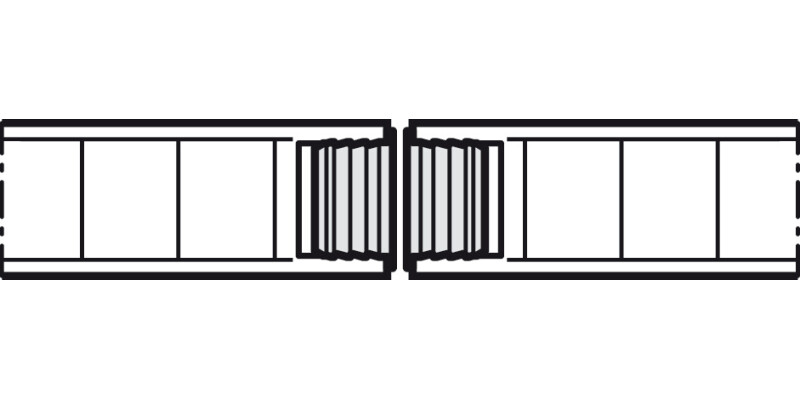

Includes scissor mechanism, upright profile, fully adjustable hinges, adjustable end stops and brush seal.
