Hawa Clipo 16H IS FitSet 2Dr

Part Number: 405.82.216
Top hung system, For 2 doors
Price:
£89.66
Per Item
VAT excluded

The ease of operation of sliding door fittings is determined by the quality of the rollers. In order to provide... Read More

Product Information

Product Details

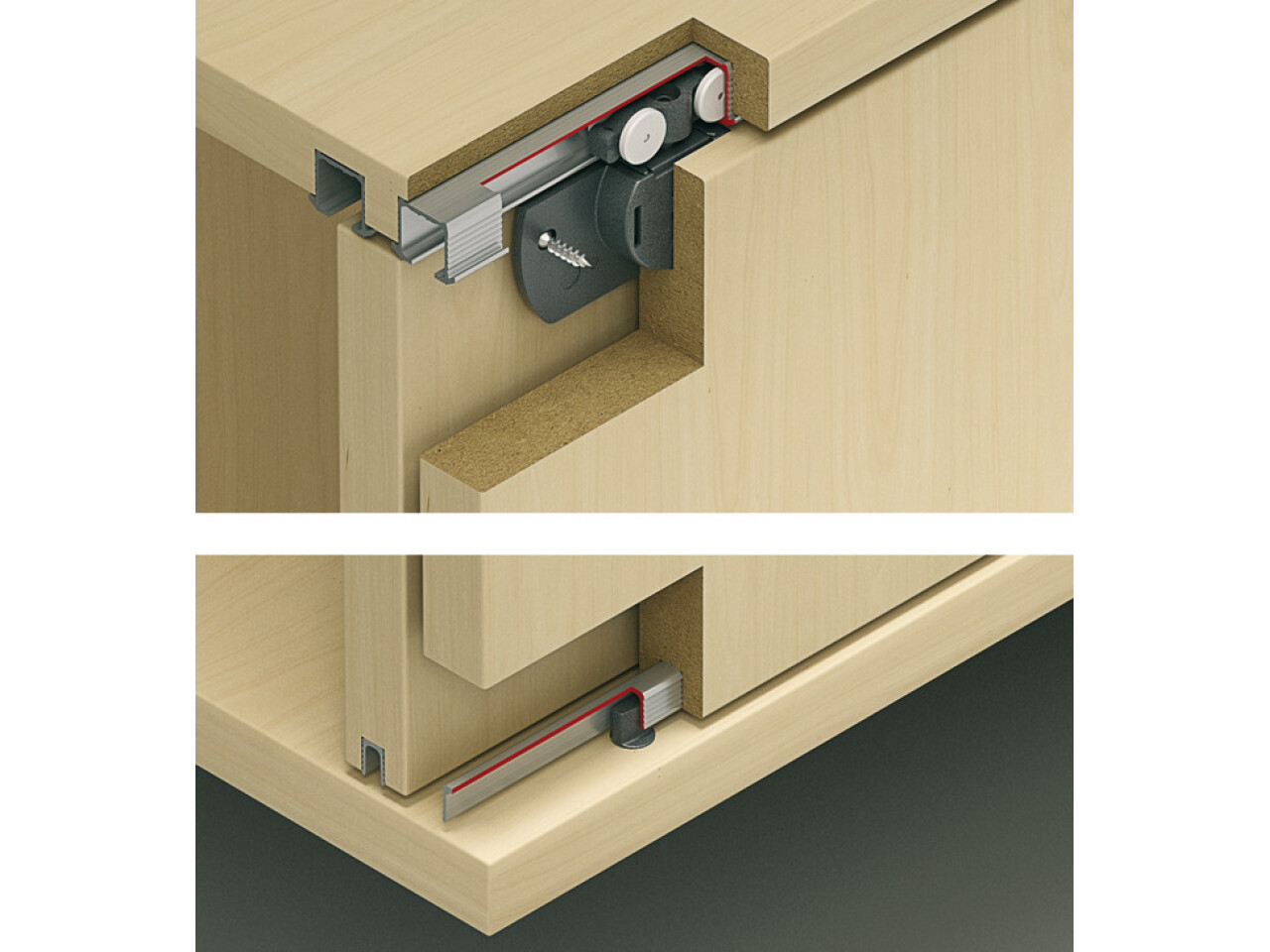

The ease of operation of sliding door fittings is determined by the quality of the rollers. In order to provide an even softer sliding experience Hawa have re-invented the roller technology for Hawa-Clipo 16
Soft running - Optimised roller geometry and new high-performance plastic
Extremely quiet - Minimum running noise thanks to low rolling resistance
Durable - Long lasting thanks to new high-performance plastic (quality tested in accordance with DIN-EN 15706 level 3, highest class)

Order reference

Please order running and guide tracks separately.
Soft closing mechanism on one side is possible from pitch length of min. 260 mm, both sides from 460 mm. Please order soft closing mechanism set for soft closing on both sides separately.

Supplied with

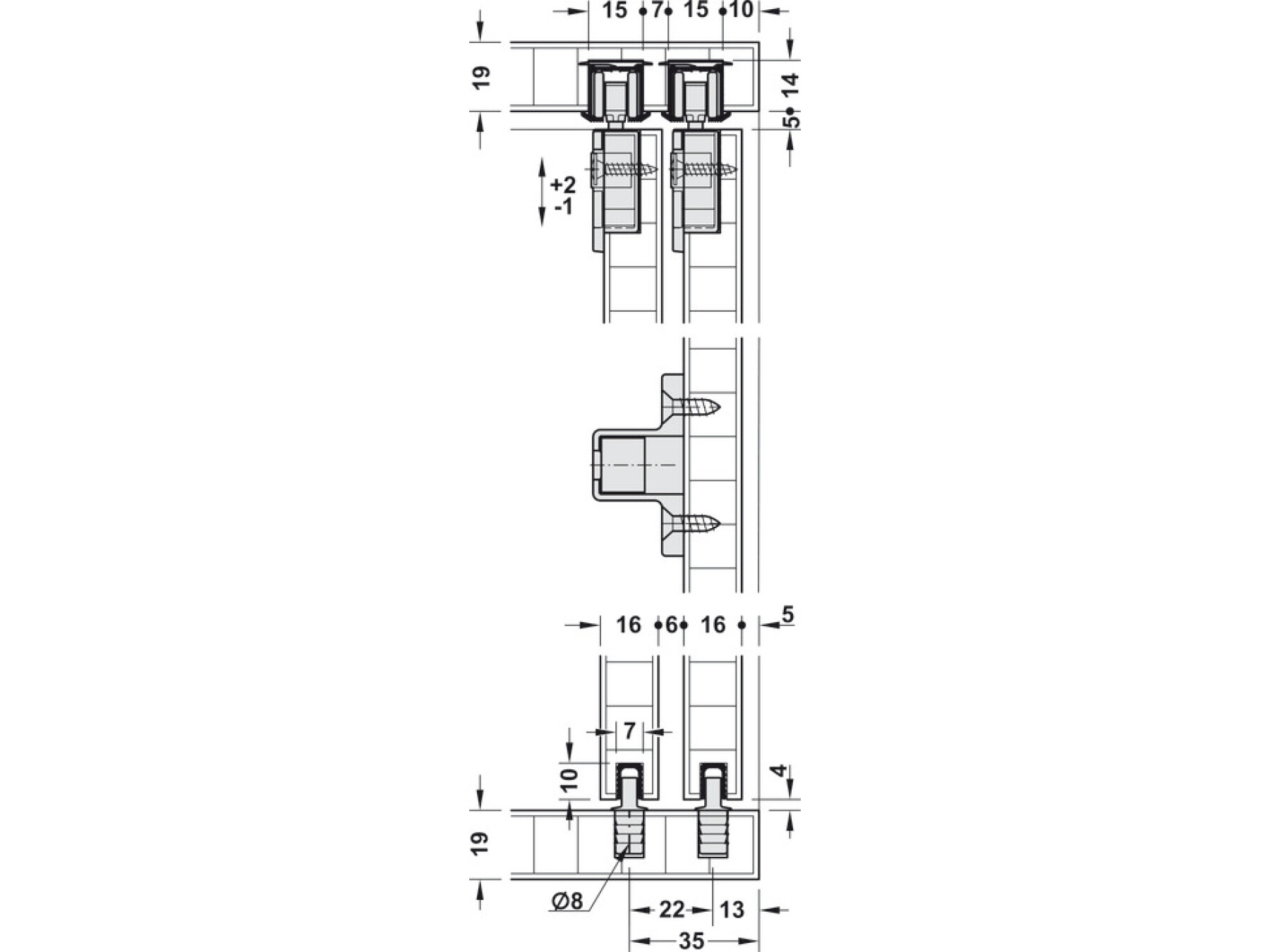

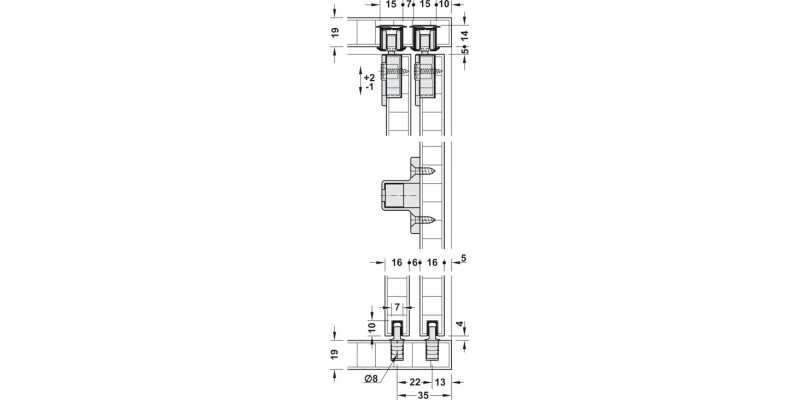

Fitting set includes:
2x Track stopper for top tracks, grey plastic
4x Running gear, clip on, height adjustable +2/-1 mm black plastic rollers, metal axle
4x Housing, screw fixing, for use with running gear, grey plastic
1x Door follower, grey plastic
2x Guide, press fit in Ø 8 mm hole, black plastic
Fixings

Specifications

Number of door leaves per set

2.00

Soft closing mechanism

With clip-in door stopper

For door thickness

16 – 19 mm

For door width

≤1,000 mm

For door weight

≤16 kg

Running position

Top

Number of rollers

4.00

Height adjustment

-1 – 2 mm

Running gear guided by

Friction bearing

For door material

Aluminium frame

Height adjustable

Cabinet version

with thin cabinet top panels, with narrow doors

Area of application

For 2 doors

For door height

≤1,400 mm

Door stopper

Top clip-in door stopper, for sliding into running track

Material/finish

Housing: PlasticRunning gear: PlasticGuide: PlasticRollers: PlasticAxis: Steel

Adjustment facility

Height adjustment: -1 – 2 mm, Height +2/-1 mm on running gear using adjusting wheel

Door adjustment via

adjusting wheel

Installation

Guide for press fitting into a drill hole, Screw-on housing, Running gear without tools (quick fixing system)

Set

Set without tracks

Type of opening

linear

Number of door wings in a system max.

2
