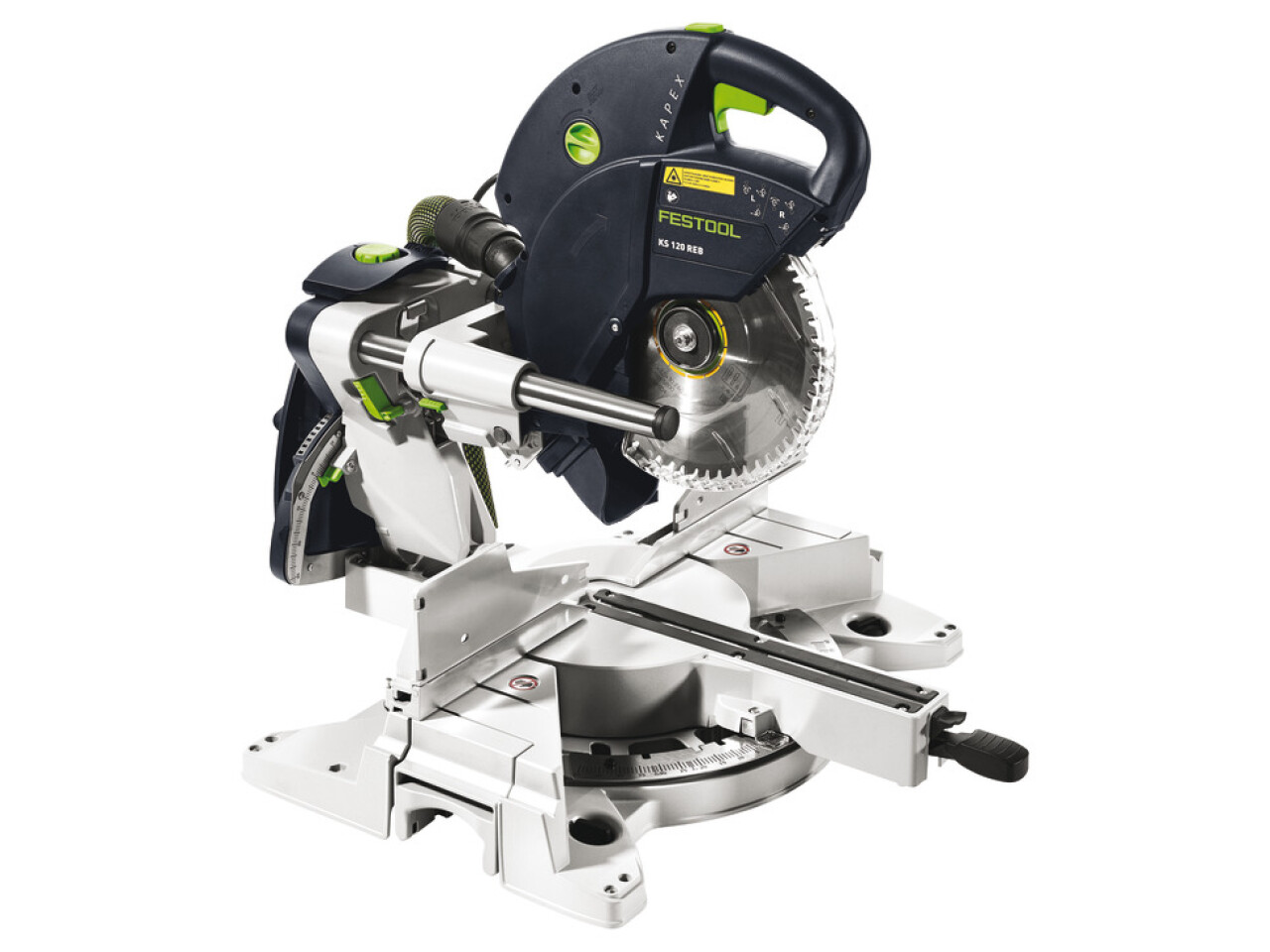

Festool Kapex Mtr.Saw KS 120 EB GB 240V

Product Details

Special cutting position, for material up to 120 mm in height
Stress-free working bevel and dual-line laser
Simple, precision cutting angle adjustment
Fine inclination angle adjustment and rotary base
Precision adjustment of tilt and rotation angles
Lightweight, compact design
Dual-line laser
Precise marking of the cutting width
Position the workpiece from the left or right side
FastFix saw blade changing system
Technical Data
Power consumption: 1600 W
Idle engine speed: 14-3400 min-1
Saw blade diameter: 260 mm
Cutting depth 90°/90°: 305 x 88 mm
Cutting depth 45°/90°: 215 x 88 mm
Cutting depth 50°/90° Left: 196 x 88 mm
Cutting depth 60/90° Right: 152 x 88 mm
Cutting depth 45°/45° Left: 215 x 55 mm
Cutting depth 45°/45° Right: 215 35 mm
Special cutting depth 90°/90°: 60 x 120 mm
Special cutting depth 45°/90° Left: 40 x 120 mm
Special cutting depth 45°/90° Right: 20 x 120 mm
Crown moulding diagonal cut at 90°/90°: 168 mm
Crown moulding diagonal cut at 45°/90° 168 mm
Inclination angle: 47/47°
Mitre angle: 50/60°
Bench height (on MFT): 923 mm
Dimensions (WXDXH): 713 x 500 x 470 mm
Connection Ø d/e: 27/36 mm
Weight: 21.5 kg
