Festool Jntr Domino XL DF500 Q-Plus 230V
The DOMINO system unites the precision of a round dowel with the flexibility of a traditional flat dowel – the... Read More
Product Details
The DOMINO system unites the precision of a round dowel with the flexibility of a traditional flat dowel – the perfect solution for panel joints, providing extremely strong, invisible joints. The DOMINO can also create non standard joints such as rack joints, frame joints, drawer joints, etc.
Area of application
Furniture manufacture
Shopfitting/Interior fitting
Window construction
Exhibition stand construction
For panel joins
For frame and rack joints
Features
Antistatic function: Mobile dust extractors and tools with the antistatic function to prevent static charge from accumulating when working
CLEANTEC: Integrated bayonet fitting as the connecting element between the extractor and the tool
Plug it: Removable, replaceable mains cable with safety lock for quick conversion
Version
Idle engine speed: 25500 min-1
Depth stop for routing depth: 12, 15, 20, 25, 28 mm
DOMINO slot cutter Ø: 4, 5, 6, 8, 10 mm
Routing height adjustment: 5-30 mm
Mitre routing: 0-90 °
Dust extraction connection Ø: 27 mm
Drive type: Mains
UK plug supplied
| Technical data | |
|---|---|
| Nominal power consumption | 420 W |
| No-load strike rate | 25,500 rpm |
| Weight | 3,2 kg |
Specifications
Product category
Nominal voltage
Weight
Supplied with

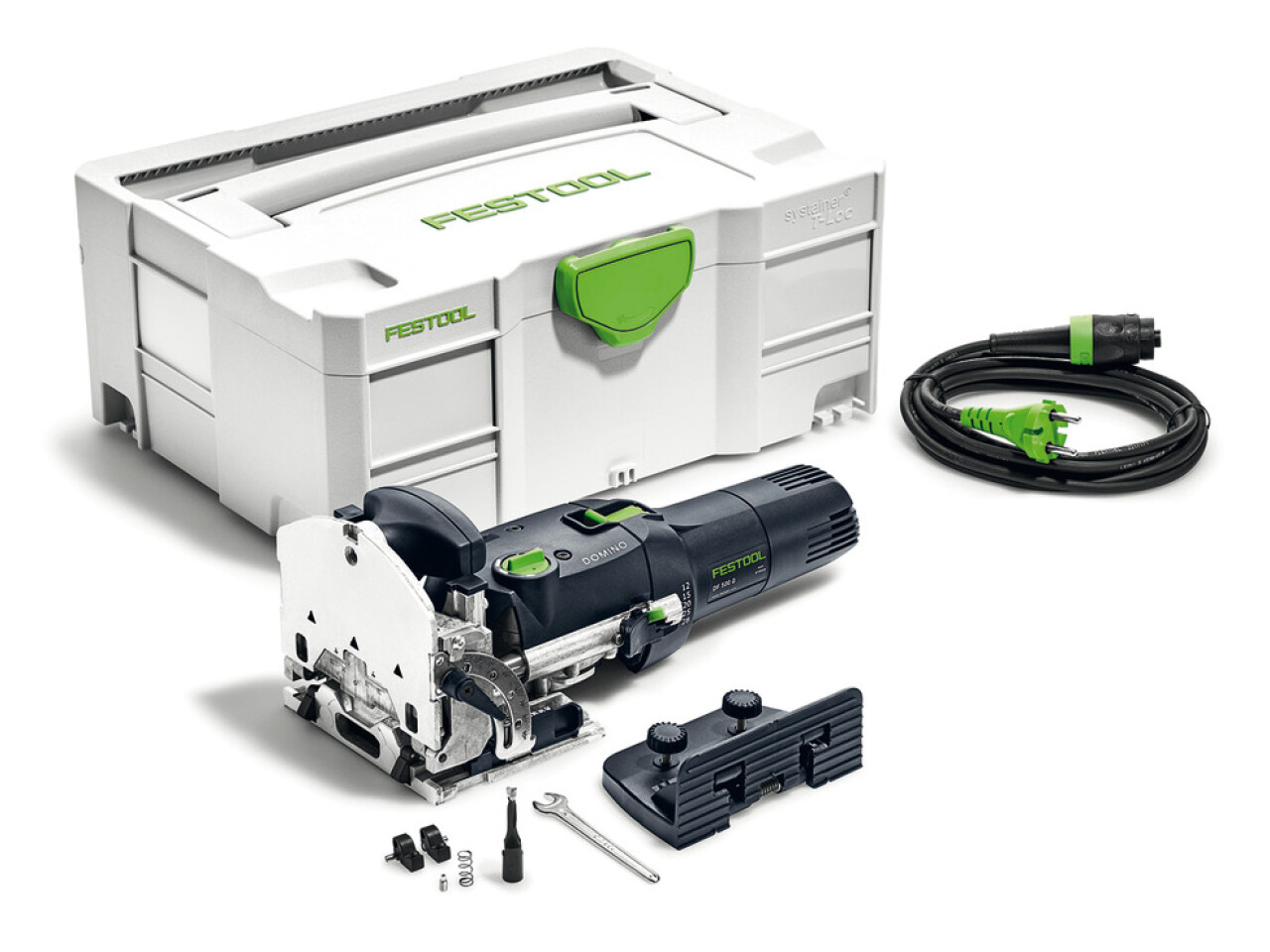

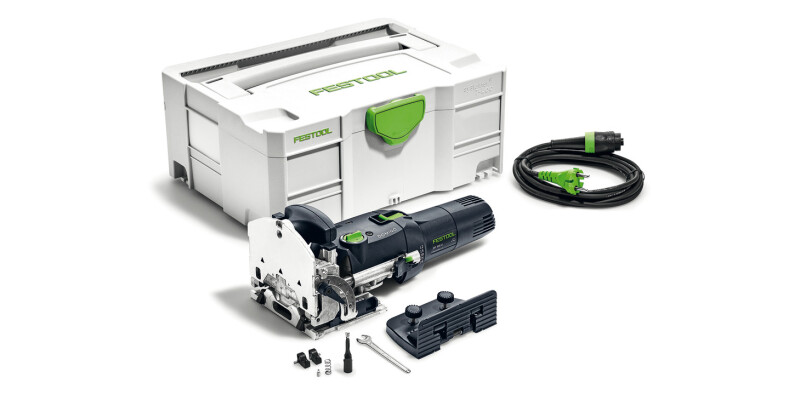

DOMINO cutter D5, additional stop, open ended spanner, WAF 8, Systainer SYS3 M 187
