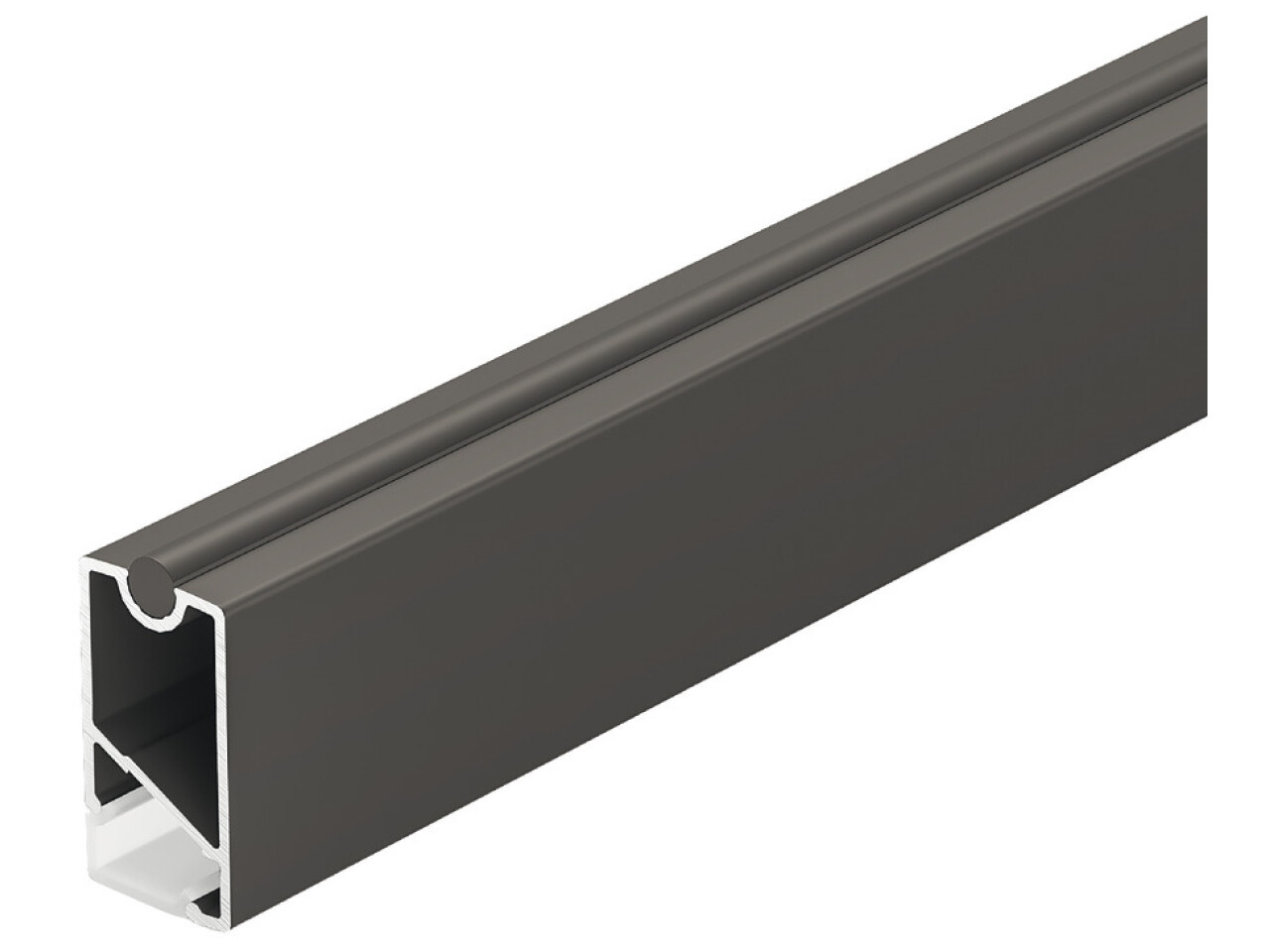

Dresscode W/Robe Rail 2500mm Gry
Part Number: 801.26.502

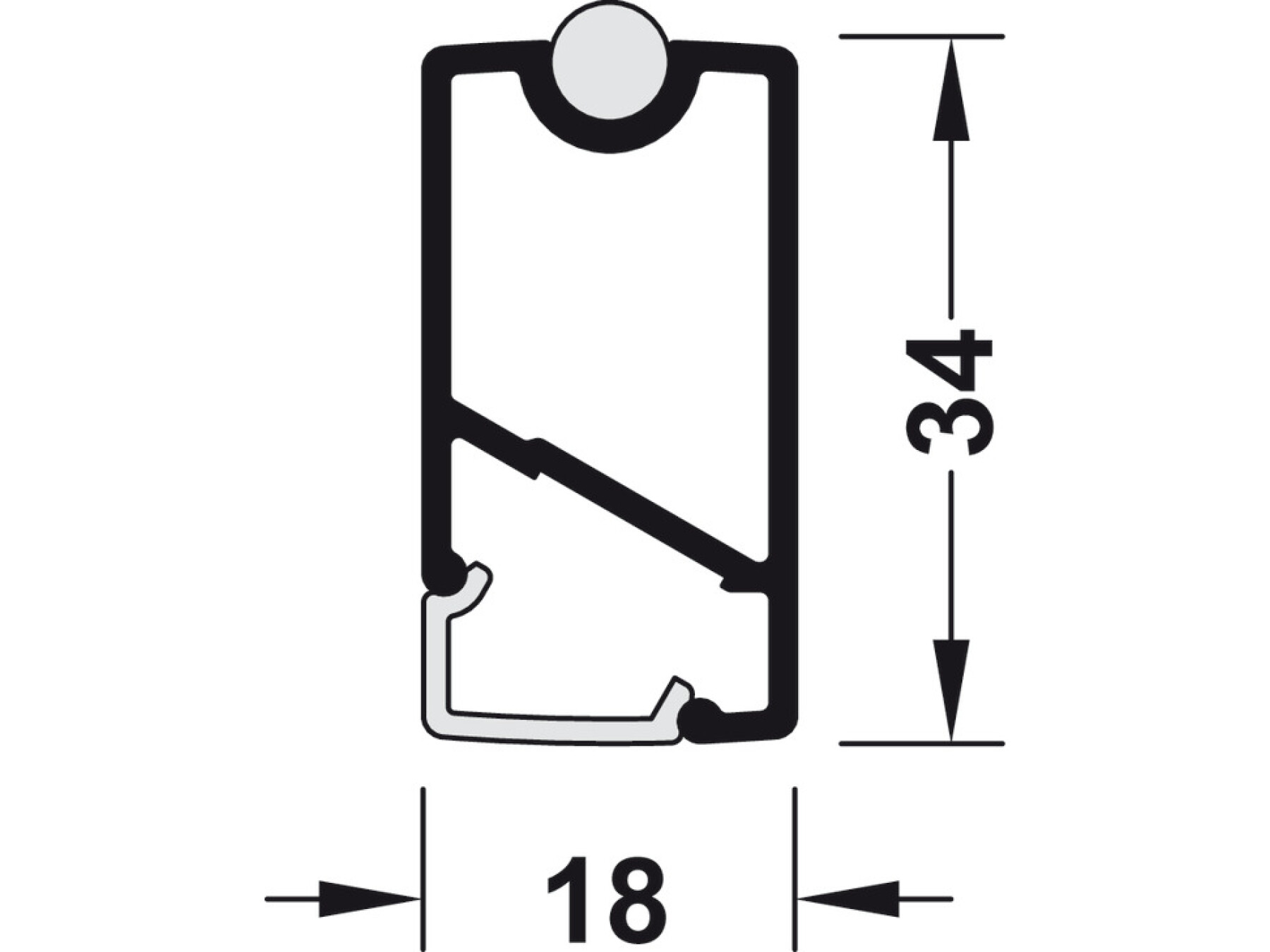

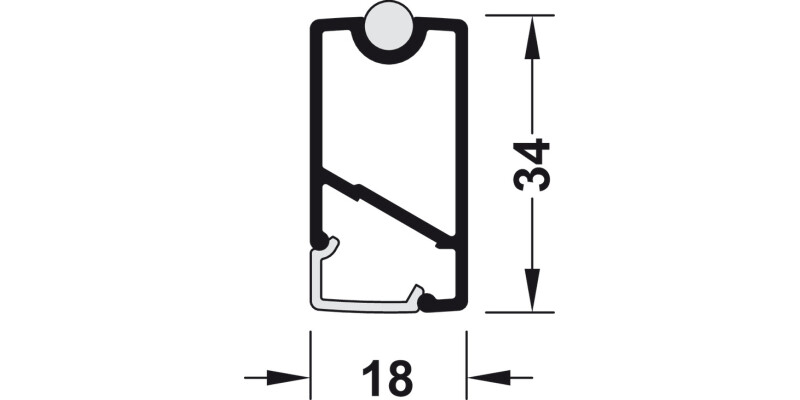

straight-edged, Length 2500 mm, umber grey RAL 7022
Price:
£23.27
Per Item
Can be freely positioned at intervals of 32 mmCan be combined with Häfele Loox LED strip lights Order reference... Read More
Product Information
Product Details

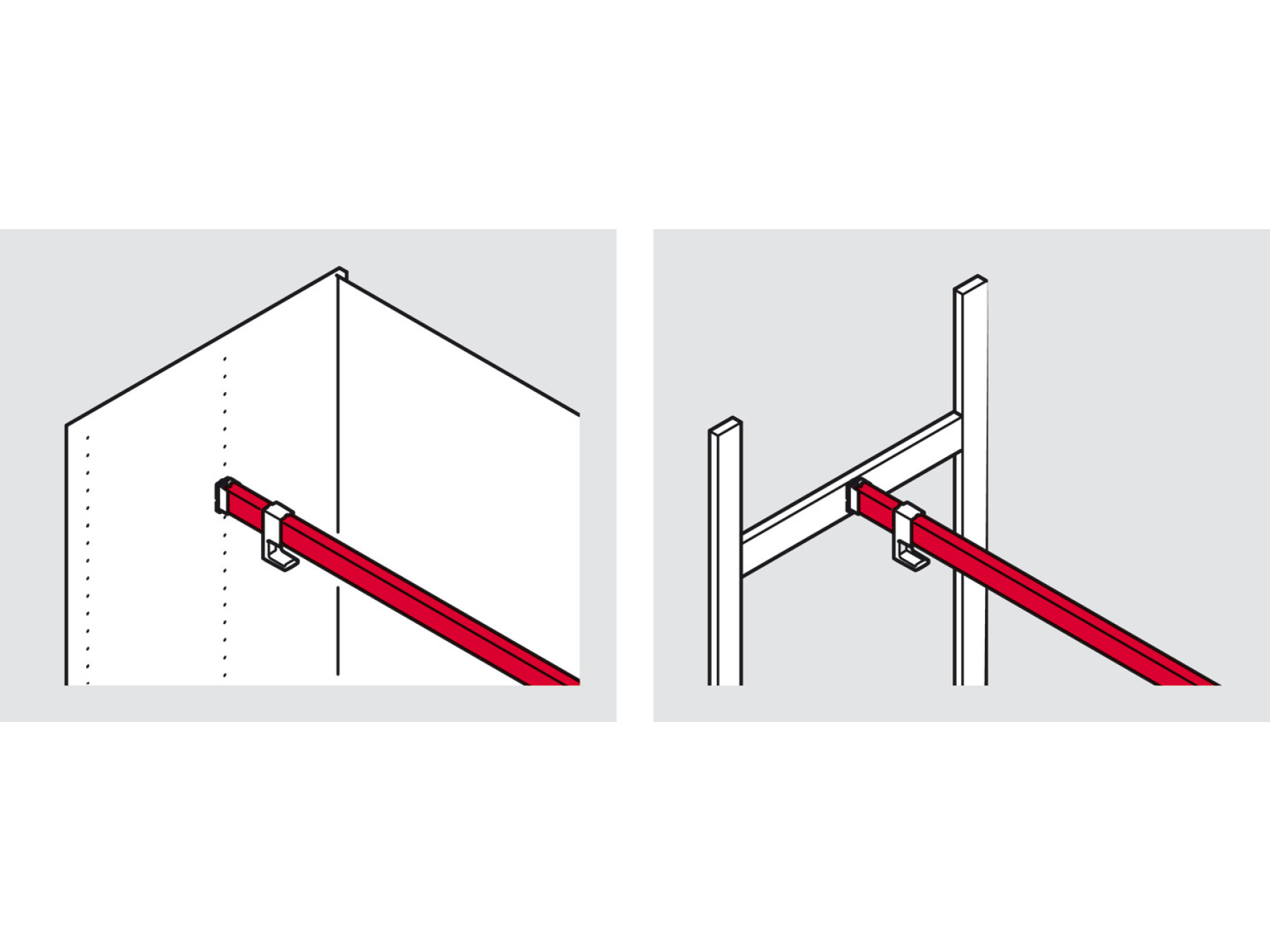

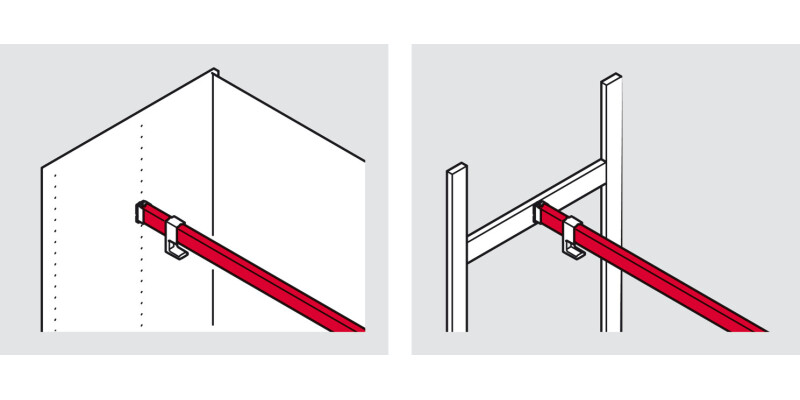

Can be freely positioned at intervals of 32 mm
Can be combined with Häfele Loox LED strip lights
Order reference
Wardrobe rail length = internal cabinet width – 26 mm
Please order Loox strip lights, drivers and switches separately
For LED strip lights up to a width of 8 mm.
The surface on the aluminium profile that is to be bonded must be cleaned before bonding to the LED strip lights. It must be completely clean, grease-free and dust-free.
Load bearing capacity: 40 kg with wardrobe rail 1000 mm and Dresscode rail end support in accordance with DIN 68890:2009
Specifications
Application

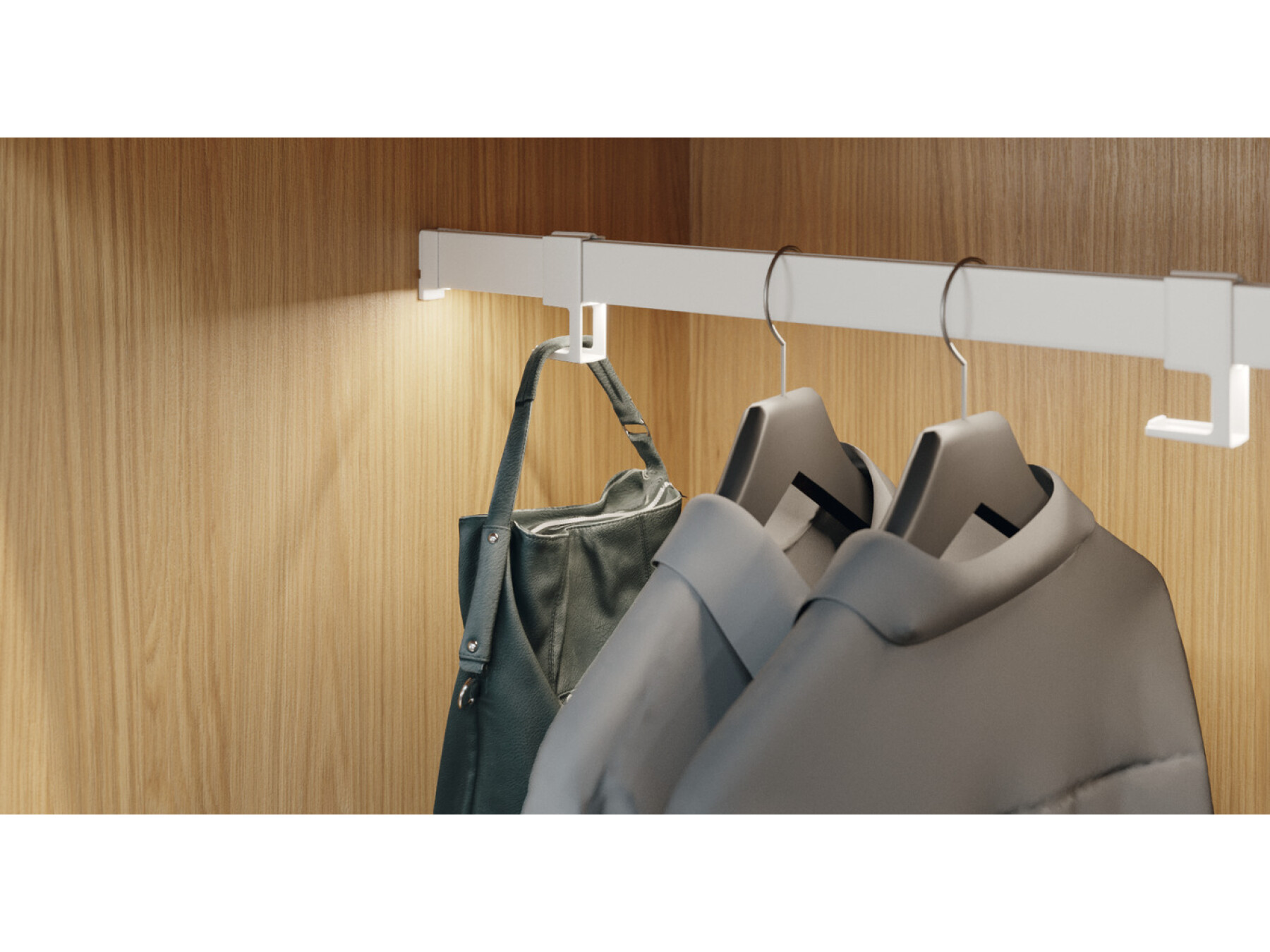

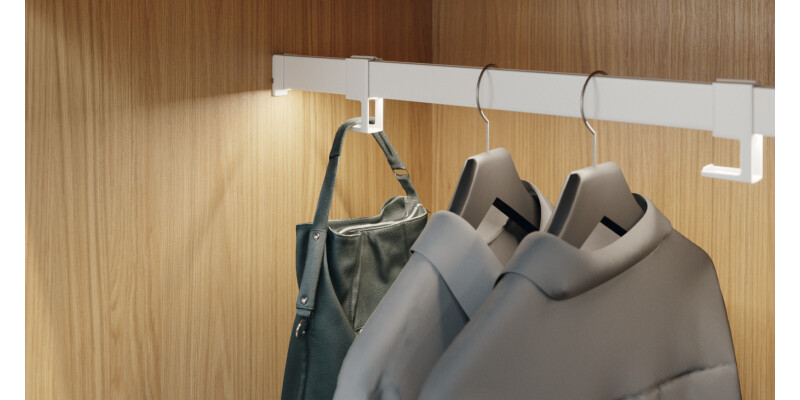

Illuminated wardrobe rail
Version
Can be cut to required size
Can be combined with LED strip lights
Material
Profile: Diffuser:
Installation note
Easy installation without tools
Concealed fixing
Material
Aluminium/Plastic
Supplied with
1x Diffuser
