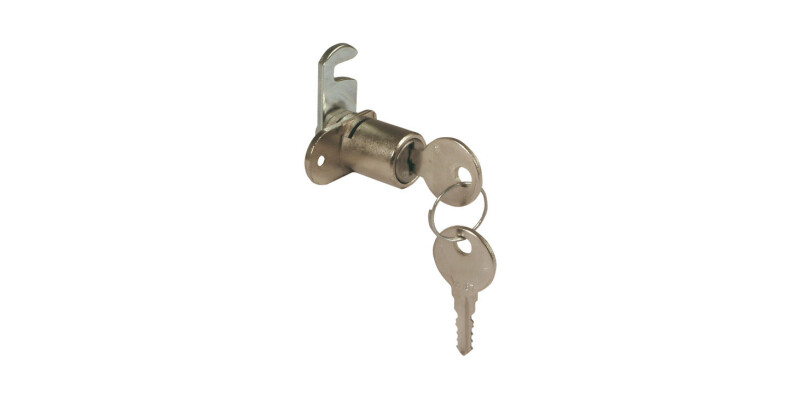

Cylinder Cam Lock 22mm Differ Dir.1
Part Number: 235.72.460
With nut fixing, standard profile, Closure direction 180° 1 (2-8), keyed to differ
Price:
£97.51
Per 10 Pack
90° with key trap; key can only be removed in locked position180° without key trap; key can be removed in... Read More
Product Information
Product Details
90° with key trap; key can only be removed in locked position
180° without key trap; key can be removed in locked and unlocked position
Closure directions can be altered by re-positioning the cam, but always moving in the same direction:
Closure direction A can be altered to D, F or G
Closure direction B can be altered to C, E or H
Closure direction 1 can be altered to 2 - 8
No master key possible
Specifications
Locking system
Standard profile
For door thickness
0.8 – 2.5 mm
Colour/finish
Chrome plated, Polished
Installation
For screw fixing with hexagon nut
(Hole pattern 18.1 x 15.7 mm)
Area of application
For metal furniture
Version
With fixed plate cylinder
With straight locking cam
Material
Zinc alloy
Cylinder shape
round cylinder
Locking system
with 6 plate levers
with key
Yes
Supplied with
1 Cam lock
Accessories: 2x keys, 1x cam lock, 1x nut and 1x cam
(pre-mounted)
