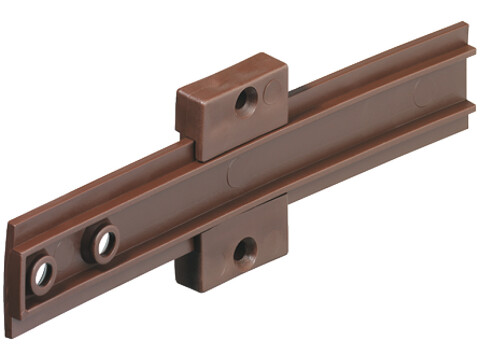

Connecting Fitting for Appliance Door
Part Number: 568.16.007
Plastic, Brown
Price:
£1.67
Per Item
One or two sets may be needed according to size of door Installation note Screw guide to the outer side of the... Read More
Product Information
Product Details
One or two sets may be needed according to size of door
Installation note
Screw guide to the outer side of the refrigerator door.
Open refrigerator door by 90°.
Screw track horizontally to the inside of the furniture door
Slide rail into guide.
Specifications
Area of application

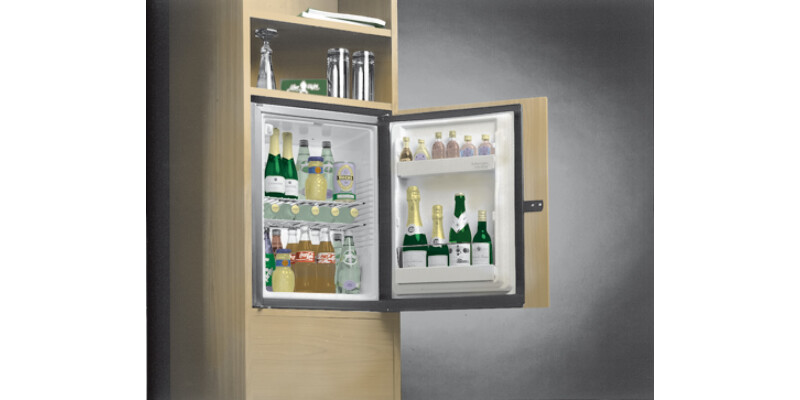

Two part fitting for attaching a cabinet door to an appliance door
so both open together
Colour/finish
Brown
Material
Plastic
Supplied with
1 Connecting fitting for appliance doors
4 Fixing screws
