Foot and Shaft Section, for Häfele AXILO

Foot and Shaft Section, for Häfele AXILO"! 48 Plinth System

Name: Foot and Shaft Section, for Häfele AXILO"! 48 Plinth System
SKU: 637.45.333
Price: 17.22 GBP
Availability: InStock

Part Number: 637.45.333

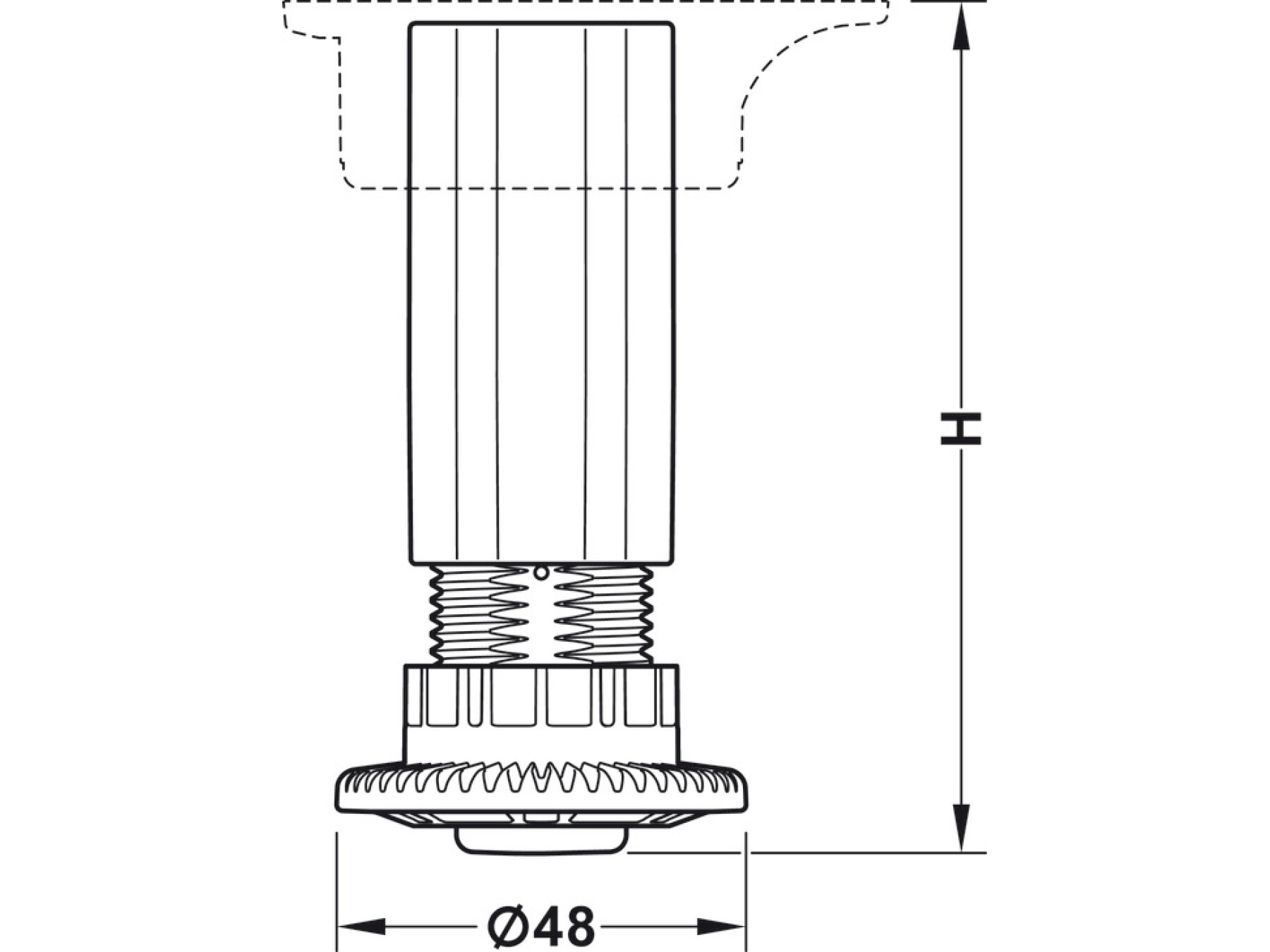

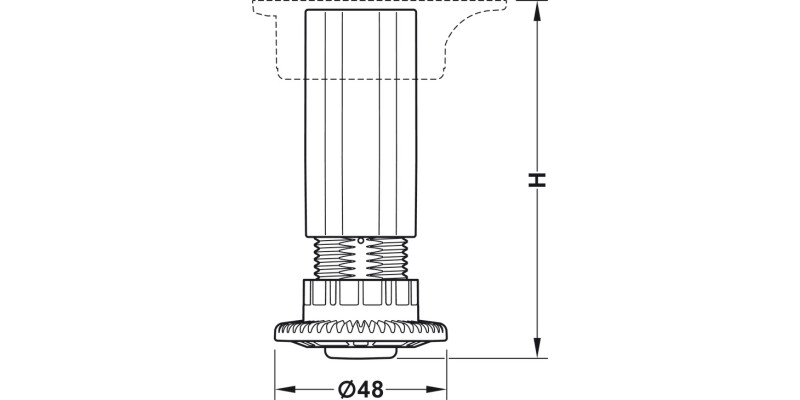

Installation height 150 mm, adjustment facility 135-170 mm

Price:

£17.22

Per 20 Pack

VAT excluded

Foot and Shaft Section, for Häfele AXILO"! 48 Plinth System (Part No: 637.45.333) is a smart, reliable... Read More

Product Information

Product Details

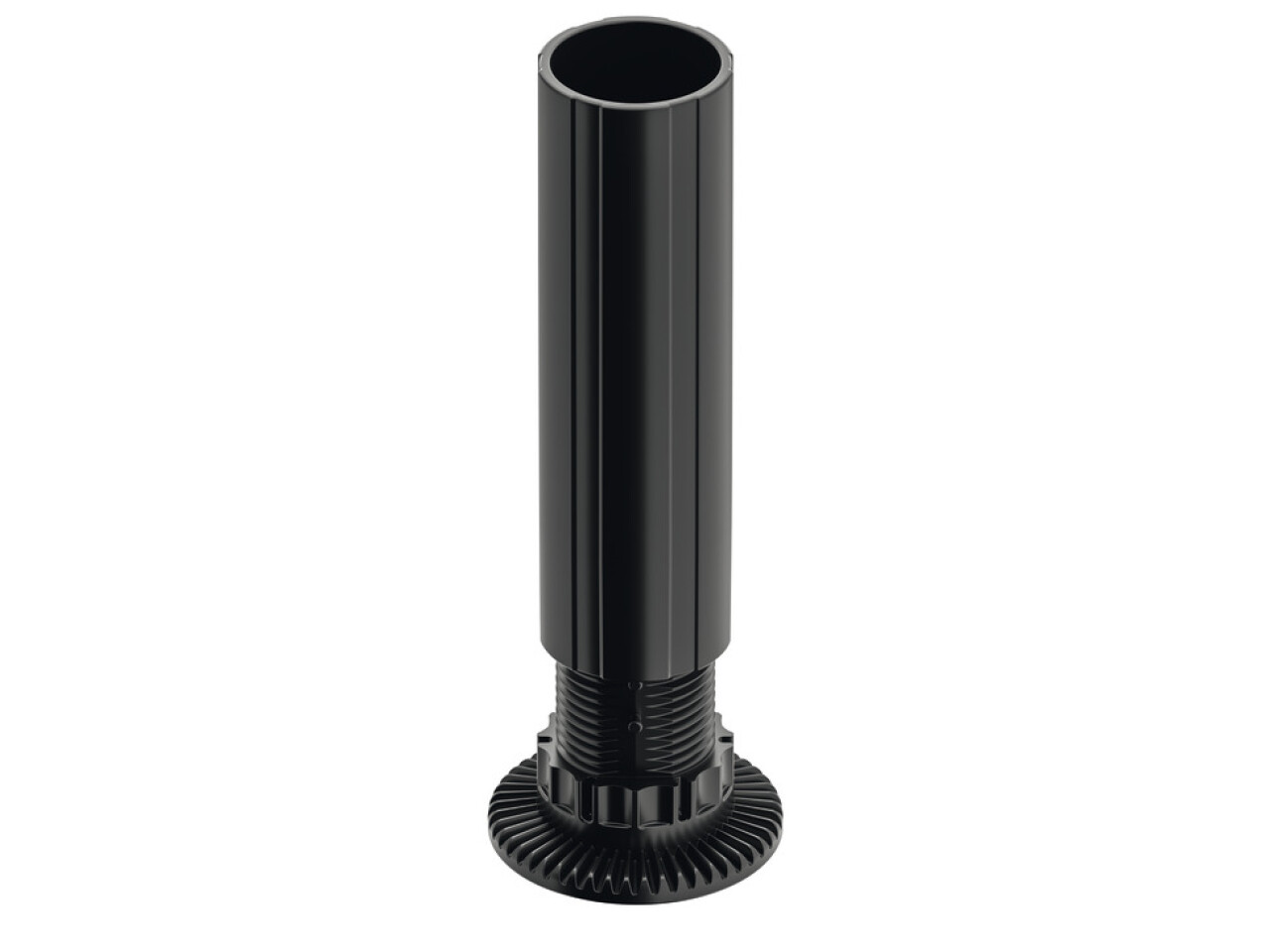

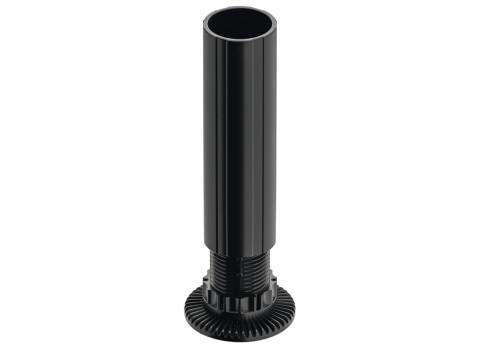

Foot and Shaft Section, for Häfele AXILO"! 48 Plinth System (Part No: 637.45.333) is a smart, reliable solution for achieving a stable, beautifully level table finish—ideal for both living spaces and commercial furniture projects. Designed with an installation height of 150 mm, this foot/shaft plug system offers practical height control to match your floor and your design requirements.

With the AXILO 48 Plinth Foot/Shaft, you get an easy adjustment facility from 135–170 mm, making it simple to dial in the perfect stance after installation. The foot is made from durable plastic in a sleek black finish, helping it blend cleanly with modern plinth and table leg designs.

Engineered for performance, this system supports a load bearing capacity of 150.00 kg. It also features a height adjustment capability for up to 65 kg per foot when using the AXILO® 48 adjusting tool, adjustable at the side for added convenience during setup.

Installation is straightforward: this unit is supplied pre-mounted as 1 tube with an adjusting foot, and it’s intended for plug fitting into the top section. Once in place, you can fine-tune for a professional, wobble-free result.

For added confidence, AXILO components come with a Hafele Lifetime Guarantee (7 years), making this a dependable choice when you want long-lasting quality in furniture fittings.

Specifications

Material

Plastic

Colour/finish

Black

Adjustment facility

Height adjustment facility up to 65 kg/foot, with AXILO® 48 adjusting tool, adjustable at the side

Load bearing capacity

150.00 kg

Installation

For plug fitting into top section

Hafele Lifetime Guarantee

7 years

Supplied with

1 tube with adjusting foot (pre-mounted)

FAQ

Product Details

What is AXILO 48 Plinth Foot/Shaft H150mm Plug used for?

AXILO 48 Plinth Foot/Shaft H150mm Plug is a table leg and furniture plinth fitting designed to be plugged into the top section for levelling. It helps you achieve stable furniture on uneven floors, making it ideal for both living and commercial table applications.

How high can the installation be and what adjustment range is available?

The installation height is 150 mm, and the product offers a side adjustable facility from 135 mm to 170 mm. This range makes it easier to fine tune the height during installation and after fitting.

Does it come ready to install?

Yes. The product is supplied with one tube with an adjusting foot that is pre mounted, so you can fit it as a straightforward plug connection into the top section.

What load and stability can I expect from this foot?

This foot and shaft section is rated for a maximum load capacity of 150 kg and supports height adjustment for loads up to 65 kg per foot when using the correct AXILO 48 adjusting tool. Always ensure your furniture design distributes weight appropriately.

How do I adjust the height, and is a tool required?

Height adjustment is carried out at the side using an AXILO 48 adjusting tool. Using the correct tool helps you achieve precise levelling without over exerting the components.

Is there a guarantee on AXILO fittings?

Yes. AXILO 48 fittings are covered by the Hafele Lifetime Guarantee with a 7 year term, giving you confidence in long term use when installed correctly.

What colour and finish should I expect?
