ASSA E-LITE £1 COIN LOCK

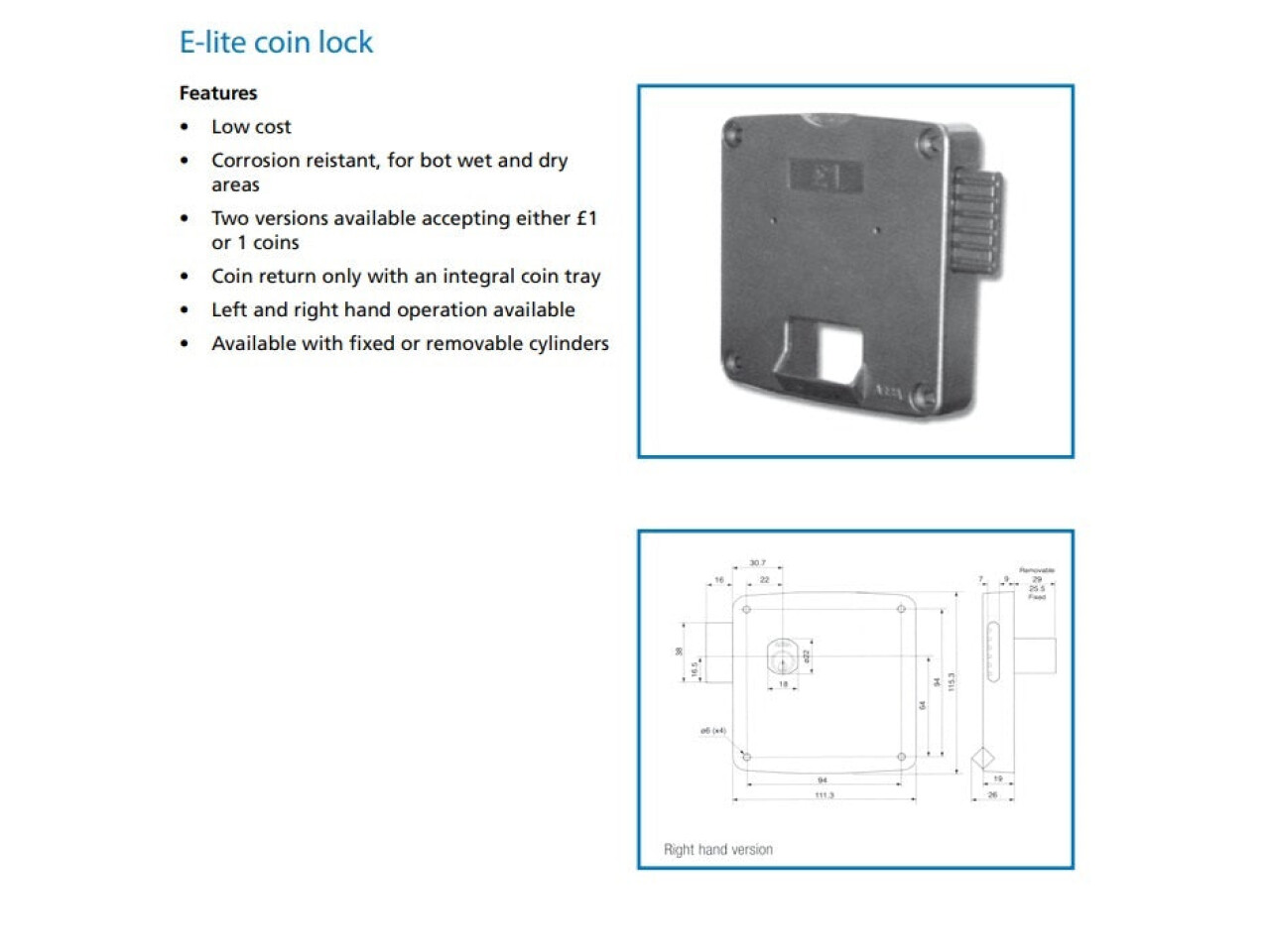

Assa £1 E-Lite Coin Lock
Corrosion resistant, ideal for both DRY and WET areas

E-lite has been designed to offer a low-cost but reliable solution to the problem of locker security. The principal features of the range include:

Accepts 1 pound coins.
Master keyed as standard and supplied with two differ keys.
Designed for coin return operation, and supplied complete with an integral coin return tray.

Right hand lock, for a right hand hinged door.
Note that for cylinder preparation 0.5 mm clearance should be allowed(22.5 mm x 18.5 mm hole).
Use four M5 screws with cylindrical heads. Maximum tightening force 2.5Nm.
