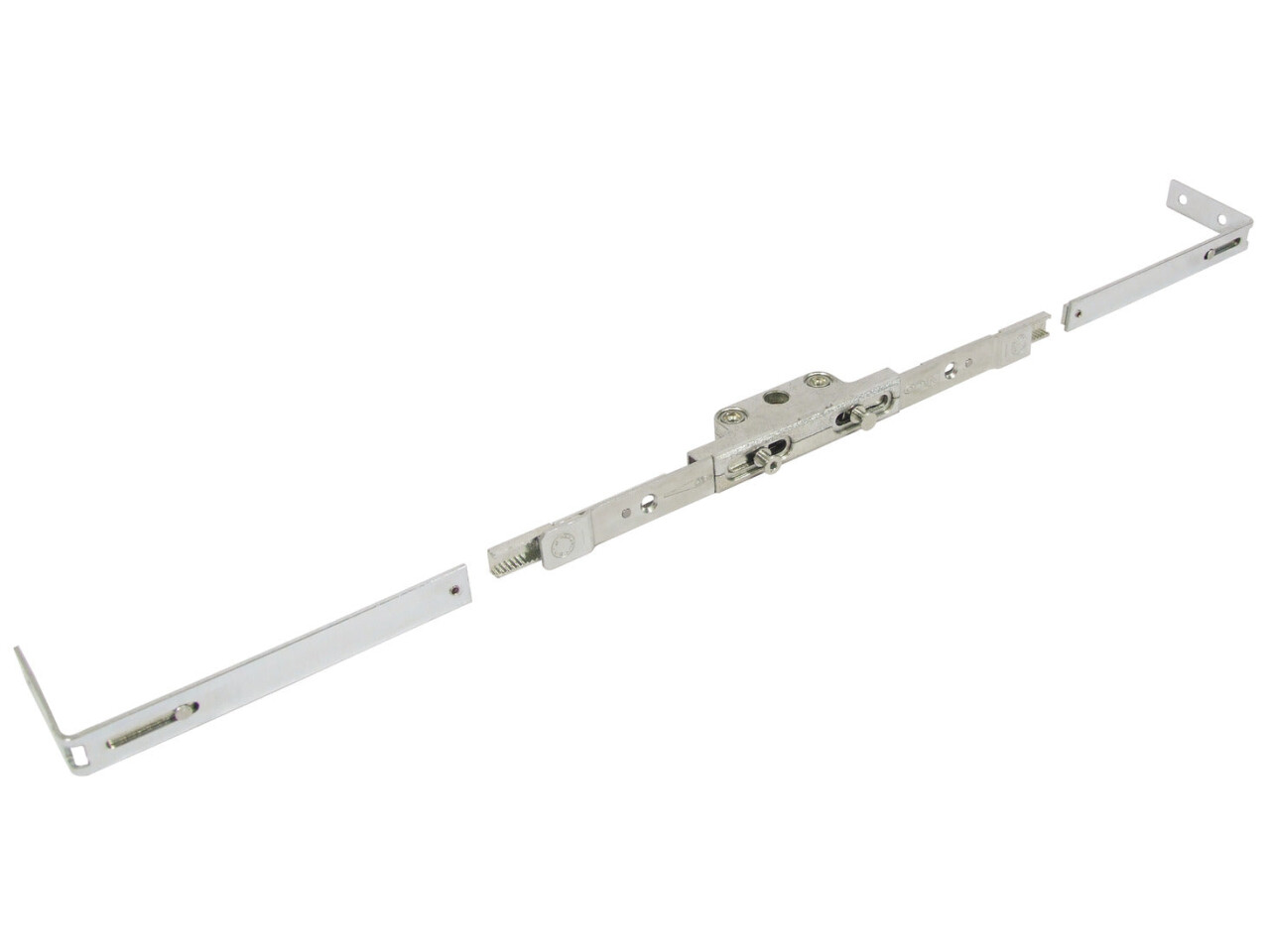

Espagnolette Shootbolt Gearbox Drive

BBA approvedMeets BS 7950 security requirementsTested to over 200,000 cyclesSecured by design approval10 year guaranteeAll steel constructionAll parts are plated with Supercote for enhanced corrosion protectionSupercote has achieved grade 5 as defined in BS EN 1670: 2007Adjustable compression by mushroom camsAdjustable throw shootboltsReduced number of components need to be orderedSimple to install1x gear box and 2x extensions for bolt1x central keep and 2x corner keepsPlease see cat. page for additional technical info

• Material: Mild steel


• Note: Extension length can be cut down to achieve correct length


• Order reference: Order keeps separately, Cat. No. 971.01.010Order M5 flat head machine screw separately


• :


• :
