SF-A300 FitSet 1 Door
Part Number: 943.52.000
Top hung system, For 1 door
Price:
£342.12
Per Item
Good quality economical system for large wooden panels up to 300 kgRollers fitted on smooth running, hard wearing... Read More
Product Information
Product Details
Good quality economical system for large wooden panels up to 300 kg
Rollers fitted on smooth running, hard wearing nylon wheels
An adjustable braking system is mounted inside the track
Supplied with

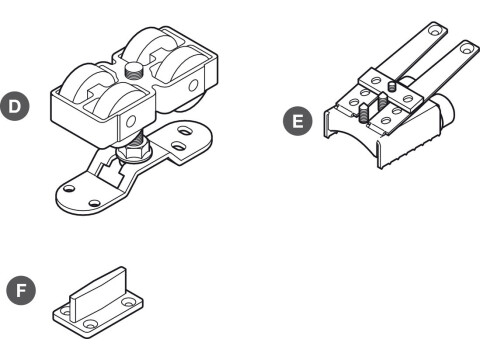

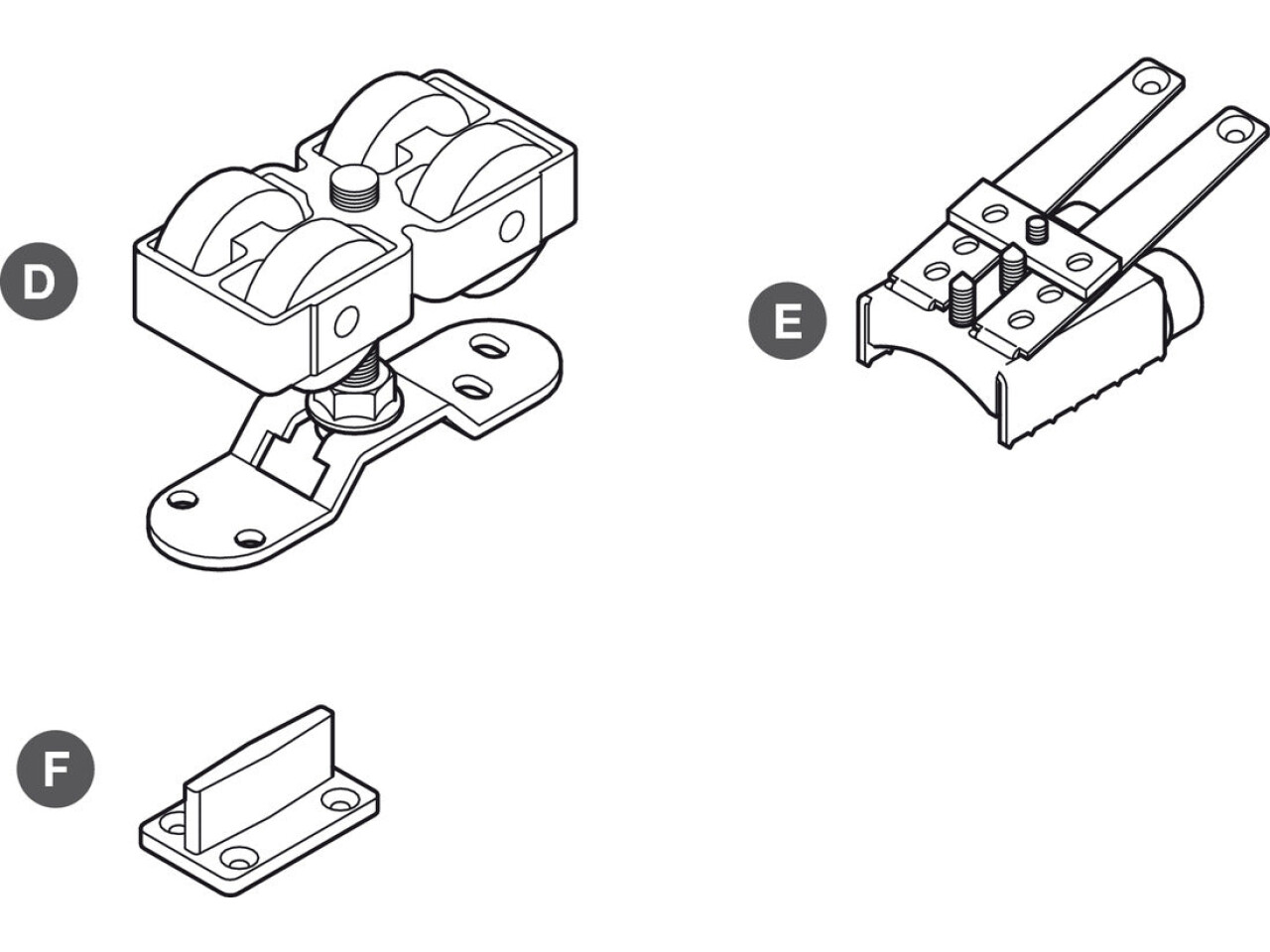

Set consists of 2 x Running gear with fixing plate, plastic/aluminium, 2 x Track stopper, satin anodised aluminium, 1 x Bottom guide, clear threshold, black plastic
Specifications
Number of door leaves per set
1.00
For door material
Wood
For door weight
≤300 kg
For door width
≤3,000 mm
Material/finish
Steel, Aluminium, Plastic
For door thickness
30 – 60 mm
Adjustment facility
Height adjustment: -6 – 6 mm
For door height
≤3,000 mm
Running position
Top
Order reference
Tracks and fittings to be ordered separately
