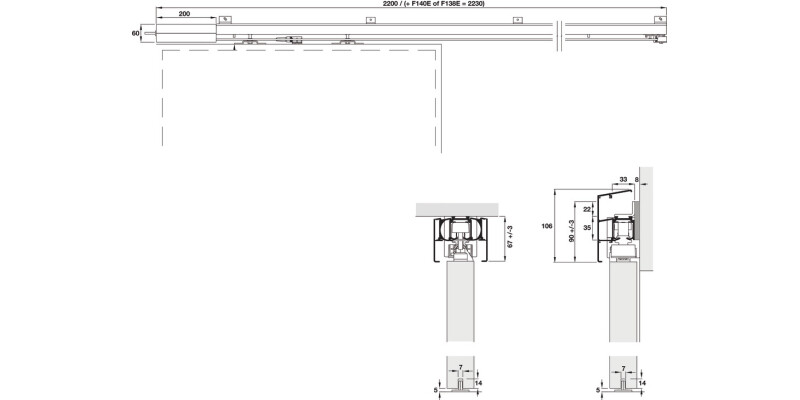

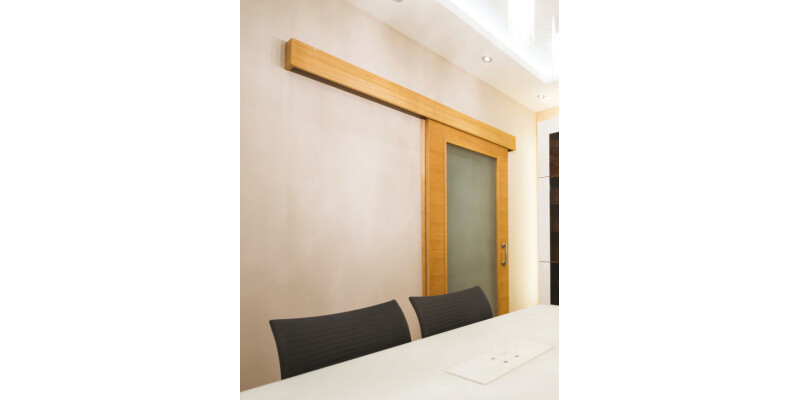

Evolve 80 Complete Fitting Set 1Door

Name: Evolve 80 Complete Fitting Set 1Door
SKU: 943.32.070
Price: 1750.64 GBP
Availability: InStock

Part Number: 943.32.070

Top hung system, For 1 door

Price:

£1,750.64

Per Item

VAT excluded

Smooth running automated sliding door hardware ideal for residential or light duty commercial applications,... Read More

Product Information

Product Details

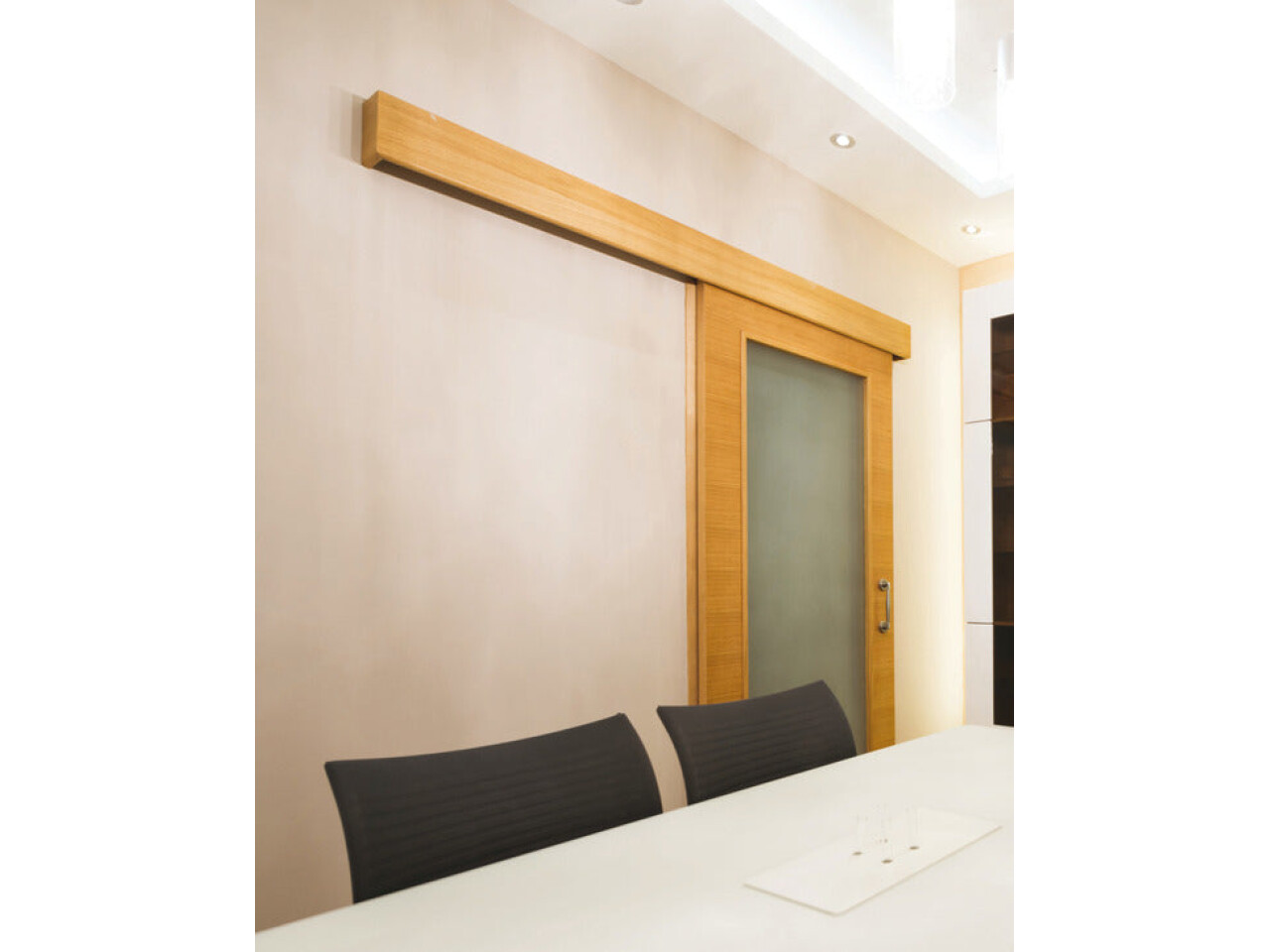

Smooth running automated sliding door hardware ideal for residential or light duty commercial applications, capable of taking internal wooden doors weighing up to 80 kg
Internal use only
Complete fitting set for single automated face fixed door or for 2 bi-parting automated doors
Automation includes:
Two manual transmitters included (one channel)
Drive rating 50 W
Operation Voltage: 24 V safety - low voltage via extneral power unit. Protection class IP55
Operating speed is approximately 0.3 m/sec variable
Features obstacle detection
Can be manually decoupled from the clutch base
Automated closing option (adjustable to timed intervals)

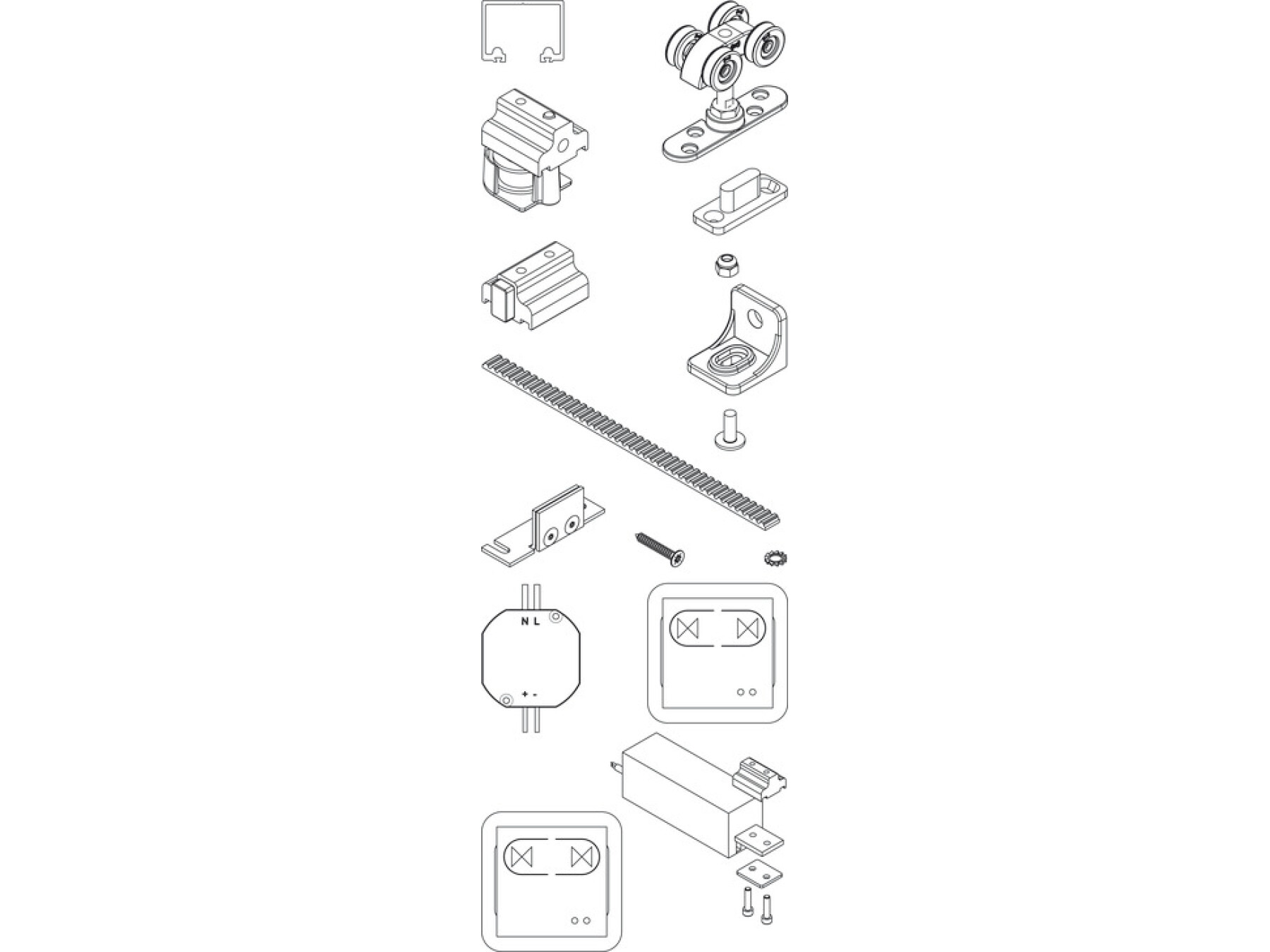

Supplied with

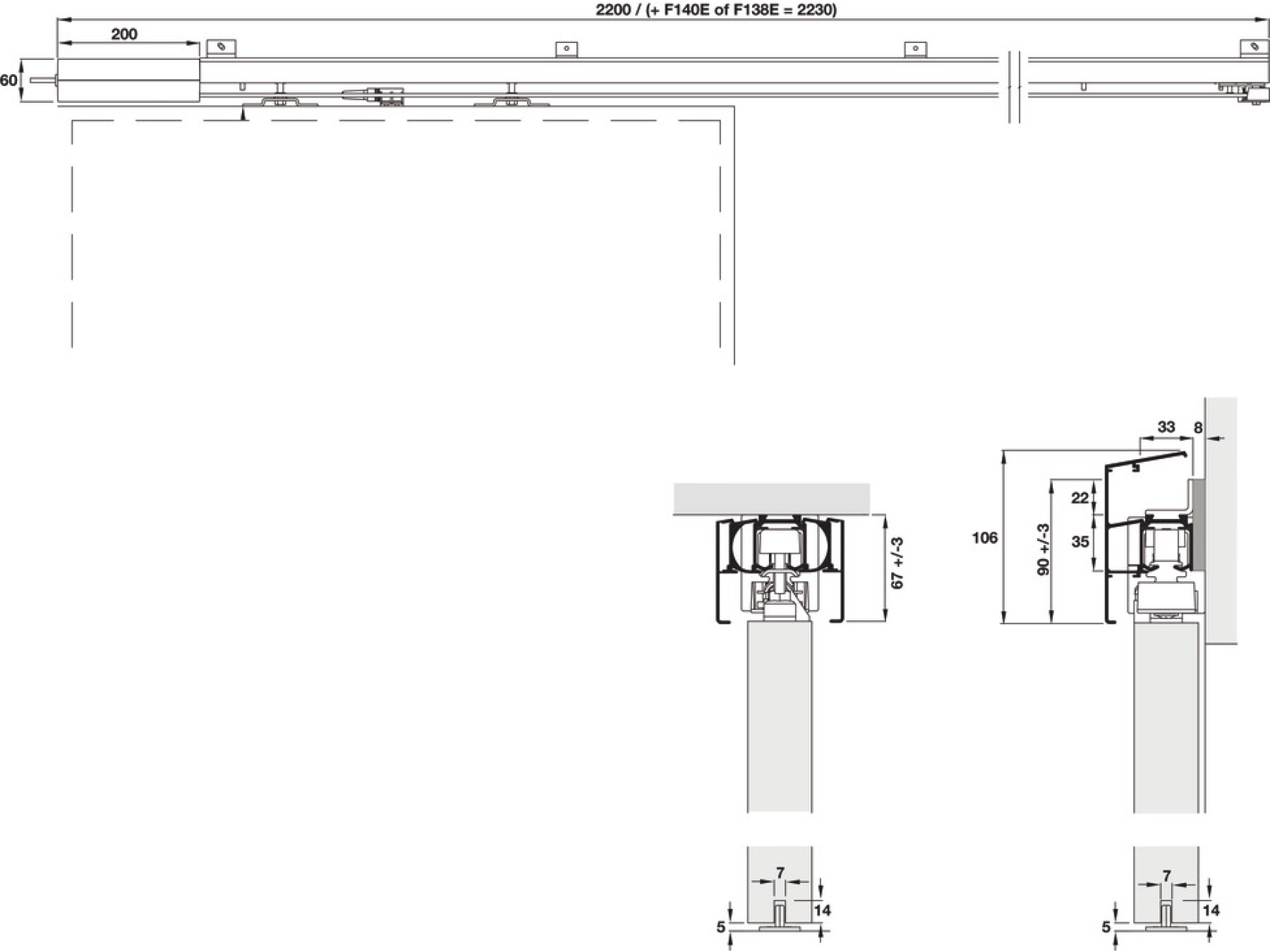

Complete set for 1 face fixing sliding door, weighing up to 80 kg, includes 1 x Soltaire track, 2.0 m length, 2 x Hangers, 1 set x Tension wheel assembly, 1 x Floor guide, 2 x Door stops, 4 set x Facefix bracket sets, 4.1 m x Toothed belt, 1 x SS belt clamp, 10 x 4.5 x 30 wood screws, 2 x Serrated washers, 1 x 24 V transformer, 1 x Wall socket, 1 x Wall contol socket, 1 x Motor set and fixings
Complete set for 2 bi-parting face fixing sliding door, weighing up to 40 kg per door, includes 2 x Soltaire tracks, 2.0 m length, 4 x Hangers, 1 set x Tension wheel assembly, 2 x Floor guide, 3 x Door stops, 8 set x Facefix bracket sets, 8.1 m x Toothed belt, 2 x SS belt clampx, 20 x 4.5 x 30 wood screws, 4 x Serrated washers, 1 x 24 V transformer, 1 x Wall socket, 1 x Wall contol socket, 1 x Motor set and fixings
