Hawa Variofold 80H Fitting Set 4

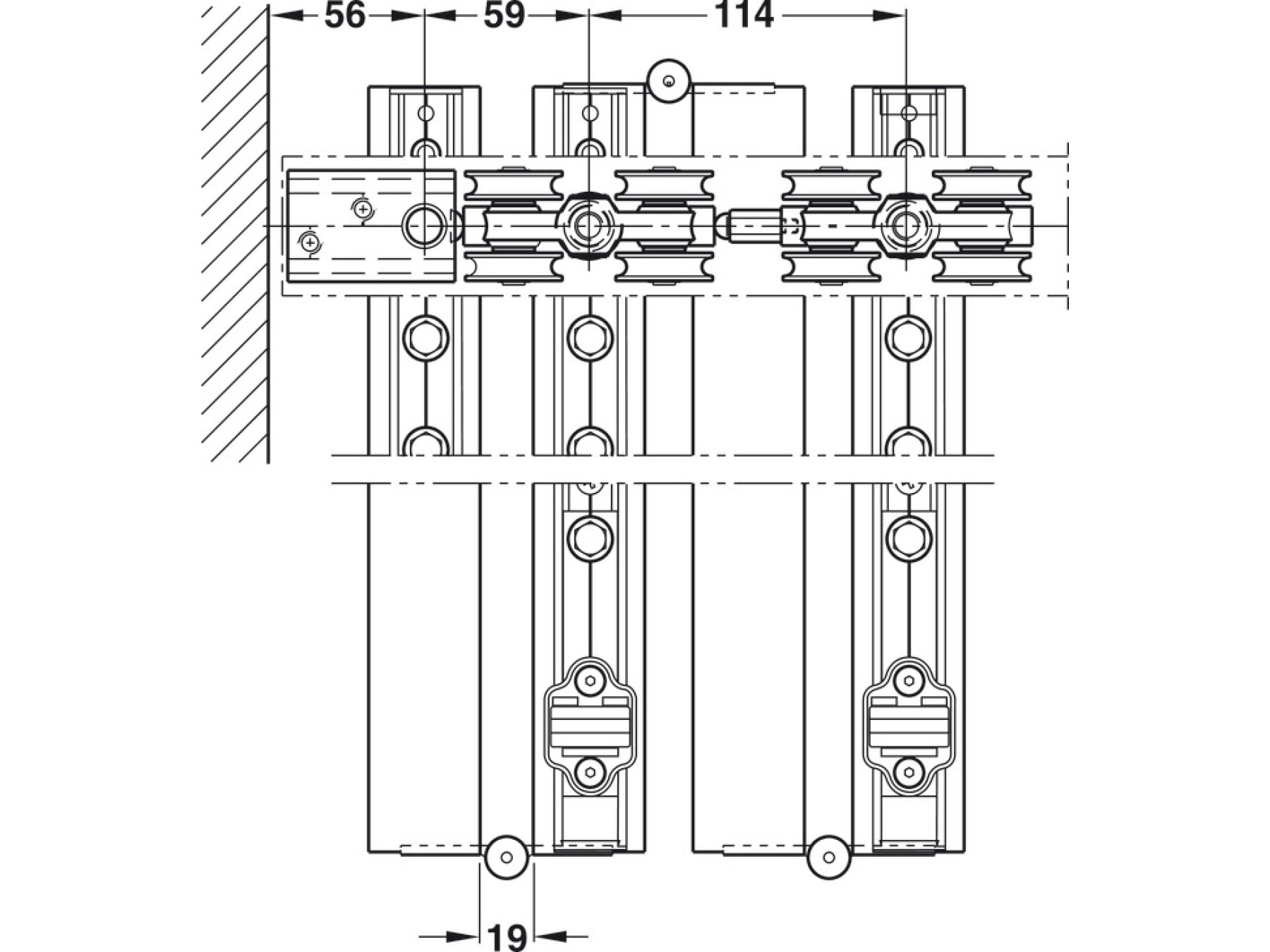

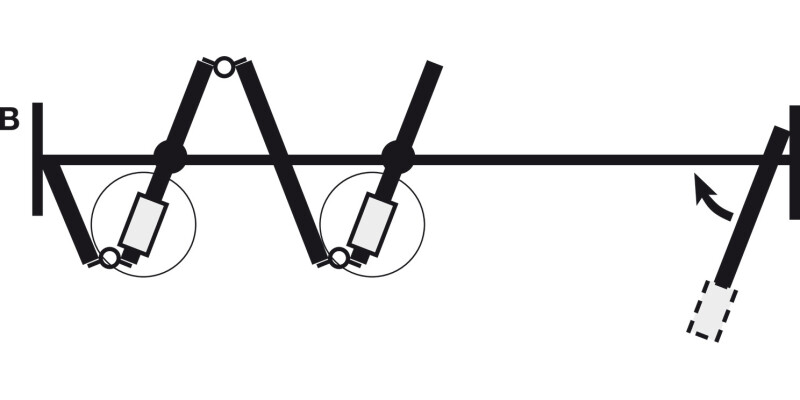

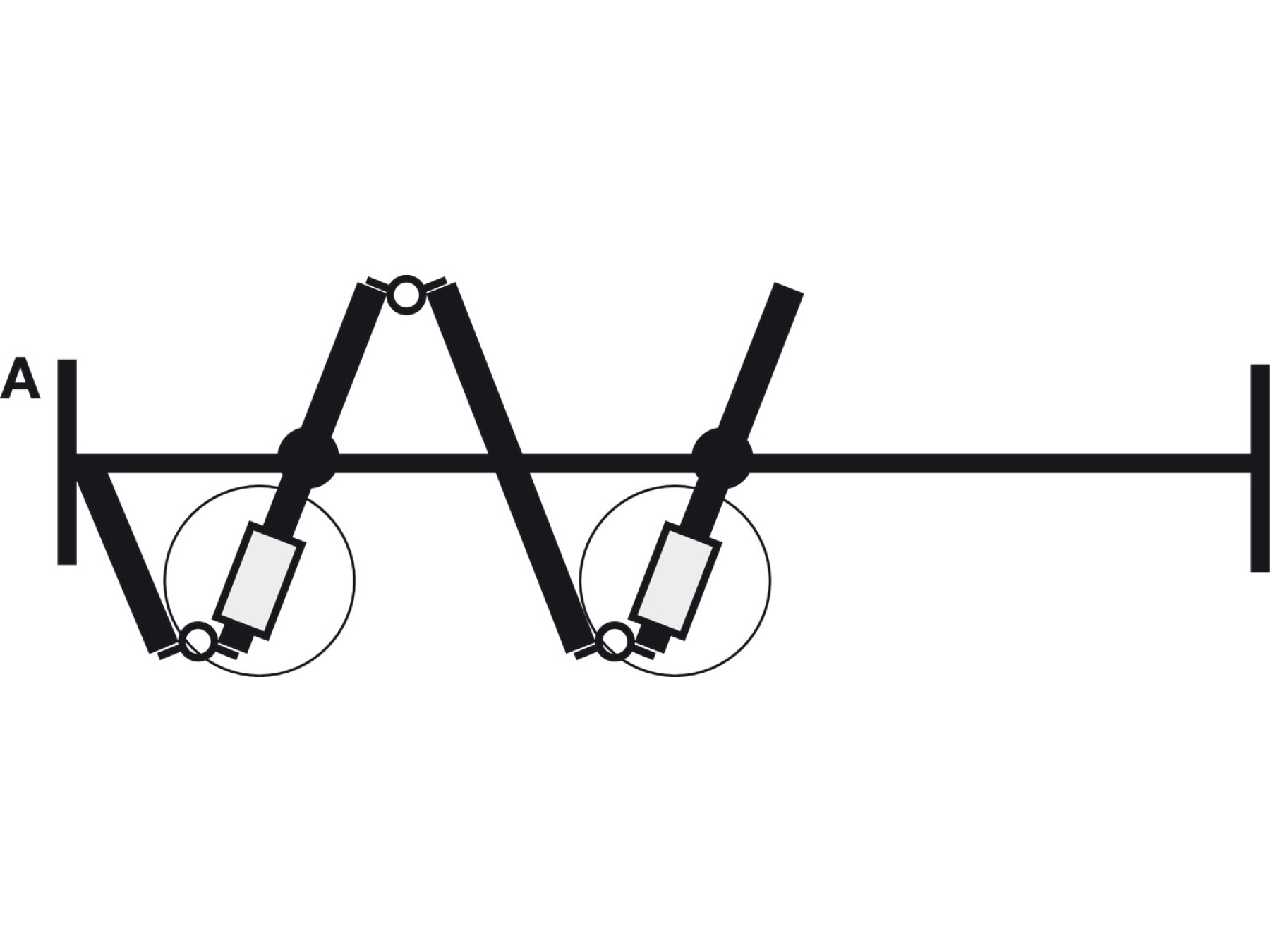

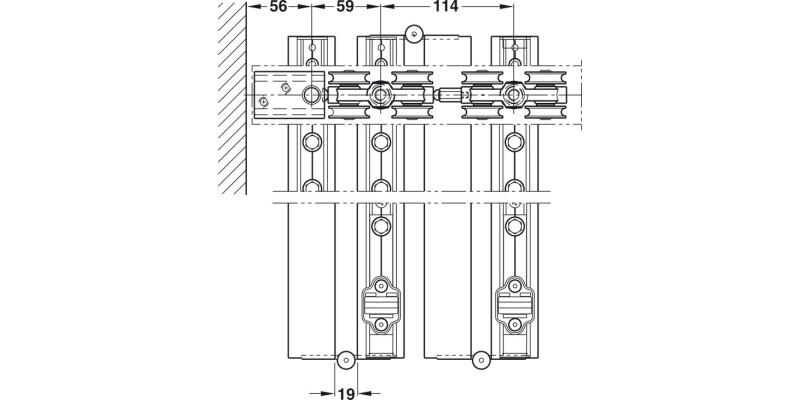

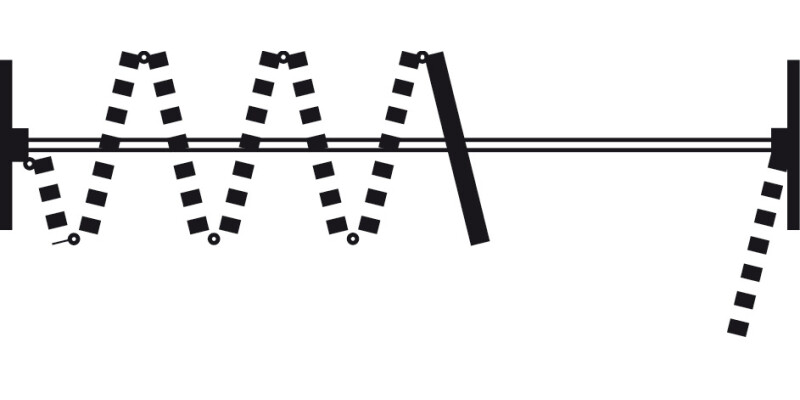

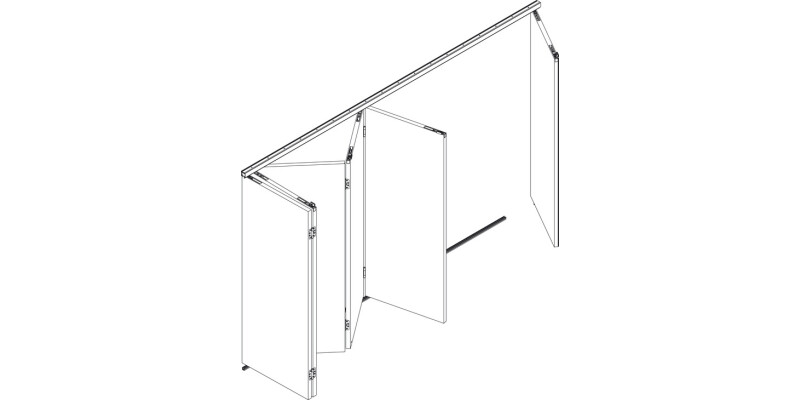

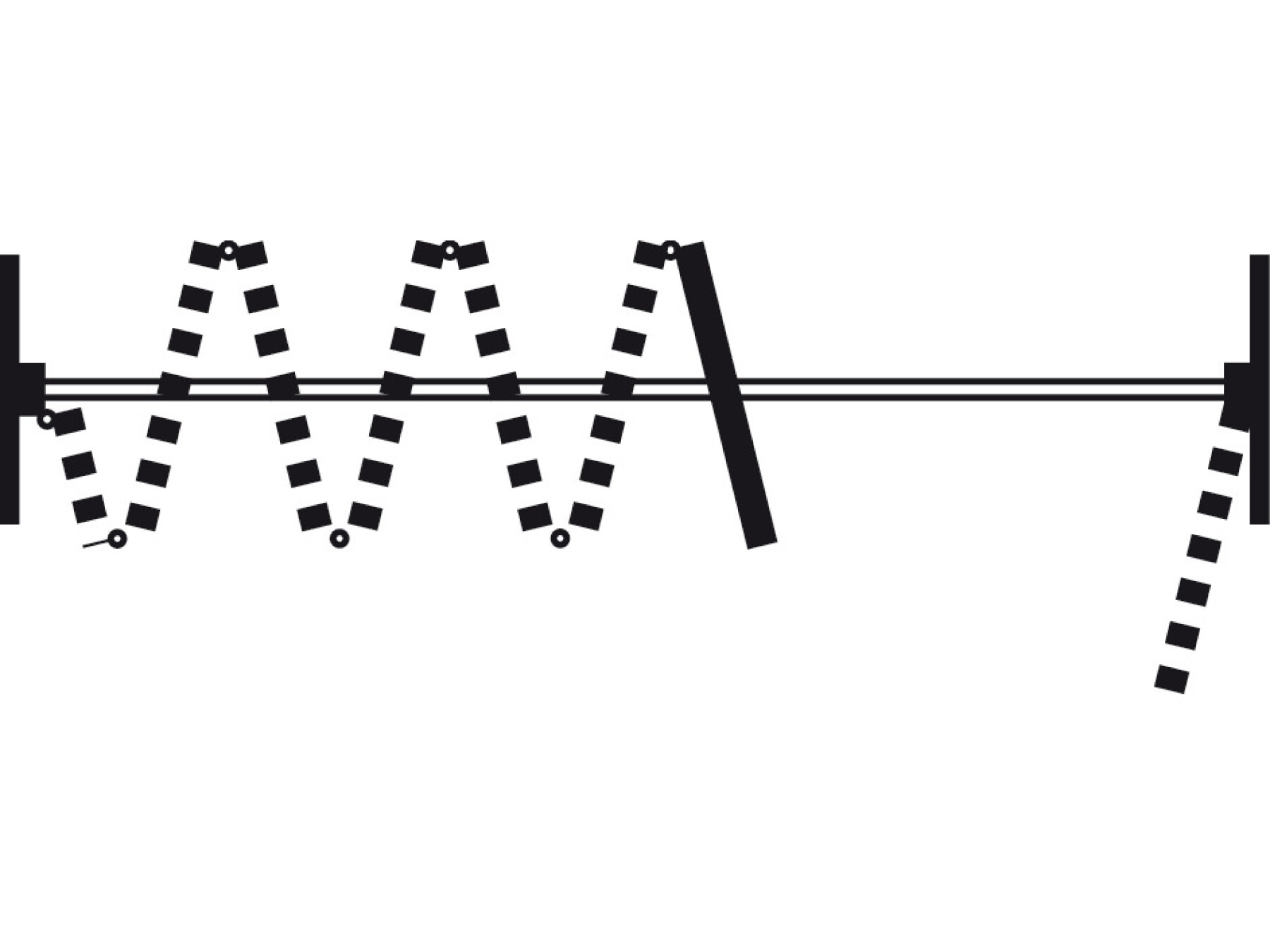

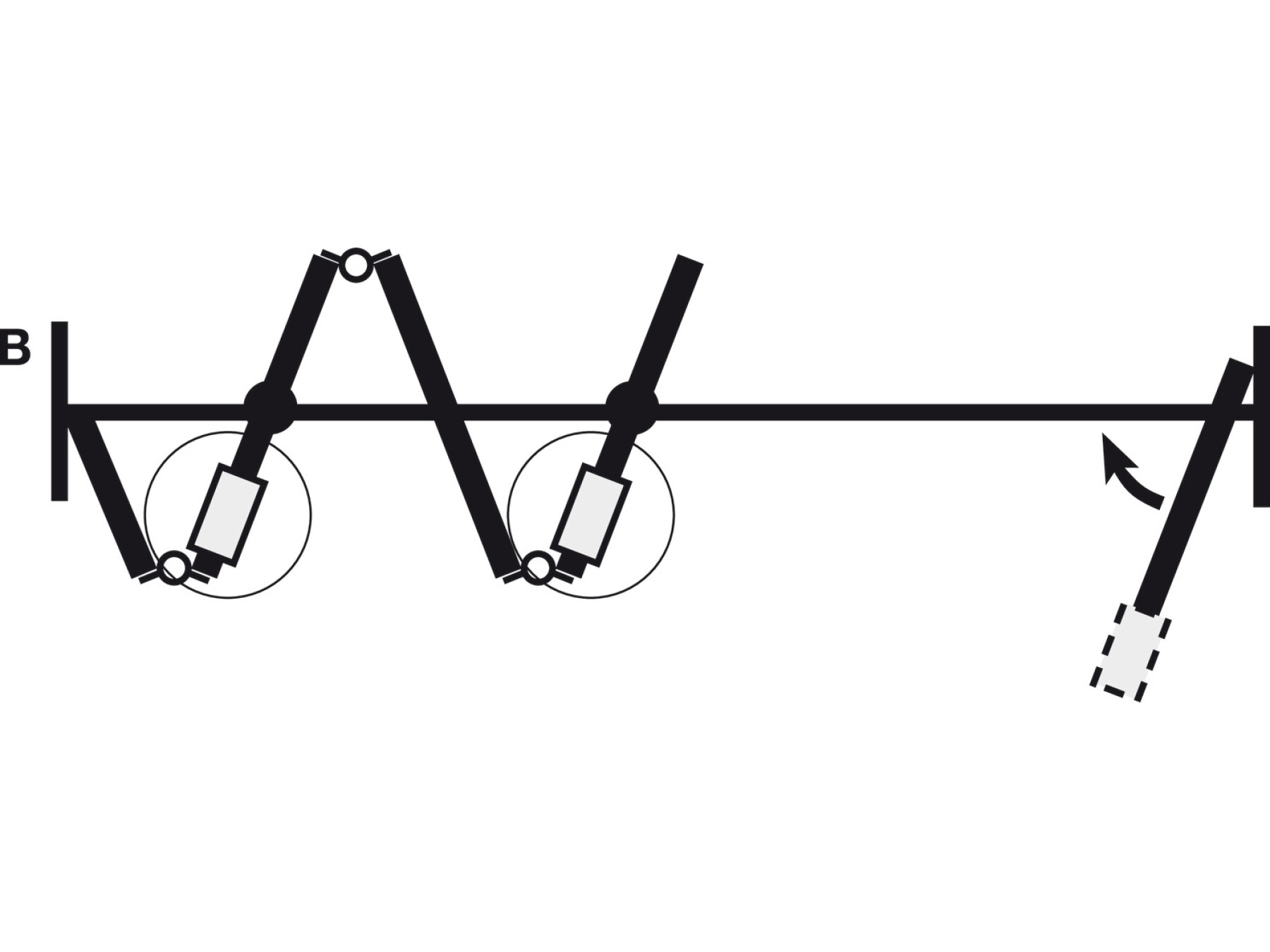

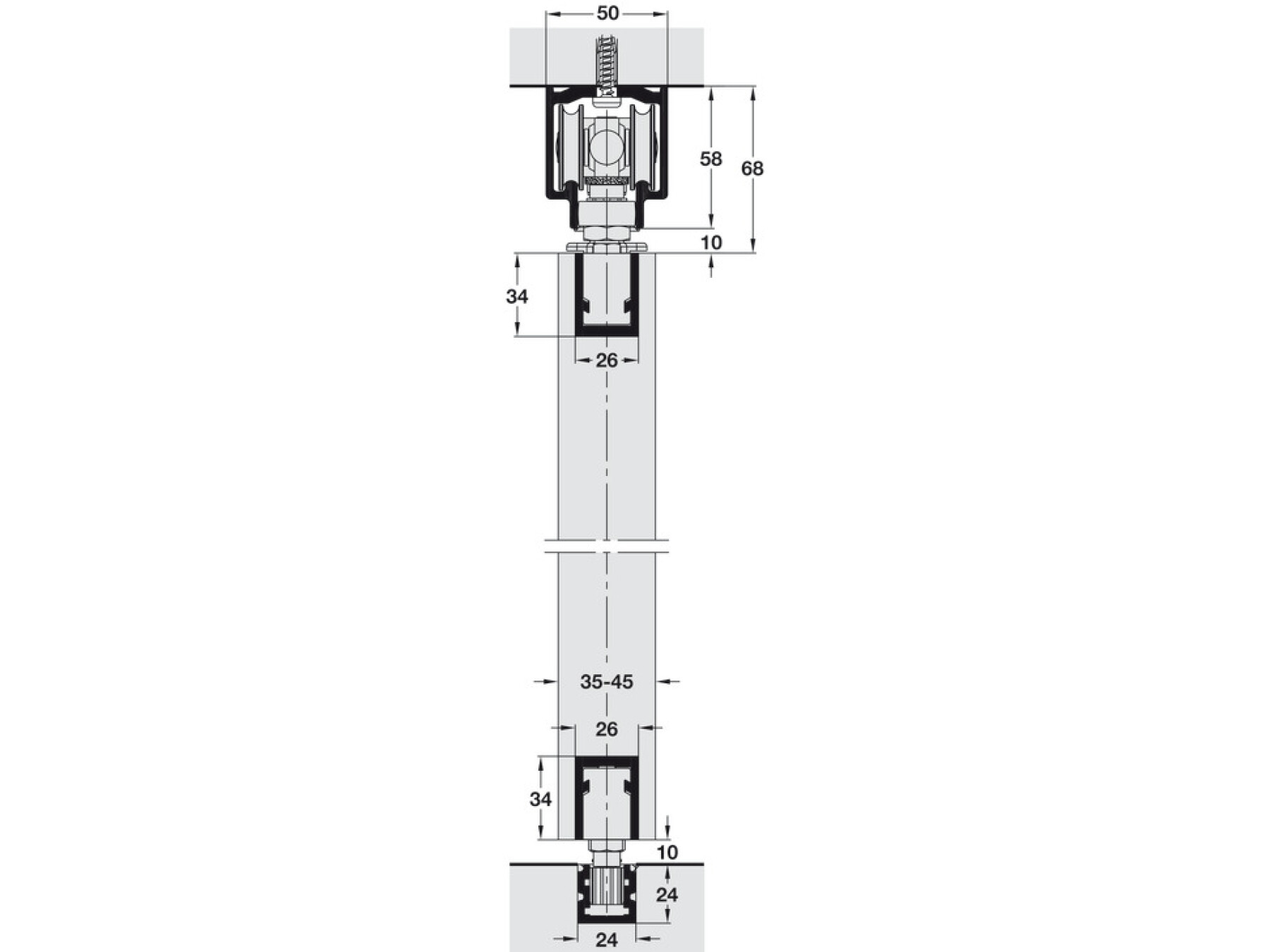

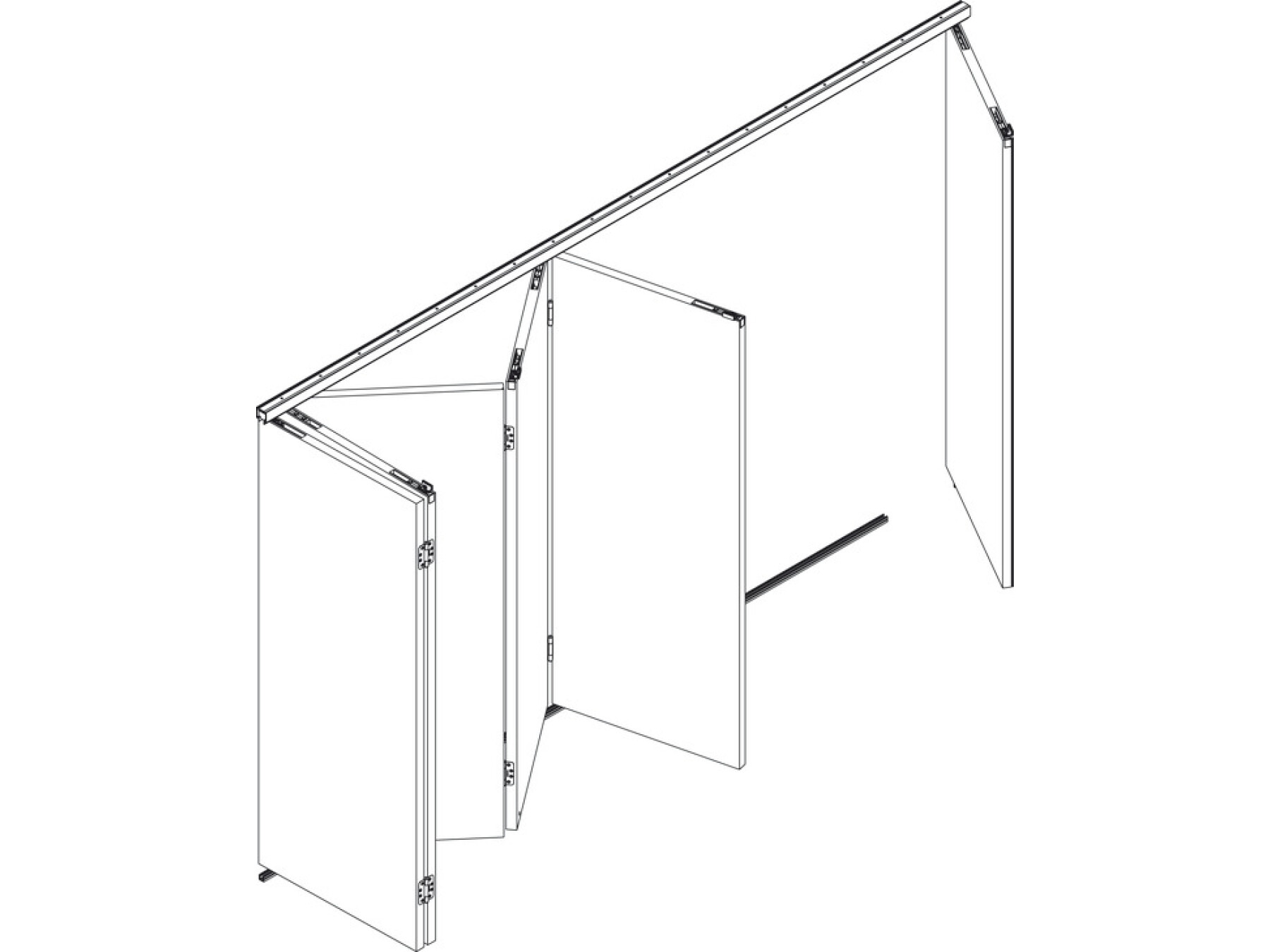

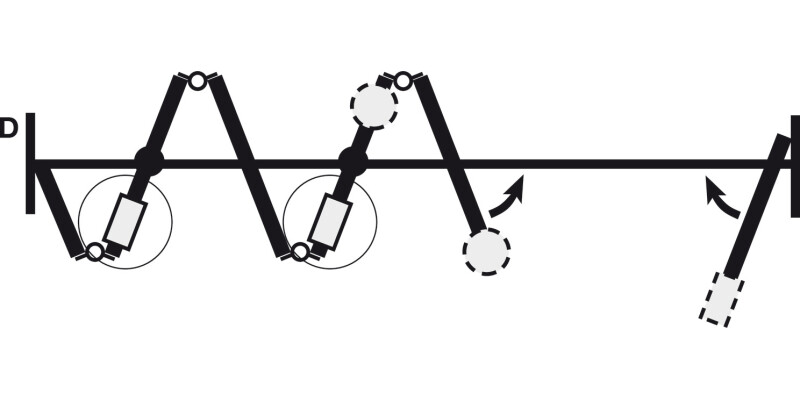

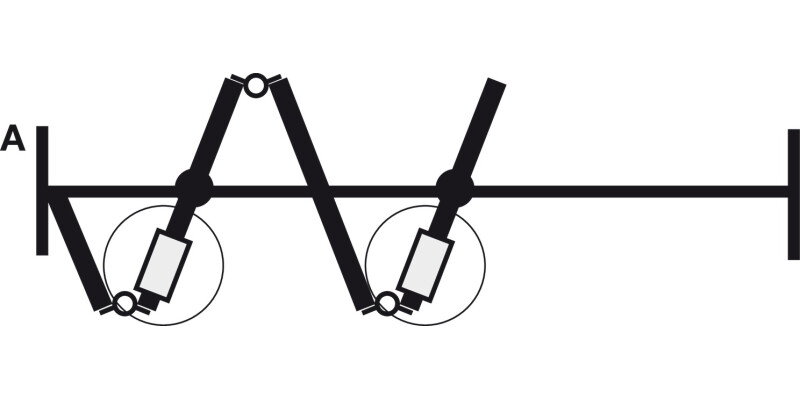

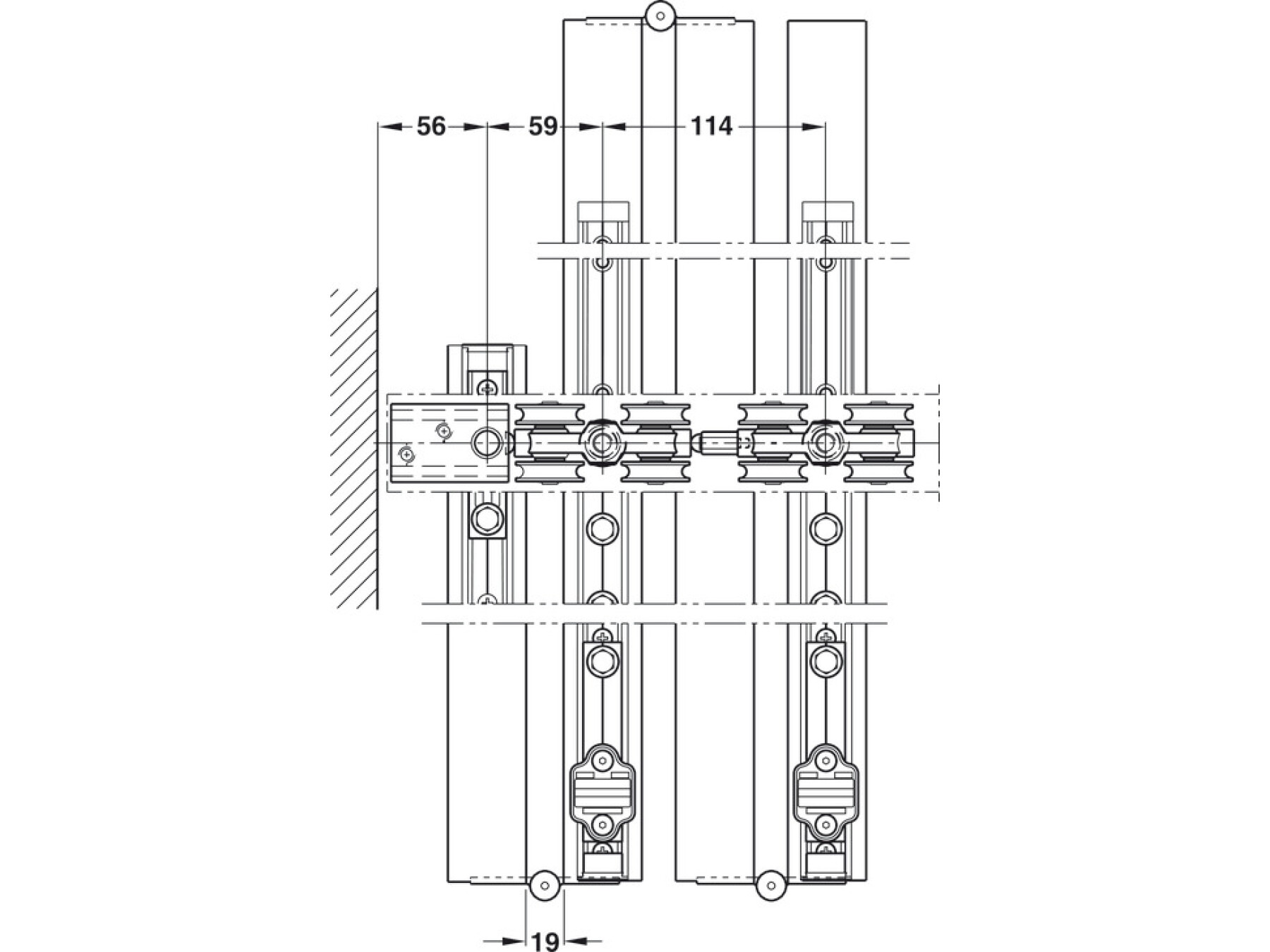

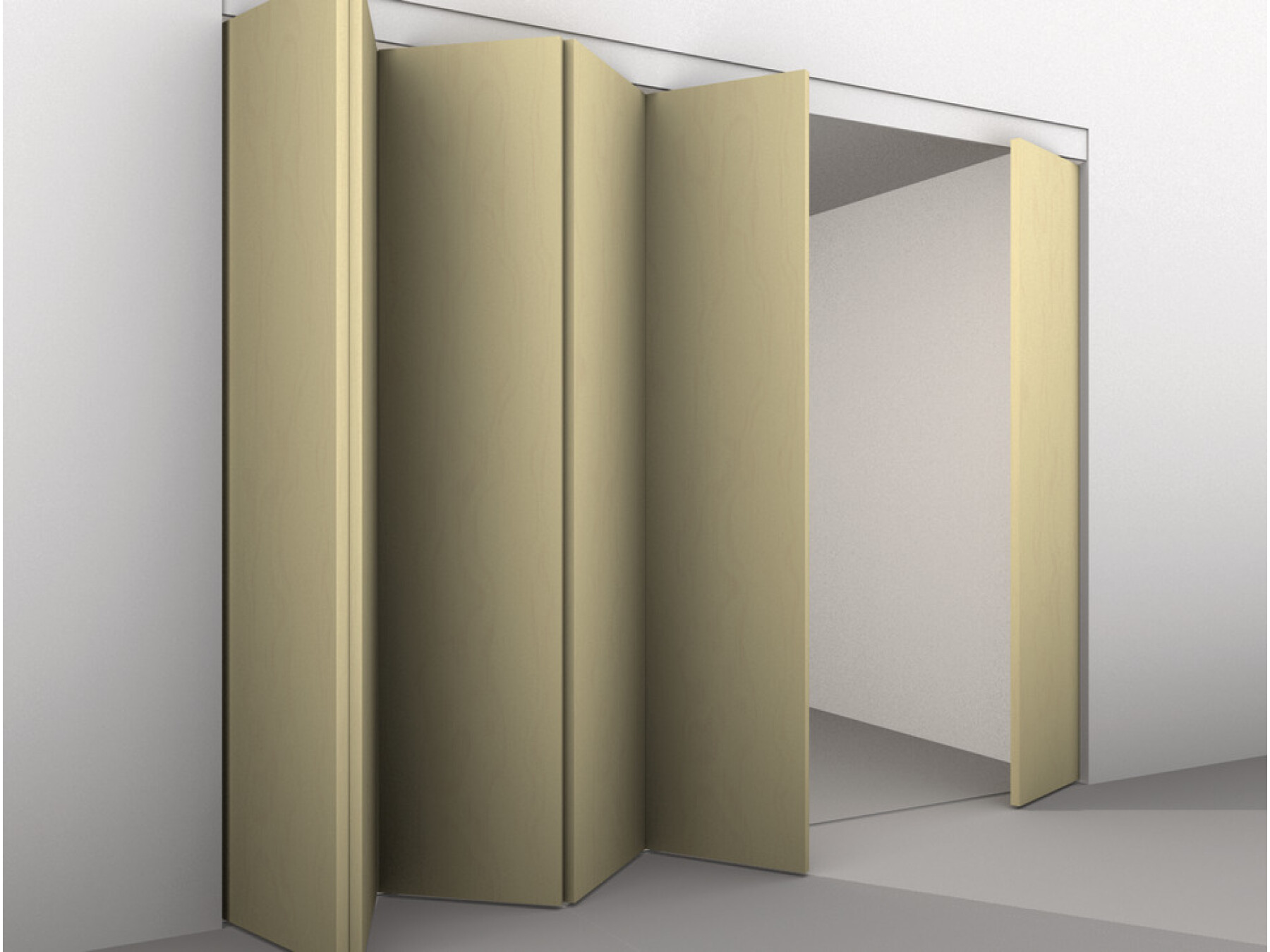

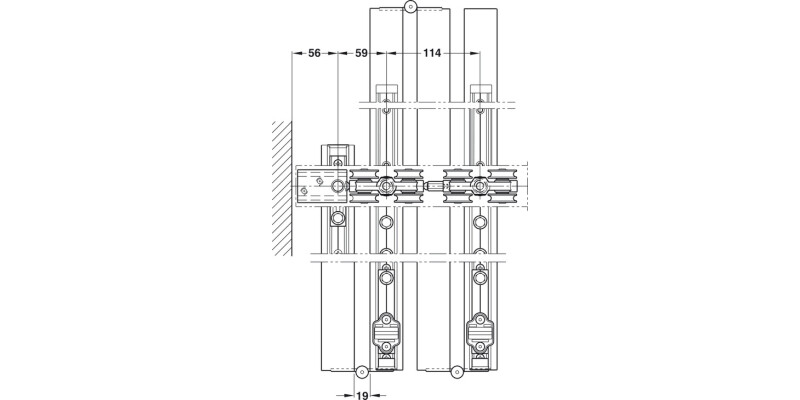

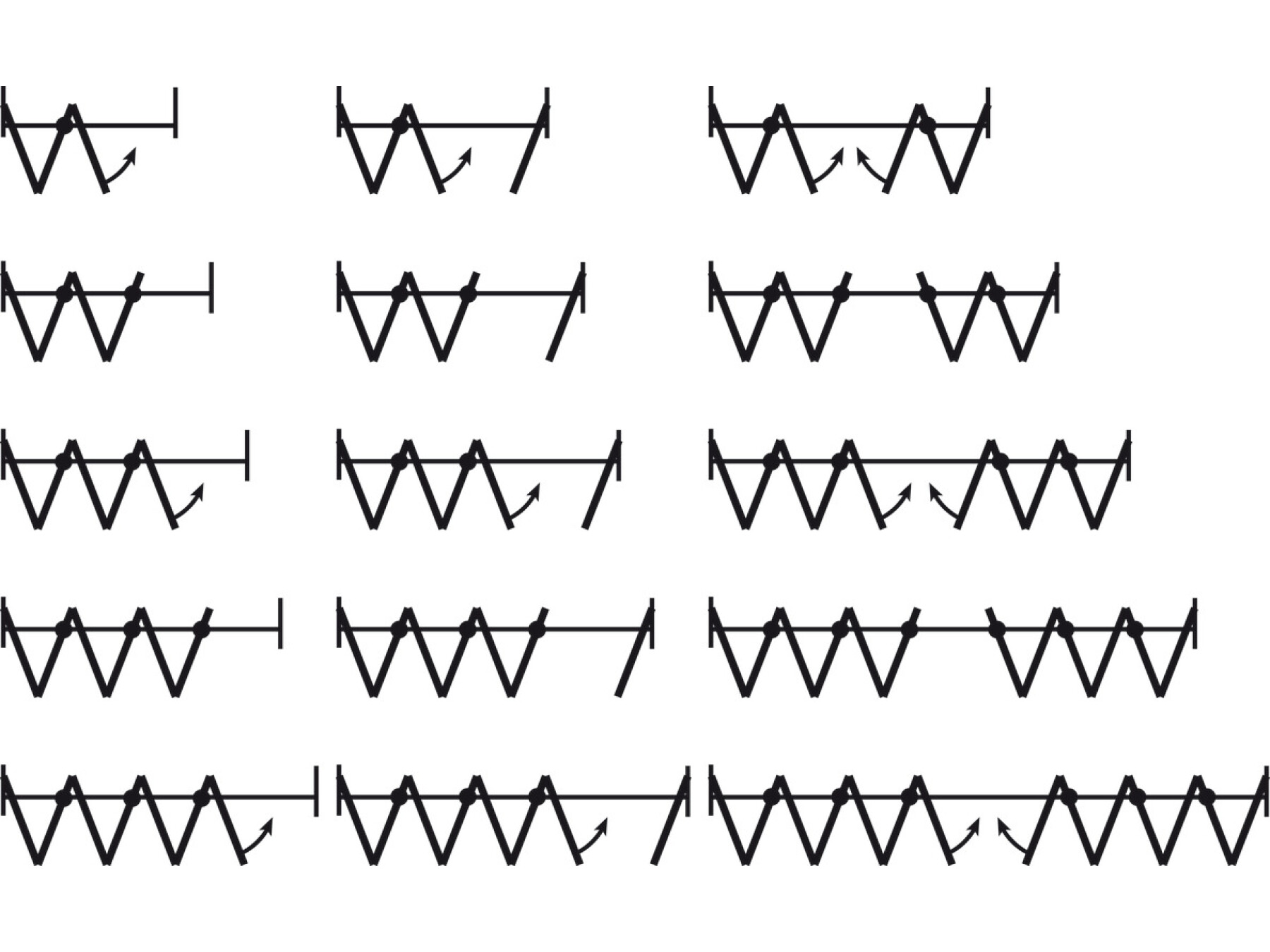

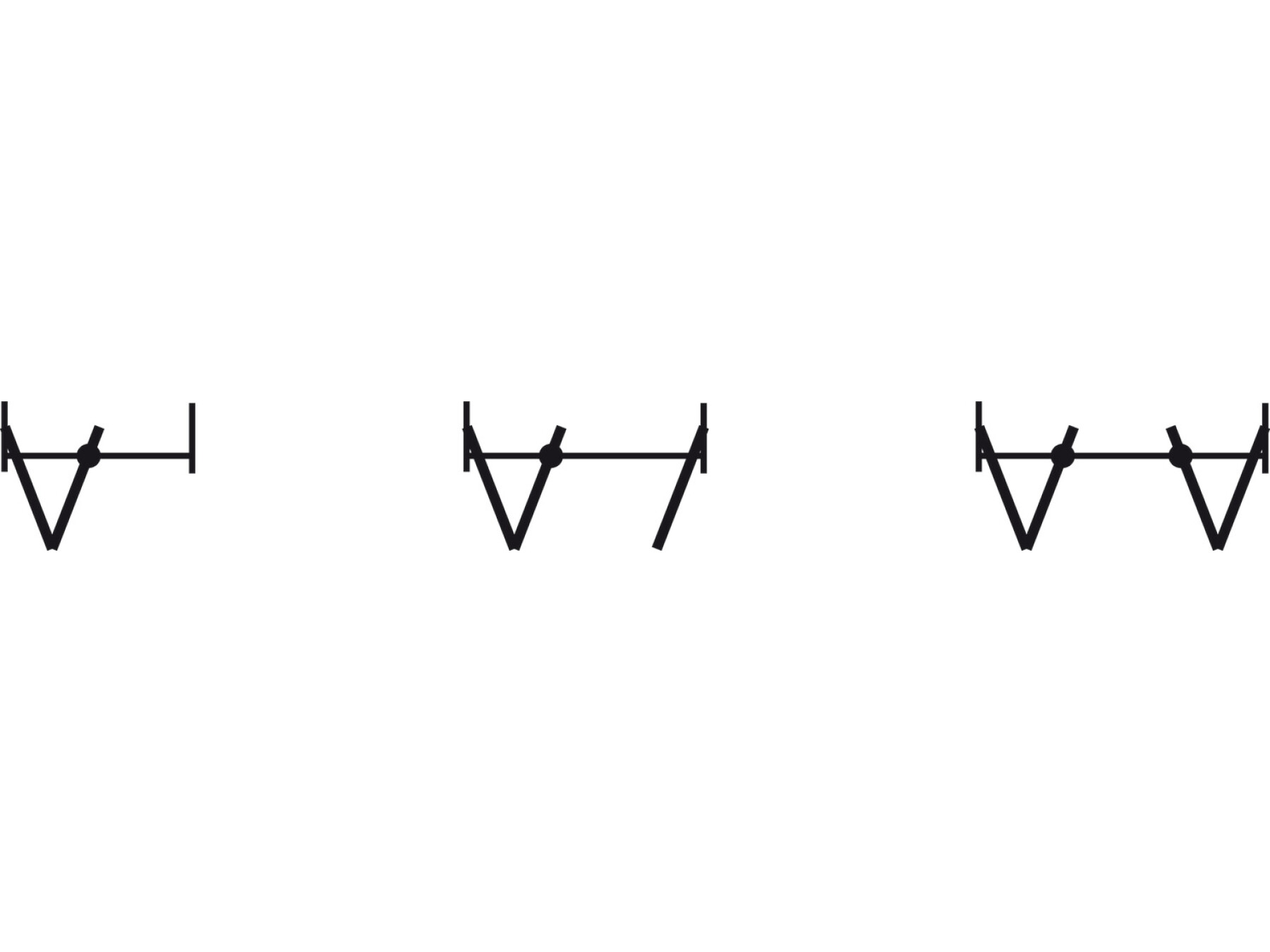

For heavy centre fold walls for residential or commerical applicationsA pivot bearing secures the first panel in the set, the others attach by means of stainless steel hinges that bring the panels closer together and minimise panel stacking requirementsLeft and right hand, inwards our outwards opening installations all use the same componentsA communicating pivot door can be added to the panel stack, or the opposing endLight and quiet runningPanel stack stores compactlyInstallation drawing reference 19587

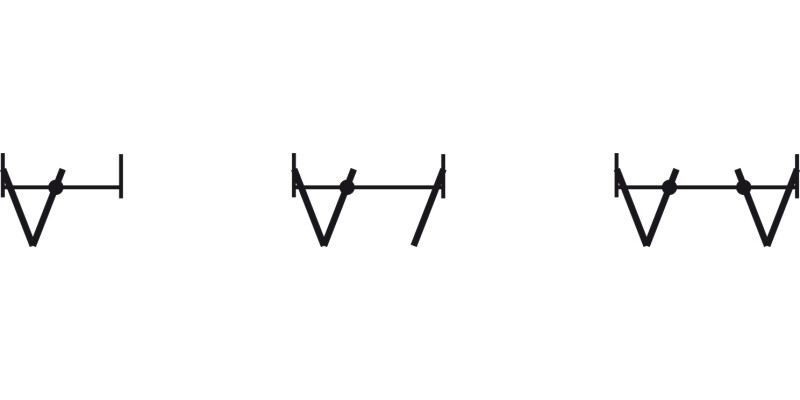

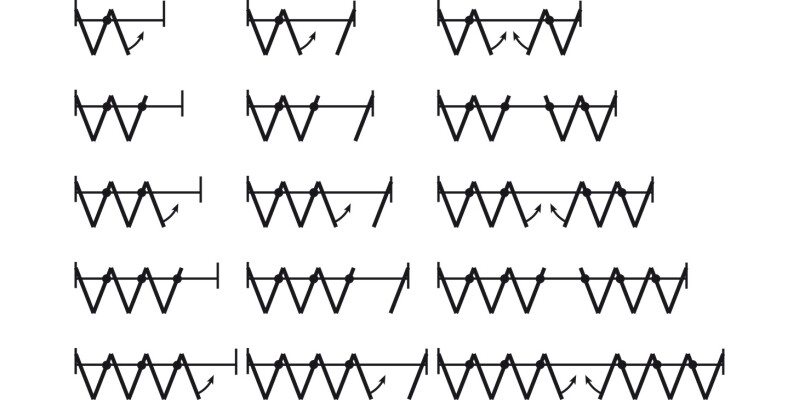

• Application: Interior end folding and centre folding doors


• Adjustment facility: Vertical adjustable ¬¨¬®¬¨¬±3 mm


• Door weight: Max. 80 kg


• Door height: Max. 3500 mm


• Door width: 500 - 900 mm

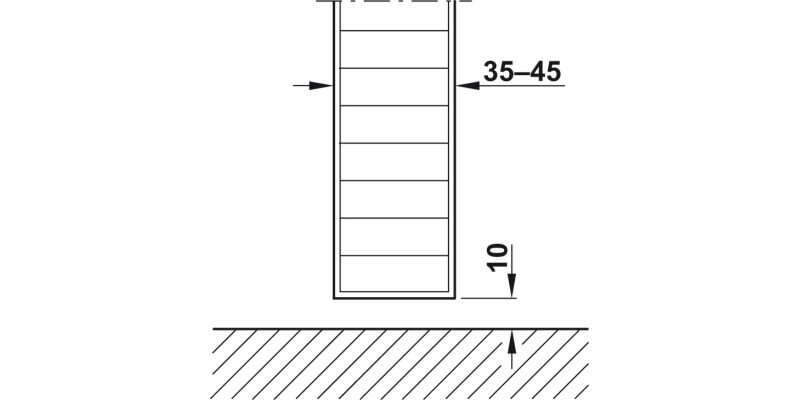

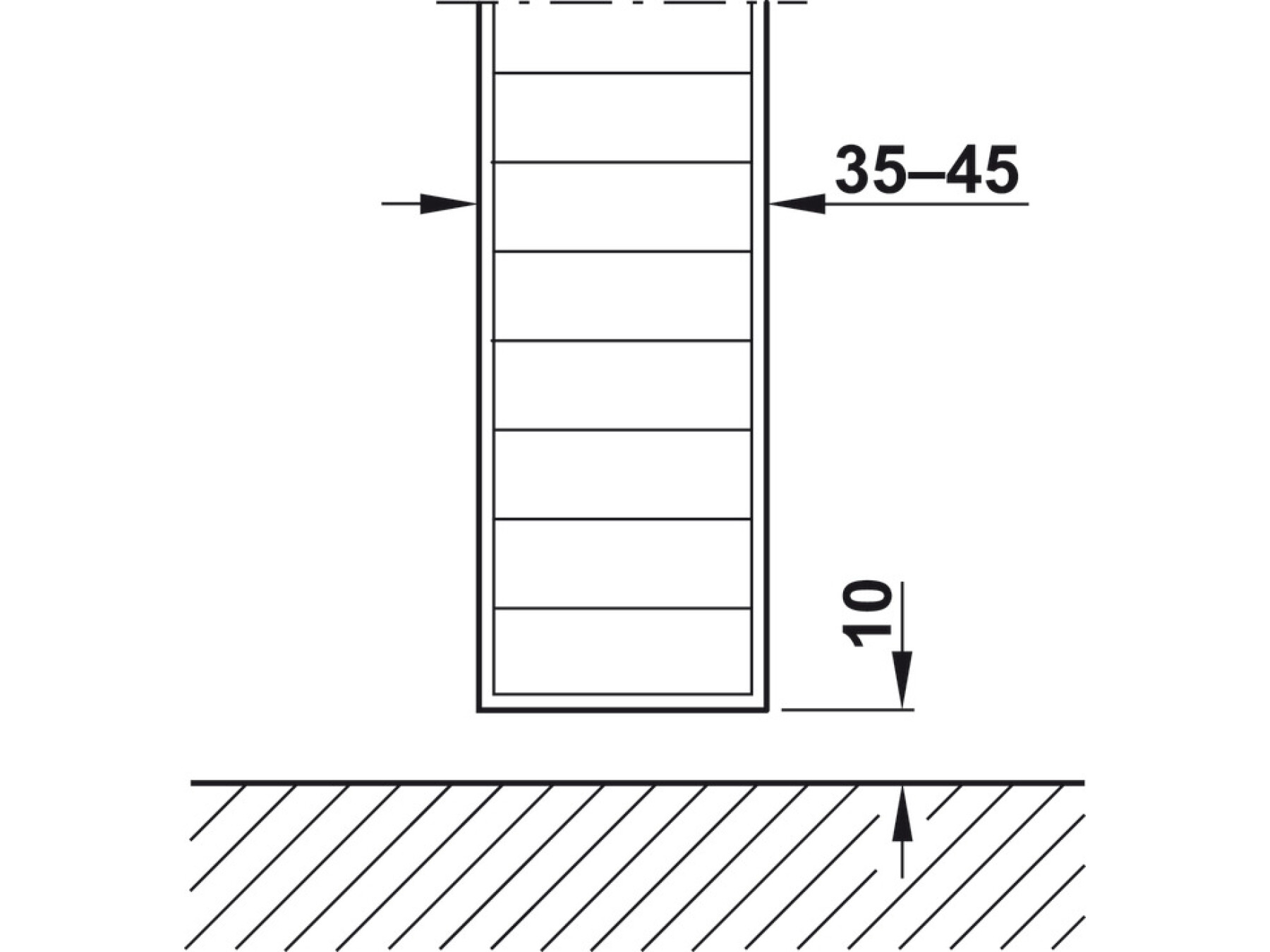

• Door thickness: 35 - 45 mm


• Supplied with: Fitting set consists of 1 x Stop with adjustable retainer, 1 x Suspension profile, pre-drilled for countersunk screws, anodised aluminium, 1 x Cover cap, anthracite grey plastic


• Order reference: Tracks, hinges and accessories to be ordered separately
