Telescopico Fitting Set 2/3 Doors 80kg
Part Number: 943.03.014
Top hung system, For 3 doors, max. door weight 80 kg
Price:
£1,126.38
Per Item
A range of systems for straight sliding timber doors to allow two, three or four doors to slide togetherFor... Read More
Product Information
Product Details
A range of systems for straight sliding timber doors to allow two, three or four doors to slide together
For internal residential or commerical applications
Soft close is standard for two doors bi-parting, telescopic and four doors telescopic bi-parting
Supplied with

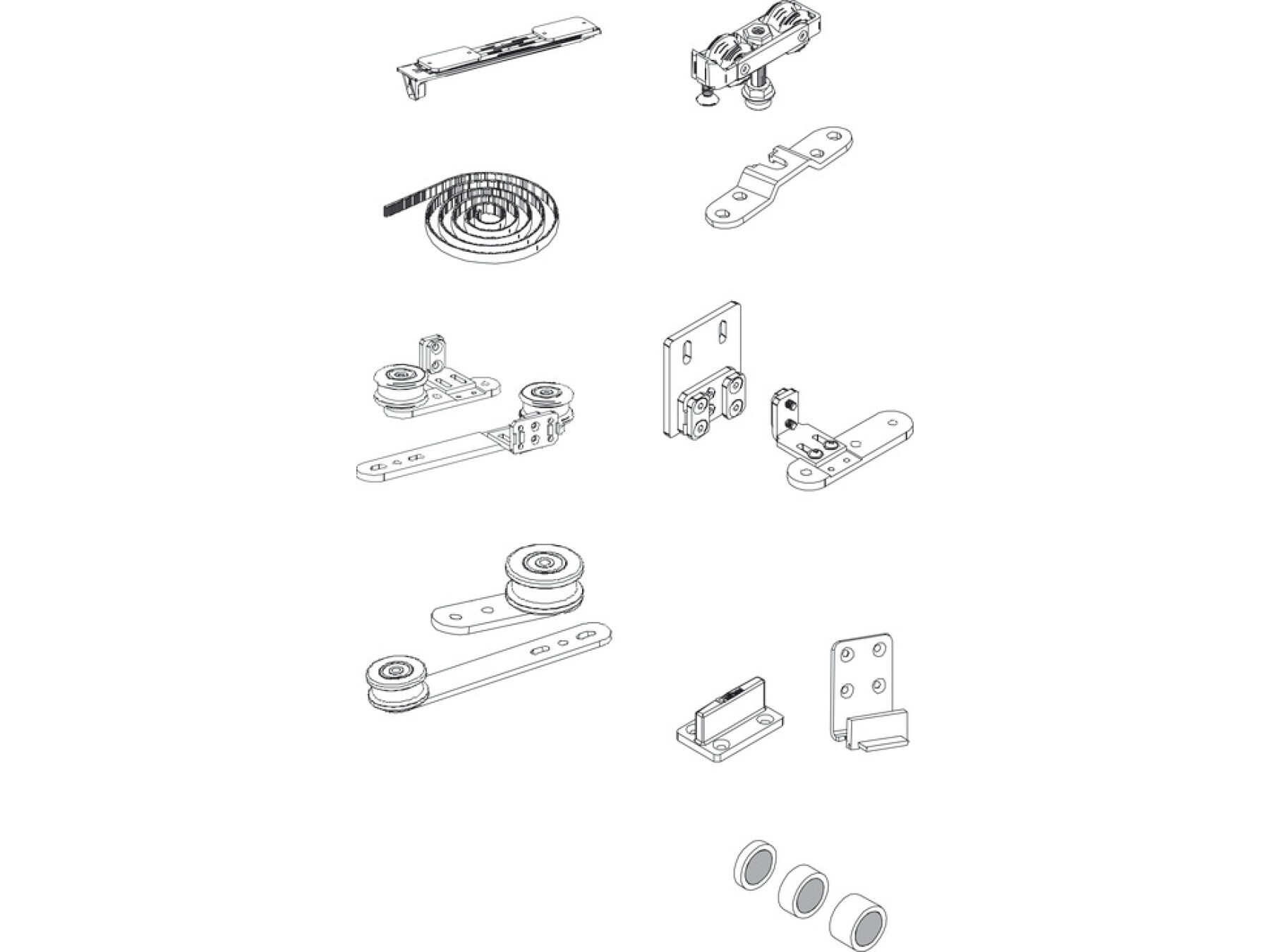

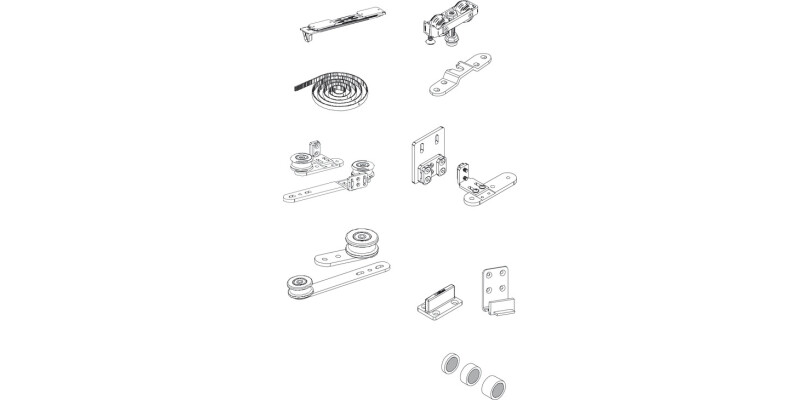

Fitting set for 3 doors with soft brake, max. door weight 80 kg, includes 6 x Standard trolley hangers, aluminium/polyamide, steel bearings, 2 x Soft brake activation mechanisms, 6 x Trolley hanger mounting brackets, aluminium, 1 x Bottom guide, floor mounted, plastic, 2 x Tooth belt, polyurethane, 1 sets x Fixing clamp set for belt, steel, 1 set x Guide pulley set, 2 sets x Telescopic progressive roller set, aluminium/polyamide, steel bearings, 2 x Bottom guides, door mounted, for second door, 10 sets x Track spacer set, 5 x or 10x of 5-10-15 mm spacers included and fixings
Specifications
Number of door leaves per set
2.00
For door material
Wood
Soft closing mechanism
With soft and self closing mechanism on both sides
For door weight
≤80 kg
For door width
855 – 1,500 mm
Material/finish
Aluminium, Steel
Mounting type
Ceiling installation
For door thickness
27 – 45 mm
Area of application
Interior sliding doors
Suitable for
Commercial and public buildings
For door height
≤2,300 mm
Running position
Top
Order reference
Top track and additional fitting set (if required) to be ordered separately
