Slido Classic 160-P Fitting Set 1Dr

Part Number: 941.62.009
Top hung system, For 1 door
Price:
£35.31
Per Item
VAT excluded

Note on door thickness Ceiling installation with clip panel - Max. 54 mmWall mounting with clip panel - Max. 52... Read More

Product Information

Product Details

Note on door thickness

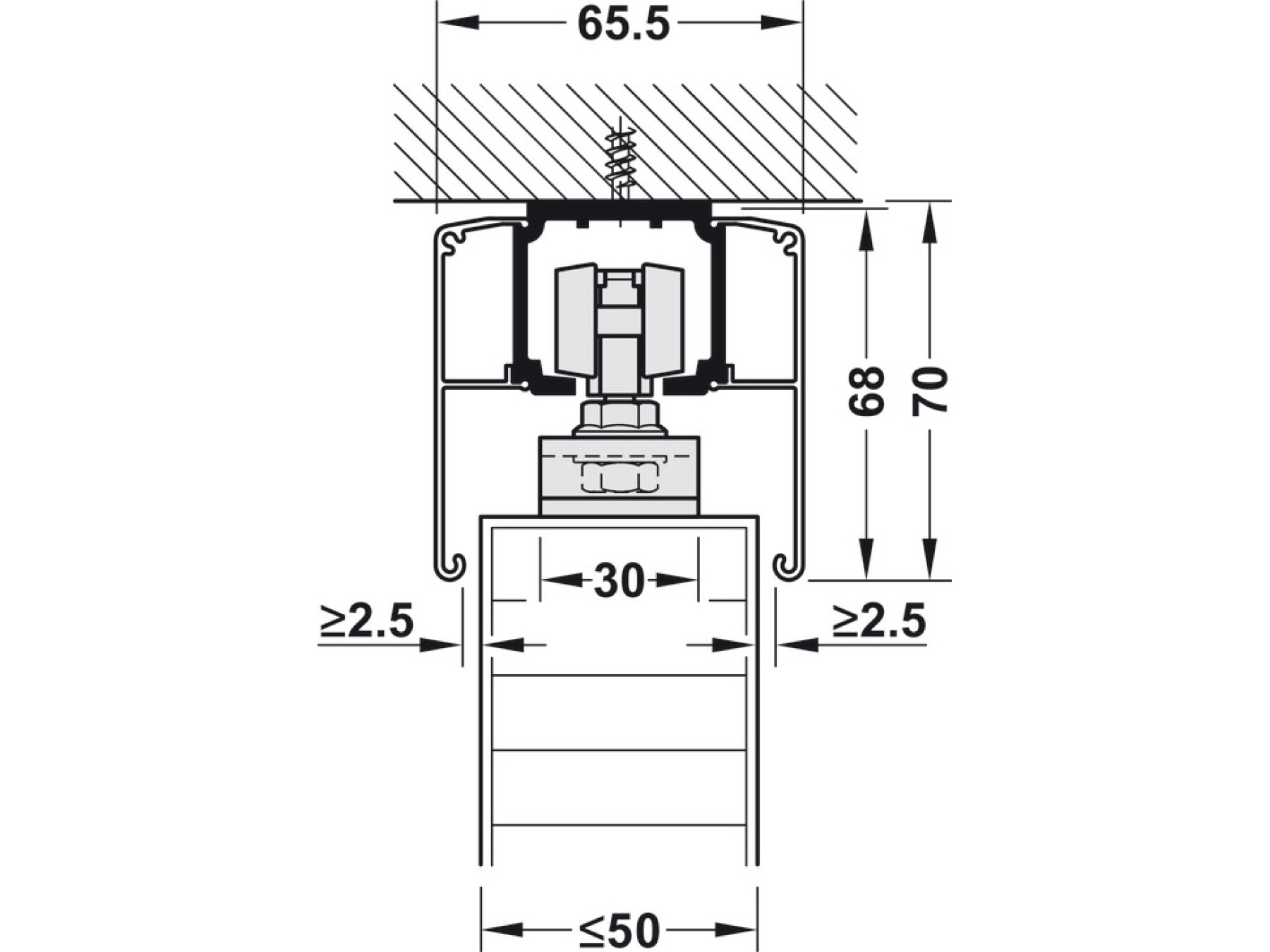

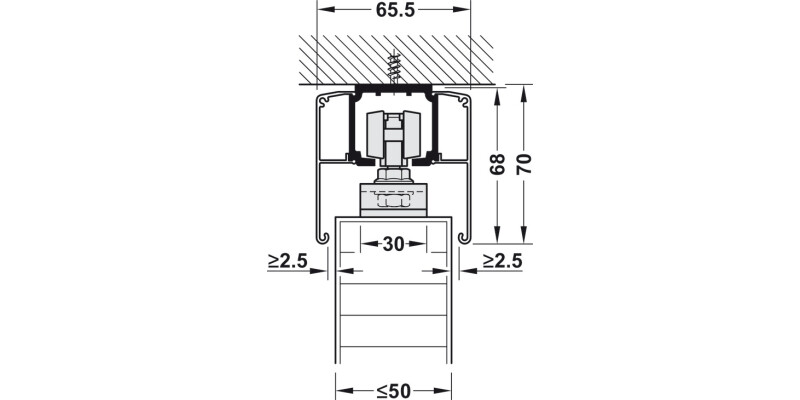

Ceiling installation with clip panel - Max. 54 mm

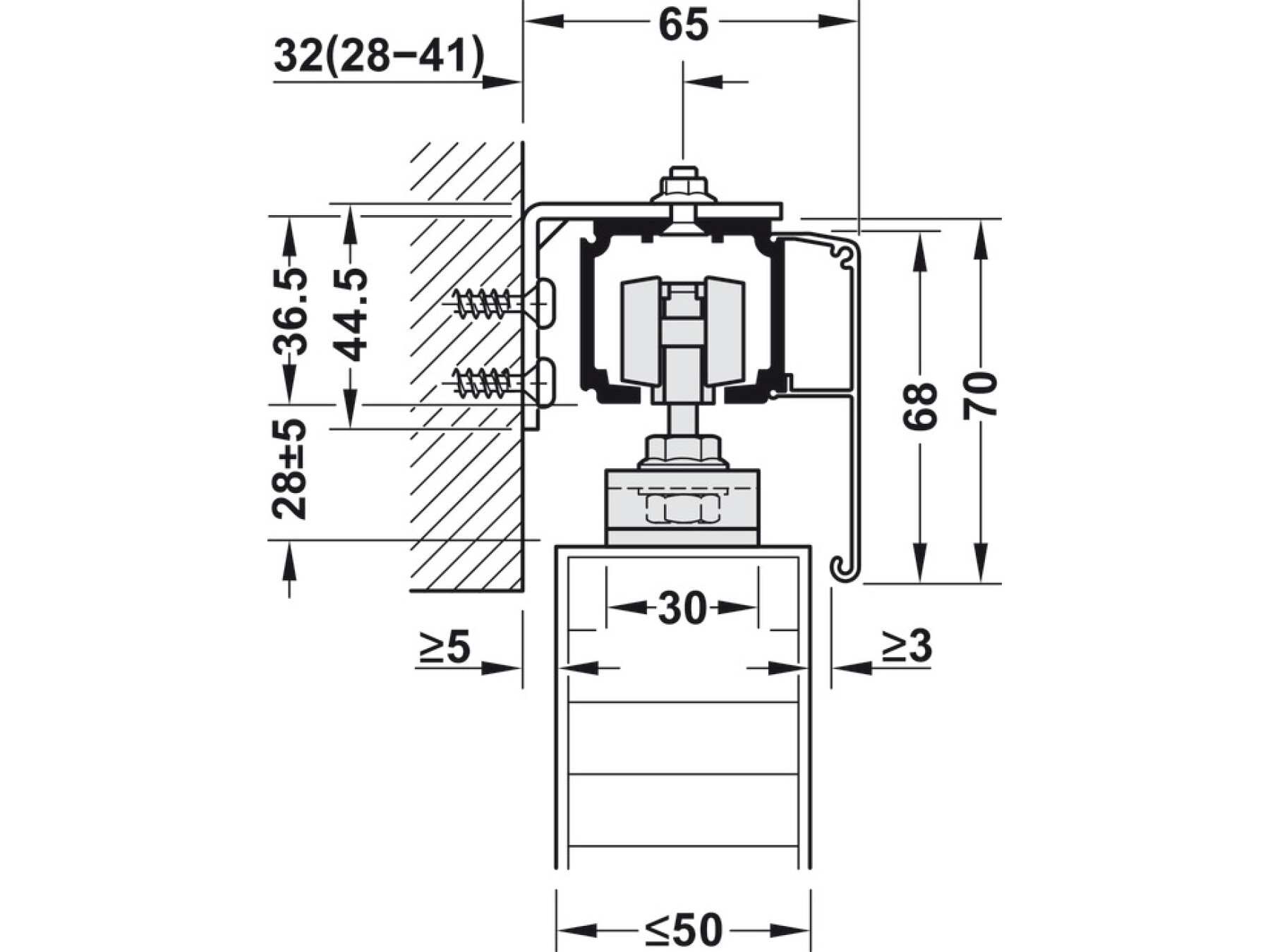

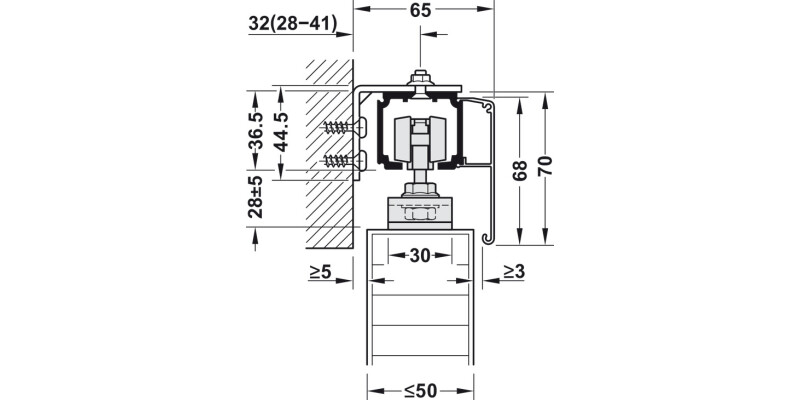

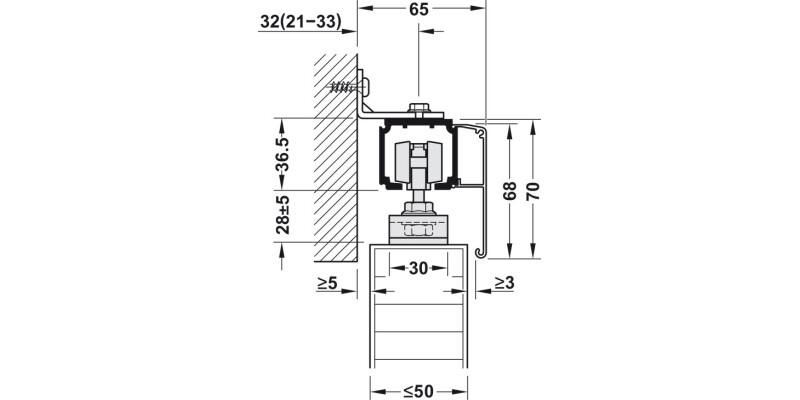

Wall mounting with clip panel - Max. 52 mm

Supplied with

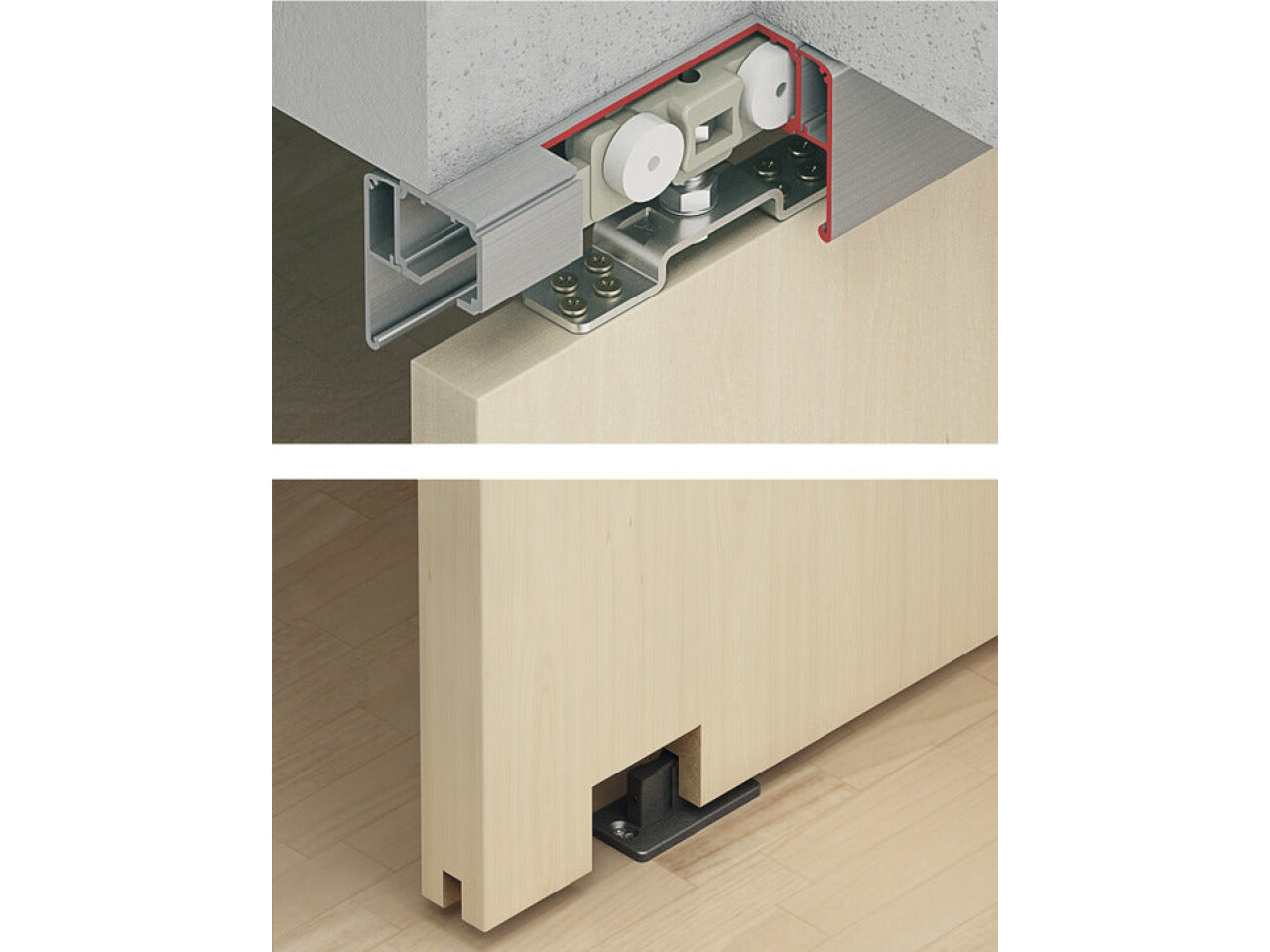

Fitting set for one door consists of:

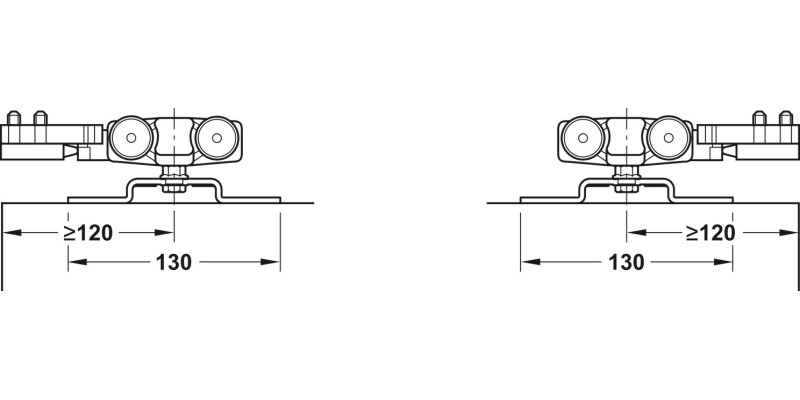

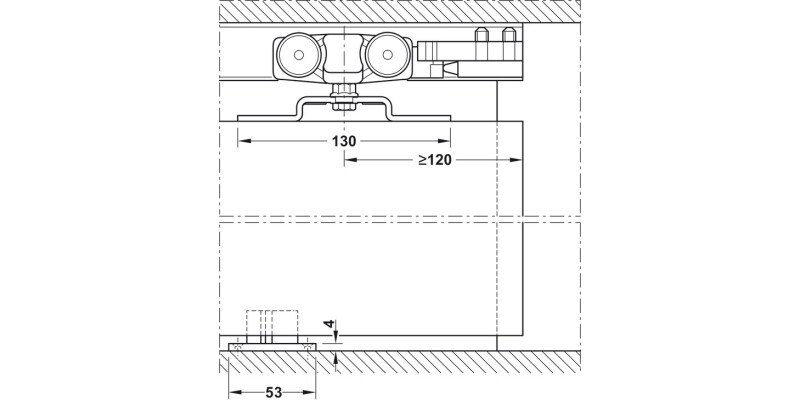

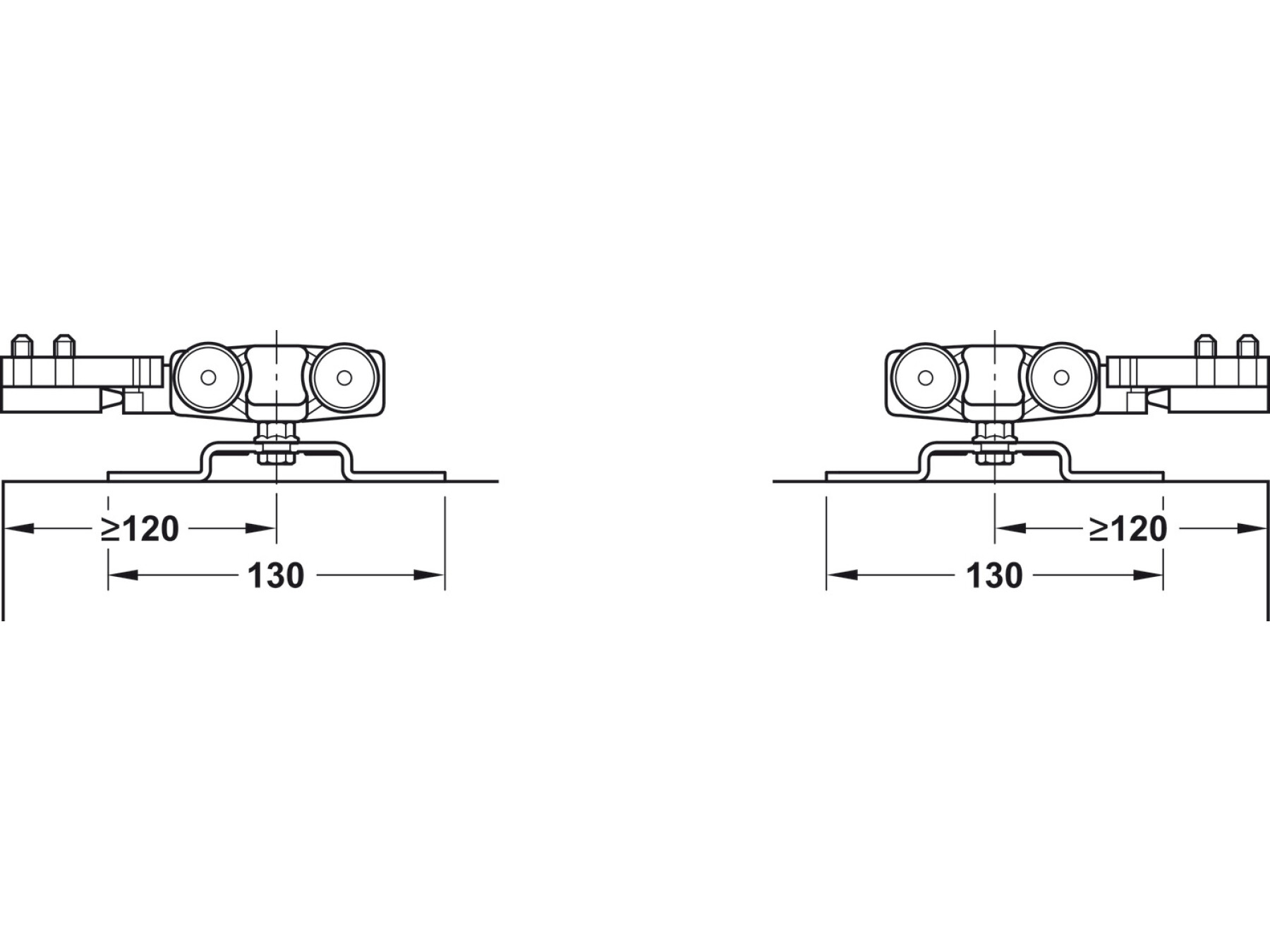

2x D Running gear, 4 rollers, support flange for screw fixing, galvanized steel
2x E Track buffer, with retaining spring and rubber buffer

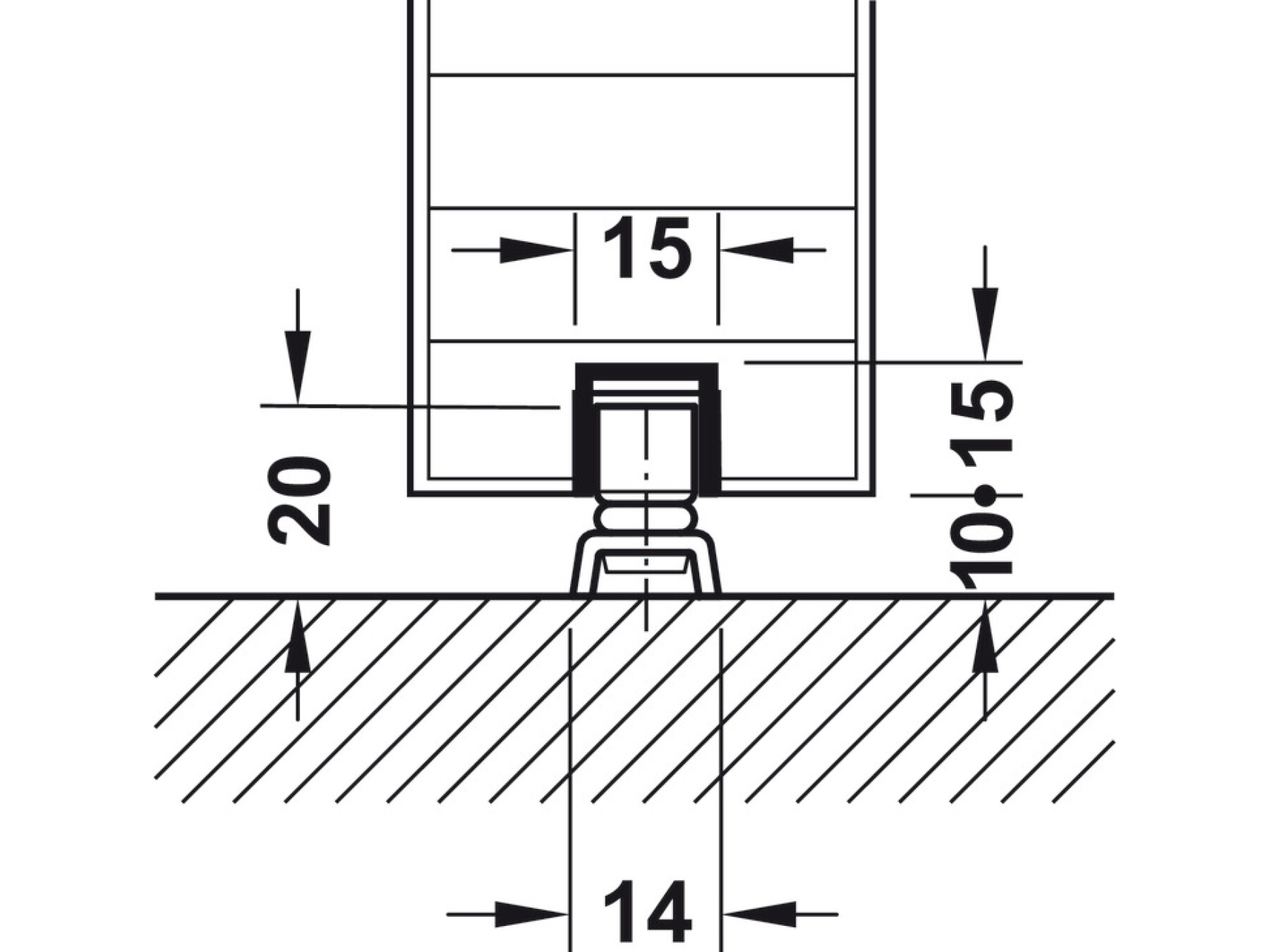

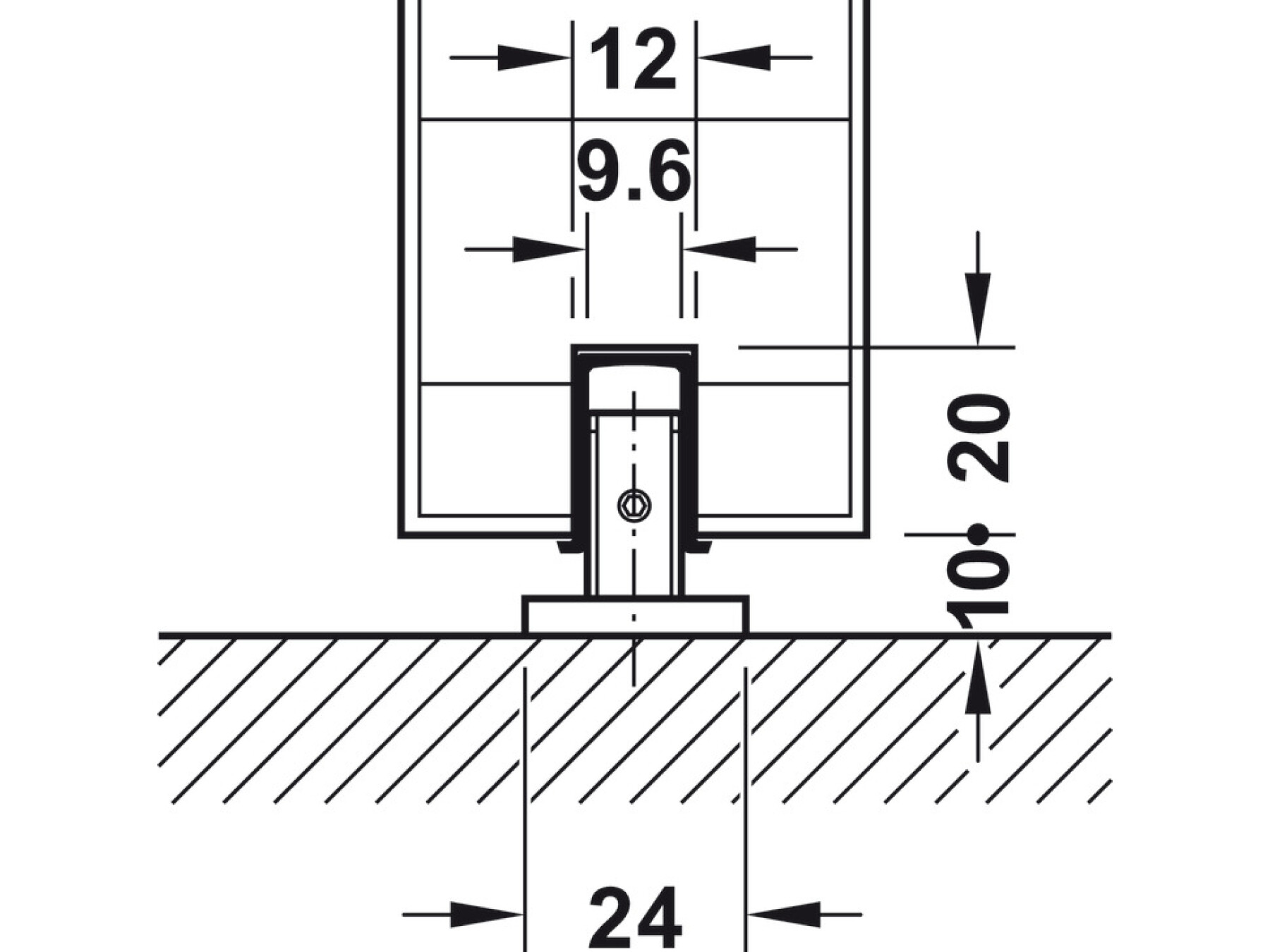

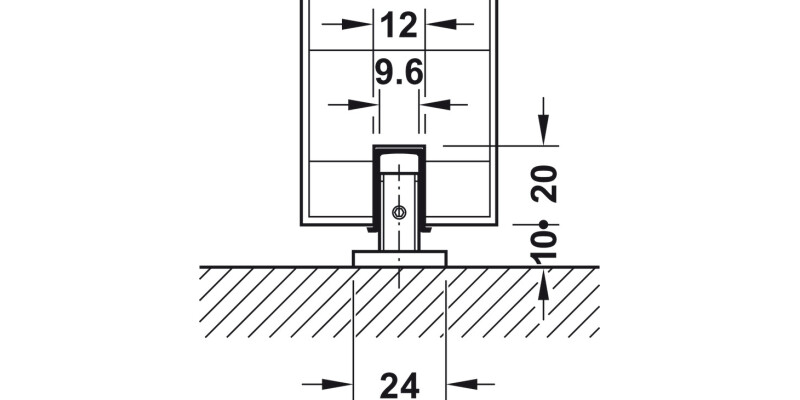

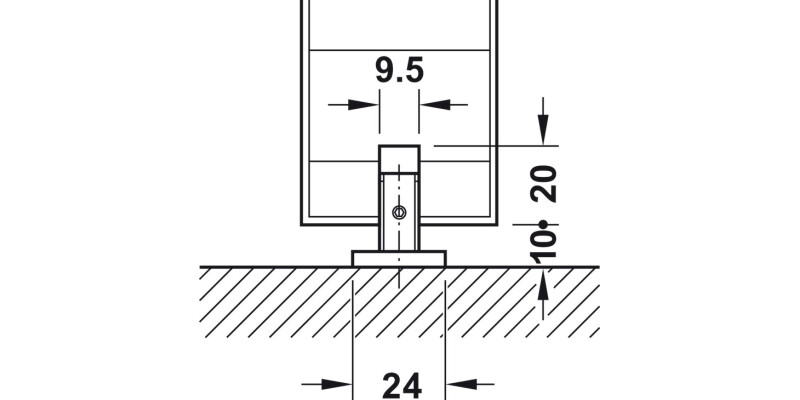

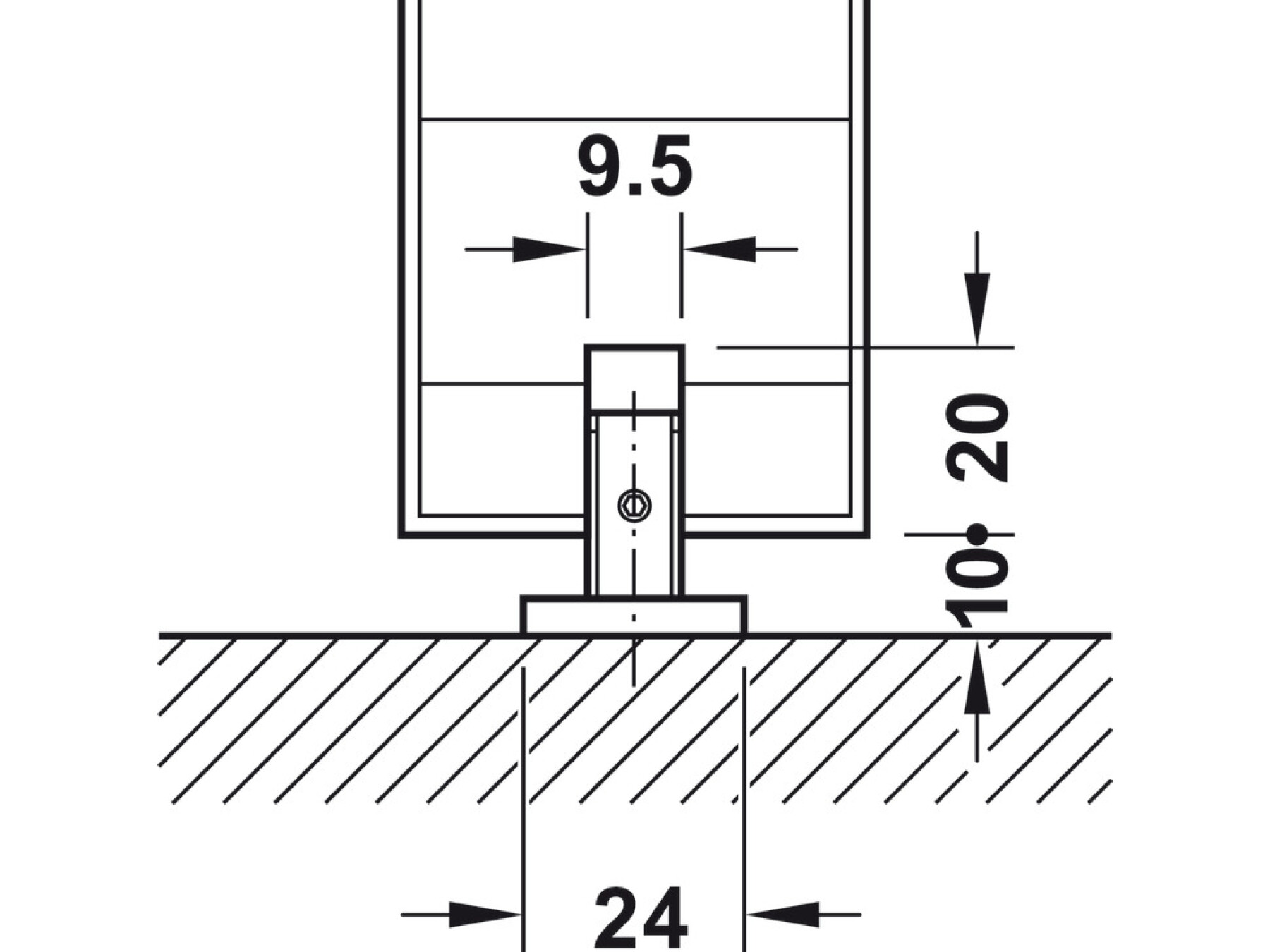

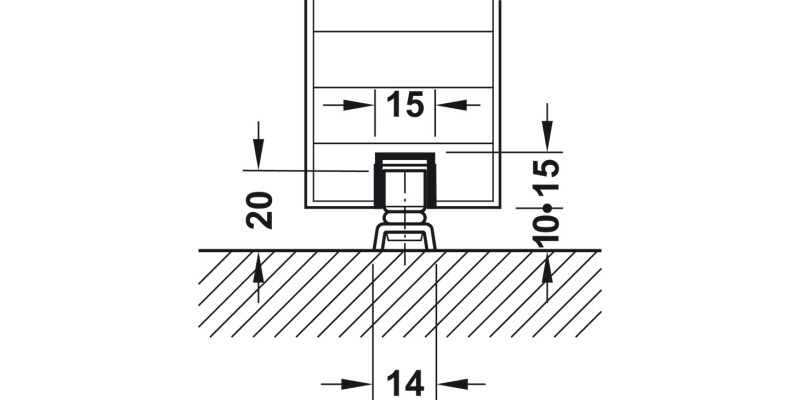

1x F Bottom guide, 24 x 60 x 30 mm, black plastic

Warranty/Guarantee information

This product is covered under Häfele’s Lifetime Guarantee.
All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.
All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.

For more information go to:
Services > Customer Support > Häfele Lifetime Guarantee

End cap for ceiling installation with fascia on both sides not available. One pair of end caps can be glue fixed vertically in the centre of the running track (optional).

Specifications

Number of door wings in a system max.

1 to 2

Number of door leaves per set

1.00

For door material

Wood

Model

160-P

Soft closing mechanism

Without soft and self closing mechanism

For door weight

≤160 kg

Mounting type

Ceiling installation, Wall mounting

Adjustment facility

Height adjustment ± 5 mm

Area of application

Interior doors

Running position

Top

Adjustment facility

height adjustment

Installation

Suspension with screwed on support flange

Door processing

With recess

Hafele Lifetime Guarantee

10 years

Order reference

Tracks and accessories to be ordered separately
