Hawa Symmetric 80 FitSet 2 Bi-Fold Door
Part Number: 940.81.010
Top hung system, For 2 bi-parting doors
Price:
£676.98
Per Item
Junior 80 is a vertically adjustable sliding door fitting for interior doorsExceptionally light and silent... Read More
Product Information
Product Details
Junior 80 is a vertically adjustable sliding door fitting for interior doors
Exceptionally light and silent action
All parts are corrosion resistant
Ideal for cavity applications
Supplied with

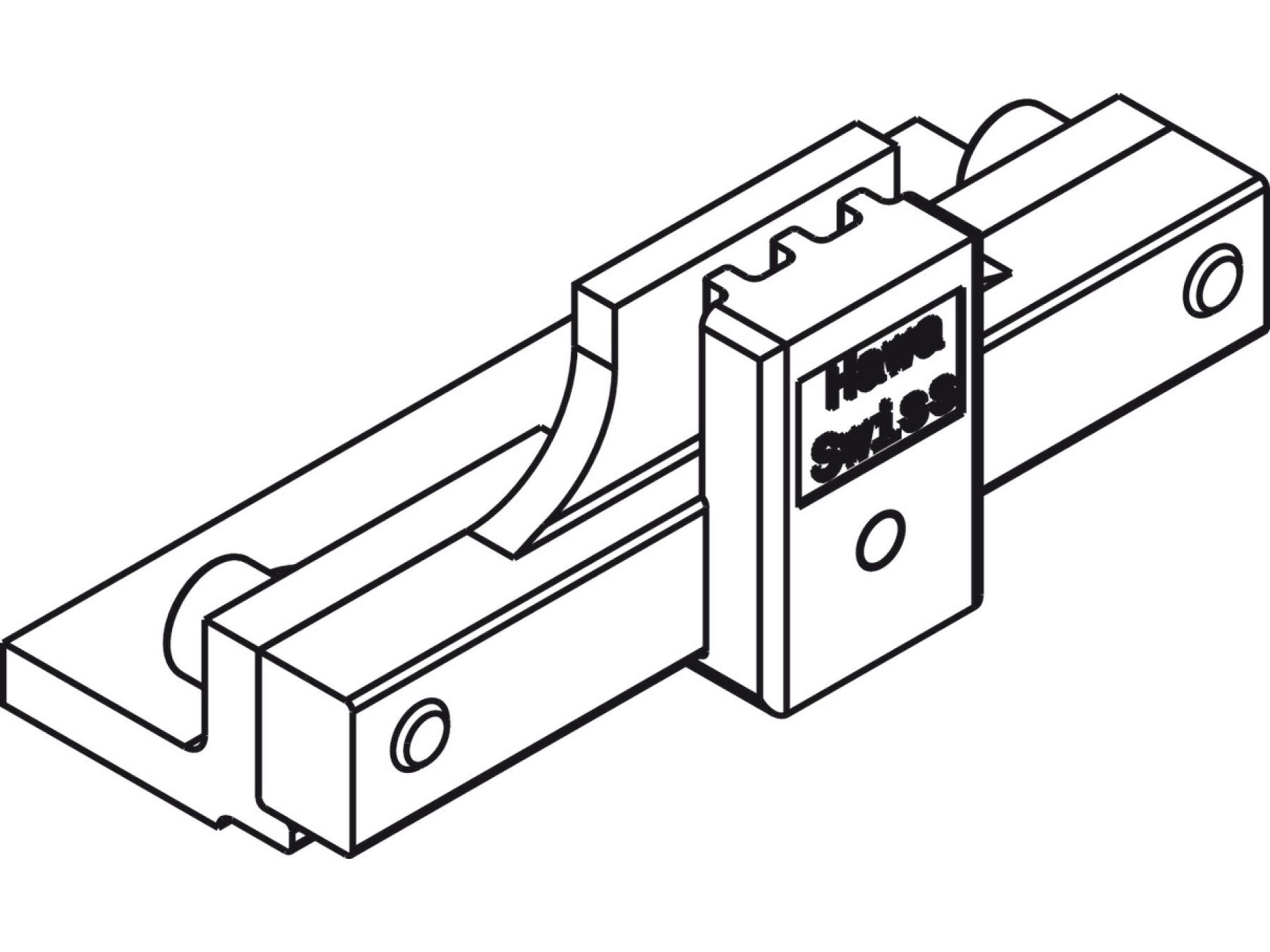

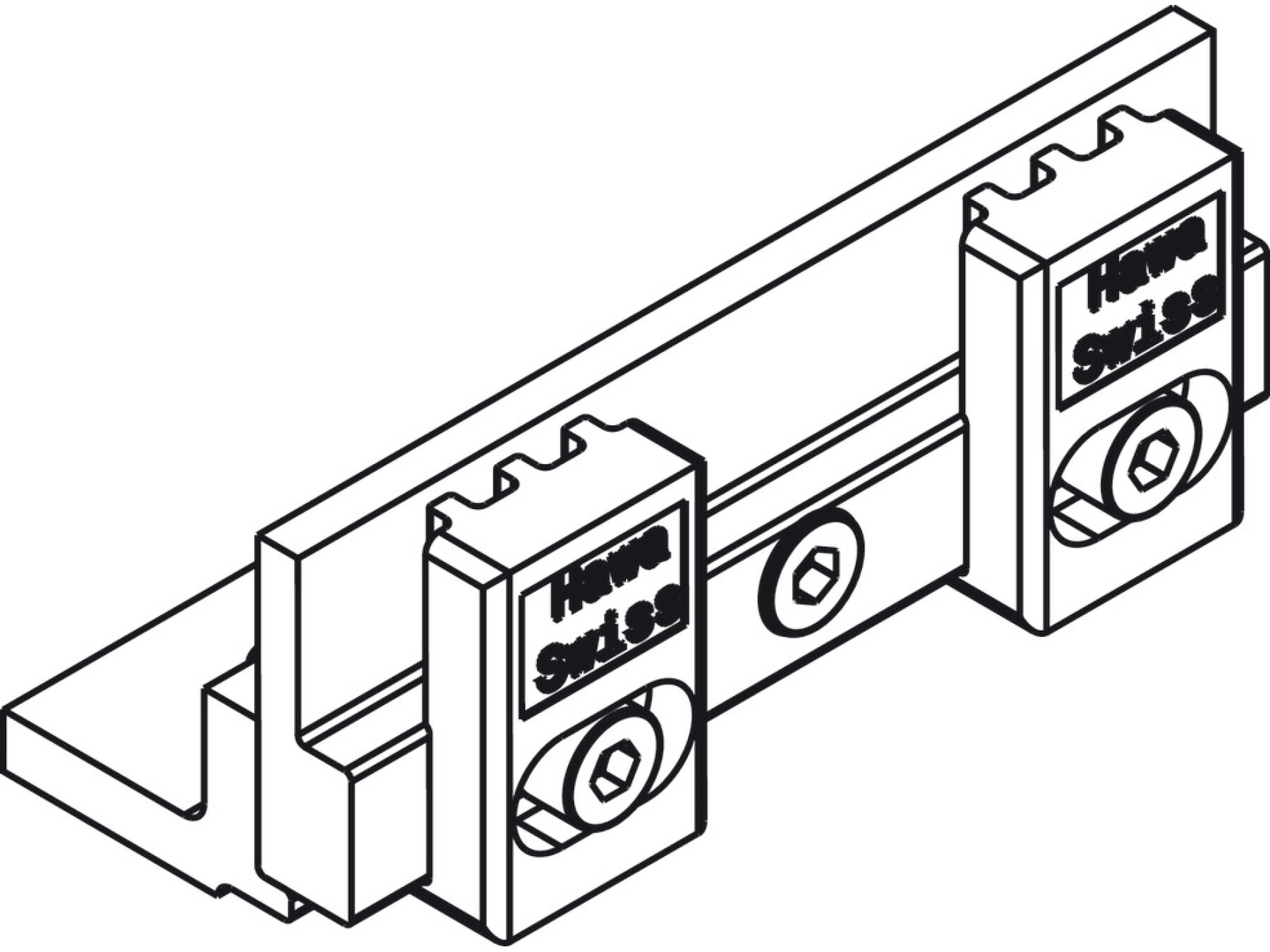

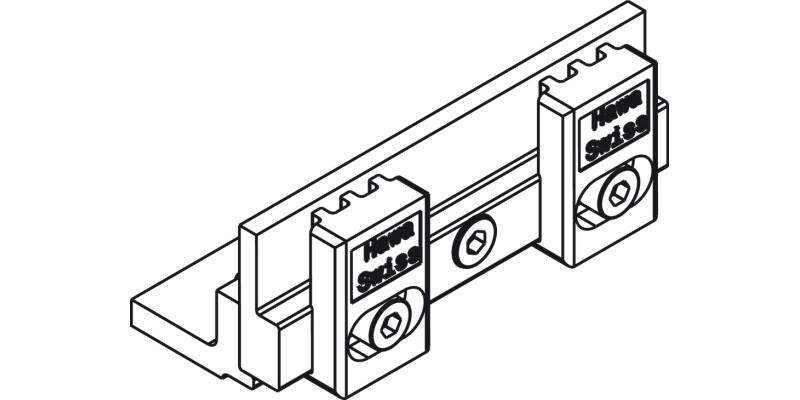

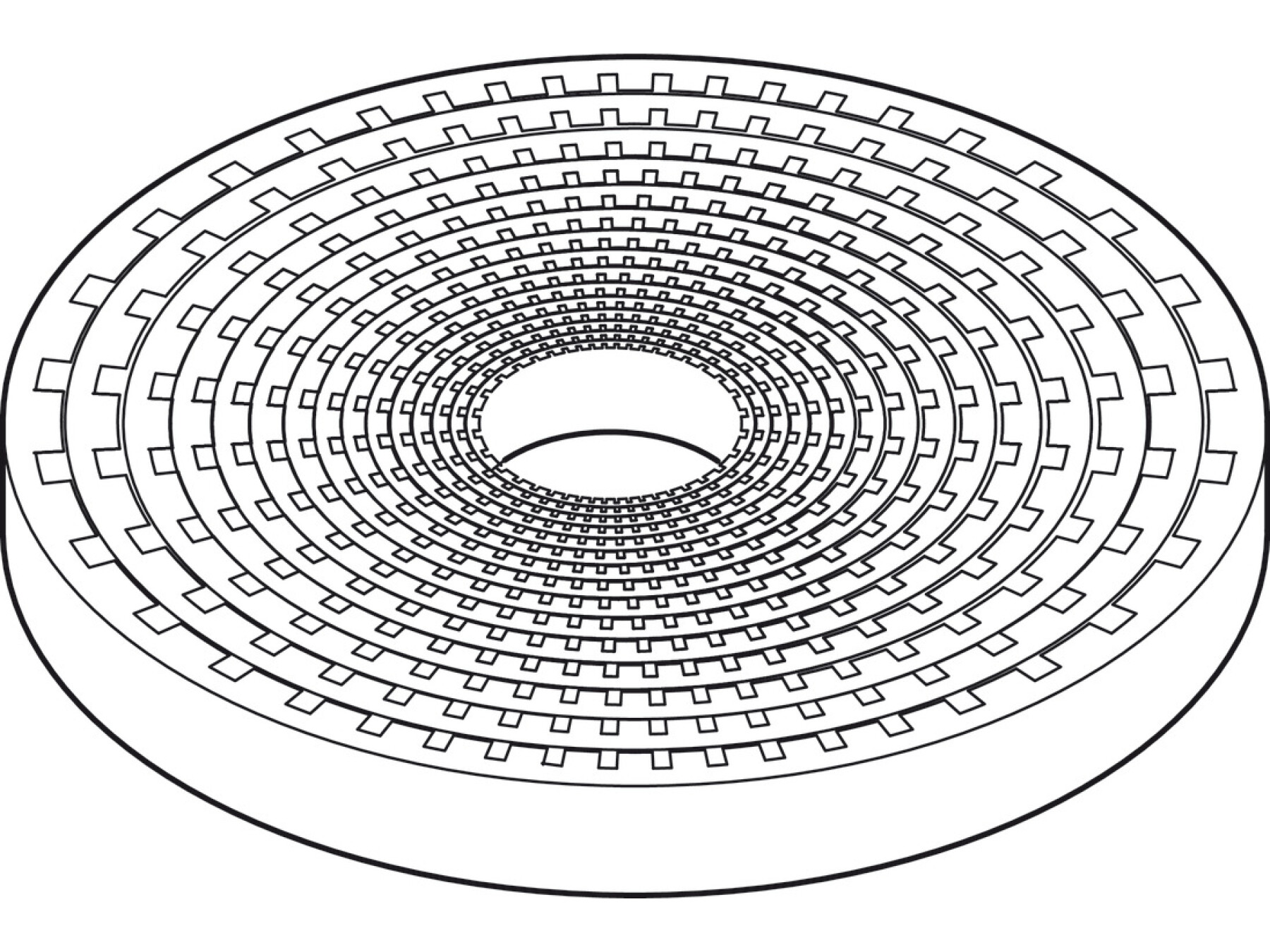

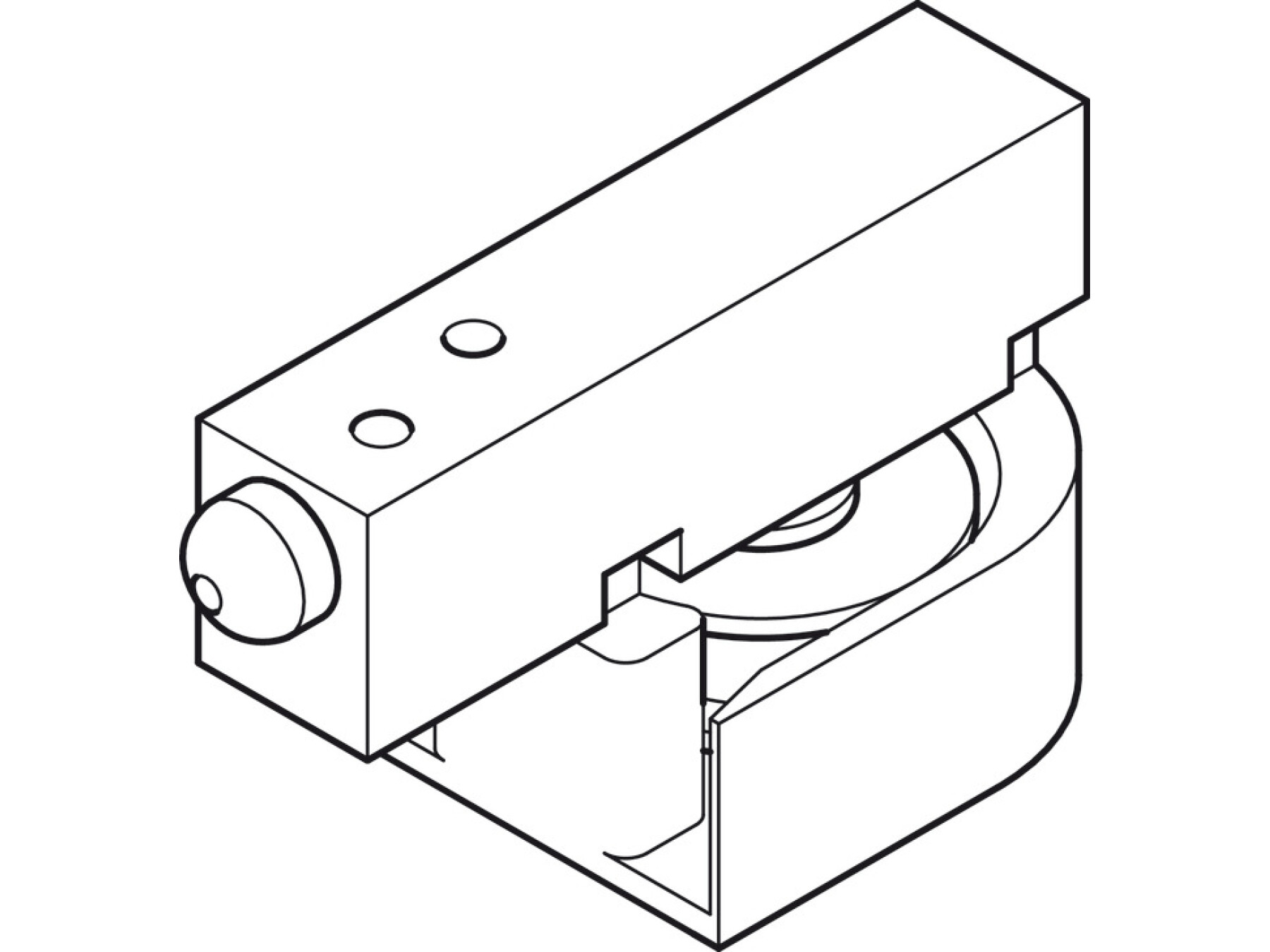

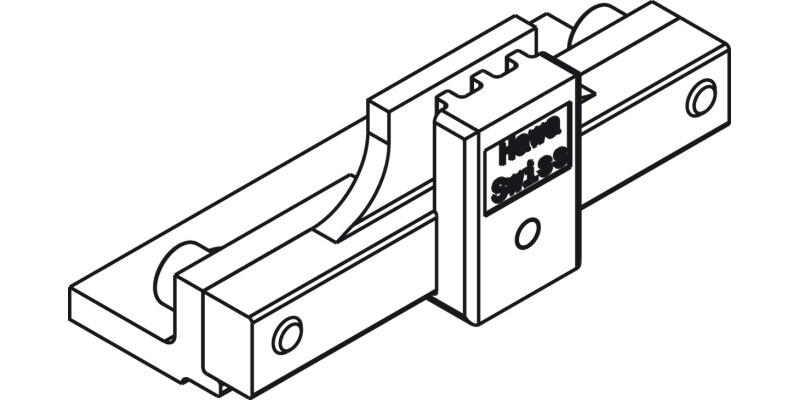

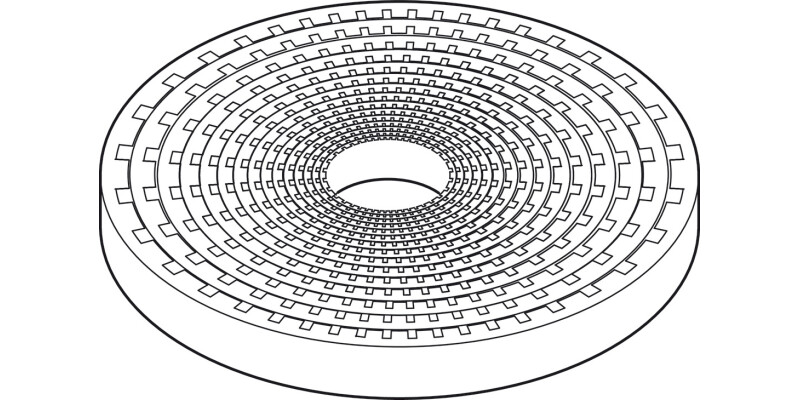

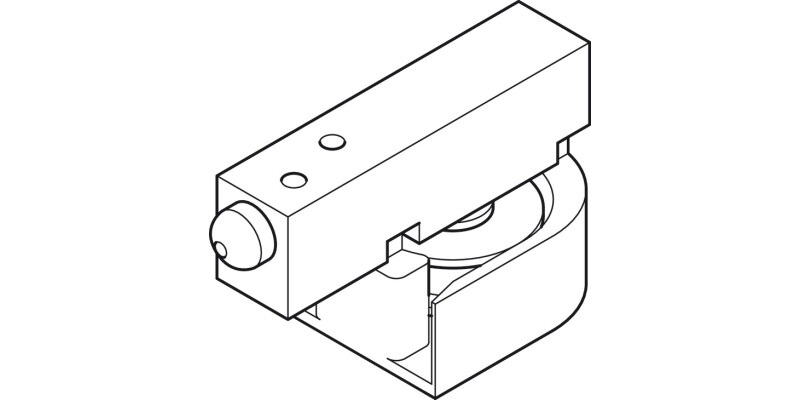

Set consists of 2 x Guide roller, track mounted with rubber stopper, 2 x Clamp, for fastening the toothed belt, 1 x 10 m length of Toothed belt, transparent polyurethane with metal insert, black, fibre-glass reinforced
Specifications
Number of door wings in a system max.
2
Model
80/Z
For door weight
≤80 kg
For door width
500 – 1,200 mm
Material/finish
Rubber, Polyurethane
Mounting type
Wall pocket solution
For door thickness
≥26 mm
Area of application
For 2 doors
Running position
Top
Door processing
for screw fixing
Order reference
Hawa-Junior 80 tracks and fitting sets to be ordered separately
