Hawa Telescopic 80/2 Fitting Set

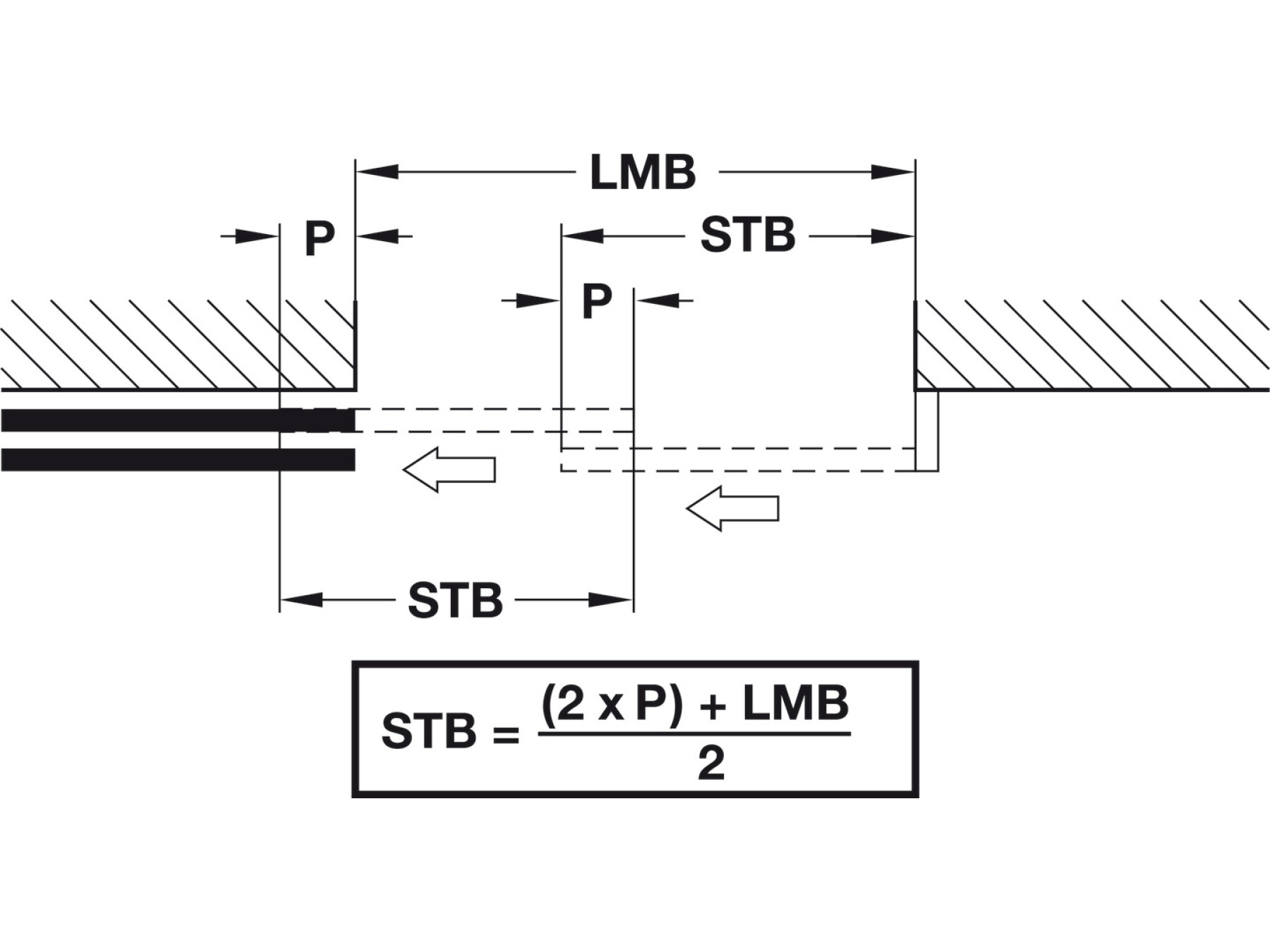

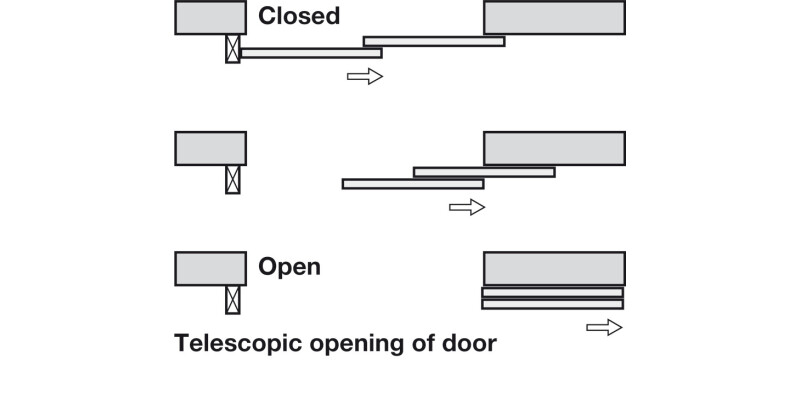

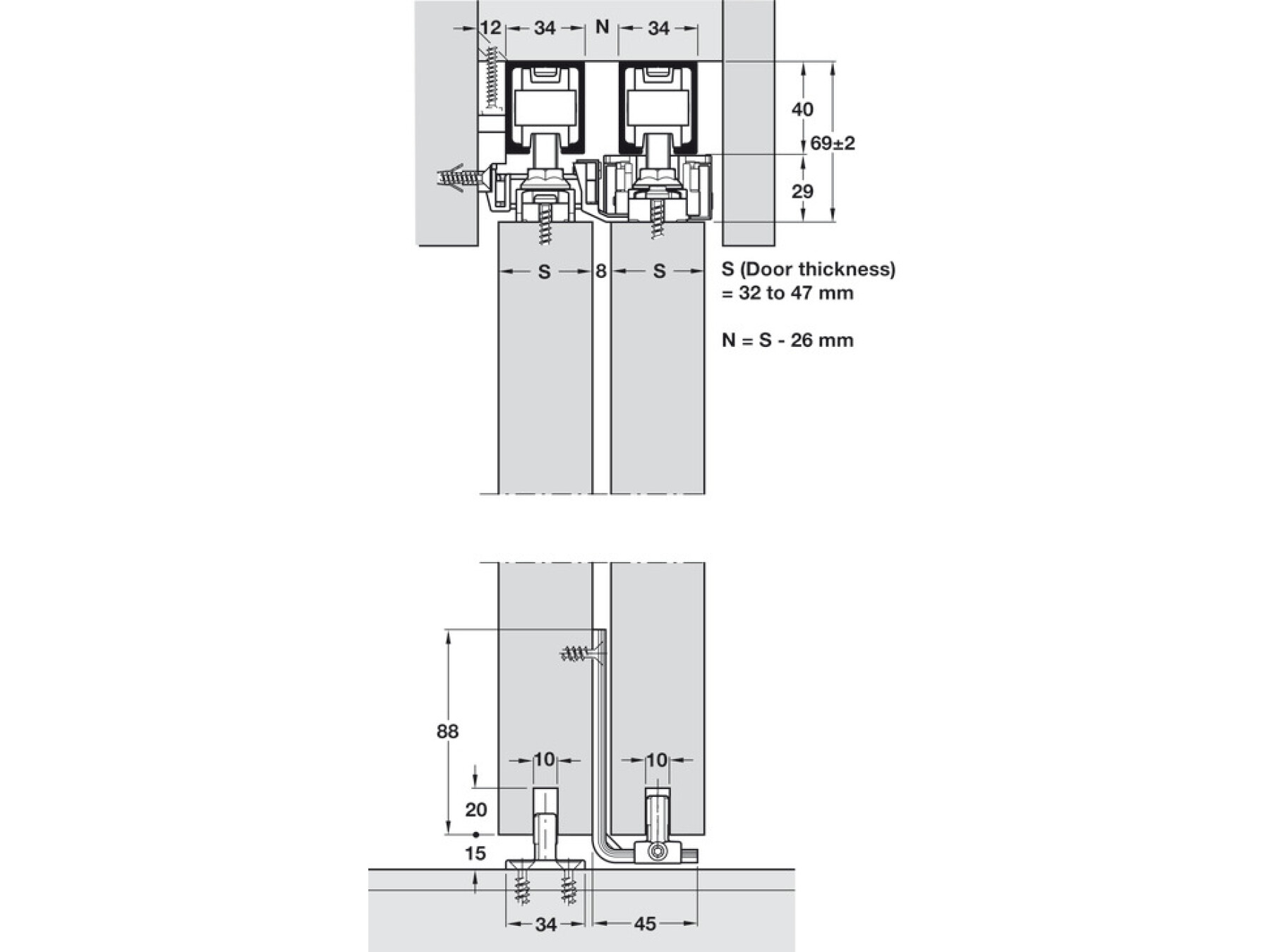

To allow two panels mounted on the Junior 80 system to move simultaneously, to one side, possibly into a cavityInstallation drawing reference 20660

• : For 2 doors


• Suitable for: Hawa-Junior 80

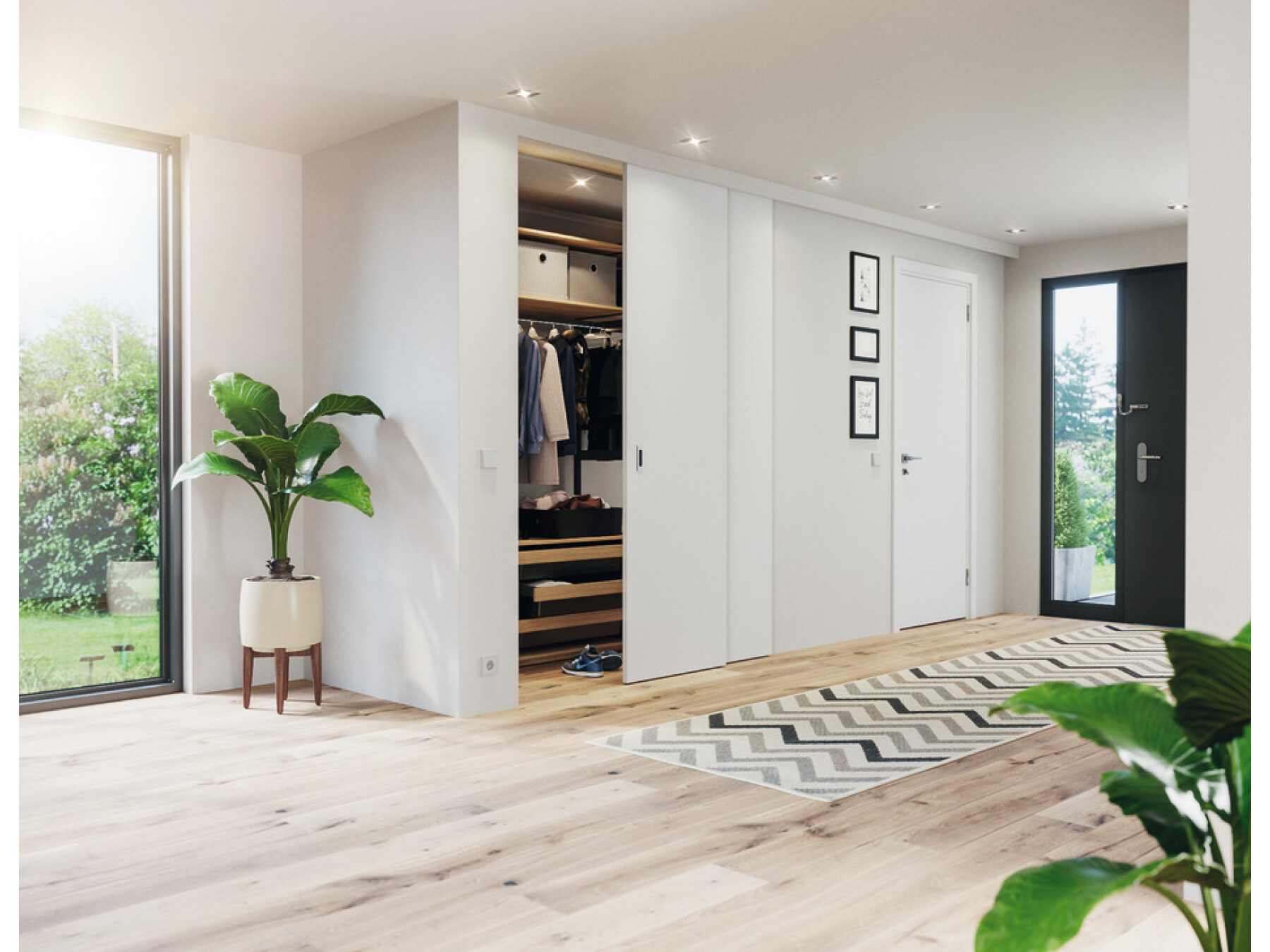

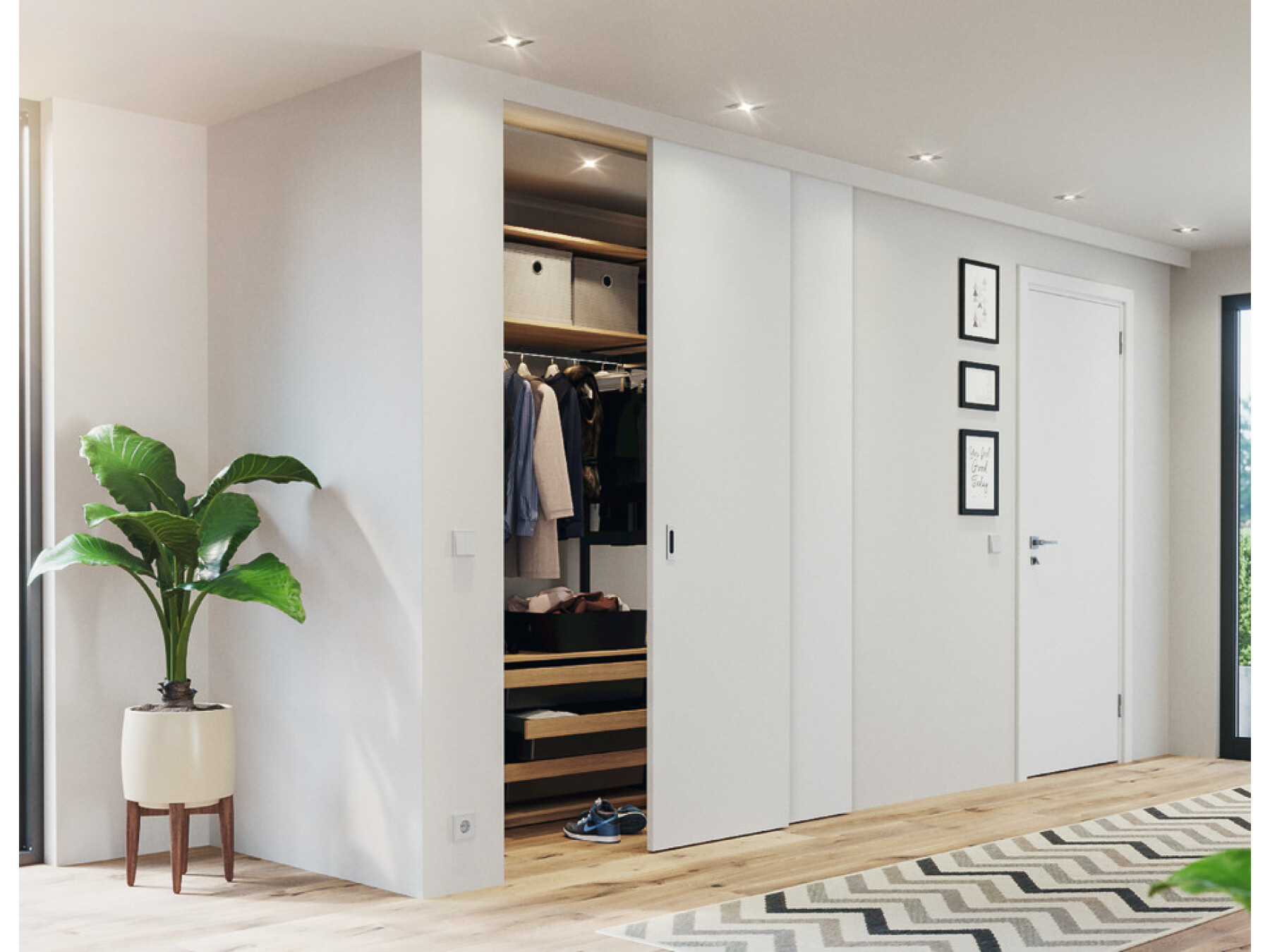

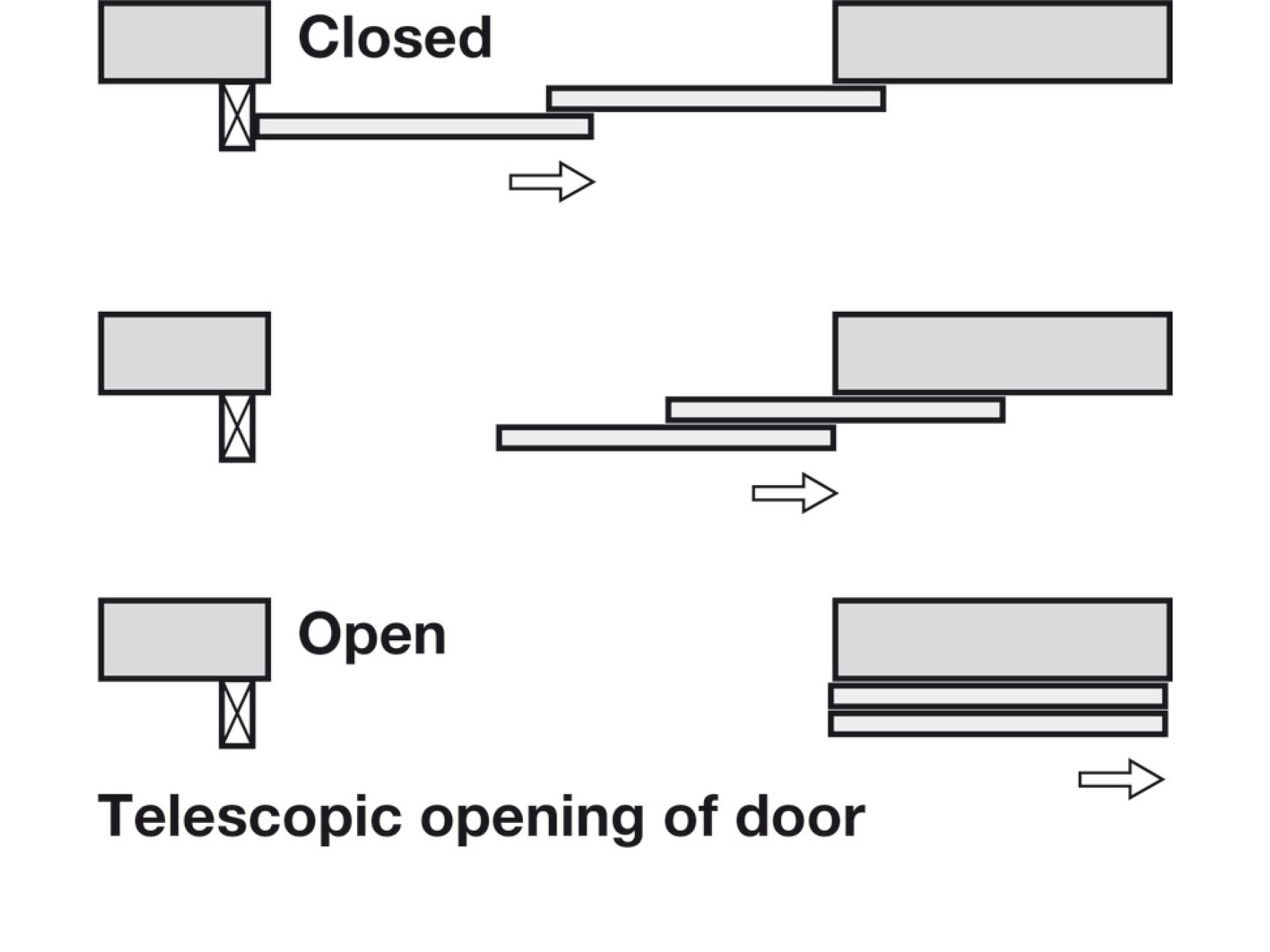

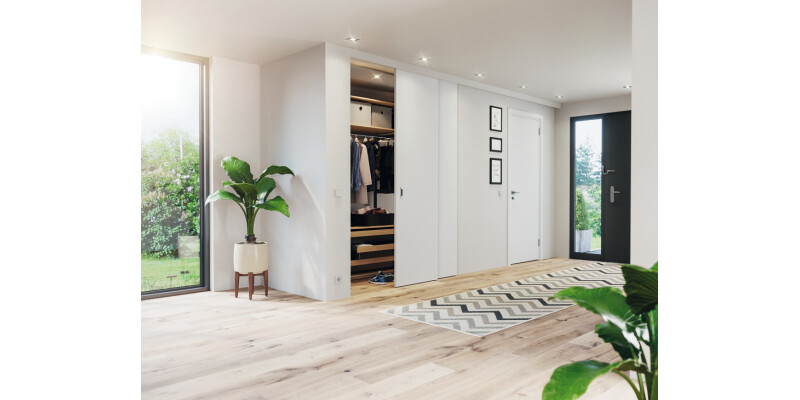

• Application: Interior telescopic doors


• Adjustment facility: Height adjustment ¬¨¬®¬¨¬± 2 mm


• Installation: Ceiling installation


• Door weight: Max. 80 kg


• Door height: Max. 2300 mm

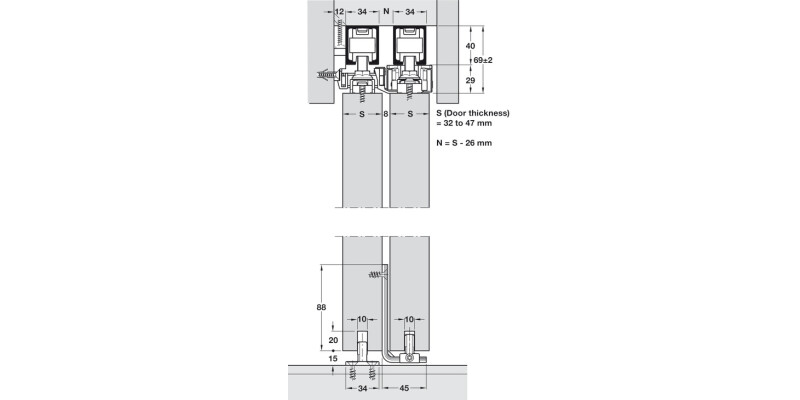

• Door thickness: 32-47 mm

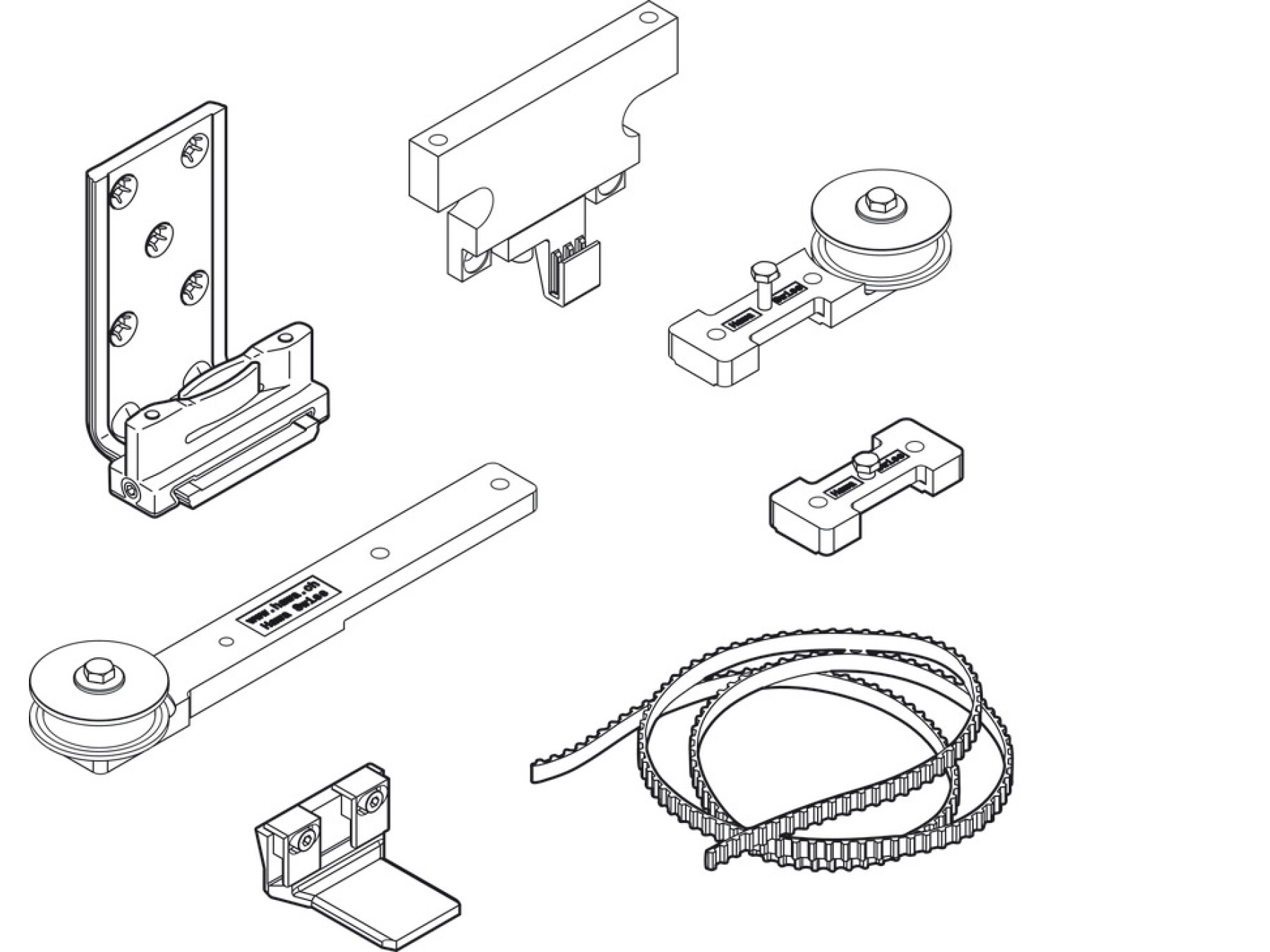

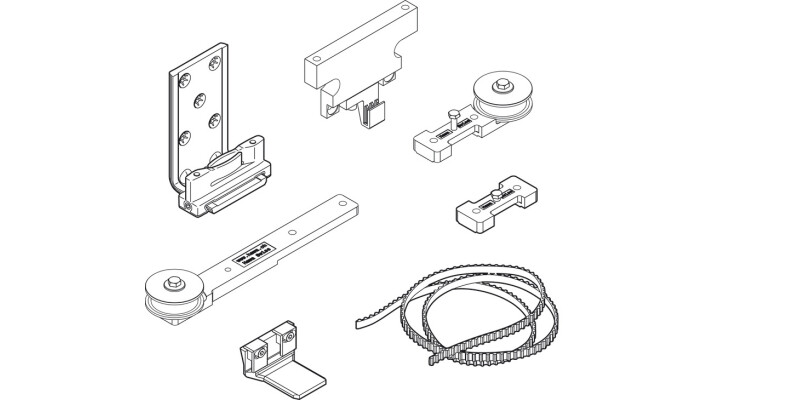

• Supplied with: 1 x Belt clamp, door mounted, adjustable, 1 x Counterplate, door mounted, 1 x Guide pulley wheel, long fixing plate, door mounted, 1 x Guide pulley wheel, short fixing plate, door mounted, 1 x Belt clamp, wall or ceiling mounted, 1 x Toothed belt, 2.7 m length, glass-fibre reinforced, black, 1 x Bottom guide, door mounted, bronze coloured


• :
