Hawa Junior 80Z Comp Set wo SoftMove 1Dr

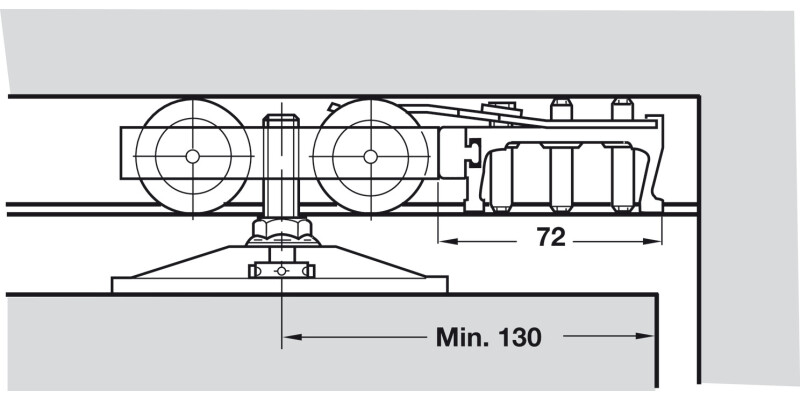

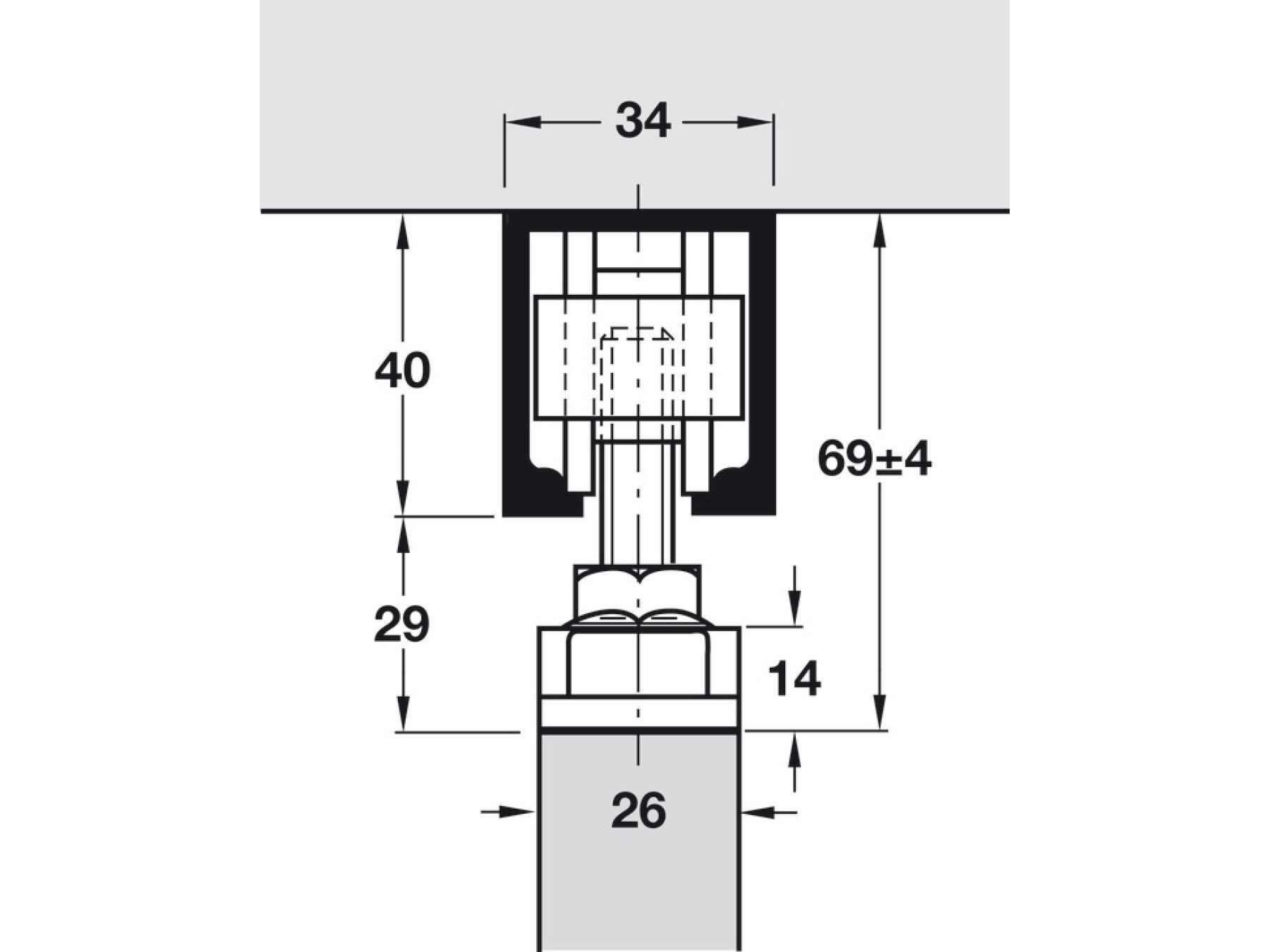

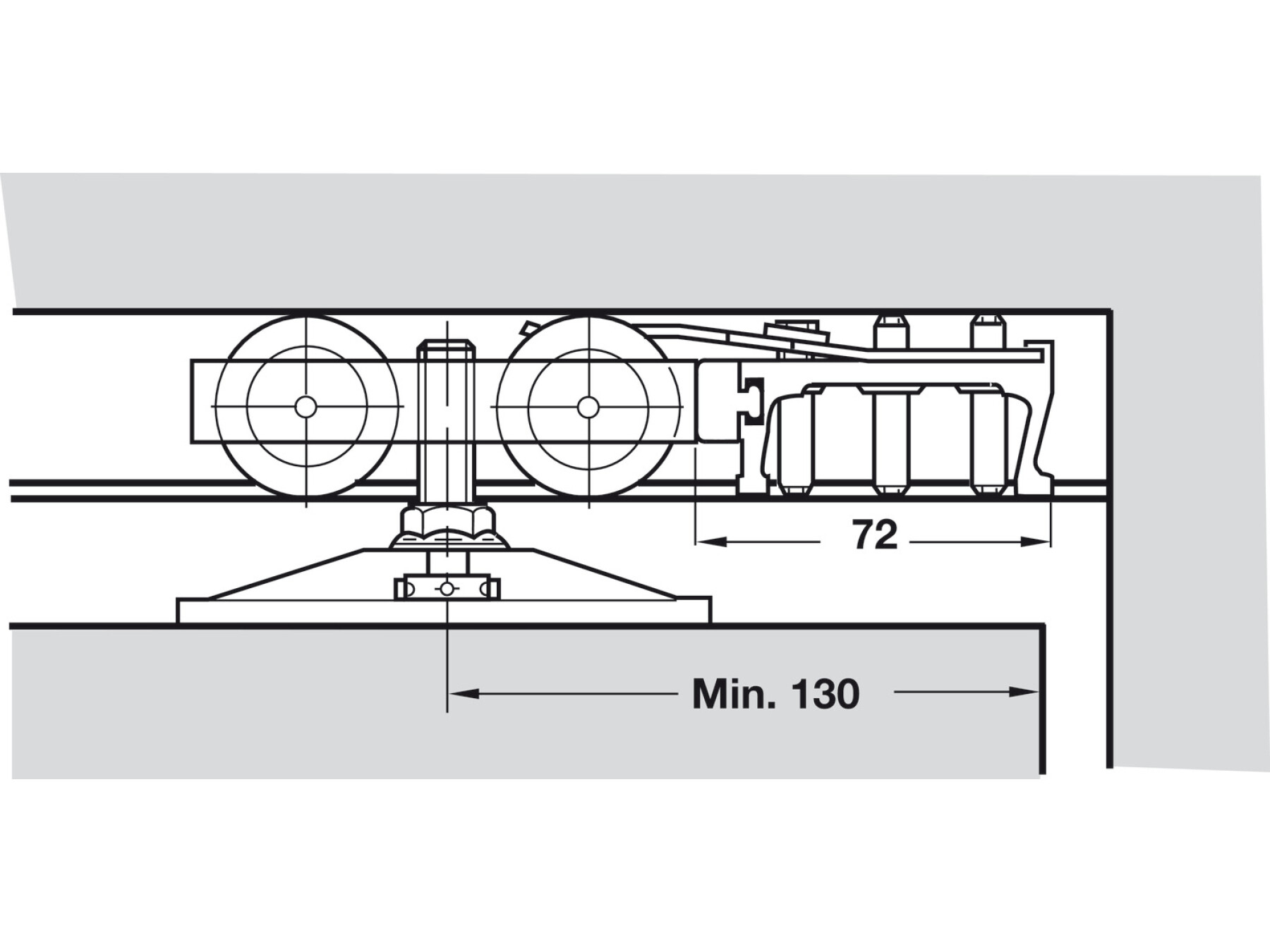

Junior 80 is a vertically adjustable sliding door fitting for interior doorsExceptionally light and silent actionAll parts are corrosion resistantIdeal for cavity applicationsInstallation drawing reference 17689

• : Hawa Junior 80/Z complete set for 1 door


• Application: Interior sliding doors


• Installation: Screw and clip fixing


• Adjustment facility: Height adjustment ¬¨¬®¬¨¬± 4 mm


• Door weight: Max 80 kg


• Door height: Max. 2300 mm


• Door thickness: Min. 26 mm


• Material: AluminiumZinc alloyPolyamidePlasticRubber


• Supplied with: Includes 1 x 2.0 m length track and all fittings required for 1 door, including 1 additional track stopper


• Order reference: Side fixing profiles and accessories to suit to be ordered separately if required
