Hawa Junior 80/Z FitSet w SoftMove 1Dr

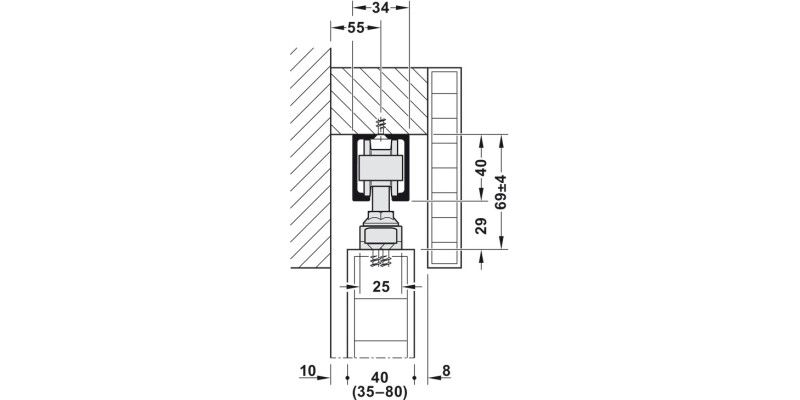

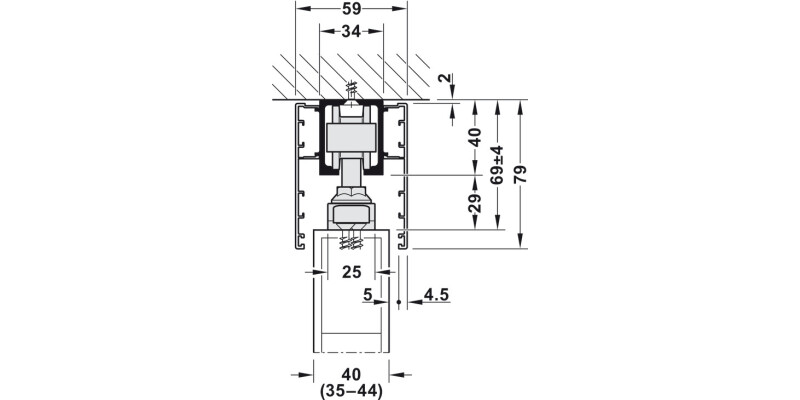

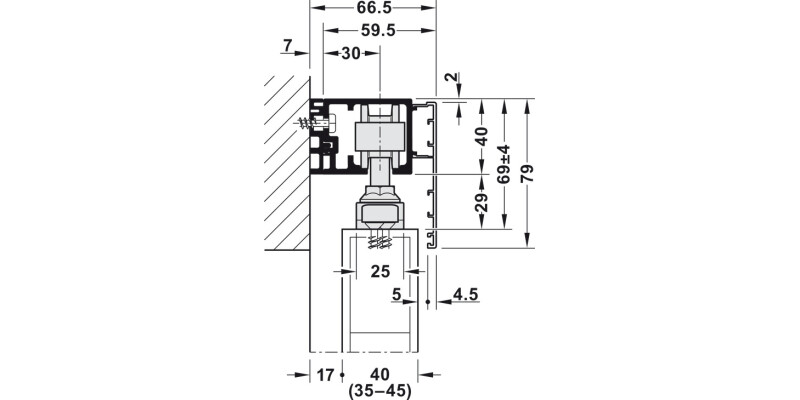

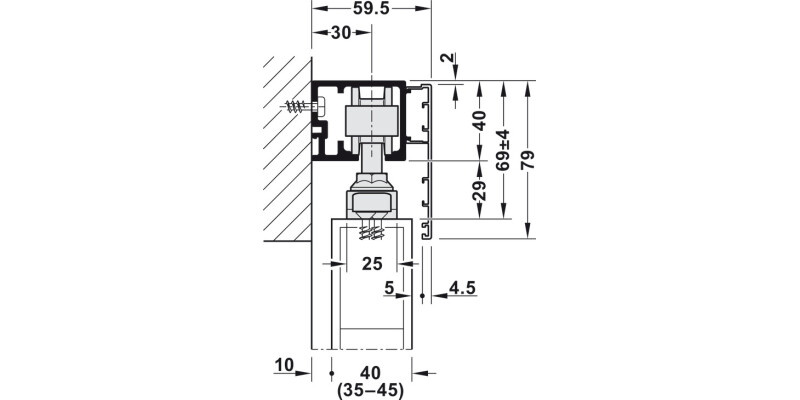

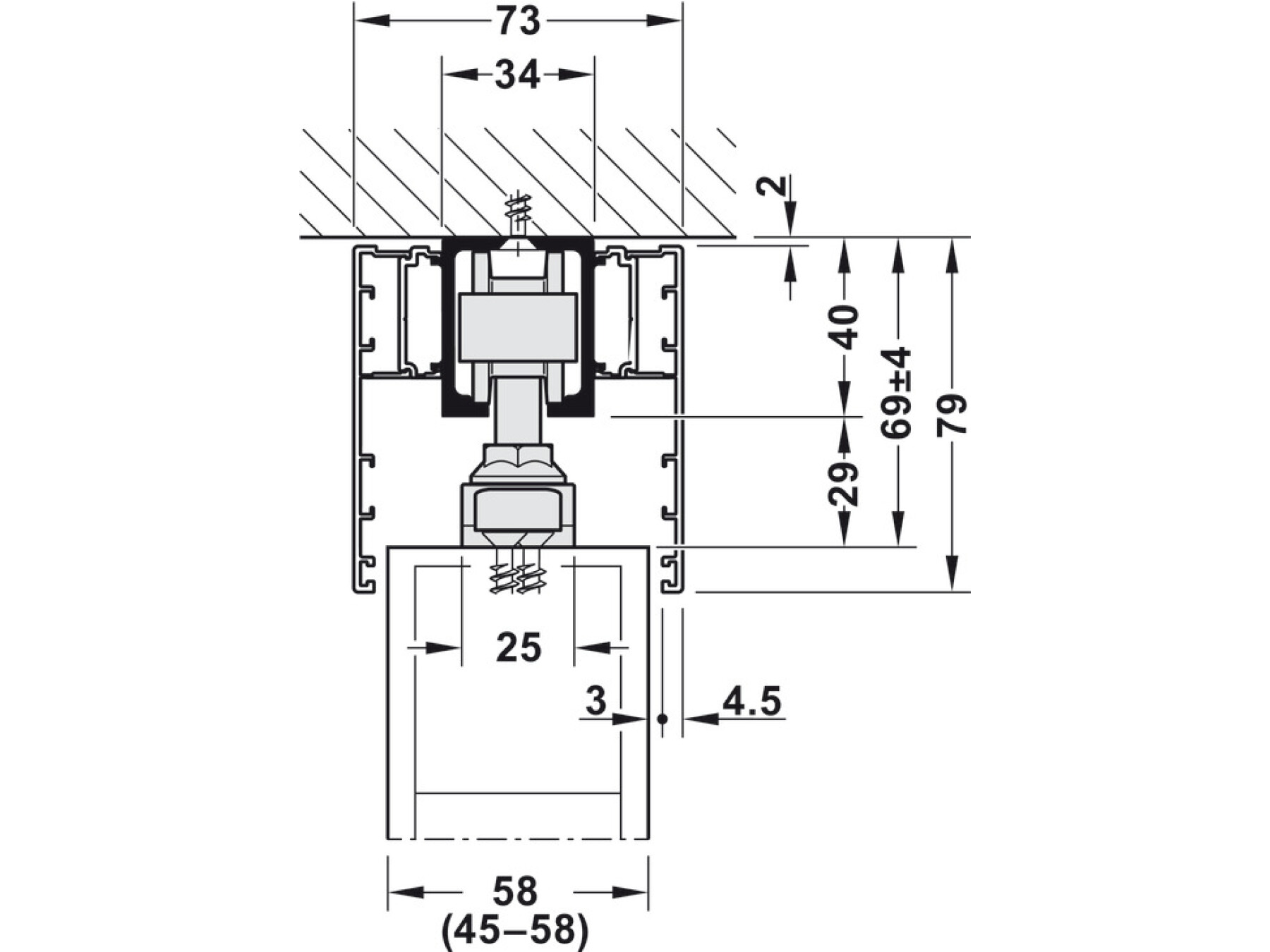

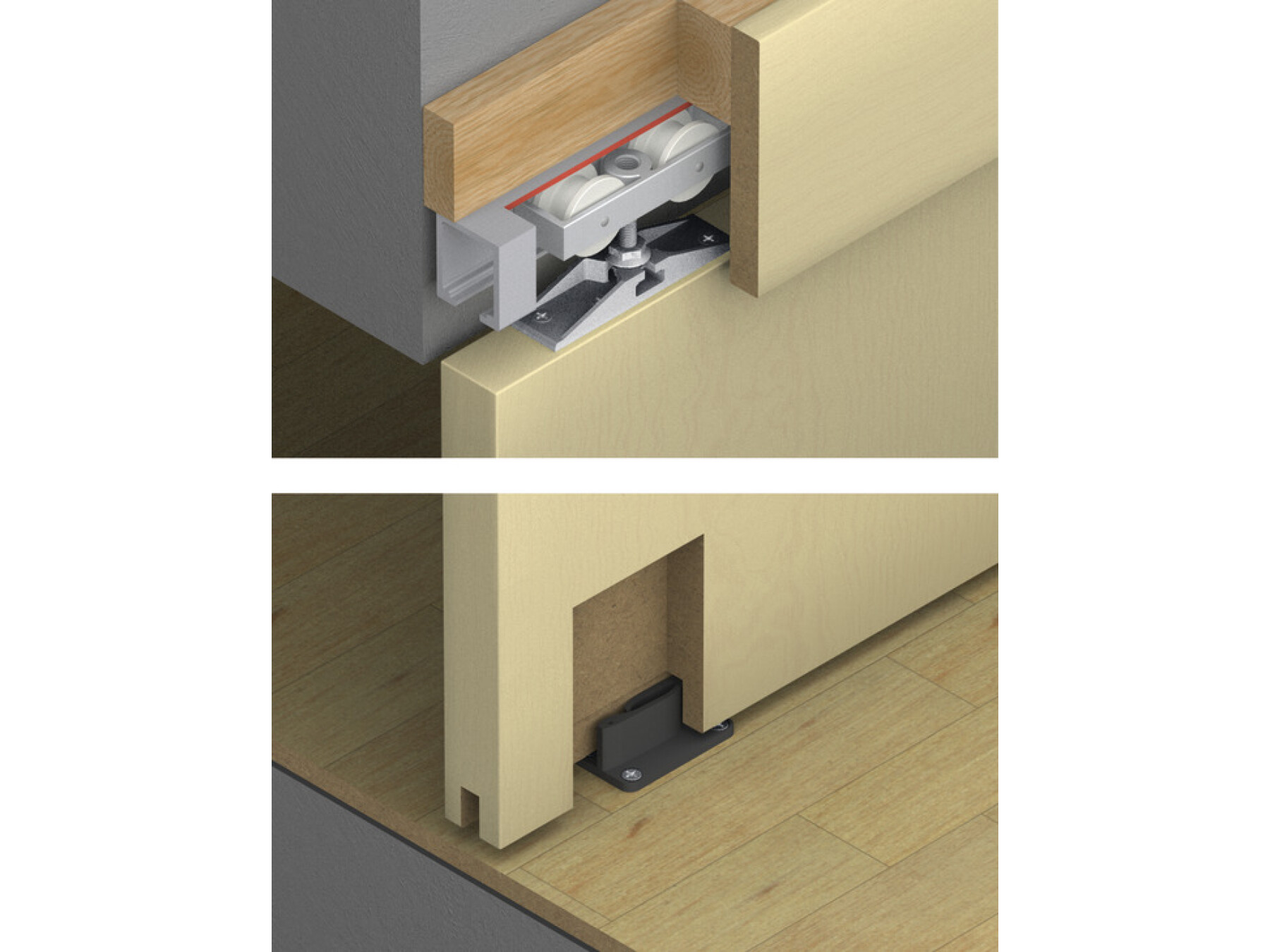

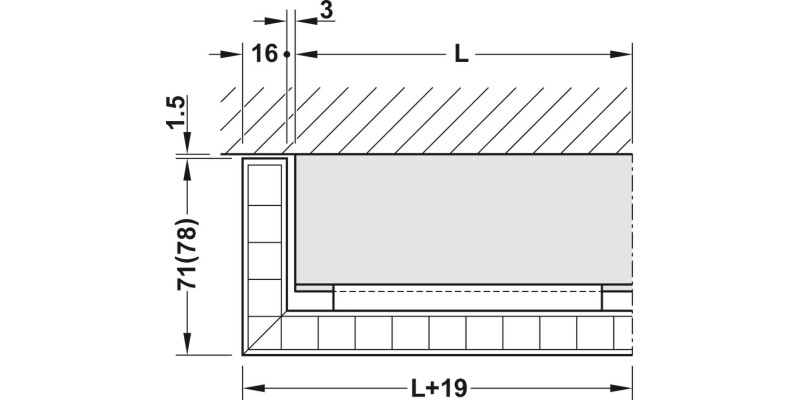

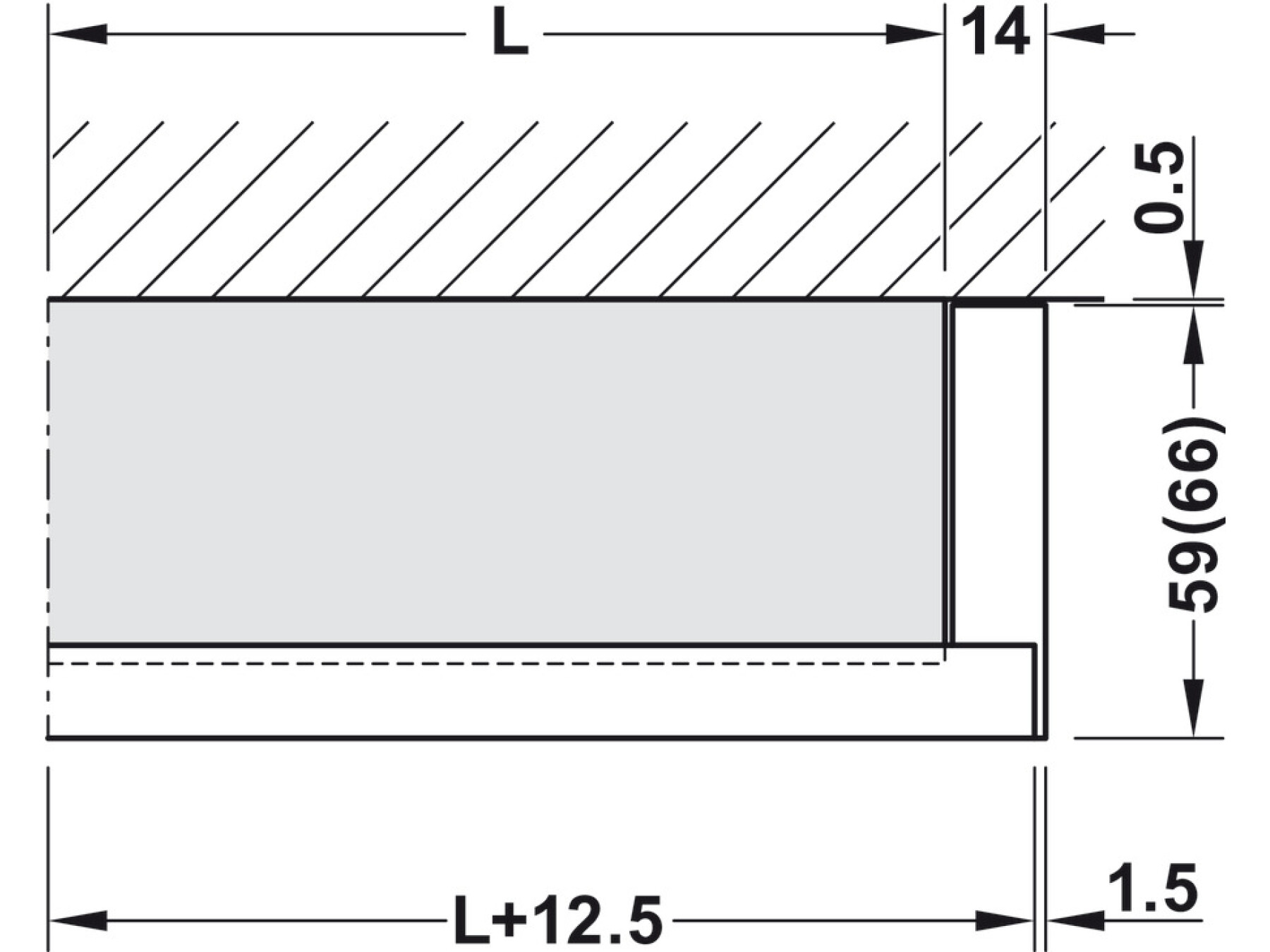

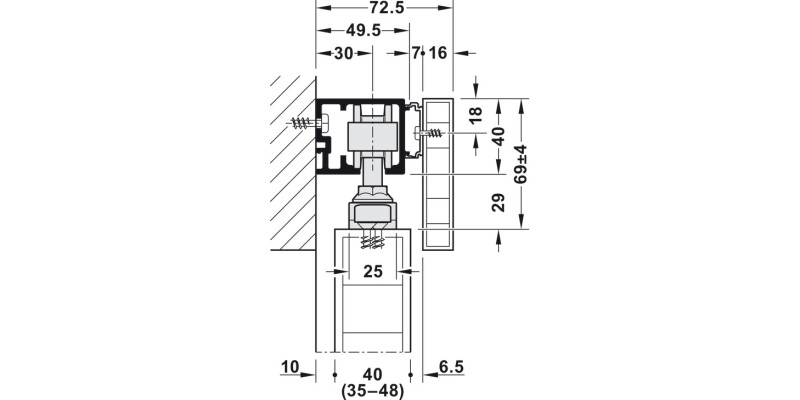

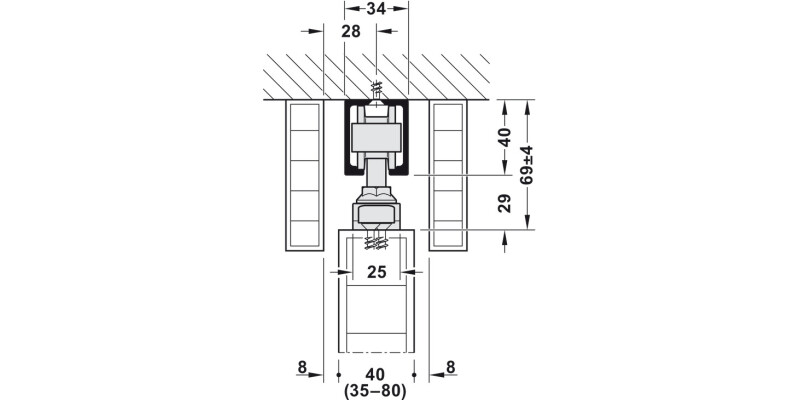

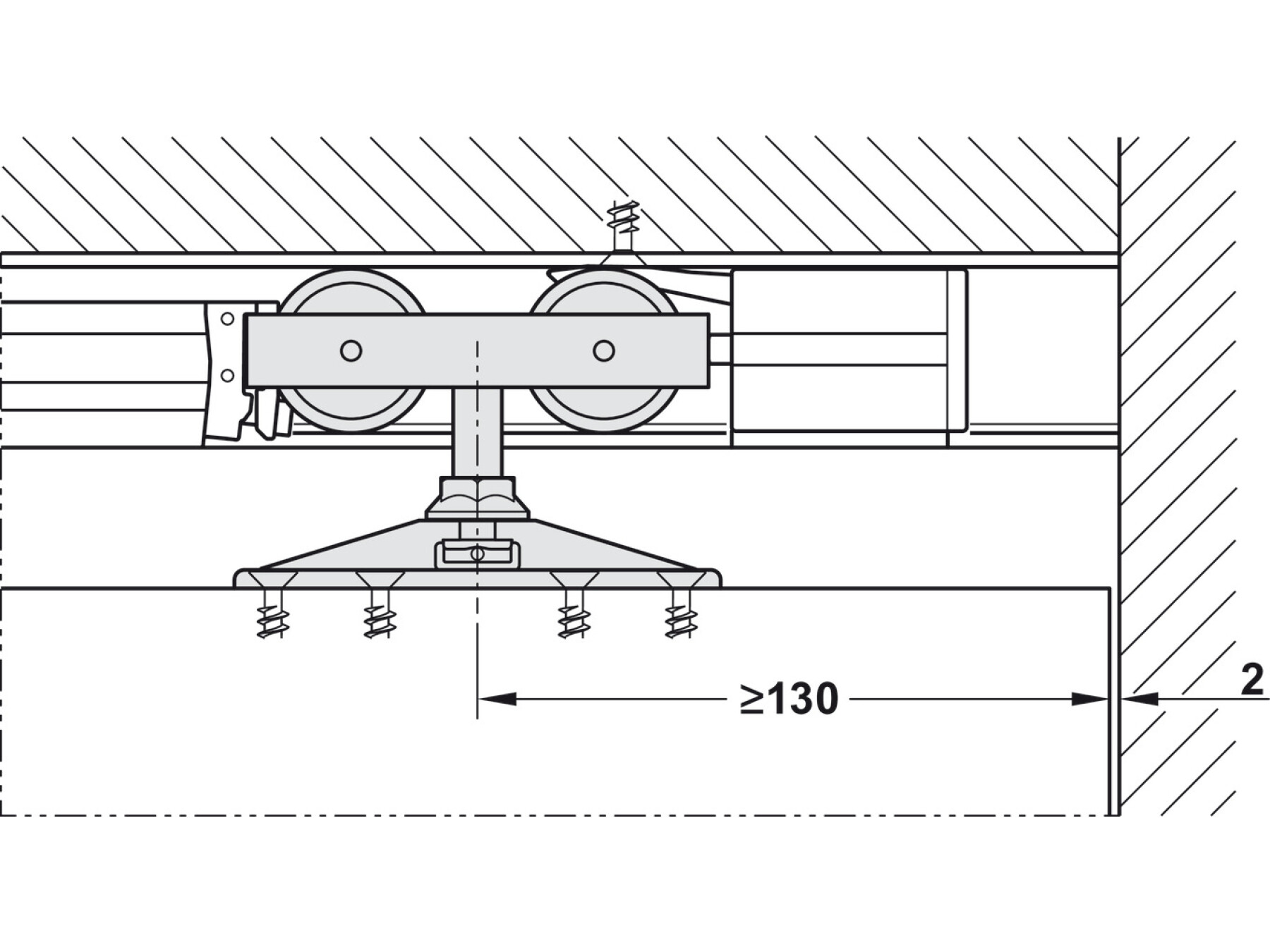

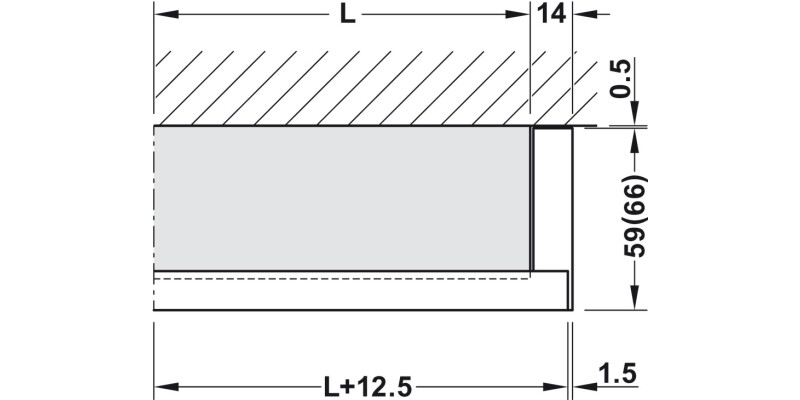

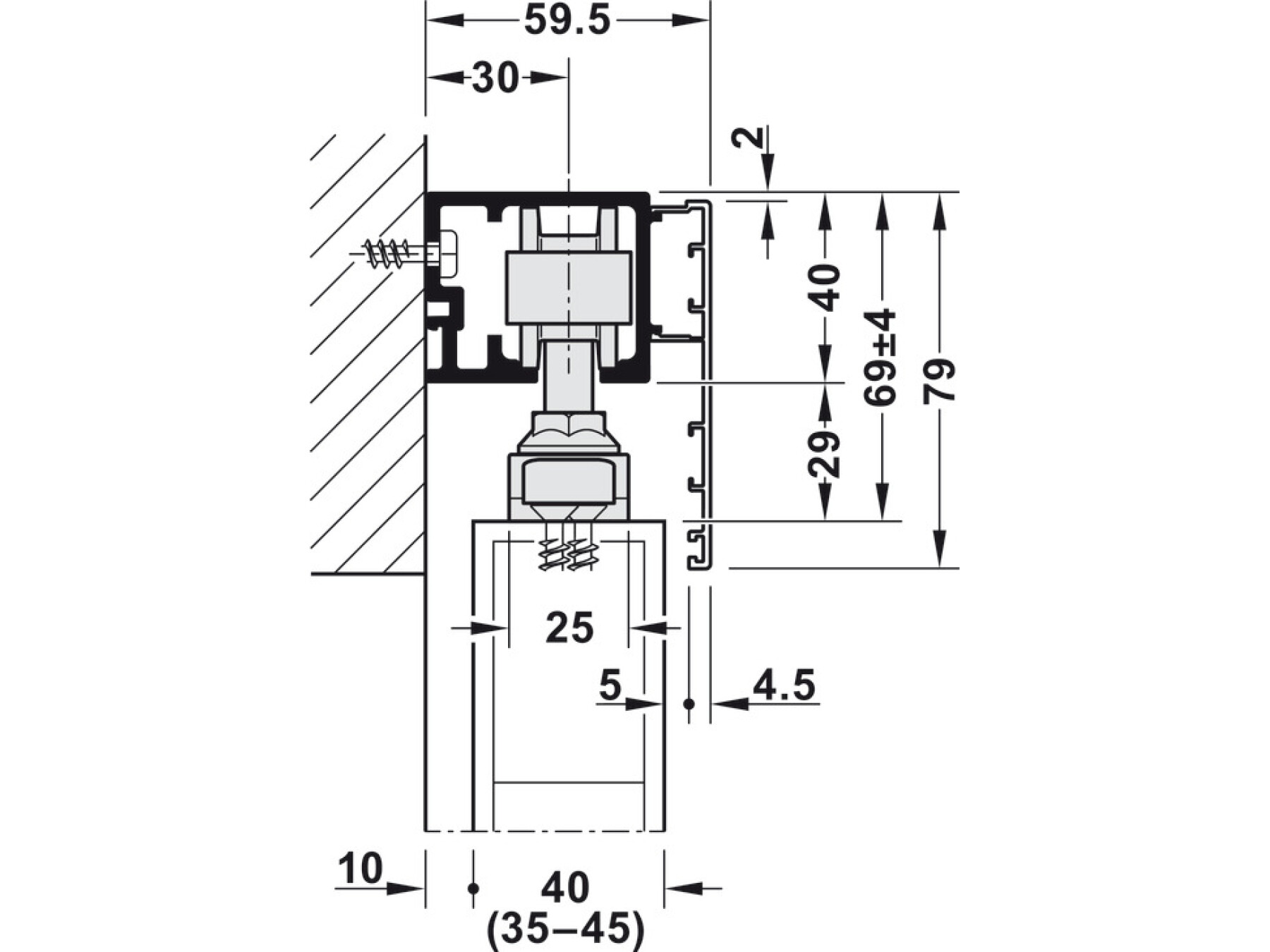

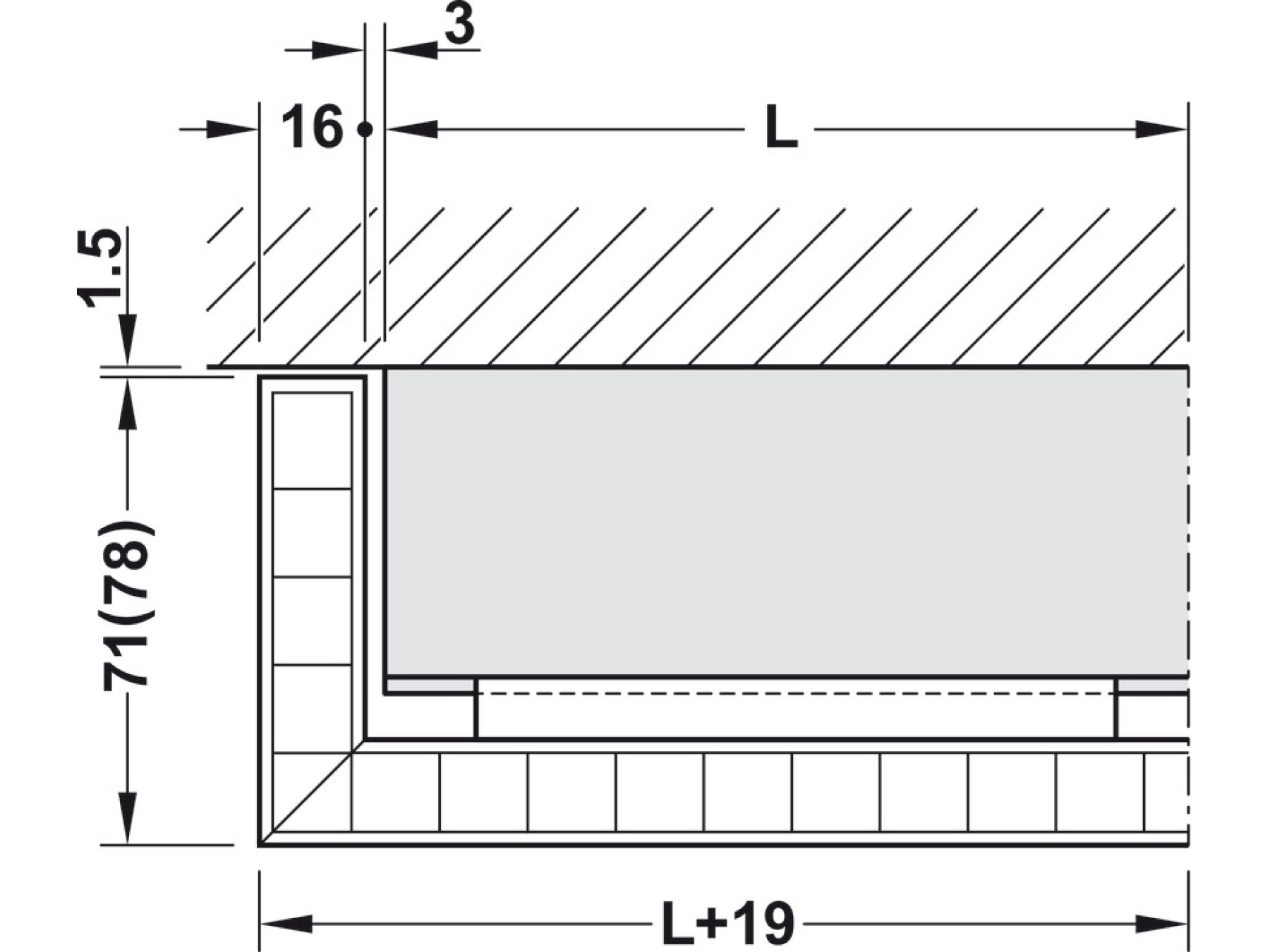

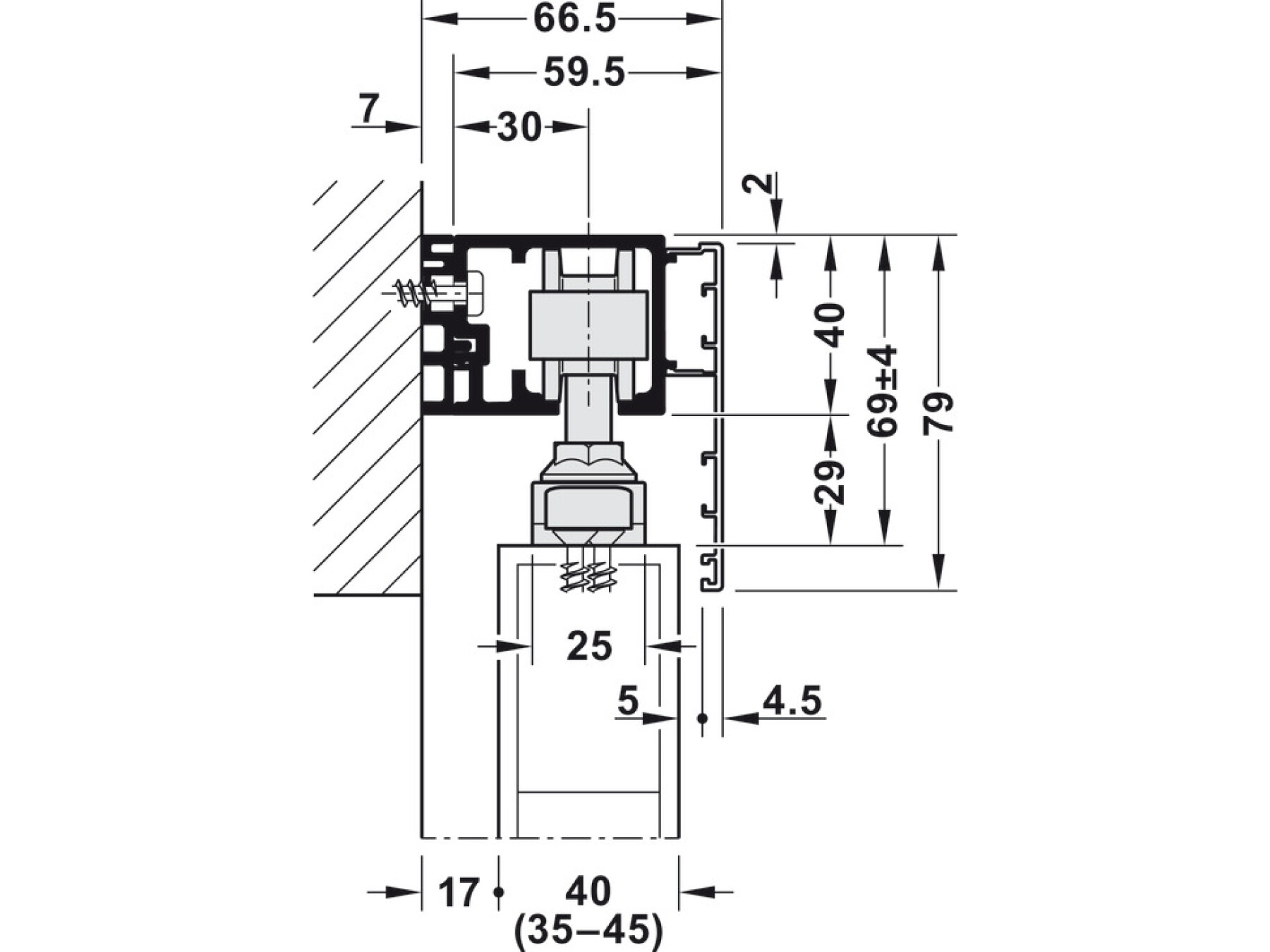

Junior 80 is a vertically adjustable sliding door fitting for interior doors exceptionally light and silent actionAll parts of corrosion resistant Ideal for cavity applicationsIf the sliding door is required to stop at both ends we recommend installing an additional track stopperInstallation drawing reference 17689

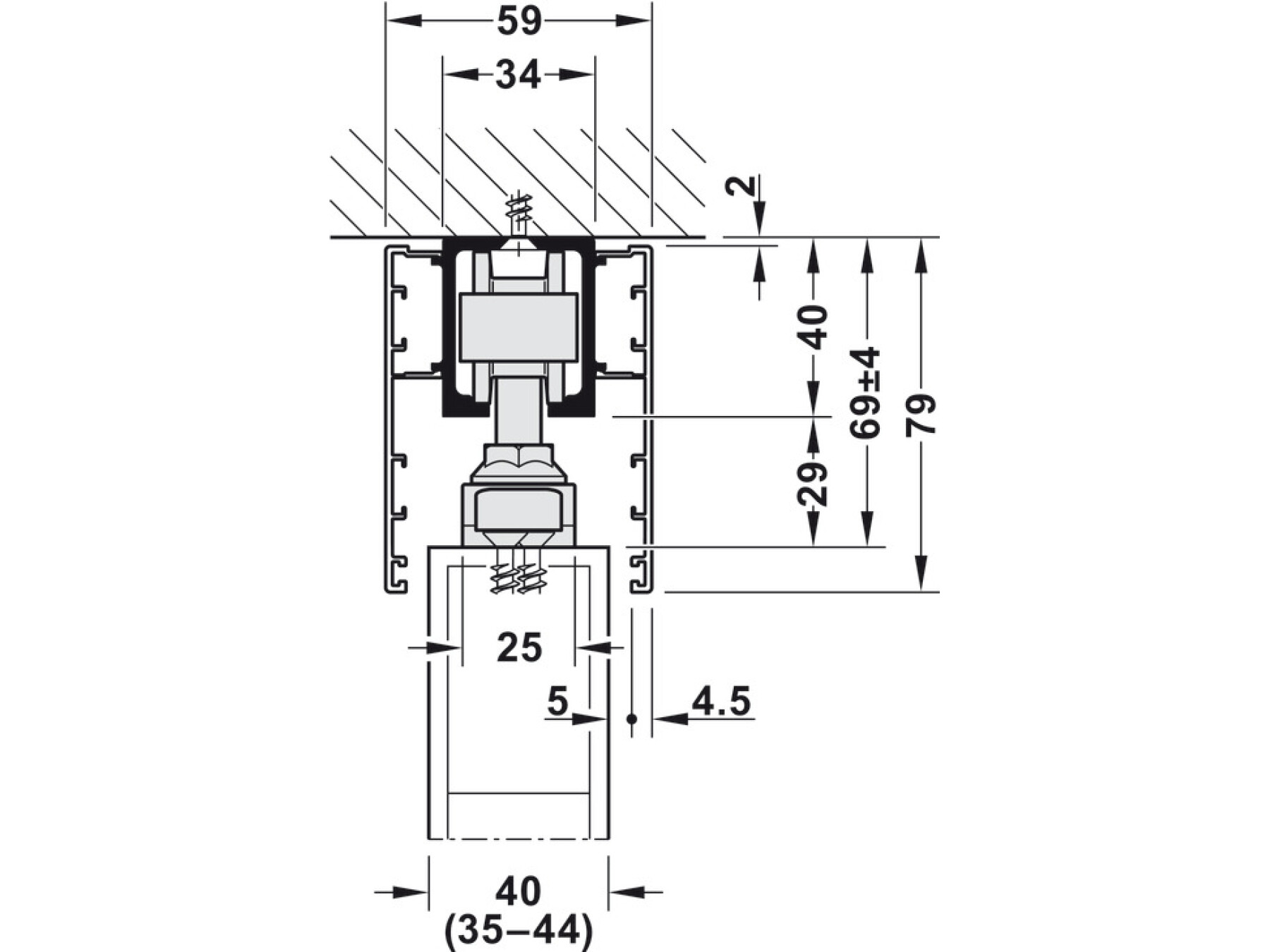

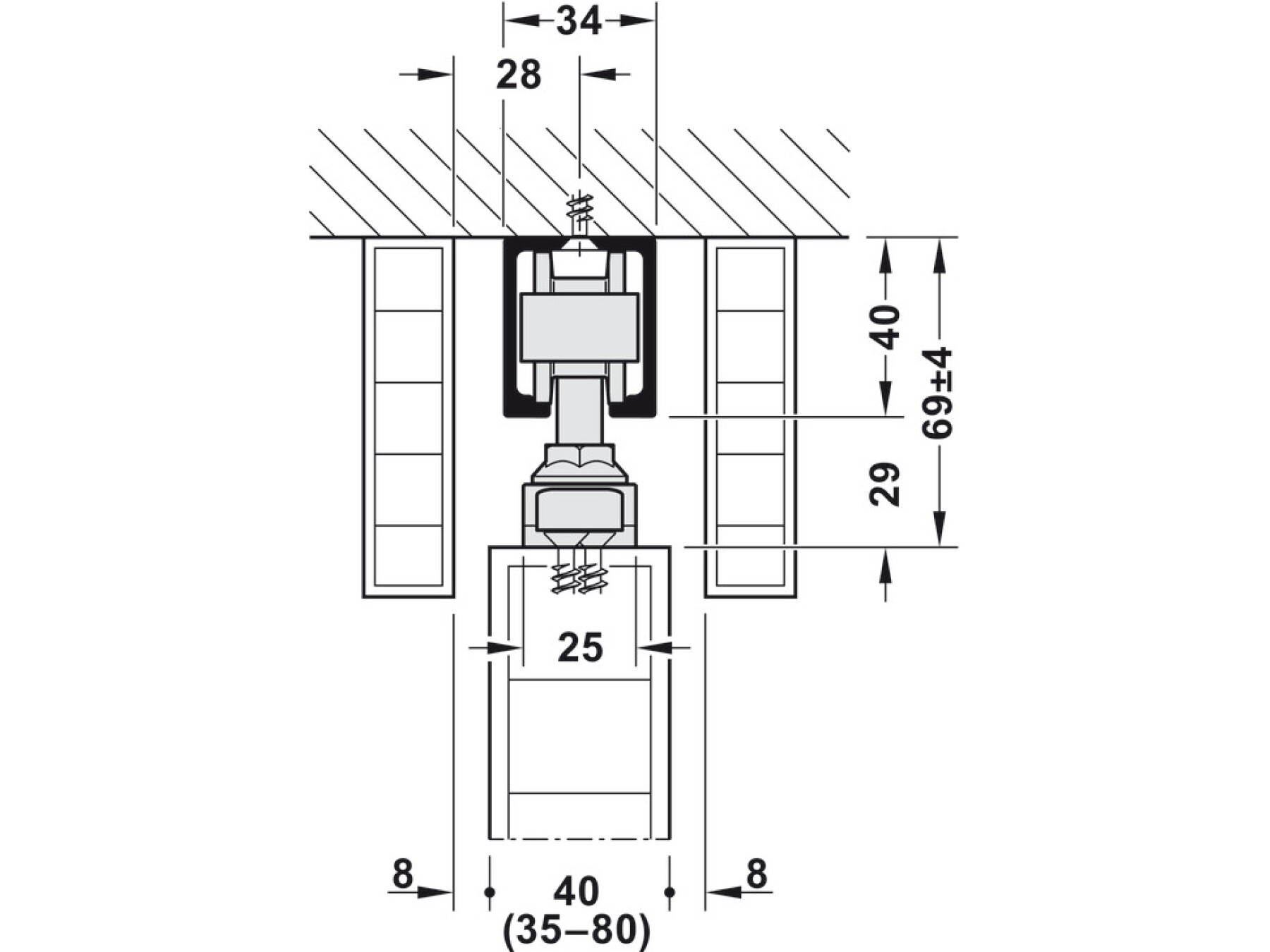

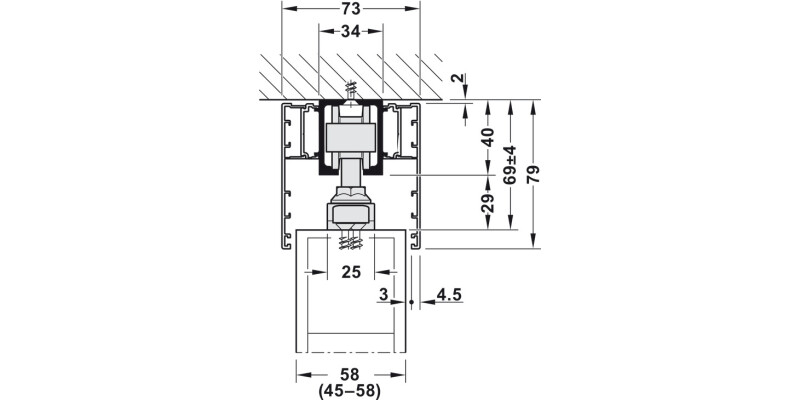

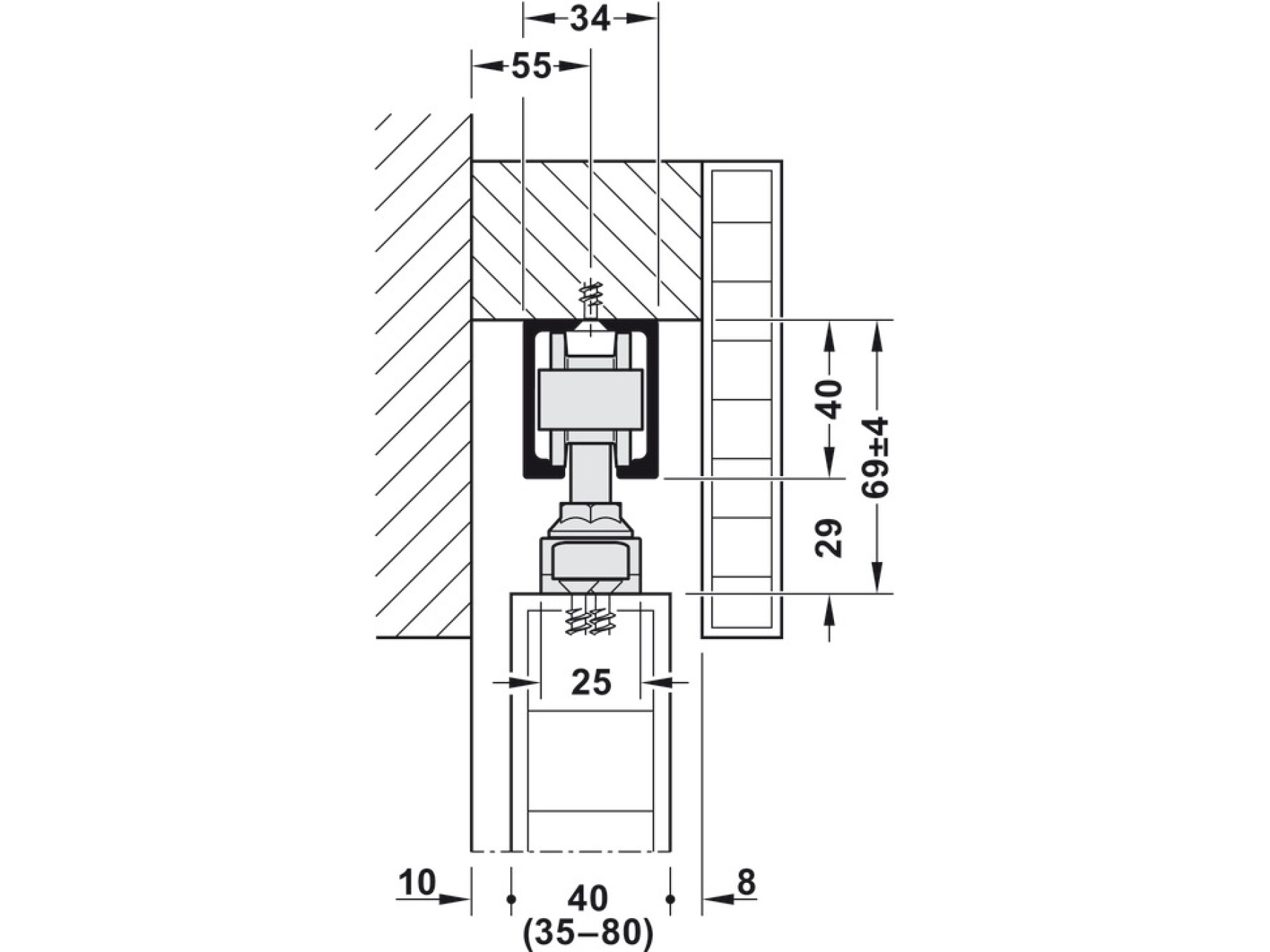

• Suitable for: Hawa-Symmetric 80/Hawa-Telescopic 80 2/ Hawa-Telescopic 80 3

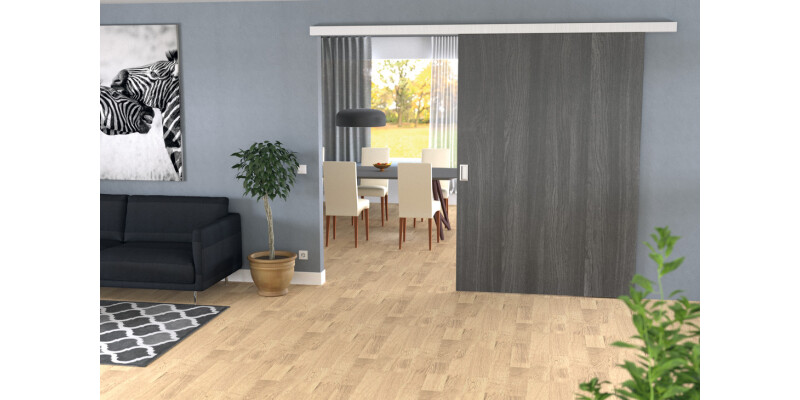

• Application: Interior doors


• Installation: Screw and clip fixing


• Adjustment facility: Height adjustment ¬¨¬®¬¨¬±4 mm


• Door weight: Max. 80 kg


• Door height: Max. 2300 mm


• Door thickness: Min. 26 mm


• Material: Aluminium/Plastic/Rubber

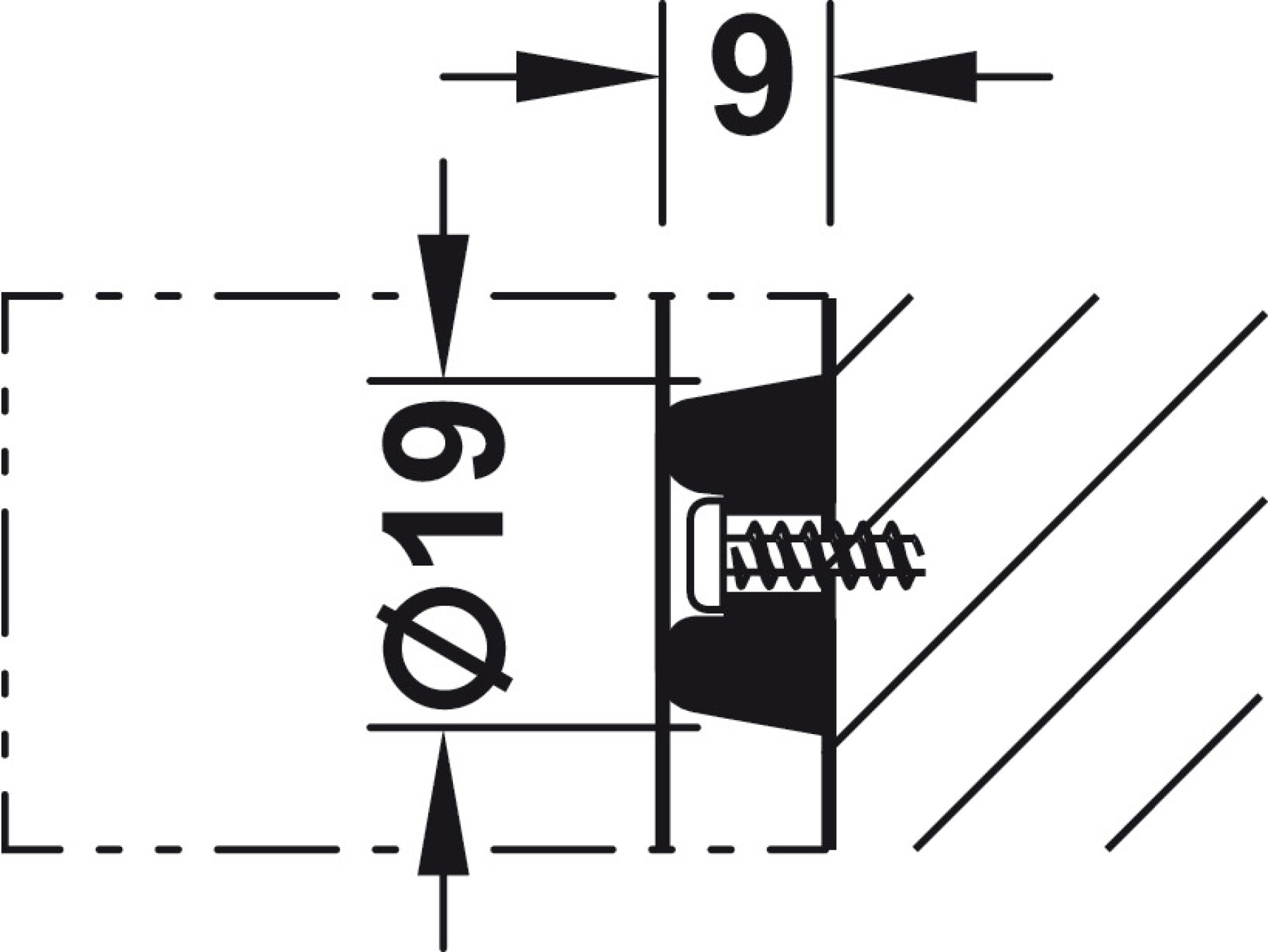

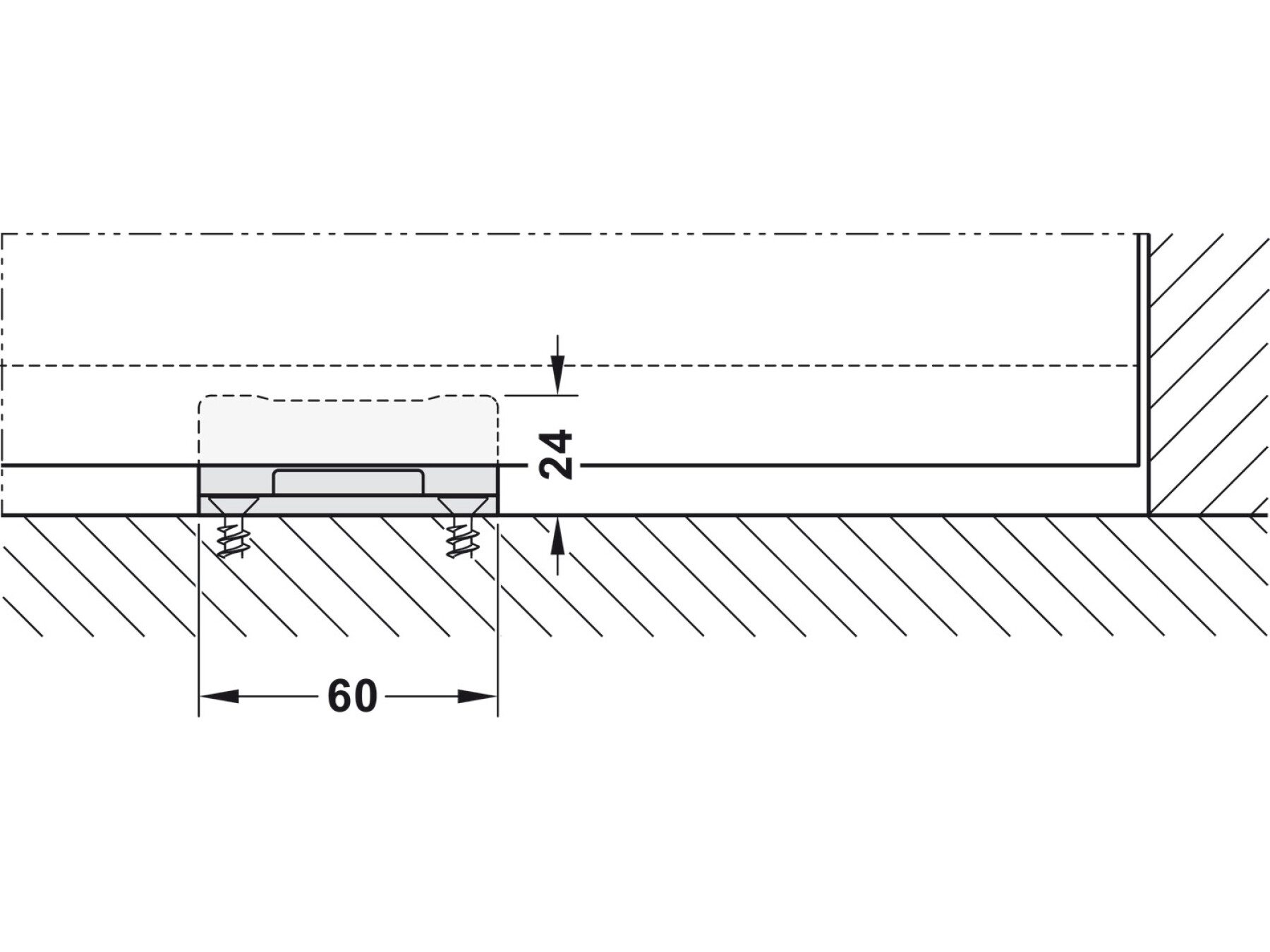

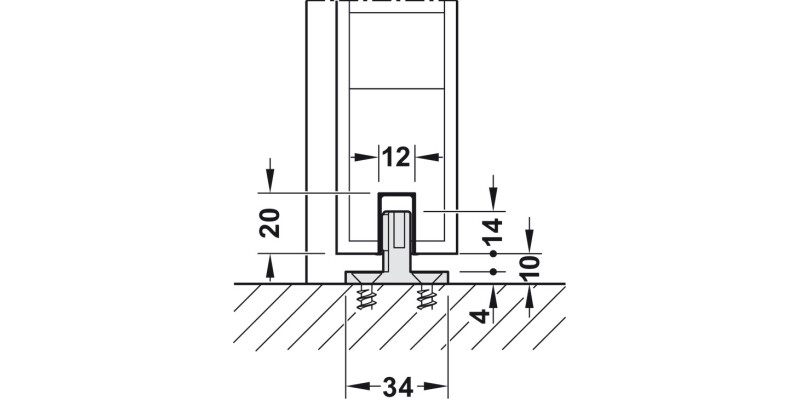

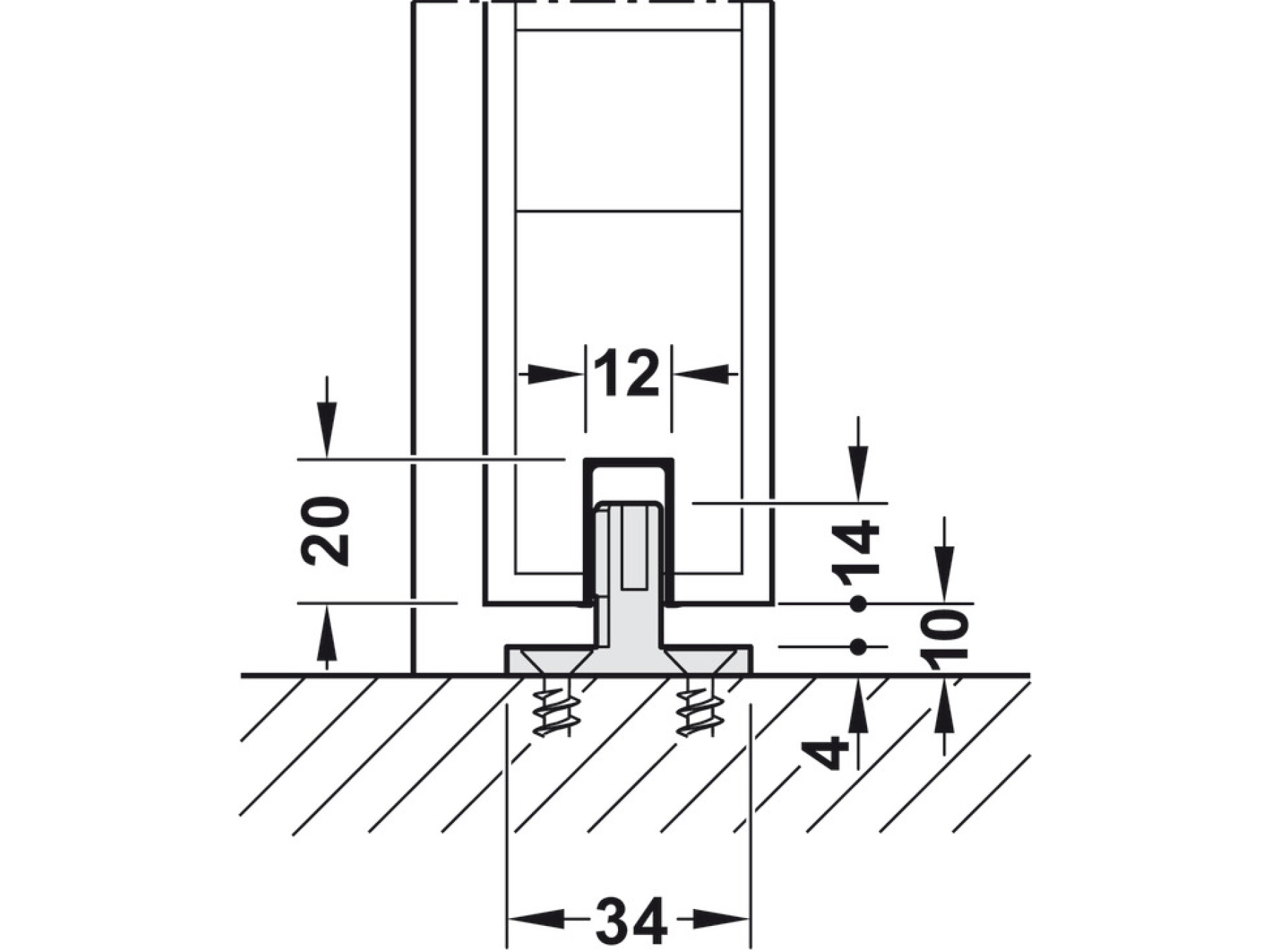

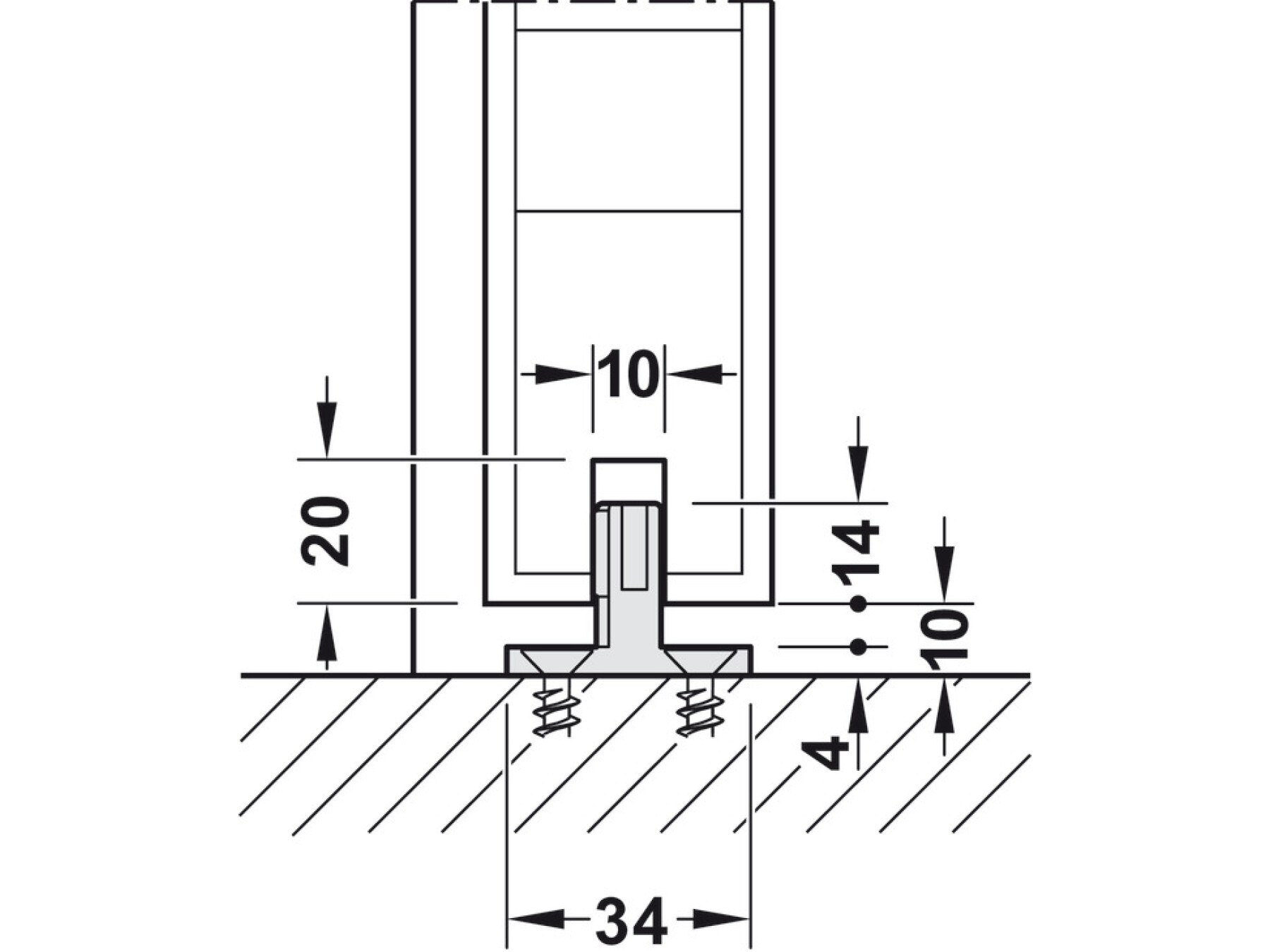

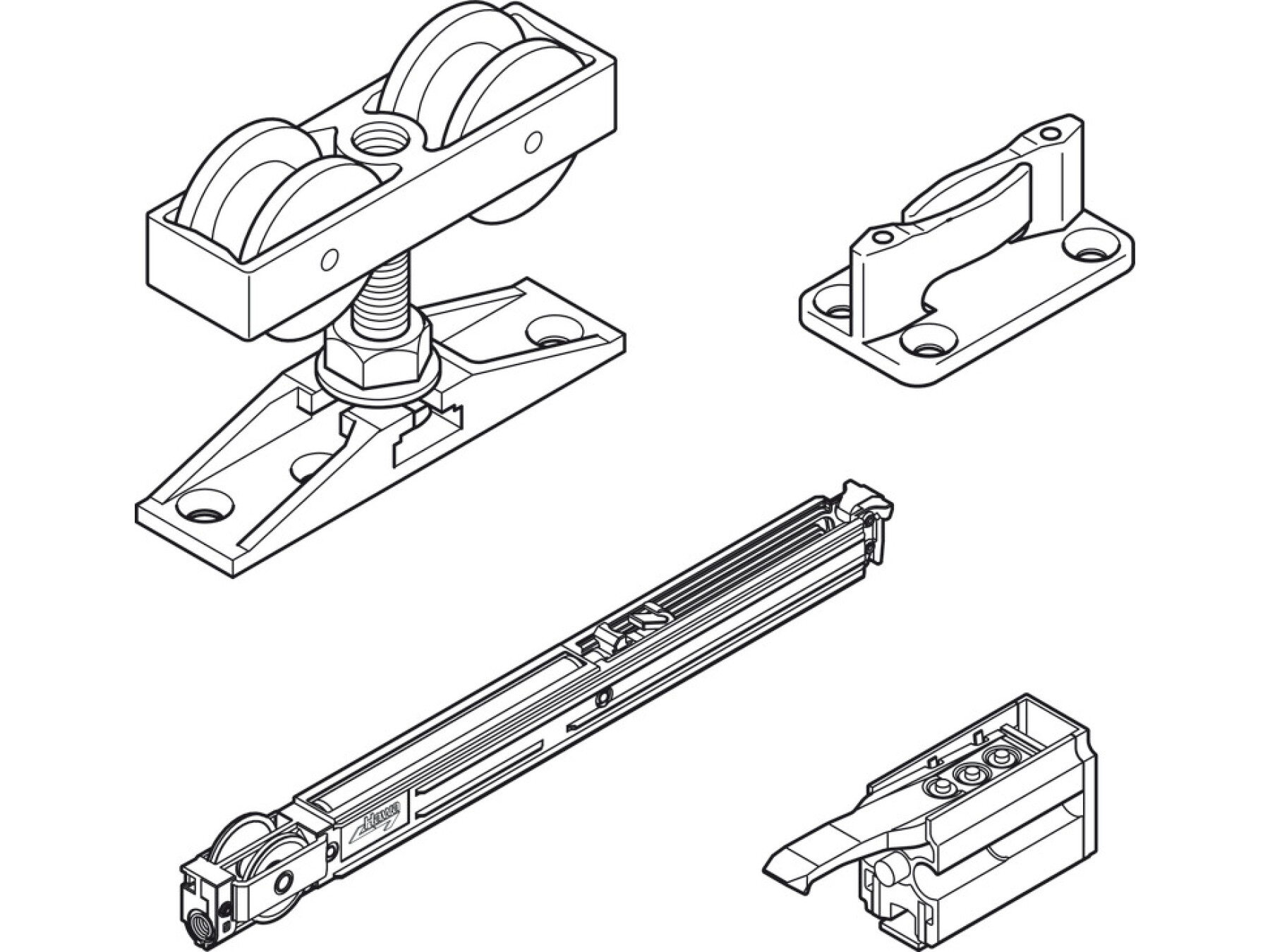

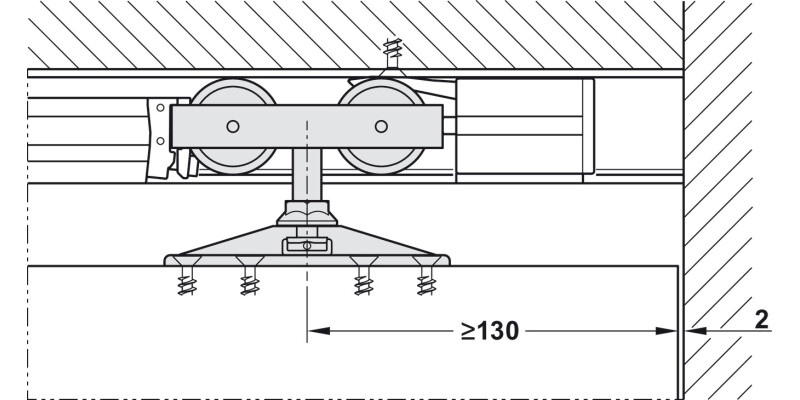

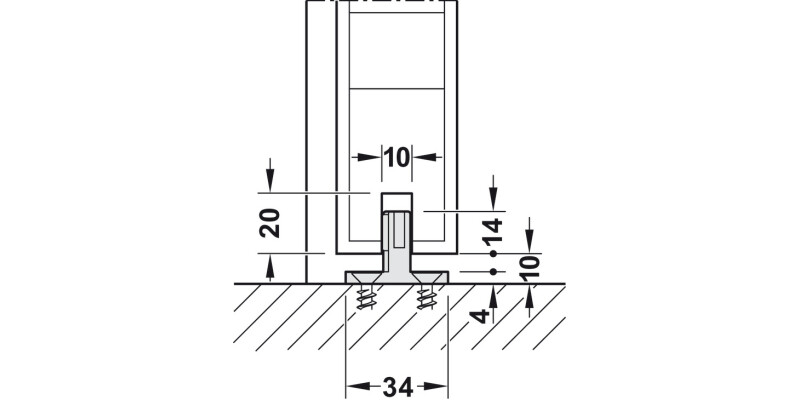

• Supplied with: Set with Softmove 80 consists of 2 x Track stopper, for adjustable mounting in top track, zinc alloy, black painted housing, 2 x Junior 80/Z trolley hangers, sleeve bearing mounted ‚Äö√†√∂‚àö‚⧠34 mm high grade polyamide tandem rollers, aluminium carriage, fixings included, 1 x Guide, rattle proof, for screw mounting to floor, black plastic, 24 x 60 x 34 mm, 1 x Rubber buffer, ‚Äö√†√∂‚àö‚⧠19 x 10 mm, for screw fixing, HAWA-SoftMove 80, 30 x 336 x 24 mm


• Order reference: Tracks, fitting sets, accessories and fixings to be ordered separately


• :
