Hawa Junior 80Z Fiiting Set 1Dr wo SC
Part Number: 940.80.015
Top hung system, For 1 door, without SoftMove 80
Price:
£242.55
Per Item
Junior 80 is a vertically adjustable sliding door fitting for interior doors exceptionally light and silent... Read More
Product Information
Product Details

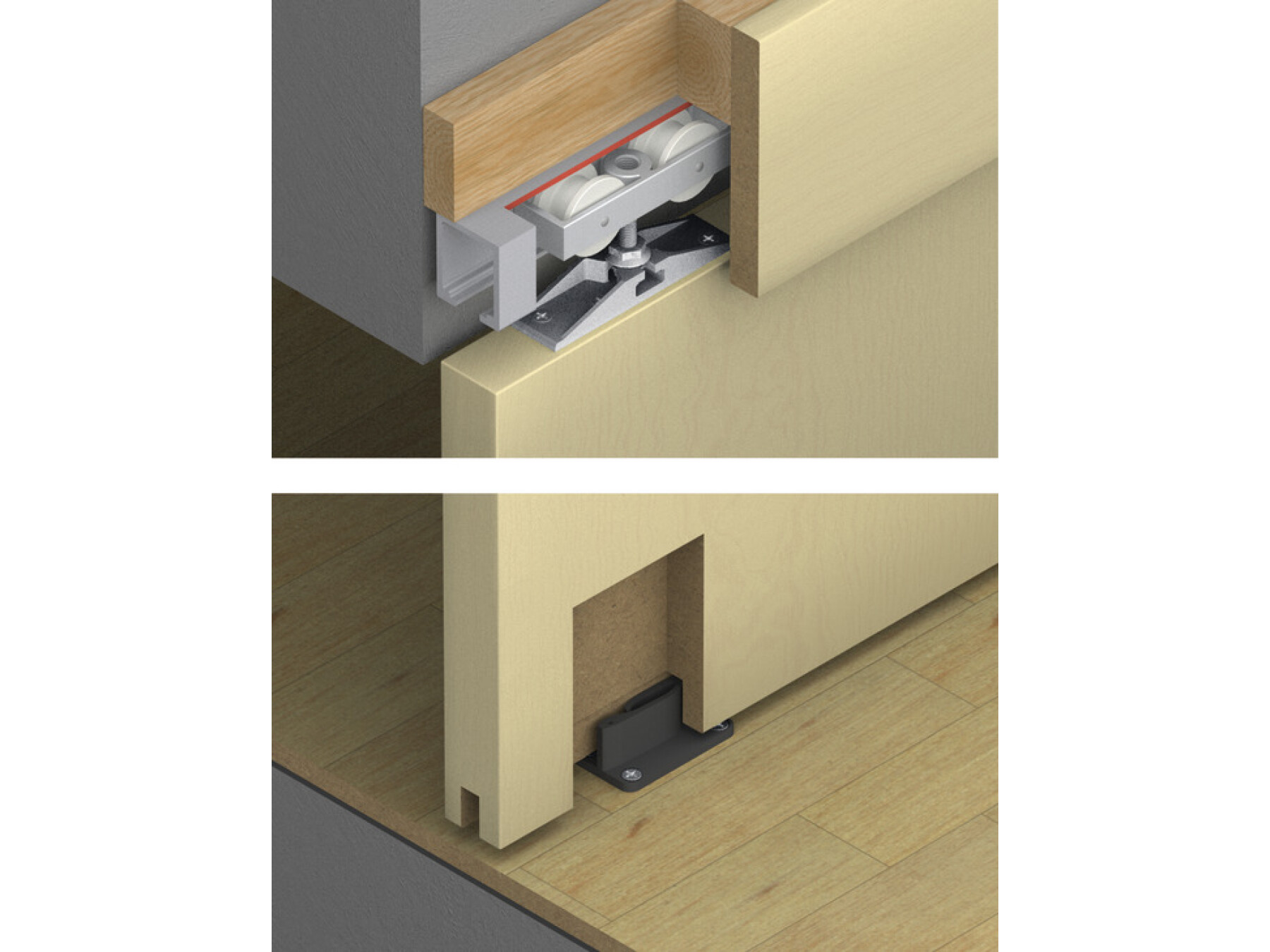

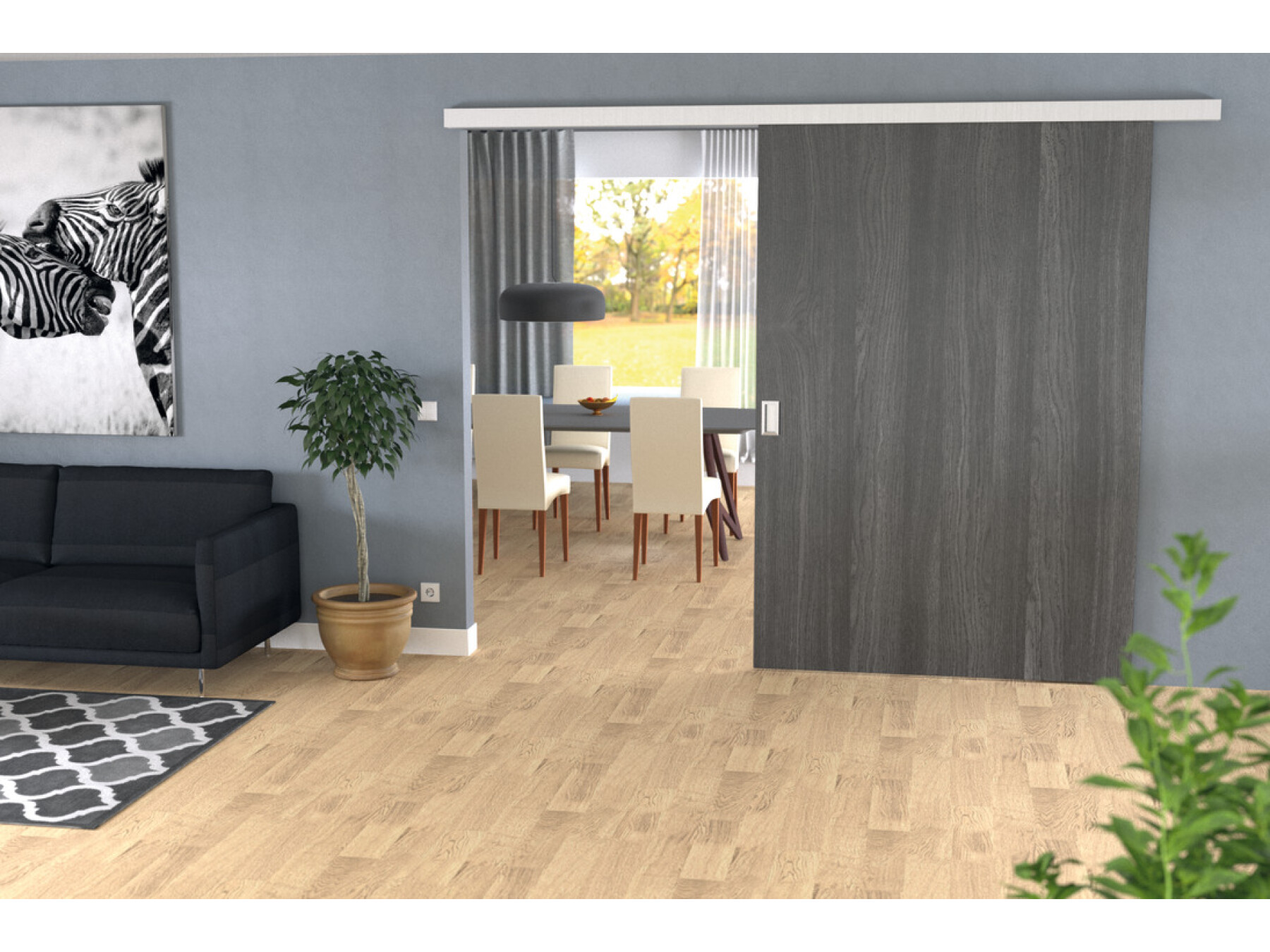

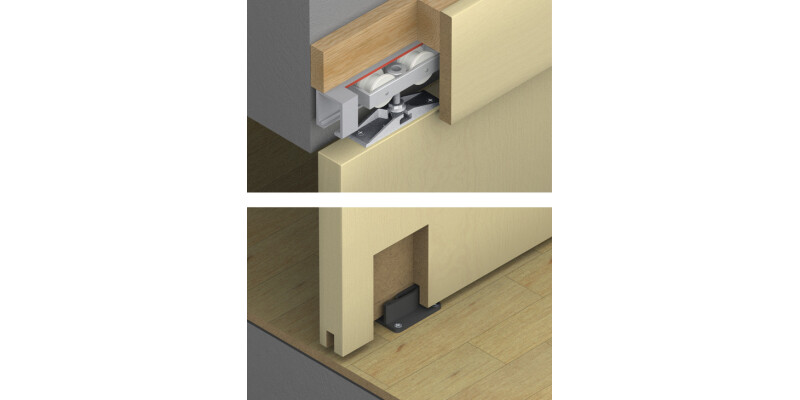

Junior 80 is a vertically adjustable sliding door fitting for interior doors exceptionally light and silent action
All parts of corrosion resistant
Ideal for cavity applications
Suitable for Hawa-Symmetric 80/Hawa-Telescopic 80 2/ Hawa-Telescopic 80 3

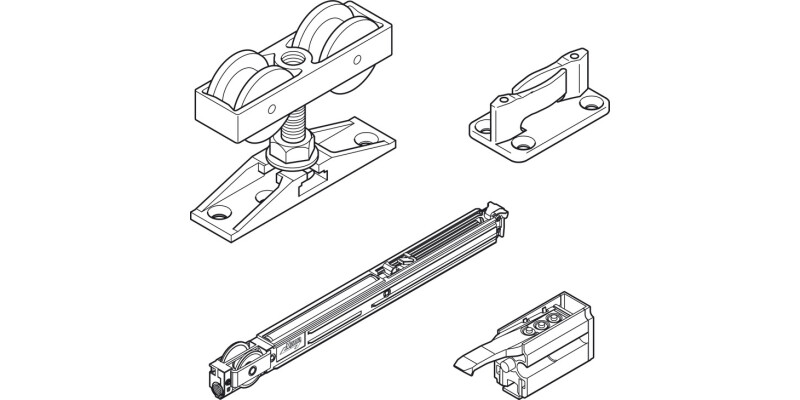

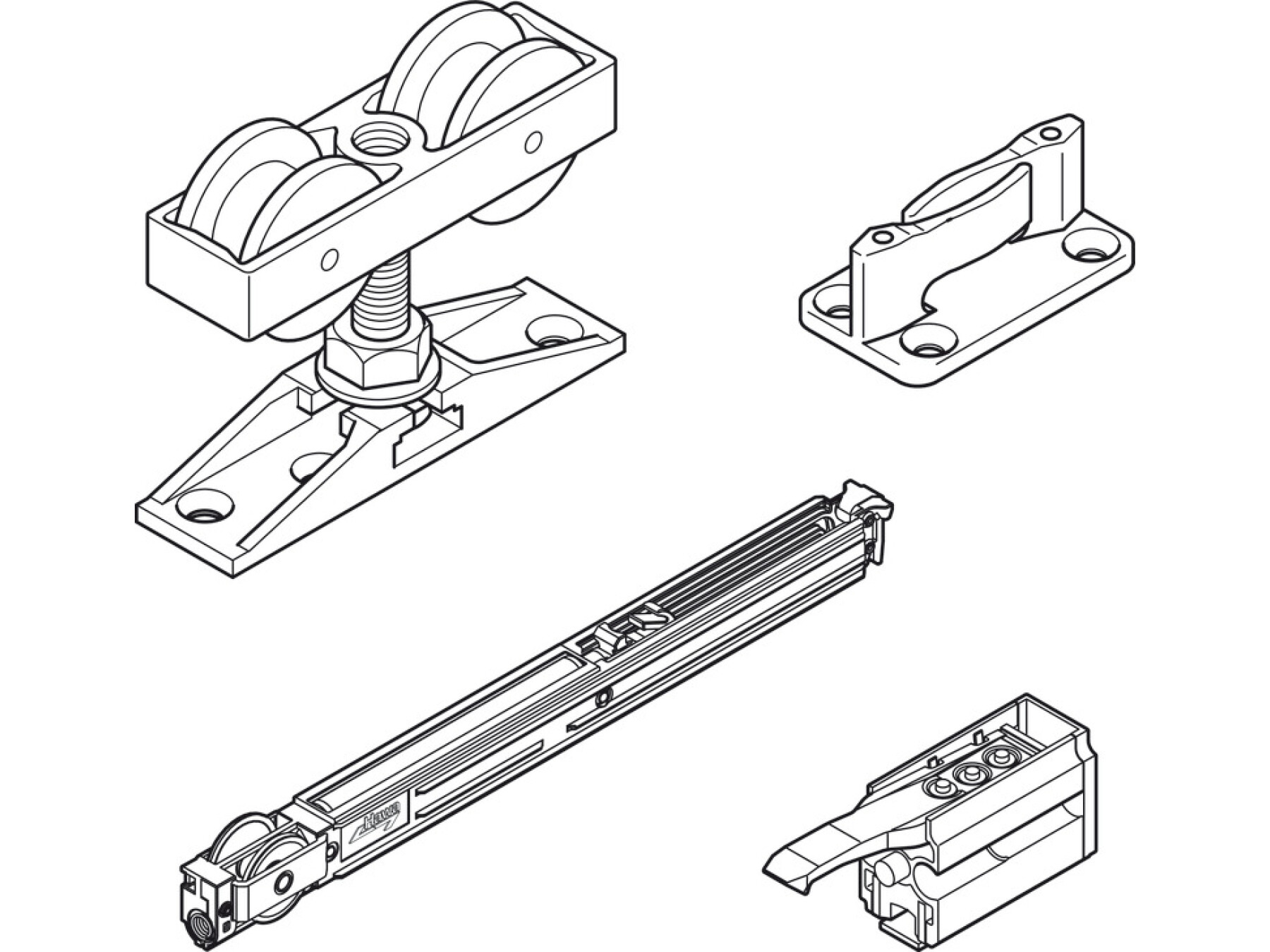

Supplied with

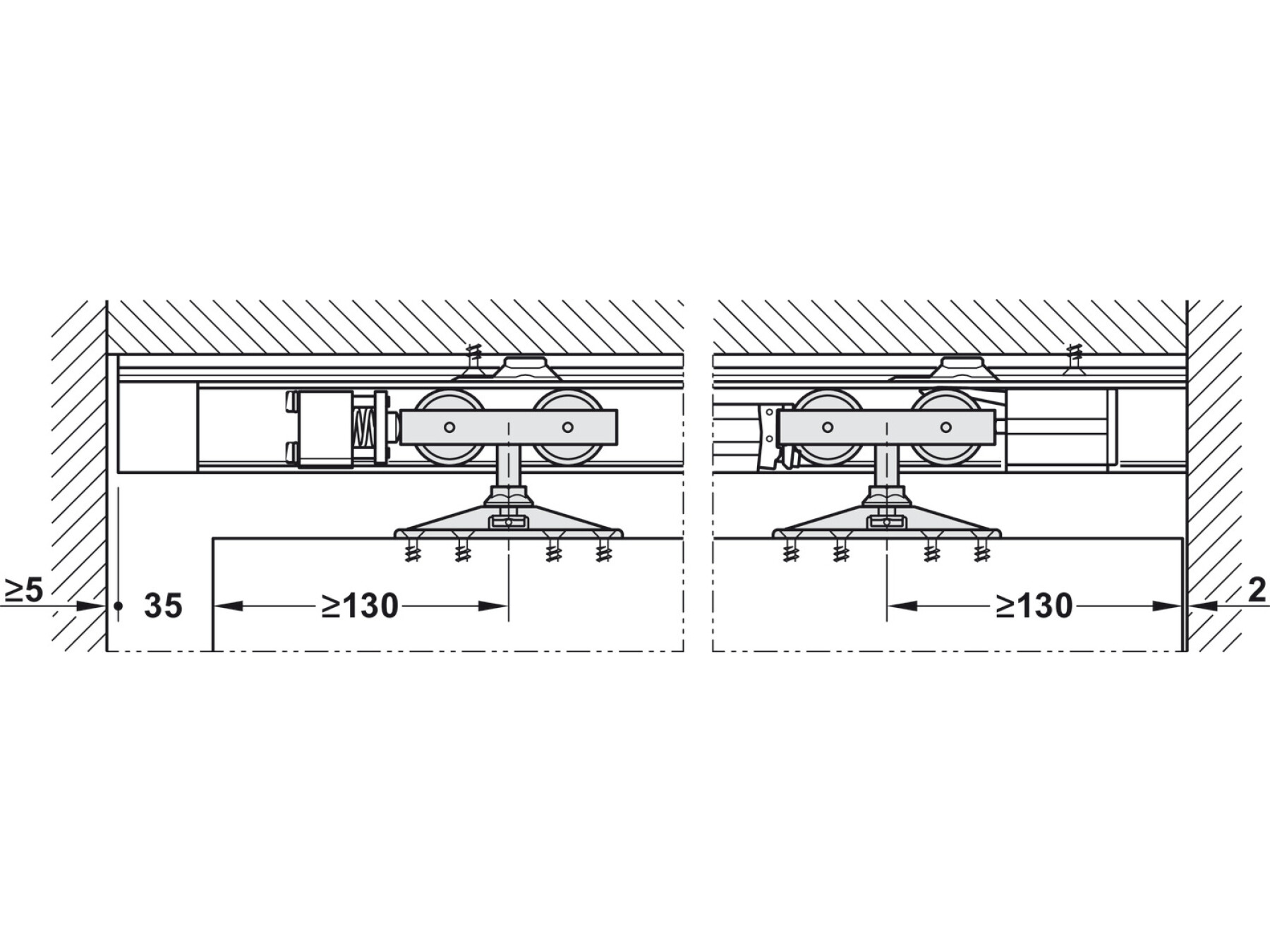

2x Running gears

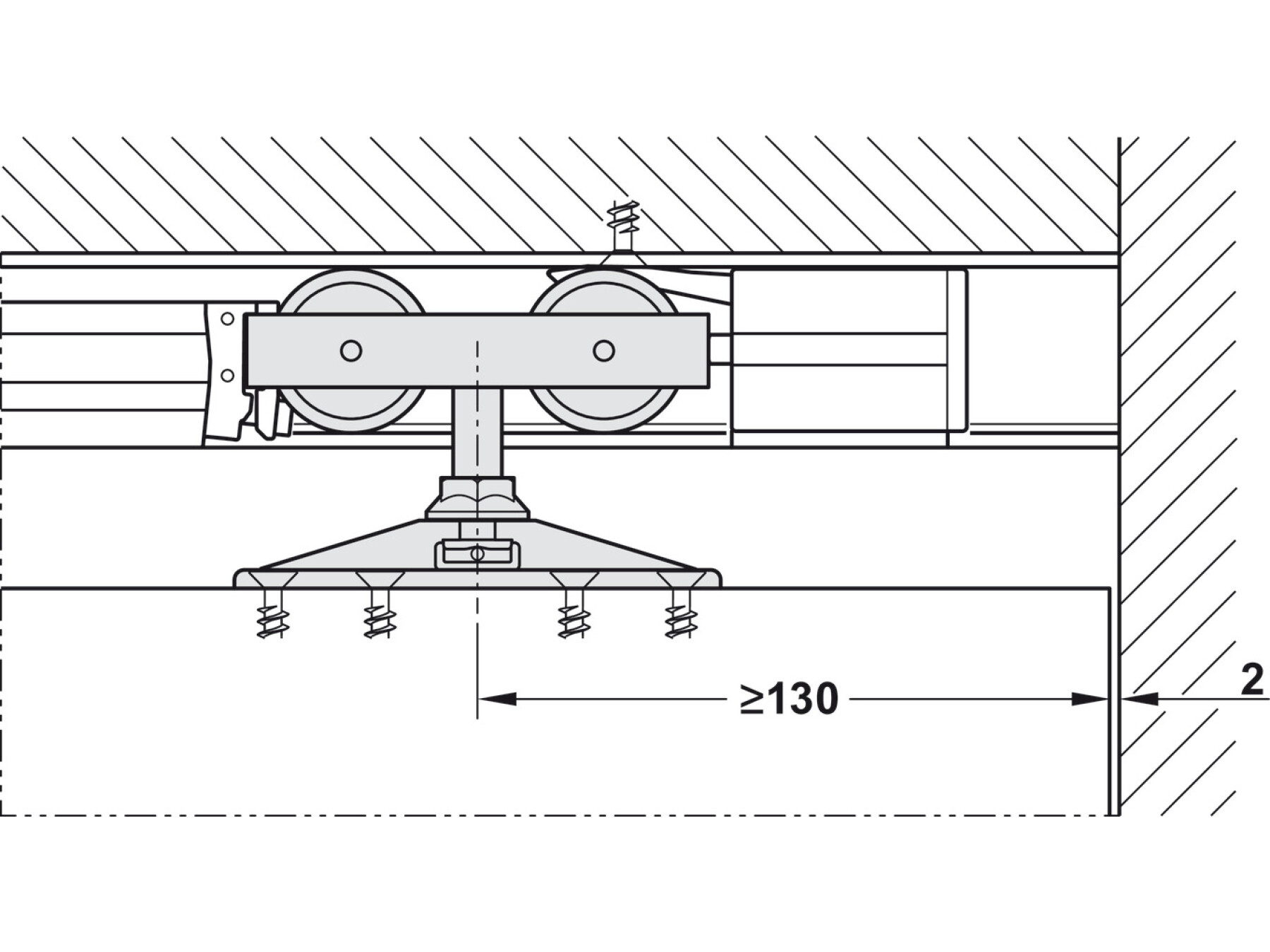

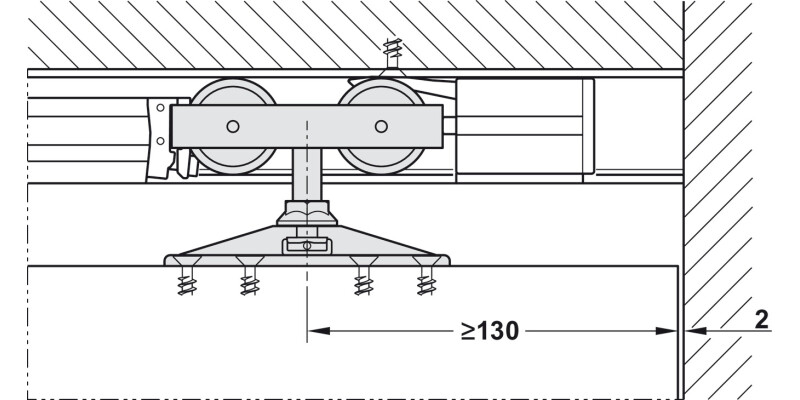

2x Two-way suspension fittings with hanger bolts and nut, M10

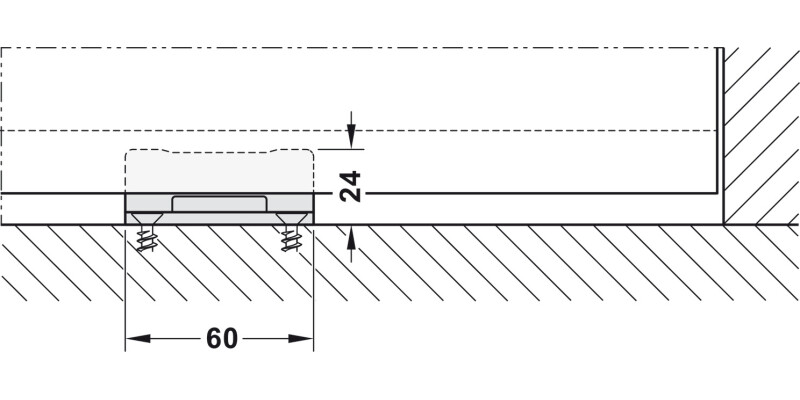

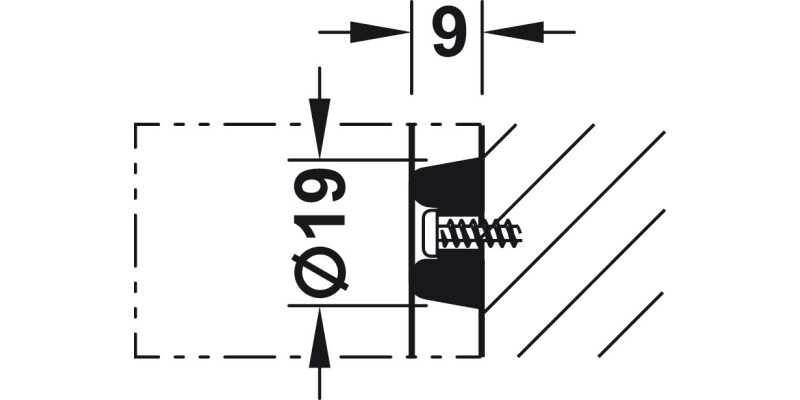

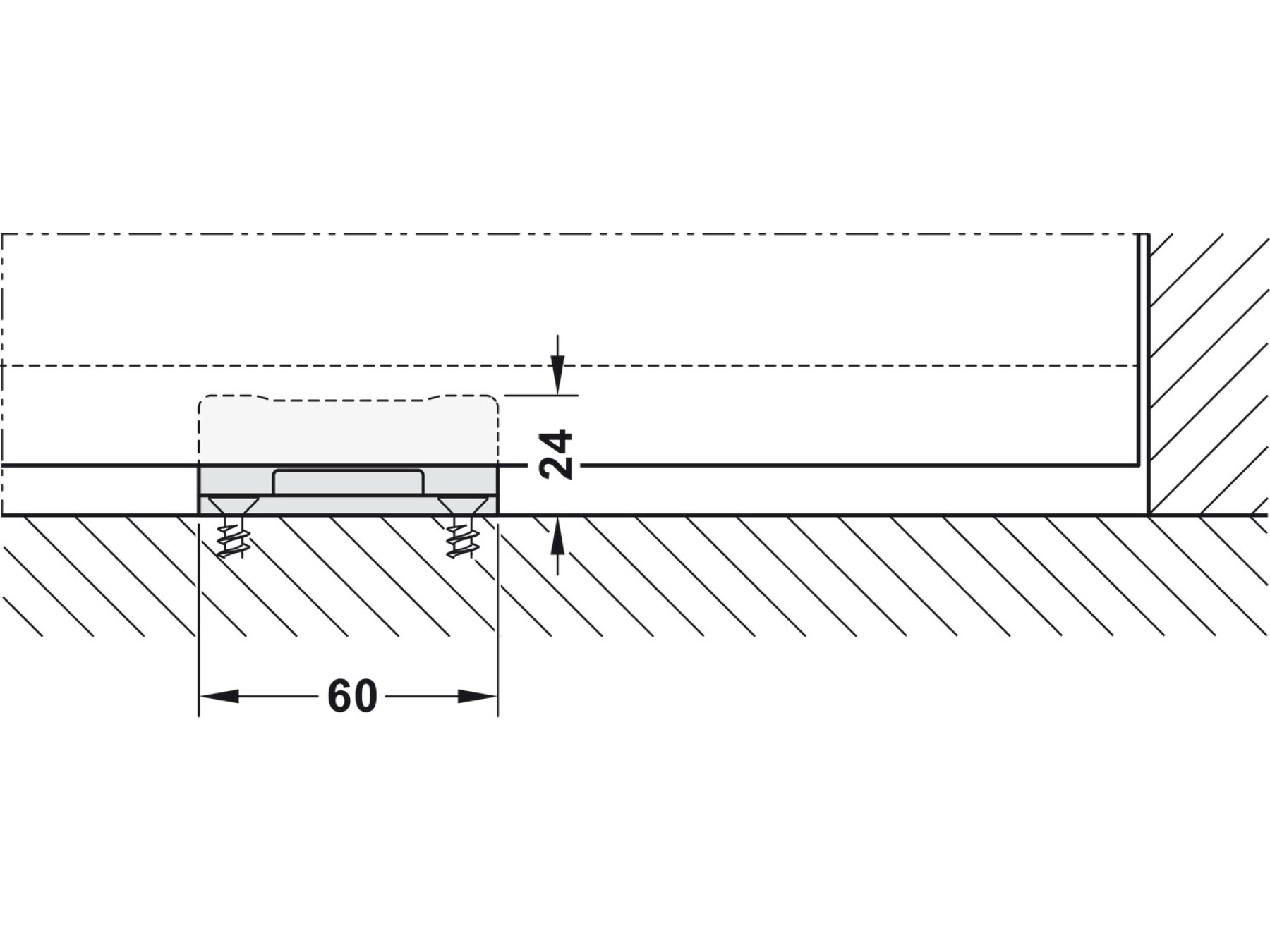

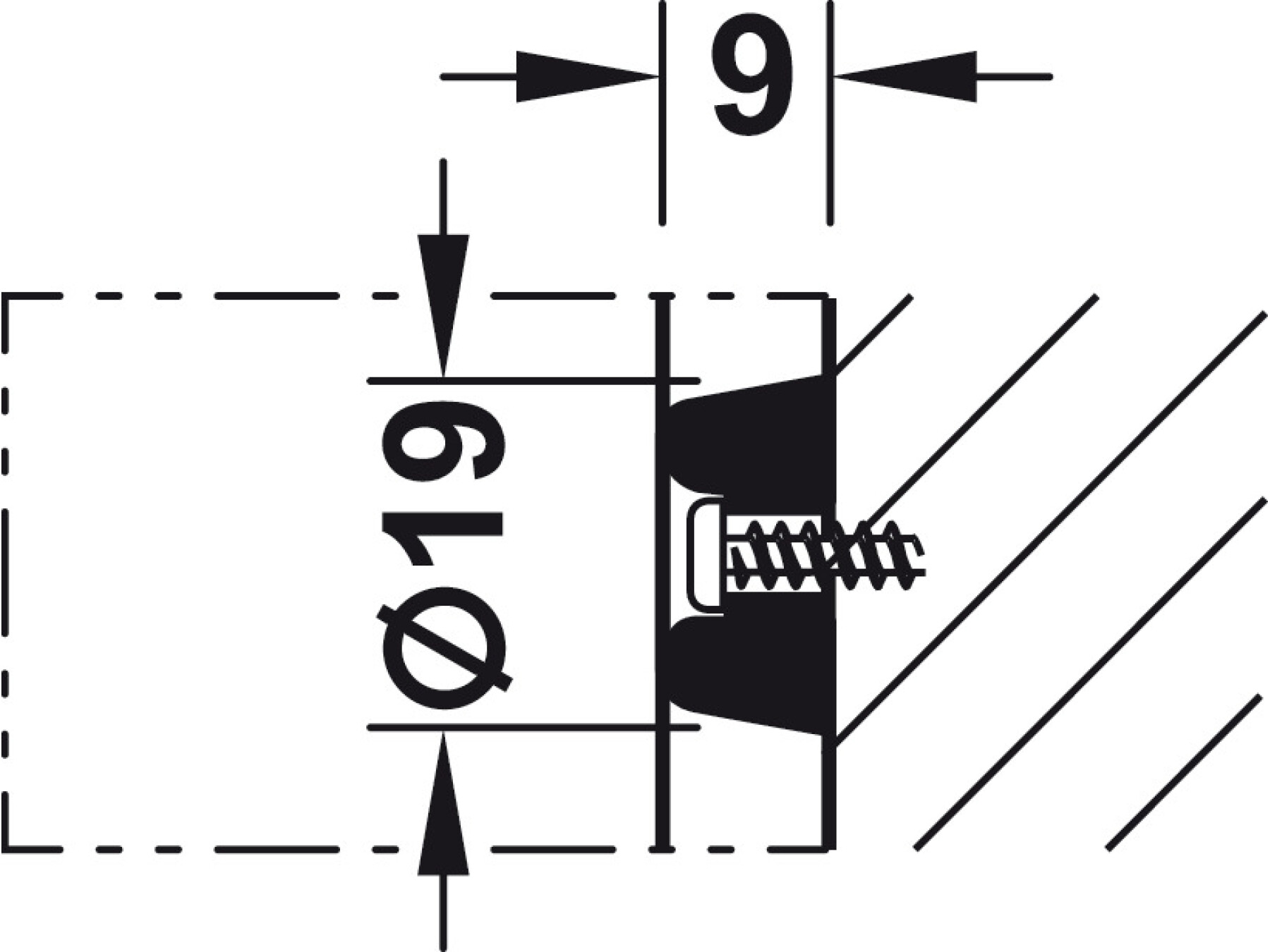

2x Track buffers with retaining spring

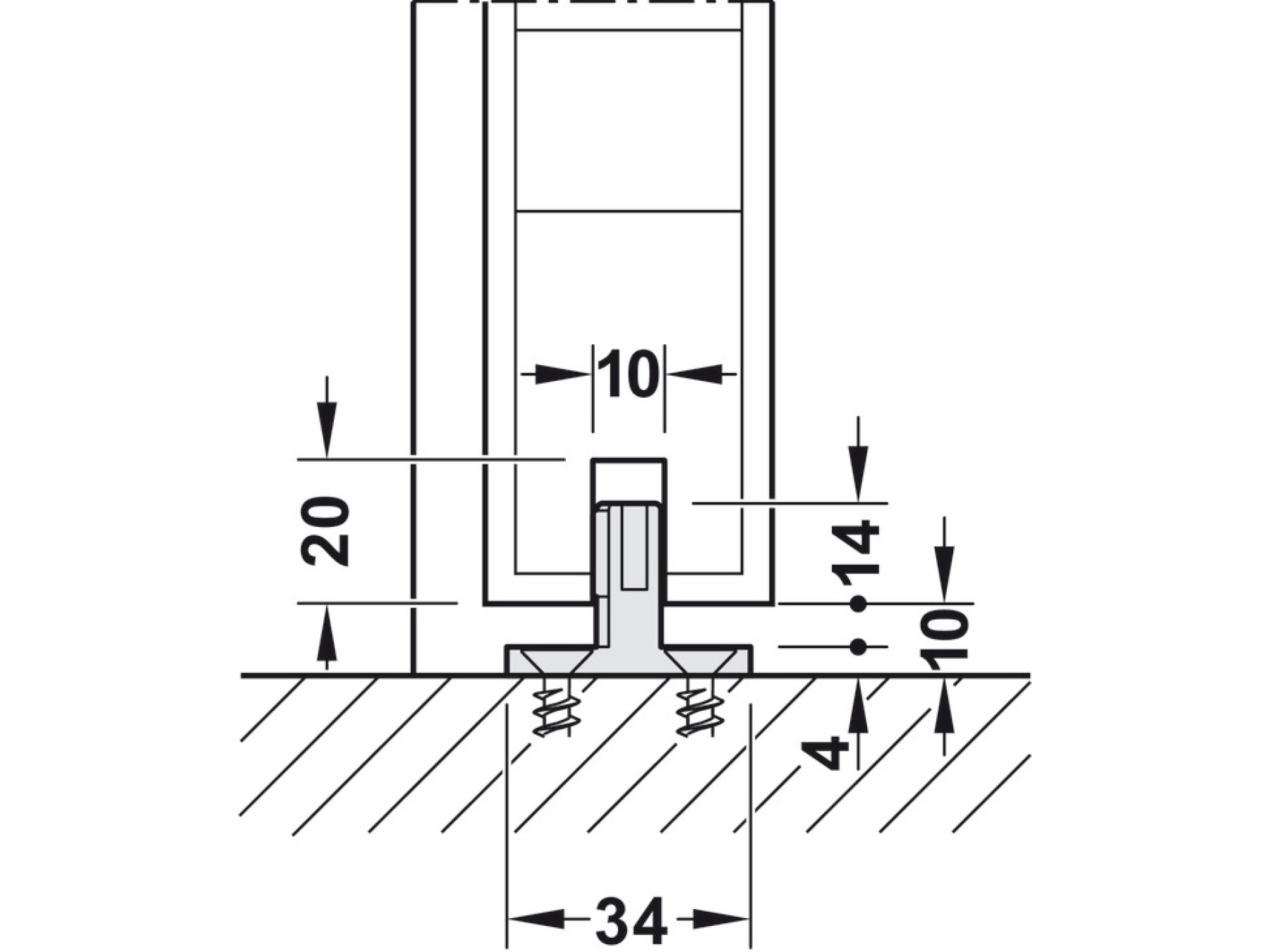

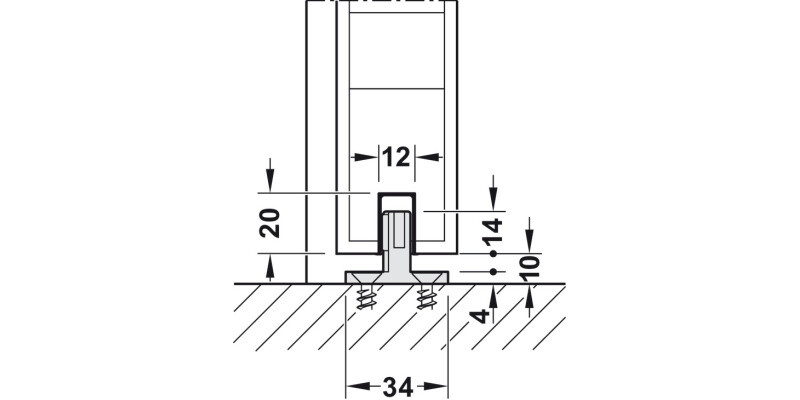

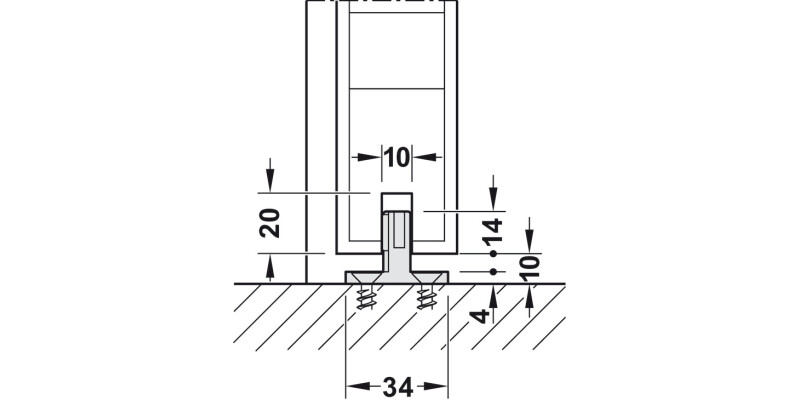

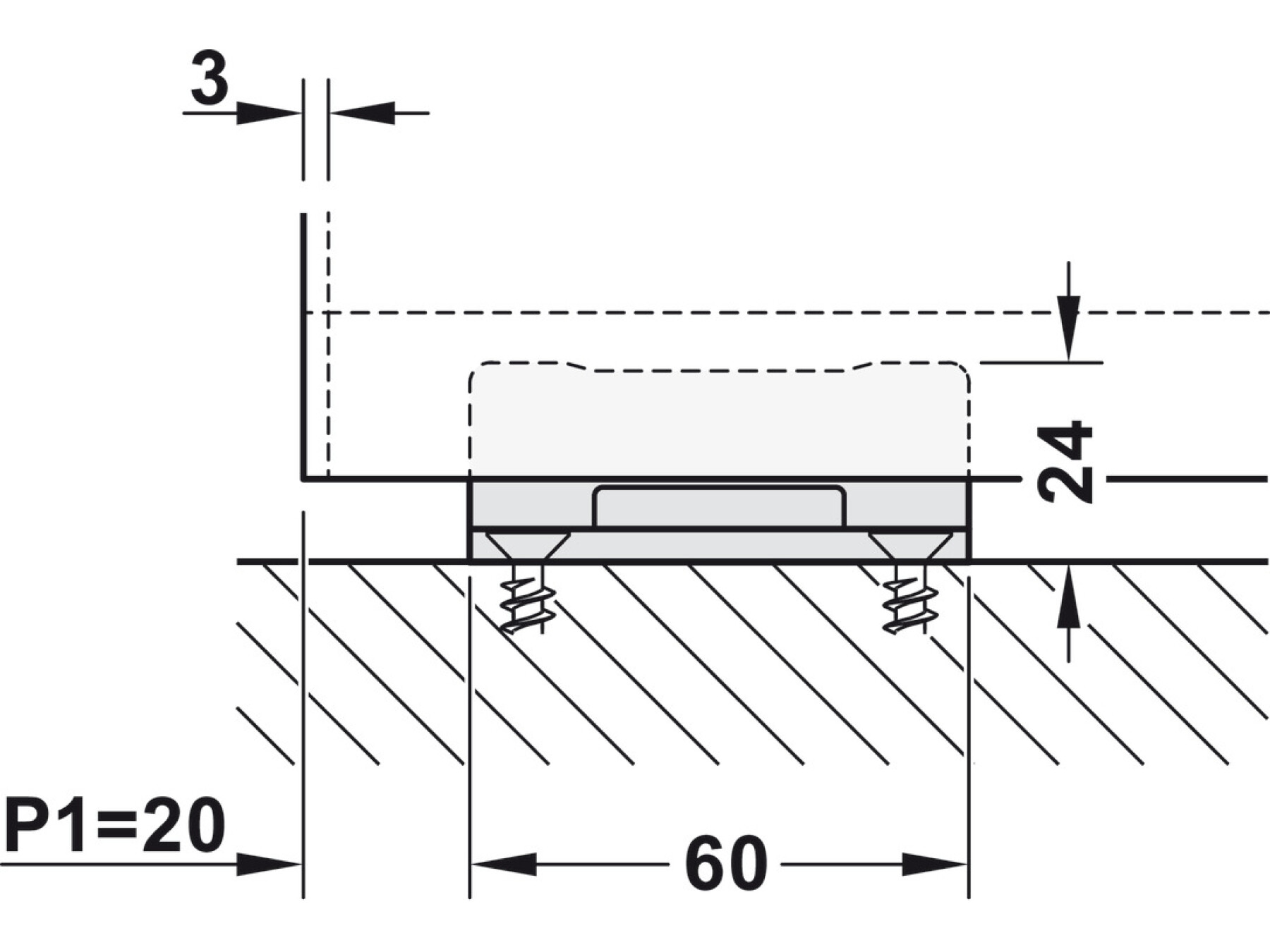

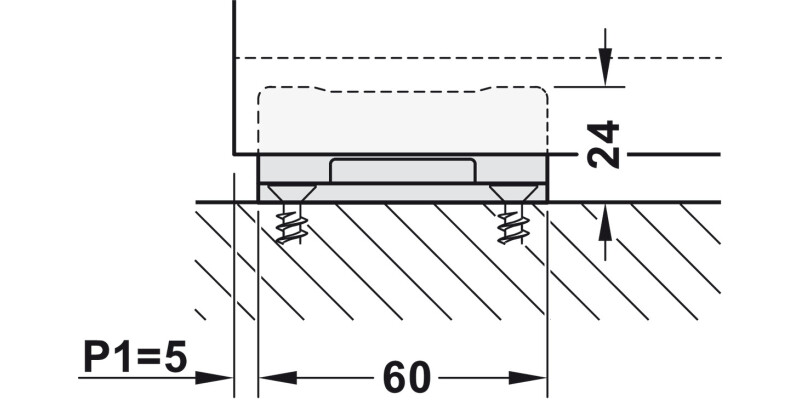

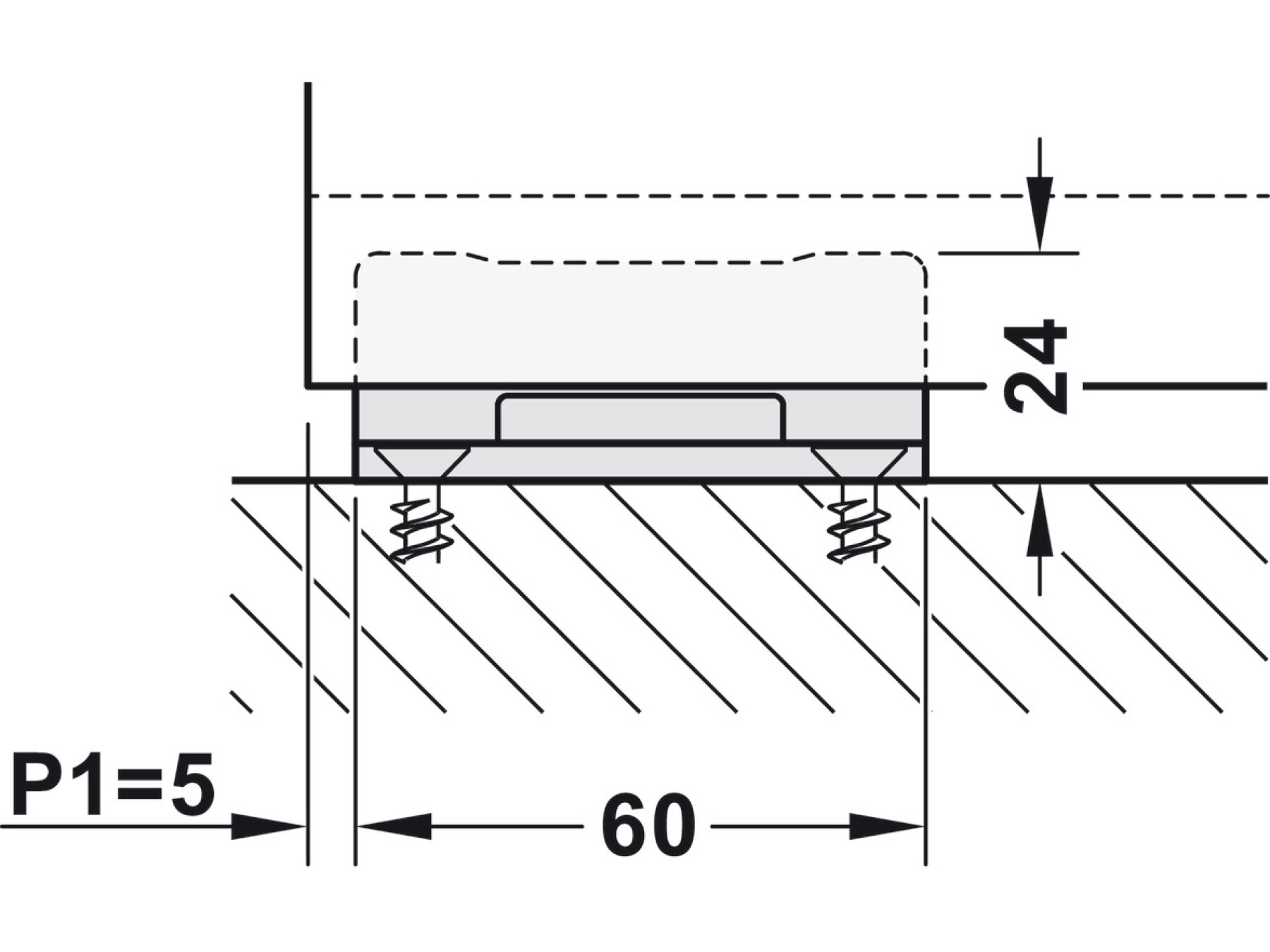

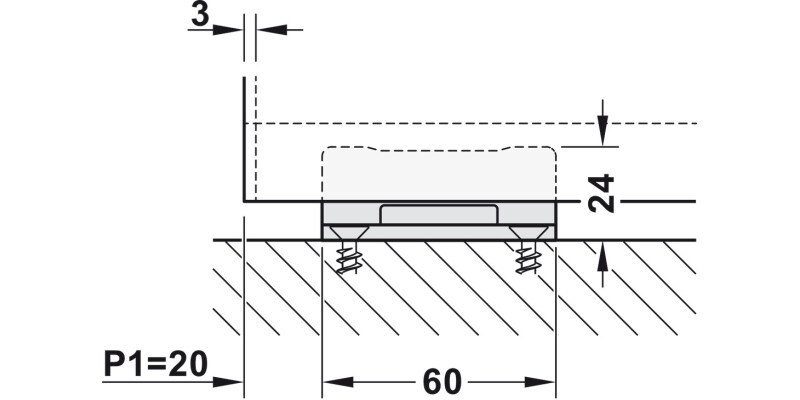

1x Floor guide with zero clearance
1x Height adjusting pin

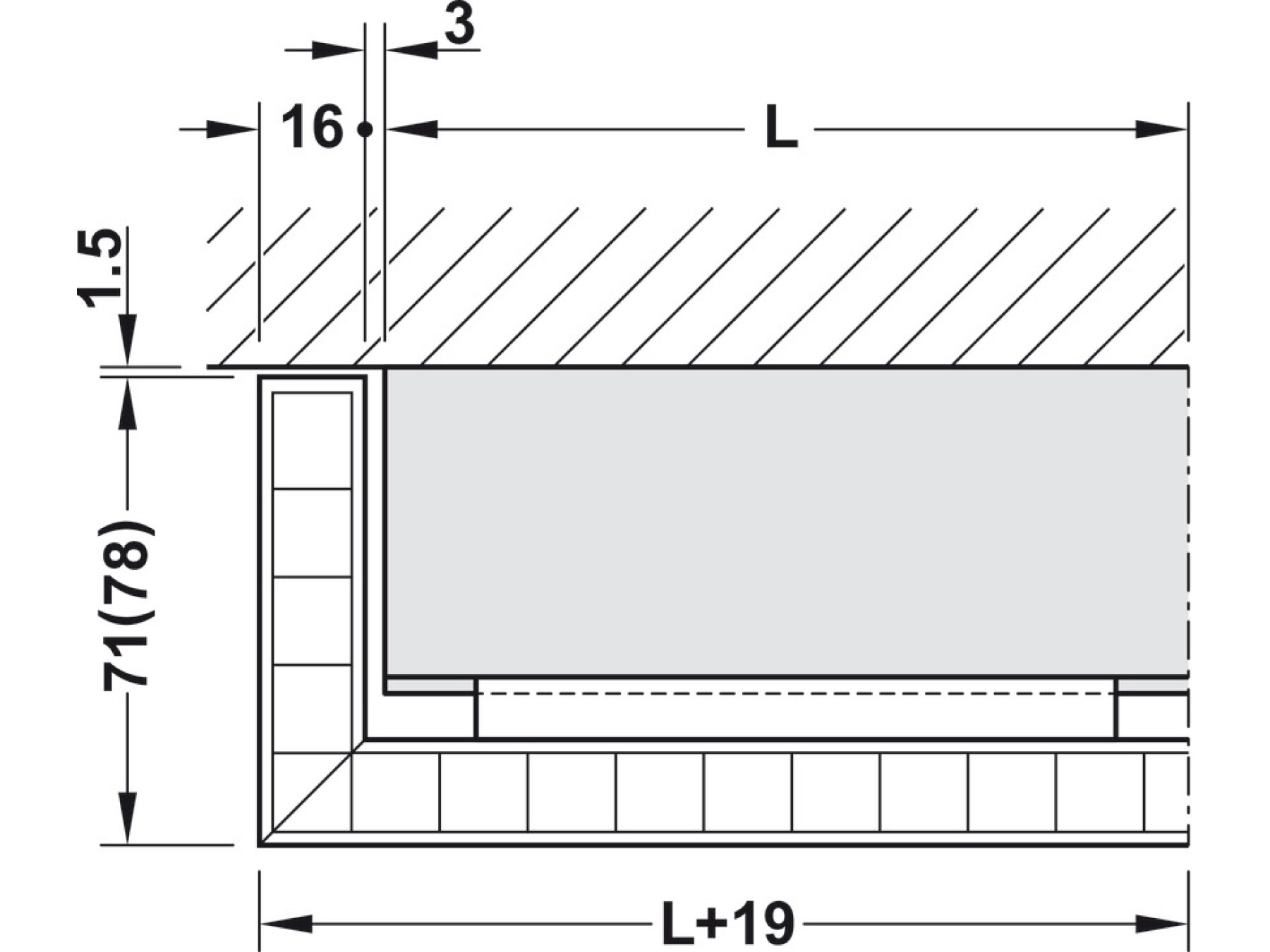

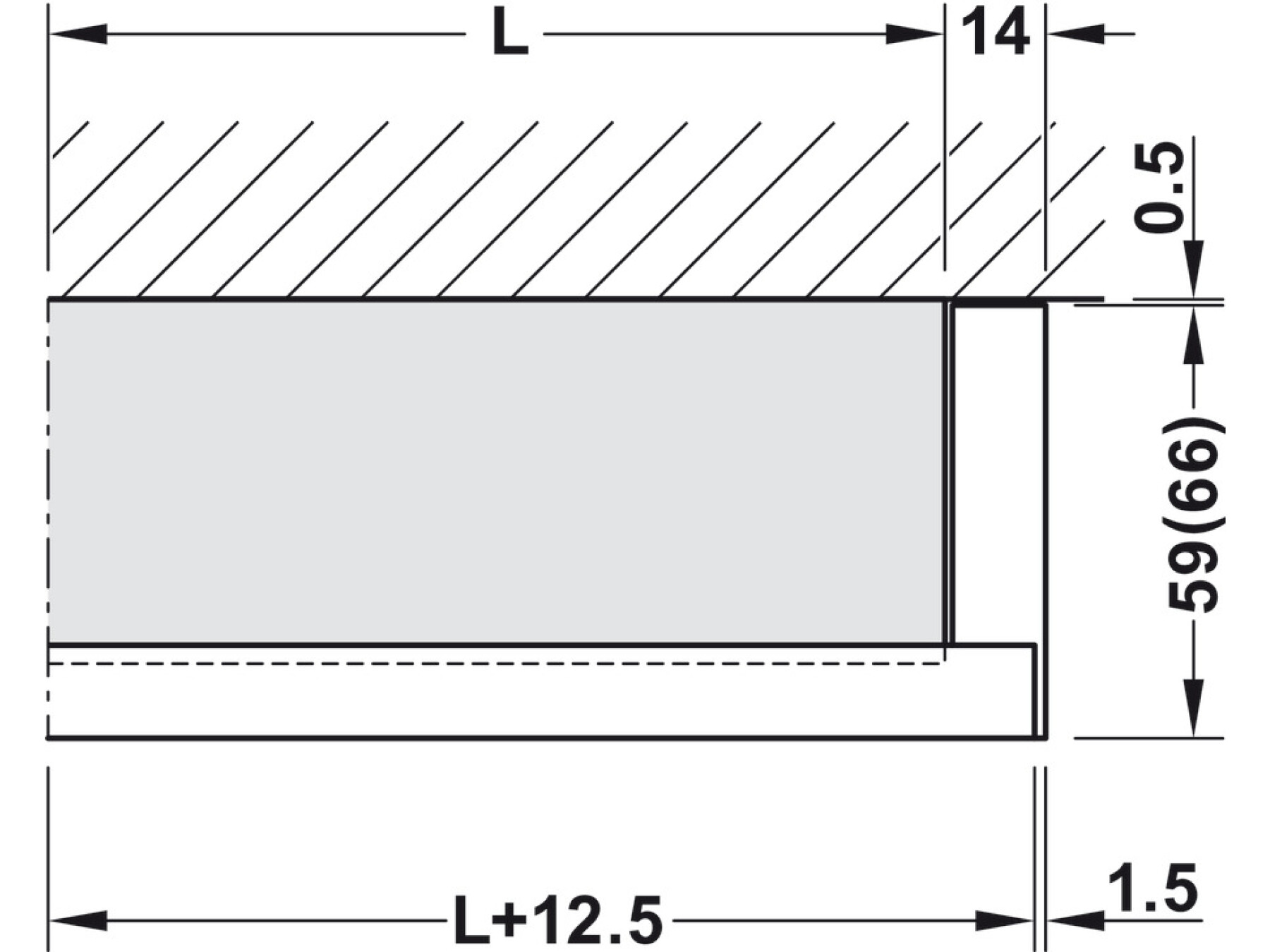

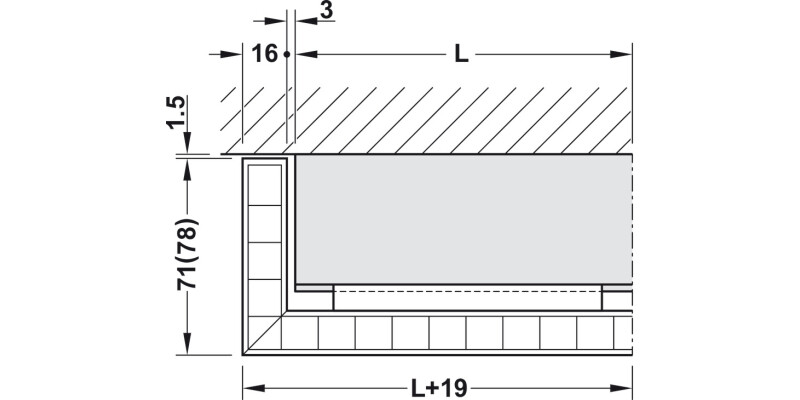

No end cap is available for ceiling installation with fascia on both sides.
A pair of end caps can be attached end to end and glued vertically in the centre of the running track (optional).
Specifications
Model series
Junior 80/Z
Model
Junior 80/Z
For door weight
≤80 kg
For door width
≤3,000 mm
For door material
Wood
Mounting type

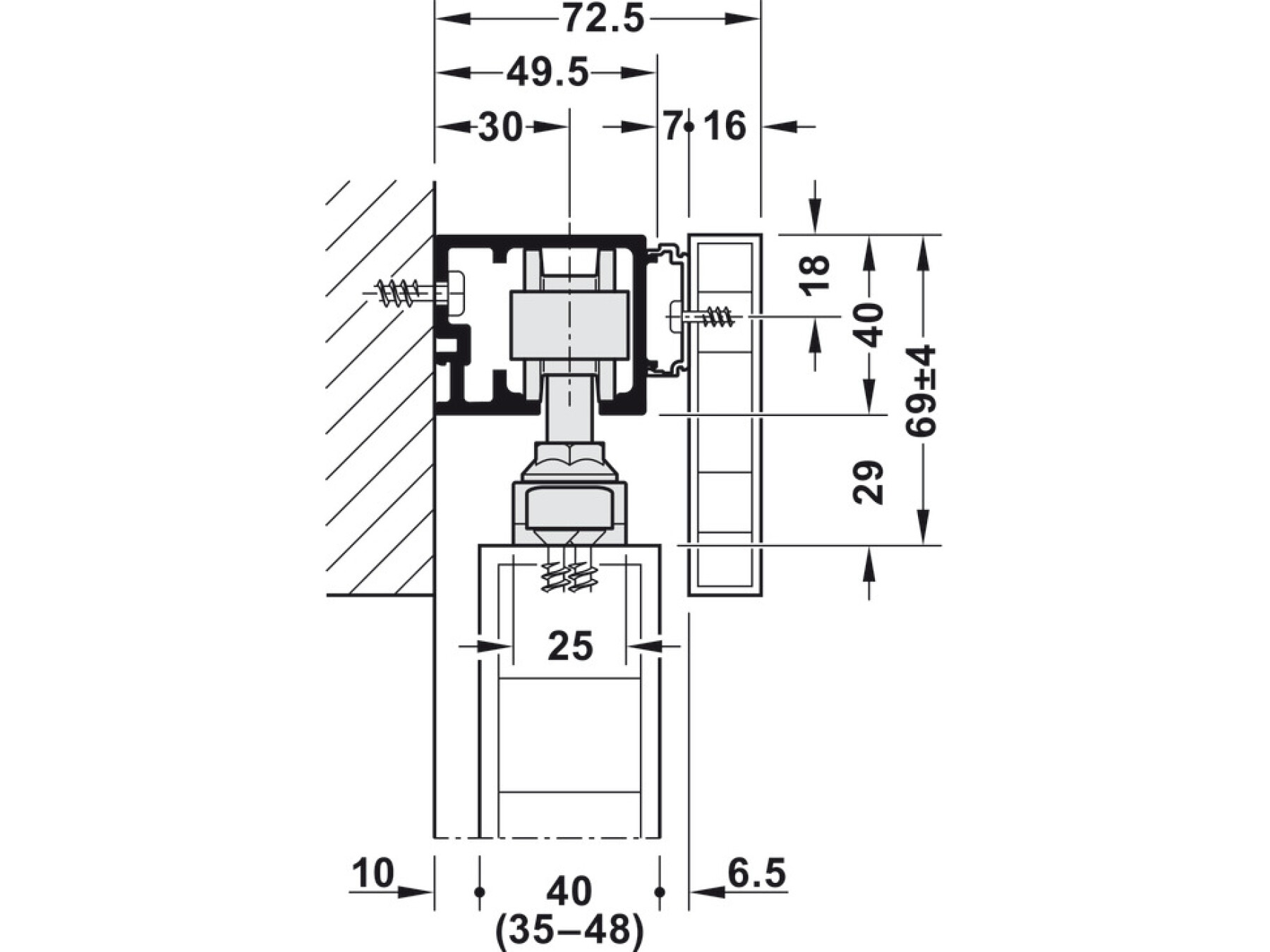

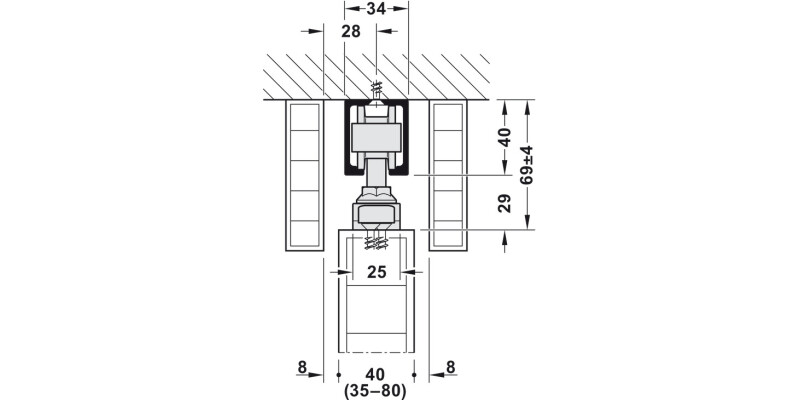

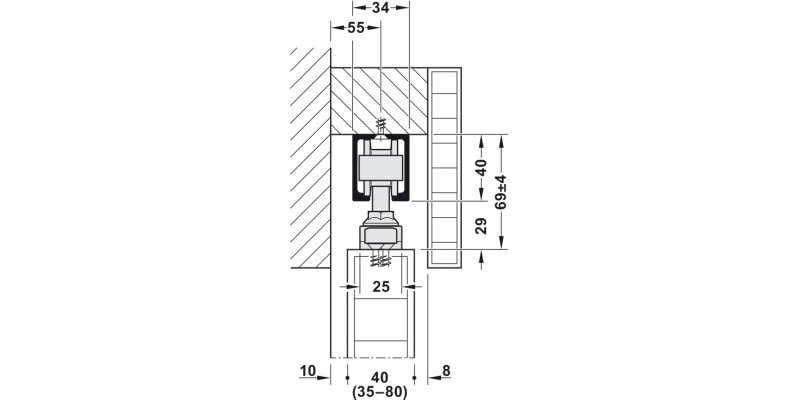

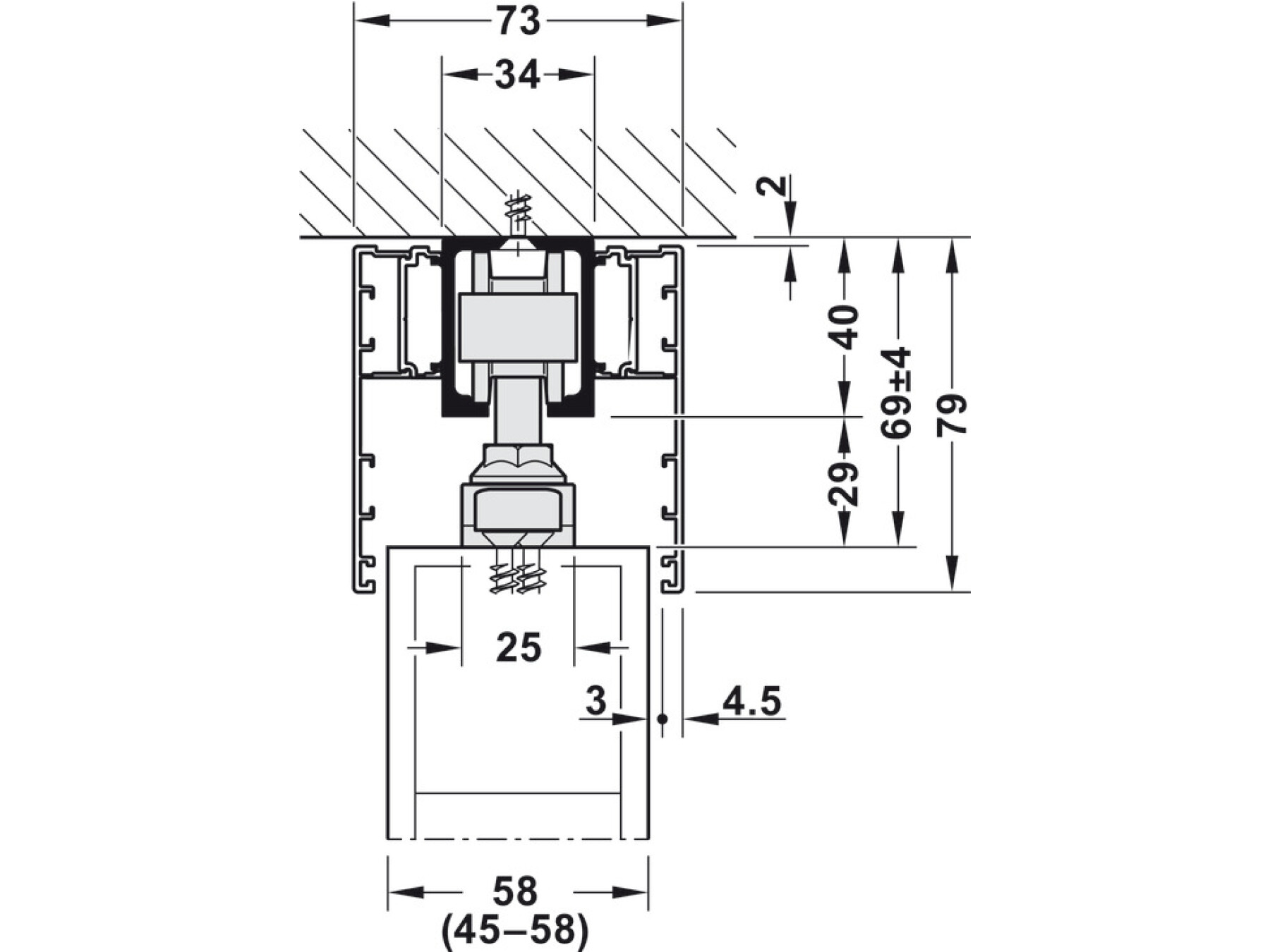

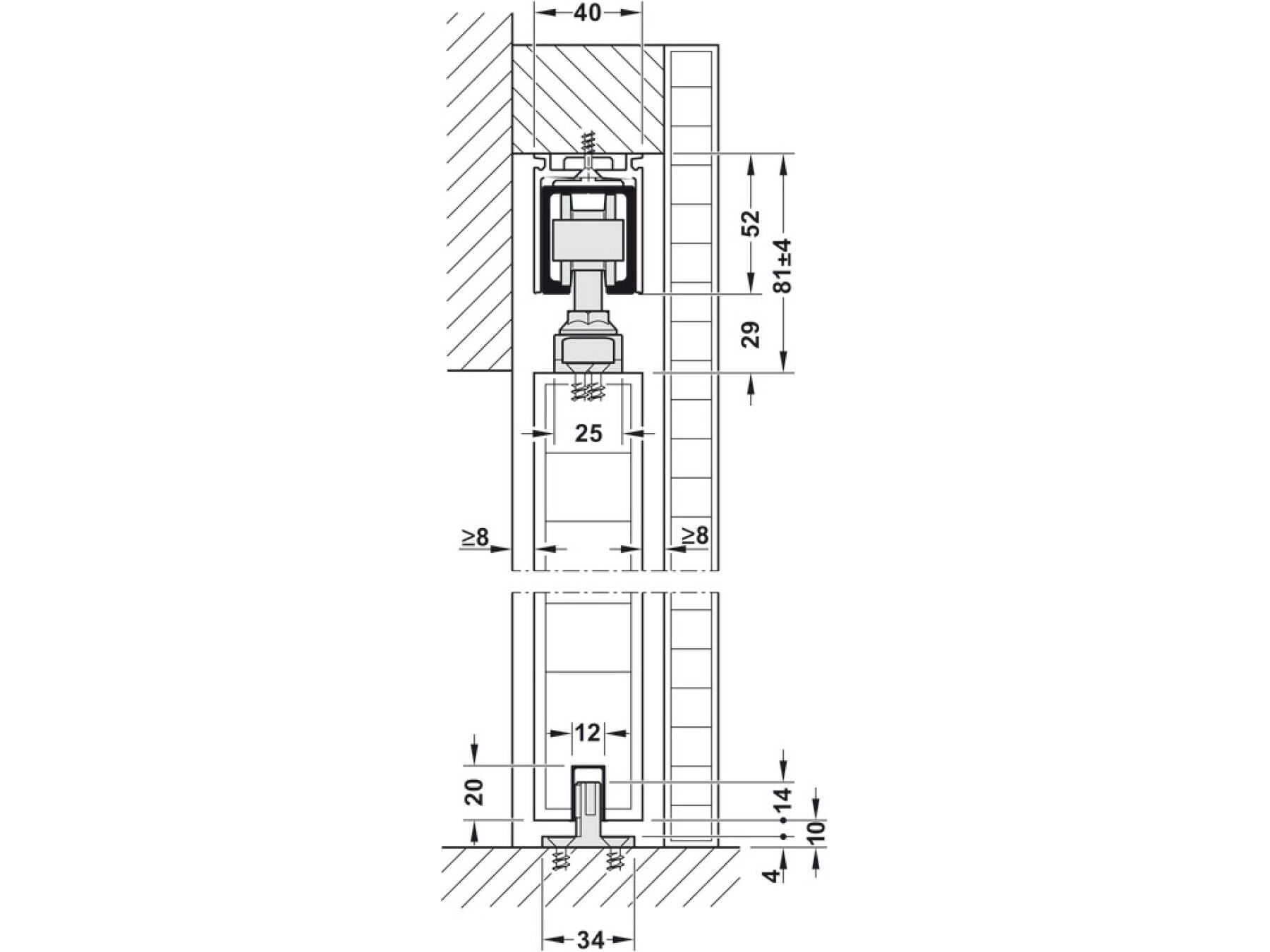

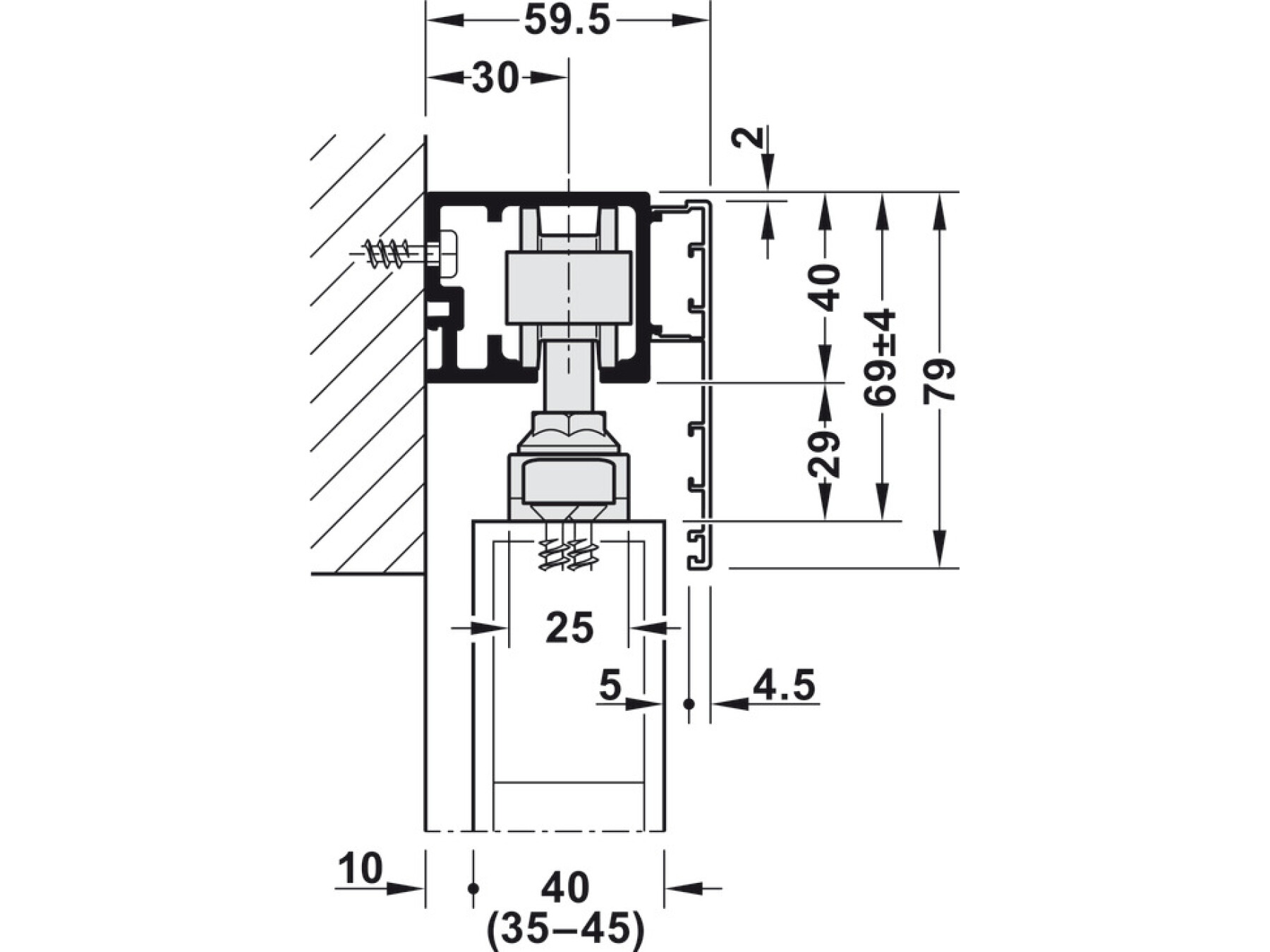

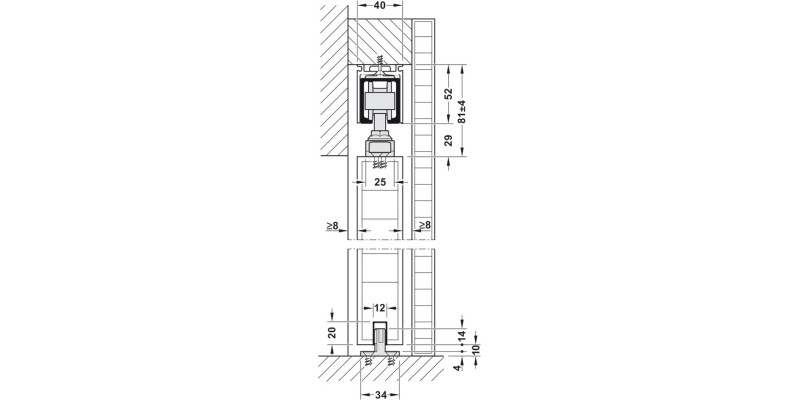

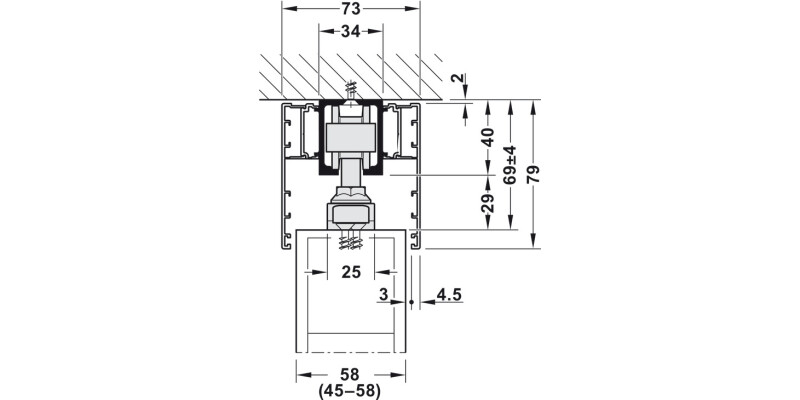

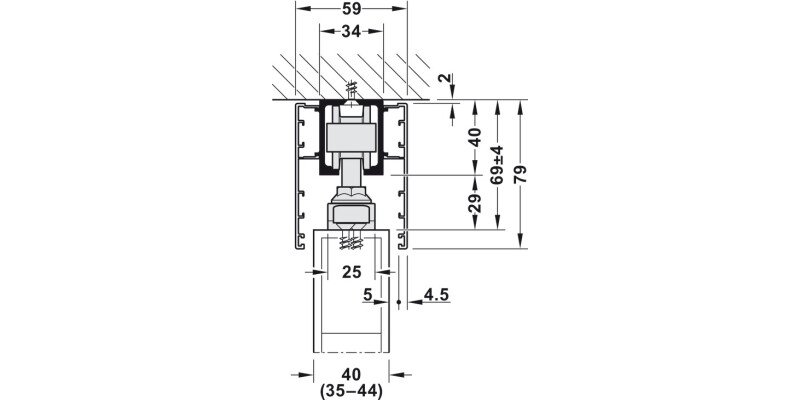

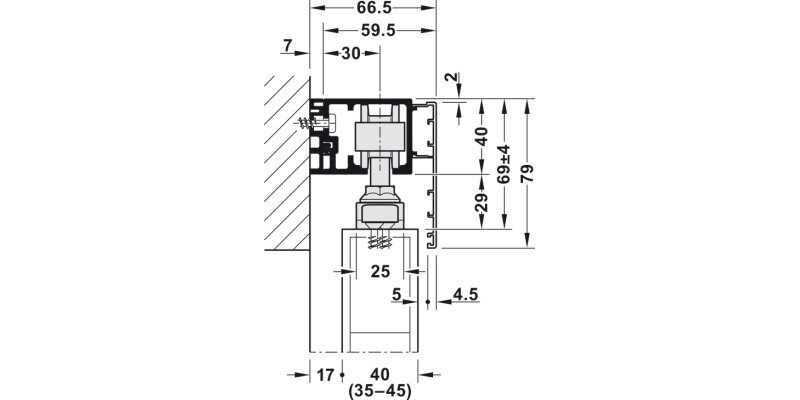

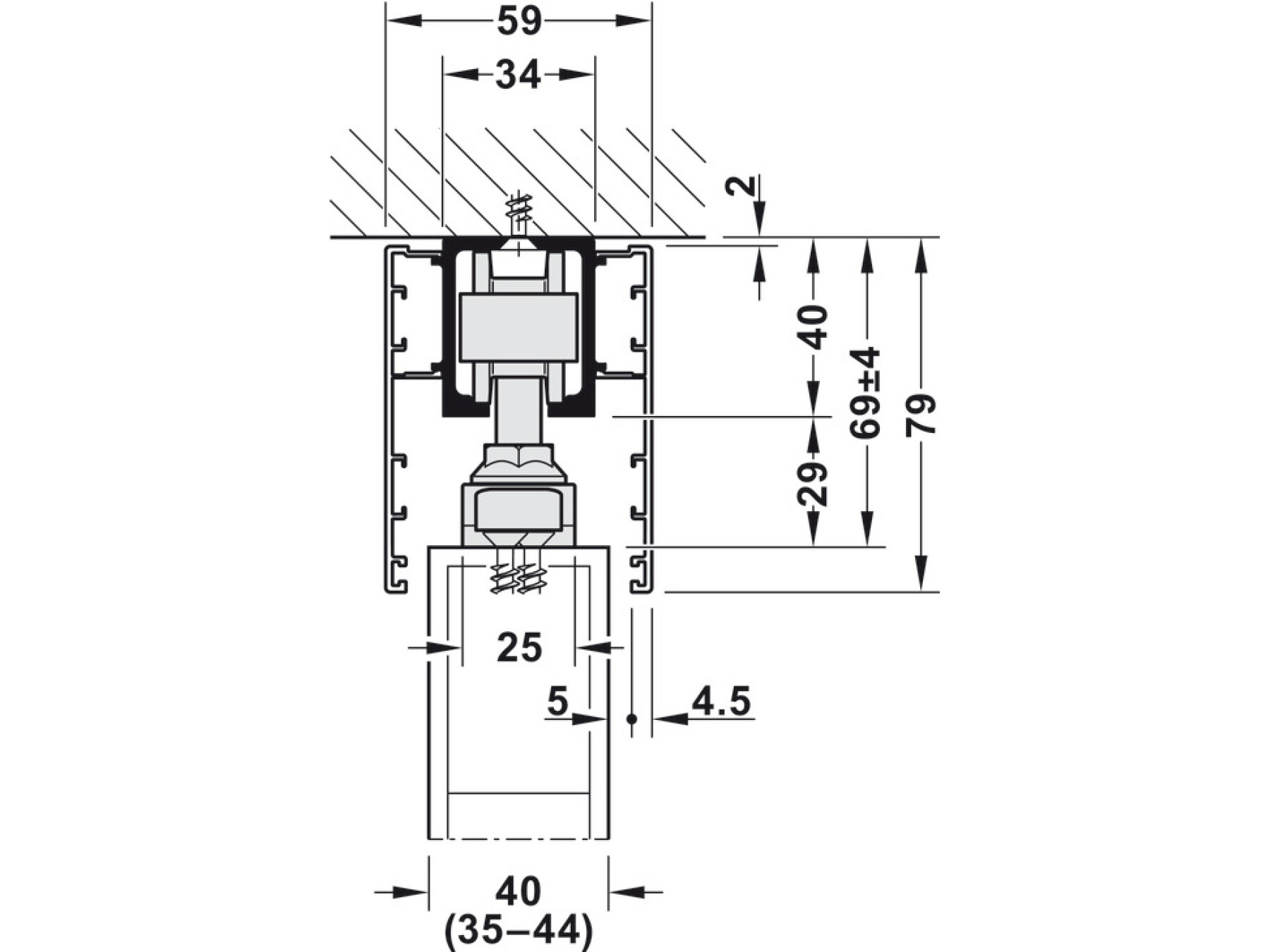

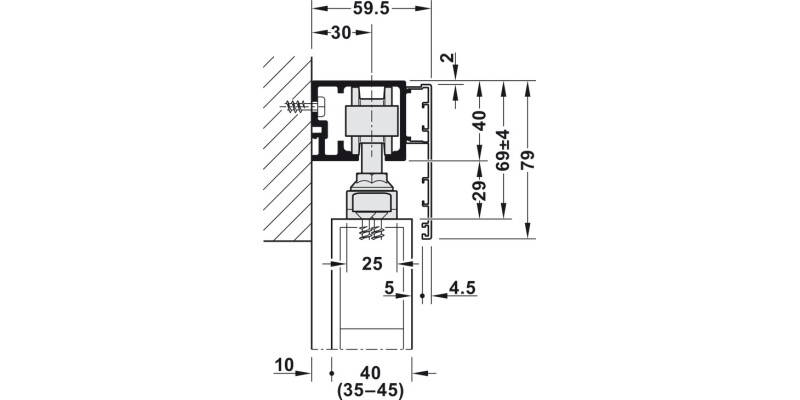

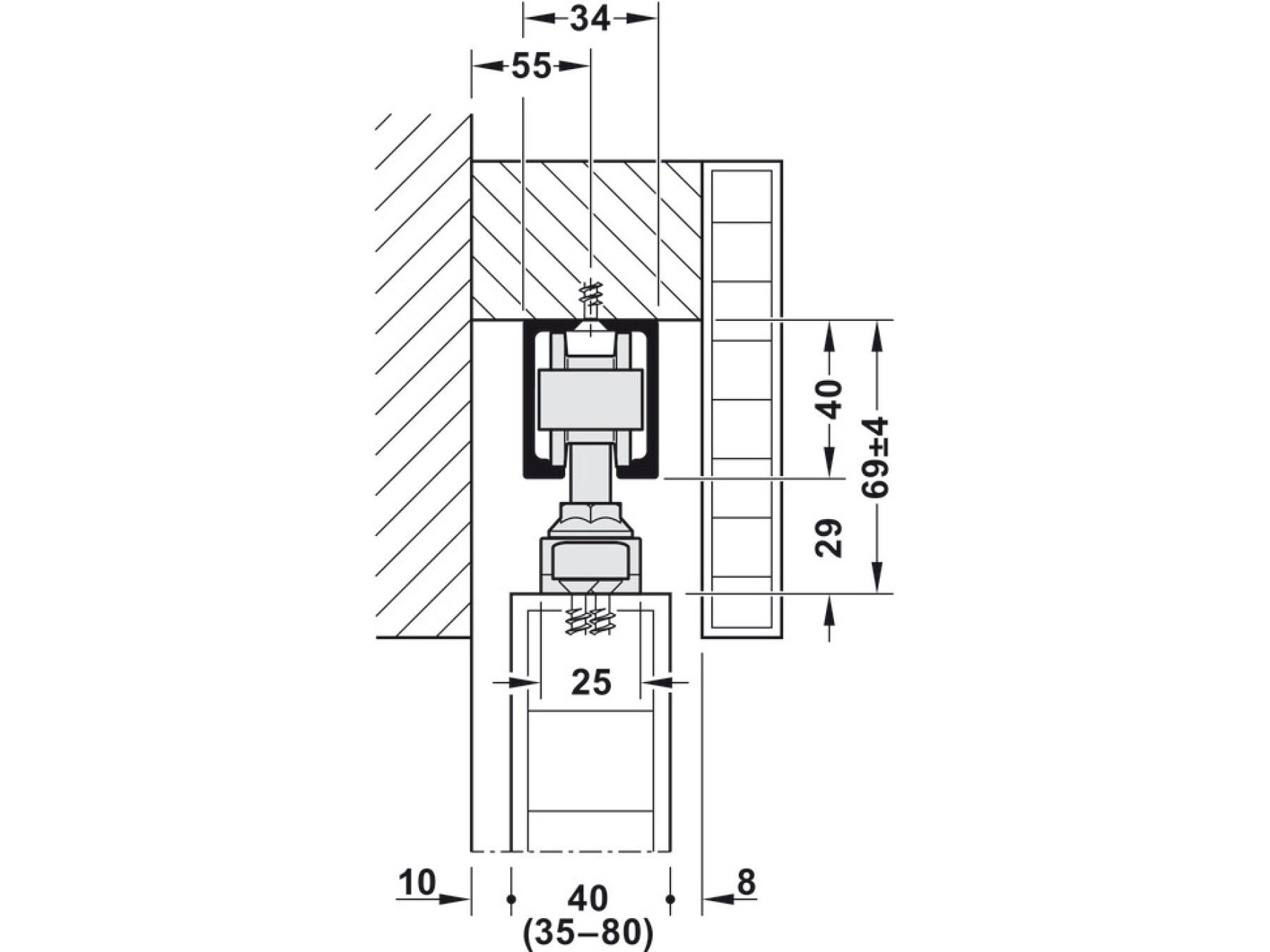

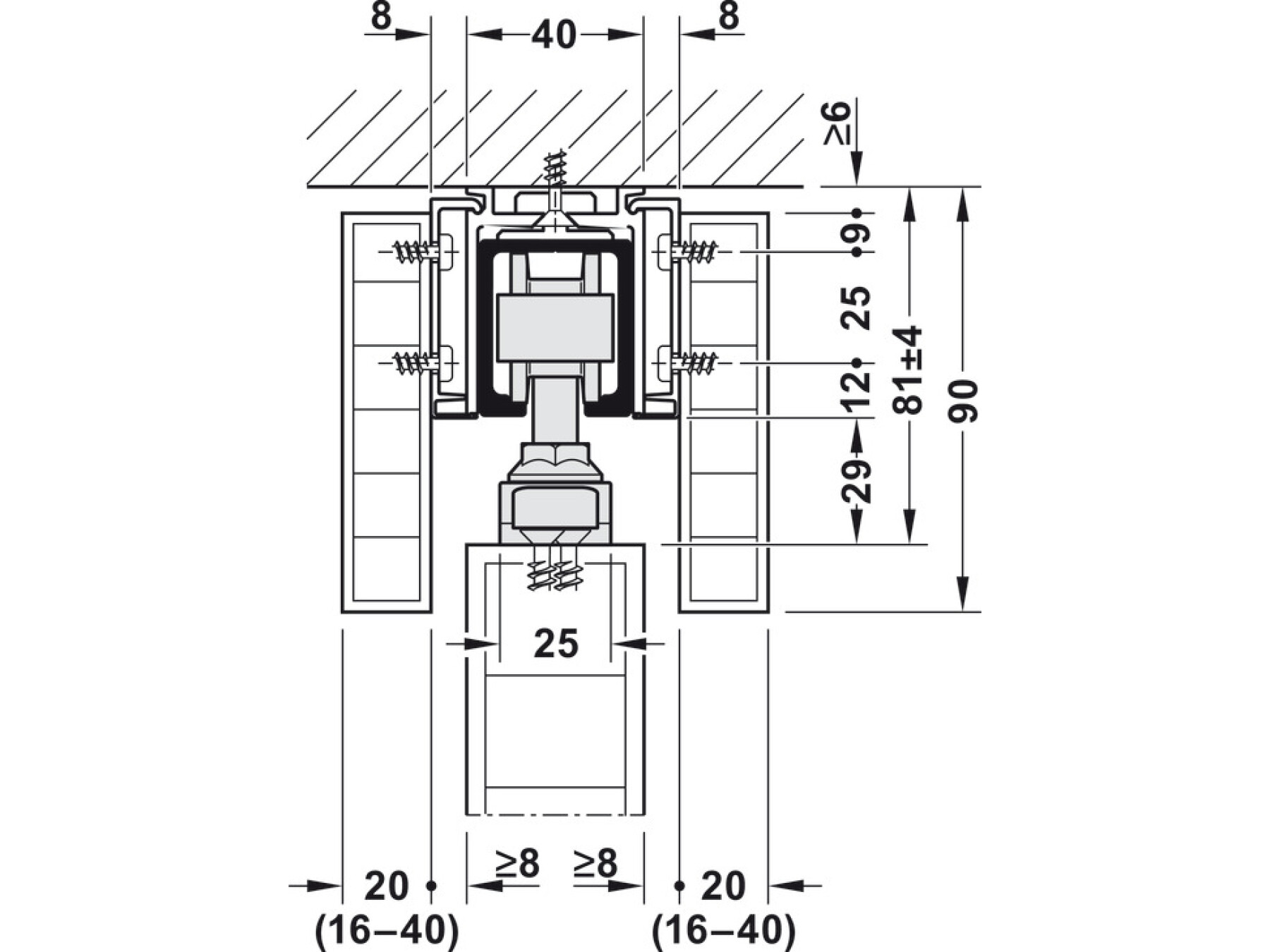

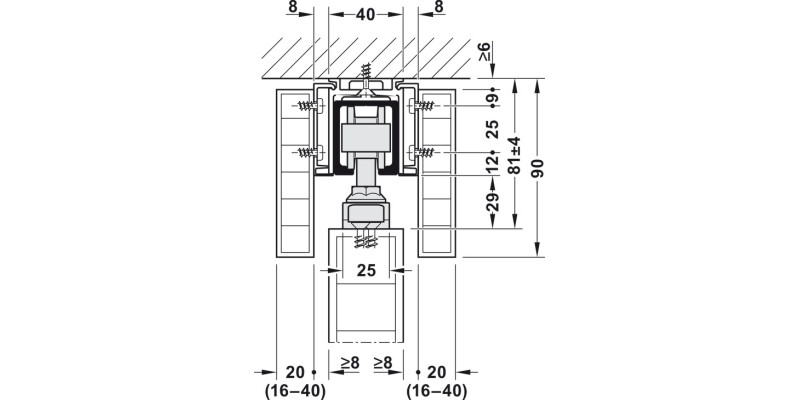

Ceiling installation, Wall mounting, Wall pocket solution
For door thickness
35 – 80 mm
Number of door leaves per set
1.00
Area of application
Interior low headroom doors
Note on door width

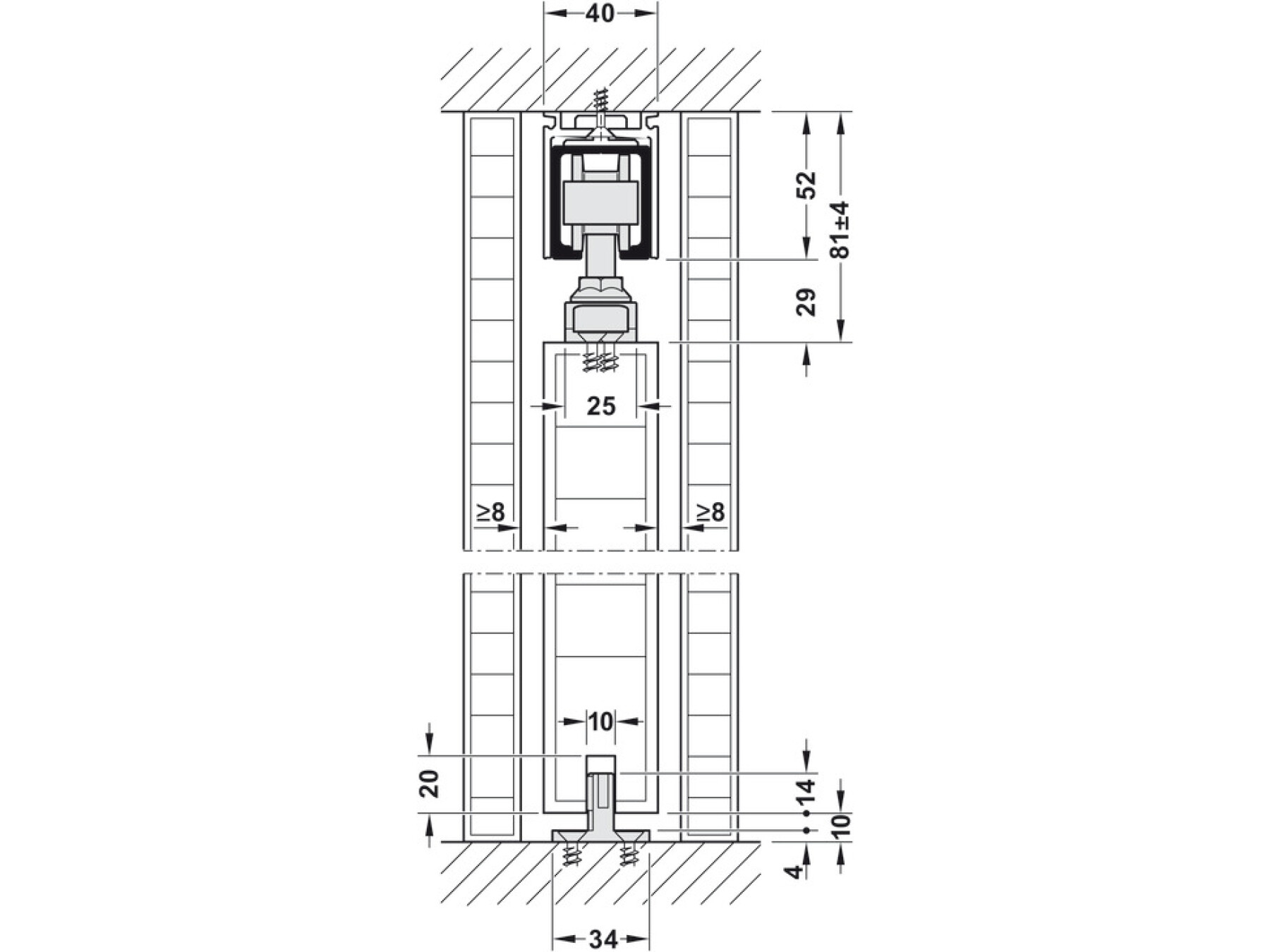

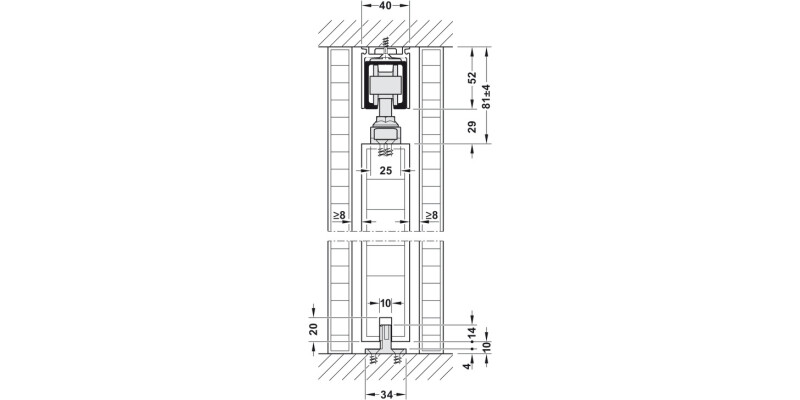

The max. door width for the pocket door solution is 1,500 mm.
For door height
≤4,000 mm
Running position
Top
Installation
Suspension with screwed on two-way suspension
Installation note
Installation and removal of the door possible from the door surface or door edge
Door processing
for screw fixing
Standard
Certified in compliance with EN 1527:2013
Classification in compliance with EN 1527
-|6|2|-|1|0|-|1|3
Number of door wings in a system max.
1 to 2
Order reference
Tracks, fitting sets, accessories and fixings to be ordered separately
