Hawa Junior 40Z Fitting Set 1Dr

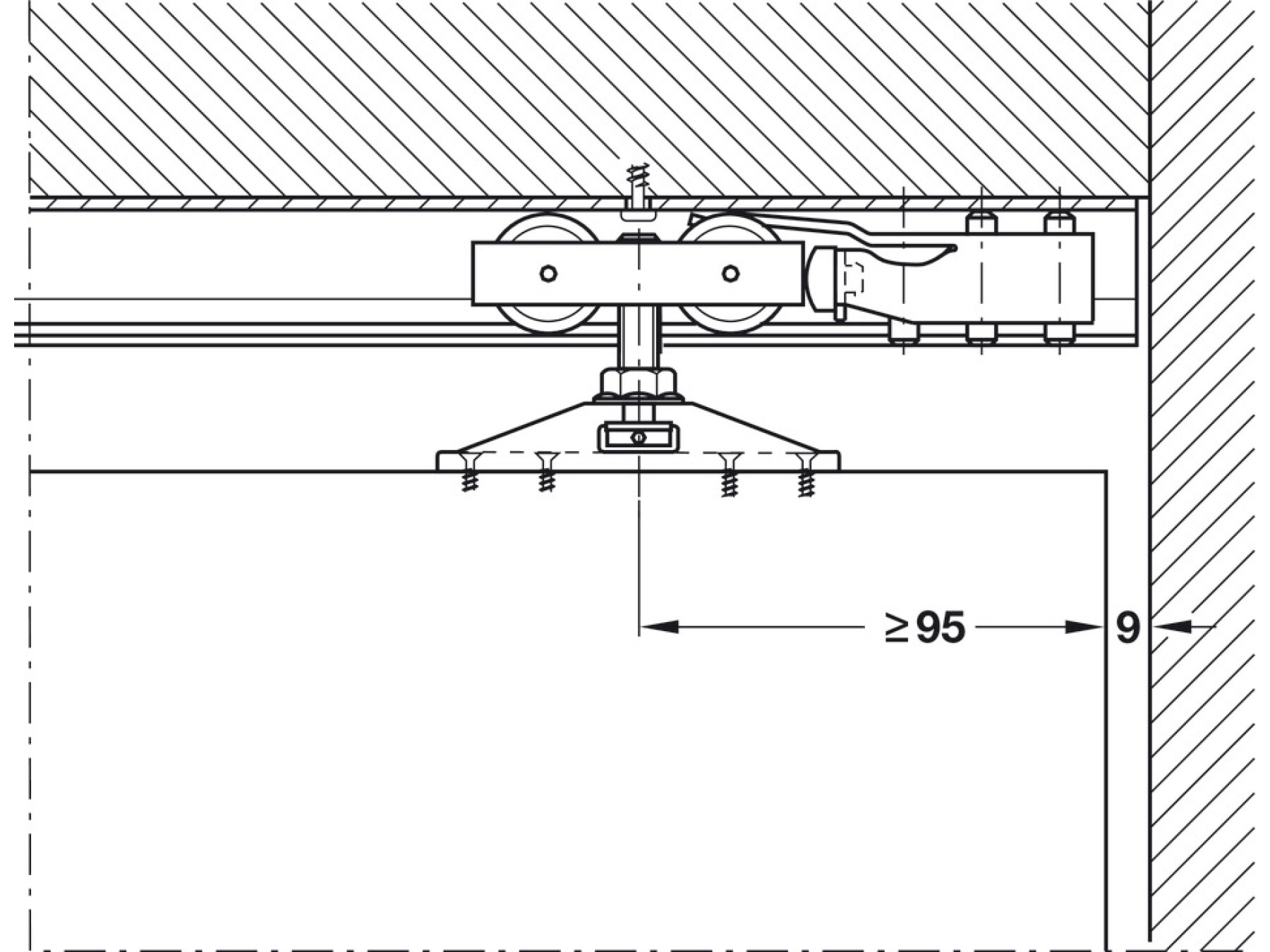

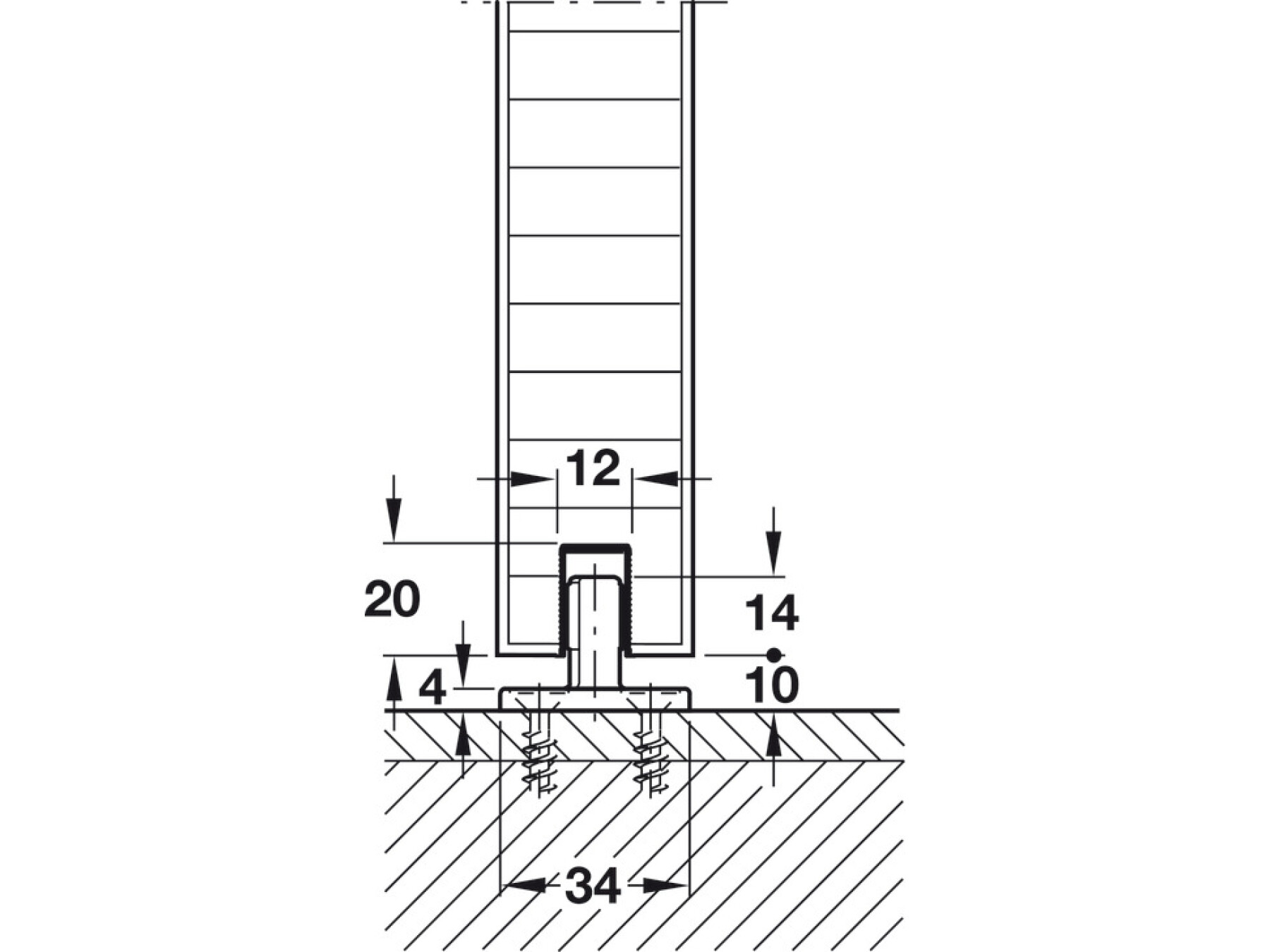

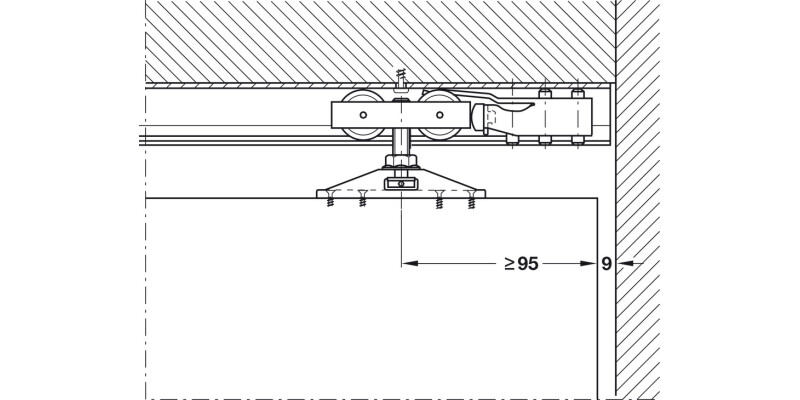

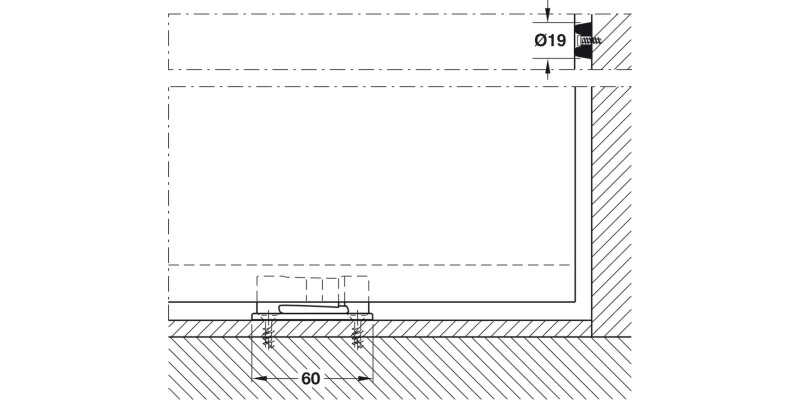

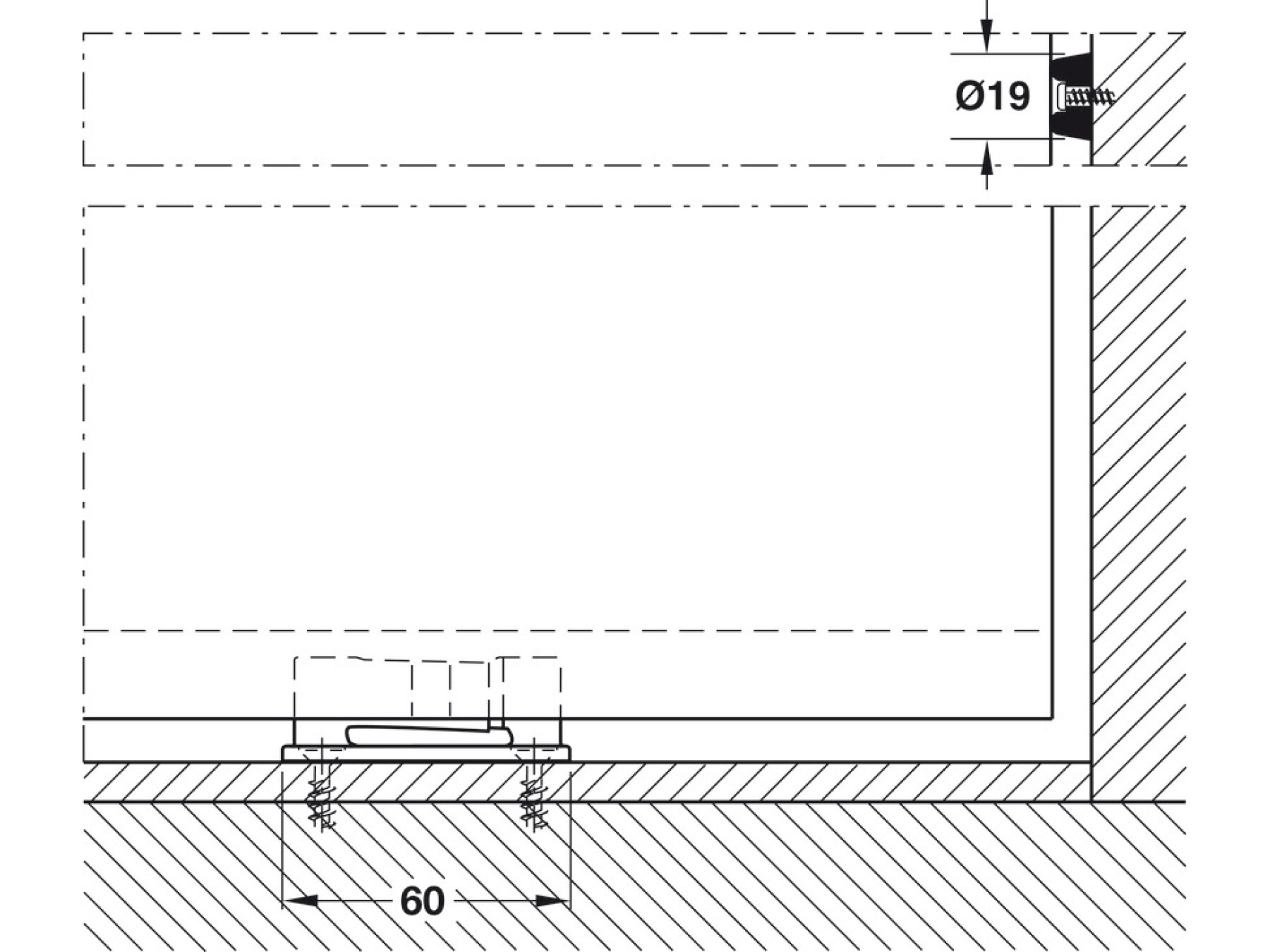

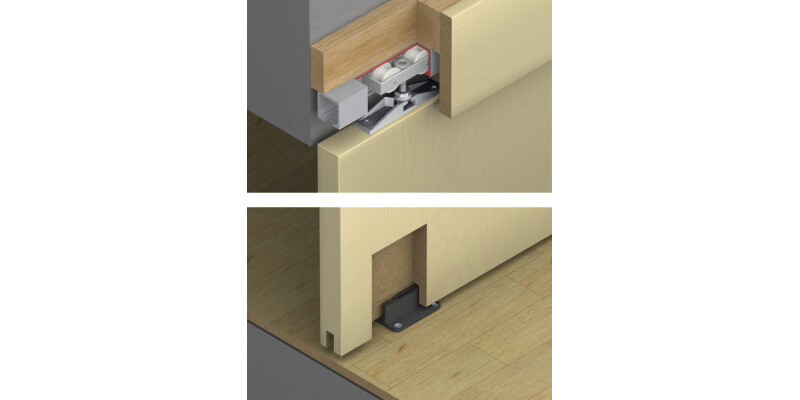

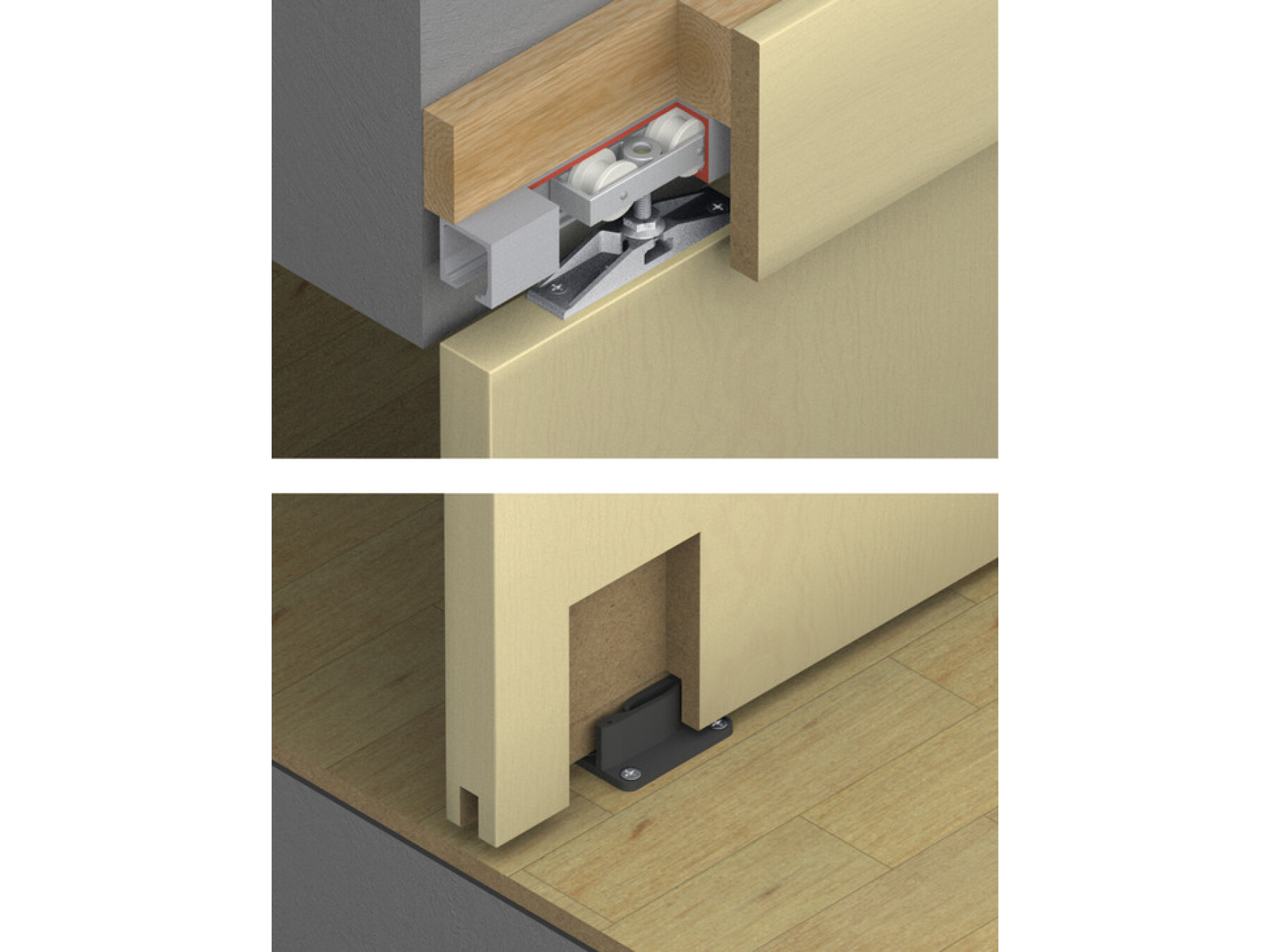

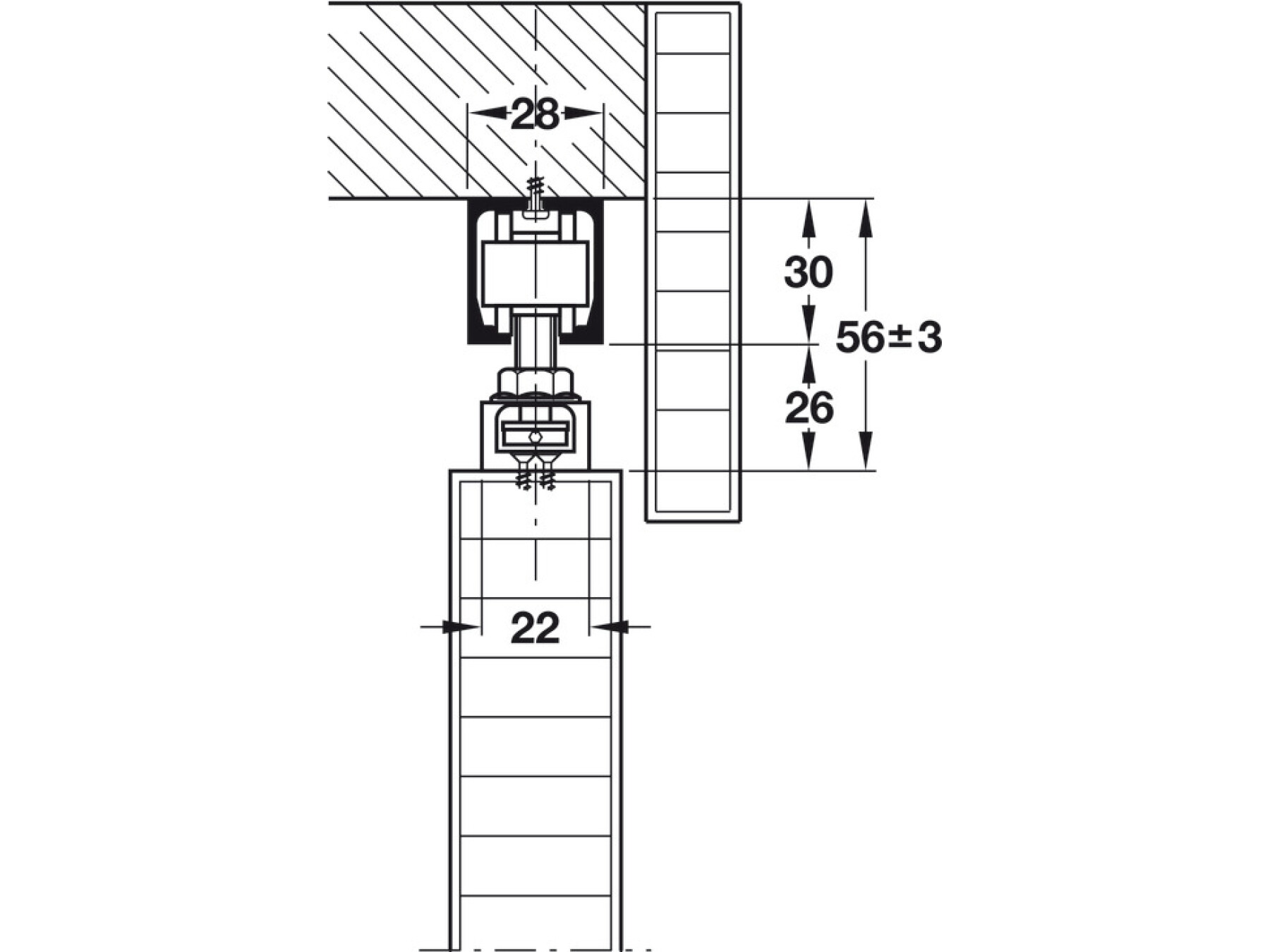

Junior 40 is a vertically adjustable sliding door fitting for light to medium weight interior doors, for top quality joinery and partitioningIf the sliding door is required to stop at both ends we recommend installing an additional track stopperInstallation drawing reference 17689

• Version: with 2 track buffers


• Suitable for: Hawa-Telescopic 40/4


• Application: Interior doors

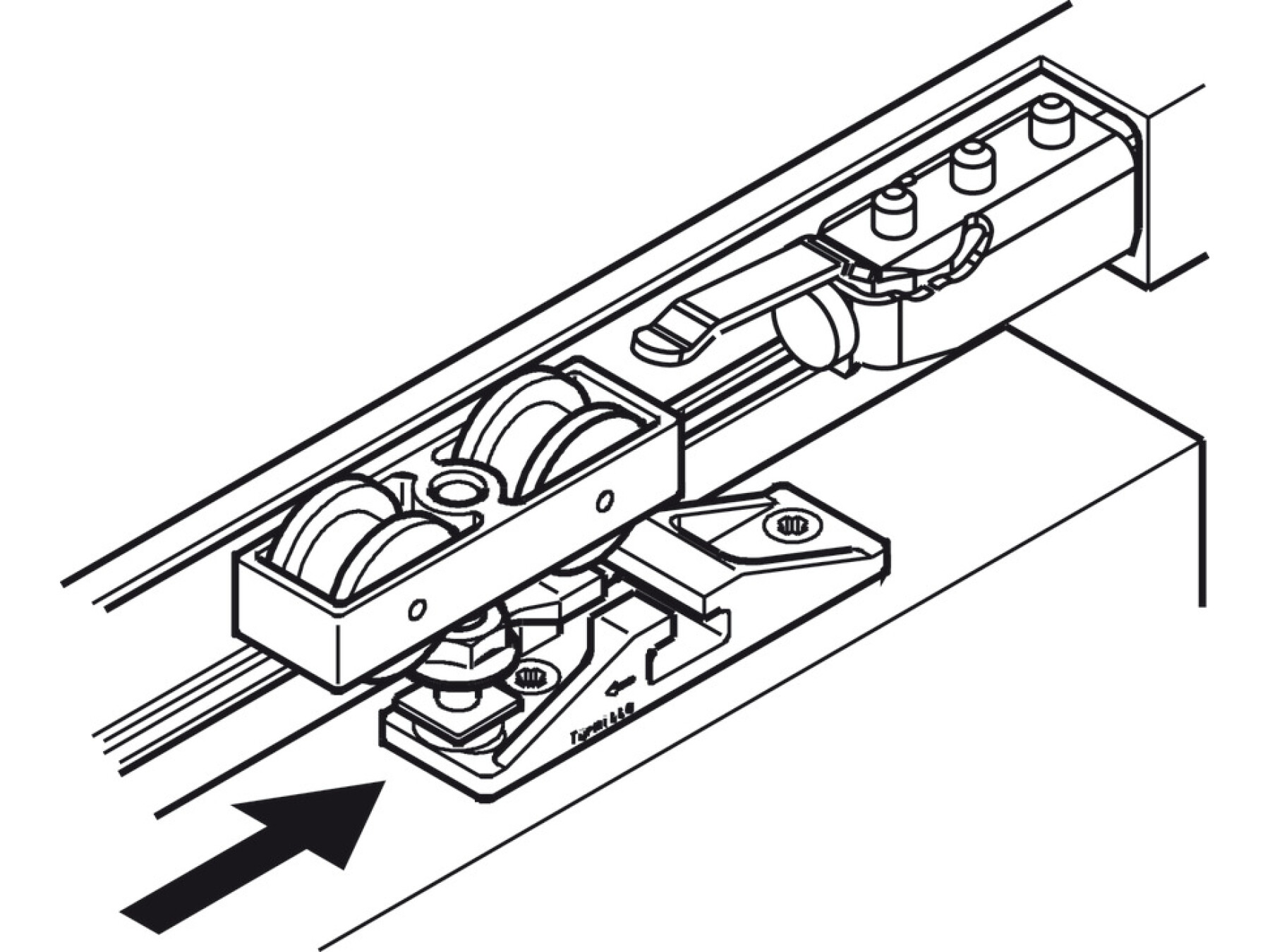

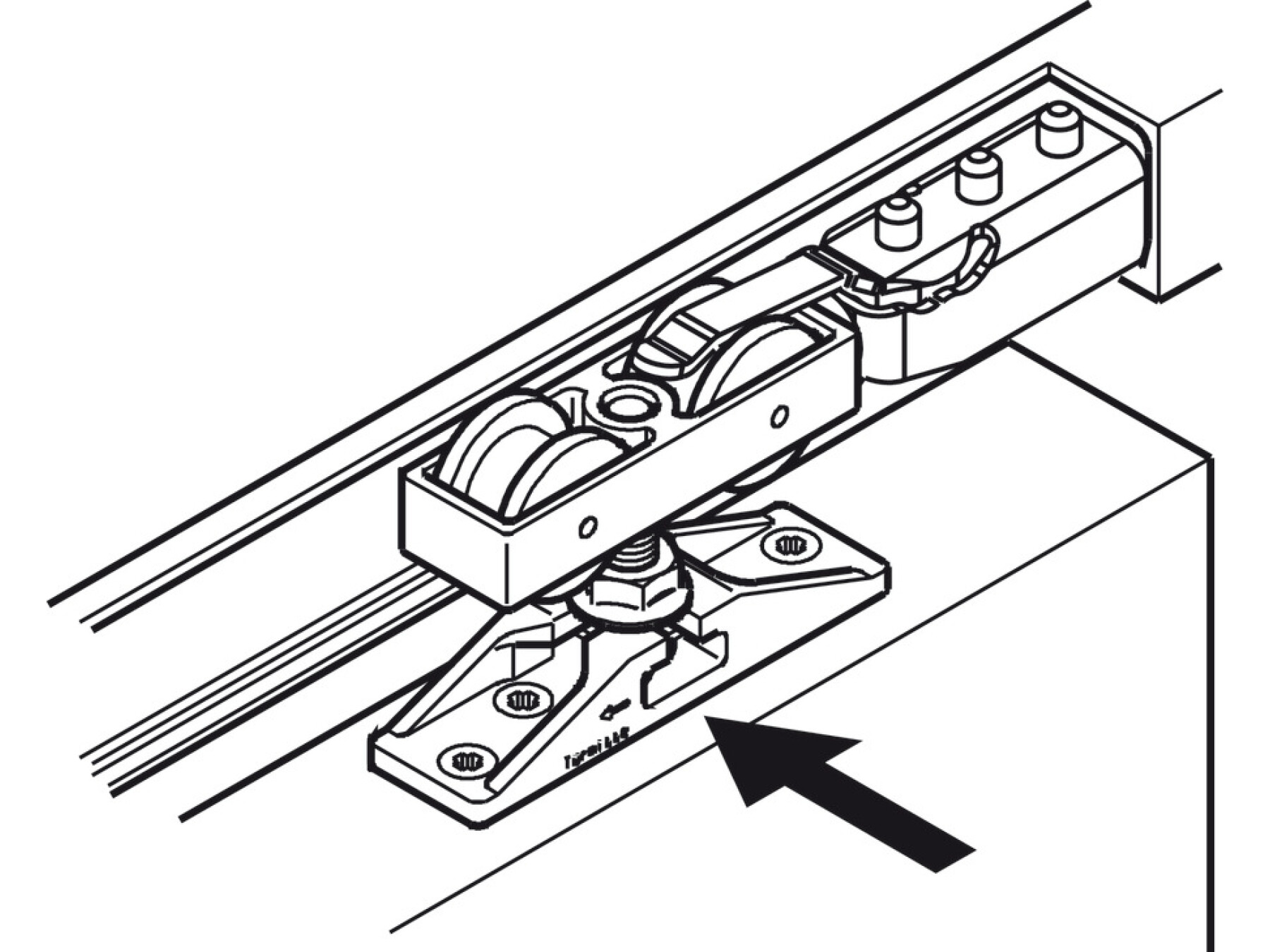

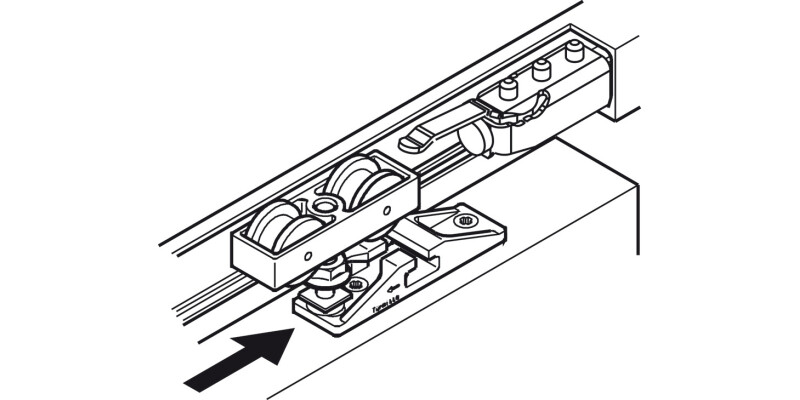

• Installation: Screw and clip fixing

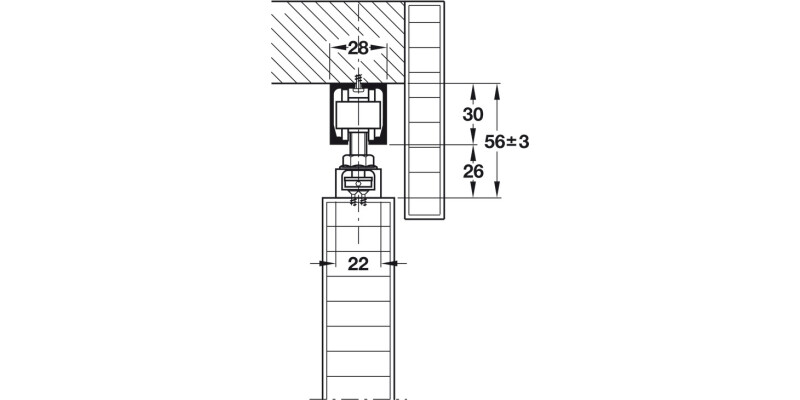

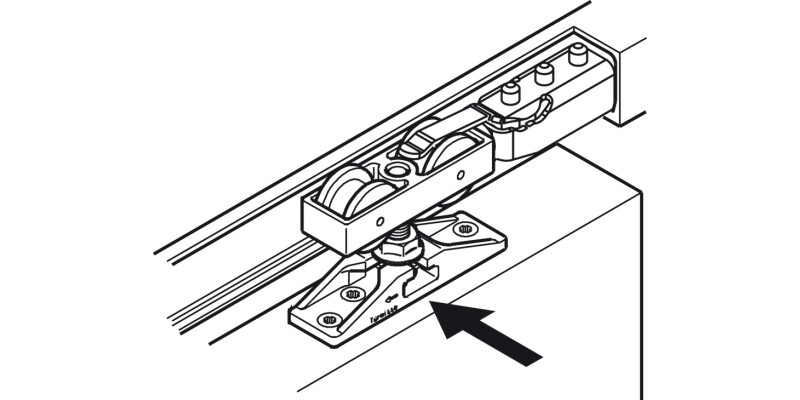

• Adjustment facility: Height adjustment +/- 3 mm


• Door weight: Max. 40 kg


• Door height: Max. 2100 mm


• Door thickness: Min. 22 mm


• Material: Zinc alloy/aluminium/plastic/rubber

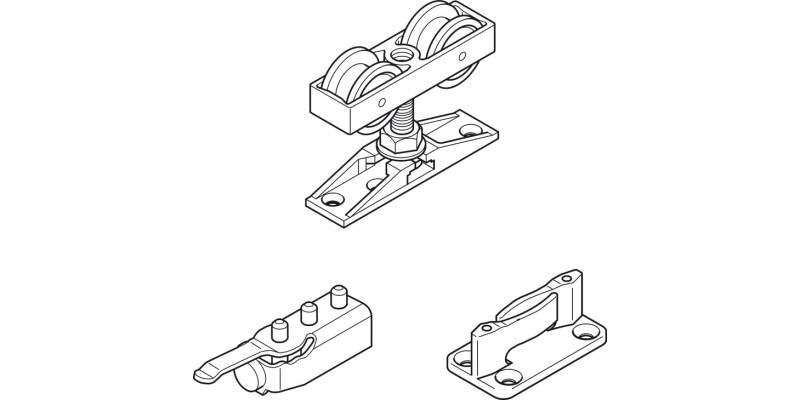

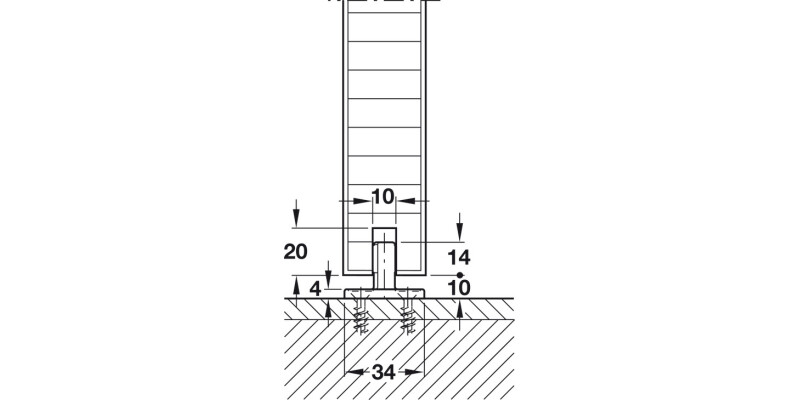

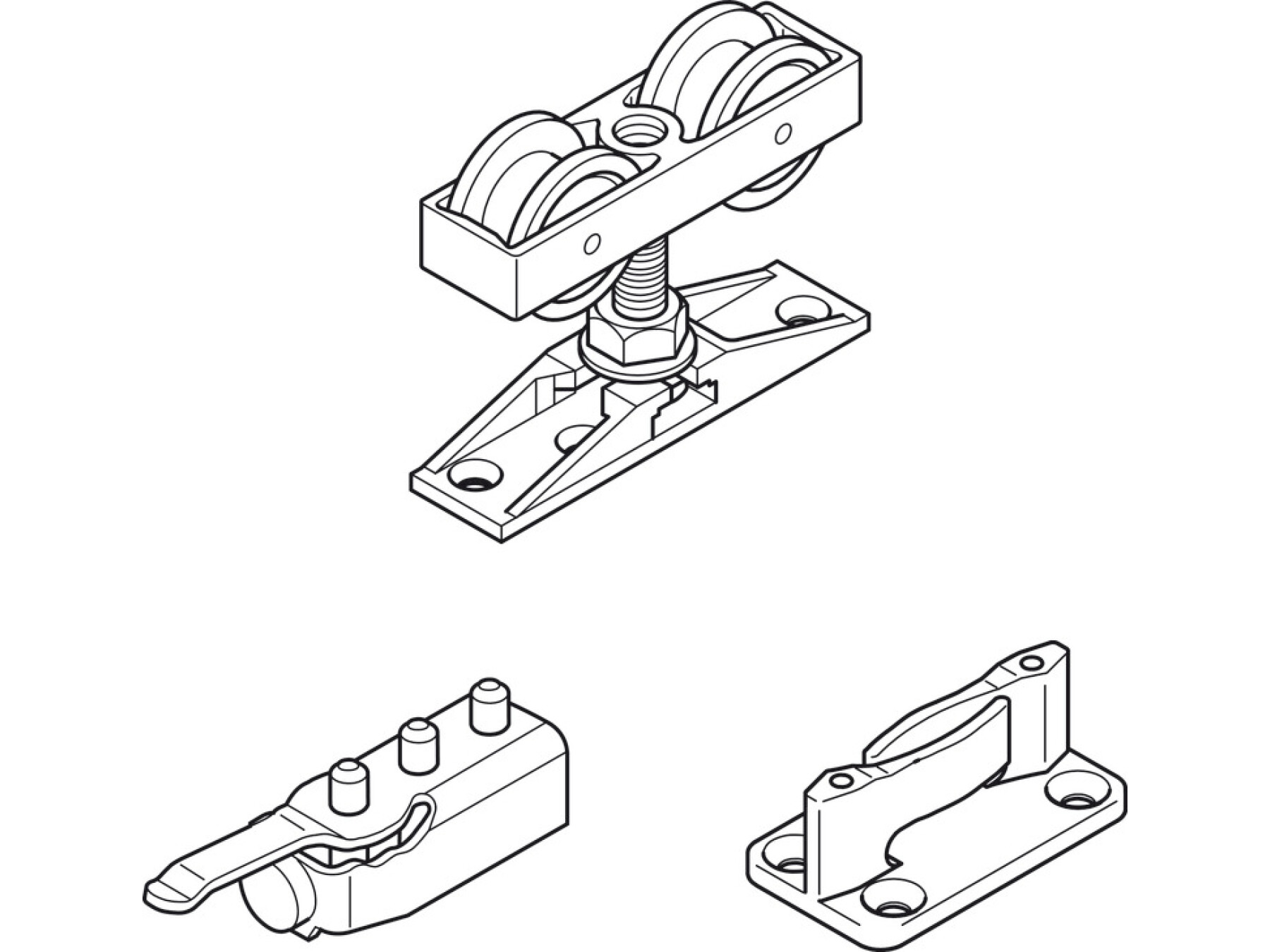

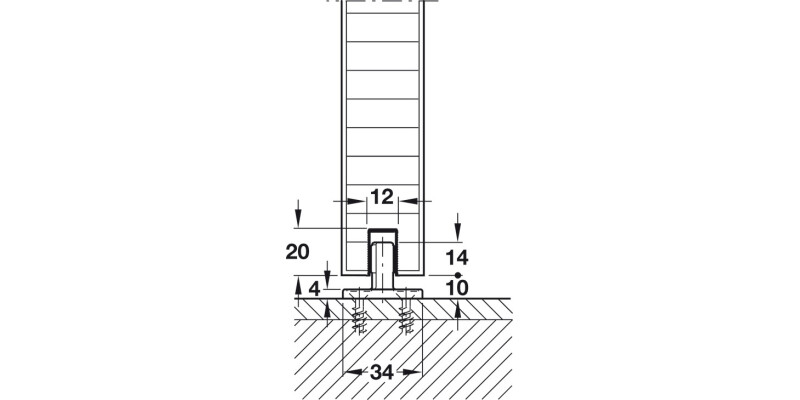

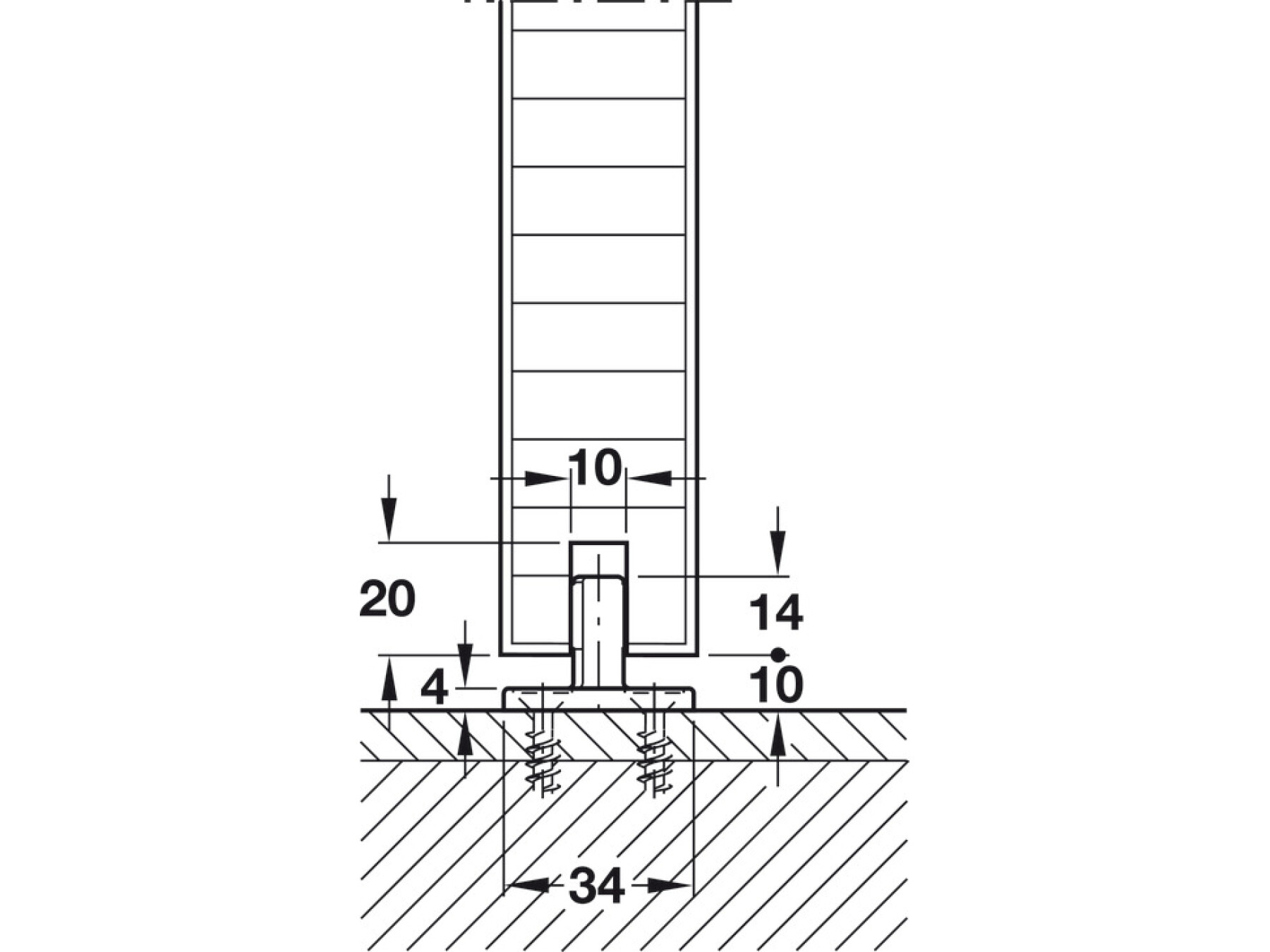

• Supplied with: 2x Running gears2x Two-way suspension fittings with hanger bolts and nut, M82x Track buffers with retaining spring1x Floor guide with zero clearance1x Height adjusting pin


• Order reference: Tracks and accessories to be ordered separatelyHospa ‚Äö√†√∂‚àö‚⧠4.0 mm pan head and ‚Äö√†√∂‚àö‚⧠4.5 mm countersunk screws to be ordered separately
