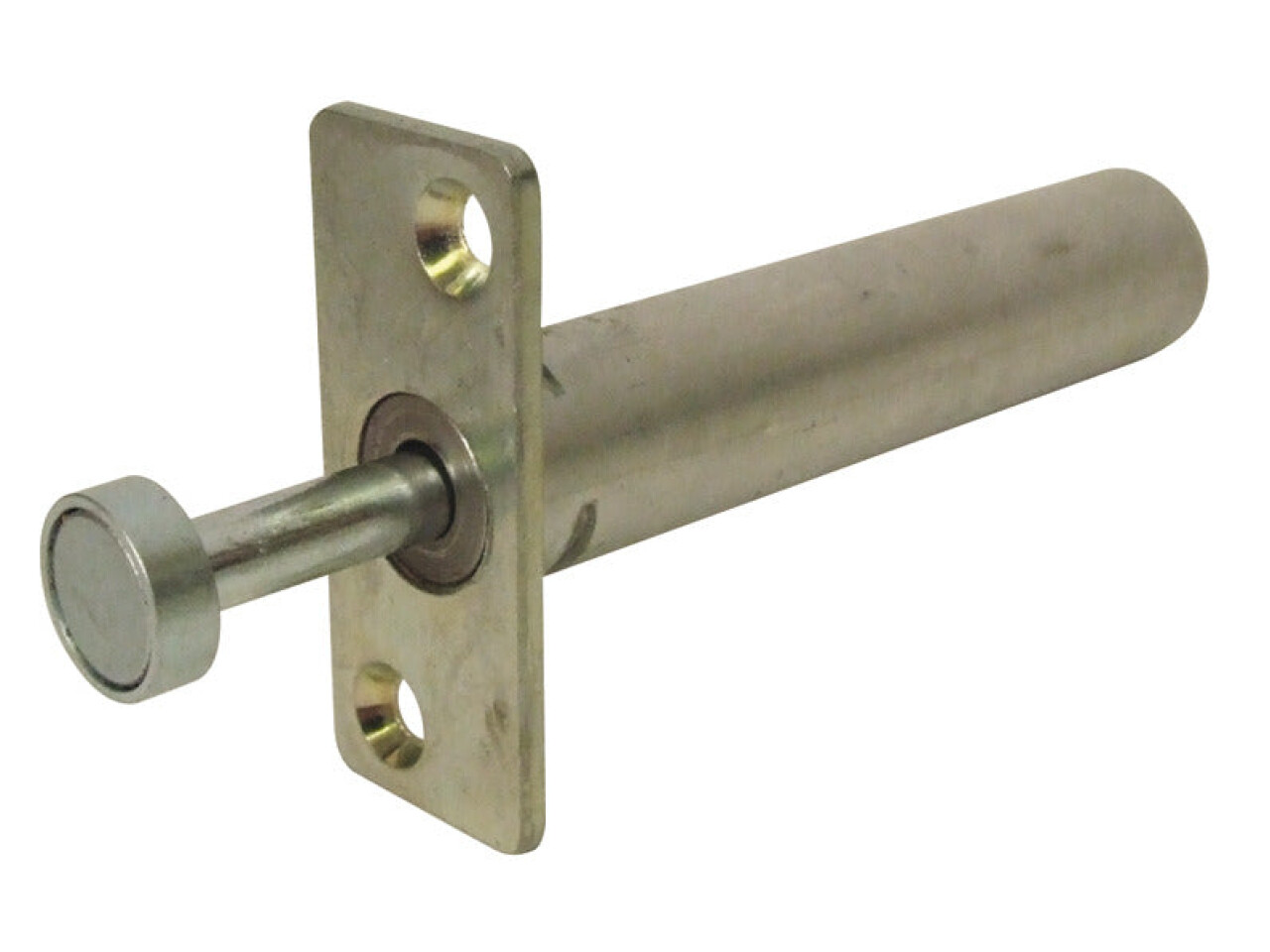

Pocket Hideaway Door Piston w Magnet ZP
Part Number: 938.40.009
Top hung system, Zinc plated finish
Price:
£82.56
Per Item
Can be installed into either opening edge of door or into the wallWhen door is in open position - light pressure... Read More
Product Information
Product Details

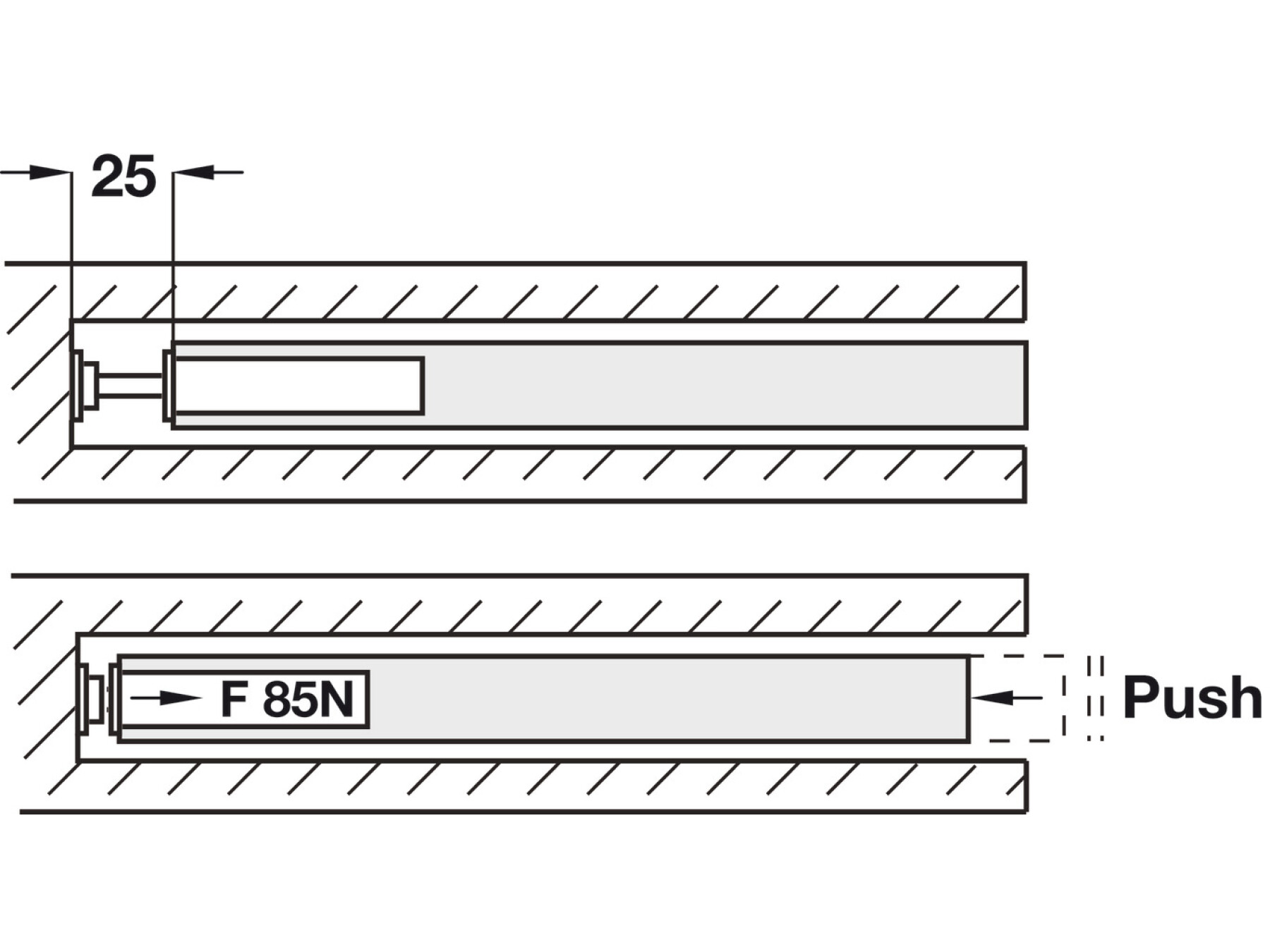

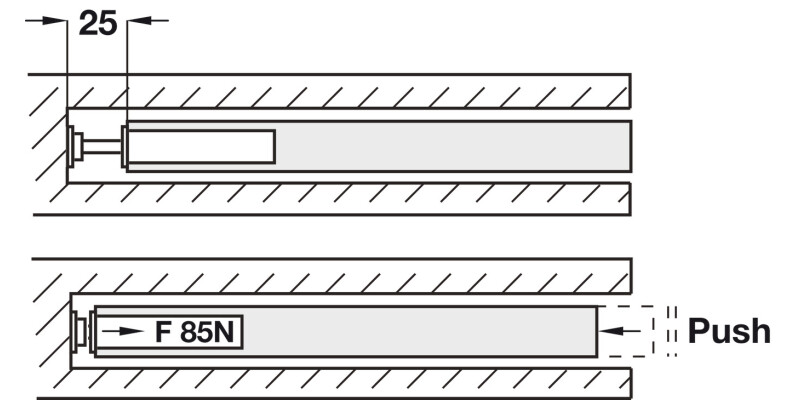

Can be installed into either opening edge of door or into the wall
When door is in open position - light pressure against door edge will release buffer
Extension force max. 85 N
Integrated spring pushed door out of the pocket wall at a max. of 85 N, enough to make flush pull accessible
Magnetic piston end allows door to be held open safely engaging with a small metal plate supplied

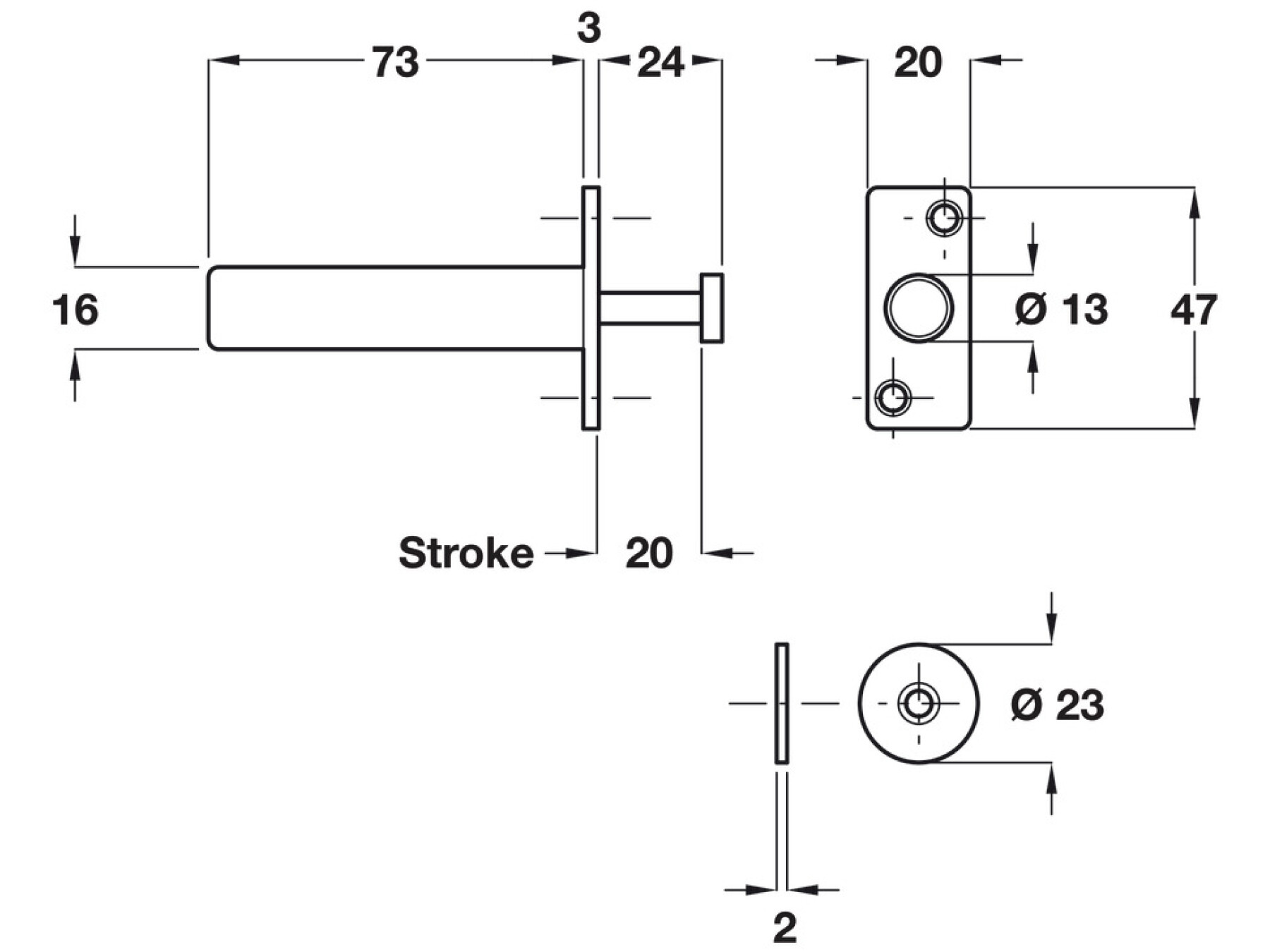

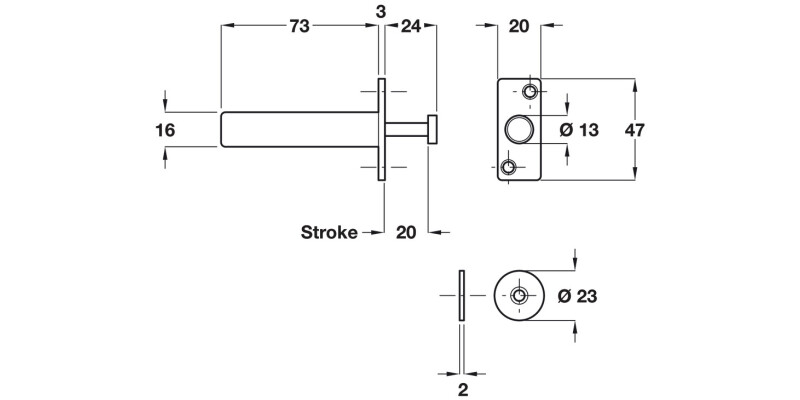

20 mm stroke
Specifications
Product category
Door Piston with Magnet
Equipped with
Magnetic retention
Length
100 mm
Material
Steel
Door position
for rear door
Width
20.00 mm
Height
47.00 mm
Order reference
Pocket Hideaway door system and accessories to be ordered separately
Supplied with
Fixings included
