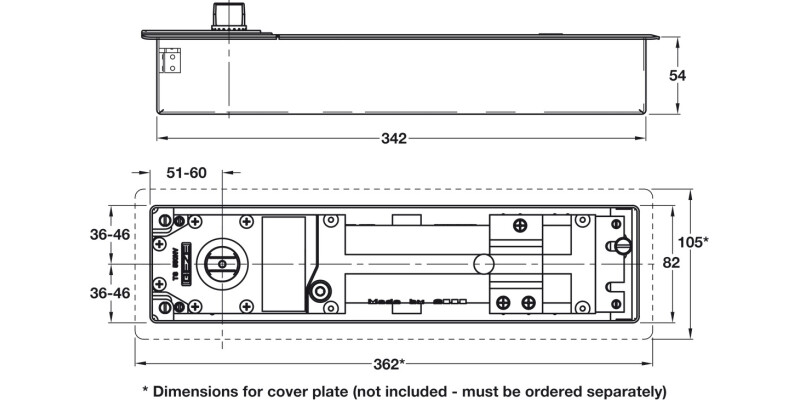

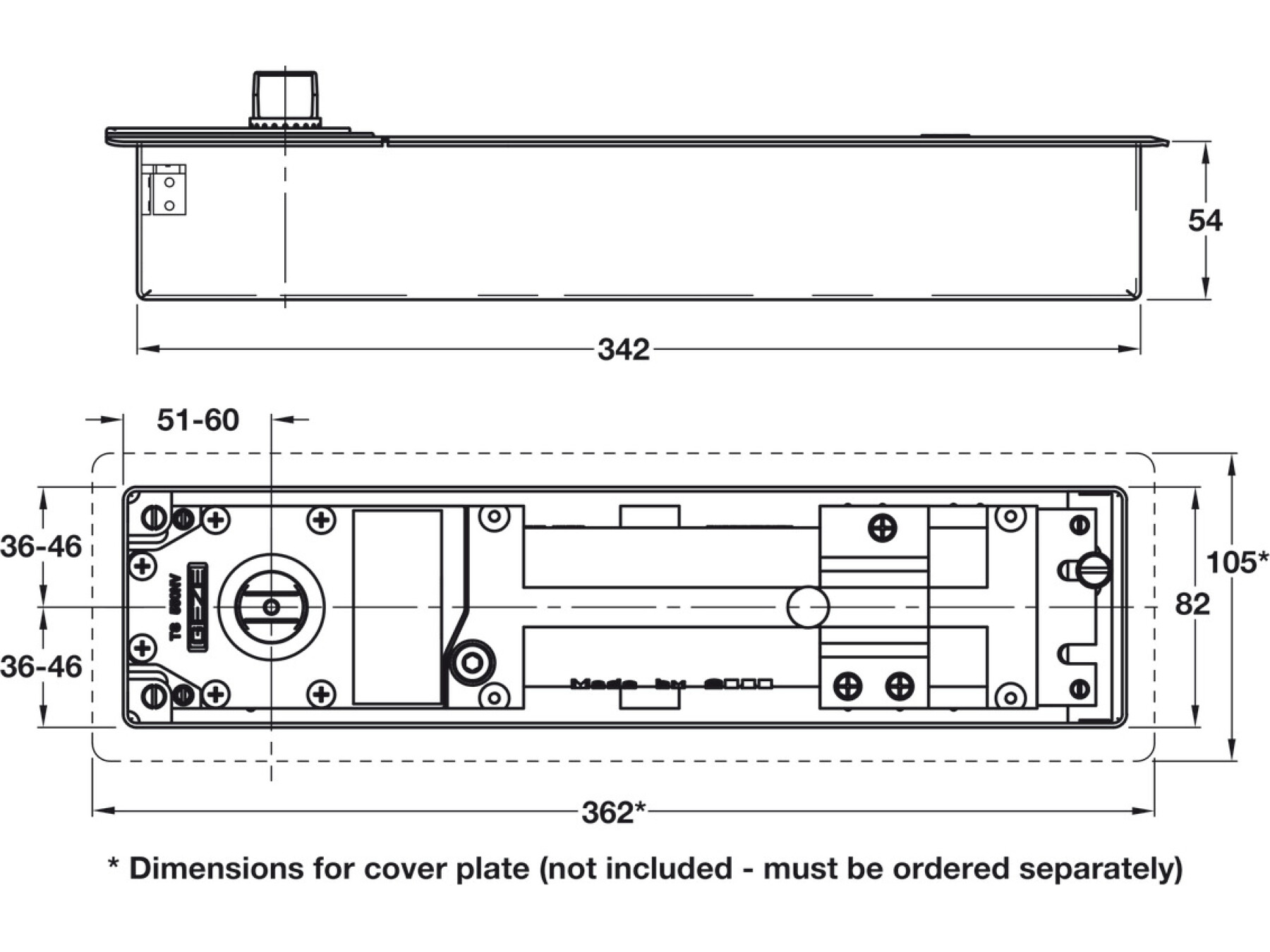

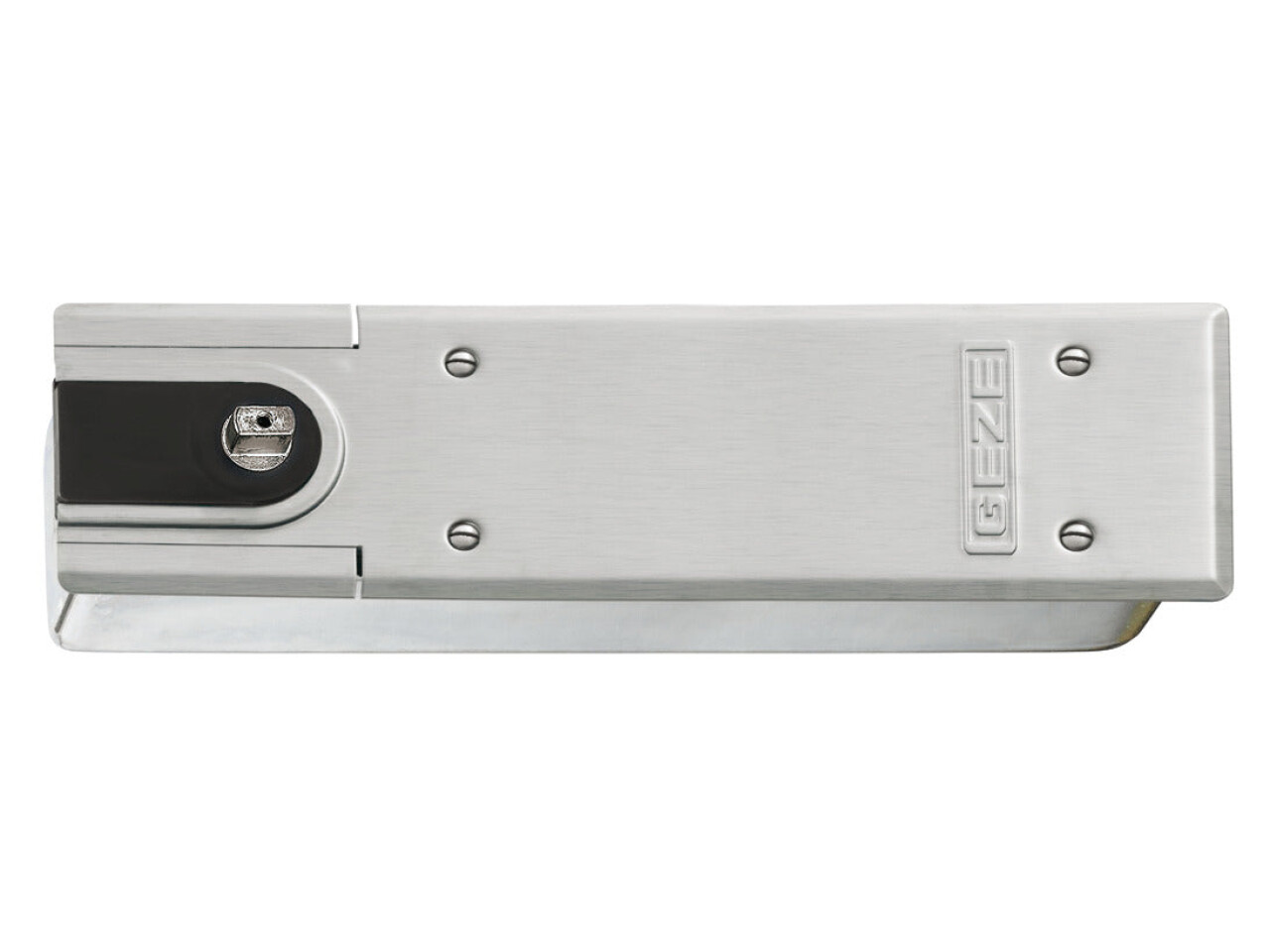

TS 550 NV Floor Spring Mech 3-6 w HO Std
Part Number: 932.10.061
Standard version: Selectable hold-open version*
Price:
£557.57
Per Item
Floor spring mechanism to suit single and double action doors up to 1400 mm wide with flat-tapered, removable... Read More
Product Information
Product Details
Floor spring mechanism to suit single and double action doors up to 1400 mm wide with flat-tapered, removable interlocked spindle
Not suitable for use on fire doors
Closing force size 3-6
Closing range from 175° for single action applications
Adjustable closing force, adjustable closing speed, fixed backcheck and variable hold-open, engageable/disengageable 80-120°
Supplied with cement box - adjustable position (6 mm vertical, 10 mm lateral and 10 mm length)
Safety valve prevents overloading
Flexible adjustable closing speed for 170-80º with two functions:
Open - closing speed 170-80º
Variable hold open 120-80º
CE marked
Tested in accordance with BS EN 1154: 1997
Version
with fixed backcheck,
continuous hold-open function,
can be enabled and disabled,
Safety valve against overloading
Hold open @ 90º, not fire doors, adjustable
Hold open is effective from 85º through to 165º for single action or 80º to 130º double action
Specifications
Hold-open angle
85–165°
For door width max.
1,400.00 mm
For door weight
≤300 kg
Mounting
For DIN left and DIN right hand use
Area of application
For single action and double action doors
Cover plate material
Stainless Steel
Adjustment facility
Closing force, three stage closing speed including selectable hold-open and latch action
Closing force
3-6 in compliance with EN 1154
Standard
Certified in compliance with EN 1154:1996/A1:2002
Grade
3|8|3 – 6|0|1|4
Order reference
Please order cover plate Cat. No. 932.10.061 separately.
Supplied with
Fixings
