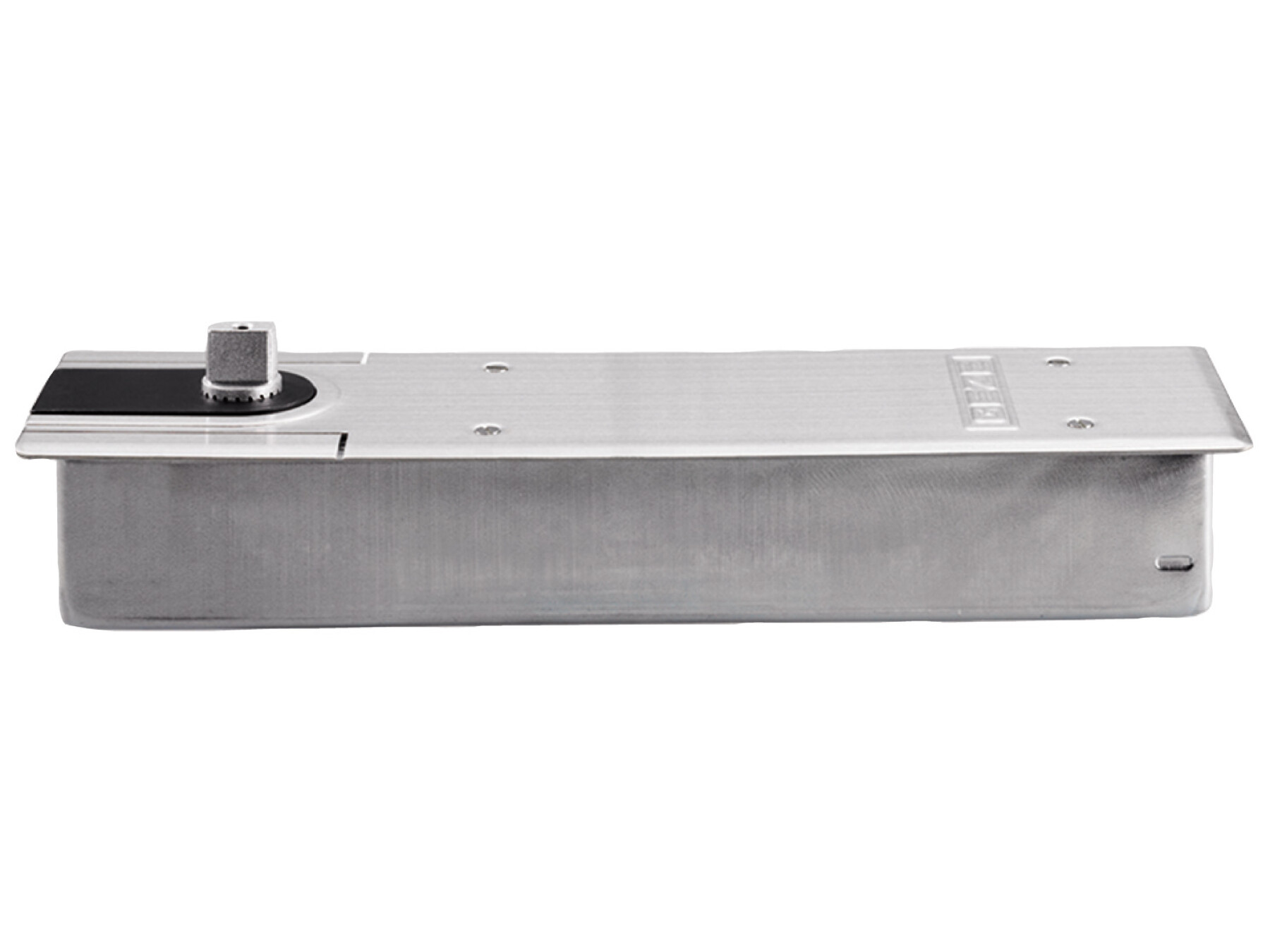

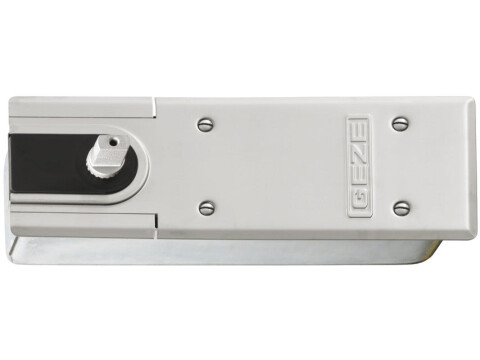

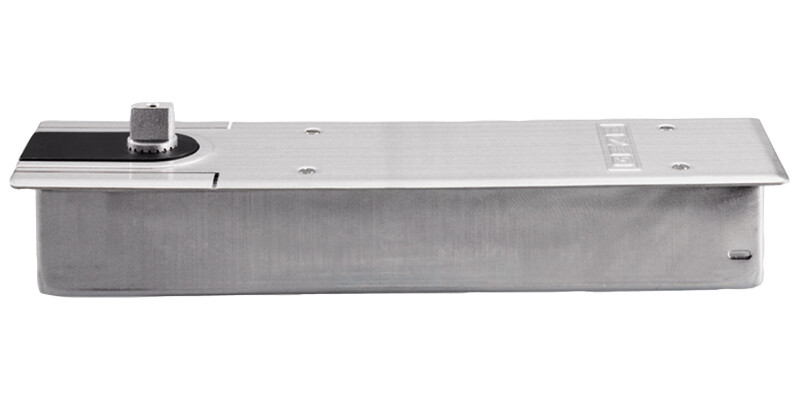

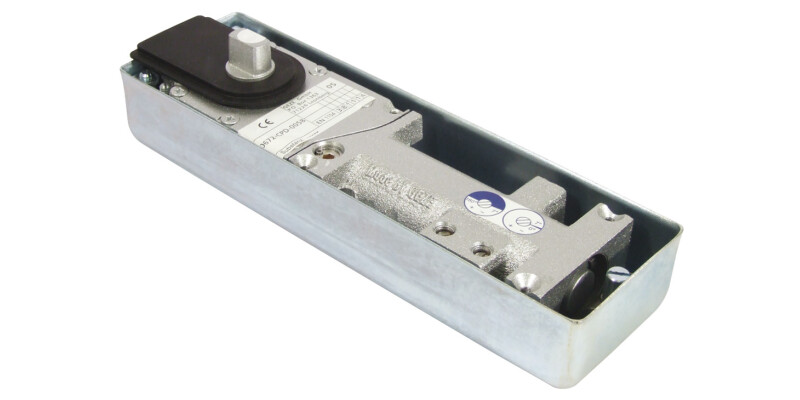

TS 500 NV Floor Spring Mech 1-4 w HO 90D
Part Number: 932.10.052
Hold open version 90° (not suitable for fire door)*
Price:
£376.12
Per Item
Floor spring mechanism to suit single and double action doors up to 1100 mm wide with flat-tapered, removable... Read More
Product Information
Product Details
Floor spring mechanism to suit single and double action doors up to 1100 mm wide with flat-tapered, removable interlocked spindle
Closing force size 1-4
Closing range from 170° for single action doors
Adjustable closing force, adjustable closing speed, fixed backcheck and latch action and hold open version
Supplied with cement box - adjustable position (6 mm vertical, 10 mm lateral and 10 mm length)
Safety valve prevents overloading
Hold open @ 90º (single action only)*, not for fire doors
*For double action doors each hold-open angle is 5º greater. For example, an 85º hold-open version will be 90º in double action doors
Approved CF 259 certifire, standard version only
CE marked
Tested in accordance with BS EN 1154: 1997
*For double action doors each hold-open angle is 5° greater. For example an 85° hold-open version will be 90° in double action mode
Specifications
Hold-open angle
90° with single action doors, 95° with double action doors
For door weight
≤150 kg
Mounting
For DIN left and DIN right hand use
Area of application
For single action and double action doors
Version
with fixed backcheck,
with or without hold-open function,
Safety valve against overloading
Cover plate material
Stainless Steel
Adjustment facility
Closing force, closing speed and latching action adjustable
Closing force
1–4 in accordance with EN 1154
Closing effect
from approx. 170°
Standard
Certified in compliance with EN 1154:1996/A1:2002
Grade
3|8|1 – 4|0|1|4
For door width max.
1,100.00 mm
Order reference
Please order cover plate Cat. No. 932.10.130 separately.
Supplied with
Fixings
