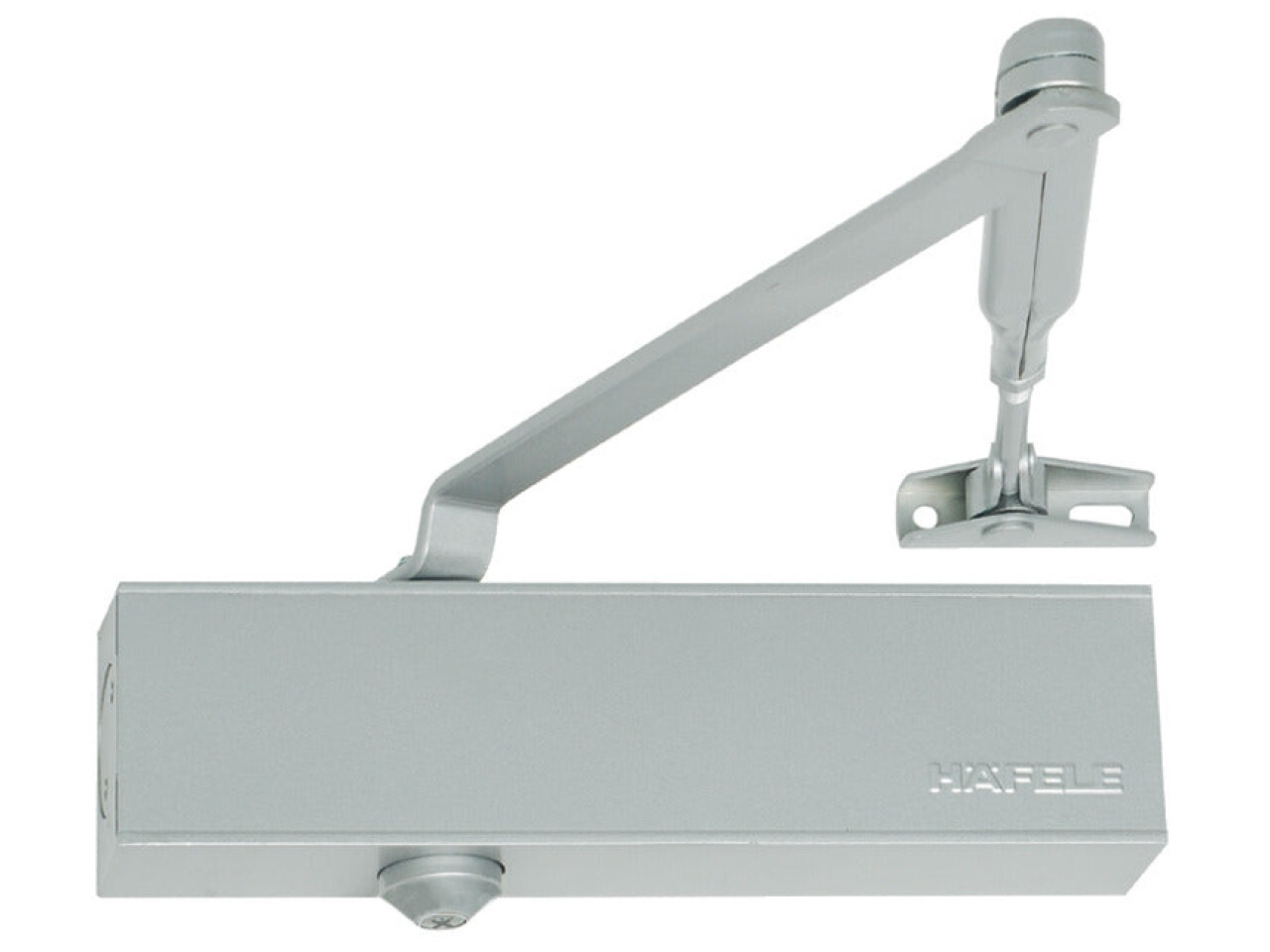

Startec DCL51 OH Dr Closer 2-5 Slv Col
Part Number: 931.84.829
Power size 2-5, Silver coloured lacquered
Price:
£111.70
Per Item
Conforms to BS EN 1154:1996/A1:2002Power size 2-5Variable closing force, latch action and backcheckFig 1 and 61... Read More
Product Information
Product Details
Conforms to BS EN 1154:1996/A1:2002
Power size 2-5
Variable closing force, latch action and backcheck

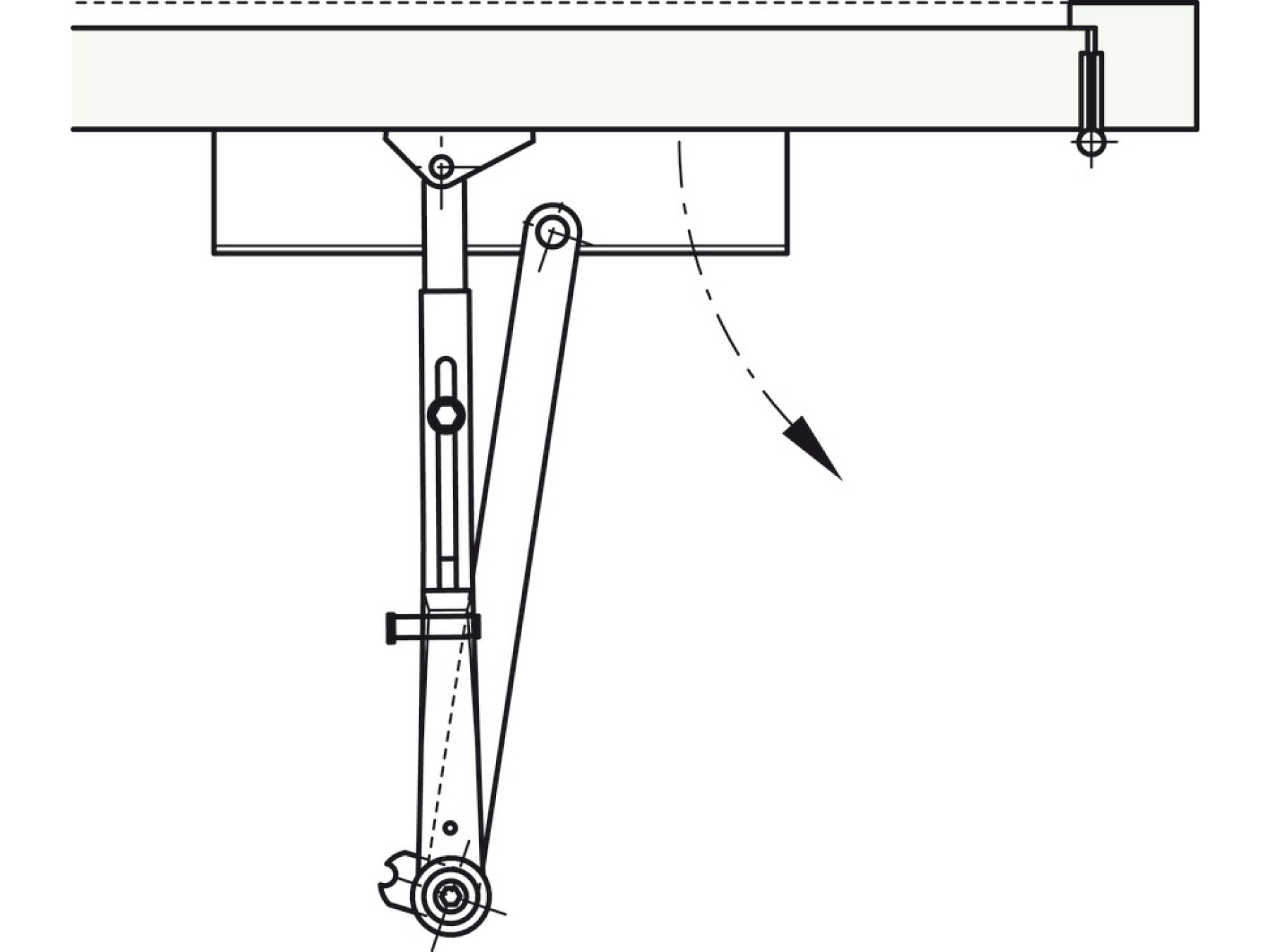

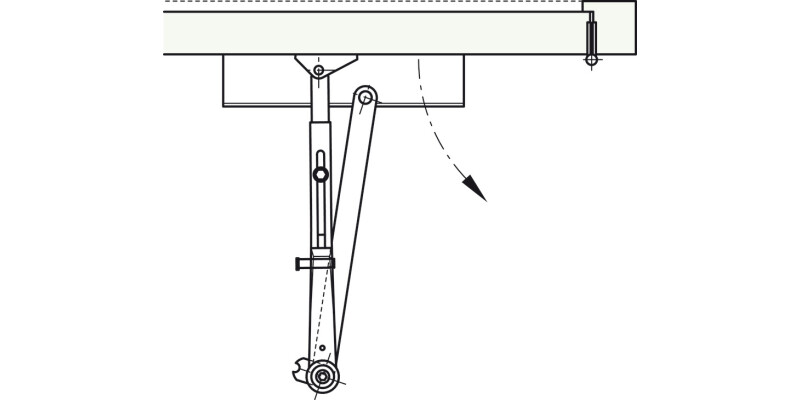

Fig 1 and 61 application

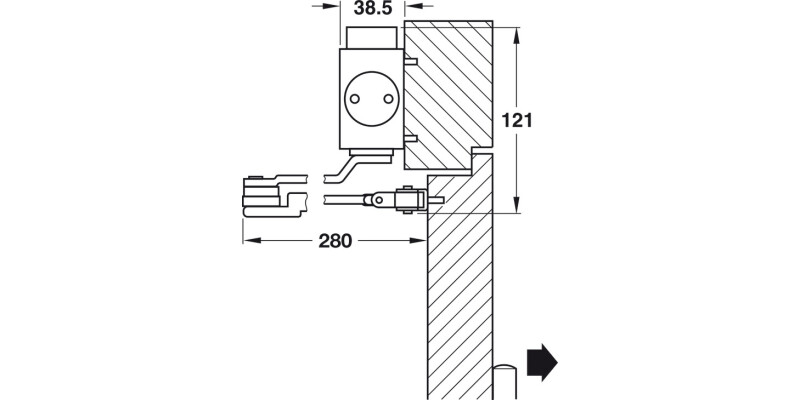

Mounting options

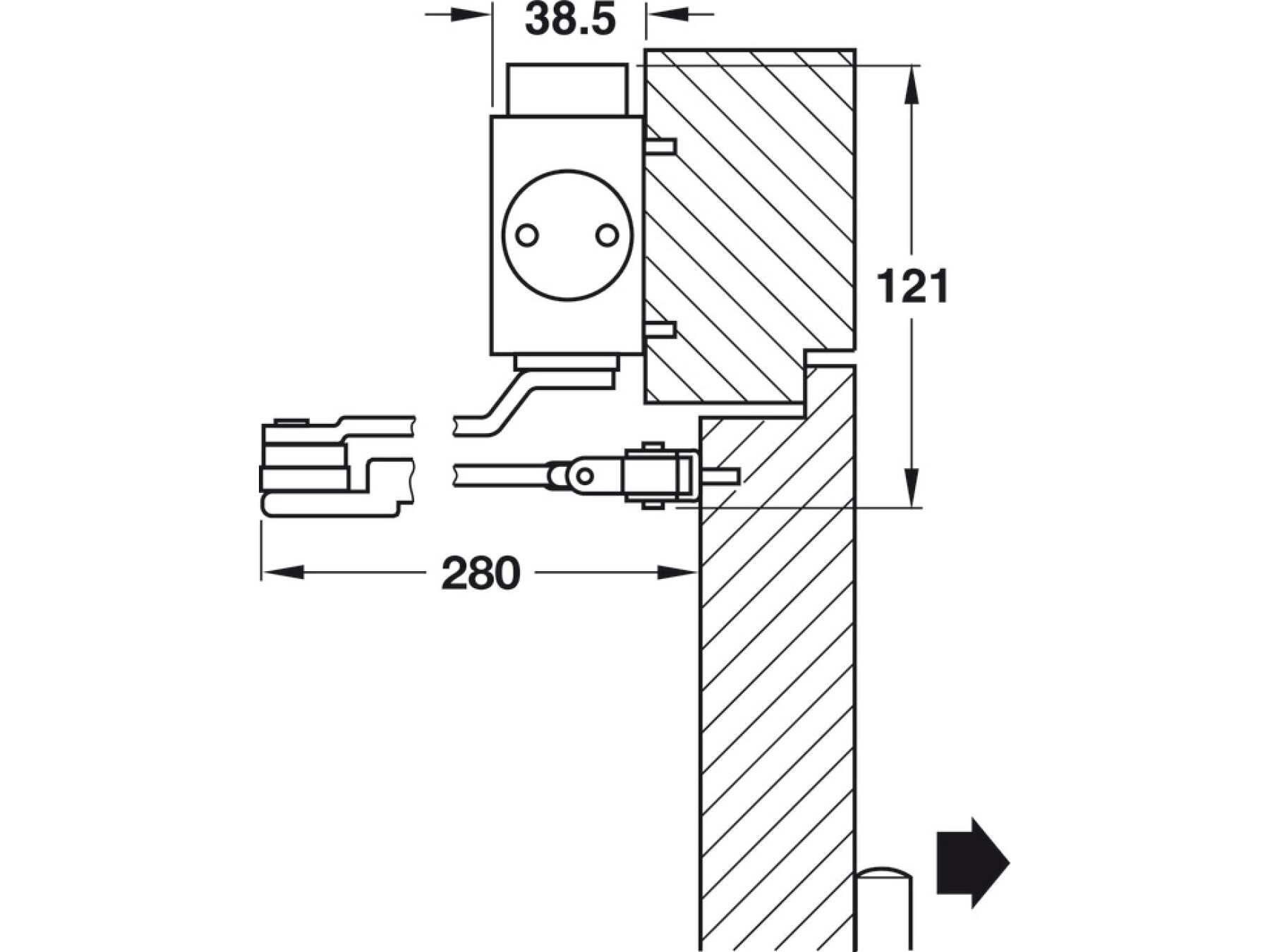

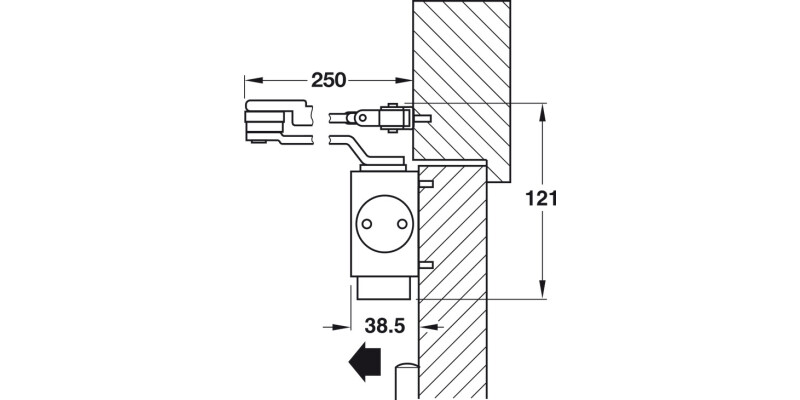

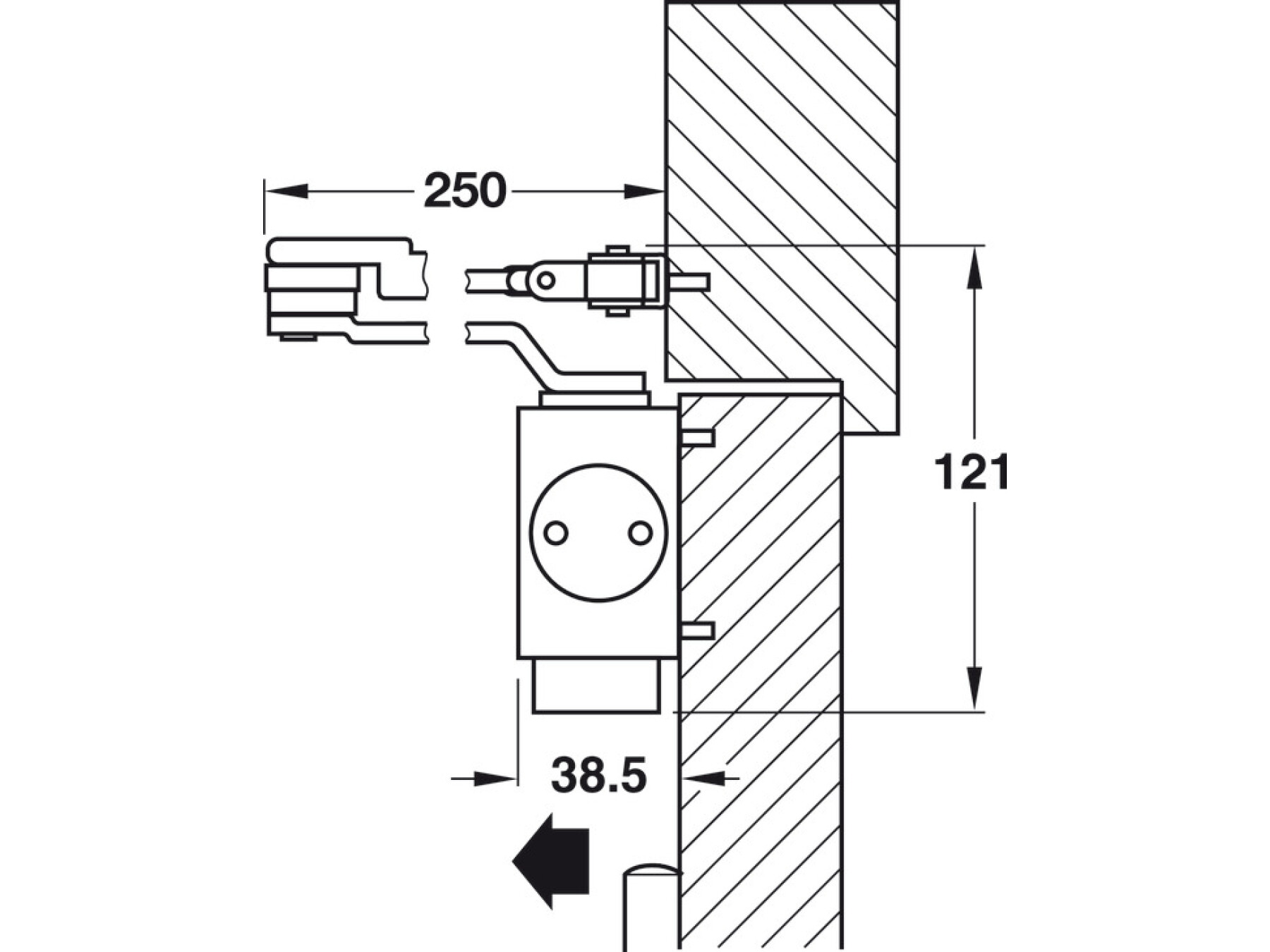

Standard installation (door leaf installation) on pull side, Overhead installation (transom fixing) on pull side
Warranty/Guarantee information
This product is covered under Häfele’s Lifetime Guarantee.
All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.
All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.
For more information go to:
Services > Customer Support > Häfele Lifetime Guarantee
| Fire resistance and smoke control | |
|---|---|
| Fire resistance | Yes |
Specifications
Version
With standard arm
For door width
≤1,250 mm
Mounting
For DIN left and DIN right hand use
Material
Steel
Colour/finish
silver coloured, lacquered
For door weight
≤100 kg
For number of doors
1-leaf doors
Adjustment facility
Adjustable closing speed, soft opening mechanism and latching action
Closing force
2–5 in accordance with EN 1154
Opening angle
≤180 °
Grade
4|8|2 – 5|1|1|3
Supplied with
Fixings
