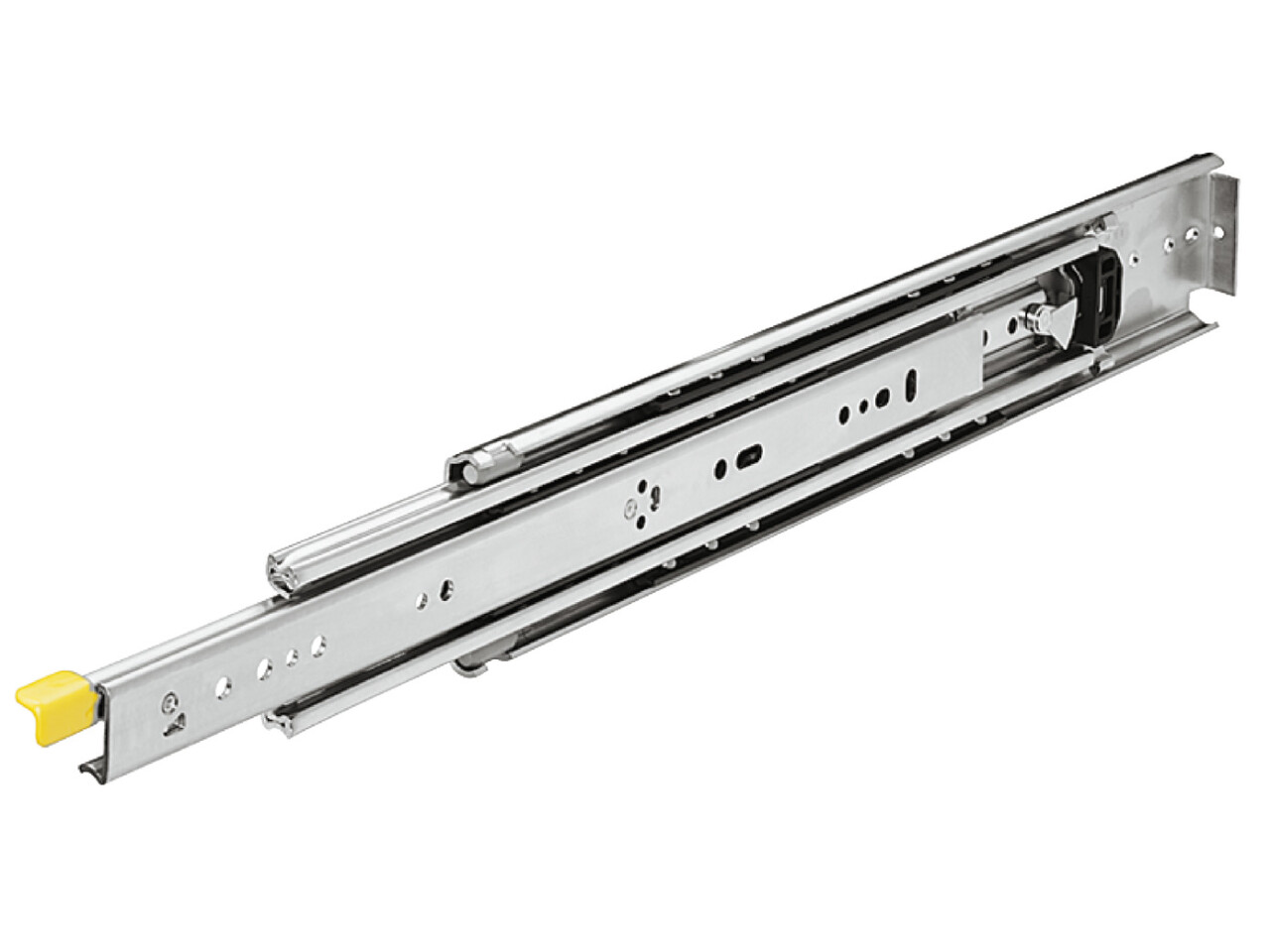

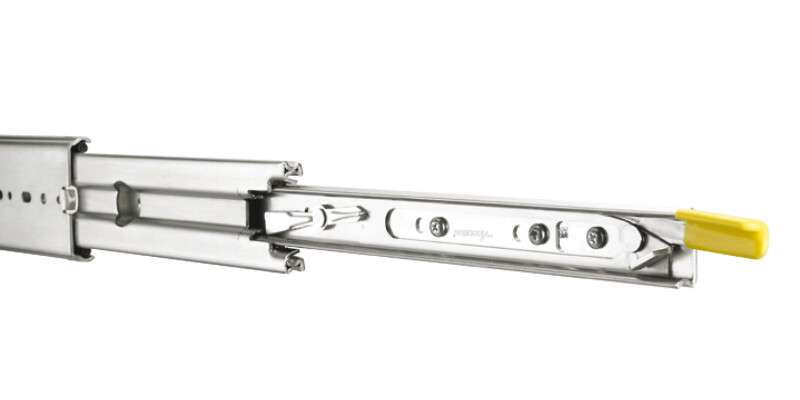

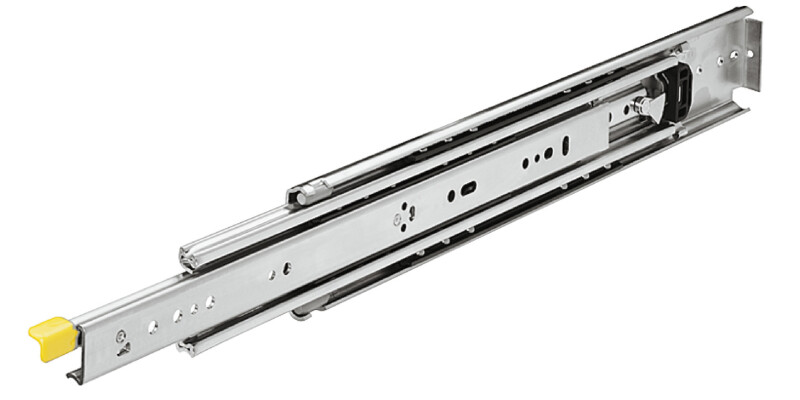

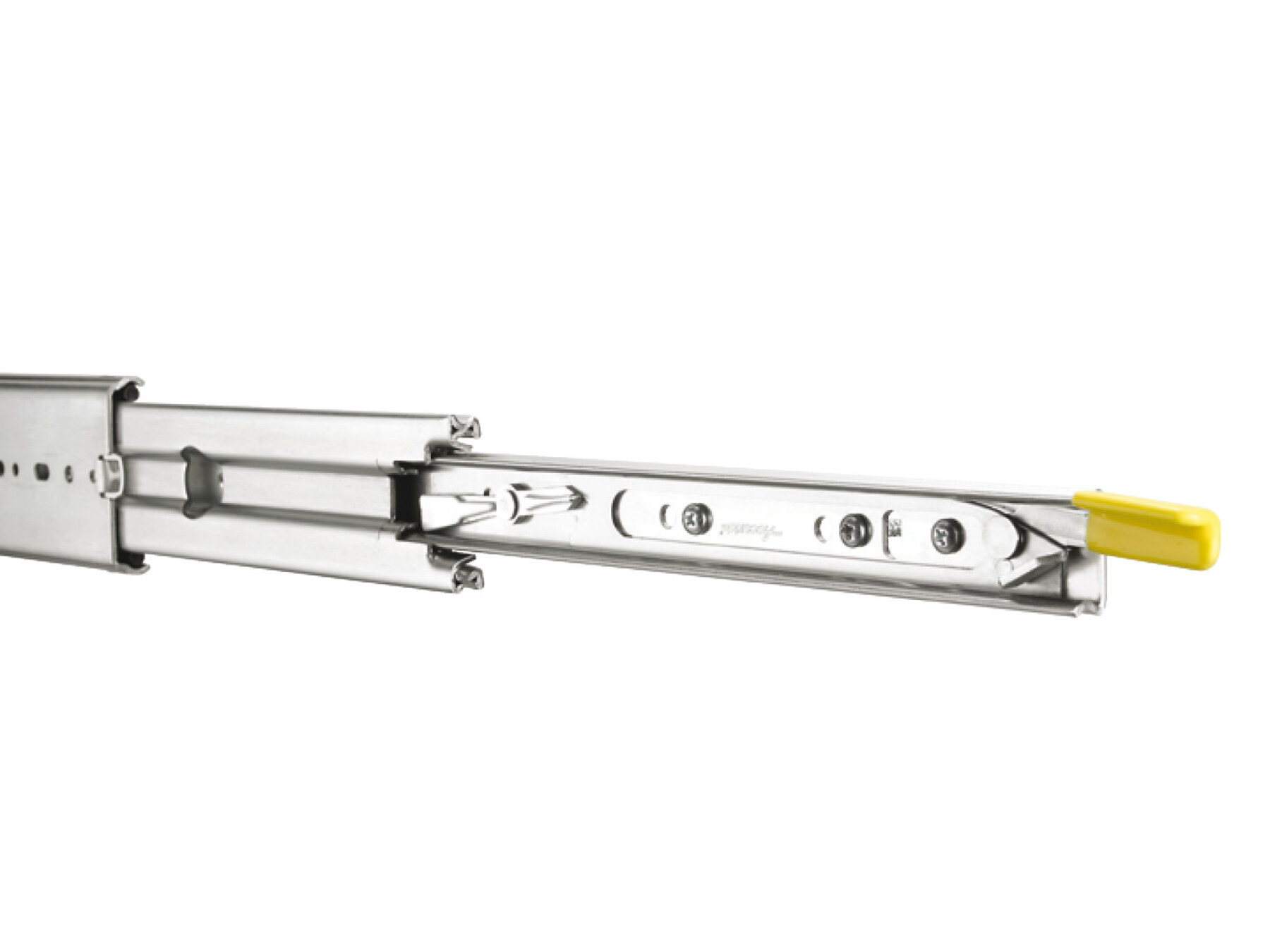

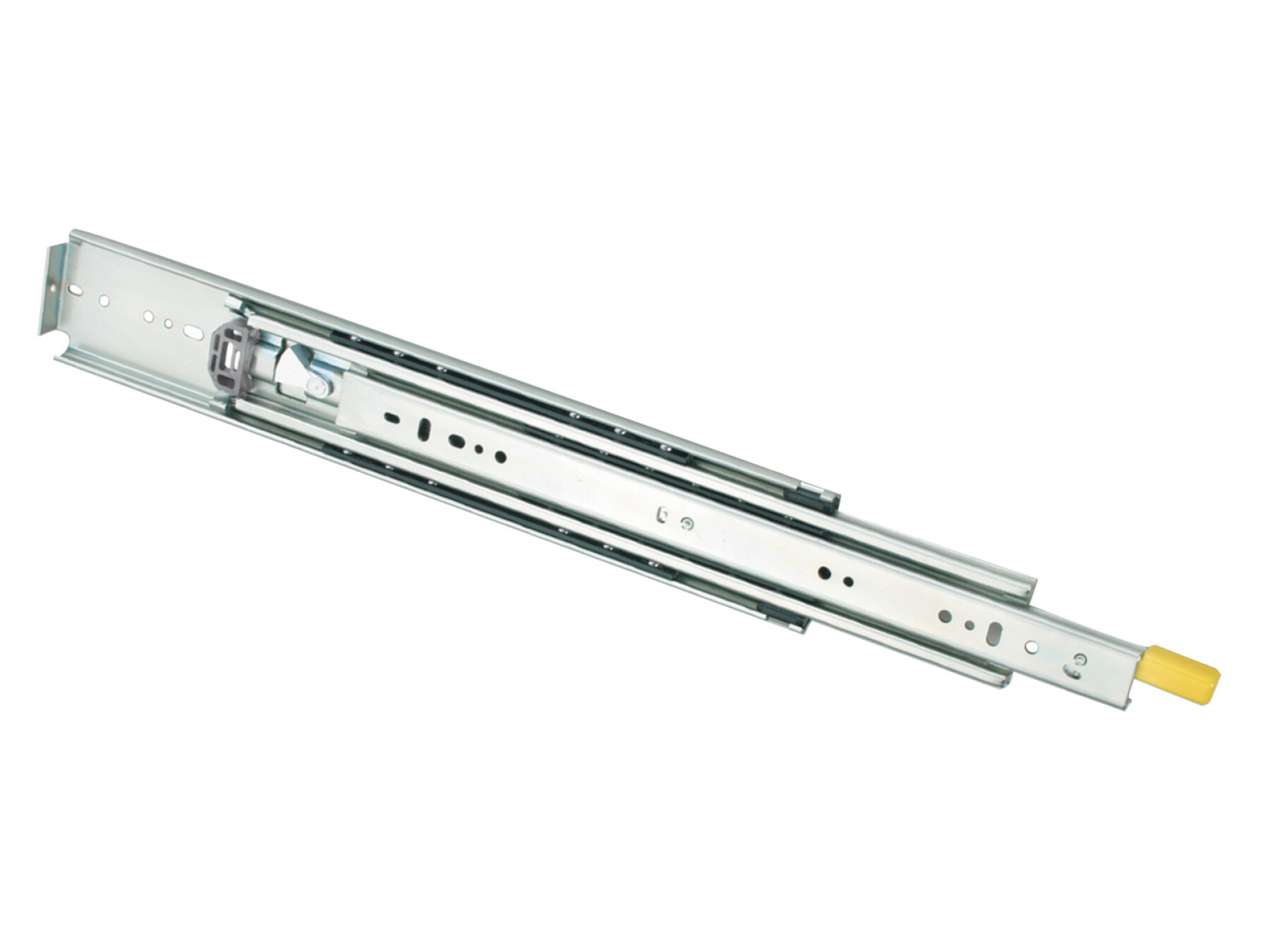

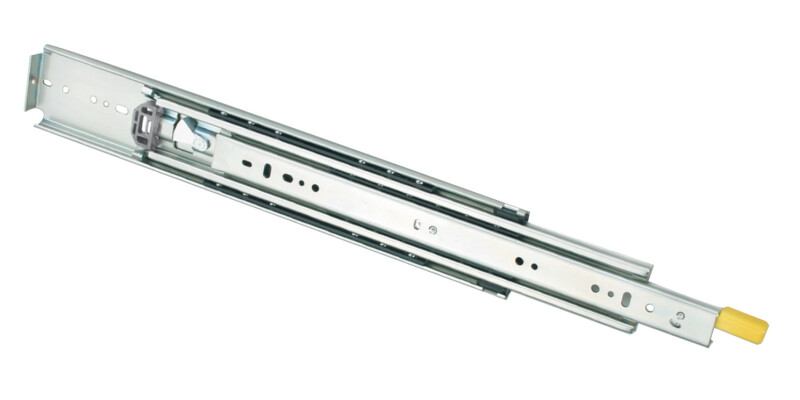

9308 BB DrwRun Full L 272kg 406.4mm BZP
Part Number: 422.33.744

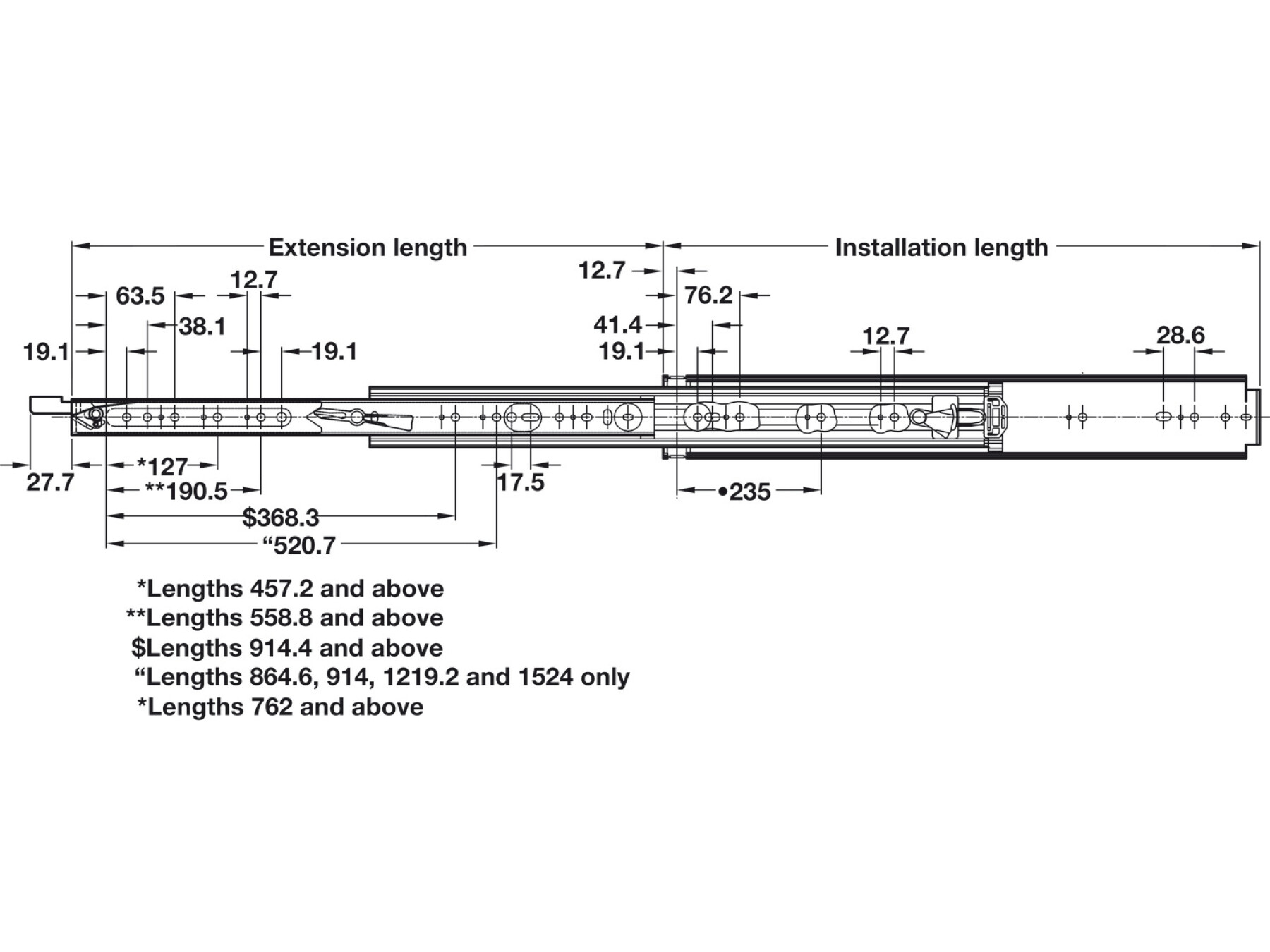

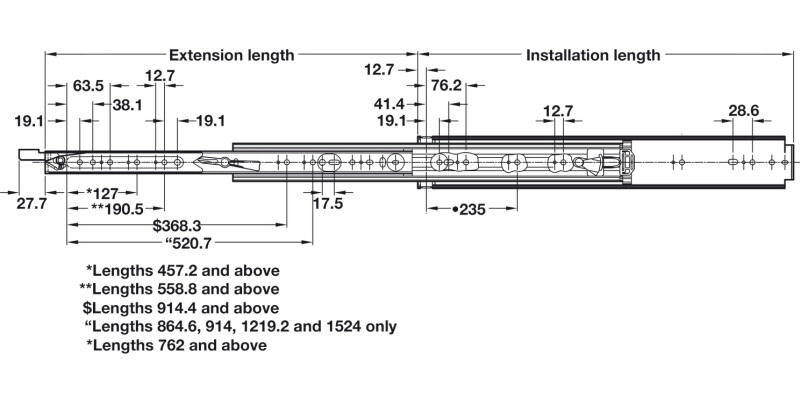

Lock in and out facility, Installed/Extended length 406.4 mm, load capacity 272 kg, left hand
Price:
£93.04
Per Item
Can be side mounted or base and top mounted using bracketsNot for flat mountingLock in and out facilityFront... Read More
Product Information
Product Details

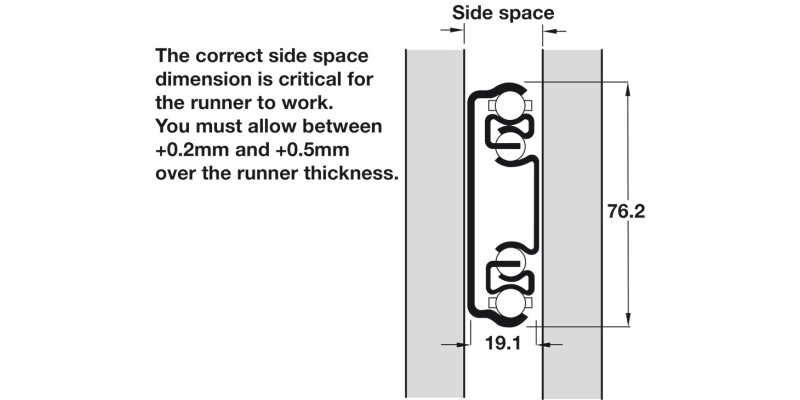

Can be side mounted or base and top mounted using brackets
Not for flat mounting
Lock in and out facility

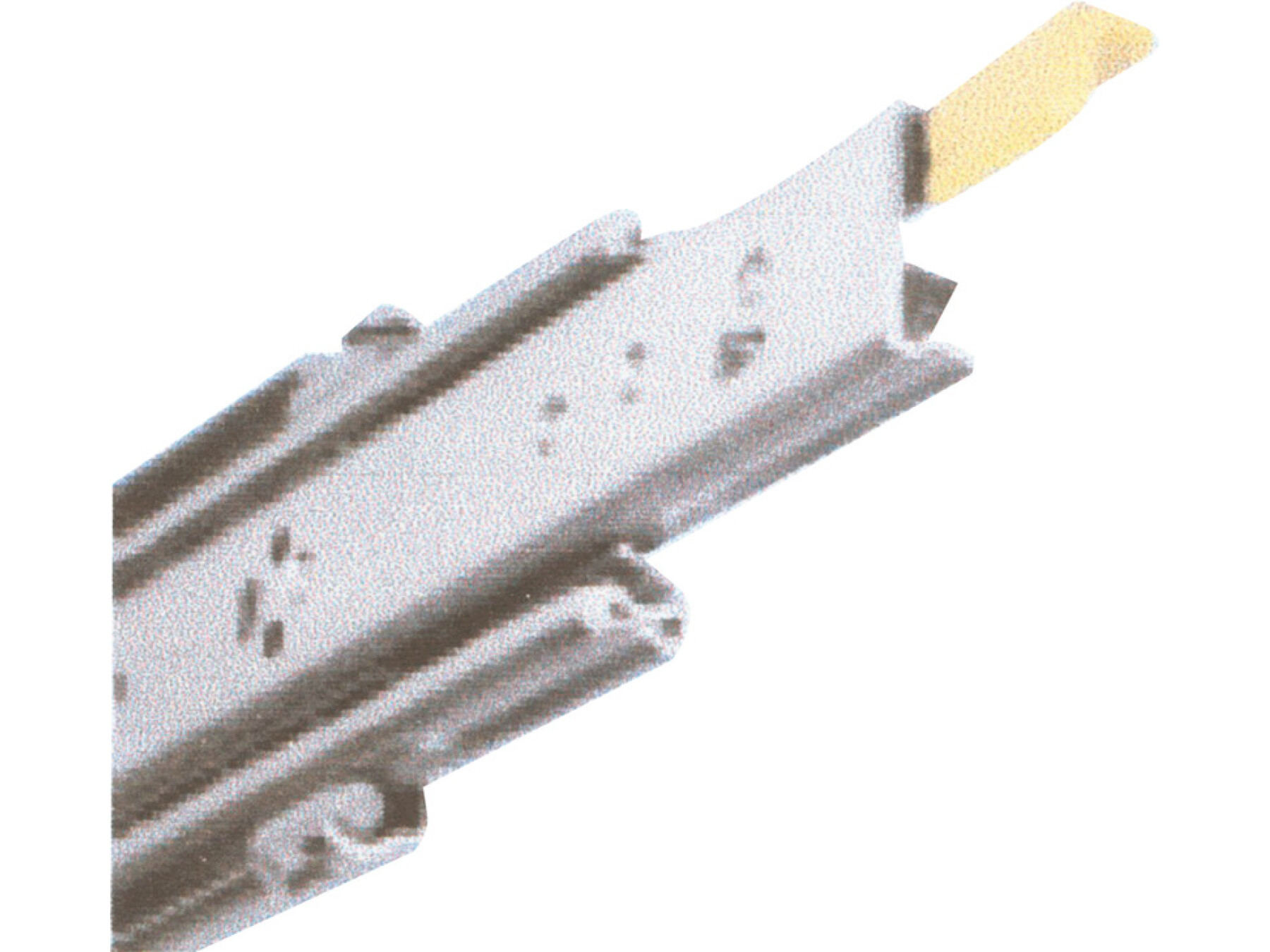

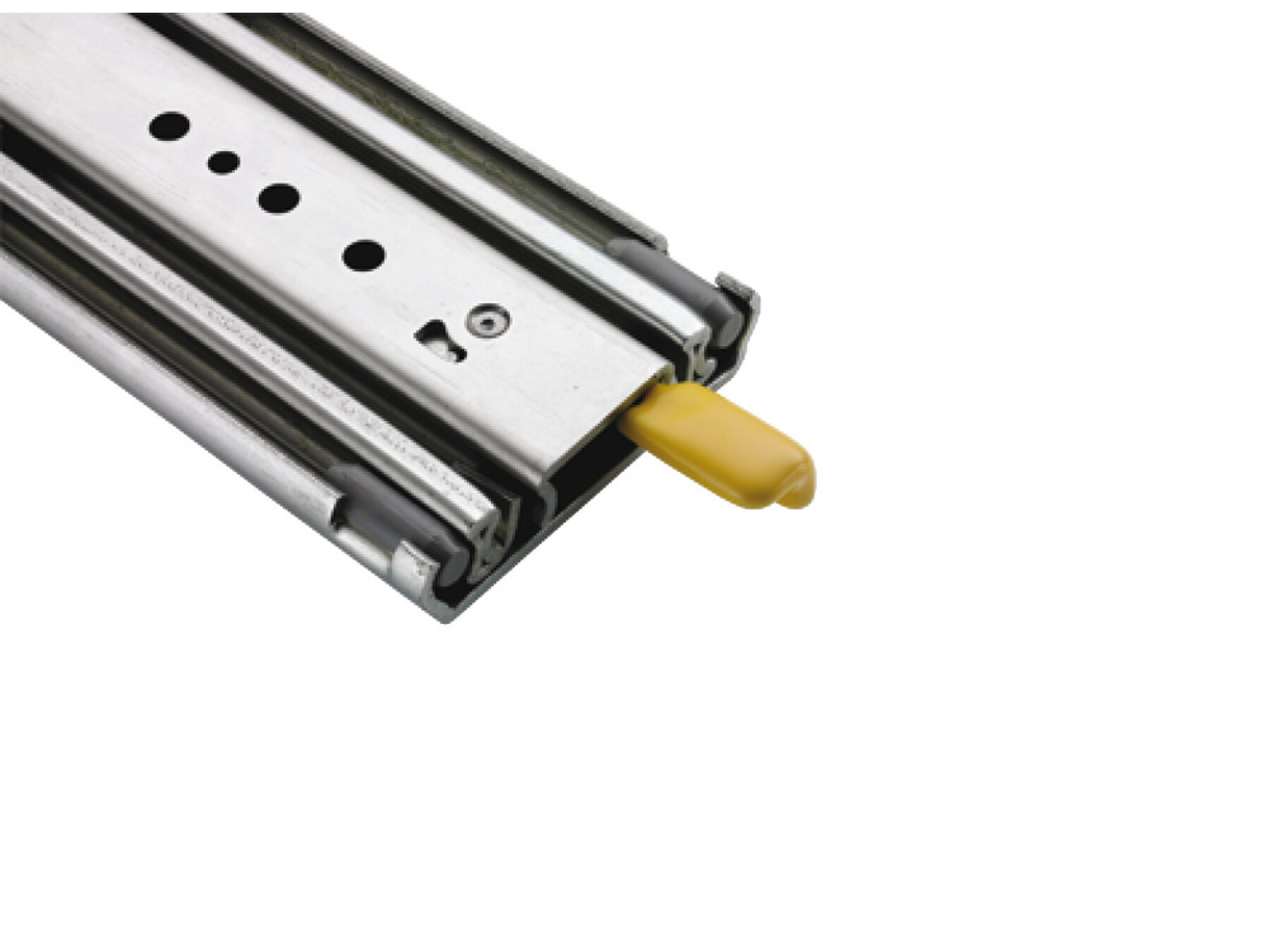

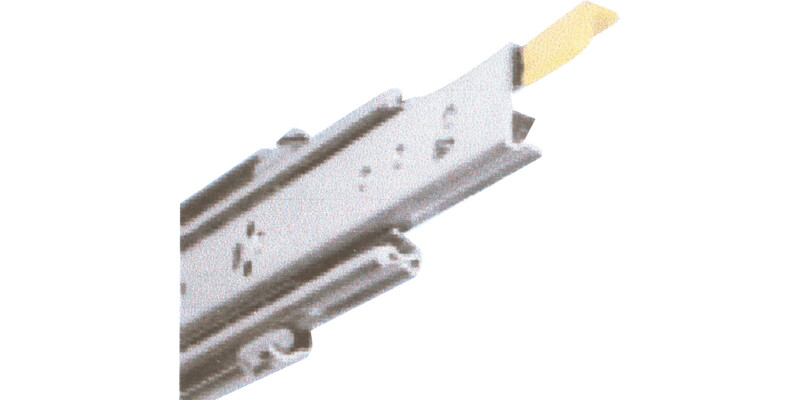

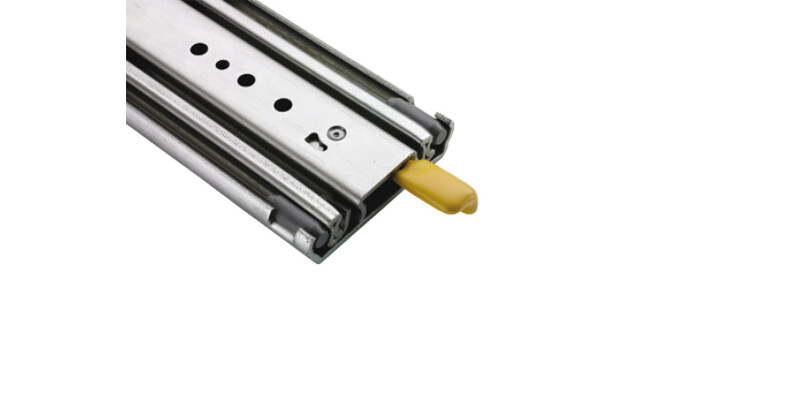

Front lever lock release
The load bearing capacity values specified in the table apply to side mounting only. The load bearing capacity is reduced by approx. 75% when surface mounted.
Example: Cat. No. 422.22.030 has a load bearing capacity of 30 kg when surface mounted.
Specifications
Colour/finish
Zinc plated, Bright
Area of application
Ideal for heavy duty tool boxes, battery trays and mobile applications
Material
Steel
Order reference
Order Hospa Ø 4.0 and Ø 5.0 mm countersunk screws separately
Order mounted brackets separately if required
