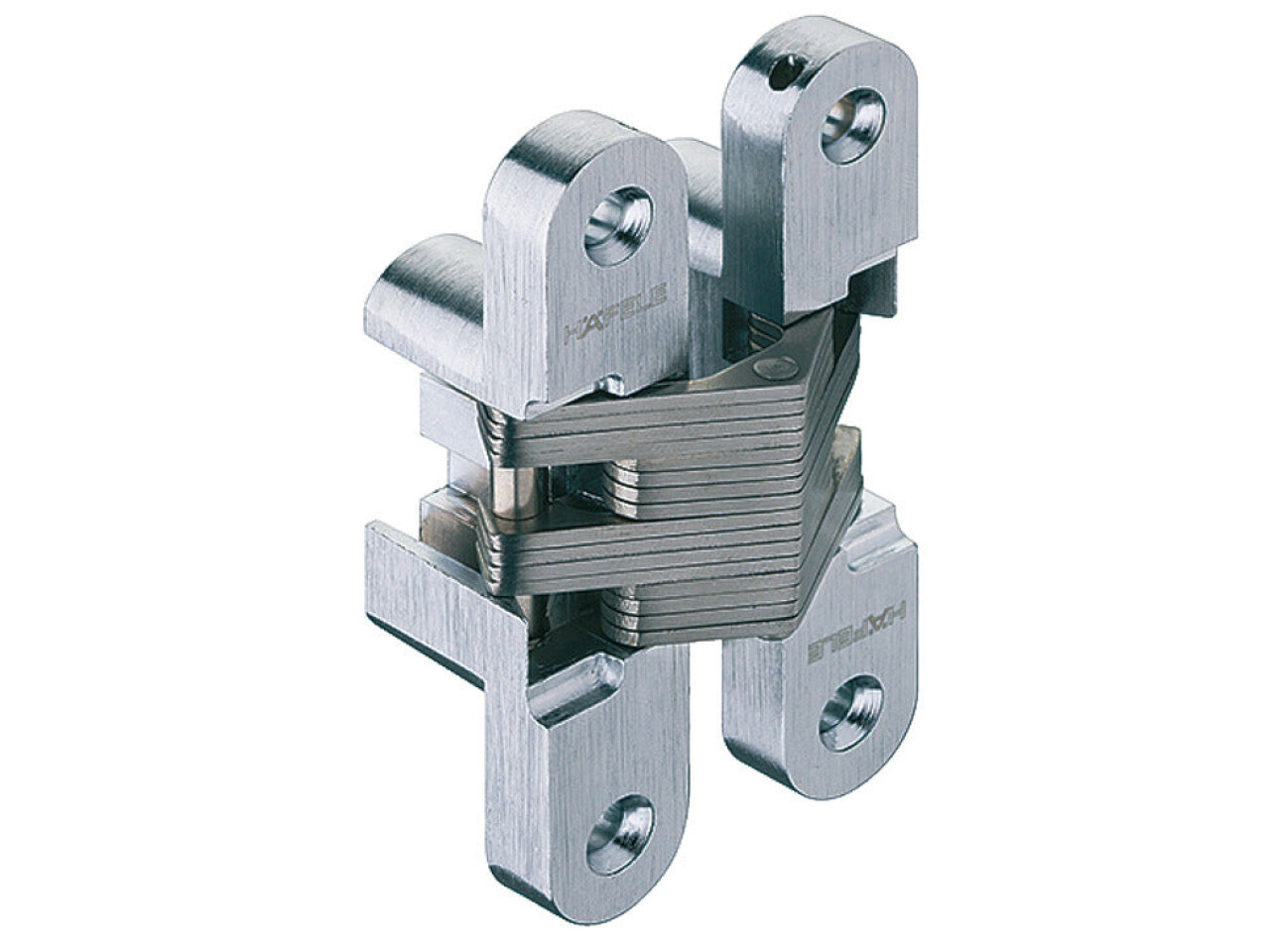

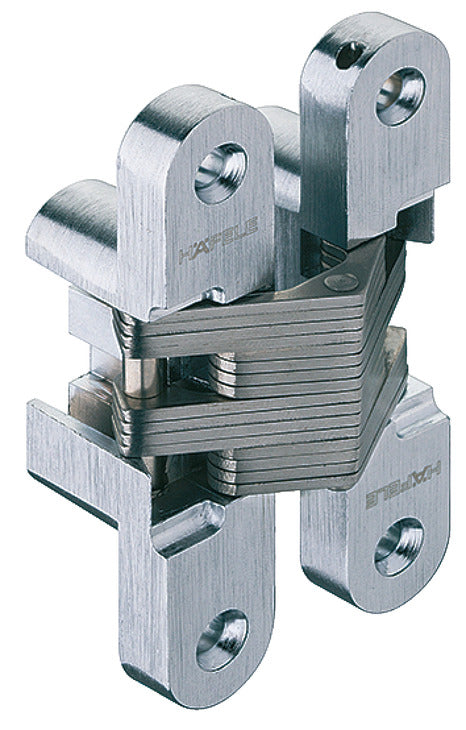

Startec Conc Mortice 3D Hinge UH ZA Matt

Part Number: 927.97.000
For wooden frames, Matt chrome
Price:
£12.13
Per Item
VAT excluded

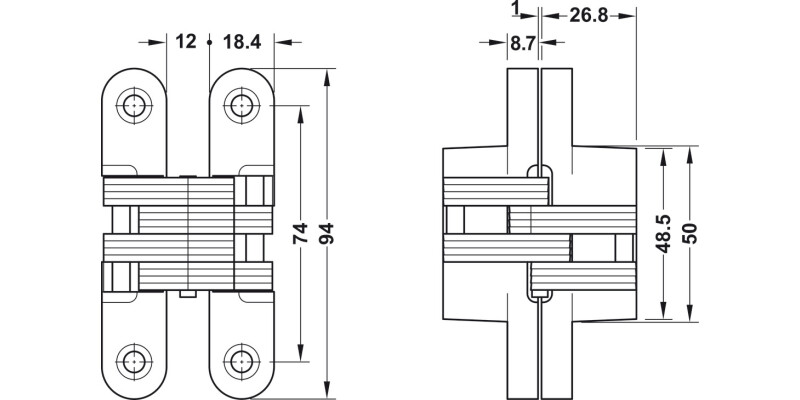

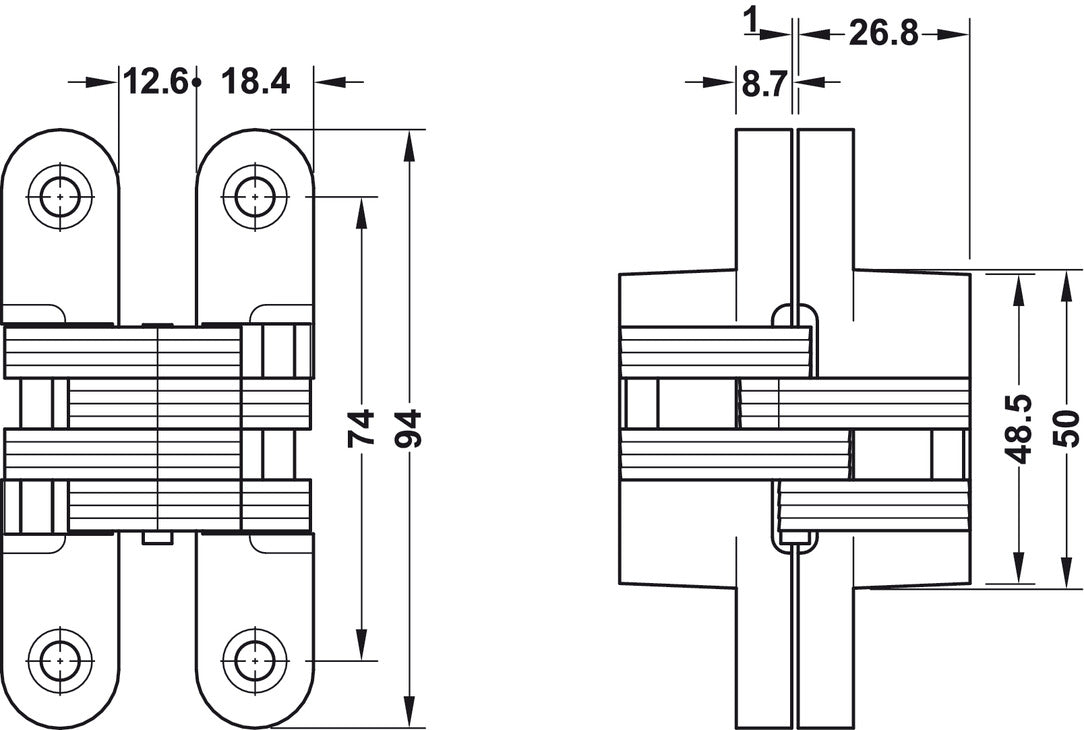

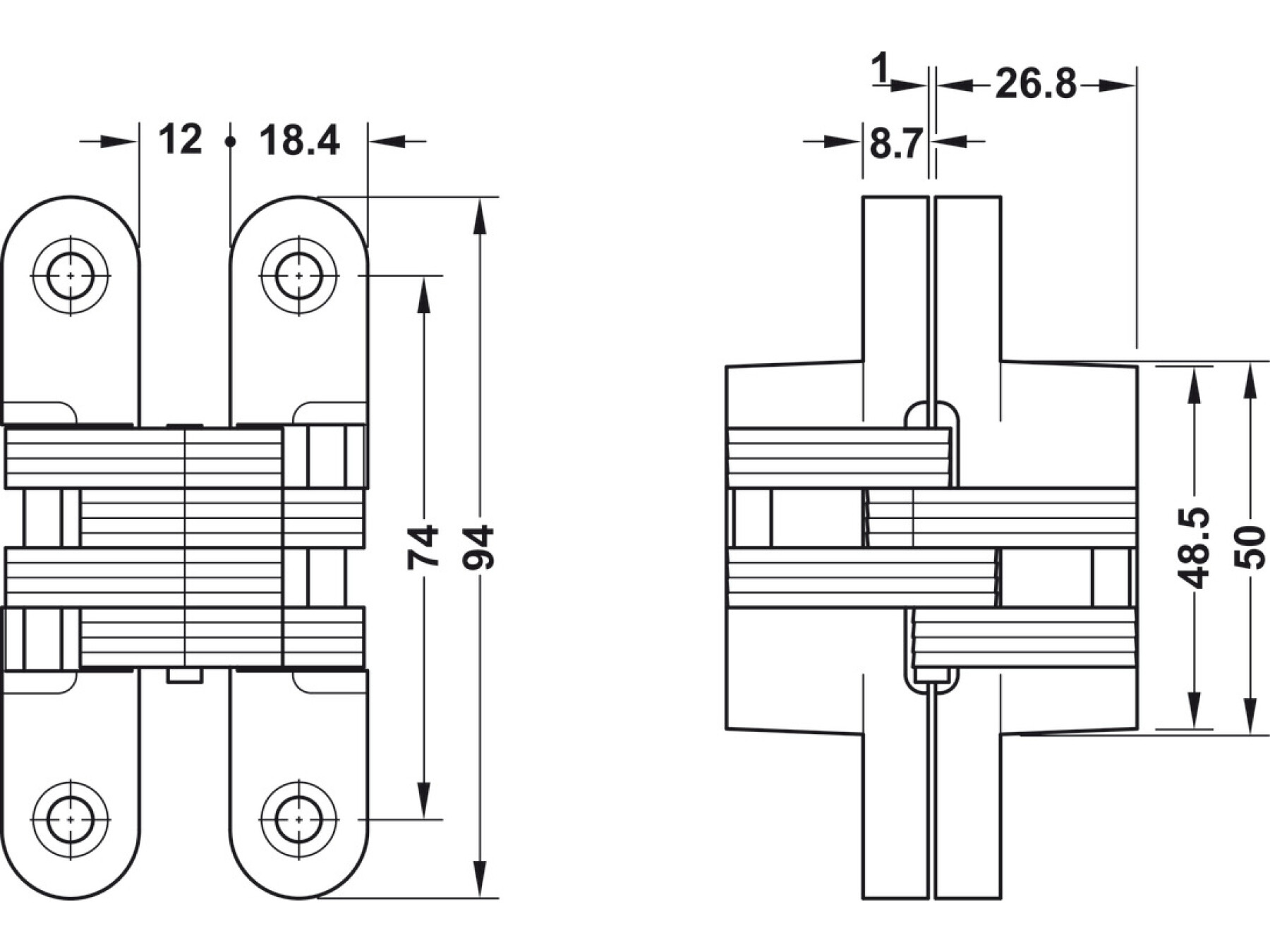

Product Information

Specifications

Mounting

For DIN left and DIN right hand use

Flange shape

rounded

Flange width

18.4 mm

Colour/finish

matt, chrome plated

Material

Zinc alloy

Flange height

94 mm

Area of application

For wooden frames
For flush interior doors

For door type

Wooden door leaf

For frame type

Wooden frame

Max. door weight for 2 hinges

45.00 kg

Opening angle

180.00 °

Door thickness

≥25 mm

Hafele Lifetime Guarantee

10 years

Order reference

Order Hospa Ø 4.0 mm countersunk screws separately
