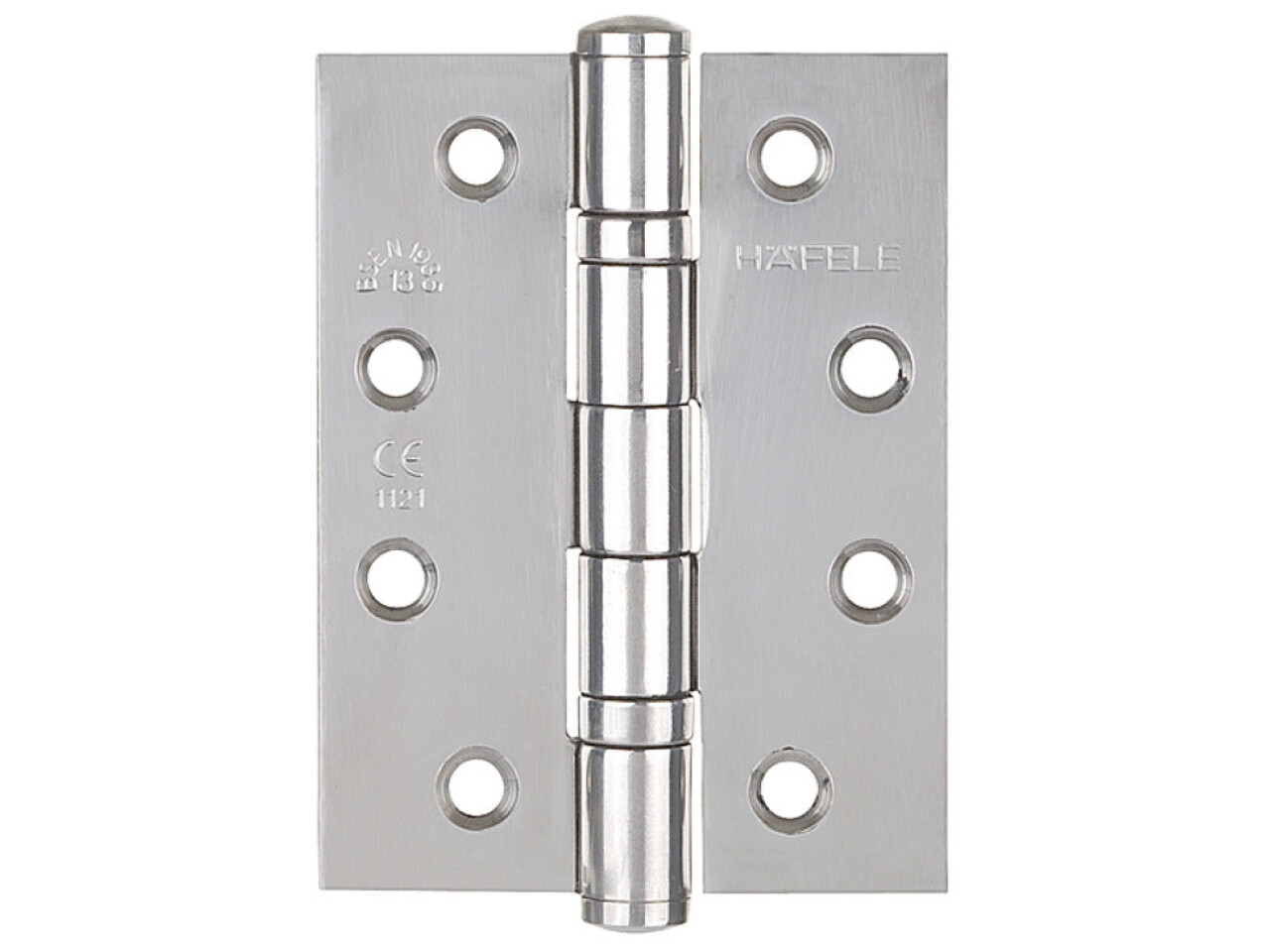

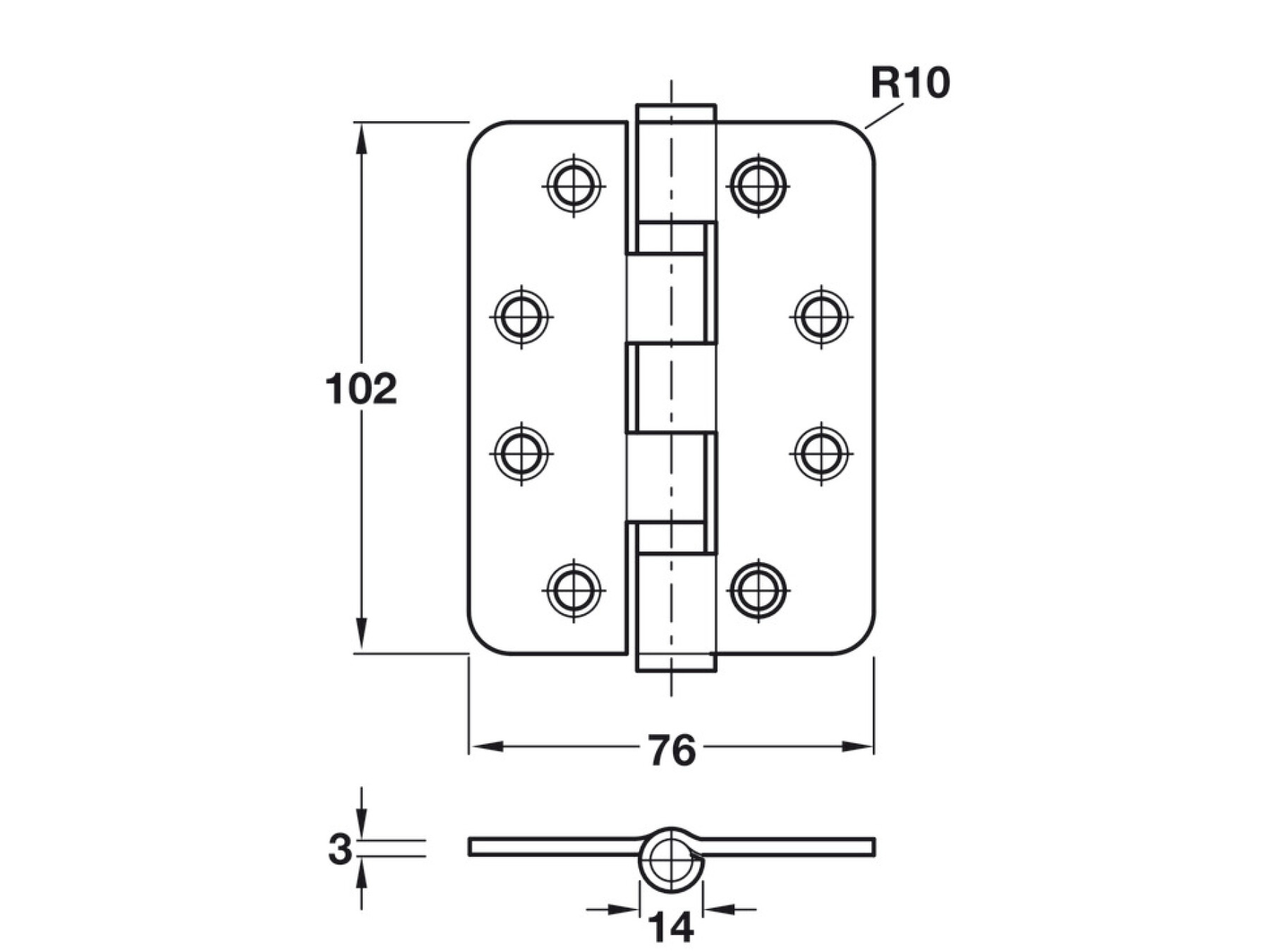

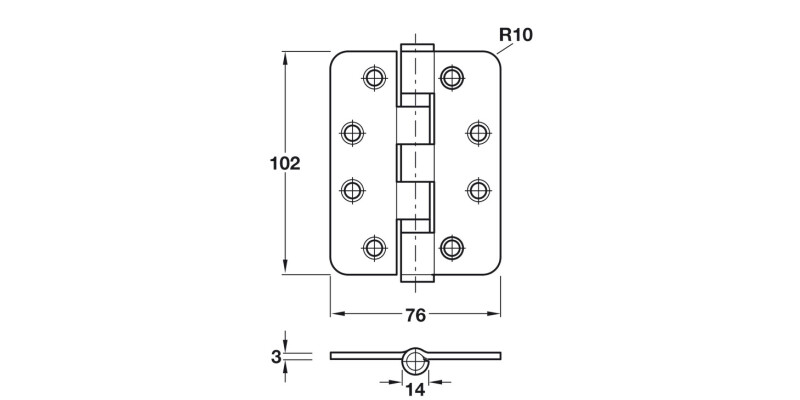

Butt Hinge 2BB Rad 102x76mm 304 PSS
Part Number: 926.90.141
ANSI hole pattern, Radius corners, polished
Price:
£6.48
Per Item
ANSI hole patternGrade 13 BS EN 1935Two high quality ball race joint bearings Order reference Fixing screws for... Read More
Product Information
Product Details
ANSI hole pattern
Grade 13 BS EN 1935
Two high quality ball race joint bearings
Order reference
Fixing screws for wooden frames and doors supplied
Please order fixing screws for metal frames and doors separately
Specifications
Mounting
For DIN left and DIN right hand use
Material
Stainless steel
Knuckle diameter
14.00 mm
Flange thickness
3.00 mm
Model series
Butt hinge
Area of application
For wooden or metal frames
for flush wooden or metal interior doors
For door type
Wooden door leaf, metal door
For frame type
Wooden frame, Metal frame
Max. door weight for 2 hinges
120.00 kg

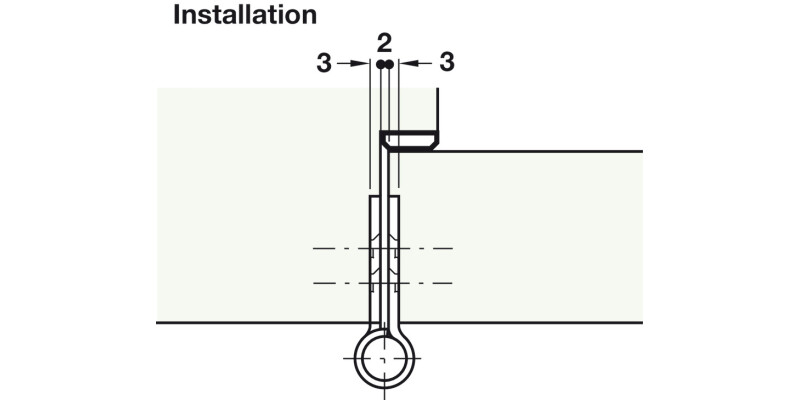

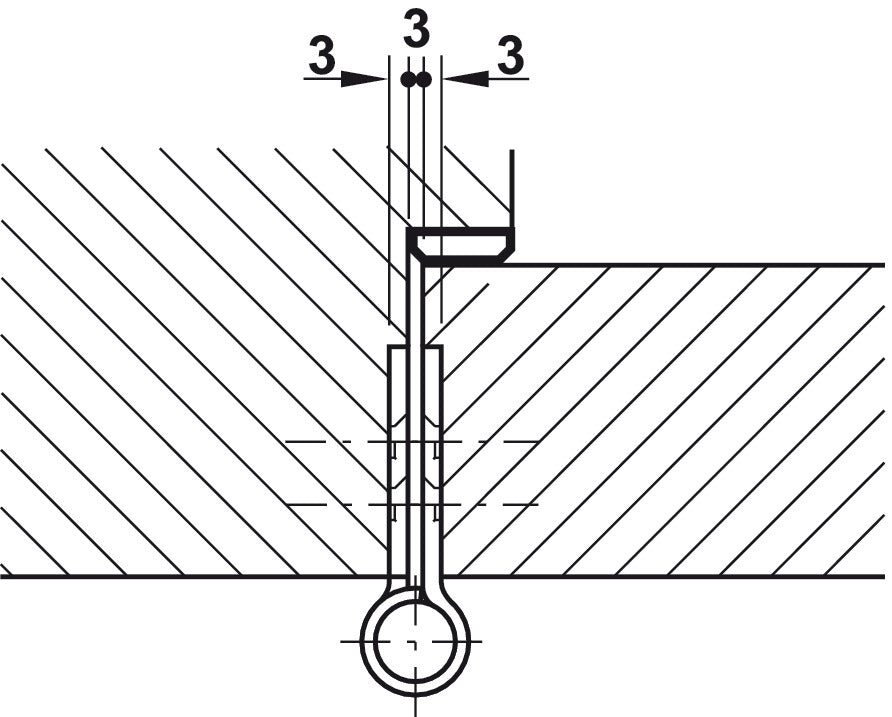

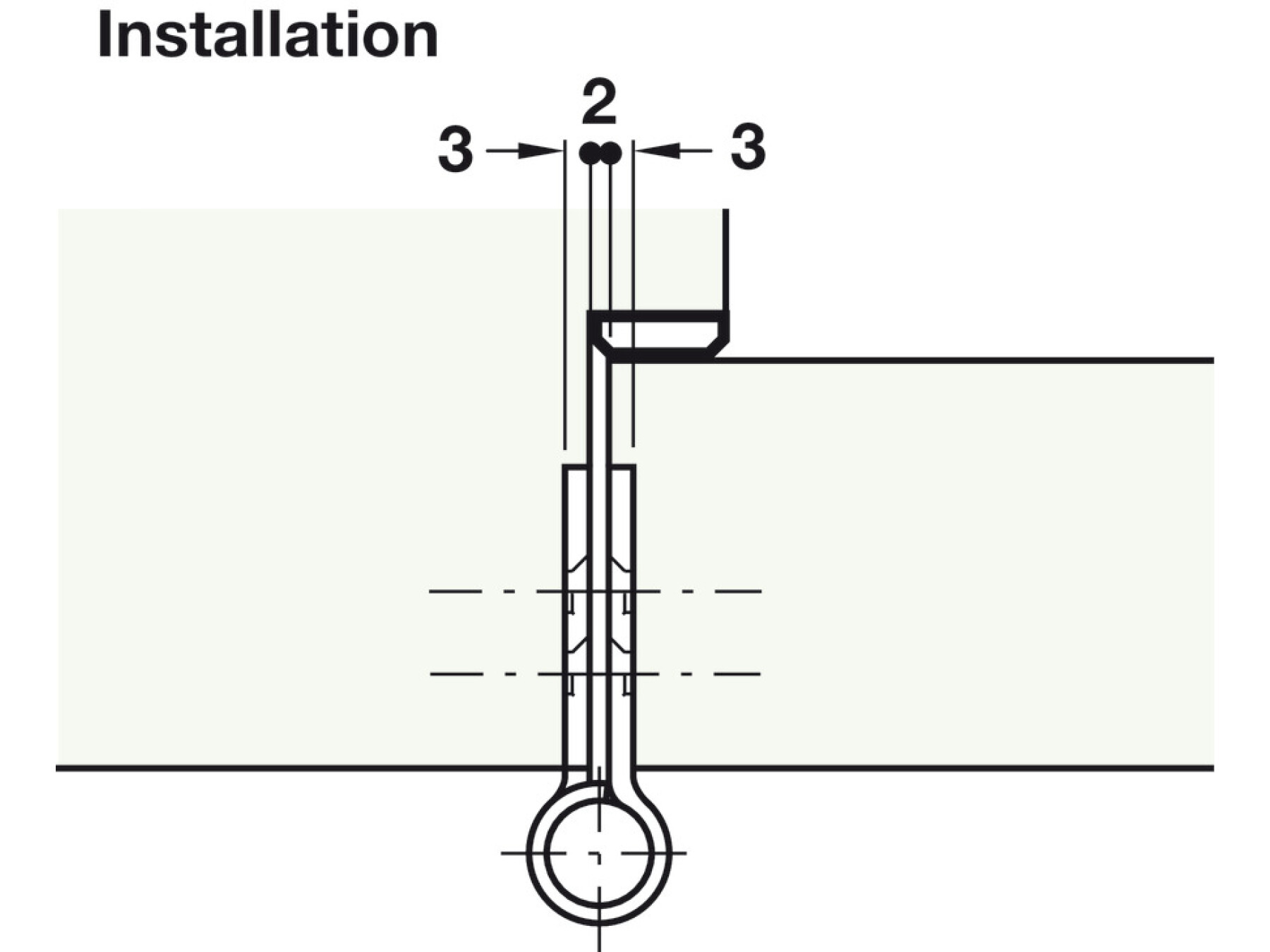

Routing depth
3.00 mm
Bearing type
With fixed pin, Knuckle with two ball bearings
Standard
Certified in compliance with EN 1935:2002
Grade
4|7|6|1|1|4|0|13
Supplied with
Fixings
